2AR2STAK4206Wireless kids headphones

TAK4206 8 FCC ID: 2AR2STAK4206 IC: 24589-TAK4206 www.philips.com/welcome 1. 2.3.4.5.6. 7. Full user manual in all languages available on: | Manuel d'utilisation complet dans toutes les langues disponibles sur: | Manual completo de usuario disponible en todos los idiomas en: | Die vollständige Bedienungsanleitung ist in allen Sprachen verfügbar unter: | Manuale dell’utente completo in tutte le lingue disponibile su: | Manual do utilizador completo em todos os idiomas, disponível em: | Volledige gebruikershandleiding in alle talen beschikbaar op: | Полное руководство пользователя на всех языках доступно по ссылке: | Барлық тілдердегі толық нұсқаулықты мына жерден алуға болады: | | 다음 사이트에서 모든 언어로 된 전체 사용자 설명서를 확인하실 수 있습니다: | 所有語言的完整使用者手冊位於：| 以下网站提供所有语言版本的完整用户手册： www.philips.com/support * 8. English: Notice of c omplia nce The devi ce complies with the FCC rules, Part 15. Operation is subject to the following two conditions: . This device may not cause harmful interference, and . This device must accept any interference received, including interference that may cause undesired operation. FCC rules This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part  of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be colocated or operating in conjunction with any other antenna or transmitter. Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Canada: This device contains licenceexempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence exempt RSS(s). Operation is subject to the following two conditions: () this device may not cause harmful interference, and () This device must accept any interference received, including interference that may cause undesired operation of the device. CAN ICES(B)/NMB(B) IC Radiation Exposure Statement: This equipment complies with Canada radiation exposure limits set forth for uncontrolled environments. This transmitter must not be colocated or operating in conjunction with any other antenna or transmitter. French: Avis de conformité Cet appareil satisfait aux règlements de la FCC partie 15 du Code of Federal Regulations. Son fonctionnement est assujetti aux deux conditions suivantes : . Cet appareil ne doit pas causer d’interférence préjudiciable et . l’appareil doit accepter toute interférence reçue, y compris les interférences qui peuvent causer un fonctionnement non désiré. Règlement de la FCC Cet équipement a été testé et jugé compatible avec les limites s’appliquant aux appareils numériques de la classe B, conformément à l’article  du règlement de la FCC. Ces limites ont été définies pour fournir une protection raisonnable contre les interférences nuisibles dans le cadre d’une installation résidentielle. Cet équipement génère, utilise et peut émettre de l’énergie radiofréquence et, s’il n’est pas installé ni utilisé conformément aux instructions, peut causer des interférences gênantes pour les communications radio. Rien ne garantit toutefois que des interférences ne surviendront pas dans une installation particulière. Si cet équipement cause des interférences nuisibles pour la réception de la radio ou de la télévision, ce qui peut être déterminé en mettant l’équipement hors tension puis sous tension, l’utilisateur devra essayer de corriger ces interférences en effectuant une ou plusieurs des opérations suivantes : Déplacez l’antenne de réception. Augmentez la distance entre l’équipement et le récepteur. Branchez l’équipement à une prise d’un circuit autre que celui sur lequel le récepteur est branché. Consultez le détaillant ou un technicien de radiotélévision expérimenté. Canada: L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : . L’appareil ne doit pas produire de brouillage; . L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. CAN ICES(B)/NMB(B) Déclaration d’IC sur l’exposition aux radiations: Cet équipement est conforme aux limites d’exposition aux radiations définies par le Canada pour des environnements non contrôlés. Cet émetteur ne doit pas être installé au même endroit ni utilisé avec une autre antenne ou un autre émetteur. Headphones 4000 Series TAK4206 2h R 05" ON Philips TAK4206 R R x R 02"02" R x 01" RR 01" R 01" R R

Authority to Act as Agent [Dec. 24, 2020] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement (MMD Hong Kong Holding Limited) FCC ID: (2AR2STAK4206) To Whom It May Concern: We, (MMD Hong Kong Holding Limited), hereby authorized Shenzhen UnionTrust Quality and Technology Co., Ltd. to act as our Agent for the purpose of preparing application for FCC ID number (2AR2STAK4206) under all applicable parts of the FCC rules and regulations. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 36 months By: __________________________ Tomas Guan (Signature 1 ) (Print name) Title: Manager On behalf of: (MMD Hong Kong Holding Limited) Telephone: 86-755-36358341 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

1(1) [MMD Hong Kong Holding Limited] [Dec. 24, 2020] Attention: Application Examiner RE: Request for Confidentiality Applicant: [MMD Hong Kong Holding Limited] FCC ID: [2AR2STAK4206] To Whom It May Concern: Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request is hereby submitted by [MMD Hong Kong Holding Limited] to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential:  Schematics  Detailed Block Diagrams  Detailed Operational/Functional Description Rationale for request for confidentiality: [MMD Hong Kong Holding Limited] has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.] [Short term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development.] If you have questions or need further information, please contact the undersigned. Sincerely, [Signature] [Tomas Guan] [ Manager] [MMD Hong Kong Holding Limited]

DECLARATION OF IDENTITY Hereby we: MMD Hong Kong Holding Limited Brand Name: PHILIPS Name of Product: Wireless kids headphones Declares that Series Model: TAK4206, TAK4206xx/yy (xx=AA-ZZ or blank denoted different color; yy=00-99 denoted different country destination) Thank you very much. Sincerely yours, 2020/12/16 --------------------------------------- ------------------------- Andy chen Date (yyyy/mm/dd) Safety & Approbation Engineer MMD Hong Kong Holding Limited

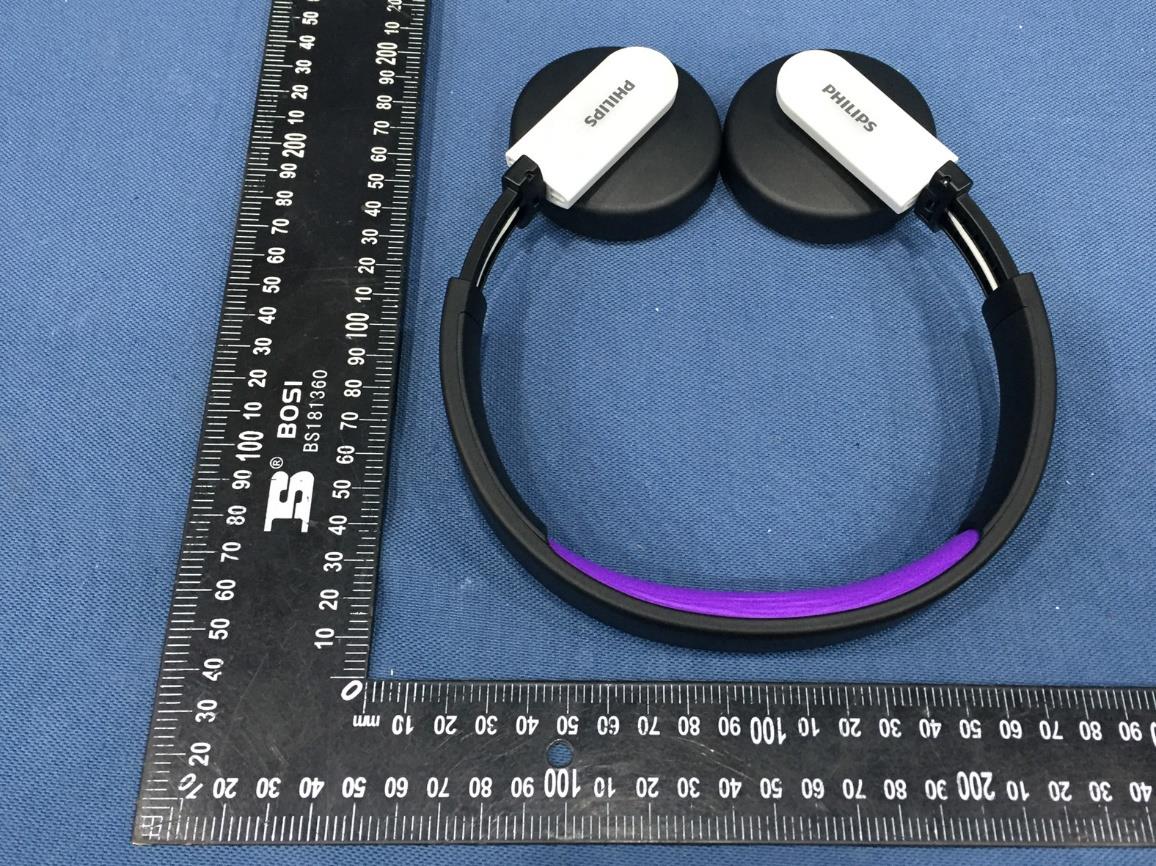

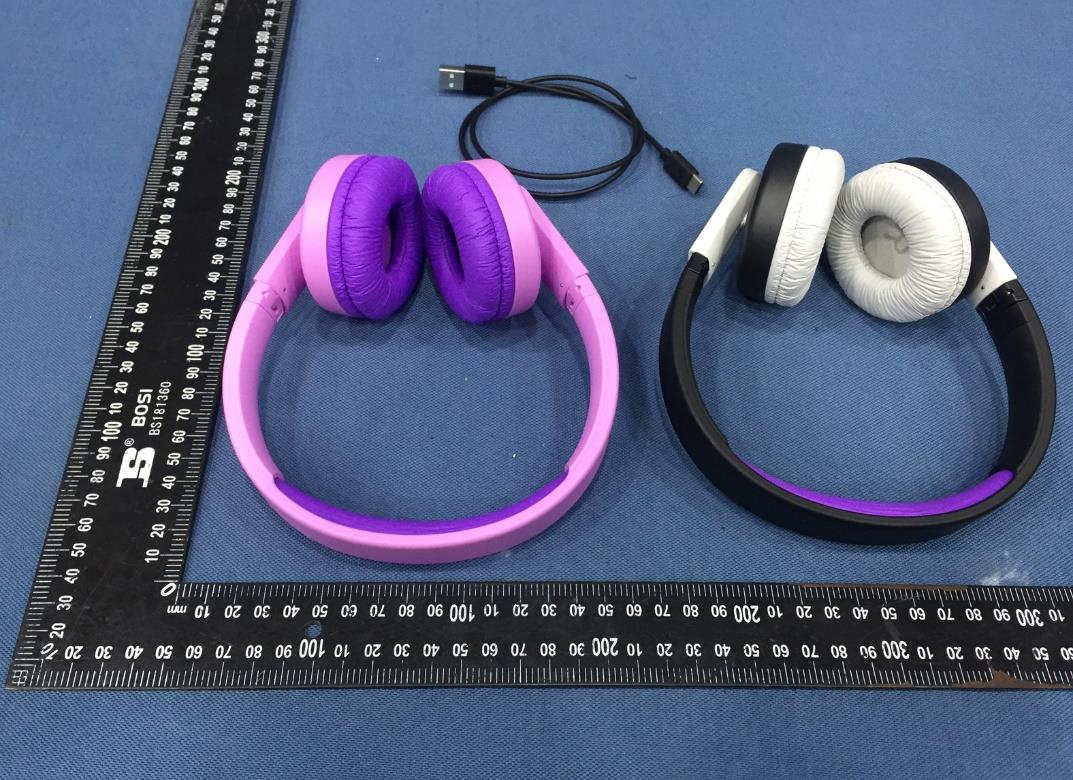

Page 1 of 2 FCC ID: 2AR2STAK4206 IC: 24589-TAK4206 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT EXTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 2 FCC ID: 2AR2STAK4206 IC: 24589-TAK4206 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo

TAK4206BL Pantone 2121 C “PHILIPS” Logo (Only on LHS) “L”&”R”ICON Volume Button Silk Printing Recess engraving0.2glossAs per material color First PGD release for cost and feasibility study v0.1 2020.Aug.07 Update for CUP ID v0.2 2020.Aug.21 Update for Icon v0.3 2020.Sep.4 Update for Workmark v0.4 2020.Sep.8 Update for ID v0.5 2020.Sep.25 Update for Workmark v0.6 2020.Octo.10 Update for Authentication v0.7 2020.NOV.20 Update for Authentication v0.8 2020.NOV.23 Pantone 2143 CSilk Printing K4206 PGD Page 1/2 v0.5 LED Button Relief engraving 0.2mattAs per material color v0.5 Power Button Recess engraving0.2glossAs per material color v0.5 v0.1 v0.1 Ear Can RHS R Ear Can LHS 20.0 14.37 D L R 12.0 E D E E D 10.577.49 L K4206 PGD Page 2/2 Ear Can LHSEar Can RHS Authentication A Radium carving gloss As per material color As per material color v0.7 Authentication B Relief engraving 0.15matt v0.7 F F F G G G Made in China MMD HK HOLDING LTD. Unit 1006, 10/F, C-Bons Int’l Center,HK 飞生(上海)电子科技有限公司 Made in China MMD HK HOLDING LTD. Unit 1006, 10/F, C-Bons Int’l Center,HK 飞生(上海)电子科技有限公司 Model: TAK4206 Ref no.: TAK4206BL/00Input: 5.0V 0.5A Output: 5.0V 20mABattery Capacity: 3.7V 240mAh 0.888WhFCC ID:2AR2STAK4206 IC:24589-TAK4206CMIIT ID: XXXXXXXXXX Model: TAK4206 Ref no.: TAK4206BL/00 Input: 5.0V 0.5A Output: 5.0V 20mA Battery Capacity: 3.7V 240mAh 0.888Wh FCC ID:2AR2STAK4206 IC:24589-TAK4206 CMIIT ID: XXXXXXXXXX

Page 1 of 5 FCC ID: 2AR2STAK4206 IC: 24589-TAK4206 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT INTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 5 FCC ID: 2AR2STAK4206 IC: 24589-TAK4206 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 5 FCC ID: 2AR2STAK4206 IC: 24589-TAK4206 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo BT Antenna Page 4 of 5 FCC ID: 2AR2STAK4206 IC: 24589-TAK4206 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 5 of 5 FCC ID: 2AR2STAK4206 IC: 24589-TAK4206 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo

Page 2 of 10 Report No.: 201209006RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.0 Version Version No. Date Description V1.0 December 24, 2020 Original Page 3 of 10 Report No.: 201209006RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.0 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 4 1.4 OTHER INFORMATION ......................................................................................................................................... 5 1.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................................................... 6 1.6 DEVIATION FROM STANDARDS ............................................................................................................................ 6 1.7 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 6 1.8 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 6 2. EQUIPMENT LIST .................................................................................................................................................... 6 3. SAR TEST EXCLUSION EVALUATION ................................................................................................................... 7 3.1 REFERENCE DOCUMENTS FOR EVALUATION ........................................................................................................ 7 3.2 EXEMPTION LIMITS FOR ROUTINE EVALUATION – SAR EVALUATION .................................................................... 7 3.2.1 SAR TEST EXCLUSION THRESHOLD ........................................................................................................ 7 3.2.2 TEST PROCEDURE ................................................................................................................................. 9 3.3 MPE CALCULATION RESULTS ............................................................................................................................ 9 3.3.1 FOR BT ................................................................................................................................................. 9 APPENDIX 1 PHOTOS OF TEST SETUP ..................................................................................................................... 10 APPENDIX 1 PHOTOS OF EUT CONSTRUCTIONAL DETAILS ................................................................................. 10 Page 4 of 10 Report No.: 201209006RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.0 1. GENERAL INFORMATION 1.1 CLIENT INFORMATION Applicant: MMD Hong Kong Holding Limited Address of Applicant: Unit 1006 , 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Manufacturer: MMD Hong Kong Holding Limited Address of Manufacturer: Unit 1006 , 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong 1.2 EUT INFORMATION Product Name: Wireless kids headphones Model No. / HVIN: TAK4206 Add. Model No. : TAK4206xx/yy (xx=AA-ZZ or blank denoted different color; yy=00-99 denoted different country destination) Trade Mark: or PHILIPS DUT Stage: Production Unit EUT Supports Function: 2.4 GHz ISM Band: Bluetooth 5.0 Software Version: V009 Hardware Version: V3 Sample Received Date: December 9, 2020 Sample Tested Date: December 13, 2020 to December 16, 2020 Note: The additional model TAK4206xx/yy (xx=AA-ZZ or blank denoted different color; yy=00-99 denoted different country destination) is identical with the test model TAK4206 except the model number for marketing purpose. 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD For BT_LE Frequency Band: 2400 MHz to 2483.5 MHz Frequency Range: 2402 MHz to 2480 MHz Bluetooth Version: Bluetooth LE Type of Modulation: GFSK Number of Channels: 40 Channel Separation: 2 MHz Antenna Type: PCB Antenna Antenna Gain: 1.72 dBi Maximum Peak Power: 2.76 dBm Page 5 of 10 Report No.: 201209006RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.0 For BT_EDR Frequency Band: 2400 MHz to 2483.5 MHz Frequency Range: 2402 MHz to 2480 MHz Bluetooth Version: Bluetooth BR + EDR Modulation Technique: Frequency Hopping Spread Spectrum(FHSS) Type of Modulation: GFSK, π/4DQPSK, 8DPSK Number of Channels: 79 Channel Separation: 1 MHz Antenna Type: PCB Antenna Antenna Gain: 1.72 dBi Maximum …

Text truncated - open the document above for the full version.

Page 2 of 45 Report No.: 201209006RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 Version Version No. Date Description V1.0 December 24, 2020 Original Page 3 of 45 Report No.: 201209006RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.2.1 GENERAL DESCRIPTION OF EUT ............................................................................................................ 4 1.2.2 DESCRIPTION OF ACCESSORIES .............................................................................................................. 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 4 1.4 OTHER INFORMATION ......................................................................................................................................... 5 1.5 DESCRIPTION OF SUPPORT UNITS ...................................................................................................................... 5 1.6 TEST LOCATION ................................................................................................................................................. 5 1.7 TEST FACILITY ................................................................................................................................................... 6 1.8 DEVIATION FROM STANDARDS ............................................................................................................................ 6 1.9 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 6 1.10 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 6 1.11 MEASUREMENT UNCERTAINTY ........................................................................................................................... 6 2. TEST SUMMARY ...................................................................................................................................................... 7 3. EQUIPMENT LIST .................................................................................................................................................... 8 4. TEST CONFIGURATION .......................................................................................................................................... 9 4.1 ENVIRONMENTAL CONDITIONS FOR TESTING ........................................................................................................ 9 4.1.1 NORMAL OR EXTREME TEST CONDITIONS ............................................................................................... 9 4.1.2 RECORD OF NORMAL ENVIRONMENT....................................................................................................... 9 4.2 TEST CHANNELS ............................................................................................................................................... 9 4.3 EUT TEST STATUS .......................................................................................................................................... 10 4.4 PRE-SCAN .................................................................................................................................................... 10 4.4.1 PRE-SCAN UNDER ALL PACKETS AT MIDDLE CHANNEL .............................................................................. 10 4.4.2 WORST-CASE DATA PACKETS ................................................................................................................ 10 4.4.3 TESTED CHANNEL DETAIL ...................................................................................................................... 11 4.5 TEST SETUP .................................................................................................................................................... 12 4.5.1 FOR RADIATED EMISSIONS TEST SETUP ................................................................................................ 12 4.5.2 FOR CONDUCTED EMISSIONS TEST SETUP ............................................................................................ 13 4.5.3 FOR CONDUCTED RF TEST SETUP ........................................................................................................ 14 4.6 SYSTEM TEST CONFIGURATION ........................................................................................................................ 14 4.7 DUTY CYCLE ................................................................................................................................................... 15 5. RADIO TECHNICAL REQUIREMENTS SPECIFICATION .................................................................................... 16 5.1 REFERENCE DOCUMENTS FOR TESTING ............................................................................................................ 16 5.2 ANTENNA REQUIREMENT ..................................…

Text truncated - open the document above for the full version.

Page 32 of 45 Report No.: 201209006RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 Pulse Width Number of Pulses in 31.6 Seconds 8DPSK_3-DH1 8DPSK_3-DH3 8DPSK_3-DH5 Page 33 of 45 Report No.: 201209006RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 5.8 CONDUCTED OUT OF BAND EMISSION Test Requirement: FCC 47 CFR Part 15 Subpart C Section 15.247(d) RSS-247 Issue 2, Section 5.5 Test Method: ANSI C63.10-2013 Section 6.10.4 & Section 7.8.8 Limit: In any 100kHz bandwidth outside the frequency bands in which the spread spectrum intentional radiator in operating, the radio frequency power that is produced by the intentional radiator shall be at least 20dB below that in the 100kHz bandwidth within the band that contains the highest level of the desired power. Test Procedure: Remove the antenna from the EUT and then connect a low loss RF cable from the antenna port to the spectrum analyzer. Use the following spectrum analyzer settings: Step 1:Measurement Procedure REF a) Set instrument center frequency to 2400 MHz or 2483.5 MHz. b) Wide enough to capture the peak level of the emission operating on the channel closest to the band edge, as well as any modulation products that fall outside of the authorized band of operation. c) Set the RBW = 100 kHz. d) Set the VBW ≥ 3 x RBW. e) Detector = peak. f) Sweep time = auto couple. g) Sweep points ≥ 2 x Span/RBW h) Trace mode = max hold. i) Allow the trace to stabilize. j) Set the marker on the emission at the band edge, or on the highest modulation product outside of the band, if this level is greater than that at the band edge. Enable the marker-delta function, and then use the marker-to-peak function to move the marker to the peak of the in-band emission. Step 2:Measurement Procedure OOBE a) Set RBW = 100 kHz. b) Set VBW ≥ 300 kHz. c) Detector = peak. d) Sweep = auto couple. e) Trace Mode = max hold. f) Allow trace to fully stabilize. g) Use the peak marker function to determine the maximum amplitude level. Note: The cable loss and attenuator loss were offset into measure device as an amplitude offset. Test Setup: Refer to section 4.5.3 for details. Instruments Used: Refer to section 3 for details Test Mode: Hopping Frequencies Transmitter mode Test Results: Pass Test Data: Page 34 of 45 Report No.: 201209006RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 The test plots as follows: GFSK In-Band Reference Level Out of Band Emission Lowest Channel Middle Channel Highest Channel Page 35 of 45 Report No.: 201209006RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 π/4DQPSK In-Band Reference Level Out of Band Emission Lowest Channel Middle Channel Highest Channel Page 36 of 45 Report No.: 201209006RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 8DPSK In-Band Reference Level Out of Band Emission Lowest Channel Middle Channel Highest Channel Page 37 of 45 Report No.: 201209006RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 Hopping Lowest Channel Hopping Highest Channel GFSK π/4DQPSK 8DPSK Page 38 of 45 Report No.: 201209006RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 …

Text truncated - open the document above for the full version.
