Wireless Speaker TAS3505 User manual Register your product and get support at www.philips.com/support EN1 Contents 1 Important 2 Safety 2 2 Your wireless speaker 3 Introduction 3 What's in the box 3 Over view of the speaker 3 3 Get star ted 4 Charge the built-in batt er y 4 4 4 Play from Bluetooth devices 5 Play from Bluetooth devices 5 Control playback 5 Control phone call 5 5 Pr oduct information 6 6 Troubleshooting 7 General 7 Bluetooth 7 7 Notice 8 Compliance 8 Care of the envir onment 8 FCC Statement 8 Tra demark notice 9 EN2 1 Important Safety Important safety instructions •Make sure that the power supply voltage corresponds to the voltage on the back or the underside of the unit. •The speaker shall not be exposed to dripping or splashing. •Do not place any source of danger on the speaker (e.g. liquid filled objects, lit candles). •Make sure that there is enough free space around the speaker for ventilation. •Please use the speaker safely in an environment with temperature between •Only use attachments and accessories specified by the manufacturer. Battery safety precautions •Danger of explosion if a battery is incorrectly replaced. Replace only with the same or equivalent type. •A battery (battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire or the like. •A battery in extreme high or low temperatures during use, storage or transportation, and low air pressure at high altitude can pose safety hazards. •Do not replace a battery with an incorrect type that can defeat a safeguard (for example, some lithium battery types). •Disposing a battery into fire or a hot oven, mechanically crushing or cutting a battery can result in an explosion. •Leaving a battery in an extremely high temperature surrounding, or an extremely low air pressure environment may result in an explosion or leakage of flammable liquid or gas. Warning •Never remove the casing of this speaker. •Never lubricate any part of this speaker. •Place this speaker on a flat, hard and stable surface. •Never place this speaker on other electrical equipment. •Only use this speaker indoors. Keep this speaker away from water, moisture and liquid-filled objects. •Keep this speaker away from direct sunlight, naked flames or heat. •Risk of explosion if a battery is replaced by an incorrect type. EN3 2 Your wireless speaker Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that philips.com/welcome. What's in the box Check and identify the contents of your pac kage: •Speaker •USB cable •Quick start guide •Safety sheet •Worldwide warranty Overview of the speaker 2 3 4 1 5 6 7 •Enter Bluetooth pairing mode. •Clear Bluetooth pairing information. LED indicator •In Bluetooth mode, press to pause or resume play. •Respond to an incoming call through Bluetooth connection. •Increase volume. •Decrease volume. • •Charge the built-in battery. EN4 3 Get started Always follow the instructions in this chapter in sequence. Charge the built-in battery The speaker is powered by a built-in rechargeable battery. Note •Fully charge the built-in battery before using. •When the speaker is turned on and the battery is low, the battery level LED indicator blinks White & Red flickered slowly alternately. Connect the USB-C socket on the speaker to an outlet (5V 1A) by using the provided USB cable. 5V 1 A When the speaker is being charged, Red LED bIinks slowly. When the speaker is fully charged, White LED solid on. Caution •Risk of speaker damage! Make sure the power supply voltage corresponds to the voltage printed on the back or the underside of the speaker. •Risk of electric shock! When unplug the USB cable, always pull the plug from the socket. Never pull the cable. •Use only a USB cable specified by the manufacturer or sold with this speaker. Press to turn the speaker on. You will hear the prompt sound. You will hear the prompt sound. again. Note • EN5 4 Play from Bluetooth devices Play from Bluetooth devices With this speaker, you can enjoy audio from your Bluetooth device. Note •Make sure that the Bluetooth function is enabled on your device. • between the speaker and your Bluetooth device. •Keep away from any other electronic device that may cause interference. 1 Press to turn the speaker on, it will enter Bluetooth pairing mode automatically. You can also press and hold for 2 seconds to enter Bluetooth pairing mode. 2 Enable Bluetooth and select "Philips S3505" in the Bluetooth list on your device for pairing. If a message prompts for permission for Bluetooth connection, confirm it. If a password is required, enter 0000 and then confirm. 3 Play audio on your Bluetooth device to start streaming music. LED indicatorDescription Blinking white quicklyReady for pairing Blinking white slowlyReconnecting the last connected device Solid whiteConnected Note •To disconnect a device, press and hold for 2 seconds until the LED indicator blinks white quickly. •To clear the pairing information, press and hold for 8 seconds until the LED indicator blinks white quickly Control playback During playing the music, Press to pause or resume play Press twice to play the next track Adjust the volume Control phone call Press to answer or end a call Press and hold to reject a call Adjust the volume 2066 EN6 5 Product information Note •Product information is subject to change without prior notice. General information USB port5V 1A Built-in Lithium battery3.7V, 1200mAh Dimensions (W x H x D) 125.4 x 72.3 x 56 mm Weight (main unit)228g Amplifier Output power5 W Frequency response60 Hz - 20 kHz Signal to noise ratio> 70 dB Speakers Impedance4 Maximum input power20 W Size72.3x56x125.4mm Bluetooth Bluetooth version 5.0 Frequency range2402 - 2480 MHz Maximum transmition power 4 dBm Compatible Bluetooth profiles A2DP, AVRCP,HFP Bluetooth rangeapprox. 20m EN7 6 Troubleshooting Warning •Never remove the casing of the speaker. To keep the warranty valid, never try to repair the speaker yourself. If you enco…

Text truncated - open the document above for the full version.

Safety • Read these instructions. • Heed all warnings. • Follow all instructions. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat. • Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the clock radio. Only use attachments/accessories specied by the manufacturer. • • Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. • • Battery usage CAUTION - To prevent battery leakage which may result in bodily injury, property damage, or damage to the speaker: • Install all batteries correctly, + and - as marked on the unit. • Remove batteries when the unit is not used for a long time. • The battery shall not be exposed to excessive heat such as sunshine, re or the like. • • This speaker shall not be exposed to dripping or splashing. • Do not place any sources of danger on the speaker (e.g. liquid lled objects, lighted candles). Where the plug of the Direct Plug-in Adapter is used as the disconnect device, the disconnect device shall remain readily operable. FCC INFORMATION NOTE: This equipment has been tested and • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. • Consult the dealer or an experienced This device complies with part 15 of the FCC Rules, Operation is subjuect to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation radio / TV technician for help. IC-Canada: CAN ICES-3(B)/NMB-3(B) This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: Sécurité • Lisez ces instructions. • Tenez compte de tous les aver tissements. • Suivez toutes les instructions. • Ne bouchez aucune ouver ture de ventilation. Exécutez l ’installa tion conformément aux instructions du fabricant. • Ne l’installez pas à proximité d’une source de chaleur tel le que des radiateurs, des bouches de chaleur, des fourneaux ou d’autres appareils (y c ompris les ampl cateurs) qui pr oduisent de la chaleur. • Évitez de marcher sur l e cor don secteur ou de le pincer , en particulier au niveau des des prises de courant et à son poin t de sortie du radio-réveil. • Util isez seulement des compléments/ accessoir r l e constructeur. • Débranchez cet appareil pendant les orages ou s'il est inutilisé pendant de longues périodes. • Toutes les réparations doiv ent être e ectuées par un personnel qual Une révision est nécessair e si l’appareil a été endommagé d'une façon quelconque, si le cor don ou la alimentation sont endommagés, si du liquide a été renversé sur l'appareil ou si des objets sont tombés dedans, si l’appareil a été exposé à la pluie ou à l’humidité, s'il ne fonctionne pas normalement ou s'il est tombé. • Util is ation des pil es, ATTENTION – Pour éviter une fuite des pil es pouvant entr aîner des blessures, des dommages aux biens, ou endommager l e radio réveil : • Installez toutes les pil es correctement, + et - selon les marquages de l’appareil. • Enl evez l es pil es lorsque l’appareil ne doit pas être utilisé sur une longue période. • Les pil es ou batt eries ne doiv ent pas être exposées à une chaleur e xcessive tel le que le soleil, un feu ou un équivalent. • Ce radio-réveil ne doit pas être exposé à un égouttement ou à des éclaboussures. • Ne placez aucune source de danger sur l e radio-réveil (par e x. des objets remplis de liquides, des bougies allumées). • Si la ptateur branché directement sert de dispositif de déconnexion, ils doiv ent r ester a isément accessibles. EN FR Seguridad • Lea estas instrucciones. • Obedezca todas las adver tencias. • Sig a todas las instrucciones. • No bloquee ninguna abertura de ventilación. Instale el producto conforme a las instrucciones del fabricante. • No instale el dispositivo cer ca de fuentes de calor , c omo radiadores, registros de calefacción, estufas u otros aparatos (incluidos los ampl cadores ) que generen calor . • Proteja el cable de alimentación para que nadie lo pise ni se pince, especialmente en los enchufes, prol ongadores y en el punto por donde sale del radio rel oj. • Util ic e solo complementos/accesorios cados por el fabricante. • Desenchufe el aparato durante tormentas…

Text truncated - open the document above for the full version.

Authority to Act as Agent [June 08, 2021] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement (MMD Hong Kong Holding Limited) FCC ID: (2AR2STAS3505) To Whom It May Concern: We, (MMD Hong Kong Holding Limited), hereby authorized Shenzhen UnionTrust Quality and Technology Co., Ltd. to act as our Agent for the purpose of preparing application for FCC ID number (2AR2STAS3505) under all applicable parts of the FCC rules and regulations. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 36 months By: __________________________ Tomas Guan (Signature 1 ) (Print name) Title: Manager On behalf of: (MMD Hong Kong Holding Limited) Telephone: 86-755-36358341 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

1(1) [MMD Hong Kong Holding Limited] [June 08, 2021] Attention: Application Examiner RE: Request for Confidentiality Applicant: [MMD Hong Kong Holding Limited] FCC ID: [2AR2STAS3505] To Whom It May Concern: Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request is hereby submitted by [MMD Hong Kong Holding Limited] to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential:  Schematics  Detailed Block Diagrams  Detailed Operational/Functional Description Rationale for request for confidentiality: [MMD Hong Kong Holding Limited] has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.] [Short term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development.] If you have questions or need further information, please contact the undersigned. Sincerely, [Signature] [Tomas Guan] [ Manager] [MMD Hong Kong Holding Limited]

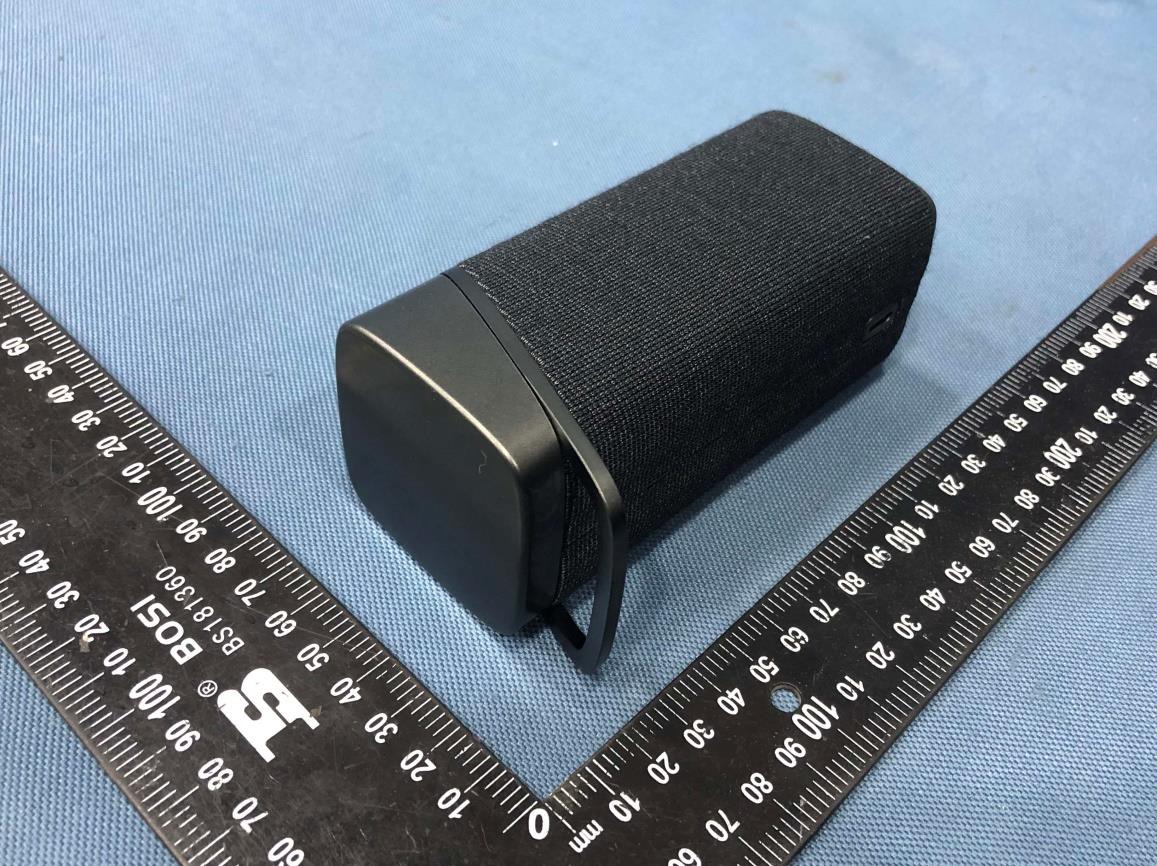

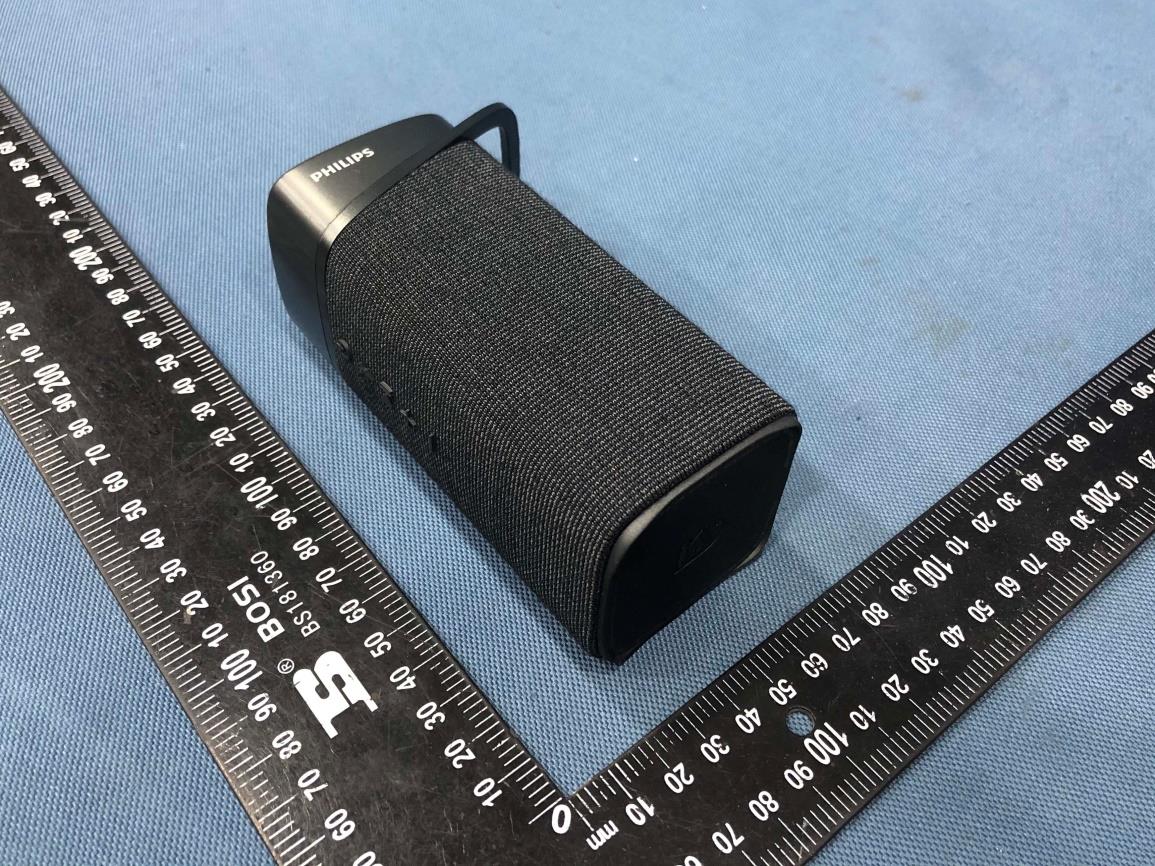

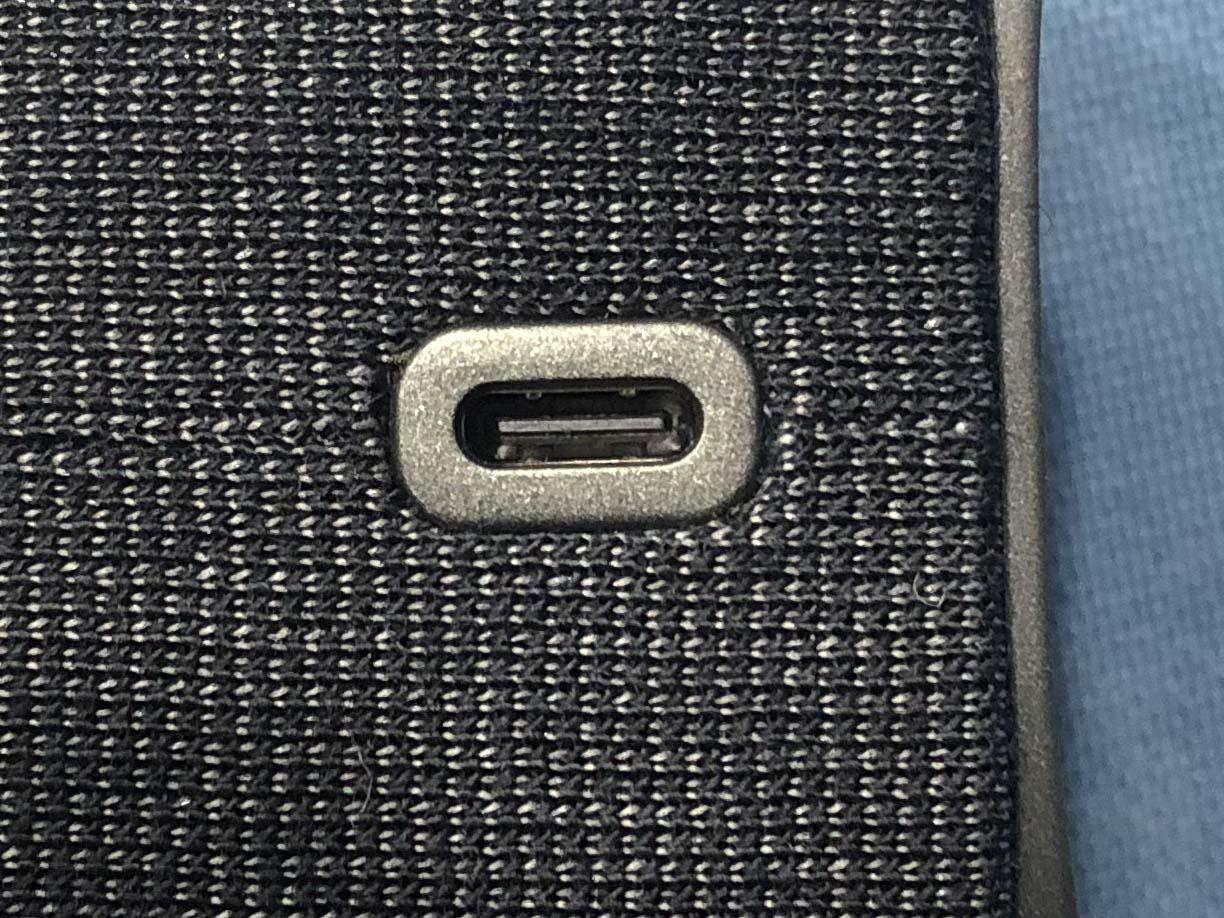

Page 1 of 3 FCC ID: 2AR2STAS3505 IC: 24589-TAS3505 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT EXTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 3 FCC ID: 2AR2STAS3505 IC: 24589-TAS3505 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 3 FCC ID: 2AR2STAS3505 IC: 24589-TAS3505 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo

批 准： 审 核： 绘 图： 比 例：1：1 生效日期：2021.06.10 表面处理：如描述 材质要求：如描述 页 数：1 机型: BM1176 单位: mm A 4 料号: RUB.03BM1176GY003 品名: 脚垫 版本: B.0 B.0 赣州得辉达科技有限公司 .,GANZHOU DEHUIDA ELECTRONICS CO LTD. ROHSHFREACHCA65 +/-0.2 尺寸公差: 版本 描述 A.0 日期 初步发行 2021.06.10 2020.05.15 胡红燕 1. 55*55*4.5mm 硅胶50度 表面细哑纹 深灰色+丝印字符 喷手感油 备3M 9448黑胶 过UV光照老化实验96H 重4.8g 全球版 环保 技术要求: 2. 其它未标注尺寸及公差请参照图档及公差表。

Page 1 of 4 FCC ID: 2AR2STAS3505 IC: 24589-TAS3505 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT INTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 4 FCC ID: 2AR2STAS3505 IC: 24589-TAS3505 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 4 FCC ID: 2AR2STAS3505 IC: 24589-TAS3505 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 4 FCC ID: 2AR2STAS3505 IC: 24589-TAS3505 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo BT Ant

Page 2 of 9 Report No.: 210513002RFC-2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.1 Version Version No. Date Description V1.0 June 9, 2021 Original Page 3 of 9 Report No.: 210513002RFC-2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.1 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 4 1.4 OTHER INFORMATION ......................................................................................................................................... 5 1.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................................................... 5 1.6 DEVIATION FROM STANDARDS ............................................................................................................................ 5 1.7 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 5 1.8 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 5 2. EQUIPMENT LIST .................................................................................................................................................... 6 3. SAR TEST EXCLUSION EVALUATION ................................................................................................................... 6 3.1 REFERENCE DOCUMENTS FOR EVALUATION ........................................................................................................ 6 3.2 EXEMPTION LIMITS FOR ROUTINE EVALUATION – SAR EVALUATION .................................................................... 6 3.2.1 SAR TEST EXCLUSION THRESHOLD ........................................................................................................ 6 3.2.2 TEST PROCEDURE ................................................................................................................................. 8 3.3 MPE CALCULATION RESULTS ............................................................................................................................ 8 3.3.1 FOR BT ................................................................................................................................................. 8 APPENDIX 1 PHOTOS OF TEST SETUP ....................................................................................................................... 9 APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS ................................................................................... 9 Page 4 of 9 Report No.: 210513002RFC-2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.1 1. GENERAL INFORMATION 1.1 CLIENT INFORMATION Applicant: MMD Hong Kong Holding Limited Address of Applicant: Unit 1006, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Manufacturer: MMD Hong Kong Holding Limited Address of Manufacturer: Unit 1006, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong 1.2 EUT INFORMATION Product Name: Wireless Speaker Model No. / HVIN: TAS3505 Add. Model No: TAS3505/37, TAS3505/00, S3505, S3505/00, S3505x/yy, TAS3505x/yy (“x” can be A to Z or nil; “yy” can be 00-99 or nil for country code) Trade Mark: PHILIPS DUT Stage: Production Unit EUT Supports Function: 2.4 GHz ISM Band: Bluetooth only support BR+EDR Software Version: V1.3 Hardware Version: VA.0 Sample Received Date: May 13, 2021 Sample Tested Date: May 17, 2021 to May 20, 2021 Note: The additional model TAS3505/37, TAS3505/00, S3505, S3505/00, S3505x/yy, TAS3505x/yy (“x” can be A to Z or nil; “yy” can be 00-99 or nil for country code) is identical with the test model TAS3505 except the model number for marketing purpose. 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD For BT_EDR Frequency Band: 2400 MHz to 2483.5 MHz Frequency Range: 2402 MHz to 2480 MHz Bluetooth Version: Bluetooth BR + EDR Modulation Technique: Frequency Hopping Spread Spectrum (FHSS) Type of Modulation: GFSK, π/4DQPSK, 8DPSK Number of Channels: 79 Channel Separation: 1 MHz Antenna Type: PCB antenna Antenna Gain: 0 dBi Maximum Peak Power: 4.742 dBm Page 5 of 9 Report No.: 210513002RFC-2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.1 1.4 OTHER INFORMATION Test channels for BT_EDR Mode Tx/Rx Frequency Test RF Channel Lists Lowest(L) Middle(M) Highest(H) GFSK (DH1, DH3, DH5) 2402 MHz to 2480 MHz Channel 0 Channel 39 Channel 78 2402 MHz 2441 MHz 2480 MHz π/4DQPSK …
