2AR2STAT1108True wireless headphones

MMD Hong Kong Holding Limited Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2023-1-6 SUBJECT: 2AR2STAT1108 To Whom It May Concern: I, the undersigned, hereby states this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules, and will apply the Supplier's Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. I understand the following FCC requirements: 1. Devices subject to the SDoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Pt 2.1077 contains the list of information that must be included in the Supplier's Declaration of Conformity, which must be supplied with each product sold. The SDoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(b), the responsible party is either the Manufacturer or if the product is imported the Importer. Regards, MMD Hong Kong Holding Limited ------------------------------- （Tomas Guan）

(MMD Hong Kong Holding Limited) Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AR2STAT1108 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name (Block Diagram, Schematics, Operational Description, BOM, PCB Layout) (Block Diagram, Schematics, Operational Description, BOM, PCB Layout) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Short-term confidentiality period: 180 days Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name (External Photos, Test Setup Photos, Manual, Internal Photos) (External Photos, Test Setup Photos, Manual, Internal Photos,) Sincerely, (signature) (printed name) Tomas Guan

Family model description Letter Page 1 of 1 (MMD Hong Kong Holding Limited) (Current Date) 2023-1-6 FCC ID：2AR2STAT1108 Product name True wireless headphones Brand name PHILIPS Test Model name TAT1108, TAT1138 Additional model name TAT1108xx/yy, TAT1138xx/yy (xx=AA-ZZ or blank denoted different color; yy=00-99 denoted different country destination) Deviation of models All models are identical except model name, color and country destination for marketing purpose. Signature: Name: Tomas Guan Title: Safety & Approbation Manager Company Name : MMD Hong Kong Holding Limited Company Address: Unit 1006, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong

(MMD Hong Kong Holding Limited) Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2023-1-6 SUBJECT: FCC Application for (FCC ID: 2AR2STAT1108) To Whom It May Concern: We, the undersigned, hereby authorize _Tank Tan at Hwa-Hsing (Dongguan) Testing Co., Ltd._ on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by _ Tank Tan at Hwa-Hsing (Dongguan) Testing Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Tomas Guan (Must be signed by the person that is listed on the FCC Website)

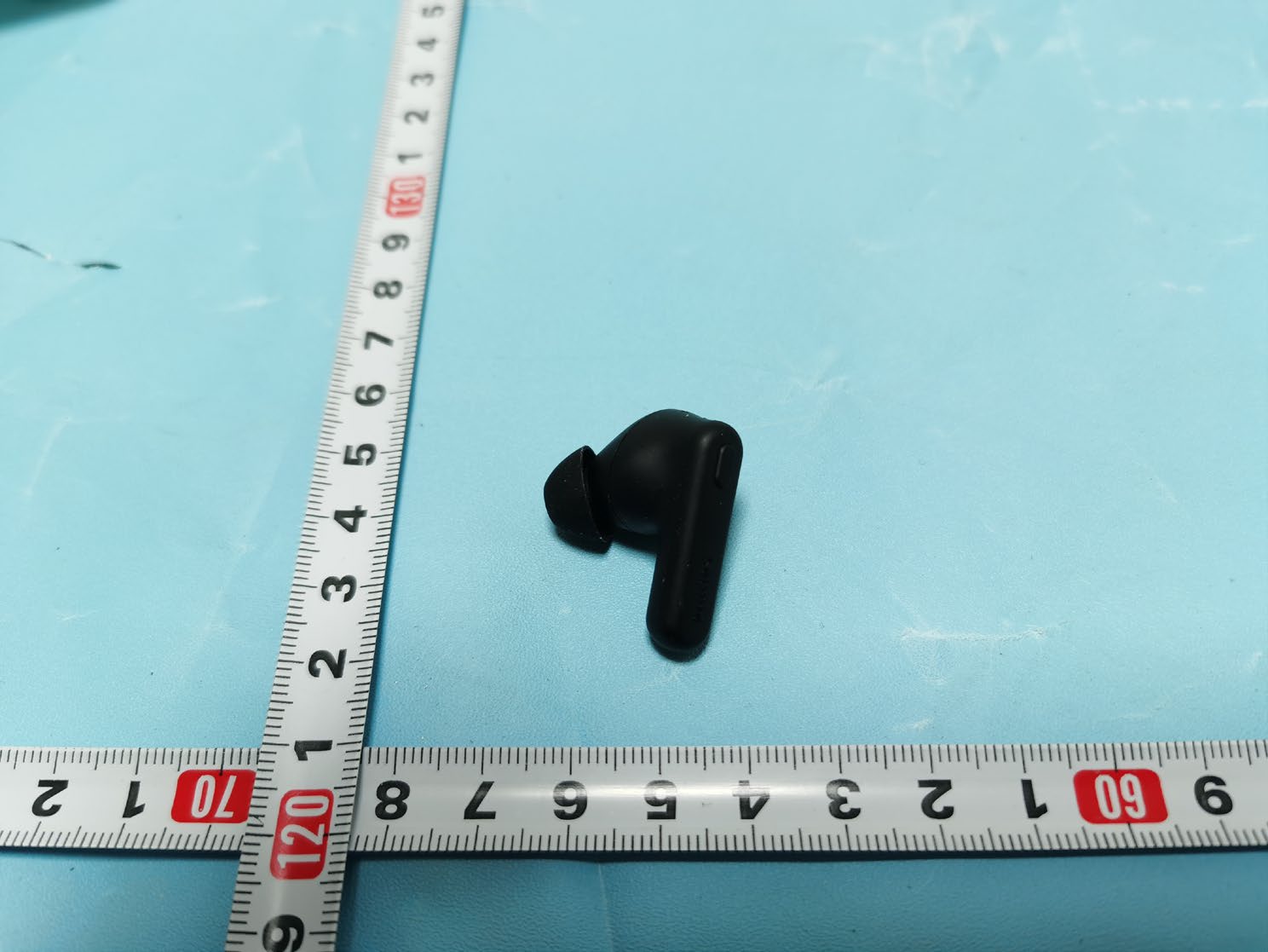

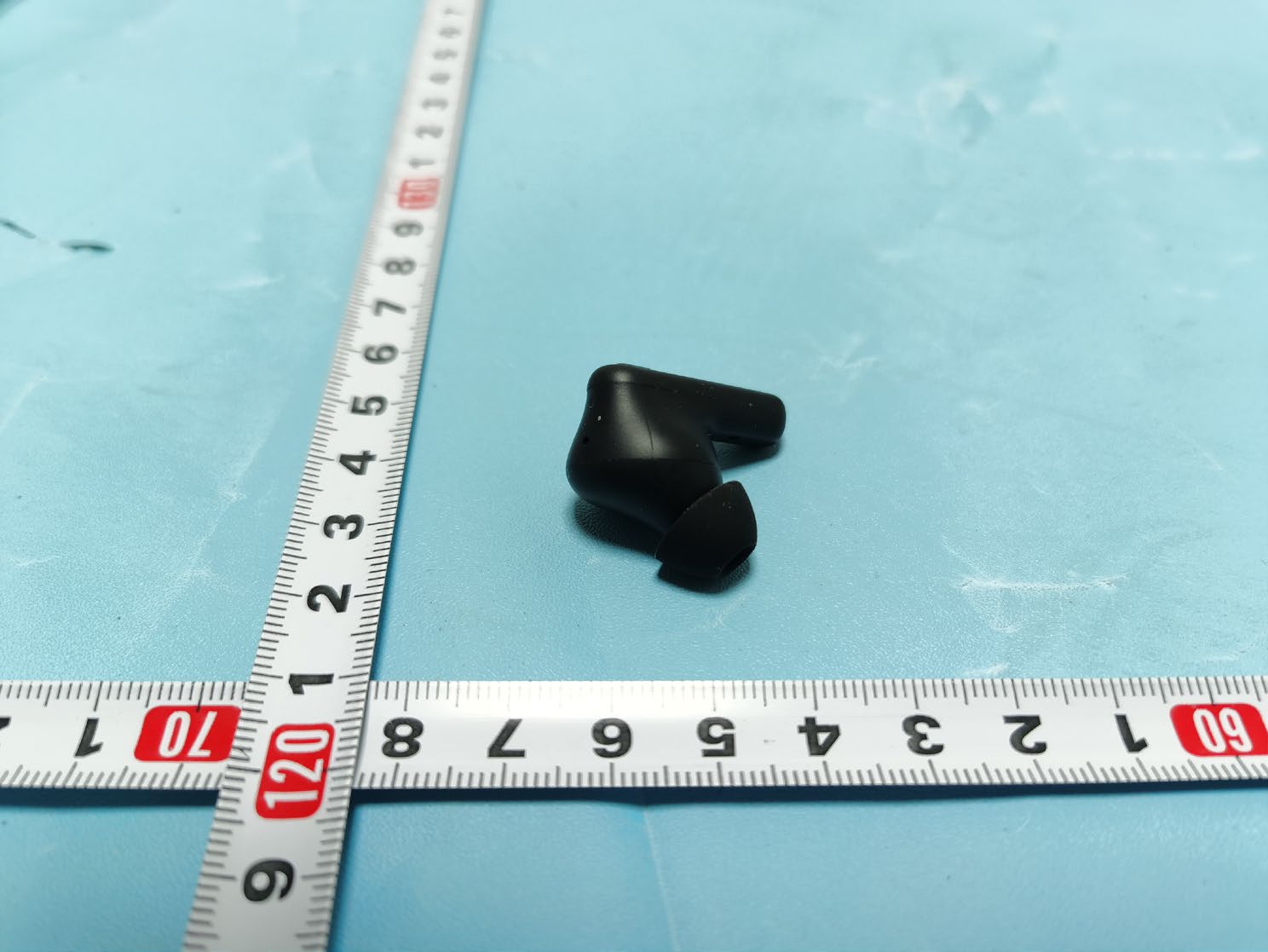

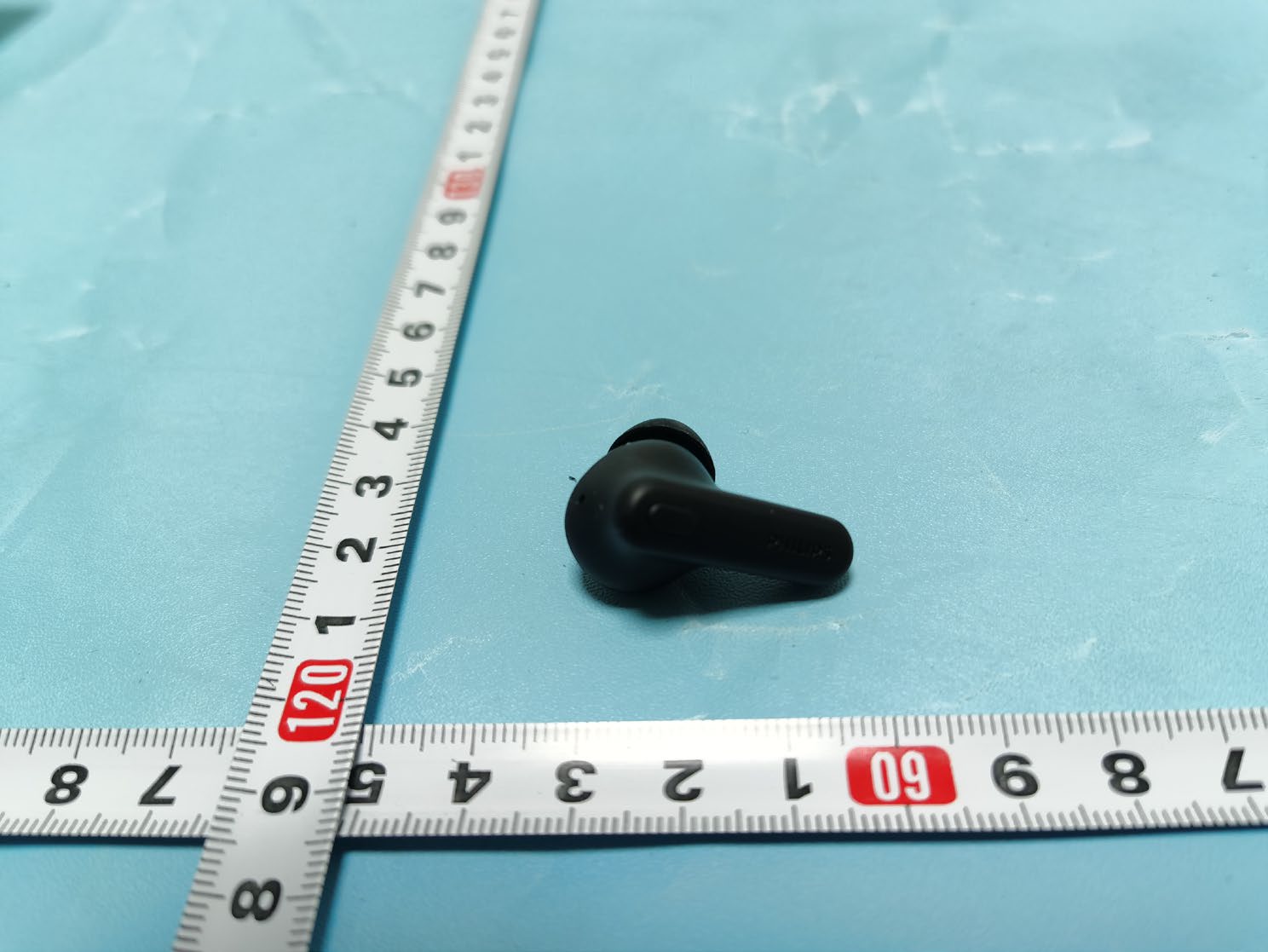

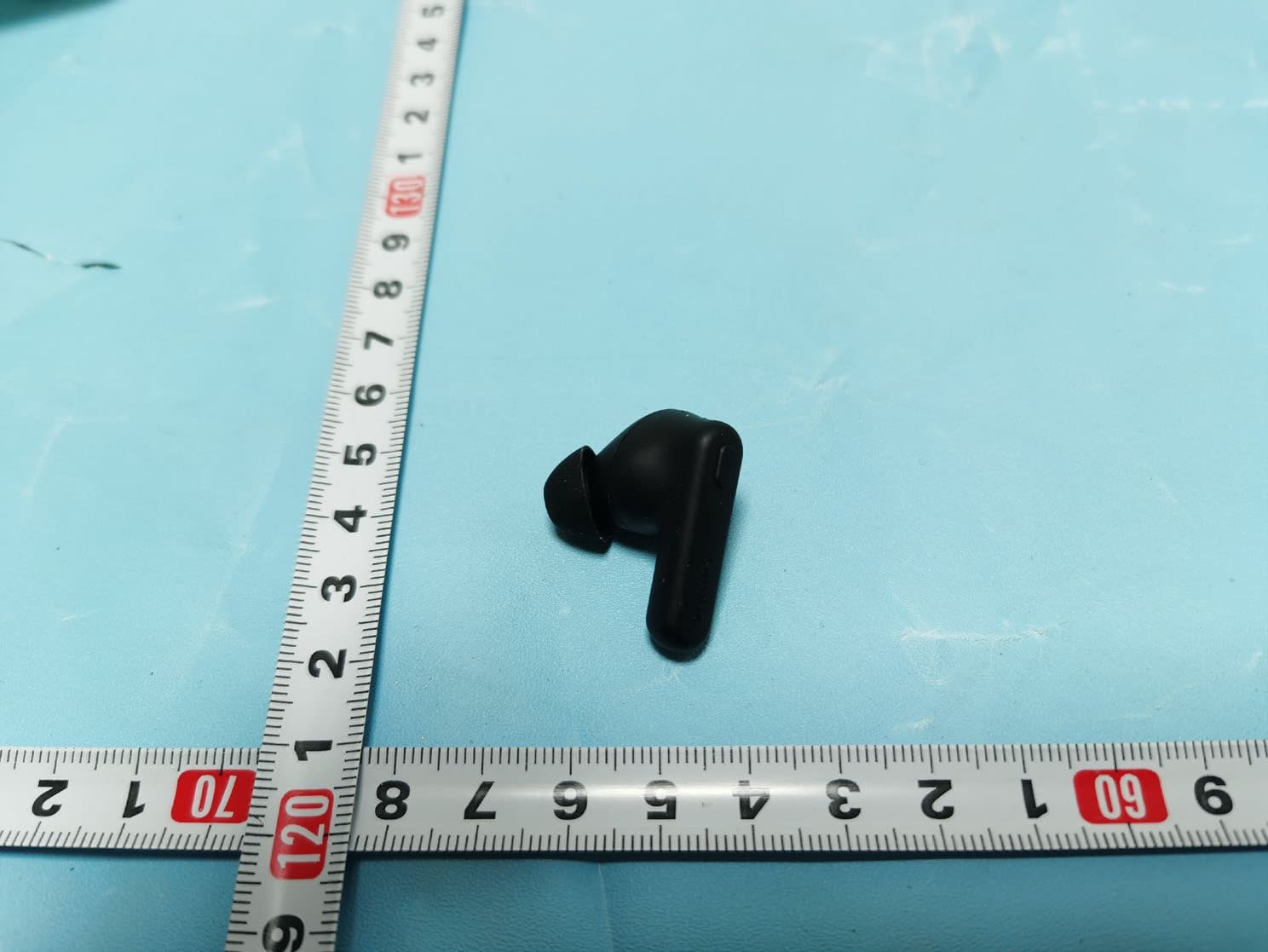

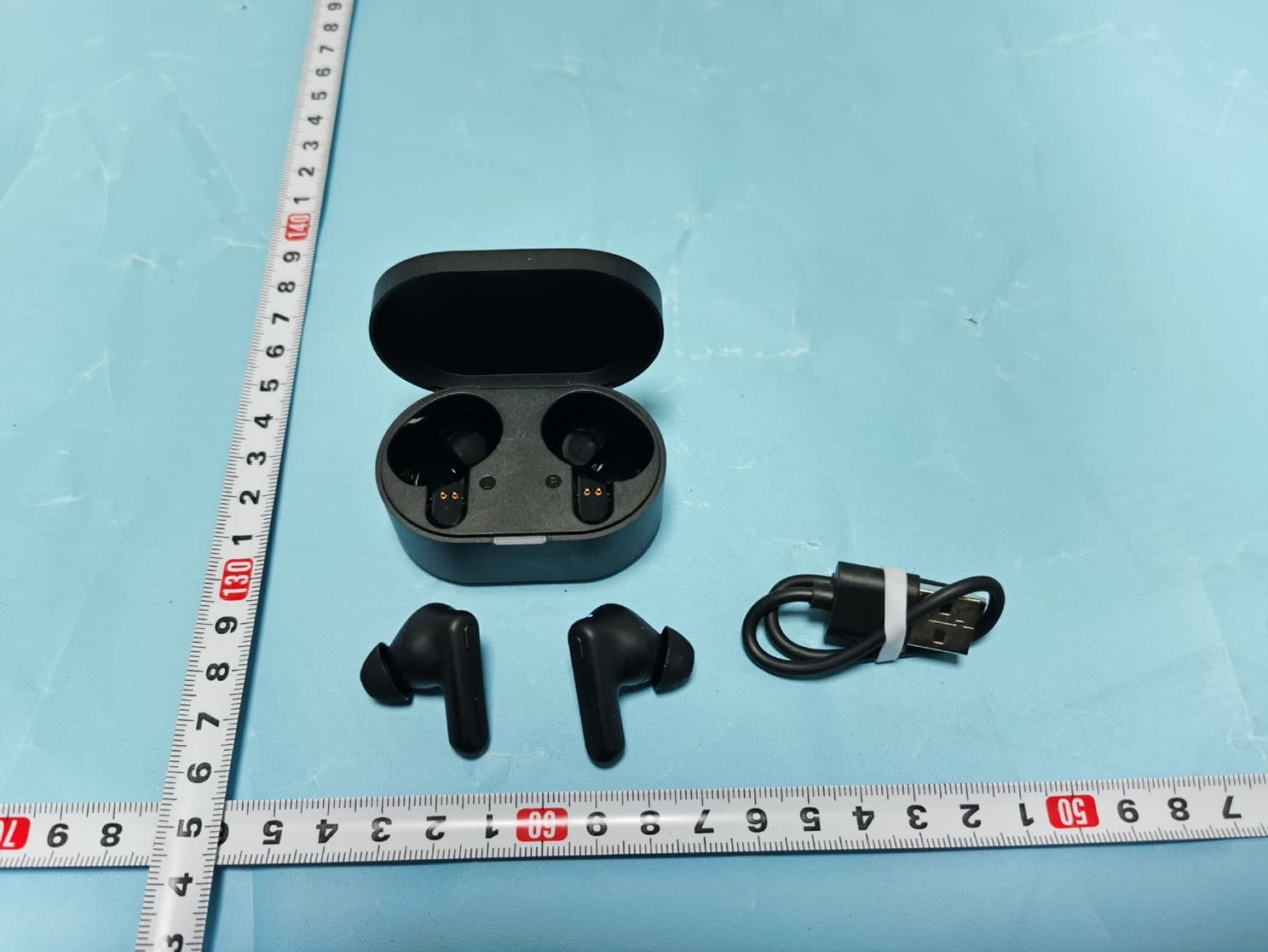

Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 1 of 15 Project No.: 221117KH20-02 External EUT Photo Test models: TAT1108 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 2 of 15 Project No.: 221117KH20-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 3 of 15 Project No.: 221117KH20-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 4 of 15 Project No.: 221117KH20-02 Right earphone Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 5 of 15 Project No.: 221117KH20-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 6 of 15 Project No.: 221117KH20-02 Left earphone Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 7 of 15 Project No.: 221117KH20-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 8 of 15 Project No.: 221117KH20-02 Test Model(s): TAT1138 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 9 of 15 Project No.: 221117KH20-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 10 of 15 Project No.: 221117KH20-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 11 of 15 Project No.: 221117KH20-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 12 of 15 Project No.: 221117KH20-02 Right earphone Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 13 of 15 Project No.: 221117KH20-02 Left earphone Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 14 of 15 Project No.: 221117KH20-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 15 of 15 Project No.: 221117KH20-02

(MMD Hong Kong Holding Limited) Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2023-1-18 SUBJECT: FCC Application for (FCC ID: 2AR2STAT1108) To Whom It May Concern: The purpose of this letter is to declare that the FCC ID is placed on the manual and packaging because the product is too small. Regards, Tomas Guan (Must be signed by the person that is listed on the FCC Website)

1000 Series Headphones TAT1108 1000 Series Headphones 1000 Series Headphones 1000 Series Headphones TAT1108BK/00 PMS285C + 4C + diecut single coated card 28/12/2022 Pantone 285C Pantone 285C

Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 1 of 9 Project No.: 221117KH20-01 EUT Photos Test models: TAT1108 Left earphone Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 2 of 9 Project No.: 221117KH20-01 ANT Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 3 of 9 Project No.: 221117KH20-01 Right earphone Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 4 of 9 Project No.: 221117KH20-01 ANT Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 5 of 9 Project No.: 221117KH20-01 Test models: TAT1138 Left earphone Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 6 of 9 Project No.: 221117KH20-01 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 7 of 9 Project No.: 221117KH20-01 Right earphone ANT Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 8 of 9 Project No.: 221117KH20-01 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 9 of 9 Project No.: 221117KH20-01 ANT

Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.4 Page 1 of 7 Test Report No.: 221117KH20-SE-US-01 RF Exposure Report FCC ID: 2AR2STAT1108 Applicant: MMD Hong Kong Holding Limited Address: Unit 1006, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Manufacturer: MMD Hong Kong Holding Limited Address: Unit 1006, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Product(s): True wireless headphones Brand: PHILIPS or Test Model(s): TAT1108, TAT1138 Series Model(s): See Section 2.1 Test Date: Nov. 23, 2022~ Dec. 16, 2022 Issued Date: Jan. 13, 2023 Issued By: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Test Firm Registration No.: 915896 Standards: 47 CFR FCC Part 15, Subpart C (Section 15.247) ANSI C63.10:2013 The above equipment has been tested by Hwa-Hsing (Dongguan) Testing Co., Ltd., and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. Prepared by : Reviewed by : Niny Zhang Tank Ta n Approved by : Scott He “This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. Our report includes all the tests requested by you and the results thereof based upon the information that you provided to us. The report would be invalid without specific stamp of test institute and the signatures of tester and approver.” Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.4 Page 2 of 7 Test Report No.: 221117KH20-SE-US-01 Table of contents Release control record ............................................................................................... 3 1 General Information ......................................................................................... 4 1.1 General Description of EUT ............................................................................. 4 2 RF exposure limit ............................................................................................. 5 3 Calculation ....................................................................................................... 5 4 Calculation SAR test exclusion thresholds ....................................................... 6 Appendix – Information on the Testing Laboratories .................................................... 7 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.4 Page 3 of 7 Test Report No.: 221117KH20-SE-US-01 Release control record Issue No. Reason for change Date Issued 221117KH20-SE-US-01 Original Release Jan. 13, 2023 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.4 Page 4 of 7 Test Report No.: 221117KH20-SE-US-01 1 General Information 1.1 General Description of EUT Product True wireless headphones Brand PHILIPS or Sample No. HS220823-01-13 Test Model(s) TAT1108, TAT1138 Series Model(s) TAT1108xx/yy, TAT1138xx/yy (xx=AA-ZZ or blank denoted different color; yy=00-99 denoted different country destination) Status of EUT Engineering Prototype Power Supply Rating Charge case: Input: DC 5V from USB or DC3.7V from battery Each Headphone: Input: DC 5V from Charge case or DC3.7V from battery Modulation Type GFSK, π/4 DQPSK, 8DPSK for FHSS Transfer Rate 1/2/3Mbps Operating Frequency 2402 ~ 2480MHz Number of Channel 79 Output Power (Average) 2.99dBm Antenna Type Omnidirectional Ceramic Antenna Antenna Gain 2.70dBi Antenna Connector N/A Accessory Device N/A Note: 1. Please refer to the EUT photo document (Reference No.: 221117KH20-01&-02) for detailed product photo. 2. The above EUT information is declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual. 3. All models are identical except model name, color and appearance for marketing purpose. Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.4 Page 5 of 7 Test Report No.: 221117KH20-SE-US-01 2 RF exposure limit The corresponding SAR Exclusion Threshold condition, listed below: 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,16 where   f(GHz) is the RF channel transmit frequency in GHz   Power and distance are rounded to the nearest mW and mm before calculation   The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When t…

Text truncated - open the document above for the full version.

Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 1 of 64 Test Report No.:221117KH20-RF-US-01 FCC Part 15, Subpart C Test Report FCC ID: 2AR2STAT1108 Applicant: MMD Hong Kong Holding Limited Address: Unit 1006, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Manufacturer: MMD Hong Kong Holding Limited Address: Unit 1006, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Product(s): True wireless headphones Brand(s): PHILIPS or Test Model(s): TAT1108, TAT1138 Series Model(s): See Section 2.1 Test Date: Nov. 23, 2022~ Dec. 19, 2022 Issued Date: Jan. 13, 2023 Issued By: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang To wn , Dongguan, China Test Firm Registration No.: 915896 Designation No.: CN1255 Standards: 47 CFR FCC Part 15, Subpart C (Section 15.247) ANSI C63.10:2013 The above equipment has been tested by Hwa-Hsing (Dongguan) Testing Co., Ltd., and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. Prepared by : Reviewed by : Niny Zhang Tank Ta n Approved by : Scott He “This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. Our report includes all the tests requested by you and the results thereof based upon the information that you provided to us. The report would be invalid without specific stamp of test institute and the signatures of tester and approver.” Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 2 of 64 Test Report No.:221117KH20-RF-US-01 Table of Contents Release Control Record .................................................................................................................................. 4 1 Summary of Test Results ........................................................................................................................... 5 1.1 Measurement Uncertainty ..................................................................................................................... 5 1.2 Modification Record .............................................................................................................................. 5 2 General Information ................................................................................................................................... 6 2.1 General Description of EUT .................................................................................................................. 6 2.2 Description of Test Modes ..................................................................................................................... 7 2.3 Test Mode Applicability and Tested Channel Detail .............................................................................. 8 2.4 Description of Support Units ............................................................................................................... 10 2.4.1 Configuration of System under Test ......................................................................................... 10 3 TestTypesand Results ............................................................................................................................... 11 3.1 Radiated Emission andBand-edge Measurement ............................................................................... 11 3.1.1 Limits of Radiated Emission andBand-edge Measurement ...................................................... 11 3.1.2 Test Instruments ....................................................................................................................... 12 3.1.3 Test Procedures ........................................................................................................................ 13 3.1.4 Deviation from Test Standard ................................................................................................... 14 3.1.5 Test Setup ................................................................................................................................. 15 3.1.6 EUT Operating Conditions ........................................................................................................ 16 3.1.7 Test Results .............................................................................................................................. 17 3.2 Conducted Emission Measurement .................................................................................................... 31 3.2.1 Limits of Conducted Emission Measurement ........................................................................... 31 3.2.2 Test Instruments ....................................................................................................................... 31 3.2.3 Test Procedures ........................................................................................................................ 32 3.2.4 Test Setup ................................................................................................................................. 32 3.2.5 EUT Operating Condition ...............................................................................................…

Text truncated - open the document above for the full version.

Antenna Type: Omnidirectional Ceramic Antenna Antenna Size: 2.0mm(L)*1.25mm(W)*0.6mm(H) Antenna Manufacture: JIA XING GLEAD ELECTRONICS CO., LTD Antenna Model Number: GL2012H2450-D06 - 4 - h tt p:// www. glea d. com .cn JIA XING GLEAD ELECTRONICS CO., LTD 1. TR TI "GLEAD" Microwave Multi- Layer Ceramic Antenna LA series are designed to be used in WLAN、WiF i、Bluetooth、PHS、 Multip le-band Mobile phone antenna, FM, etc and compact size SMD chip design. 2. 型号 Part GL 2012 H 2450 – D06 Product Name:D06 Antenna Frequency: 2450 MHz Via Des ign Series Size ： 2.0X1.25X0.6 Mult i- layer Antenna 3. Dimensions (Unit: mm) - 5 - h tt p:// www. glea d. com .cn JIA XING GLEAD ELECTRONICS CO., LTD 4. Evaluation Board and Matching Circuits 5. Electrical Characteristics 0.5pF 6.5nH No. Item Specifications 5.1 Working Central Frequency (After matching) 2450 MHz 5.2 Band Width 65MHz typ. 5.3 Peak Gain 2.7 dBi 5.4 V.S.W.R (in BW) 2.0 5.5 Polarization Lin ear 5.6 Azimuth Beam width Omni-direction al 5.7 Impedance 50 Ω 6. - 6 - h tt p:// www. glea d. com .cn JIA XING GLEAD ELECTRONICS CO., LTD 7 Radiation Pattern

Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 1 of 3 Project No.: 221117KH20-03 Set-Up for Conducted Emission Test Frequency Range< 0.15MHz~30MHz > Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 2 of 3 Project No.: 221117KH20-03 Set-Up for Radiated Emission Test Frequency Range< 30MHz~1GHz > Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Te l : 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 3 of 3 Project No.: 221117KH20-03 Frequency Range< Above 1GHz >
