2AR2STAT1215Bluetooth earphone

L R L R L R Philips TAT1215 TAT1215 295mm 130mm 2AR2STAT1215 Charging How to wear Call features Press once Volume control Turn on the volume Play/Pause Press onse Track Control Press & Hold Press & Hold On/Off Turn on Turn o Power on and Pairing Red light flashes White and blue light flashes Blue light flashes Turn on BT select Philips TAT1215 Red light 8 123

MMD Hong Kong Holding Limited Units 1006-1007, 10th Floor,C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong [2020-06-05] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement MMD Hong Kong Holding Limited FCC ID: 2AR2STAT1215 To Whom It May Concern: We, MMD Hong Kong Holding Limited hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number (2AR2STAT1215) under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is (2020-06-05). The Limited Agency Agreement expires until further notice, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, [Signature] MMD Hong Kong Holding Limited Contact person: Tomas Guan

MMD Hong Kong Holding Limited Units 1006-1007, 10th Floor,C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong May 26, 2020 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2AR2STAT1215 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Schematics 3: Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, MMD Hong Kong Holding Limited Contact person: Tomas Guan

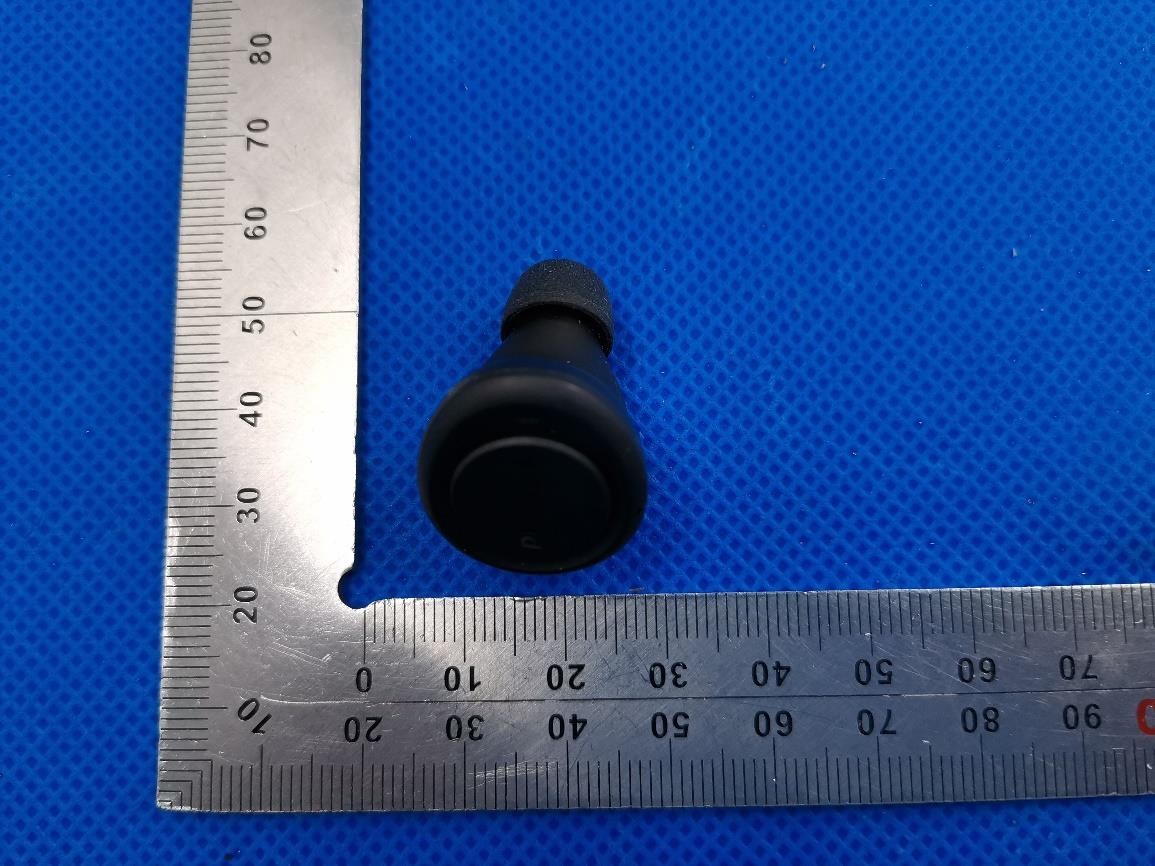

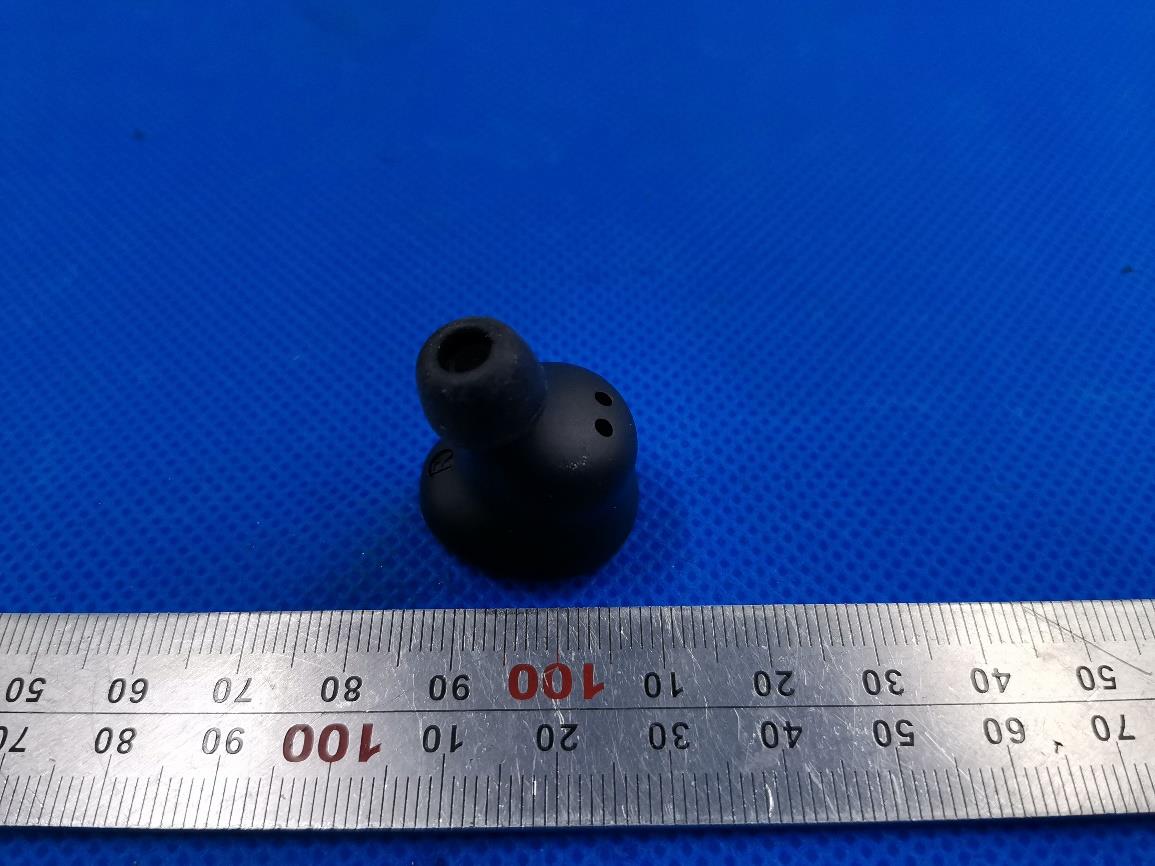

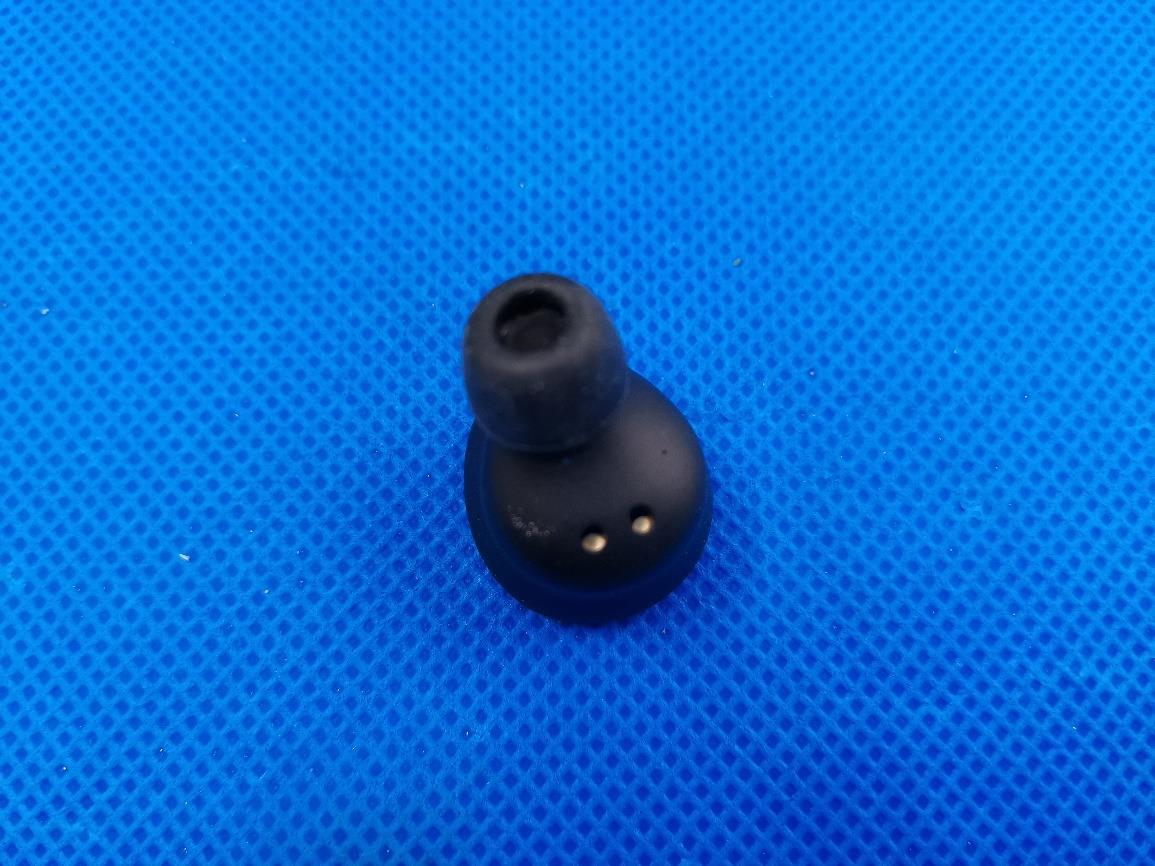

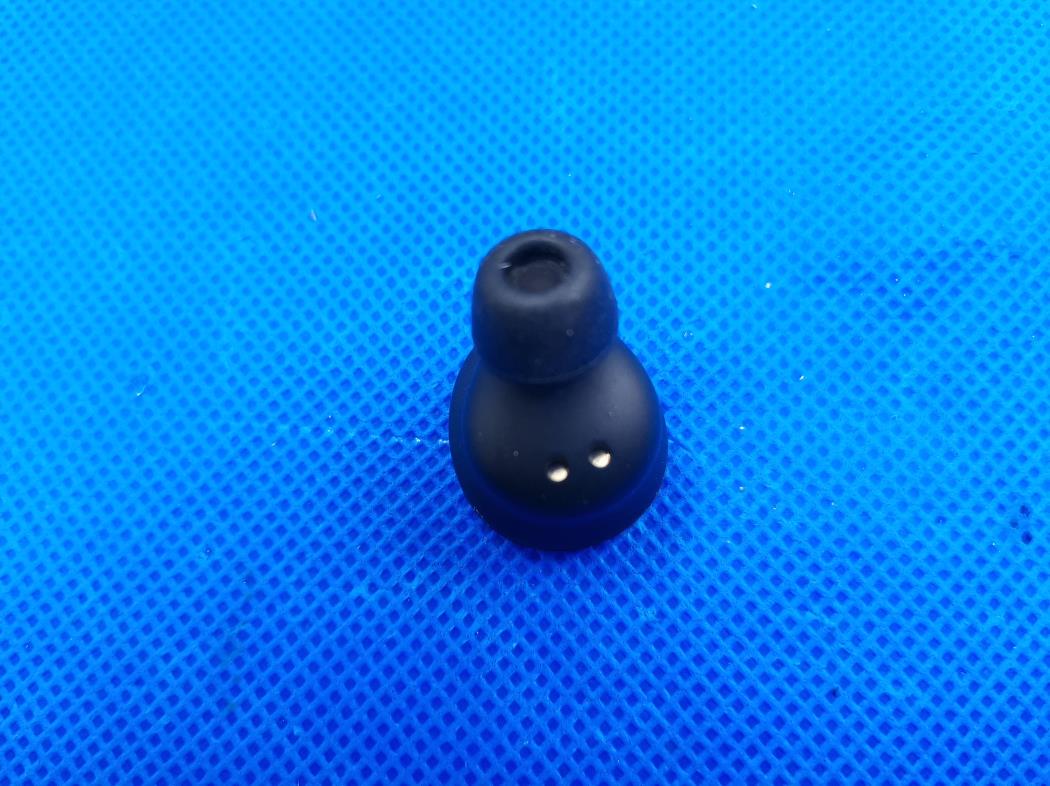

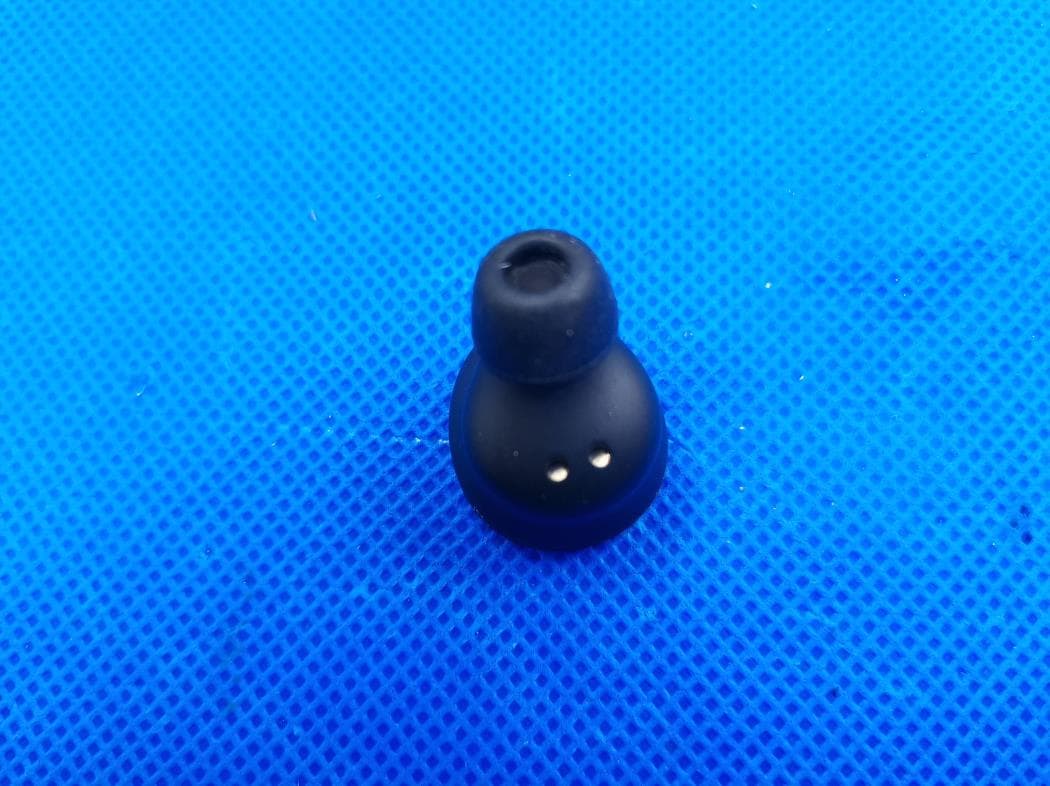

External Photos TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT) TOP VIEW OF EUT(left) BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT)

FCC ID Label Location Size：22mm*8mm FCC ID: 2AR2STAT1215

Internal Photos OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna INTERNAL VIEW OF EUT-3 Left OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna INTERNAL VIEW OF EUT-3

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Bluetooth earphone Model Name TAT1215 FCC ID 2AR2STAT1215 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION Pt= -4.216dBm=0.38mW The value of the Maximum output power Pt is referred to the test report of the CFR47 § 15.247. The result for RF exposure evaluation SAR=(0.38mW/5mm) .[√2.480GHz)]= 0.12<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 67 FCC Test Report Report No.: AGC00637200404FE03 FCC ID : 2AR2STAT1215 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth earphone BRAND NAME : PHILIPS MODEL NAME : TAT1215 APPLICANT : MMD Hong Kong Holding Limited. DATE OF ISSUE : May 18, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00637200404FE03 Page 2 of 67 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / May 18, 2020 Valid Initial Release Report No.: AGC00637200404FE03 Page 3 of 67 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ............................................................................................................ 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ....................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ........................................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 8 2.7. TEST METHODOLOGY .......................................................................................................................... 8 2.8. SPECIAL ACCESSORIES ....................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS .............................................................................................................. 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 9 4. DESCRIPTION OF TEST MODES ............................................................................................................... 10 5. SYSTEM TEST CONFIGURATION .............................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM ............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS ............................................................................................................. 11 6. TEST FACILITY ........................................................................................................................................... 12 7. PEAK OUTPUT POWER ............................................................................................................................. 13 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 14 8. 20DB BANDWIDTH ..................................................................................................................................... 18 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 18 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 18 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 18 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 23 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 23 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 23 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 23 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 23 Report No.: AGC00637200404FE03 Page 4 of 67 10. RADIATED EMISSION ............................................................................................................................... 31 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 31 10.2. TEST SETUP ....................................................................................................................................... 33 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 34 10.4. TEST RESULT ..................................................................................................................................... 34 11. NUMBER OF HOPPING FREQUENCY ..................................................................................................... 44 11.1. MEASUREMENT PROCEDURE ......…

Text truncated - open the document above for the full version.

Report No.: AGC00637200404FE03 Page 51 of 67 14.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST 1. The equipment was set up as per the test configuration to simulate typical actual usage per the user’s manual. When the EUT is a tabletop system, a wooden table with a height of 0.8 meters is used and is placed on the ground plane as per ANSI C63.10 (see Test Facility for the dimensions of the ground plane used). When the EUT is a floor-standing equipment, it is placed on the ground plane which has a 3-12 mm non-conductive covering to insulate the EUT from the ground plane. 2. Support equipment, if needed, was placed as per ANSI C63.10. 3. All I/O cables were positioned to simulate typical actual usage as per ANSI C63.10. 4. All support equipments received AC120V/60Hz power from a LISN, if any. 5. The EUT received DC charging voltage by adapter which received AC120V/60Hz power by a LISN. 6. The test program was started. Emissions were measured on each current carrying line of the EUT using a spectrum Analyzer / Receiver connected to the LISN powering the EUT. The LISN has two monitoring points: Line 1 (Hot Side) and Line 2 (Neutral Side). Two scans were taken: one with Line 1 connected to Analyzer / Receiver and Line 2 connected to a 50 ohm load; the second scan had Line 1 connected to a 50 ohm load and Line 2 connected to the Analyzer / Receiver. 7. Analyzer / Receiver scanned from 150 kHz to 30MHz for emissions in each of the test modes. 8. During the above scans, the emissions were maximized by cable manipulation. 9. The test mode(s) were scanned during the preliminary test. Then, the EUT configuration and cable configuration of the above highest emission level were recorded for reference of final testing. 14.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST 1. EUT and support equipment was set up on the test bench as per step 2 of the preliminary test. 2. A scan was taken on both power lines, Line 1 and Line 2, recording at least the six highest emissions. Emission frequency and amplitude were recorded into a computer in which correction factors were used to calculate the emission level and compare reading to the applicable limit. If EUT emission level was less –2dB to the A.V. limit in Peak mode, then the emission signal was re-checked using Q.P and Average detector. 3. The test data of the worst case condition(s) was reported on the Summary Data page. 14.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST Note: The EUT can not use the BT function with charging. Report No.: AGC00637200404FE03 Page 52 of 67 APPENDIX A: PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ Report No.: AGC00637200404FE03 Page 53 of 67 CONDUCTED TEST SETUP Report No.: AGC00637200404FE03 Page 54 of 67 APPENDIX B: PHOTOGRAPHS OF EUT TOTAL VIEW OF EUT TOP VIEW OF EUT(right) Report No.: AGC00637200404FE03 Page 55 of 67 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.: AGC00637200404FE03 Page 56 of 67 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: AGC00637200404FE03 Page 57 of 67 RIGHT VIEW OF EUT VIEW OF EUT(PORT) Report No.: AGC00637200404FE03 Page 58 of 67 OPEN VIEW OF EUT VIEW OF BATTERY Report No.: AGC00637200404FE03 Page 59 of 67 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna Report No.: AGC00637200404FE03 Page 60 of 67 INTERNAL VIEW OF EUT-3 TOP VIEW OF EUT(left) Report No.: AGC00637200404FE03 Page 61 of 67 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.: AGC00637200404FE03 Page 62 of 67 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: AGC00637200404FE03 Page 63 of 67 RIGHT VIEW OF EUT VIEW OF EUT(PORT) Report No.: AGC00637200404FE03 Page 64 of 67 OPEN VIEW OF EUT VIEW OF BATTERY Report No.: AGC00637200404FE03 Page 65 of 67 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna Report No.: AGC00637200404FE03 Page 66 of 67 INTERNAL VIEW OF EUT-3 VIEW OF EUT(PORT)-1(Charging Dock) 0 Report No.: AGC00637200404FE03 Page 67 of 67 VIEW OF EUT(PORT)-2 ----END OF REPORT----

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ CONDUCTED TEST SETUP
