2AR2STAT3216LCTrue wireless headphones

User manual Registeryour product and get support at www.philips.com/support 3000 Series Headphones TAT3216 1 Important safety instructions 2 Hearing Safety 2 General information 2 2 Your True wireless earphones 3 What's in the box 3 Other devices 3 Overview of your True wireless earphones 4 3 Get started 5 Charge the battery 5 Pair the headphones with your Bluetooth device for the st time 6 4 Use your headphones 7 Connect the headphones to your Bluetooth device 7 Control ANC (active noise cancelation) 7 Manage your calls and music 8 LED indicator status 8 Voice Assistant 9 5 Reset the headphones 10 6 Technical data 10 7 Notice 11 Declaration of conformity 11 Disposal of your old product and battery 11 Remove the integrated battery 11 Compliance with EMF 12 Environmental information 12 Notice of compliance 12 8 Trademarks 14 9 Frequently asked questions 15 Contents 1 Important safety instructions Hearing Safety Danger  To avoid hearing damage, limit the time you use headphones at high volume and set the volume to a safe level. The louder the volume, the shorter the safe listening time is. Be sure to observe the following guide- lines when using your headset. • Listen at reasonable volumes for reasonable periods of time. • Be careful not to adjust the volume continuously upwards as your hearing adapts. • Do not turn up the volume so high that you can't hear what's around you. • You should use caution or tempo- rarily discontinue use in potentially hazardous situations. • Excessive sound pressure from earphones and headphones can cause hearing loss. • Using headphones with both ears covered while driving is not recom- mended and may be illegal in some areas while driving. • For your safety, avoid distractions from music or phone calls while in trac or other potentially dangerous environments. General information To avoid damage or malfunction: Caution  Do not expose headphones to excessive heat  Do not drop your headphones.  Headphones shall not be exposed to dripping , splashing water.  Do not allow your headphones to be submerged in water.  Do not use any cleaning agents containing alcohol, ammonia, benzene, or abrasives.  If cleaning is required use a soft doth, if necessary dampened with a minimum amount of water or diluted mild soap, to clean the product.  The integrated battery shall not be exposed to excessive heat such as sunshine, re or the like.  Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. • Disposal of a battery into re or a hot oven, or mechanically crushing or cutting of a battery, can result in an explosion; • Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of ammable liquid or gas; • A battery subjected to extremely low air pressure that may result in an explosion or the leakage of ammable liquid or gas. About operating and storage temperatures and humidity • Store in a place where temperature is between -20°C (-4°F) and 50°C (122 °F) (up to 90% relative humidity. • Operate in a place where temperature is between 0°C (32°F) and 45°C (113 °F) (up to 90% relative humidity. • Battery life may be shorter in high or low temperature conditions. • Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types); 2 Your True wireless earphones What's in the box Philips True wireless earphones Philips TAT3216 Replaceable rubber ear caps x 3 pairs Quick start guide Other devices A mobile phone or device (e.g. note- book, PDA, Bluetooth adapters, MP3 players etc) which supports Bluetooth and is compatible to the headset (see 'Technical data' on page 8). Congratulations on your purchase, and welcome to Philips! To fully benet from the support that Philips oers, register your product at www.philips.com/welcome. With this Philips True wireless earphones, you can: • enjoy convenient wireless handsfree calls; • enjoy and control wireless music; • switch between calls and music. USB-C charging cable (for charging only) Global Warranty Safety leaet Overview ofyour Bluetoothwirel ess headphones 1.Touch panel 2.LED indicator (headphones) 3.LED indicator (Charging case) 4.Multiple function button 5.LED indicator 6.Type-C charging slot EN 6 3 Get started Charge the battery Charging Note  Before you use your earpieces for the rst time, place the earpieces in the charging box and charge the battery for 2 hours for optimum battery capacity and lifetime.  Use only the original USB-C charging cable to avoid any damage.  Finish your call before charging the earpieces, as connecting the earpieces for charging will power the earpieces o. Place the headphones in the charging case and close the charging case cover. Connect one end of the USB cable into the charging box, and another end into the power source. • Charging process is veried by the LED light on the back panel. • When the charging box is fully charged, the light goes o. • When the charging box is 36% - 99% charged, the white color light is on. • When the charging box is 0% - 35% charged, the amber colour light is on. Tip  The charging box serves as a portable backup battery for charging the earpieces. When the charging box is fully charged, it supports 3 times full recharge cycle for the earpieces.  Normally, a full charge takes 2 hours (for the earpieces or charging box) by USB cable.  When the batter level of headset is too low, light of headset will blink amber light Start charging. Pair the headphones with your Bluetooth device for the st time Open the top cover from charging box. The headset will power on automatically, entering pairing model and Right & Left headset connected. Light on both headsets is blinking (white and blue) The headset is now in pairing mode and is ready to pair with a Bluetooth device (e.g. a mobile phone). Make sure that the headset is fully charged and powered o. Turn on the Bluetooth function o…

Text truncated - open the document above for the full version.

Authority to Act as Agent [May. 13, 2021] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement (MMD Hong Kong Holding Limited) FCC ID: (2AR2STAT3216LC) To Whom It May Concern: We, (MMD Hong Kong Holding Limited), hereby authorized Shenzhen UnionTrust Quality and Technology Co., Ltd. to act as our Agent for the purpose of preparing application for FCC ID number (2AR2STAT3216LC) under all applicable parts of the FCC rules and regulations. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 36 months By: __________________________ Tomas Guan (Signature 1 ) (Print name) Title: Manager On behalf of: (MMD Hong Kong Holding Limited) Telephone: 86-755-36358341 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

1(1) [MMD Hong Kong Holding Limited] [May. 13, 2021] Attention: Application Examiner RE: Request for Confidentiality Applicant: [MMD Hong Kong Holding Limited] FCC ID: [2AR2STAT3216LC] To Whom It May Concern: Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request is hereby submitted by [MMD Hong Kong Holding Limited] to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential:  Schematics  Detailed Block Diagrams  Detailed Operational/Functional Description Rationale for request for confidentiality: [MMD Hong Kong Holding Limited] has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.] [Short term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development.] If you have questions or need further information, please contact the undersigned. Sincerely, [Signature] [Tomas Guan] [ Manager] [MMD Hong Kong Holding Limited]

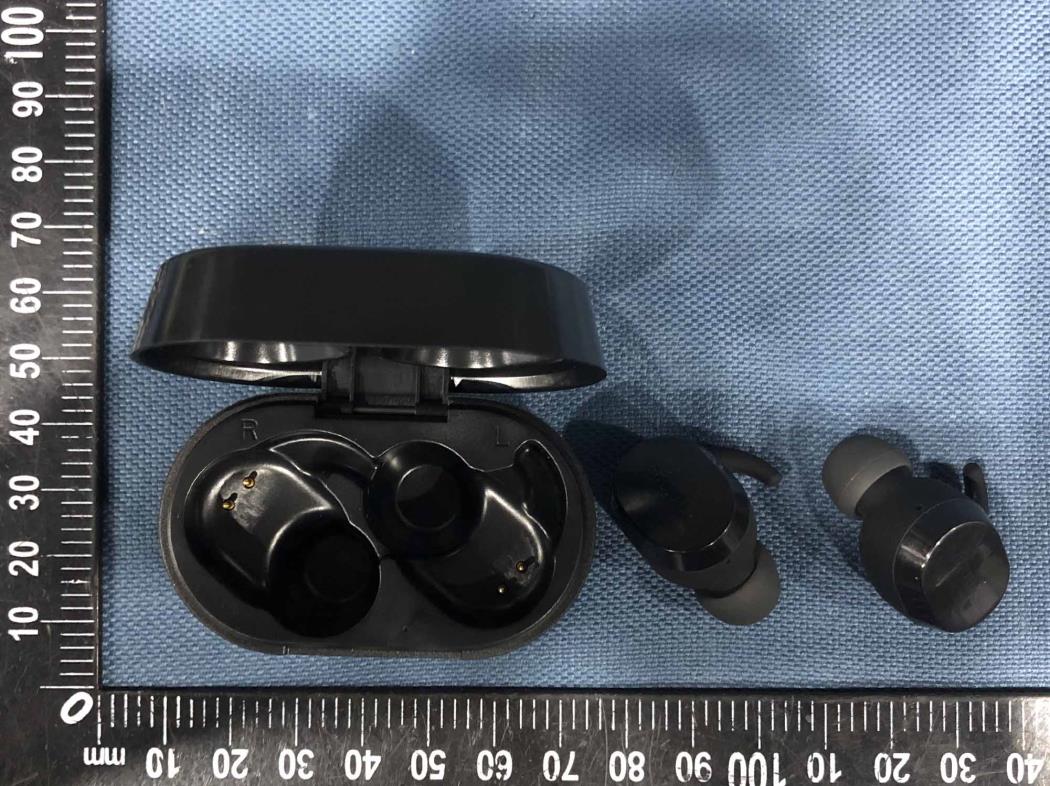

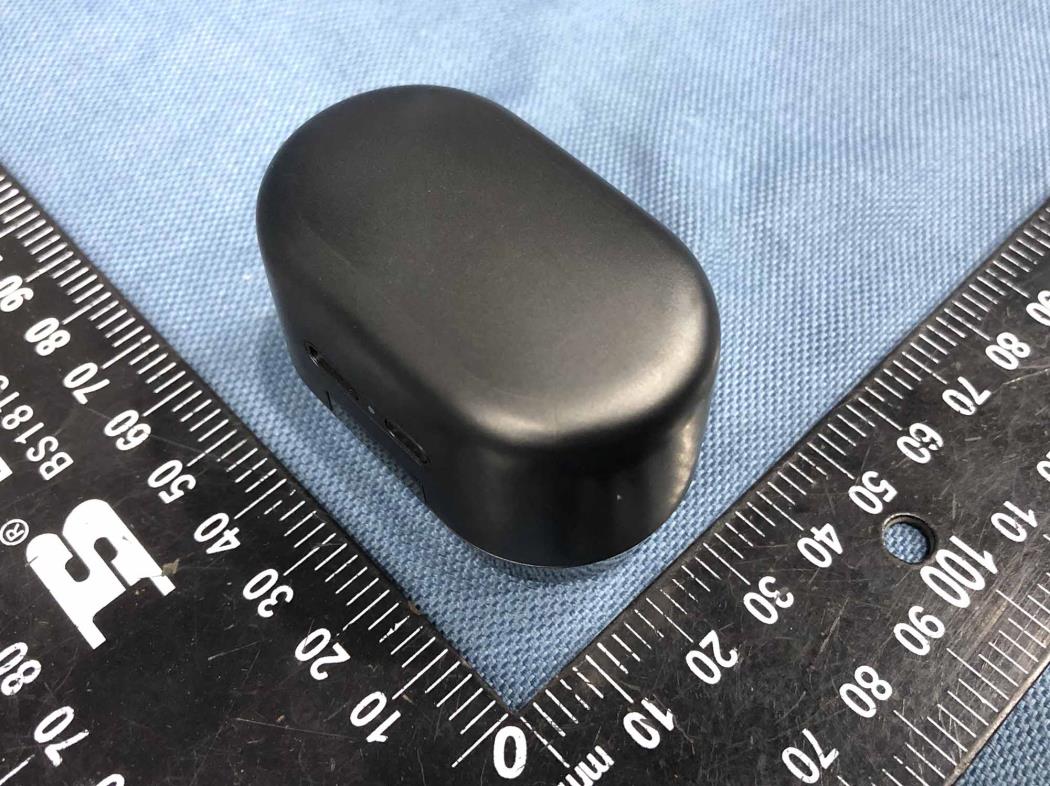

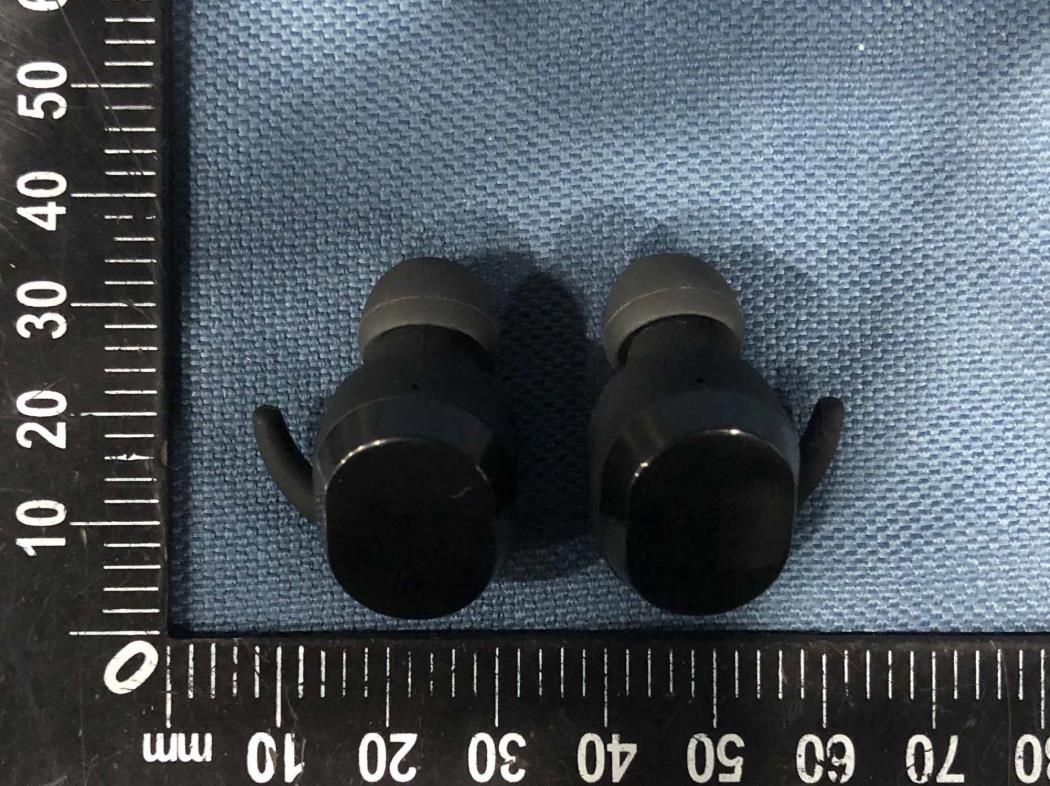

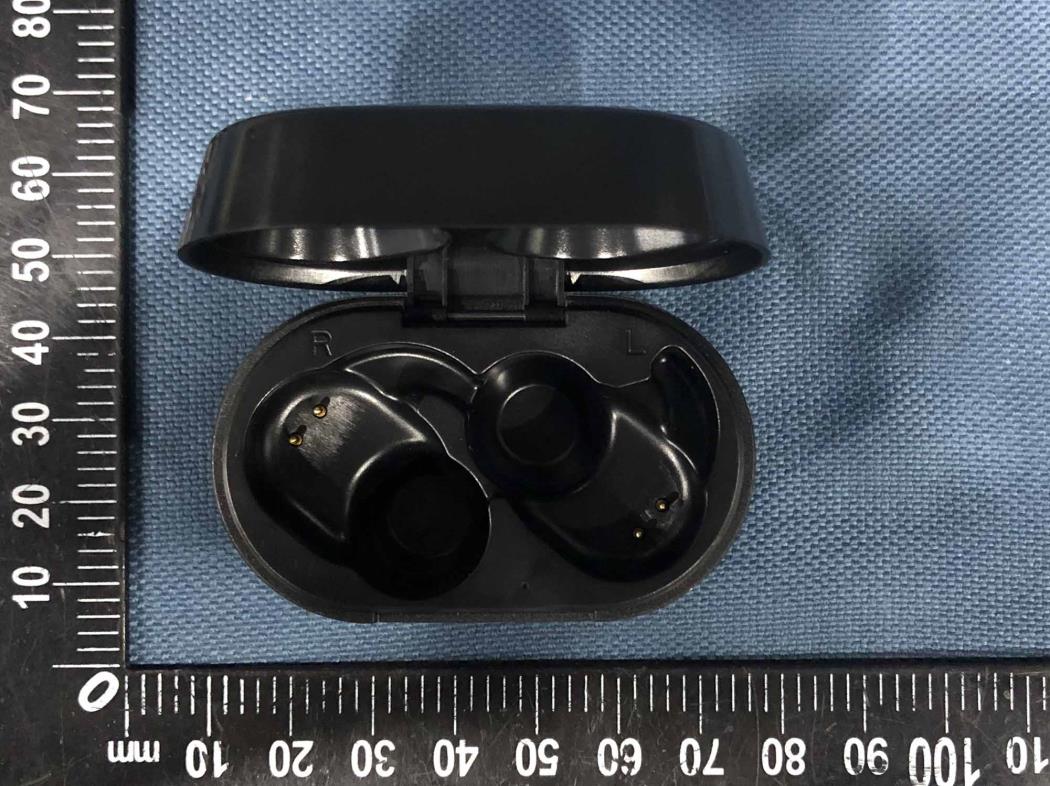

Page 1 of 4 FCC ID: 2AR2STAT3216LC Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT EXTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 4 FCC ID: 2AR2STAT3216LC Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 4 FCC ID: 2AR2STAT3216LC Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 4 FCC ID: 2AR2STAT3216LC Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo
