2AR2STAT3508Active Noise Canceling True wireless headphones

(MMD Hong Kong Holding Limited) Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AR2STAT3508 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name (Block Diagram, Schematics, Operational Description, BOM, PCB Layout) (Block Diagram, Schematics, Operational Description, BOM, PCB Layout) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Short-term confidentiality period: 180 days Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name (External Photos, Test Setup Photos, Manual, Internal Photos) (External Photos, Test Setup Photos, Manual, Internal Photos,) Sincerely, (signature) (printed name) Tomas Guan

Family model description Letter Page 1 of 1 (MMD Hong Kong Holding Limited) (Current Date) 2022-12-30 FCC ID：2AR2STAT3508 Product name Active Noise Canceling True wireless headphones Brand name PHILIPS Test Model name TAT3508 Additional model name TAT3508II, TAT3508xx/yy, TAT3508IIxx/yy (xx=AA-ZZ or blank denoted different color; yy=00-99 denoted different country destination) Deviation of models All models are identical except model name, color and country destination for marketing purpose. Signature: Name: Tomas Guan Title: Safety & Approbation Manager Company Name : MMD Hong Kong Holding Limited Company Address: Unit 1006, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong

MMD Hong Kong Holding Limited Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2022-12-30 SUBJECT: 2AR2STAT3508 To Whom It May Concern: I, the undersigned, hereby states this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules, and will apply the Supplier's Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. I understand the following FCC requirements: 1. Devices subject to the SDoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Pt 2.1077 contains the list of information that must be included in the Supplier's Declaration of Conformity, which must be supplied with each product sold. The SDoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(b), the responsible party is either the Manufacturer or if the product is imported the Importer. Regards, MMD Hong Kong Holding Limited ------------------------------- （Tomas Guan）

(MMD Hong Kong Holding Limited) Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2023-1-18 SUBJECT: FCC Application for (FCC ID: 2AR2STAT3508) To Whom It May Concern: The purpose of this letter is to declare that the FCC ID is placed on the manual and packaging because the product is too small. Regards, Tomas Guan (Must be signed by the person that is listed on the FCC Website)

(MMD Hong Kong Holding Limited) Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2022-12-30 SUBJECT: FCC Application for (FCC ID: 2AR2STAT3508) To Whom It May Concern: We, the undersigned, hereby authorize _Tank Tan at Hwa-Hsing (Dongguan) Testing Co., Ltd._ on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by _ Tank Tan at Hwa-Hsing (Dongguan) Testing Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Tomas Guan (Must be signed by the person that is listed on the FCC Website)

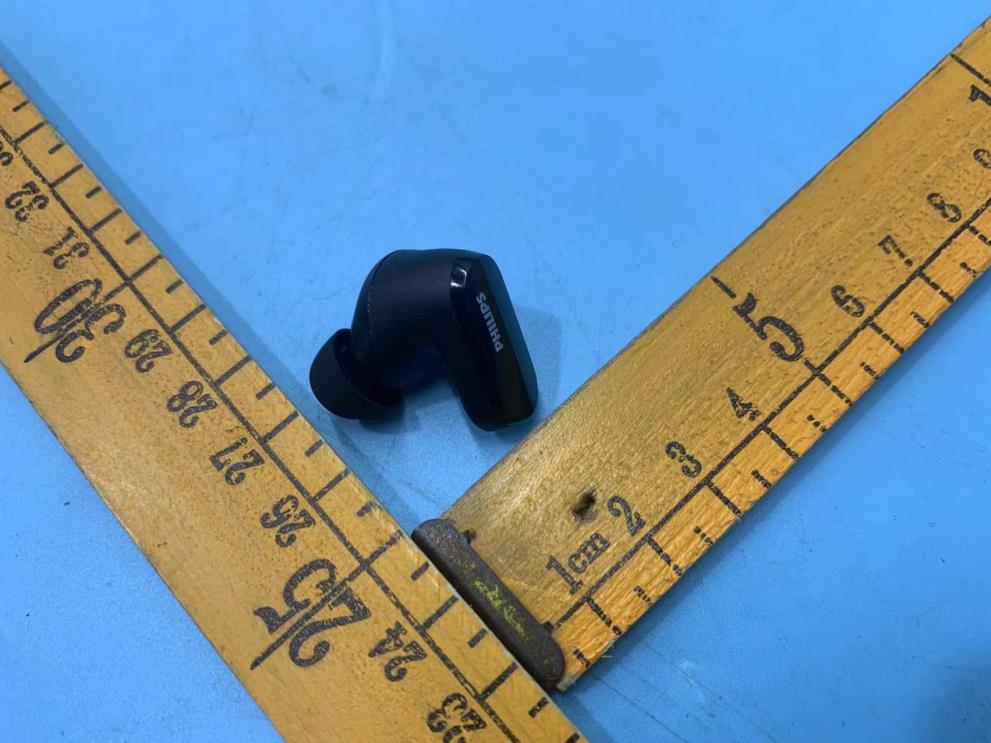

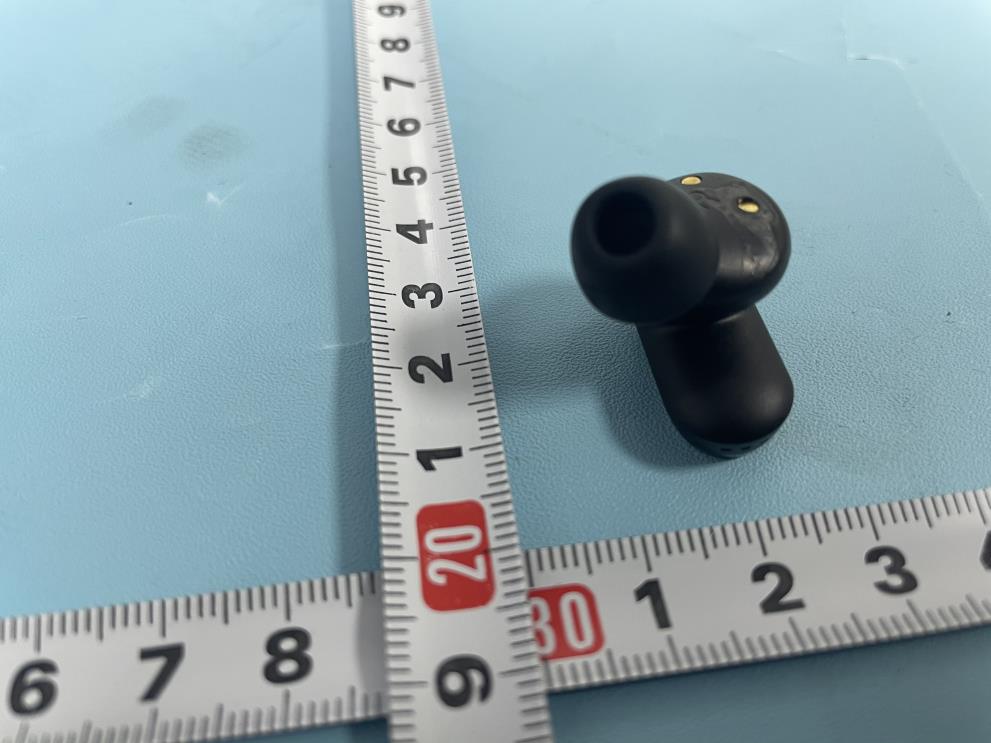

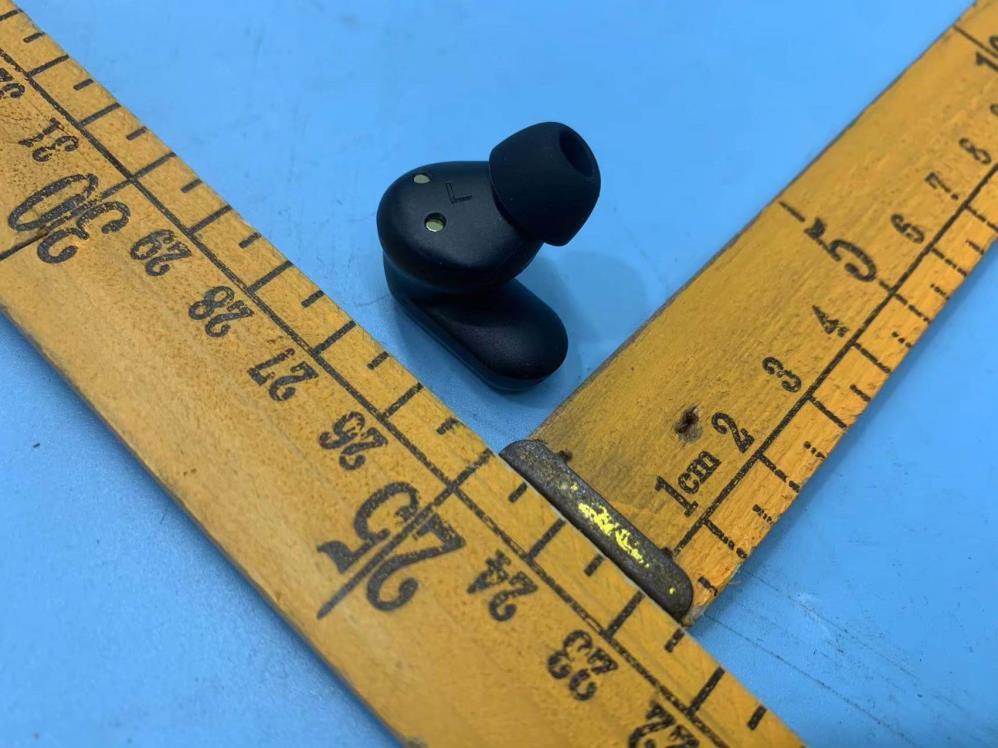

Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 1 of 6 Project No.: 221027KH16-02 External EUT Photo Test models: TAT3508, TAT3508II Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 2 of 6 Project No.: 221027KH16-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 3 of 6 Project No.: 221027KH16-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 4 of 6 Project No.: 221027KH16-02 Left earphone Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 5 of 6 Project No.: 221027KH16-02 Right earphone Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 6 of 6 Project No.: 221027KH16-02

Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 1 of 17 Project No.: 221027KH16-01 EUT Photos Test models: TAT3508, TAT3508II Left earphone Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 2 of 17 Project No.: 221027KH16-01 ANT(Left) Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 3 of 17 Project No.: 221027KH16-01 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 4 of 17 Project No.: 221027KH16-01 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 5 of 17 Project No.: 221027KH16-01 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 6 of 17 Project No.: 221027KH16-01 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 7 of 17 Project No.: 221027KH16-01 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 8 of 17 Project No.: 221027KH16-01 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 9 of 17 Project No.: 221027KH16-01 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 10 of 17 Project No.: 221027KH16-01 Right earphone Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 11 of 17 Project No.: 221027KH16-01 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 12 of 17 Project No.: 221027KH16-01 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 13 of 17 Project No.: 221027KH16-01 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 14 of 17 Project No.: 221027KH16-01 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 15 of 17 Project No.: 221027KH16-01 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 16 of 17 Project No.: 221027KH16-01 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 17 of 17 Project No.: 221027KH16-01 ANT(Right)

Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.4 Page 1 of 7 Test Report No.: 221027KH16-SE-US-01 RF Exposure Report FCC ID: 2AR2STAT3508 Applicant: MMD Hong Kong Holding Limited Address: Unit 1006, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Manufacturer: MMD Hong Kong Holding Limited Address: Unit 1006, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Product(s): Active Noise Canceling True wireless headphones Brand(s): PHILIPS or Test Model(s): TAT3508 Series Model(s): TAT3508II, TAT3508xx/yy, TAT3508IIxx/yy (xx=AA-ZZ or blank denoted different color; yy=00-99 denoted different country destination) Test Date: Nov. 18, 2022~ Dec. 10, 2022 Issued Date: Jan. 13, 2023 Issued By: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Test Firm Registration No.: 915896 Standards: FCC Part 2(Section 2.1093) KDB 447498 D01 General RF Exposure Guidance v06 IEEE C95.1 The above equipment has been tested by Hwa-Hsing (Dongguan) Testing Co., Ltd., and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. Prepared by : Reviewed by : Niny Zhang Tank Tan Approved by : Scott He “This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. Our report includes all the tests requested by you and the results thereof based upon the information that you provided to us. The report would be invalid without specific stamp of test institute and the signatures of tester and approver.” Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.4 Page 2 of 7 Test Report No.: 221027KH16-SE-US-01 Table of contents Release control record ............................................................................................... 3 1 General Information ......................................................................................... 4 1.1 General Description of EUT ............................................................................. 4 2 RF exposure limit ............................................................................................. 5 3 Calculation SAR test exclusion thresholds ....................................................... 6 Appendix – Information on the Testing Laboratories .................................................... 7 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.4 Page 3 of 7 Test Report No.: 221027KH16-SE-US-01 Release control record Issue No. Reason for change Date Issued 221027KH16-SE-US-01 Original Release Jan. 13, 2023 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.4 Page 4 of 7 Test Report No.: 221027KH16-SE-US-01 1 General Information 1.1 General Description of EUT Product Active Noise Canceling True wireless headphones Brand PHILIPS or Sample No. HS221109-01-09 Test Model(s) TAT3508 Series Model(s) TAT3508II, TAT3508xx/yy, TAT3508IIxx/yy (xx=AA-ZZ or blank denoted different color; yy=00-99 denoted different country destination) Status of EUT Engineering Prototype Power Supply Rating Charge case: Input: DC 5V, 500mA from USB or DC 3.7V from battery; Each Headphone: Input: DC 5V 55mA from Charge case Modulation Type GFSK, π/4 DQPSK, 8DPSK for FHSS Transfer Rate 1/2/3Mbps Operating Frequency 2402 ~ 2480MHz Number of Channel 79 Output Power (Average) BLE: 3.21dBm EDR: 3.49dBm Antenna Type FPC Antenna Antenna Gain L: -0.83dBi R: -0.85dBi Antenna Connector N/A Accessory Device N/A Note: 1. Please refer to the EUT photo document (Reference No.: 221027KH16-01&-02) for detailed product photo. 2. The above EUT information is declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual. 3. All models are identical except model name, color and country destination for marketing purpose. Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.4 Page 5 of 7 Test Report No.: 221027KH16-SE-US-01 2 RF exposure limit The corresponding SAR Exclusion Threshold condition, listed below: 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,16 where ➢ f(GHz) is the RF channel transmit frequency in GHz ➢ Power and distance are rounded to the nearest mW and mm before calculation ➢ The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for…

Text truncated - open the document above for the full version.

Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 1 of 58 Test Report No.: 221027KH16-RF-US-02 FCC Part 15, Subpart C Test Report FCC ID: 24589-TAT3508 Applicant: MMD Hong Kong Holding Limited Address: Unit 1006, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Manufacturer: MMD Hong Kong Holding Limited Address: Unit 1006, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Product: Active Noise Canceling True wireless headphones Brand: PHILIPS or Test Model(s): TAT3508 Series Model(s): TAT3508II, TAT3508xx/yy, TAT3508IIxx/yy (xx=AA-ZZ or blank denoted different color; yy=00-99 denoted different country destination) Test Date: Nov. 18, 2022~ Dec. 14, 2022 Issued Date: Jan. 13, 2023 Issued By: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld. N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Test Firm Registration No.: 915896 Designation No.: CN1255 Standards: 47 CFR FCC Part 15, Subpart C (Section 15.247) ANSI C63.10:2013 The above equipment has been tested by Hwa-Hsing (Dongguan) Testing Co., Ltd., and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. Prepared by : Reviewed by : Niny Zhang Tank Tan Approved by : Scott He “This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. Our report includes all the tests requested by you and the results thereof based upon the information that you provided to us. The report would be invalid without specific stamp of test institute and the signatures of tester and approver.” Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 2 of 58 Test Report No.: 221027KH16-RF-US-02 Table of Contents Release Control Record .................................................................................................................................. 4 1. Summary of Test Results .......................................................................................................................... 5 1.1 Measurement Uncertainty ..................................................................................................................... 5 1.2 Modification Record .............................................................................................................................. 5 2. General Information ................................................................................................................................... 6 2.1 General Description of EUT .................................................................................................................. 6 2.2 Description of Test Channels ................................................................................................................ 7 2.3 Test Mode Applicability and Tested Channel Detail ............................................................................. 7 2.4 Description of Support Units ................................................................................................................. 9 2.5 Configuration of System under Test ..................................................................................................... 9 2.6 Duty Cycle of Test Signal ..................................................................................................................... 9 3. Test Types and Results ........................................................................................................................... 11 3.1 Radiated Emission and Band-edge Measurement ............................................................................. 11 3.1.1 Limits of radiated emission and band-edge measurement ...................................................... 11 3.1.2 Test Instruments ....................................................................................................................... 12 3.1.3 Test Procedures ....................................................................................................................... 13 3.1.4 Deviation from Test Standard ................................................................................................... 14 3.1.5 Test Setup ................................................................................................................................ 15 3.1.6 EUT Operating Conditions ........................................................................................................ 16 3.1.7 Test Results .............................................................................................................................. 17 3.2 6dB Bandwidth Measurement ............................................................................................................. 31 3.2.1 Limits of 6dB Bandwidth Measurement .................................................................................... 31 3.2.2 Test Setup ................................................................................................................................ 31 3.2.3 Test Instruments ...............................................................................................................…

Text truncated - open the document above for the full version.

Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 45 of 58 Test Report No.: 221027KH16-RF-US-02 2Mbps Peak Conducted powe Average Conducted power CH0 CH0 CH19 CH19 CH39 CH39 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 46 of 58 Test Report No.: 221027KH16-RF-US-02 3.5 Power Spectral Density Measurement 3.5.1 Limits of Power Spectral Density Measurement The Maximum of Power Spectral Density Measurement is 8dBm/3kHz. 3.5.2 Test Setup ⚫ DTS maximum power spectral density level in the fundamental emission Subclause 11.10 of ANSI C63.10 is applicable Spectrum analyzer test configuration 3.5.3 Test Instruments Refer to section 5 to get information of above instrument. Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 47 of 58 Test Report No.: 221027KH16-RF-US-02 3.5.4 Test Procedure a. Method AVGPSD-1 or method AVGPSD-1A (alternative) shall be applied if either of the following conditions can be satisfied: 1) The EUT transmits continuously (or with a D ≥98%). 2) Sweep triggering can be implemented in such a way that the device transmits at the maximum power control level throughout the duration of each of the instrument sweeps to be averaged. This condition can generally be achieved by triggering the instrument's sweep if the duration of the sweep is equal to or shorter than the duration I of each transmission from the EUT, and if those transmissions exhibit full power throughout these durations. b. Method AVGPSD-2 or method AVGPSD-2A (alternative) shall be applied if the conditions of the preceding item a) cannot be achieved. and the transmissions exhibit a constant duty cycle during the measurement duration. Duty cycle will be considered to be constant if variations are less than ±2%. c. Method AVGPSD-3 or method AVGPSD-3A (alternative) shall be applied if the conditions of the preceding paragraphs a) and b) cannot be achieved. Method AVGPSD-3: Method AVGPSD-3 uses mms detection across ON and OFE times of the EUT with max hold. The following procedure is applicable when the EUT cannot be configured to transmit continuously (i.e. D<98%), when sweep triggering/signal gating cannot be used to measure only when the EUT is transmitting at its maximum power control level. and when the transmission duty cycle is not constant (i.e., duty cycle variations exceed ±2%), SA Setting: a. Set the instrument span to a minimum of 1.5 times the OBW. b. Set sweep trigger to "free run." c. Set the RBW = 3 kHz, VBW =10 kHz, d. Detector = RMS (power averaging). e. Sweep time = Auto couple, f. Allow max hold to run for at least 60 s or longer as needed to allow the trace to stabilize. g. Use the peak marker function to determine the maximum PSD level ⚫ If the measured value exceeds requirement, then reduce RBW (but no less than 3 kHz) and repeat (note that this may require zooming in on the emission of interest and reducing the span to meet the minimum measurement point requirement as the RBW is reduced). 3.5.5 Deviation from Test Standard No deviation. 3.5.6 EUT Operating Condition The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 48 of 58 Test Report No.: 221027KH16-RF-US-02 3.5.7 Test Results BLE-1Mbps Power Density Test Channel Channel Frequency Test Result (dBm/3kHz) Limit (dBm/3kHz) 0 2402MHz -5.55 <8 19 2440MHz -7.67 <8 39 2480MHz -7.40 <8 BLE-2Mbps Power Density Test Channel Channel Frequency Test Result (dBm/3kHz) Limit (dBm/3kHz) 0 2402MHz -8.42 <8 19 2440MHz -10.51 <8 39 2480MHz -10.53 <8 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 49 of 58 Test Report No.: 221027KH16-RF-US-02 BLE 1Mbps BLE 2Mbps CH0 CH0 CH19 CH19 CH39 CH39 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 50 of 58 Test Report No.: 221027KH16-RF-US-02 3.6 Conducted Out of Band Emission Measurement 3.6.1 Limits of Conducted Out of Band Emission Measurement a. If the maximum peak conducted output power procedure was used to determine compliance as described in 11.9.1, then the peak output power measured in any 100 kHz bandwidth outside of the authorized frequency band shall be attenuated by at least 20 dB relative to the maximum in-band peak PSD level in 100 kHz (i.e., 20 dBc). b. If maximum conducted (average) output power was used to determine compliance as described in 11.9.2. then the peak power in any 100 kHz bandwidth outside of the authorized frequency band shall be attenuated by at least 30 dB relative to the maximum in-band peak PSD level in 100 kHz (i.e., 30 dBc). 3.6.2 Test Setup ⚫ DTS emissions in non-restricted frequency bands Subclause 11.11 of ANSI C63.10 is applicable. ⚫ DTS emissions in restricted frequency bands Subclause 11.12 of ANSI C63.10 is applicable Spectrum analyzer test configuration 3.6.3 Test Instruments …

Text truncated - open the document above for the full version.

Antenna Type: FPC Antenna Antenna Size: 19.31mm(L)*7.56mm(W) Antenna Manufacture: Shenzhen Si Xun Communication Technology Co. LT…
