2AR2STAT5506Wireless sports headphones

User manual Register your product and get support at www.philips.com/support 5000 Series TAT5506 Headphones 1 Important safety instructions 2 Hearing Safety 2 General information 2 2 Your True wireless earpieces 3 What's in the box 3 Other devices 3 Overview of your True wireless earpieces 4 3 Get started 5 Charge the battery 5 Pair the earpieces with your Bluetooth device for the rst time 6 4 Use your earpieces 7 Connect the earpieces to your Bluetooth device 7 Control ANC (active noise cancelation) 7 Manage your calls and music 8 LED indicator status 8 Voice Assistant 9 5 Reset the earpieces 10 6 Technical data 10 7 Notice 11 Declaration of conformity 11 Disposal of your old product and battery 11 Remove the integrated battery 11 Compliance with EMF 12 Environmental information 12 Notice of compliance 12 8 Trademarks 14 9 Frequently asked questions 15 Contents 1 Important safety instructions Hearing Safety Danger  To avoid hearing damage, limit the time you use headphones at high volume and set the volume to a safe level. The louder the volume, the shorter the safe listening time is. Be sure to observe the following guide- lines when using your headphones. • Listen at reasonable volumes for reasonable periods of time. • Be careful not to adjust the volume continuously upwards as your hearing adapts. • Do not turn up the volume so high that you can't hear what's around you. • You should use caution or tempo- rarily discontinue use in potentially hazardous situations. • Excessive sound pressure from earpieces and headphones can cause hearing loss. • Using headphones with both ears covered while driving is not recom- mended and may be illegal in some areas while driving. • For your safety, avoid distractions from music or phone calls while in trac or other potentially dangerous environments. General information To avoid damage or malfunction: Caution  Do not expose headphones to excessive heat  Do not drop your headphones.  Headphones shall not be exposed to dripping , splashing water.  Do not allow your headphones to be submerged in water.  Do not use any cleaning agents containing alcohol, ammonia, benzene, or abrasives.  If cleaning is required use a soft doth, if necessary dampened with a minimum amount of water or diluted mild soap, to clean the product.  The integrated battery shall not be exposed to excessive heat such as sunshine, re or the like.  Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. • Disposal of a battery into re or a hot oven, or mechanically crushing or cutting of a battery, can result in an explosion; • Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of ammable liquid or gas; • A battery subjected to extremely low air pressure that may result in an explosion or the leakage of ammable liquid or gas. About operating and storage temperatures and humidity • Store in a place where temperature is between -20°C (-4°F) and 50°C (122 °F) (up to 90% relative humidity. • Operate in a place where temperature is between 0°C (32°F) and 45°C (113 °F) (up to 90% relative humidity. • Battery life may be shorter in high or low temperature conditions. • Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types); 2 Your True wireless earpieces What's in the box Philips true wireless earpieces Philips TAT5506 Replaceable rubber ear caps x 3 pairs Quick start guide Other devices A mobile phone or device (e.g. note- book, PAD, Bluetooth adapters, MP3 players etc) which supports Bluetooth and is compatible to the earpieces (see 'Technical data' on page 10). Congratulations on your purchase, and welcome to Philips! To fully benet from the support that Philips oers, register your product at www.philips.com/support. With this Philips True wireless earpiec- es, you can: • enjoy convenient wireless handsfree calls; • enjoy and control wireless music; • switch between calls and music. USB-C charging cable (for charging only) Global Warranty Safety leaet Overview of your True wireless earpieces  Microphone  Multi-function touch  LED indicator (earpieces)  Microphone  LED indicator (factory reset)  Factory reset button  USB-C charging slot  LED indicator (charging box) 6 7 8 3 Get started Charge the battery Charging Box Note  Before you use your earpieces for the rst time, place the earpieces in the charging box and charge the battery for 2 hours for optimum battery capacity and lifetime.  Use only the original USB-C charging cable to avoid any damage.  Finish your call before charging the earpieces, as connecting the earpieces for charging will power the earpieces o. Connect one end of the USB cable into the charging box, and another end into the power source. • Charging process is veried by the blue LED light on the front panel. • When the charging box is fully charged, the blue light goes on. Tip Tip  The charging box serves as a portable backup battery for charging the earpieces. When the charging box is fully charged, it supports 3 times full recharge cycle for the earpieces.  Normally, a full charge takes 2 hours (for the earpieces or charging box) by USB cable. Earpieces • Charging process is veried by blue LED light on the earpieces. • When the earpieces is fully charged, the blue light goes o. Place the earpieces in the charging box. The earpieces start charging. The charging box starts charging. The LED on both earpieces ash in white & blue alternately. Pair the earpieces with your Bluetooth device for the rst time Open the top cover from charging box. Make sure that the headphones is fully charged and powered o. Single earpiece (Mono mode) Take either right or left earpiece out from charging box for Mono use. The earpiece will power on automatically. There will be a voice “Power on” from earpiece. Note Note  After powering on, if the earpieces cannot …

Text truncated - open the document above for the full version.

Authority to Act as Agent [August 1, 2021] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement (MMD Hong Kong Holding Limited) To Whom It May Concern: We, (MMD Hong Kong Holding Limited), hereby authorized Shenzhen UnionTrust Quality and Technology Co., Ltd. to act as our Agent for the purpose of preparing application all applicable parts of the FCC rules and regulations. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 36 months By: __________________________ Tomas Guan (Signature 1 ) (Print name) Title: Manager On behalf of: (MMD Hong Kong Holding Limited) Telephone: 86-755-36358341 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

1(1) [MMD Hong Kong Holding Limited] [July 26, 2021] Attention: Application Examiner RE: Request for Confidentiality Applicant: [MMD Hong Kong Holding Limited] FCC ID: [2AR2STAT5506] To Whom It May Concern: Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request is hereby submitted by [MMD Hong Kong Holding Limited] to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential:  Schematics  Detailed Block Diagrams  Detailed Operational/Functional Description Rationale for request for confidentiality: [MMD Hong Kong Holding Limited] has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.] [Short term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development.] If you have questions or need further information, please contact the undersigned. Sincerely, [Signature] [Tomas Guan] [ Manager] [MMD Hong Kong Holding Limited]

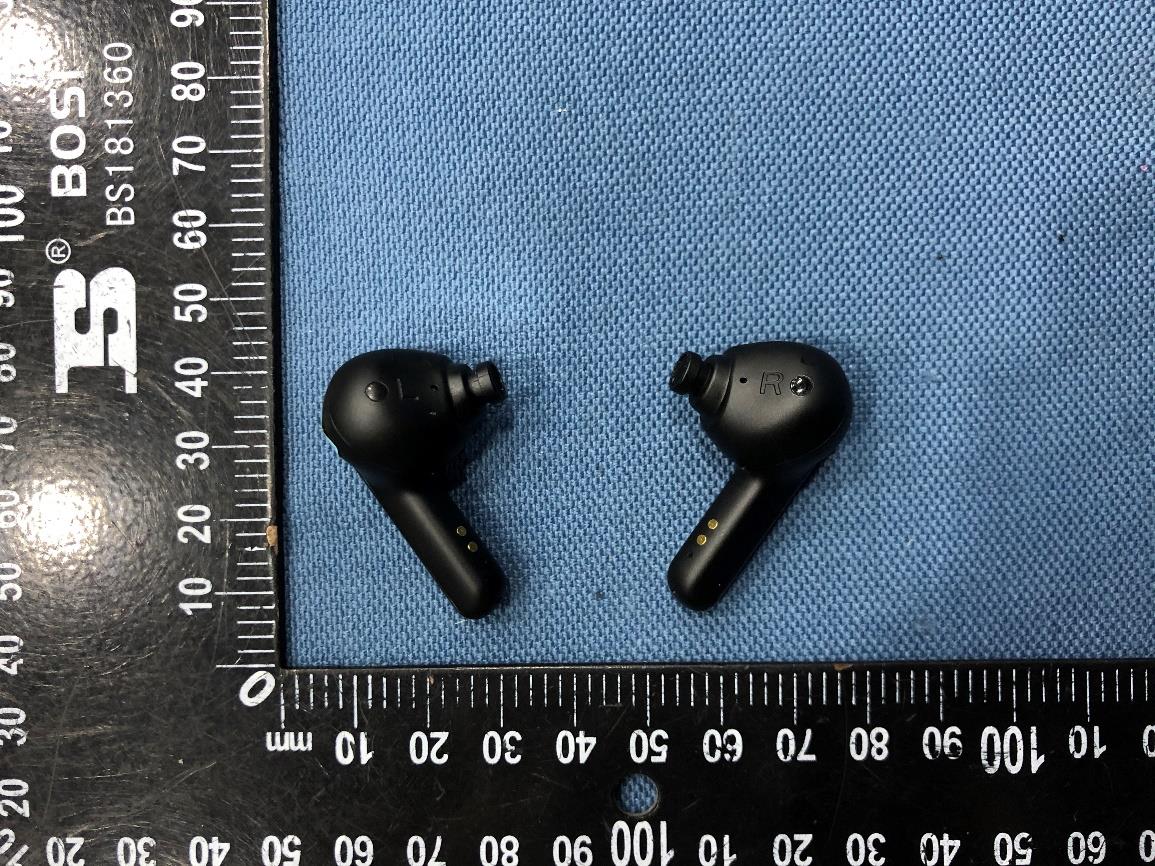

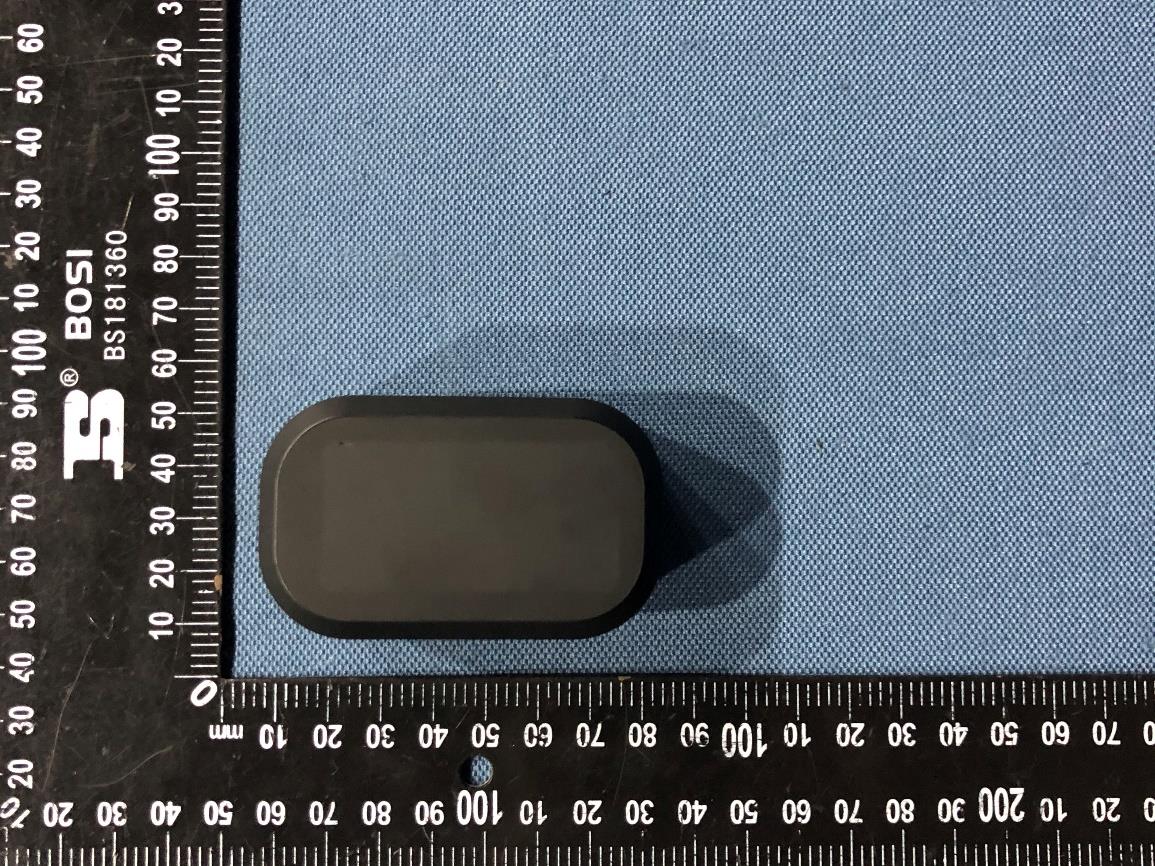

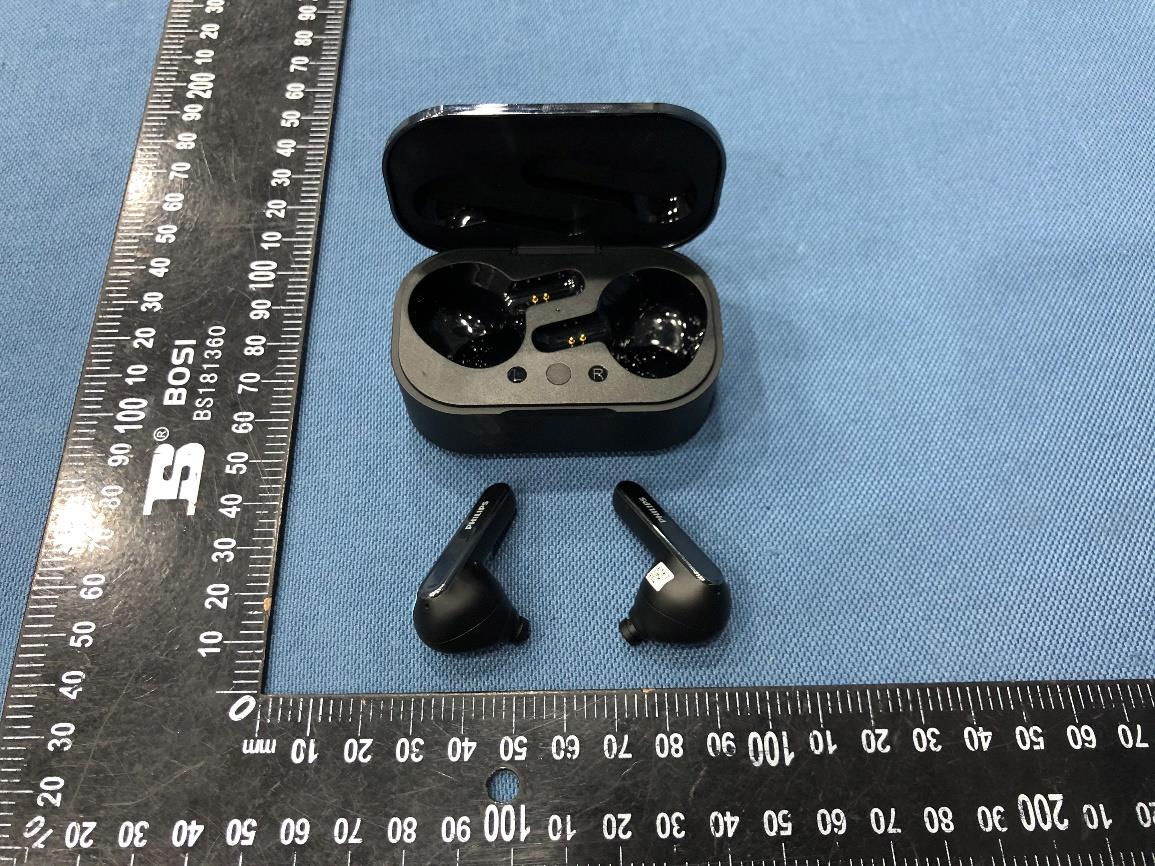

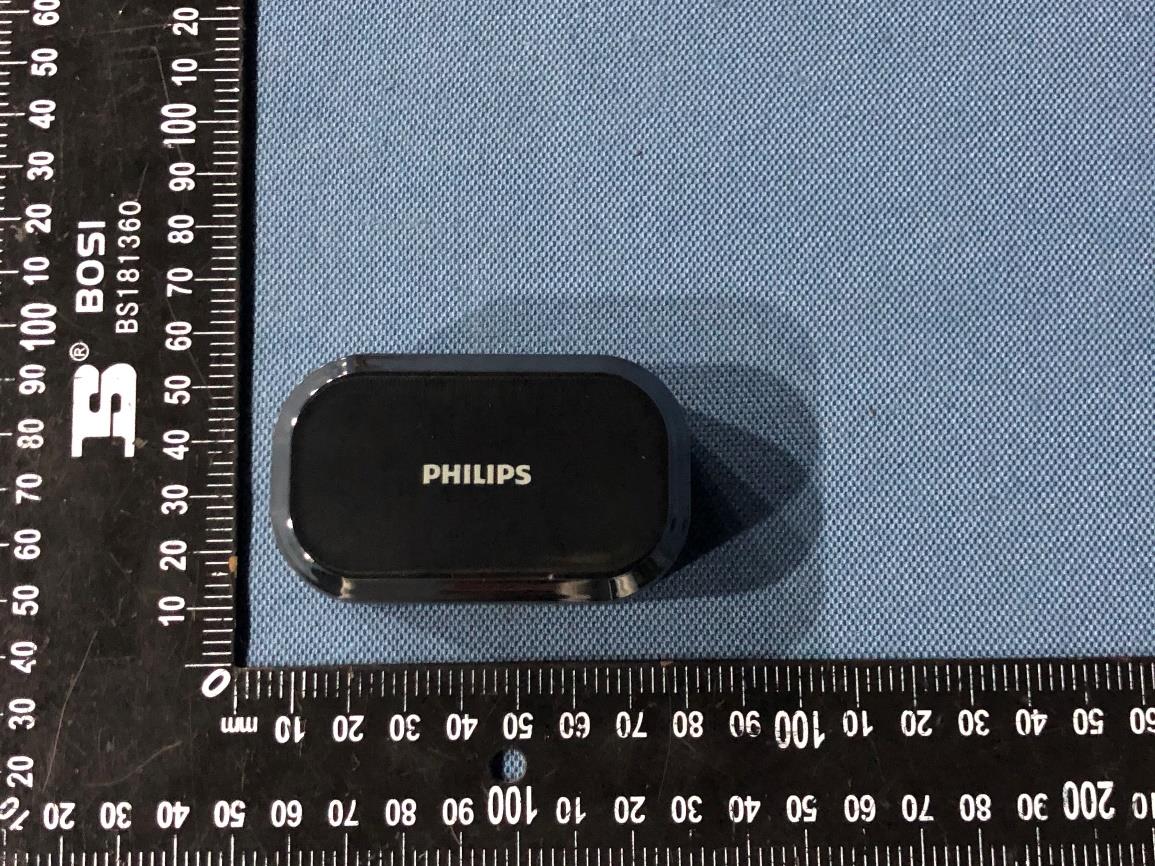

Page 1 of 7 FCC ID: 2AR2STAT5506 IC: 24589-TAT5506 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT EXTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 7 FCC ID: 2AR2STAT5506 IC: 24589-TAT5506 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 7 FCC ID: 2AR2STAT5506 IC: 24589-TAT5506 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 7 FCC ID: 2AR2STAT5506 IC: 24589-TAT5506 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 5 of 7 FCC ID: 2AR2STAT5506 IC: 24589-TAT5506 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 6 of 7 FCC ID: 2AR2STAT5506 IC: 24589-TAT5506 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 7 of 7 FCC ID: 2AR2STAT5506 IC: 24589-TAT5506 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo

Page 1 of 6 FCC ID: 2AR2STAT5506 IC: 24589-TAT5506 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT INTERNAL PHOTOS EUT Photo（Left Earbud） EUT Photo（Left Earbud） BT Antenna Page 2 of 6 FCC ID: 2AR2STAT5506 IC: 24589-TAT5506 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo（Left Earbud） EUT Photo（Left Earbud） Page 3 of 6 FCC ID: 2AR2STAT5506 IC: 24589-TAT5506 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo（Left Earbud） EUT Photo（Right Earbud） BT Antenna Page 4 of 6 FCC ID: 2AR2STAT5506 IC: 24589-TAT5506 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo（Right Earbud） EUT Photo（Right Earbud） Page 5 of 6 FCC ID: 2AR2STAT5506 IC: 24589-TAT5506 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo（Right Earbud） EUT Photo（Right Earbud） Page 6 of 6 FCC ID: 2AR2STAT5506 IC: 24589-TAT5506 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo（Right Earbud）

Page 1 of 9 Report No.: 210701020RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.1 SAR TEST EXCLUSION EVALUATION REPORT Product Name: True wireless headphones with Noise Canceling Pro Trade Mark: or PHILIPS Model No. /HVIN : TAT5506 Add. Model No.: TAT5506LC, TAT5506xx/yy (xx=AA-ZZ or blank denoted different color; yy=00-99 denoted different country destination) Report Number: 210701020RFC-3 Test Standards: FCC 47 CFR Part 2.1093 RSS-102 Issue 5 FCC ID: 2AR2STAT5506 IC: 24589-TAT5506 Test Result: PASS Date of Issue: August 4, 2021 Prepared for: MMD Hong Kong Holding Limited Unit 1006 , 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Prepared by: Shenzhen UnionTrust Quality and Technology Co., Ltd. Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China TEL: +86-755-2823 0888 FAX: +86-755-2823 0886 Prepared by: Reviewed by: Henry Lu Eric Yu Team Leader Project Supervisor Approved by: Date: August 4, 2021 Kevin Liang Assistant Manager Page 2 of 9 Report No.: 210701020RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.1 Version Version No. Date Description V1.0 August 4, 2021 Original Page 3 of 9 Report No.: 210701020RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.1 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 4 1.4 OTHER INFORMATION ......................................................................................................................................... 5 1.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................................................... 5 1.6 DEVIATION FROM STANDARDS ............................................................................................................................ 5 1.7 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 5 1.8 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 6 2. EQUIPMENT LIST .................................................................................................................................................... 6 3. SAR TEST EXCLUSION EVALUATION ................................................................................................................... 6 3.1 REFERENCE DOCUMENTS FOR EVALUATION ........................................................................................................ 6 3.2 EXEMPTION LIMITS FOR ROUTINE EVALUATION – SAR EVALUATION .................................................................... 6 3.2.1 SAR TEST EXCLUSION THRESHOLD ........................................................................................................ 6 3.2.2 TEST PROCEDURE ................................................................................................................................. 8 3.3 MPE CALCULATION RESULTS ............................................................................................................................ 8 3.3.1 FOR BT ................................................................................................................................................. 8 APPENDIX 1 PHOTOS OF TEST SETUP ....................................................................................................................... 9 APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS ................................................................................... 9 Page 4 of 9 Report No.: 210701020RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.1 1. GENERAL INFORMATION 1.1 CLIENT INFORMATION Applicant: MMD Hong Kong Holding Limited Address of Applicant: Unit 1006 , 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Manufacturer: MMD Hong Kong Holding Limited Address of Manufacturer: Unit 1006 , 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong 1.2 EUT INFORMATION Product Name: True wireless headphones with Noise Canceling Pro Model No. / HVIN: TAT5506 Add. Model No. : TAT5506LC,TAT5506xx/yy (xx=AA-ZZ or blank denoted different color; yy=00-99 denoted different country destination) Trade Mark: or PHILIPS DUT Stage: Identical Prototype EUT Supports Function: 2.4 GHz ISM Band: Bluetooth 5.2 Sample Received Date: July 1, 2021 Note:…

Text truncated - open the document above for the full version.

Page 1 of 68 Report No.: 210701020RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 TEST REPORT Product Name: True wireless headphones with Noise Canceling Pro Trade Mark: or PHILIPS Model No. /HVIN : TAT5506 Add. Model No.: TAT5506LC, TAT5506xx/yy (xx=AA-ZZ or blank denoted different color; yy=00-99 denoted different country destination) Report Number: 210701020RFC-1 Test Standards: FCC 47 CFR Part 15 Subpart C RSS-247 Issue 2 RSS-Gen Issue 5 FCC ID: 2AR2STAT5506 IC: 24589-TAT5506 Test Result: PASS Date of Issue: August 4, 2021 Prepared for: MMD Hong Kong Holding Limited Unit 1006 , 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Prepared by: Shenzhen UnionTrust Quality and Technology Co., Ltd. Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China TEL: +86-755-2823 0888 FAX: +86-755-2823 0886 Prepared by: Reviewed by: Henry Lu Eric Yu Team Leader Project Supervisor Approved by: Date: August 4, 2021 Kevin Liang Assistant Manager Page 2 of 68 Report No.: 210701020RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 Version Version No. Date Description V1.0 August 4, 2021 Original Page 3 of 68 Report No.: 210701020RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.2.1 GENERAL DESCRIPTION OF EUT ............................................................................................................ 4 1.2.2 DESCRIPTION OF ACCESSORIES .............................................................................................................. 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 5 1.4 OTHER INFORMATION ......................................................................................................................................... 5 1.5 DESCRIPTION OF SUPPORT UNITS ...................................................................................................................... 6 1.6 TEST LOCATION ................................................................................................................................................. 6 1.7 TEST FACILITY ................................................................................................................................................... 6 1.8 DEVIATION FROM STANDARDS ............................................................................................................................ 6 1.9 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 7 1.10 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 7 1.11 MEASUREMENT UNCERTAINTY ........................................................................................................................... 7 2. TEST SUMMARY ...................................................................................................................................................... 8 3. EQUIPMENT LIST .................................................................................................................................................... 9 4. TEST CONFIGURATION ........................................................................................................................................ 10 4.1 ENVIRONMENTAL CONDITIONS FOR TESTING ...................................................................................................... 10 4.1.1 NORMAL OR EXTREME TEST CONDITIONS ............................................................................................. 10 4.1.2 RECORD OF NORMAL ENVIRONMENT ..................................................................................................... 10 4.2 TEST CHANNELS ............................................................................................................................................. 10 4.3 EUT TEST STATUS .......................................................................................................................................... 11 4.4 PRE-SCAN .................................................................................................................................................... 11 4.4.1 PRE-SCAN UNDER ALL PACKETS AT MIDDLE CHANNEL .............................................................................. 11 4.4.2 WORST-CASE DATA PACKETS ................................................................................................................ 11 4.4.3 TESTED CHANNEL DETAIL .........................................................................................…

Text truncated - open the document above for the full version.

Page 41 of 68 Report No.: 210701020RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 The test plots as follows: Left Earbud Pulse Width Number of Pulses in 3.16 Seconds GFSK_1-DH1 GFSK_1-DH3 GFSK_1-DH5 Page 42 of 68 Report No.: 210701020RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 Pulse Width Number of Pulses in 3.16 Seconds π/4DQPSK_2-DH1 π/4DQPSK_2-DH3 π/4DQPSK_2-DH5 Page 43 of 68 Report No.: 210701020RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 Pulse Width Number of Pulses in 3.16 Seconds 8DPSK_3-DH1 8DPSK_3-DH3 8DPSK_3-DH5 Page 44 of 68 Report No.: 210701020RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 Right Earbud Pulse Width Number of Pulses in 3.16 Seconds GFSK_1-DH1 GFSK_1-DH3 GFSK_1-DH5 Page 45 of 68 Report No.: 210701020RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 Pulse Width Number of Pulses in 3.16 Seconds π/4DQPSK_2-DH1 π/4DQPSK_2-DH3 π/4DQPSK_2-DH5 Page 46 of 68 Report No.: 210701020RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 Pulse Width Number of Pulses in 3.16 Seconds 8DPSK_3-DH1 8DPSK_3-DH3 8DPSK_3-DH5 Page 47 of 68 Report No.: 210701020RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 5.8 CONDUCTED OUT OF BAND EMISSION Test Requirement: FCC 47 CFR Part 15 Subpart C Section 15.247(d) RSS-247 Issue 2, Section 5.5 Test Method: ANSI C63.10-2013 Section 6.10.4 & Section 7.8.8 Limit: In any 100kHz bandwidth outside the frequency bands in which the spread spectrum intentional radiator in operating, the radio frequency power that is produced by the intentional radiator shall be at least 20dB below that in the 100kHz bandwidth within the band that contains the highest level of the desired power. Test Procedure: Remove the antenna from the EUT and then connect a low loss RF cable from the antenna port to the spectrum analyzer. Use the following spectrum analyzer settings: Step 1:Measurement Procedure REF a) Set instrument center frequency to 2400 MHz or 2483.5 MHz. b) Wide enough to capture the peak level of the emission operating on the channel closest to the band edge, as well as any modulation products that fall outside of the authorized band of operation. c) Set the RBW = 100 kHz. d) Set the VBW ≥ 3 x RBW. e) Detector = peak. f) Sweep time = auto couple. g) Sweep points ≥ 2 x Span/RBW h) Trace mode = max hold. i) Allow the trace to stabilize. j) Set the marker on the emission at the band edge, or on the highest modulation product outside of the band, if this level is greater than that at the band edge. Enable the marker-delta function, and then use the marker-to-peak function to move the marker to the peak of the in-band emission. Step 2:Measurement Procedure O…

Text truncated - open the document above for the full version.
