2AR2STAT8505True wireless earphones

User manual Register your product and get support at www.philips.com/support 8000 Series TAT8505 Headphones 1 Important safety instructions 2 Hearing Safety 2 General information 2 2 Your Bluetooth True wireless earphones 3 What's in the box 3 Other devices 3 Overview of your True wireless earphones 4 3 Get started 5 Charge the battery 5 Pair the headphones with your mobile phone 5 4 Use your headphones 7 Connect the headphones to a Bluetooth device 7 Control ANC (active noise cancelation) 7 Manage your calls and music 8 LED indicator status 9 Voice Assistant 9 5 Factory reset the headset 10 6 Technical data 10 7 Notice 11 Declaration of conformity 11 Disposal of your old product and battery 11 Remove the integrated battery 11 Compliance with EMF 12 Environmental information 12 Notice of compliance 12 8 Trademarks 14 9 Frequently asked questions 15 Contents 1 Important safety instructions Hearing Safety Danger  To avoid hearing damage, limit the time you use headphones at high volume and set the volume to a safe level. The louder the volume, the shorter the safe listening time is. Be sure to observe the following guide- lines when using your headset. • Listen at reasonable volumes for reasonable periods of time. • Be careful not to adjust the volume continuously upwards as your hearing adapts. • Do not turn up the volume so high that you can't hear what's around you. • You should use caution or tempo- rarily discontinue use in potentially hazardous situations. • Excessive sound pressure from earphones and headphones can cause hearing loss. • Using headphones with both ears covered while driving is not recom- mended and may be illegal in some areas while driving. • For your safety, avoid distractions from music or phone calls while in trac or other potentially dangerous environments. General information To avoid damage or malfunction: Caution  Do not expose headphones to excessive heat  Do not drop your headphones.  Headphones shall not be exposed to dripping or splashing.  Do not allow your headphones to be submerged in water.  Do not use any cleaning agents containing alcohol, ammonia, benzene, or abrasives.  If cleaning is required use a soft doth, if necessary dampened with a minimum amount of water or diluted mild soap, to clean the product.  The integrated battery shall not be exposed to excessive heat such as sunshine, re or the like.  Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. About operating and storage temperatures and humidity • Store in a place where temperature is between -20°C (-4°F) and 50°C (122 °F) (up to 90% relative humidity. • Operate in a place where temperature is between 0°C (32°F) and 45°C (113 °F) (up to 90% relative humidity. • Battery life may be shorter in high or low temperature conditions. • Replacement of a battery with an incorrect tpye that can defeat a safeguard (for example, in the case of some lithium battery types); • Disposal of a battery into re or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion; • Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of ammable liquid or gas; • A battery subjected to extremely low air pressure that may result in an explosion or the leakage of ammable liquid or gas. 2 Your True wireless earphones What's in the box Philips True wireless earphones Philips TAT8505 Replaceable rubber ear caps x 3 pairs Quick start guide Other devices A mobile phone or device (e.g. note- book, PDA, Bluetooth adapters, MP3 players etc) which supports Bluetooth and is compatible to the headset (see 'Technical data' on page 8). Congratulations on your purchase, and welcome to Philips! To fully benet from the support that Philips oers, register your product at www.philips.com/welcome. With this Philips True wireless earphones, you can: • enjoy convenient wireless handsfree calls; • enjoy and control wireless music; • switch between calls and music. USB-C charging cable (for charging only) Overview of your True wireless earphones  Microphone  Multi-function touch  LED indicator (Earpieces)  LED indicator (charging box)  Bluetooth pair button  USB-C charging slot 6 Caution Precautions for wireless charging  Do not place the charging case on the wireless charger when conductive materials, such as metal objects and magnets, are placed between the charging case and the wireless charger.  The charging case may not charge properly or may overheat, or the charging case and the cards may be damaged. 3 Get started Charge the battery Charging Box Earpieces Charging the battery with a wireless charger. Note  Before you use your earpieces for the rst time, place the earpieces in the charging box and charge the battery for 3 hours for optimum battery capacity and lifetime.  Use only the original USB-C charging cable to avoid any damage.  Finish your call before charging the earpieces, as connecting the earpieces for charging will power the earpieces o. Connect one end of the USB cable into the charging box, and another end into the power source. • Charging process is veried by the blue LED light next to the USB socket on the case. • When the charging box is fully charged, the blue light goes on. • Charging process is veried by blue LED light on the earpieces. • When the earpieces is fully charged, the blue light goes o. • Place the earpiece to charging box. • Close the charging box cover. • Place the center of the charging case on the center of the wireless charger. • After fully charging, disconnect the charging case from the wireless charger. Tip Tip  The charging box serves as a portable backup battery for charging the earpieces. When the charging box is fully charged, it supports 3 times full recharge cycle for the earpieces.  Normally, a full charge takes 2 hours (for the earpieces or charging box) by USB cable. Tip  A full charge takes 4 hours b…

Text truncated - open the document above for the full version.

DECLARATION OF IDENTITY Hereby we: MMD Hong Kong Holding Limited Brand Name: PHILIPS Name of Product: True wireless earphones Declares that Series Model: TAT8505xx/yy (xx=AA-ZZ or blank denoted different color; yy=00-99 denoted different country destination) Thank you very much. Sincerely yours, 2020/04/29 --------------------------------------- ------------------------- Andy chen Date (yyyy/mm/dd) Safety & Approbation Engineer MMD Hong Kong Holding Limited

C5266091_X8_Ed.1 1/1 Letter of Authorization < MMD Hong Kong Holding Limited > Company: MMD Hong Kong Holding Limited Address: Units 1006-1007, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Product Name:True wireless earphones Model Number: TAT8505, TAT8505xx/yy (xx=AA-ZZ or blank denoted different color; yy=00-99 denoted different country destination) FCC Identifier:2AR2STAT8505 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Tomas Guan Date: 2020/7/14 Title: Manager Signature of applicant:

C5266091_X10_Ed.2 1/1 MMD Hong Kong Holding Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020-07-14 Subject: Request for Confidentiality FCC ID: 2AR2STAT8505 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, C5266091_X10_Ed.2 1/1 Signature: Name: Tomas Guan Title: Manager

Label Location

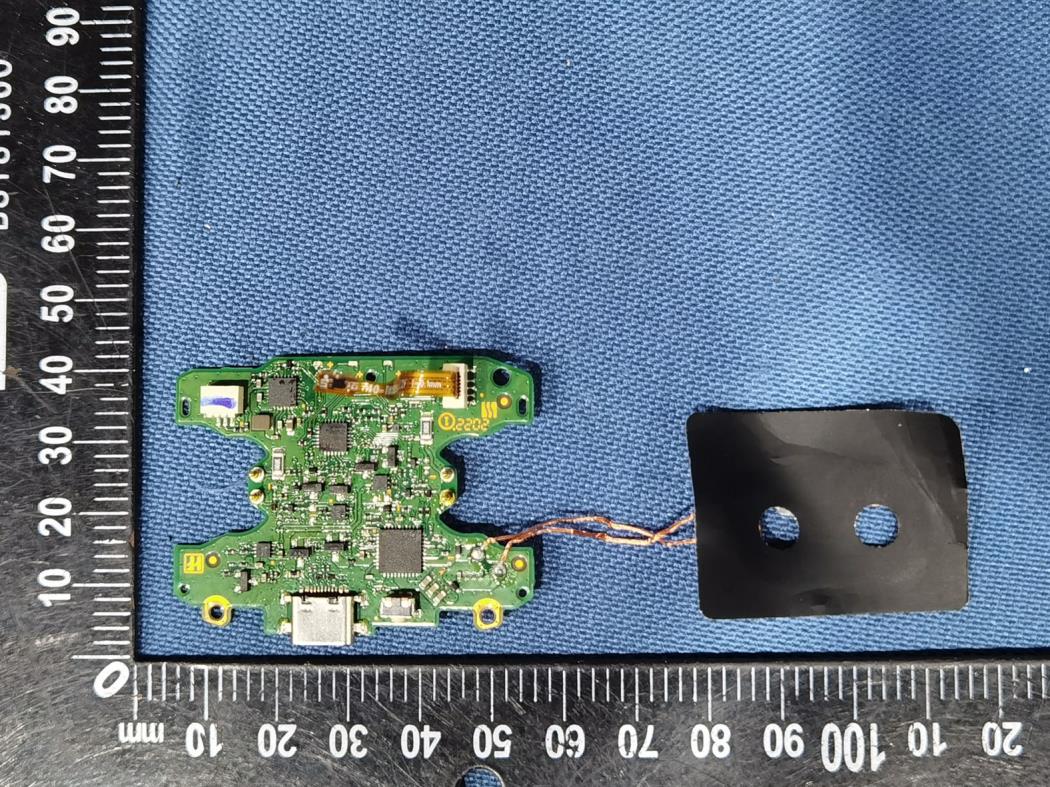

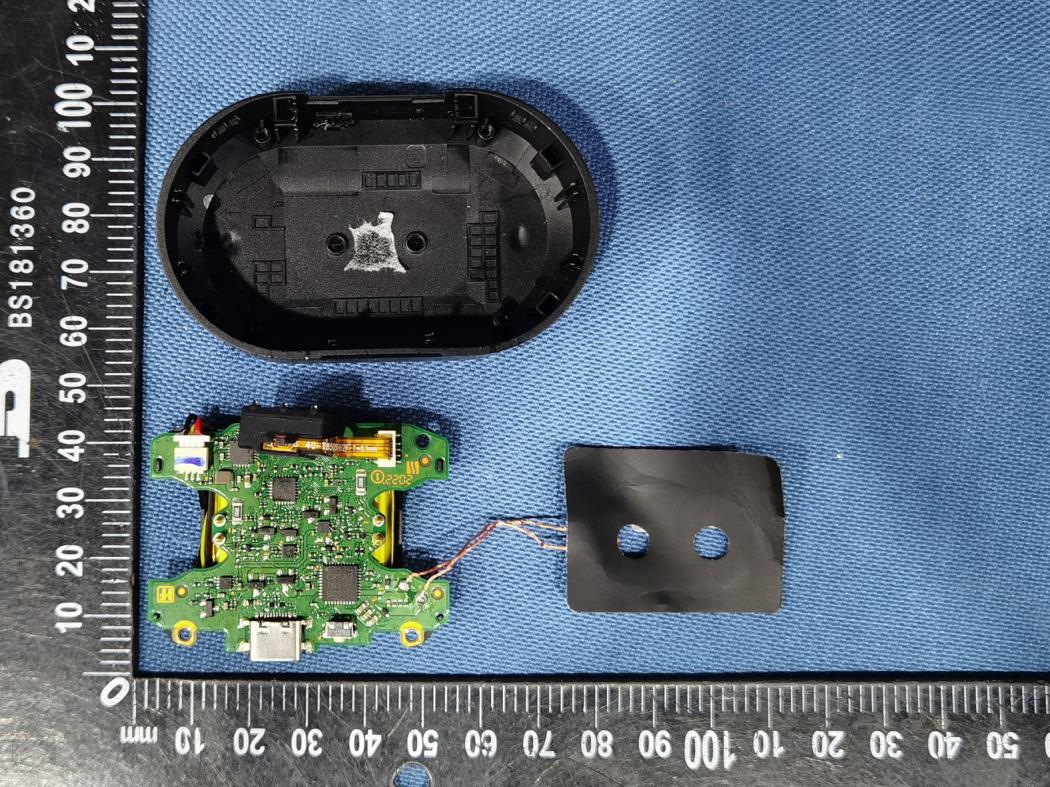

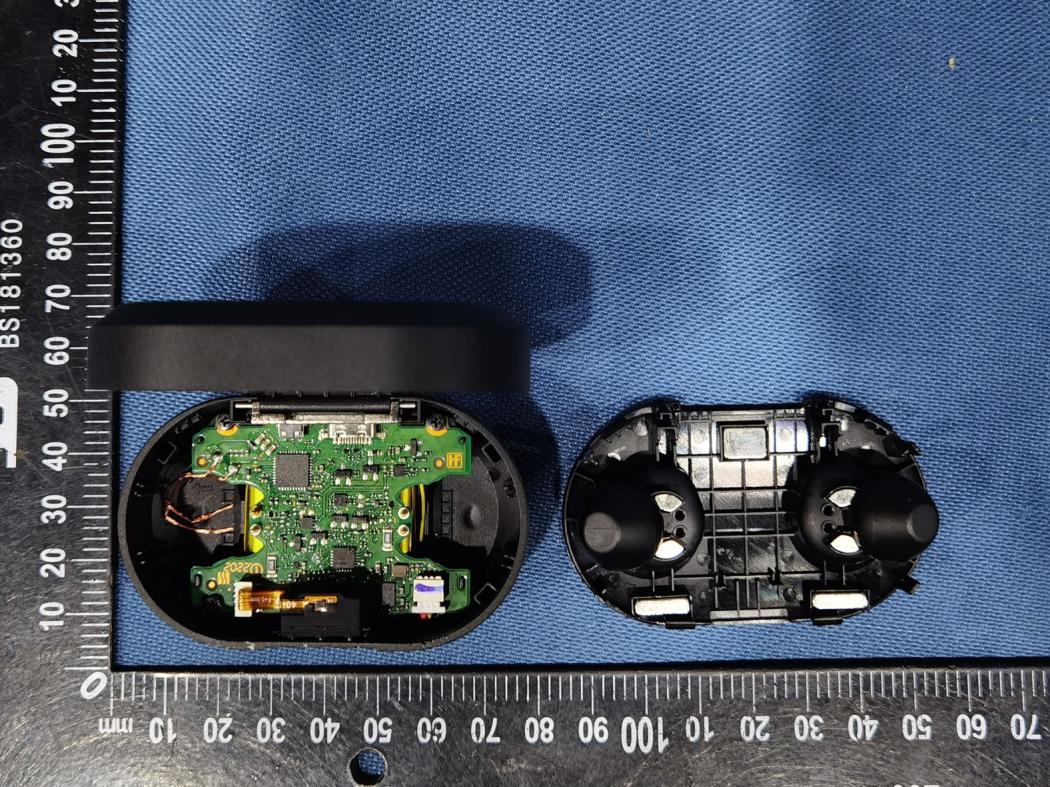

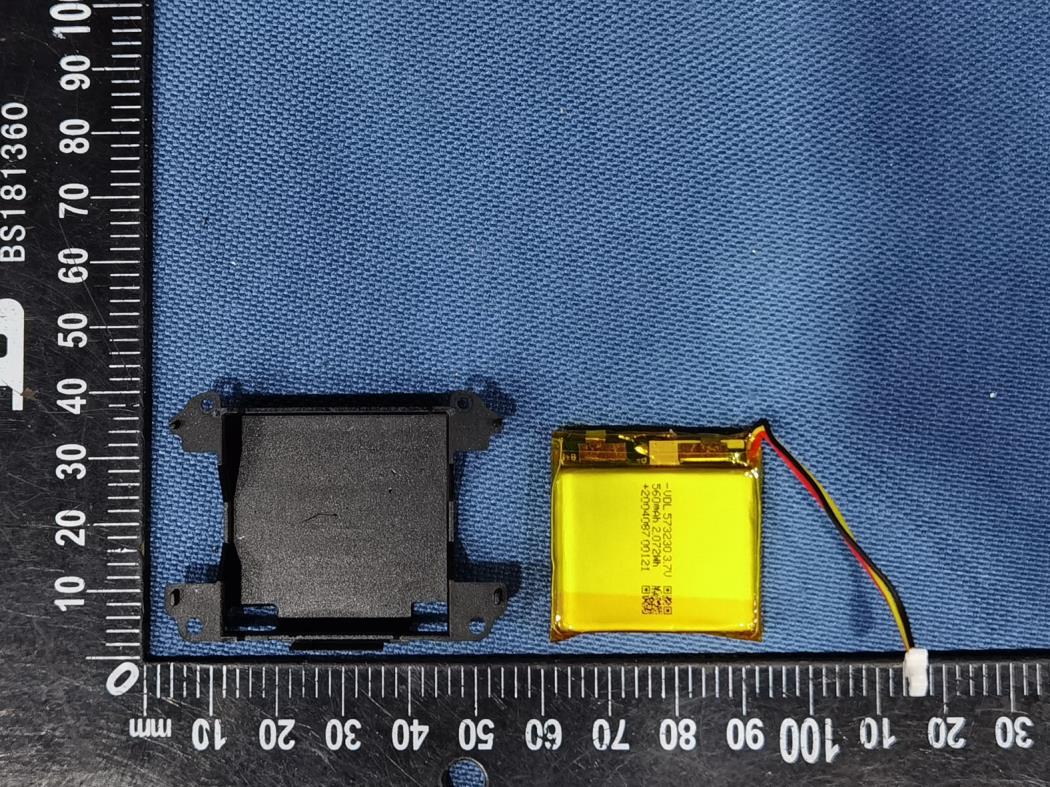

Page 1 of 8 FCC ID: 2AR2STAT8505 IC: 24589-TAT8505 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT INTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 8 FCC ID: 2AR2STAT8505 IC: 24589-TAT8505 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 8 FCC ID: 2AR2STAT8505 IC: 24589-TAT8505 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 8 FCC ID: 2AR2STAT8505 IC: 24589-TAT8505 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo ANT Page 5 of 8 FCC ID: 2AR2STAT8505 IC: 24589-TAT8505 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo AB1552 Module Page 6 of 8 FCC ID: 2AR2STAT8505 IC: 24589-TAT8505 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo ANT Page 7 of 8 FCC ID: 2AR2STAT8505 IC: 24589-TAT8505 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 8 of 8 FCC ID: 2AR2STAT8505 IC: 24589-TAT8505 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo

Uni�nT『ust Page 1 of 11 Report No.: 191203025RFC-3 s s c SI T Product Name: T「uewireless ea「phones Trade Mark: PHILIPS Model No.: TAT8505 Add. Model No.: TAT8505xx/yy (xx=AA-ZZ or blank denoted different color; yy=00-99 denoted different country destination) Report Number: 191203025RFC-3 Test Standards: FCC 47 CFR Part 2.1093 RSS-102 Issue 5 FCC ID: 2AR2STAT8505 IC: 24589-TAT8505 Test Result: PASS Date of Issue: July 15, 2020 Prepared for: MMD Hong Kong Holding Limited Units 1006-1007, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Prepared by. Shenzhen UnionTrust Quality and Technology Co., Ltd. 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China TEL: +86-755-2823 0888 FAX: +86-755-2823 0886 Prepared by: 乙心勹／V\ « A pprove d by: Reviewed by: Date: July 15, 2020 Technical Director Shenzhen UnionTrust Quality and Technoloqy Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New Districl, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] �coin UTTR-RF-RSS102-V1.0 Page 2 of 11 Report No.: 191203025RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.0 Version Version No. Date Description V1.0 July 15, 2020 Original Page 3 of 11 Report No.: 191203025RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.0 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 5 1.4 OTHER INFORMATION ......................................................................................................................................... 5 1.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................................................... 6 1.6 DEVIATION FROM STANDARDS ............................................................................................................................ 6 1.7 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 6 1.8 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 6 2. EQUIPMENT LIST .................................................................................................................................................... 6 3. SAR TEST EXCLUSION EVALUATION ................................................................................................................... 7 3.1 REFERENCE DOCUMENTS FOR EVALUATION ........................................................................................................ 7 3.2 EXEMPTION LIMITS FOR ROUTINE EVALUATION – SAR EVALUATION .................................................................... 7 3.2.1 SAR TEST EXCLUSION THRESHOLD ........................................................................................................ 7 3.2.2 TEST PROCEDURE ................................................................................................................................. 9 3.3 MPE CALCULATION RESULTS ............................................................................................................................ 9 3.3.1 FOR BT ................................................................................................................................................. 9 APPENDIX 1 PHOTOS OF TEST SETUP ..................................................................................................................... 11 APPENDIX 1 PHOTOS OF EUT CONSTRUCTIONAL DETAILS ................................................................................. 11 Page 4 of 11 Report No.: 191203025RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.0 1.GENERAL INFORMATION 1.1 CLIENT INFORMATION Applicant: MMD Hong Kong Holding Limited Address of Applicant: Units 1006-1007, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Manufacturer: MMD Hong Kong Holding Limited Address of Manufacturer: Units 1006-1007, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong 1.2 EUT INFORMATION Product Name: True wireless earphones Model No. : TAT8505 Add. Model No. : TAT8505xx/yy (xx=AA-ZZ or blank denoted different color; yy=00-99 denoted different country destination) Trade Mark: PHILIPS DUT Stage: Production Unit EUT Supports Function: 2.4 GHz ISM Band Bluetooth 5.0 Software Version: V2.1.1.1 Hardware Version: E Sample Received Date: April 27, 2020 Sample Tested Date: May 5, 2020 to May 23, 2020 Note: The additional model TAT8505xx/yy (xx=AA-…

Text truncated - open the document above for the full version.

Uni八nT『ust Page 1 of 51 Report No.: 191203025RFC-1 Product Name: True wireless earphones Trade Mark: PHILIPS Model N o.: TAT8505 TAT8505xx/yy (xx=AA-ZZ or blank Add. Model N o.: denoted different color; yy=00-99 denoted different country destination) Report Number: 191203025RFC-1 Test Standards: FCC 47 CFR Part 15 Subpart C RSS-247 Issue 2 RSS-Gen Issue 5 FCC ID: 2AR2STAT8505 IC: 24589-TAT8505 Test Result: PASS Date of Issue: July 15, 2020 Prepared for: MMD Hong Kong Holding Limited Units 1006-1007, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Prepared by: Shenzhen UnionTrust Quality and Technology Co., Ltd. 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China TEL: +86-755-2823 0888 FAX: +86-755-2823 0886 i / nc ` ＾ El m . a e y 产 T . . f I I ` ．． ` I` ｀ .？ ` J , 0 、 ` i ^ ． 7广＼｀ -- Prepared by: Approved by: Reviewed by· Date: July 15, 2020 Billy Li Technical Director Shenzhen UnionTrust Quality and Technoloqy Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua Nel'I District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] h!JQ:ffi'(\ ， (\ ＇ I.uttIab.CQm UTTR-RF-RSS247-V1.0 Page 2 of 51 Report No.: 191203025RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 Version Version No. Date Description V1.0 July 15, 2020 Original Page 3 of 51 Report No.: 191203025RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 CONTENTS 1.GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.2.1 GENERAL DESCRIPTION OF EUT ............................................................................................................ 4 1.2.2 DESCRIPTION OF ACCESSORIES .............................................................................................................. 5 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 6 1.4 OTHER INFORMATION ......................................................................................................................................... 6 1.5 DESCRIPTION OF SUPPORT UNITS ...................................................................................................................... 6 1.6 TEST LOCATION ................................................................................................................................................. 7 1.7 TEST FACILITY ................................................................................................................................................... 7 1.8 DEVIATION FROM STANDARDS ............................................................................................................................ 7 1.9 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 7 1.10 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 7 1.11 MEASUREMENT UNCERTAINTY ........................................................................................................................... 8 2.TEST SUMMARY ...................................................................................................................................................... 9 3.EQUIPMENT LIST .................................................................................................................................................. 10 4.TEST CONFIGURATION ........................................................................................................................................ 11 4.1 ENVIRONMENTAL CONDITIONS FOR TESTING ...................................................................................................... 11 4.1.1 NORMAL OR EXTREME TEST CONDITIONS ............................................................................................. 11 4.1.2 RECORD OF NORMAL ENVIRONMENT..................................................................................................... 11 4.2 TEST CHANNELS ............................................................................................................................................. 11 4.3 EUT TEST STATUS .......................................................................................................................................... 11 4.4 PRE-SCAN .................................................................................................................................................... 12 4.4.1 PRE-SCAN UNDER ALL PACKETS AT MIDDLE CHANNEL .............................................................................. 12 4.4.2 WORST-CASE DATA PACKETS ................................................................................................................ 12 4.4.3 TESTED CHANNEL DETAIL ..............................................................................…

Text truncated - open the document above for the full version.

Page 26 of 51 Report No.: 191203025RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 5.6 NUMBER OF HOPPING CHANNEL Test Requirement: FCC 47 CFR Part 15 Subpart C Section 15.247(b)(1) RSS-247 Issue 2, Section 5.1(d) Test Method: ANSI C63.10-2013 Section 7.8.3 Limit: Frequency hopping systems in the 2400 – 2483.5 MHz band shall use at least 15 non- overlapping channels. Test Procedure: Remove the antenna from the EUT and then connect a low loss RF cable from the antenna port to the spectrum analyzer. Use the following spectrum analyzer settings: a) Span: The frequency band of operation. Depending on the number of channels the device supports, it may be necessary to divide the frequency range of operation across multiple spans, to allow the individual channels to be clearly seen. b) RBW < 30% of the channel spacing or the 20 dB bandwidth, whichever is smaller. c) VBW ≥ RBW. d) Sweep: Auto. e) Detector function: Peak. f) Trace: Max hold. g) Allow the trace to stabilize. Note: The cable loss and attenuator loss were offset into measure device as an amplitude offset. Test Setup: Refer to section 4.5.3 for details. Instruments Used: Refer to section 3 for details Test Results: Pass Type of Modulation Number of Hopping Channel GFSK 79 π/4 DQPSK 79 8DPSK 79 Page 27 of 51 Report No.: 191203025RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 The test plots as follows: GFSK_Low End Spectrum Channel Hopping Plot GFSK_High End Spectrum Channel Hopping Plot Page 28 of 51 Report No.: 191203025RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 π/4 DQPSK_Low End Spectrum Channel Hopping Plot π/4 DQPSK_High End Spectrum Channel Hopping Plot Page 29 of 51 Report No.: 191203025RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 8DPSK_Low End Spectrum Channel Hopping Plot 8DPSK_High End Spectrum Channel Hopping Plot Page 30 of 51 Report No.: 191203025RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 5.7 DWELL TIME Test Requirement: FCC 47 CFR Part 15 Subpart C Section 15.247(a)(1) RSS-247 Issue 2, Section 5.1(d) Test Method: ANSI C63.10-2013 Section 7.8.4 Limit: Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. Test Procedure: Remove the antenna from the EUT and then connect a low loss RF cable from the antenna port to the spectrum analyzer. Use the following spectrum analyzer settings: a) Span = zero span, centered on a hopping channel b) RBW shall be ≤ channel spacing and where possible RBW should be set >> 1 / T, where T is the expected dwell time per channel. c) Sweep = As necessary to capture the entire dwell time per hopping channel; where possible use a video trigger and trigger delay so that the transmitted signal starts a little to the right of the start of the plot. The trigger level might need slight adjustment to prevent triggering when the system hops on an adjacent channel; a second plot might be needed with a longer sweep time to show two successive hops on a channel. d) Detector function = peak e) Trace = max hold f) Use the marker-delta function to determine the dwell time Note: The cable loss and attenuator loss were offset into measure device as an amplitude offset. Test Setup: Refer to section 4.5.3 for details. Instruments Used: Refer to section 3 for details Test Results: Pass Pulse WidthDwell TimeLimit msmsms 1-DH10.36830.000110.40< 400 1-DH31.61418.000290.52< 400 1-DH52.86011.000314.60< 400 2-DH10.36031.000111.60< 400 2-DH31.61916.000259.04< 400 2-DH52.86811.000315.48< 400 3-DH10.37432.000119.68< 400 3-DH31.61017.000273.70< 400 3-DH52.85811.000314.38< 400 Number of Pulses in 3.16 seconds π/4 DQPSK2441MHz 8DPSK2441MHz Packet GFSK2441MHz Type of Modulation Test Frequency Page 31 of 51 Report No.: 191203025RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 The test…

Text truncated - open the document above for the full version.
