2AR2STAX2208PARTY SPEAKER

Party Speaker Register your product and get support at: www.philips.com/support User manual 2000 Series TAX2208 The USB upgrade features TWS pair button Adjust volume USB Service 6 10 11 About Bluetooth device 12 9 Pairing for stereo mode(TWS) Select master speaker automatically TWS playback operation 9 9 9 Contents Important Safety FCC information 1 Your party speaker 2 What’s in the box Overview of the main unit Basic playback Get started 3 Charge the built-in battery Change light effect 4 Turn decorative light on or off Play audio through Bluetooth 5 Connect a device Connect a device automatically Connect a device manually Disconnect a device Control play Play audio through audio in 7 Listen to an external device Play from an Mp3 player Sing through microphone 8 Adjust microphone volume Adjust echo Product information 10 10 Specifications Maintenance Troubleshooting 10 11 11 Care of the environment Trademark notice Notice 2 2 3 3 5 6 9 10 10 11 2 3 5 6 6 6 6 6 7 7 7 7 7 8 8 8 8 8 8 EN 1 4 Important Safety Make sure that the power supply voltage corresponds to the voltage on the back or the underside of the unit. The speaker shall not be exposed to dripping or splashing. Do not place any source of danger on the speaker (e.g. liquid filled objects, lit candles). Make sure that there is enough free space around the speaker for ventilation. Please use the speaker safely in an environment with temperature between 0°C and 45.°C Only use attachments and accessories specified by the manufacturer. 1 2 EN Important safety instructions Battery safety precautions Danger of explosion if a battery is incorrectly replaced. Replace only with the same or equivalent type. A battery (battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire or the like. A battery in extreme high or low temperatures during use, storage or transportation, and low air pressure at high altitude can pose safety hazards. Do not replace a battery with an incorrect type that can defeat a safeguard (for example, some lithium battery types). Disposing a battery into fire or a hot oven, mechanically crushing or cutting a battery can result in an explosion. Leaving a battery in an extremely high temperature surrounding, or an extremely low air pressure environment may result in an explosion or leakage of flammable liquid or gas. Warning Never remove the casing of this speaker. Never lubricate any part of this speaker. Place this speaker on a flat, hard and stable surface. Never place this speaker on other electrical equipment. Only use this speaker indoors. Keep this speaker away from water, moisture and liquid-filled objects. Keep this speaker away from direct sunlight, naked flames or heat. Risk of explosion if a battery is replaced by an incorrect type. To avoid risk of fire, the equipment is supplied only by external power source which output shall comply with PS1 (with output capacity less than 15W). FCC information NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced speaker/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC-Canada: CAN ICES-003(B)/NMB-003(B) This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. EN 3 Warranty card Safey sheet Quick start guide Type c recharge cable Main unit Check and identify the contents of your package: Your party speaker 2 What's in the box Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/support. Overview of the main unit Top panel: 123 4 5 6 7 8 9 10 11 1213141516 1 Mic vol 2 Echo 3 Vol 4 Previous 5 Play/Pause 6 DBB touch key 7 TWS pair button 8 Light 9 Next 10 Standby 11 Bluetooth (white indicator) 12 Mic in 13 Audio in 14 Battery level indicator 15 USB service 16 Type-c 5V in (white indicator) 4 EN Audio input from , for example anMP3 player ( 3 . 5mm socket). Press and hold for 3 seconds to switch on/off the unit. Press to check battery level in power on status. BASS effect setup. Press to enter True Wireless Stereo (TWS) pairing mode. It work only when you have two identical speakers. Press to enter Press Press to skip to the next track. Press to return to the previous track. Press to temporarily pause a playback; press it again to resume the playback. Turn to adjust microphone volume. the Bluetooth mode. Press and hold to disconnect Bluetooth connection. repeatedly to switch light mode of speaker light. Press and …

Text truncated - open the document above for the full version.

Rev 1/26/2023 (MMD Hong Kong Holding Limited) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 04-24-2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: (2AR2STAX2208) [MMD Hong Kong Holding Limited] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Tomas Guan) Rev 1/26/2023 (MMD Hong Kong Holding Limited) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 04-24-2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: (2AR2STAX2208) [MMD Hong Kong Holding Limited] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Tomas Guan)

Revision: 1PageForm: RFT-AMER-TCB-OP-19o1 of 2 Date: 1/25/2023 [MMD Hong Kong Holding Limited] Attention: Application Examiner Re: Certification designating a U.S. agent for service of process pursuant to section 2.911(d)(7) of the FCC rules To whom it may concern, This letter is to confirm both [TPV-USA Corp ]Agentand [MMD Hong Kong Holding Limited] Aacknowledge consent to obligations of each party pursuant to 47 CFR part §2.911(d)(7) of the FCC rules in regard to the agent for service of process. I [Tomas Guan] HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the Applicant. I further acknowledge the requirement to maintain an agent extends for no less than one year after the termination of all marketing and importation or the conclusion of and commission-related proceeding involving the equipment and agree to immediately notify the FCC if there is any change in the status identified above. Applicant Company Name Contact Name Address Telephone No Email FRN Signature: ____________________________________ Date: ____________________________________ I [Gcoff Bostwick] HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the Agent. I consent to the obligation to accept service of process on behalf of the applicant in regard to the FCC ID designated above. Agent : TPV-USA CorpCompany Name : Gcoff BostwickContact Name : 6525 Carnegie Blvd., Suite #200 Charlotte, NC 28211Address : 980-890-7523Telephone No : [email protected] Signature: ____________________________________ Date : ____________________________________ 2023-3-17 2023-3-17 : 0033543315FRN FCC ID : MMD Hong Kong Holding Limited : Tomas Guan : Units 1208-11,12th Floor,C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon,Hong Kong : 2AR2STAX2208 : 86-755-36358341 : [email protected] : 0028068138

(MMD Hong Kong Holding Limited) Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AR2STAX2208 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name (Block Diagram, Schematics, Operational Description, BOM, PCB Layout) (Block Diagram, Schematics, Operational Description, BOM, PCB Layout) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Short-term confidentiality period: 180 days Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name (External Photos, Test Setup Photos, Manual, Internal Photos) (External Photos, Test Setup Photos, Manual, Internal Photos,) Sincerely, (signature) (printed name) Tomas Guan

Family model description Letter Page 1 of 1 (MMD Hong Kong Holding Limited) (Current Date) 2023-4-24 FCC ID：2AR2STAX2208 Product name PARTY SPEAKER Brand name PHILIPS Test Model name TAX2208/00 Additional model name TAX2208, TAX2208/98,TAX2208/yy (yy=00-99 or Nil for country code) Deviation of models All models are identical except model name for marketing purpose. Signature: Name: Tomas Guan Title: Safety & Approbation Manager Company Name : MMD Hong Kong Holding Limited Company Address: Units 1208-11, 12th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong

MMD Hong Kong Holding Limited Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2023-4-24 SUBJECT: 2AR2STAX2208 To Whom It May Concern: I, the undersigned, hereby states this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules, and will apply the Supplier's Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. I understand the following FCC requirements: 1. Devices subject to the SDoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Pt 2.1077 contains the list of information that must be included in the Supplier's Declaration of Conformity, which must be supplied with each product sold. The SDoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(b), the responsible party is either the Manufacturer or if the product is imported the Importer. Regards, MMD Hong Kong Holding Limited ------------------------------- （Tomas Guan）

(MMD Hong Kong Holding Limited) Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2023-4-24 SUBJECT: FCC Application for (FCC ID: 2AR2STAX2208) To Whom It May Concern: We, the undersigned, hereby authorize _Andy Liu at BV 7Layers Communications Technology (Shenzhen) Co. Ltd._ on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by _ Andy Liu at BV 7Layers Communications Technology (Shenzhen) Co. Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Tomas Guan (Must be signed by the person that is listed on the FCC Website)

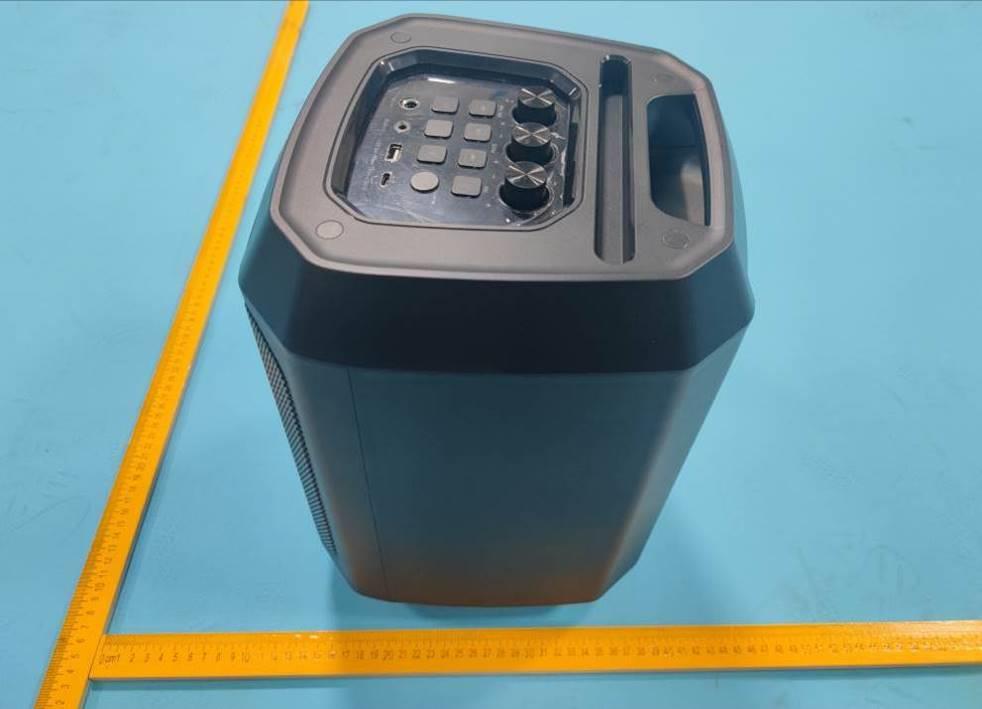

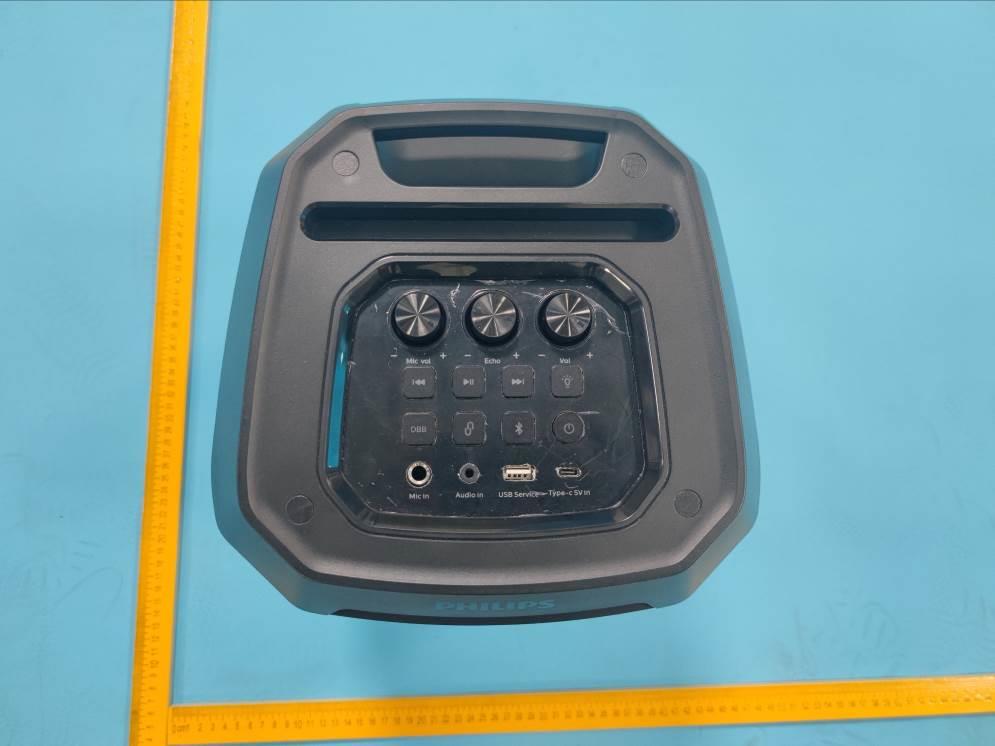

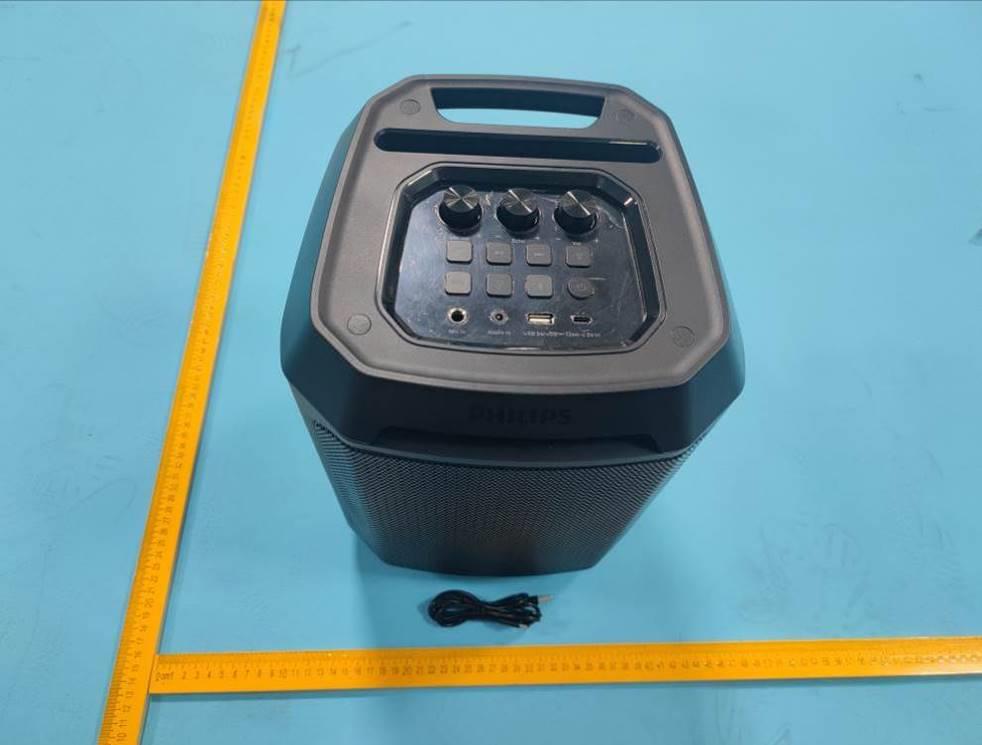

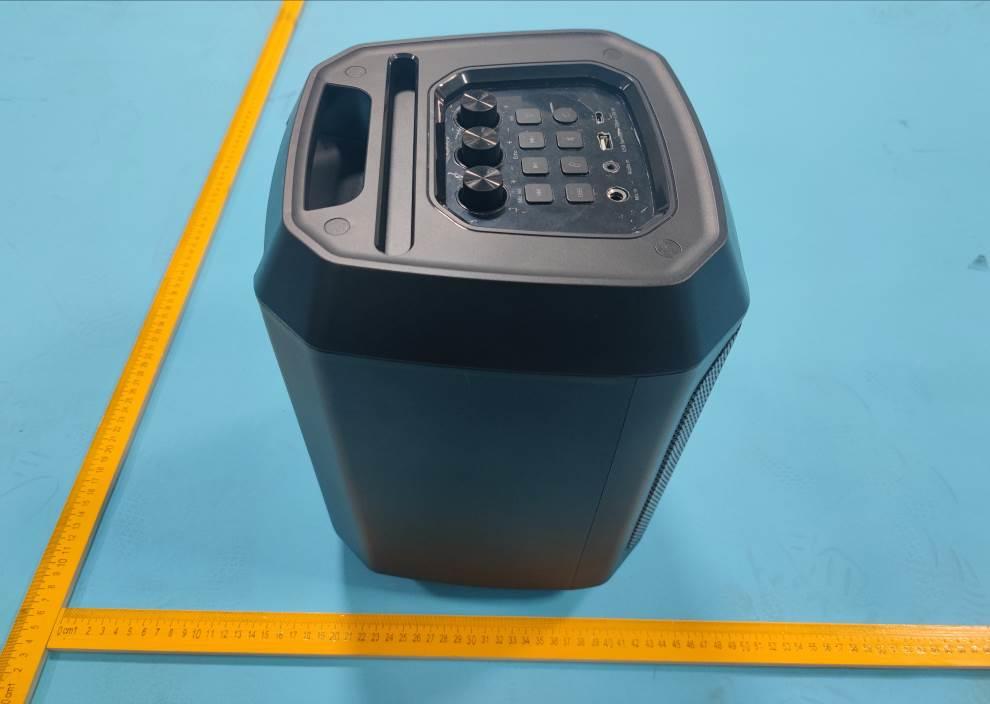

BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 1 of 4 Report Version 1 Reference No.: W7L-Q23041402 FCC ID: 2AR2STAX2208 PHOTOGRAPHS OF THE EUT Test Models: TAX2208/00 BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 2 of 4 Report Version 1 Reference No.: W7L-Q23041402 FCC ID: 2AR2STAX2208 BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 3 of 4 Report Version 1 Reference No.: W7L-Q23041402 FCC ID: 2AR2STAX2208 BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 4 of 4 Report Version 1 Reference No.: W7L-Q23041402 FCC ID: 2AR2STAX2208

3 9 . 0 0 m m 59.00 mm TAX2208/00 TXPE2312000001 TAX2208/00 Serial No.: TXPE2312000001 2AR2STAX2208 24589-TAX2208 HVIN: TAX2208 3.7V 3000mAh RAMATEL C-xxxxx USB-C: 5V 2A

BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 1 of 9 Report Version 1 Reference No.: W7L-Q23041402 FCC ID: 2AR2STAX2208 PHOTOGRAPHS OF THE EUT Test models: TAX2208/00 BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 2 of 9 Report Version 1 Reference No.: W7L-Q23041402 FCC ID: 2AR2STAX2208 BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 3 of 9 Report Version 1 Reference No.: W7L-Q23041402 FCC ID: 2AR2STAX2208 BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 4 of 9 Report Version 1 Reference No.: W7L-Q23041402 FCC ID: 2AR2STAX2208 BT ANT BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 5 of 9 Report Version 1 Reference No.: W7L-Q23041402 FCC ID: 2AR2STAX2208 BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 6 of 9 Report Version 1 Reference No.: W7L-Q23041402 FCC ID: 2AR2STAX2208 BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 7 of 9 Report Version 1 Reference No.: W7L-Q23041402 FCC ID: 2AR2STAX2208 BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 8 of 9 Report Version 1 Reference No.: W7L-Q23041402 FCC ID: 2AR2STAX2208 BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 9 of 9 Report Version 1 Reference No.: W7L-Q23041402 FCC ID: 2AR2STAX2208

FCC RF Exposure Test Report Report Format Version 5.0.0 Issued Date : Apr. 21, 2023 Report No. : W7L-Q23041402SA01 FCC RF Exposure Test Report Report No. : W7L-Q23041402SA01 Applicant : MMD Hong Kong Holding Limited Address : Units 1208-11, 12th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Product : PARTY SPEAKER FCC ID : 2AR2STAX2208 Brand : PHILIPS Model No. : TAX2208/00 SERIAL MODEL NAME TAX2208, TAX2208/98, TAX2208/yy (yy=00-99 or Nil for country code) Standards : FCC Part 2 (Section 2.1091) KDB 447498 D01 General RF Exposure Guidance v06 Sample Received Date : Apr. 16, 2023 Date of Testing : Apr. 16, 2023 ~ Apr. 21, 2023 CERTIFICATION: The above equipment have been tested by BV 7LAYERS COMMUNICATIONS TECHNOLOGY (SHENZHEN) CO., LTD., and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by A2LA or any government agencies. Prepared By : Approved By : Jerry Chen / Engineer Luke Lu / Manager This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. FCC RF Exposure Test Report Report Format Version 5.0.0 Issued Date : Apr. 21, 2023 Report No. : W7L-Q23041402SA01 Table of Contents RELEASE CONTROL RECORD .................................................................................................................................................... 3 1. DESCRIPTION OF EQUIPMENT UNDER TEST .................................................................................................................... 4 2. MPE(MAXIMUM PERMISSIBLE EXPOSURE) ASSESSMENT ............................................................................................. 5 2.1 INTRODUCTION .......................................................................................................................................................... 5 2.2 RF RADIATION EXPOSURE LIMITS ........................................................................................................................... 5 2.3 MPE ASSESSMENT METHOD .................................................................................................................................... 6 2.4 MPE CALCULATION FOR STANDALONE OPERATIONS .......................................................................................... 6 3. INFORMATION ON THE TESTING LABORATORIES ........................................................................................................... 8 FCC RF Exposure Test Report Report Format Version 5.0.0 Issued Date : Apr. 21, 2023 Report No. : W7L-Q23041402SA01 Release Control Record Report No. Reason for Change Date Issued W7L-Q23041402SA01 Initial release Apr. 21, 2023 FCC RF Exposure Test Report Report Format Version 5.0.0 Issued Date : Apr. 21, 2023 Report No. : W7L-Q23041402SA01 1. Description of Equipment Under Test EUT Type PARTY SPEAKER FCC ID 2AR2STAX2208 Brand Name PHILIPS Model Name TAX2208/00 Serial Model Name TAX2208, TAX2208/98, TAX2208/yy (yy=00-99 or Nil for country code) Tx Frequency Bands (Unit: MHz) Bluetooth : 2402 ~ 2480 Uplink Modulations Bluetooth : GFSK, π/4-DQPSK, 8DPSK Antenna Type PCB antenna EUT Stage Production Unit Note: 1. The above EUT information is declared by manufacturer and for more detailed features description please refers to the manufacturer's specifications or User's Manual. 2. Model Difference: All models are identical except model name for marketing purpose. FCC RF Exposure Test Report Report Format Version 5.0.0 Issued Date : Apr. 21, 2023 Report No. : W7L-Q23041402SA01 2. MPE(Maximum Permissible Exposure) Assessment 2.1 Introduction According to 47 CFR §2.1091, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitting antenna and the body of the user or nearby persons. In this context, the term “fixed location” means that the device is physically secured at one location and is not able to be easily moved to another location. Transm…

Text truncated - open the document above for the full version.

Product specification Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.2 (Input pwr – loss pwr) Peak EIRP(dBm) 1.2 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) 6 0.2 % Gain (dBi) 1.9 (Peak Gain) Maximum Power (dBm) 1.7 (XY-plane) Minimum Power (dBm) -4(XY-plane) Avg. Power (dBm) -0.5(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical & Horizontal V . S .W . R < 1.4 All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.40GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.8 -0.71.6-3.31.0 -2.857.4 % Retum Loss Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.9 -0.51.9 -3.61.1 -3.06 0.2 % Unit in dBi @2.48GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.8 -0.2 1.7 -3.81.4 -3.359.6% The Environment of Antenna Radiation Pattem 3D radiation pattern diagram XY-plane XZ-plane YZ-plane

BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 1 of 89 Test Report No.: W7L-Q23041402RF01 FCC TEST REPORT (Part 15, Subpart C) Applicant: MMD Hong Kong Holding Limited Address: Units 1208-11, 12th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Manufacturer or Supplier: MMD Hong Kong Holding Limited Address: Units 1208-11, 12th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Product: PARTY SPEAKER Brand Name: PHILIPS Model Name: TAX2208/00 Serial Model Name: TAX2208, TAX2208/98, TAX2208/yy (yy=00-99 or Nil for country code) FCC ID: 2AR2STAX2208 Date of tests: Apr. 16, 2023 ~ Apr. 21, 2023 The tests have been carried out according to the requirements of the following standard: FCC Part 15, Subpart C, Section 15.247 ANSI C63.10-2013 CONCLUSION: The submitted sample was found to COMPLY with the test requirement Prepared by Simon Wang Engineer / Mobile Department Approved by Luke Lu Manager / Mobile Department Date: Apr. 21, 2023 Date: Apr. 21, 2023 This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 2 of 89 Test Report No.: W7L-Q23041402RF01 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................. 5 1 SUMMARY OF TEST RESULTS ..................................................................................................... 6 1.1 MEASUREMENT UNCERTAINTY .............................................................................................. 7 2 GENERAL INFORMATION ............................................................................................................. 8 2.1 GENERAL DESCRIPTION OF EUT ........................................................................................... 8 2.2 DESCRIPTION OF TEST MODES ............................................................................................. 9 2.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..............................................................10 2.2.2 TEST MODE APPLICABILITY …

Text truncated - open the document above for the full version.
