2AR42APPC10SLBEProDVX APPC-10SLBe

Hualing Dong, President

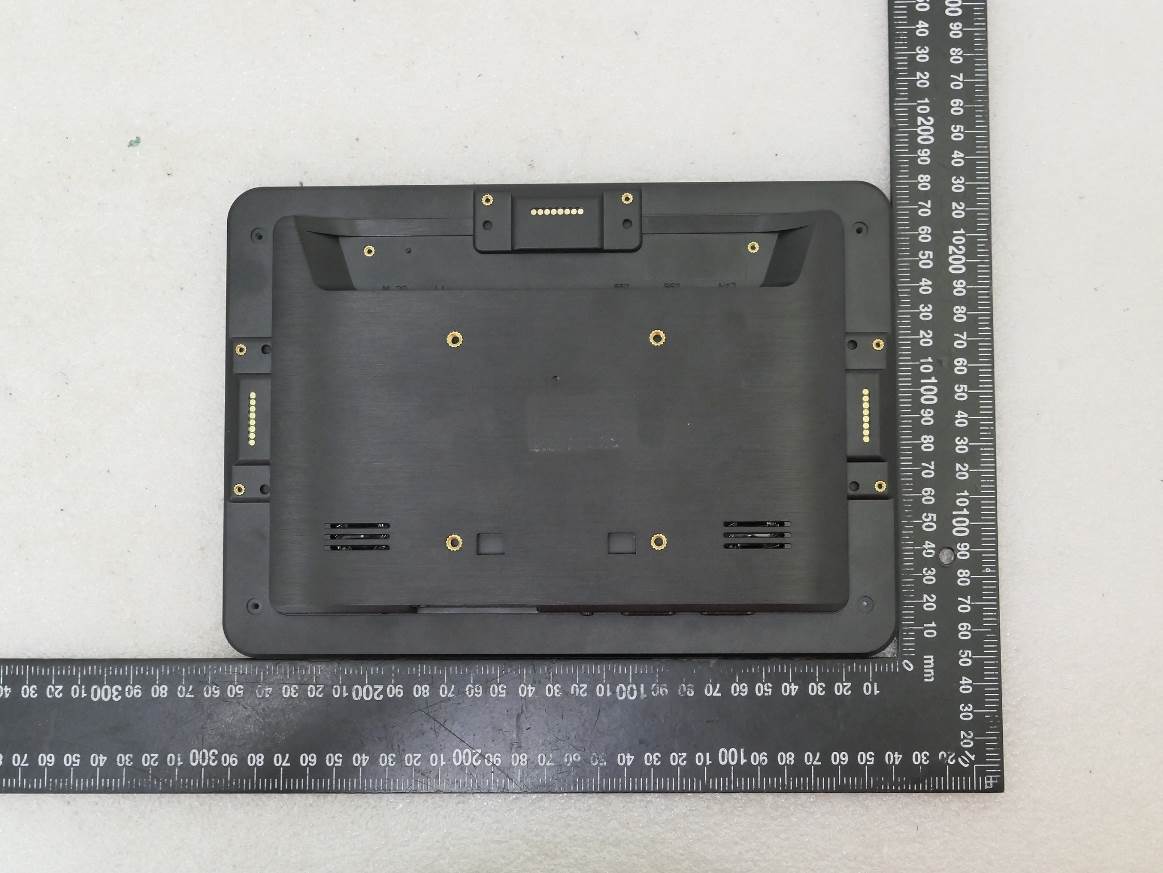

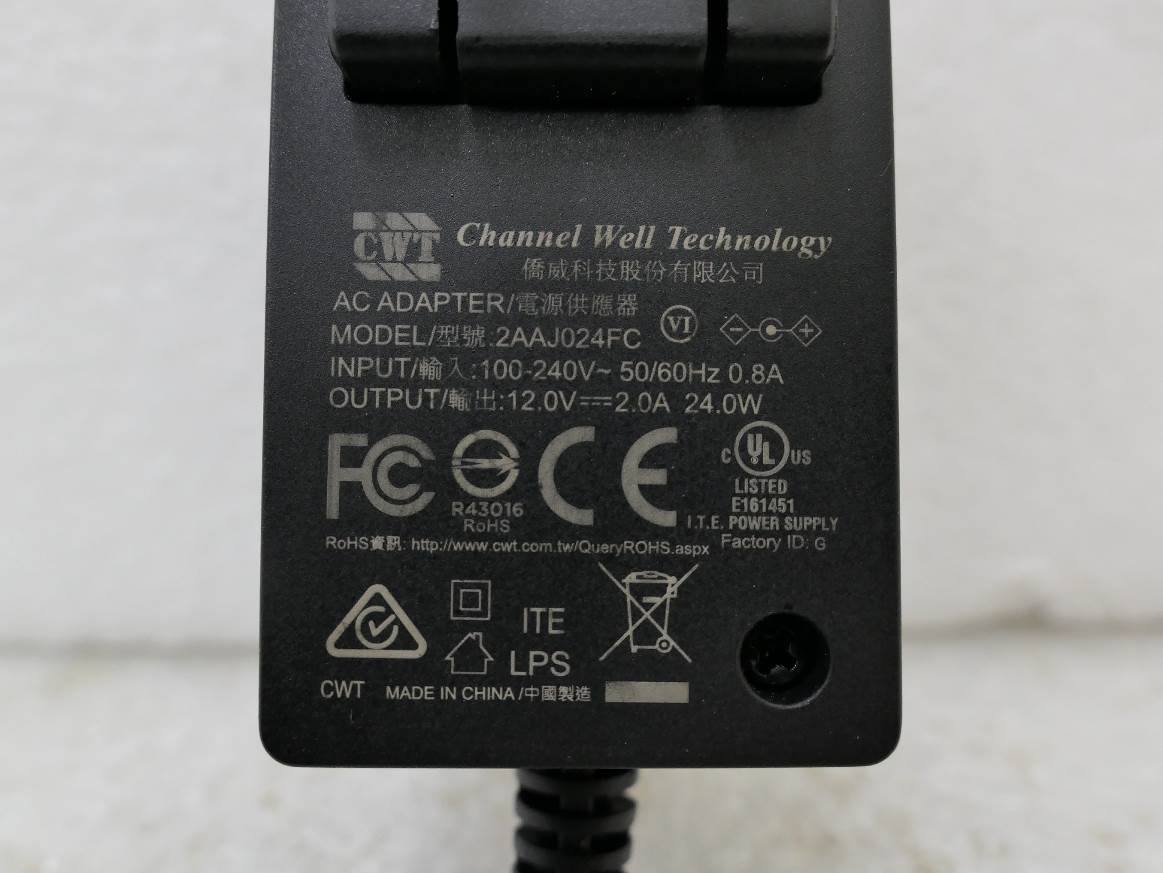

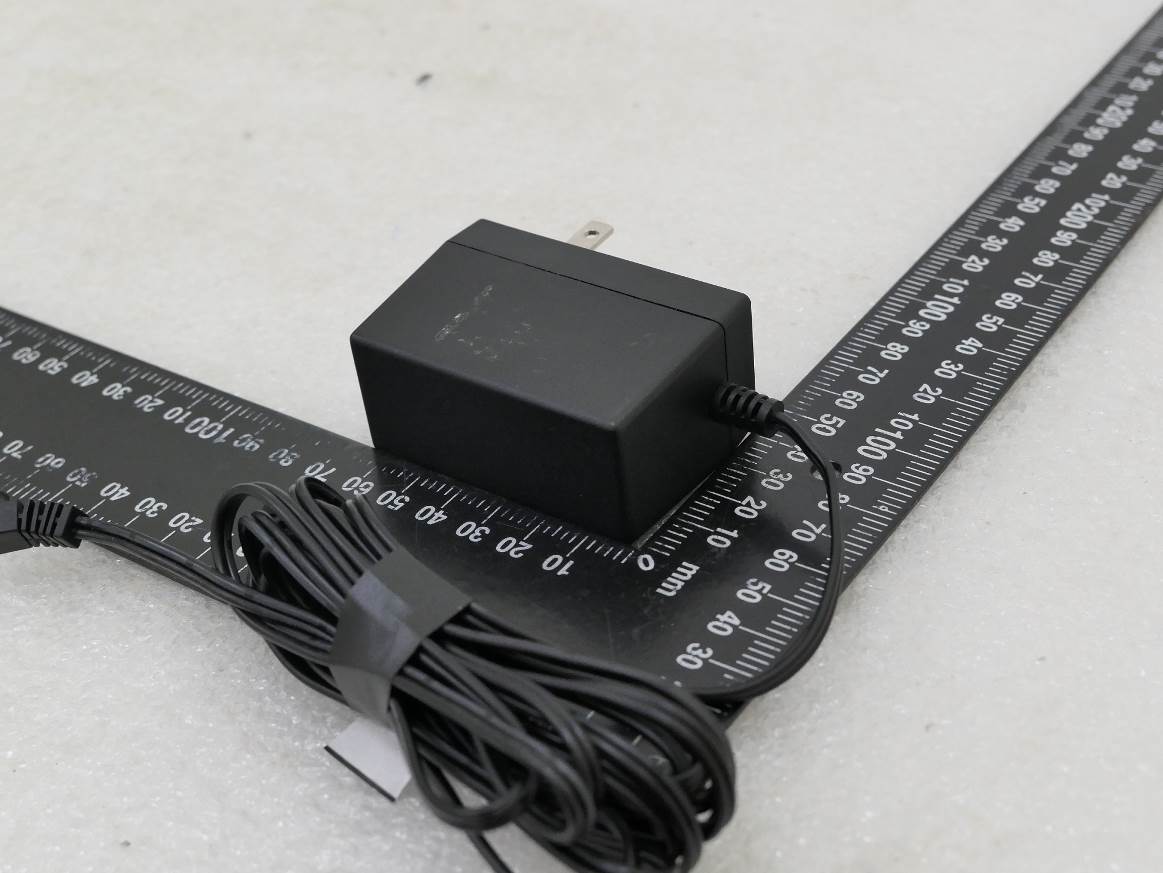

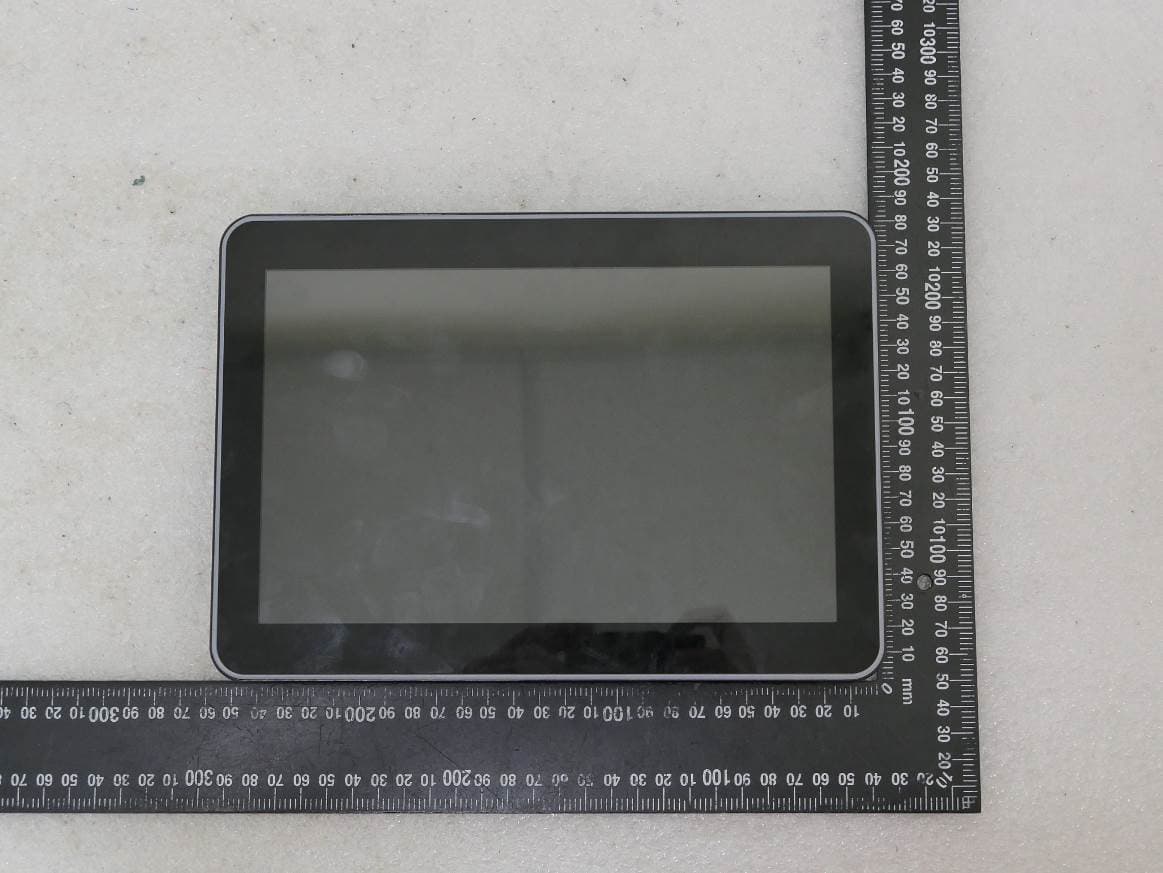

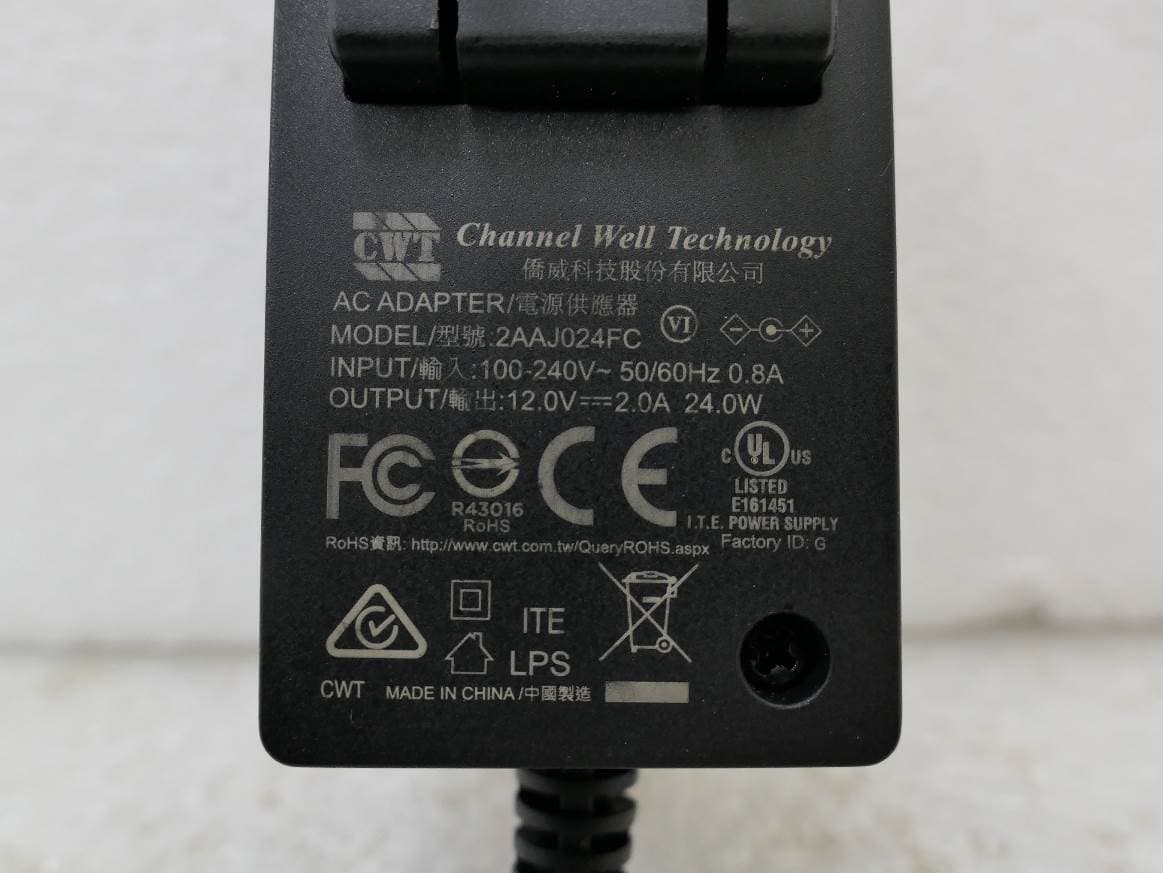

International Standards Laboratory Corp. Report Number: ISL-22LR0167P Appendix Photographs of EUT of Product Name ProDVX APPC-10SLBe Main Model APPC-10SLBe 10 inch Android Panel PC Impact Series Model NA Brand ProDVX International Standards Laboratory Corp. Report Number: ISL-22LR0167P -1- EUT-1. All EUT-2. International Standards Laboratory Corp. Report Number: ISL-22LR0167P -2- EUT-3. EUT-4. International Standards Laboratory Corp. Report Number: ISL-22LR0167P -3- EUT-5. EUT-6. International Standards Laboratory Corp. Report Number: ISL-22LR0167P -4- EUT-7. EUT-8. International Standards Laboratory Corp. Report Number: ISL-22LR0167P -5- EUT-9. EUT-10.

FCC ID LABEL FORMAT AND LOCATION Applicant: ProDVX Europe B.V. FCC ID: 2AR42APPC10SLBE

International Standards Laboratory Corp. Report Number: ISL-22LR0167P Appendix Photographs of EUT of Product Name ProDVX APPC-10SLBe Main Model APPC-10SLBe 10 inch Android Panel PC Impact Series Model NA Brand ProDVX International Standards Laboratory Corp. Report Number: ISL-22LR0167P -1- EUT-1. EUT-2. International Standards Laboratory Corp. Report Number: ISL-22LR0167P -2- EUT-3. EUT-4. International Standards Laboratory Corp. Report Number: ISL-22LR0167P -3- EUT-5. WIFI BT modular EUT-6. NFC module International Standards Laboratory Corp. Report Number: ISL-22LR0167P -4- EUT-7. EUT-8. International Standards Laboratory Corp. Report Number: ISL-22LR0167P -5- EUT-9. EUT-10. International Standards Laboratory Corp. Report Number: ISL-22LR0167P -6- EUT-11. EUT-12. International Standards Laboratory Corp. Report Number: ISL-22LR0167P -7- EUT-13. EUT-14. International Standards Laboratory Corp. Report Number: ISL-22LR0167P -8- EUT-15. EUT-16. antenna

FCC ID: 2AR42APPC10SLBE International Standards Laboratory Corp. 1. Maximum Permissible Exposure (MPE) Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Mobile device, the MPE is required. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density FCC ID: 2AR42APPC10SLBE International Standards Laboratory Corp. Maximum Permissible Exposure (MPE) Evaluation Frequency Band (MHz) Conducted power (dBm) Antenna gain (dBi) Tune-Up Tolerance (dB) EIRP (dBm) MPE (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412 - 2462 24.19 2.7 1 27.890 0.122 1 5180 - 5240 14.09 6.63 1 21.720 0.030 1 5260 - 5320 13.85 6.63 1 21.480 0.028 1 5500 - 5720 14.2 5.78 1 20.980 0.025 1 5745 - 5825 13.85 5.55 1 20.400 0.022 1 2402 - 2480(BT) 6.53 2.7 1 10.230 0.002 1 2402 - 2480(BLE) 7.13 2.7 1 10.830 0.002 1 ~ End of Report ~

Page: 1 of 214 TEST REPORT of FCC PART 15 SUBPART E New Application; Class I PC; Class II PC Product : ProDVX APPC-10SLBe Brand: ProDVX Model: APPC-10SLBe 10 inch Android Panel PC Im- pact Model Difference: N/A FCC ID: 2AR42APPC10SLBE FCC Rule Part: §15.407, Cat:NII Applicant: ProDVX Europe B.V. Address: Europalaan 10, 5232 BC Den Bosch, The Netherlands Test Performed by: International Standards Laboratory Corp. LT Lab. TEL: +886-3-263-8888 FAX: +886-3-263-8899 No. 120, Lane 180, Hsin Ho Rd., Lung-Tan Dist., Tao Yuan City 325, Tai- wan Report No.: ISL-22LR0167FE Issue Date :2022/10/03 Test results given in this report apply only to the specific sample(s) tested and are traceable to national or international standard through calibration of the equipment and evaluating measurement uncertainty herein. The uncertainty of the measurement does not include in consideration of the test result unless the cus- tomer required the determination of uncertainty via the agreement, regulation or standard document specification. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory Corp. -2 of 214- FCC ID: 2AR42APPC10SLBE International Standards Laboratory Corp. Report Number: ISL-22LR0167FE VERIFICATION OF COMPLIANCE Applicant: ProDVX Europe B.V. Product Description: ProDVX APPC-10SLBe Brand Name: ProDVX Model No.: APPC-10SLBe 10 inch Android Panel PC Impact Model Difference: N/A FCC ID: 2AR42APPC10SLBE Date of test: 2022/09/12 ~ 2022/09 /30 Date of EUT Received: 2022 /09/12 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards de- scribed above and performed by an independent electromagnetic compatibility consultant, Interna- tional Standards Laboratory Corp. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equip- ment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2022/10/03 Barry Lee / Senior Engineer Prepared By: Date: 2022/10/03 Gigi Yeh / Senior Engineer Approved By: Date: 2022/10/03 Jerry Liu / Assistant Manager -3 of 214- FCC ID: 2AR42APPC10SLBE International Standards Laboratory Corp. Report Number: ISL-22LR0167FE Version Version No. Date Description 00 2022/10/03 Initial creation of document Uncertainty of Measurement ISO/IEC 17025 requires that an estimate of measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)). Parameter Uncertainty (k=2) Conducted Emission (AC power line) ±0.852 dB Spurious emissions, radiated ±3.46 dB RF power, conducted ±1.386 dB Power Density ±1.432 dB RF Frequency ±0.00298% Time ±0.01% DC Voltage ±0.808% -4 of 214- FCC ID: 2AR42APPC10SLBE International Standards Laboratory Corp. Report Number: ISL-22LR0167FE Table of Contents 1. General Information ................................................................................................................... 6 1.1. Product Description ............................................................................................................................ 6 1.2. Related Submittal(s) / Grant (s) .......................................................................................................... 8 1.3. Test Methodology ............................................................................................................................... 8 1.4. Test Facility ......................................................................................................................................... 8 1.5. Special Accessories ............................................................................................................................. 8 1.6. Equipment Modifications .................................................................................................................... 8 2. System Test Configuration ......................................................................................................... 9 2.1. EUT Configuration ............................................................................................................................. 9 2.2. EUT Exercise ...................................................................................................................................... 9 2.3. Test Procedure ..................................................................................................................................... 9 2.4. Configuration of Tested System ........................................................................................................ 10 2.5. Duty Cycle ........................................................................................................................................ 12 3. Summary of Test Results .......................................................................................................... 13 4. Description of Test Modes ........................................................................................................ 14 5. Conduced Emission Test .......................................................................................................... 16 5.1. Standard Applicable .......................................................................................................................... 16 5.2. Measurement Equipment Used: ........................................................................................................ 16 5.3. EUT Setup: ........................................................................................................................................ 17 5.4. Measurement Procedure: ................................................................................…

Text truncated - open the document above for the full version.

承認書 SPECIFICATION FOR APPROVAL ■樣品承認□新品承認□規格/材質變更承認 客戶名稱(Customer): 東荃科技 股份有限公司 客戶 料號(Customer P/N): 產品 料號(Product No.): A8 -A006-00509 產品品名(Product Name)： PCB 11a/b/g/n 2dBi/5.5dBi 30mmx8mm T0.8 black OD1.13 low loss 55mm I-PEX plug 文件編號(Approved No)： 日期(Issued Date)： 2018 年 10 月 16 日 客戶承認簽章 Customer Approval Signature In Charge Checked Approval 天凱科技股份有限公司TSKY CO., LTD. 新竹縣竹北市自強南路8號21F-2 Tel:03-5502626 Fax:03-5503131 21F-2,No.8,Ziqiang S.Rd., Jhubei City, Hsinchu County 30264,Taiwan (R.O.C.) 業務 核准 審核 主辦員 www.tsky.com.tw Contents Item Description Page 1. Cover 1 2. Contents 2 3. Specification 3 4. Drawing 4 5. Test Report 5~24 www.tsky.com.tw Specification .Electrical Properties : 1. Frequency : 2400MHz-2500MHz / 5150MHz-5850MHz 2. Impedance : 50Ω 3. Return Loss : ≦ -10dB 4. Peak Gain : 2dBi / 5.5dBi .Physical Properties : 1. Material : FR-4 T=0.8mm 2. Cable : OD1.13 Low Loss 3. Connector : I-PEX www.tsky.com.tw Antenna Coordinate System Definition X Z -Y placement 2 placement 1 Antenna Placement Placement (type) 2 placement (type) 1 Placement 1 Return Loss and VSWR Placement 1 3D Radiation Pattern 2.4GHz X-axis View Y- axis View Z-axis View Placement 1 3D Radiation Pattern 2.45GHz X-axis View Y- axis View Z-axis View Placement 1 3D Radiation Pattern 2.5GHz X-axis View Y- axis View Z-axis View Placement 1 3D Radiation Pattern 5.15GHz X-axis View Y- axis View Z-axis View Placement 1 3D Radiation Pattern 5.55GHz X-axis View Y- axis View Z-axis View Placement 1 3D Radiation Pattern 5.85GHz X-axis View Y- axis View Z-axis View Placement 1 Antenna Gain and Efficiency Frequency(MHz) 2400 2410 2420 2430 2440 2450 2460 2470 2480 2490 2500 Directivity(dBi) 6.11 6.29 6.57 6.59 6.42 6.77 7.06 7.17 6.83 6.42 6.03 Efficiency(dB) -4.63 -4.9 -4.9 -4.84 -4.76 -4.55 -4.64 -4.47 -4.42 -4.43 -3.67 Efficiency(%) 34.43 32.36 32.36 32.81 33.42 35.08 34.36 35.73 36.14 36.06 42.95 Gain(dBi) 1.48 1.39 1.67 1.75 1.66 2.22 2.42 2.7 2.41 1.99 2.36 Placement 1 Antenna Gain and Efficiency Frequency(MHz) 5150 5250 5350 5450 5550 5650 5750 5850 Directivity(dBi) 7.71 8.44 8.07 8.27 7.5 7.88 7.92 7.63 Efficiency(dB) -1.67 -1.81 -2.5 -2.72 -1.72 -2.28 -2.37 -2.98 Efficiency(%) 68.08 65.92 56.23 53.46 67.3 59.16 57.94 50.35 Gain(dBi) 6.04 6.63 5.57 5.55 5.78 5.6 5.55 4.65 Placement 2 Return Loss and VSWR Placement 2 3D Radiation Pattern 2.4GHz X-axis View Y- axis View Z-axis View Placement 2 3D Radiation Pattern 2.45GHz X-axis View Y- axis View Z-axis View Placement 2 3D Radiation Pattern 2.5GHz X-axis View Y- axis View Z-axis View Placement 2 3D Radiation Pattern 5.15GHz X-axis View Y- axis View Z-axis View Placement 2 3D Radiation Pattern 5.55GHz X-axis View Y- axis View Z-axis View Placement 2 3D Radiation Pattern 5.85GHz X-axis View Y- axis View Z-axis View Placement 2 Antenna Gain and Efficiency Frequency(MHz) 2400 2410 2420 2430 2440 2450 2460 2470 2480 2490 2500 Directivity(dBi) 5.17 5.04 4.96 4.6 4.45 4.07 4.13 3.97 4.03 4.49 4.95 Efficiency(dB) -3.94 -3.87 -4.1 -3.97 -4.01 -3.79 -3.77 -4.05 -3.92 -4.07 -3.34 Efficiency(%) 40.36 41.02 38.9 40.09 39.72 41.78 41.98 39.36 40.55 39.17 46.34 Gain(dBi) 1.23 1.17 0.86 0.63 0.44 0.28 0.36 -0.08 0.11 0.42 1.61 Placement 2 Antenna Gain and Efficiency Frequency(MHz) 5150 5250 5350 5450 5550 5650 5750 5850 Directivity(dBi) 7.66 6.21 6.46 6.39 6.4 5.83 6.52 7.51 Efficiency(dB) -3.68 -2.96 -2.81 -3.11 -2.6 -3.3 -3.94 -3.68 Efficiency(%) 42.85 50.58 52.36 48.87 54.95 46.77 40.36 42.85 Gain(dBi) 3.98 3.25 3.65 3.28 3.8 2.53 2.58 3.83

FCC ID: 2AR42APPC10SLBE International Standards Laboratory Corp. Report Number: ISL-22LR0167FE APPENDIX 1 PHOTOGRAPHS OF SET UP FCC ID: 2AR42APPC10SLBE International Standards Laboratory Corp. Report Number: ISL-22LR0167FE Radiated Emission Set up Photos FCC ID: 2AR42APPC10SLBE International Standards Laboratory Corp. Report Number: ISL-22LR0167FE FCC ID: 2AR42APPC10SLBE International Standards Laboratory Corp. Report Number: ISL-22LR0167FE FCC ID: 2AR42APPC10SLBE International Standards Laboratory Corp. Report Number: ISL-22LR0167FE Conducted Emission Set up Photo FCC ID: 2AR42APPC10SLBE International Standards Laboratory Corp. Report Number: ISL-22LR0167FE Conducted FCC ID: 2AR42APPC10SLBE International Standards Laboratory Corp. Report Number: ISL-22LR0167FE DFS Set up Photo
