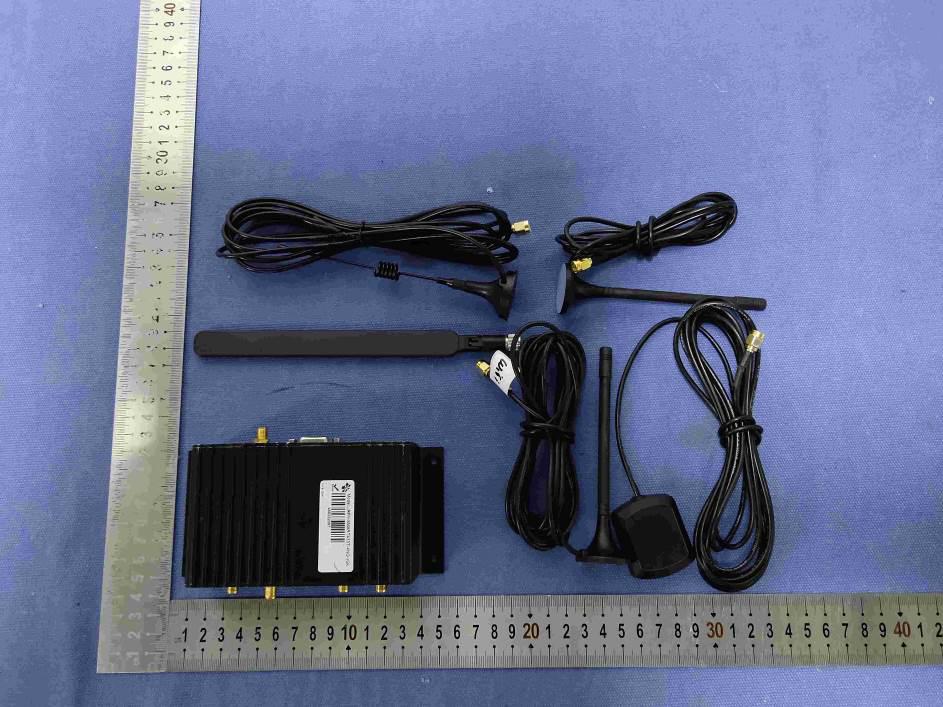

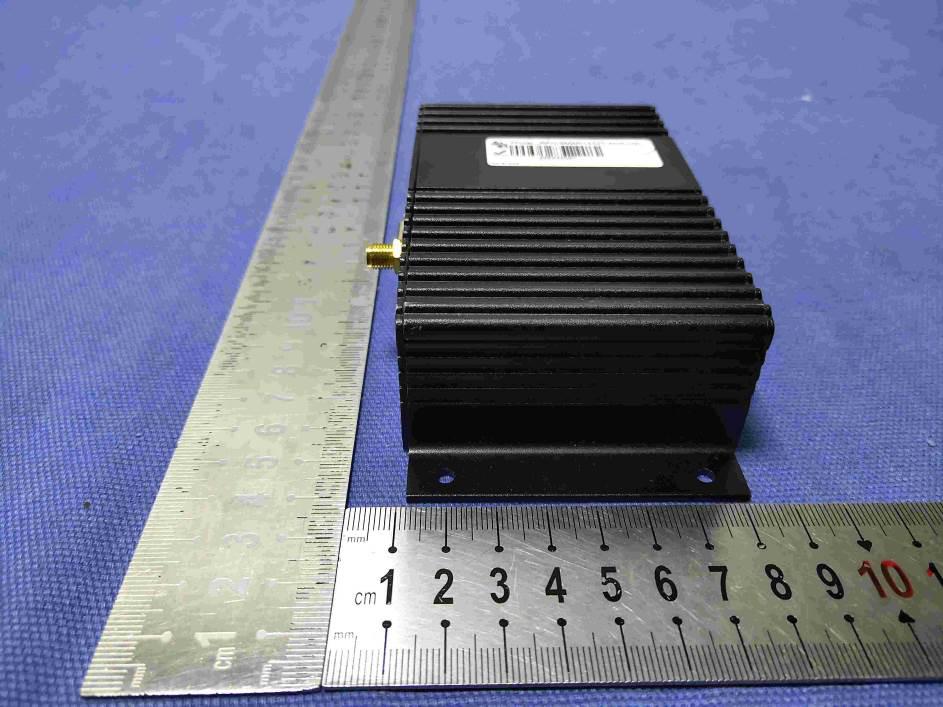

2AR6S-SMART443Gateway

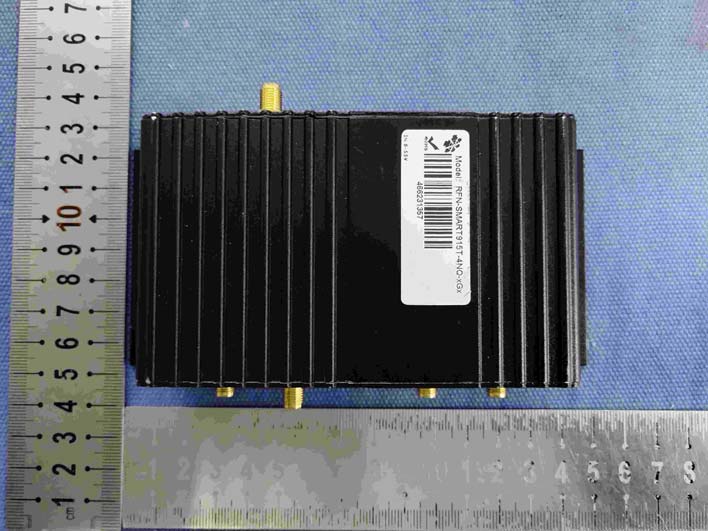

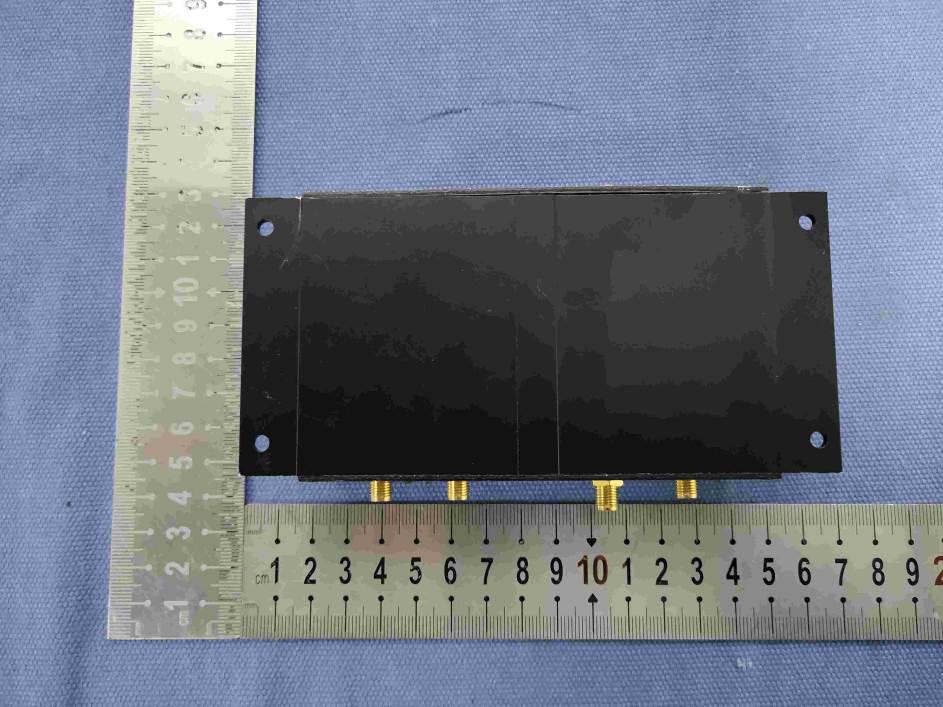

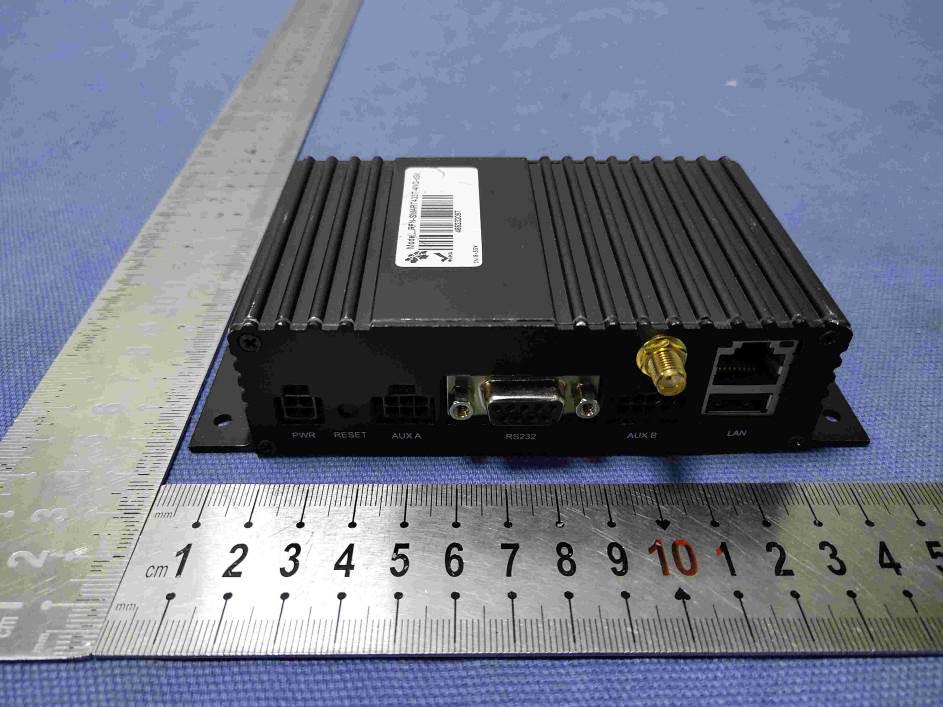

1 RF-Smart – User Manual Rev 1.1 – 12/11/2019 RFN-SMART915T-4NQ-xyz RFN-SMART433T-4NQ-xyz RFN-SMART915T-3GQ-xyz RFN-Gate433T-4GQ-xyz 2 RF-Smart – User Manual Rev 1.1 – 12/11/2019 User Manual Rev. 1.1 – 12/11/2019 Front View Back View 3 RF-Smart – User Manual Rev 1.1 – 12/11/2019 1. Overview The RF-Gate is a complete RF Terminal solution for RF 433/915 Mhz applications. Based on Quectel Cellular modems and CC1310 radio. 2. Hardware Interface Description 2.1 Main features of the RF-Gate Feature Implementation Incorporates combination of Short Range and CELLULAR modems, as well as GPS and WiFi The SMART Linux module handles all RF CELLULAR GPS processing Product Modem • Quectel 3/4G Cellular Modems • CC1310 Short Range Radio • Mediatec Mips processor + WiFi core + LAN • GPS modem (on request) Power supply Single supply voltage 8V DC to 55V DC connector 4 pin micro-fit 3mm GPIO 1x Open collector drive 100ma 1x RELAY 1A 30V 2x Inputs opto couplers, 0-55v 2 analog inputs 0-30V Communication 1x RS232, connector D-Type 9pin (DB-9) 1x RJ45 ETHERNET PORT 1x micro USB (HOST) Antennas RF, CELLULAR, WiFi and GPS via SMA connectors Processor MT7688 (in smart versions) • 580 MHz MIPS CPU. Memory • 32MB flash and 128MB DDR2 RAM. • Micro SD slot. Programming • Linux • Python • C 4 RF-Smart – User Manual Rev 1.1 – 12/11/2019 2.1.1 Product Family Product -> Modems P/N RF GPS Cellular LAN WiFi Linux CC1310 L70 xG91 Linkit 7688 4G+GPS+WiFi+LAN 915 Radio RFN-SMART915T-4NQ-xyz 915Mhz option “y” EG95-NA V V V 4G+GPS+WiFi+LAN 433 Radio RFN-SMART433T-4NQ-xyz 433Mhz V V V 3G+GPS+WiFi+LAN 915 Radio RFN-SMART915T-3GQ-xyz 915Mhz UG V V V 4G+GPS+ 433 Radio RFN-Gate433T-4GQ-xyz 433Mhz V BG96 - - - Naming convention NNN Radio frequency 433 or 915 abc Modem type • 4: 4G, • GN: Global Narrow band LTE, • NA: North America, etc. • 3G: 3G global xyz x: B for battery installed, 0 no y: G:GPS, 0 GPS not present z: SW related 5 RF-Smart – User Manual Rev 1.1 – 12/11/2019 2.2 Hardware block diagram 2.2.1 Option: RFN-SMART915T-4NQ-xyz 6 RF-Smart – User Manual Rev 1.1 – 12/11/2019 2.2.2 Option: RFN-SMART433T-4NQ-xyz 7 RF-Smart – User Manual Rev 1.1 – 12/11/2019 2.2.3 Option: RFN-GATE433T-4GQ-xyz 8 RF-Smart – User Manual Rev 1.1 – 12/11/2019 3. Interface description 3.1 Molex 4 pin connector – Power connector 3.1.1 Power Supply The power supply of the RF-Gate Terminal requires a single voltage source of POWER 6V-55V capable of providing a peak during an active transmission. The RF-Gate Terminal is protected against supply voltage reversal. An internal fuse 1.1A 60V ensures an electrical safety according to EN60950-1. This fuse is not removable. A fast blow fuse of 0.8A is necessary for 24V power supply system (for vehicles). The power supply recommended being any safety approved power supply certified IEC 60950-1 or EN 60950-1 or UL 60950-1 with limited output current up to 2A. The type of the receptacle assembled on the RF-Gate Terminal is 4 pin Micro Mate-N-LOK 3mm (0.11 inch) from MOLEX. Pin Signal name Use 1 POWER Input Power supply range 6-55V 2 Power Enable Control pin to turn ON/OFF Terminal power. When putting this pin to voltage >6V the unit will be turn OFF. When putting this pin OPEN or GND the unit will be turn ON. 3 GND Ground 4 Analog Analog Input 0-30V or current measurement 4-20mA Pin assignment of the power plug including power supply and Power Enable • Male 4-pole plug for power supply To use with MOLEX MICRO FIT 3mm PART NUMBER 43025-0400 3.1.2 Supply voltage requirements The DC power supply must be connected to the POWER input: • Input voltage range 6 - 55V DC • Nominal Voltage 12V DC 9 RF-Smart – User Manual Rev 1.1 – 12/11/2019 • Power Supply current rating: max. 2A @12V (if USB is used, use 3A Power supply) • Power Supply ripple: max. 120mV • Input current in idle mode: 20mA @ 12V • Input average current in communication mode: 100mA @ 12V 3.3 SMA CONNECTORS AND LEDs 3.3.1 SMA Antennas connection The RF-Gate Terminal uses SMA CONNECTORS for ANTENNAS. RF Antenna: In RF 433Mhz use the 433Mhz ANTENNA with 2dB gain or more. In RF 2.4Ghz use the 2.4Ghz ANTENNA with 2dB gain or more. CELLULAR Antenna 4 band 3G ANTENNA with 2.5dB gain. GPS/RF2 Antenna ACTIVE GPS ANTENNA with 25-28dB gain. (in RFN-SMART915-4NQ- x0z, RFN-SMART433-4NQ-x0z is used for cellular Antenna diversity) 3.3.2 LED indications Upon power on, the designated LEDs should act as follows • CELLULAR_B LED Modem Status, when On the Cellular Modem is ON o Fast blinks (around 2 per second) - search for cellular network o Slow blink (every 2 sec) - connected to a cellular network • CELLULAR_A LED turns on when it is connected to the communication server o 2 seconds Slow Blink (200ms ON/1800ms OFF) Low Network Search o 2 seconds Slow Blink (1800ms ON/200ms OFF) modem in IDLE o Fast blink 4 per second, Data Transfer is Ongoing o Always High, Voice calling (not in USE) • RF LED o In STAR versions ▪ RF_B LED blinks on RF activity ▪ RF_A LED blinks when moving the data between the RF and the Smart or 3G Module o In Receiver versions ▪ RF_B LED blinks when receiving an RF tag data transmission ▪ RF_A LED blinks when moving the data to the Smart or 3G Module o In Coordinator Versions ▪ RF_B LED blinks means the RF is not configured ▪ RF_B LED steady ON coordinator is on ▪ RF_B LED steady ON coordinator is in Boot Loader ▪ RF_A LED always off 10 RF-Smart – User Manual Rev 1.1 – 12/11/2019 • RF2_B (GPS) LED SMART TBD, USED SW dependent • RF2_A (GPS) LED GPS blinks one per seconds if GPS present 3.4 SIM DRAWER OPTION CELLULAR COORDINATOR Please insert the SIM card on the following direction into the SIM push-push. 3.4 USB connector In 3G versions, for programming and debugging the Telit GSM module In Smart Version the USB is connected to a USB Hub managed by the Linux, any standard USB2 device can be connected to this port (max current supply 500mA fuse protected) (Managed by Linux, required user SW and device drivers to operate it) 11 RF-Smart – User Manual Rev 1.1 …

Text truncated - open the document above for the full version.

Date: 04/17/2018 VCB_F-01: Operating Procedures Form – FCC Confidentiality v02 Page 1 of 1 RF Networks Ltd. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AR6S- SMART443 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name 1. Block Diagram, 2. Schematics, 3. Operational Description 1. 2AR6S-SMART443 -Block diagram 2. 2AR6S-SMART443 -SCH 3. 2AR6S-SMART443 -Operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below for an initial period of 180 days: - internal/external photos, - test setup photos, - user manual, Signature: Contact name: Claudio Cukierkopf Company name: RF Networks Ltd. Address: 19a, Sheshet Hayamim St', Binyamina, Israel

RF Networks Ltd. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2020-4-15 SUBJECT: FCC Application for (FCC ID: 2AR6S-SMART443) To Whom It May Concern: We, the undersigned, hereby authorize Aaron Ma in Shenzhen Huaxia Testing Technology Co., Ltd at 1F., Block A of Tongsheng Technology Building, Huahui Road, Dalang Street, Longhua District, Shenzhen, China on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen Huaxia Testing Technology Co., Ltd on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely,

FCCID:2AR6S-SMART443 FCCID:2AR6S-SMART443 FCCID:2AR6S-SMART443 FCCID:2AR6S-SMART443

Labelsize:5.5x3.2cm

FCCID:2AR6S-SMART443 FCCID:2AR6S-SMART443 FCCID:2AR6S-SMART443 FCCID:2AR6S-SMART443 FCCID:2AR6S-SMART443 FCCID:2AR6S-SMART443 433ANT

ShenzhenHuaxiaTestingTechnologyCo.,Ltd 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V04 ReportTemplateRevisionDate:2018-07-06 RFExposureEvaluationReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlytothesample(s) tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.: CQASZ20200200071E-02 Applicant:RFNetworksLtd. AddressofApplicant:19a,SheshetHayamimSt'.Binyamina,Israel EquipmentUnderTest(EUT): Product:Gateway ModelNo.:RFN-SMART433T-4NQ-xyz BrandName:N/A FCCID: 2AR6S-SMART443 Standards: 47CFRPart1.1307 47CFRPart1.1310 KDB447498D01GeneralRFExposureGuidancev06 DateofReceipt:2020-02-21 DateofTest:2020-02-21to2020-02-27 DateofIssue:2020-02-28 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove TestedBy： (TomChen) ReviewedBy: (AaronMa) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20200200071E-02 Page:2of6 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20200200071E- 02 Rev.01 Initialreport 2020-02-28 ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20200200071E-02 Page:3of6 2Contents Page 1VERSION......................................................................................................................................................................2 2CONTENTS..................................................................................................................................................................3 3GENERALINFORMATION........................................................................................................................................4 3.1CLIENTINFORMATION................................................................................................................................................4 3.2GENERALDESCRIPTIONOFEUT................................................................................................................................4 4RFEXPOSUREEVALUATION.................................................................................................................................5 4.1RFEXPOSURECOMPLIANCEREQUIREMENT..............................................................................................................5 4.1.1StandardRequirement..................................................................................................................................5 4.1.2Limits................................................................................................................................................................5 4.2EUTRFEXPOSUREEVALUATION..............................................................................................................................6 ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20200200071E-02 Page:4of6 3GeneralInformation 3.1ClientInformation Applicant: RFNetworksLtd. AddressofApplicant: 19a,SheshetHayamimSt'.Binyamina,Israel Manufacturer: RFNetworksLtd. AddressofManufacturer: 19a,SheshetHayamimSt'.Binyamina,Israel 3.2GeneralDescriptionofEUT ProductName: Gateway ModelNo.: RFN-SMART433T-4NQ-xyz TradeMark: N/A HardwareVersion: A SoftwareVersion: 2.0.0 OperationFrequency: 433.32~434.72MHz ChannelNumbers: 8 ModulationType: GFSK SampleType: MobilePortableFixLocation AntennaType:Externalantenna AntennaGain:3dBi PowerSupply: DC24V ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20200200071E-02 Page:5of6 4RFExposureEvaluation 4.1RFExposureComplianceRequirement 4.1.1StandardRequirement AccordingtoKDB447498D01GeneralRFExposureGuidancev06 4.3.1.StandaloneSARtestexclusionconsiderations UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone1-g headorbodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions,by measurementornumericalsimulation,isnotrequiredwhenthecorrespondingSARExclusion Thresholdcondition,listedbelow,issatisfied. 4.1.2Limits The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparationdistances ≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)]· [√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation 17 Theresultisroundedtoonedecimalplaceforcomparison Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mmand fortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtestseparation distanceis<5mm,adistanceof5mmisappliedtodetermineSARtestexclusion ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20200200071E-02 Page:6of6 4.2EUTRFExposureEvaluation eirp=ptxgt=(Exd) 2 /30 where: pt=transmitteroutputpowerinwatts, gt=numericgainofthetransmittingantenna(unitless), E=electricfieldstrengthinV/m,---10 ((dBμV/m)/20) /10 6 , d=measurementdistanceinmeters(m)---3m, Sopt=(Exd) 2 /30/gt Theworstcase(refertoreportCQASZ20200200071E-01)isbelow: Antennapolarization:Vertical Frequency(MHz)Level(dBuV/m) Polarization 433.9278.73Peak 433.9278.73Average For433.92MHzwireless: Fieldstrength=78.73dBμV/m@3m Ant.gain3dBi;soAntnumericgain=2.0 Sopt={[10 (78.73/20) /10 6 x3] 2 /30/1.0}x1000mW=0.011mW So(0.022mW/5mm)x√0.43392GHz=0.0015 0.0015<3.0for1-gSAR SotheSARreportisnotrequired.

ShenzhenHuaxiaTestingTechnologyCo.,Ltd 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V04 ReportTemplateRevisionDate:2018-07-06 TestReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlyto thesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.: CQASZ20200200071E-01 Applicant:RFNetworksLtd. AddressofApplicant:19a,SheshetHayamimSt'.Binyamina,Israel EquipmentUnderTest(EUT): EUTName:Gateway ModelNo.:RFN-SMART433T-4NQ-xyz BrandName:N/A FCCID: 2AR6S-SMART443 Standards: 47CFRPart15,SubpartC DateofReceipt:2020-02-21 DateofTest:2020-02-21to2020-02-27 DateofIssue:2020-02-28 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove . TestedBy： (TomChen) ReviewedBy: (AaronMa) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20200200071E-01 Page: 2 of 28 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20200200071E-01Rev.01 Initialreport 2020-02-28 ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20200200071E-01 Page: 3 of 28 2TestSummary TestItemTestRequirementTestmethodResult AntennaRequirement 47CFRPart15,SubpartCSection 15.203 ANSIC63.10(2013)PASS ConductedEmission (150KHzto30MHz) 47CFRPart15,SubpartC Section15.207 ANSIC63.102013N/A FieldStrengthofthe FundamentalSignal 47CFRPart15,SubpartCSection 15.231(b) ANSIC63.10(2013)PASS SpuriousEmissions 47CFRPart15,SubpartCSection 15.231(b)/15.209 ANSIC63.10(2013)PASS 20dBBandwidth 47CFRPart15,SubpartCSection 15.231(c) ANSIC63.10(2013)PASS DwellTime 47CFRPart15,SubpartCSection 15.231(a) ANSIC63.10(2013)PASS N/A:NotApplicable,theEUTispoweredbyDC. ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20200200071E-01 Page: 4 of 28 3Contents Page 1VERSION..........................................................................................................................................................................2 2TESTSUMMARY............................................................................................................................................................3 3CONTENTS......................................................................................................................................................................4 4GENERALINFORMATION...........................................................................................................................................5 4.1CLIENTINFORMATION.................................................................................................................................................5 4.2GENERALDESCRIPTIONOFEUT..............................................................................................................................5 4.3TESTENVIRONMENTANDMODE...............................................................................................................................6 4.4DESCRIPTIONOFSUPPORTUNITS............................................................................................................................6 4.5TESTLOCATION..........................................................................................................................................................6 4.6TESTFACILITY............................................................................................................................................................7 4.7STATEMENTOFTHEMEASUREMENTUNCERTAINTY.................................................................................................7 4.8DEVIATIONFROMSTANDARDS..................................................................................................................................7 4.9ABNORMALITIESFROMSTANDARDCONDITIONS......................................................................................................7 4.10OTHERINFORMATIONREQUESTEDBYTHECUSTOMER........................................................................................8 4.11EQUIPMENTLIST......................................................................................................................................................9 5TESTRESULTSANDMEASUREMENTDATA......................................................................................................10 5.1ANTENNAREQUIREMENT.........................................................................................................................................10 5.2SPURIOUSEMISSIONS..............................................................................................................................................11 5.2.1DutyCycle.......................................................................................................................................................11 5.2.2SpuriousEmissions.......................................................................................................................................14 5.320DBBANDWIDTH....................................................................................................................................................23 5.4DWELLTIME..............................................................................................................................................................26 ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20200200071E-01 Page: 5 of 28 4GeneralInformation 4.1ClientInformation Applicant: RFNetworksLtd. AddressofApplicant: 19a,SheshetHayamimSt'.Binyamina,Israel Manufacturer: RFNetworksLtd. AddressofManufacturer: 19a,SheshetHayamimSt'.Binyamina,Israel 4.2GeneralDescriptionofEUT ProductName: Gateway ModelNo.: RFN-SMART433T-4NQ-xyz TradeMark: N/A HardwareVersion: A SoftwareVersion: 2.0.0 OperationFrequency: 433.32~434.72MHz ChannelNumbers: 8 ModulationType: GFSK SampleType: MobilePortabl…

Text truncated - open the document above for the full version.

FCCID:2AR6S-SMART443 1Photographs-EUTTestSetup 1.1RadiatedEmission 9kHz~30MHz: 30MHz~1GHz: FCCID:2AR6S-SMART443 Above1GHz:
