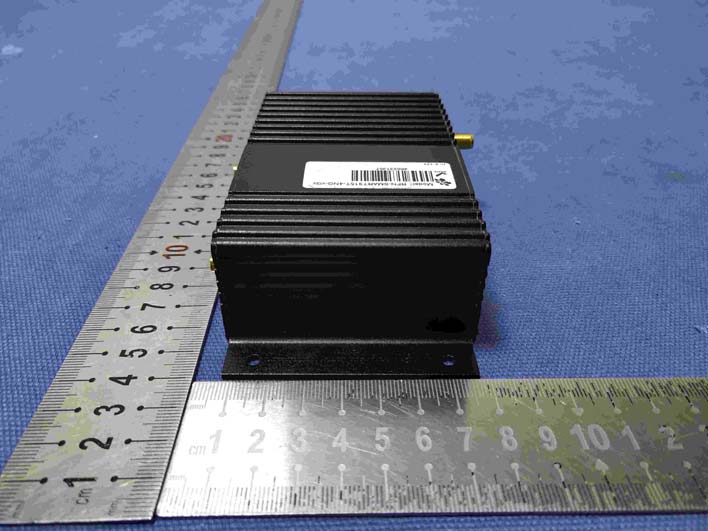

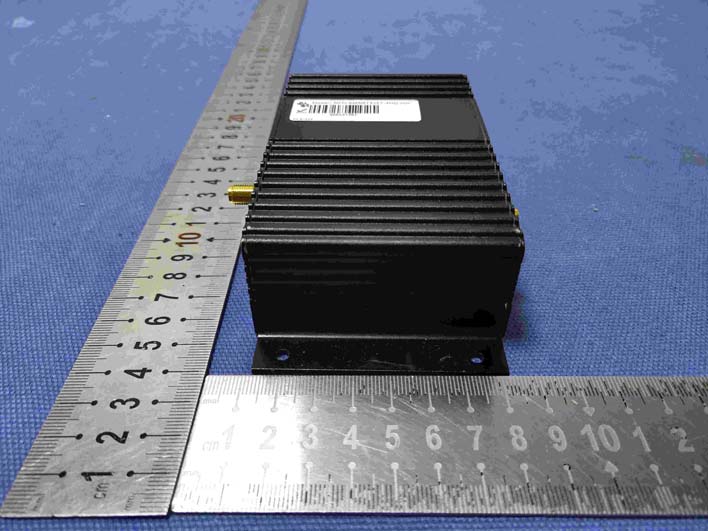

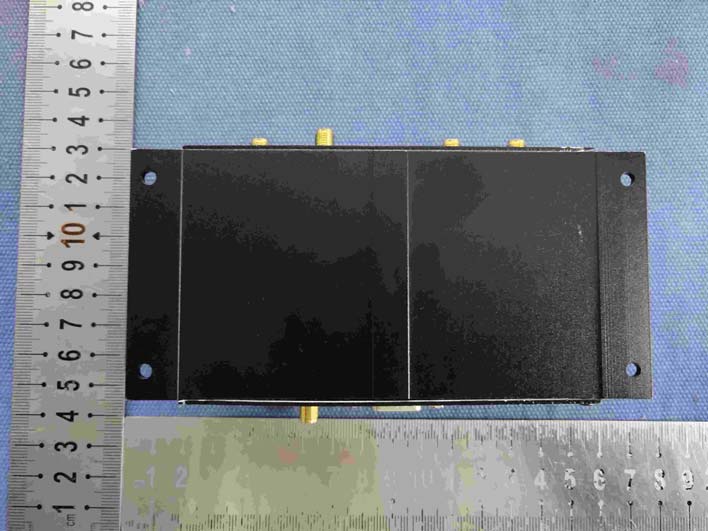

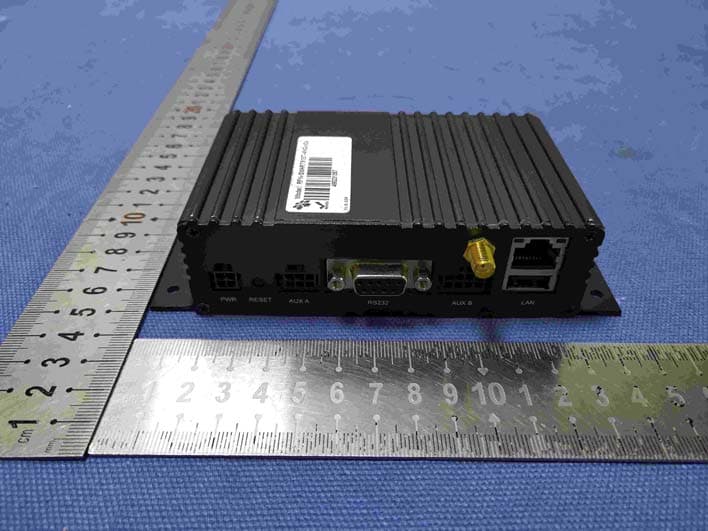

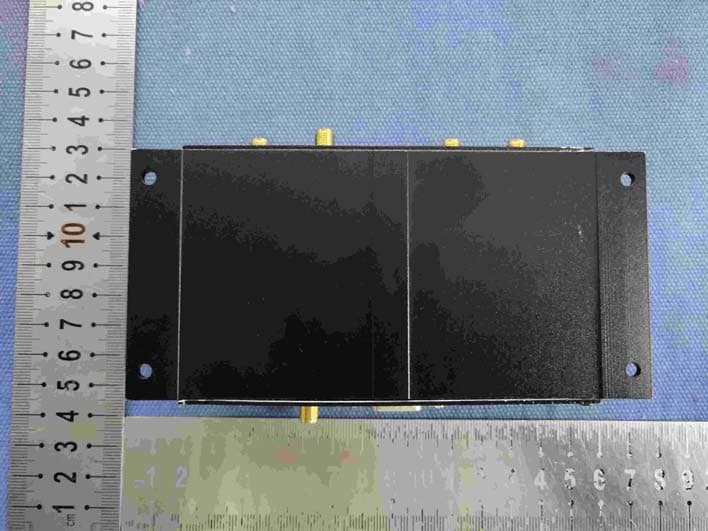

1 RF-Smart β User Manual Rev 1.1 β 12/11/2019 RFN-SMART915T-4NQ-xyz RFN-SMART433T-4NQ-xyz RFN-SMART915T-3GQ-xyz RFN-Gate433T-4GQ-xyz 2 RF-Smart β User Manual Rev 1.1 β 12/11/2019 User Manual Rev. 1.1 β 12/11/2019 Front View Back View 3 RF-Smart β User Manual Rev 1.1 β 12/11/2019 1. Overview The RF-Gate is a complete RF Terminal solution for RF 433/915 Mhz applications. Based on Quectel Cellular modems and CC1310 radio. 2. Hardware Interface Description 2.1 Main features of the RF-Gate Feature Implementation Incorporates combination of Short Range and CELLULAR modems, as well as GPS and WiFi The SMART Linux module handles all RF CELLULAR GPS processing Product Modem β’ Quectel 3/4G Cellular Modems β’ CC1310 Short Range Radio β’ Mediatec Mips processor + WiFi core + LAN β’ GPS modem (on request) Power supply Single supply voltage 8V DC to 55V DC connector 4 pin micro-fit 3mm GPIO 1x Open collector drive 100ma 1x RELAY 1A 30V 2x Inputs opto couplers, 0-55v 2 analog inputs 0-30V Communication 1x RS232, connector D-Type 9pin (DB-9) 1x RJ45 ETHERNET PORT 1x micro USB (HOST) Antennas RF, CELLULAR, WiFi and GPS via SMA connectors Processor MT7688 (in smart versions) β’ 580 MHz MIPS CPU. Memory β’ 32MB flash and 128MB DDR2 RAM. β’ Micro SD slot. Programming β’ Linux β’ Python β’ C 4 RF-Smart β User Manual Rev 1.1 β 12/11/2019 2.1.1 Product Family Product -> Modems P/N RF GPS Cellular LAN WiFi Linux CC1310 L70 xG91 Linkit 7688 4G+GPS+WiFi+LAN 915 Radio RFN-SMART915T-4NQ-xyz 915Mhz option βyβ EG95-NA V V V 4G+GPS+WiFi+LAN 433 Radio RFN-SMART433T-4NQ-xyz 433Mhz V V V 3G+GPS+WiFi+LAN 915 Radio RFN-SMART915T-3GQ-xyz 915Mhz UG V V V 4G+GPS+ 433 Radio RFN-Gate433T-4GQ-xyz 433Mhz V BG96 - - - Naming convention NNN Radio frequency 433 or 915 abc Modem type β’ 4: 4G, β’ GN: Global Narrow band LTE, β’ NA: North America, etc. β’ 3G: 3G global xyz x: B for battery installed, 0 no y: G:GPS, 0 GPS not present z: SW related 5 RF-Smart β User Manual Rev 1.1 β 12/11/2019 2.2 Hardware block diagram 2.2.1 Option: RFN-SMART915T-4NQ-xyz 6 RF-Smart β User Manual Rev 1.1 β 12/11/2019 2.2.2 Option: RFN-SMART433T-4NQ-xyz 7 RF-Smart β User Manual Rev 1.1 β 12/11/2019 2.2.3 Option: RFN-GATE433T-4GQ-xyz 8 RF-Smart β User Manual Rev 1.1 β 12/11/2019 3. Interface description 3.1 Molex 4 pin connector β Power connector 3.1.1 Power Supply The power supply of the RF-Gate Terminal requires a single voltage source of POWER 6V-55V capable of providing a peak during an active transmission. The RF-Gate Terminal is protected against supply voltage reversal. An internal fuse 1.1A 60V ensures an electrical safety according to EN60950-1. This fuse is not removable. A fast blow fuse of 0.8A is necessary for 24V power supply system (for vehicles). The power supply recommended being any safety approved power supply certified IEC 60950-1 or EN 60950-1 or UL 60950-1 with limited output current up to 2A. The type of the receptacle assembled on the RF-Gate Terminal is 4 pin Micro Mate-N-LOK 3mm (0.11 inch) from MOLEX. Pin Signal name Use 1 POWER Input Power supply range 6-55V 2 Power Enable Control pin to turn ON/OFF Terminal power. When putting this pin to voltage >6V the unit will be turn OFF. When putting this pin OPEN or GND the unit will be turn ON. 3 GND Ground 4 Analog Analog Input 0-30V or current measurement 4-20mA Pin assignment of the power plug including power supply and Power Enable β’ Male 4-pole plug for power supply To use with MOLEX MICRO FIT 3mm PART NUMBER 43025-0400 3.1.2 Supply voltage requirements The DC power supply must be connected to the POWER input: β’ Input voltage range 6 - 55V DC β’ Nominal Voltage 12V DC 9 RF-Smart β User Manual Rev 1.1 β 12/11/2019 β’ Power Supply current rating: max. 2A @12V (if USB is used, use 3A Power supply) β’ Power Supply ripple: max. 120mV β’ Input current in idle mode: 20mA @ 12V β’ Input average current in communication mode: 100mA @ 12V 3.3 SMA CONNECTORS AND LEDs 3.3.1 SMA Antennas connection The RF-Gate Terminal uses SMA CONNECTORS for ANTENNAS. RF Antenna: In RF 433Mhz use the 433Mhz ANTENNA with 2dB gain or more. In RF 2.4Ghz use the 2.4Ghz ANTENNA with 2dB gain or more. CELLULAR Antenna 4 band 3G ANTENNA with 2.5dB gain. GPS/RF2 Antenna ACTIVE GPS ANTENNA with 25-28dB gain. (in RFN-SMART915-4NQ- x0z, RFN-SMART433-4NQ-x0z is used for cellular Antenna diversity) 3.3.2 LED indications Upon power on, the designated LEDs should act as follows β’ CELLULAR_B LED Modem Status, when On the Cellular Modem is ON o Fast blinks (around 2 per second) - search for cellular network o Slow blink (every 2 sec) - connected to a cellular network β’ CELLULAR_A LED turns on when it is connected to the communication server o 2 seconds Slow Blink (200ms ON/1800ms OFF) Low Network Search o 2 seconds Slow Blink (1800ms ON/200ms OFF) modem in IDLE o Fast blink 4 per second, Data Transfer is Ongoing o Always High, Voice calling (not in USE) β’ RF LED o In STAR versions βͺ RF_B LED blinks on RF activity βͺ RF_A LED blinks when moving the data between the RF and the Smart or 3G Module o In Receiver versions βͺ RF_B LED blinks when receiving an RF tag data transmission βͺ RF_A LED blinks when moving the data to the Smart or 3G Module o In Coordinator Versions βͺ RF_B LED blinks means the RF is not configured βͺ RF_B LED steady ON coordinator is on βͺ RF_B LED steady ON coordinator is in Boot Loader βͺ RF_A LED always off 10 RF-Smart β User Manual Rev 1.1 β 12/11/2019 β’ RF2_B (GPS) LED SMART TBD, USED SW dependent β’ RF2_A (GPS) LED GPS blinks one per seconds if GPS present 3.4 SIM DRAWER OPTION CELLULAR COORDINATOR Please insert the SIM card on the following direction into the SIM push-push. 3.4 USB connector In 3G versions, for programming and debugging the Telit GSM module In Smart Version the USB is connected to a USB Hub managed by the Linux, any standard USB2 device can be connected to this port (max current supply 500mA fuse protected) (Managed by Linux, required user SW and device drivers to operate it) 11 RF-Smart β User Manual Rev 1.1 β¦
