2AR7X-FW1822SBAR36 in. 2.1 soundbar with external subwoofer

Main bar: 914mm(W) x 65mm(D) x 80mm(H)Subwoofer 200mm(W) x 300mm(D) x 300mm(H) 36 2.1 Soundbar 100023515 What’s in the Box? Check to make sure you have everything below. Get to Know Your 36'' 2.1 SOUNDBAR Get to Know Your 36'' 2.1 SOUNDBAR IMPORTANT SAFETY INSTRUCTIONS 1. Button Switches the unit betwen ON and STANDBY mo des. 2. Press AUX button, device will play audio from aux input. 3. Press OPTICAL button, device will play audio from optical input. 4. VOL+ button increases the volume.5. button skip to previous track in Bluetooth mode.6. button to play/pause music in Bluetooth mode. RESET button to reset device to the factory default settings. 7. VOL- button decreases the volume.8. BASS- button decrease bass9. TREB- button decrease treb10. Press EQ button to select music, movie and talk EQ mode. 11. button mutes the unit or resumes the sound.12. Press HDMI IN button, device will play audio fro m HDMI IN input. 13. Press HDMI ARC button, device will play audio fr om HDMI ARC input. 14. Bluetooth Connection switches to Bluetooth mode, press and hold to enable bluetooth pairing if there is an existing co nnection then disconnect the devices, unit will enter pairing mode.15. button skip to next track in Bluetooth mode.16. BASS+ button increase bass17. TREB+ button increase treb This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. 1.Read these instructions – All the safety and oper ating instructions should be read before this produ ct is operated. 2.Keep these instructions – The safety and operatin g instructions should be retained for future refere nce. 3.Heed all warnings – All warnings on the appliance and in the operating instructions should be adhere d to. 4.Follow all instructions – All operating and use i nstructions should be followed. 5.Do not use this apparatus near water – The applia nce should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like.6.Clean only with dry cloth.7.Do not block any ventilation openings. Install in accordance with the manufacture’s instructions. 8.Do not install near any heat sources such as radi ators, heat registers, stoves, or other apparatus ( including amplifiers) that produce heat.9.Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obso lete outlet. 10.Protect the power cord from being walked on or p inched particularly at the plugs, convenience recep tacles, and at the point where they exit from the apparatus.11.Only use attachments/accessories specified by th e manufacturer. 12.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold wit h the apparatus. When a cart or rack is used, use caution when moving the cart/a pparatus combination to avoid injury from tip-over. The batteries shall not be exposed to excessive hea t such as sunshine, fire or the like. 13.Unplug the apparatus during lightning storms or when unused for long periods of time. 14.Refer all servicing to qualified personnel. Serv icing is required when the apparatus has been damag ed in any way, such as power supply cord or plug is da maged, liquid has been spilled or objects have fall en into the apparatus has been exposed to rain or mois ture, does not operate normally, or has been droppe d. 15.CAUTION: These servicing instructions are for us e by qualified service personnel only. To reduce the risk of electric shock, do not perfor m any servicing other than that contained in the op erating instructions unless you are qualified to do so.16.Do not install this equipment in a confined or b uilding-in space such as a book case or similar uni t, and remain a well ventilation conditions at open site. The ventilatio n should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains etc.17.WARNING: Only use attachments/accessories specif ied or provided by the manufacturer (such as the ex clusive supply adapter, battery etc).18.WARNING Please refer the information on exterior bottom enc losure for electrical and safety information before installing or operating the apparatus.19.WARNING To reduce the risk of fire or electric shock, do no t expose this apparatus to rain or moisture. The ap paratus shall not be exposed to dripping or splashing and that ob jects filled with liquids, such as vases, shall not be placed on apparatus. 20.WARNING: The mains plug or appliance coupler is used as disconnect device, the disconnect device sh all remain readily operable. 21. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth. Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. No naked flame sources, such as lighted candles, should be placed on the apparatus. Attention should be drawn to environmental aspects of battery disposal. The product is designed to use in moderate climates. Rear View of Subwoofer AC 100~240V Power Socket ON/OFF Switch HDMI IN HDMI ARC 12356478 9 11 10 12 1314161517 HDMI IN HDMI ARC LED Screen activityAdjusting the Volume LED Screen activity AUX IN: the screen display"AUX” Press VOL +/- on the unit or the remote co…

Text truncated - open the document above for the full version.

FREEWINGS DIGITAL TECHNOLOGIES(NINGBO)CO.,LTD [2020/10/22] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement FREEWINGS DIGITAL TECHNOLOGIES(NINGBO)CO.,LTD FCC ID: 2AR7X-FW1822SBAR To Whom It May Concern: We, FREEWINGS DIGITAL TECHNOLOGIES(NINGBO)CO.,LTD, hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number 2AR7X-FW1822SBAR under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is (2020/10/22). The Limited Agency Agreement expires on (2021/10/22), unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely,

FREEWINGS DIGITAL TECHNOLOGIES(NINGBO)CO.,LTD Attention: Certification reviewer RE: Request for Confidentiality FCC ID: 2AR7X-FW1822SBAR To Whom It May Concern: Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate] Schematics Block Diagrams Operational Description Tune-up Procedure Parts List Internal Photos (see note) Users Manual (see note) Note 1: Internal Photos may be held confidential 1) if the circuit board or internal components are not accessible to users. For example, it is acceptable if the circuit board is enclosed in epoxy. 2) Also, it is acceptable if the device is not accessible to the public, for example, a device mounted on the top of a large tower (or in a fenced enclosure) such that it is only serviceable by professional designated technicians under a Non-Disclosure Agreement (NDA). All sales for these devices must be under a NDA restricting the disclosure of the propriety information, including internal photos. Users Manual may be held confidential only when the manual contains proprietary technical information intended for professional technicians obligated under a NDA. All sales and distribution of the user’s manual must be under a NDA that restricts the disclosure of the information. In the application cover letter requesting permanent confidentiality the following additional description and the NDA exhibit is required: 1. Describe in detail how internal photos and/or users manual information are controlled to prevent them from becoming public or disclosed to unauthorized persons. 2. Describe how public access is restricted for products serviceable by professional designated technicians. 3. A statement that all sales of the non-consumer device will be under a NDA to include third party sales and that the final user of the device is subject to the NDA. 4. Provide an example of the NDA between the grantee and a purchaser. The request for confidentiality must Note 2: For scanning receiver, the schematics, block diagrams, operational description, tune-up procedure, parts list and internal photos are always held permanently confidential. Short-term Confidentiality [Complete this section if short-term confidentiality is requested] Request to withhold from public review for a period of [please enter 1 to 180] days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept short-term confidential for a period above from the date of the grant [Select one or more of items below that are not selected in the list above, as appropriate] Schematics Block diagrams Operational Description Tune-up Procedure Parts List Test Setup Photos External Photos I nternal Photos Users Manual Rationale for request for confidentiality: W e have invested considerable time and materials in research and development to produce the referenced product. Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Short-term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development. If you have questions or need further information, please contact the undersigned. Sincerely, _________________ Zhihong Xiao QAMANAGER 2020-10-22

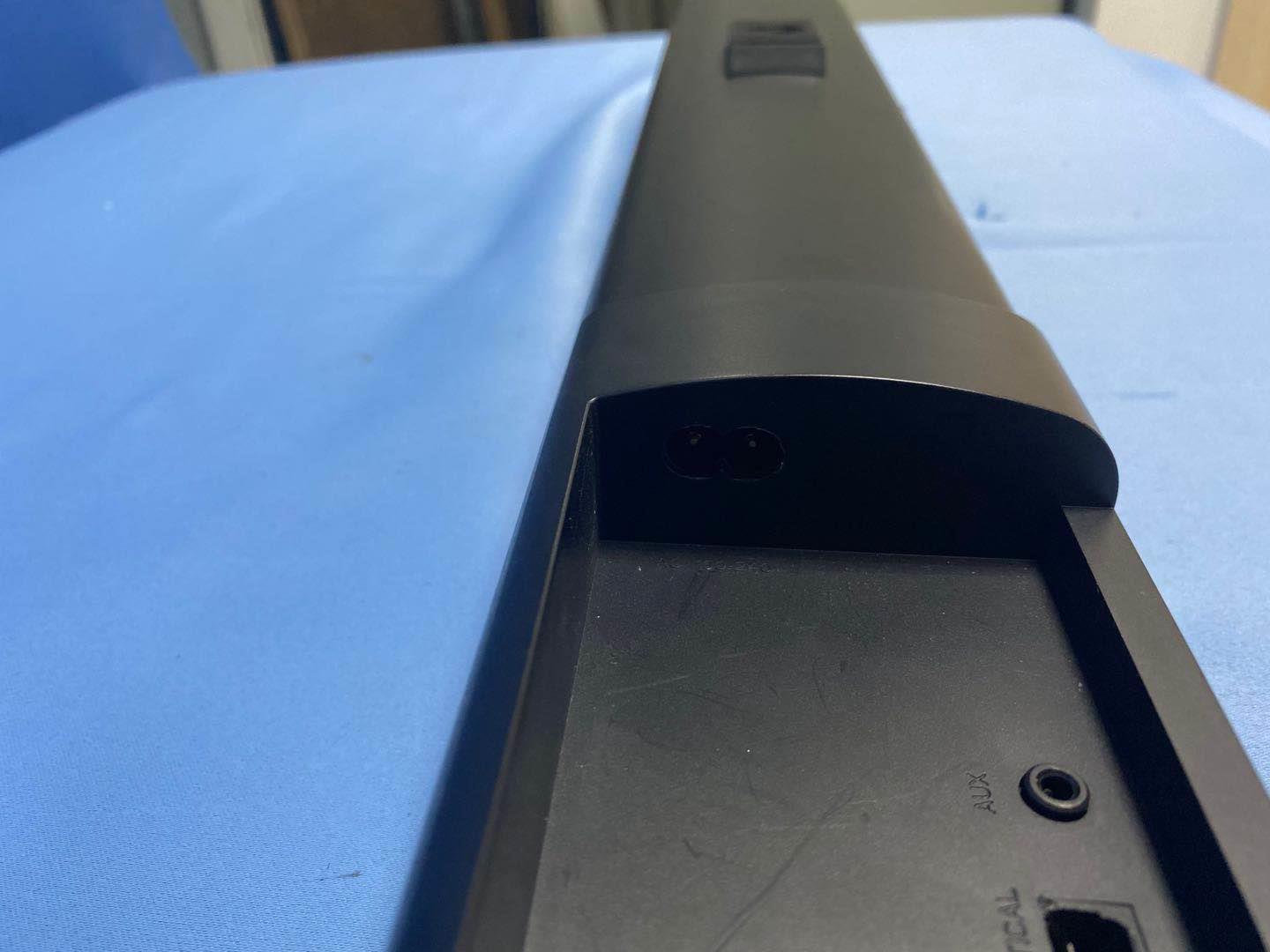

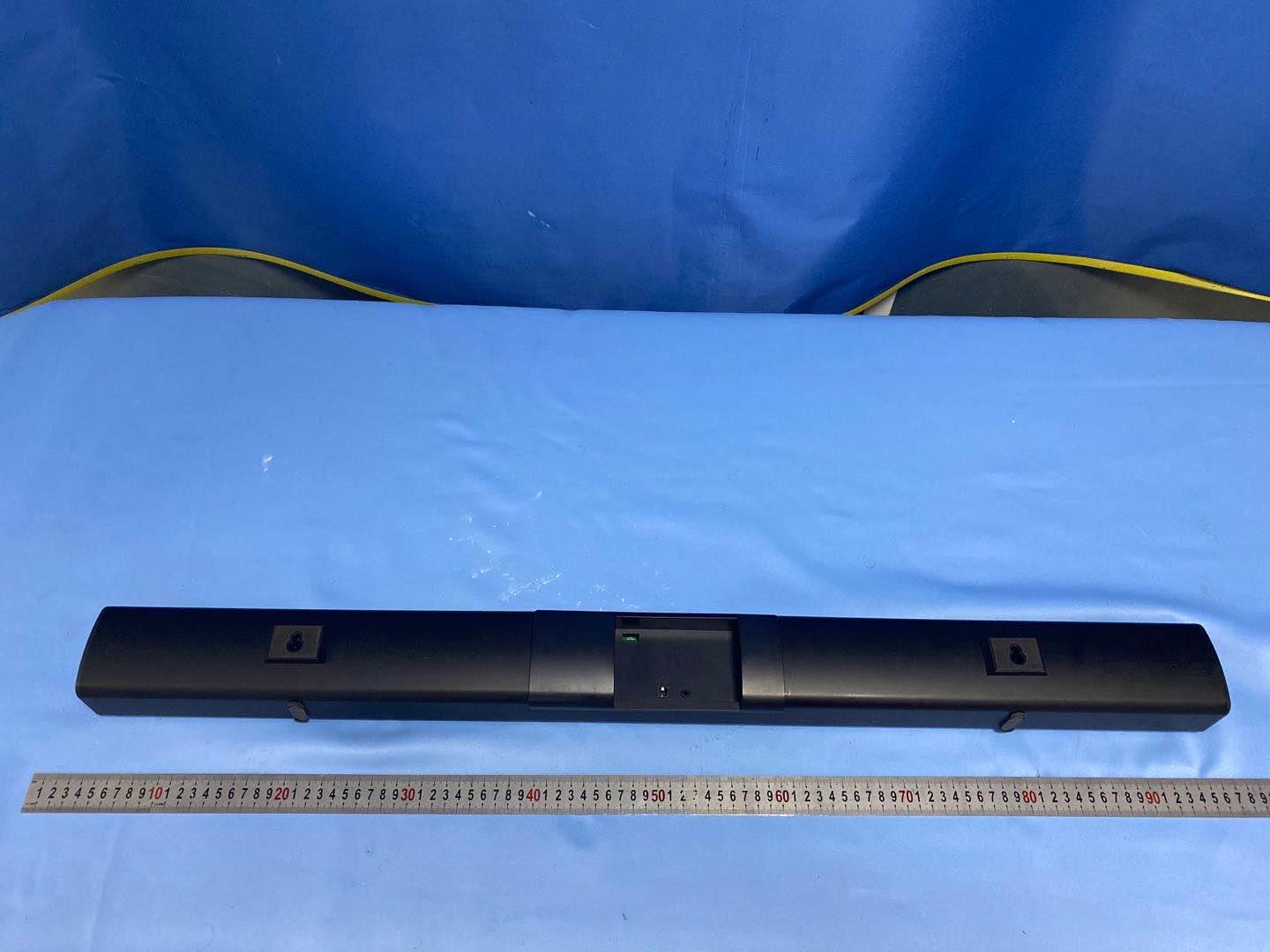

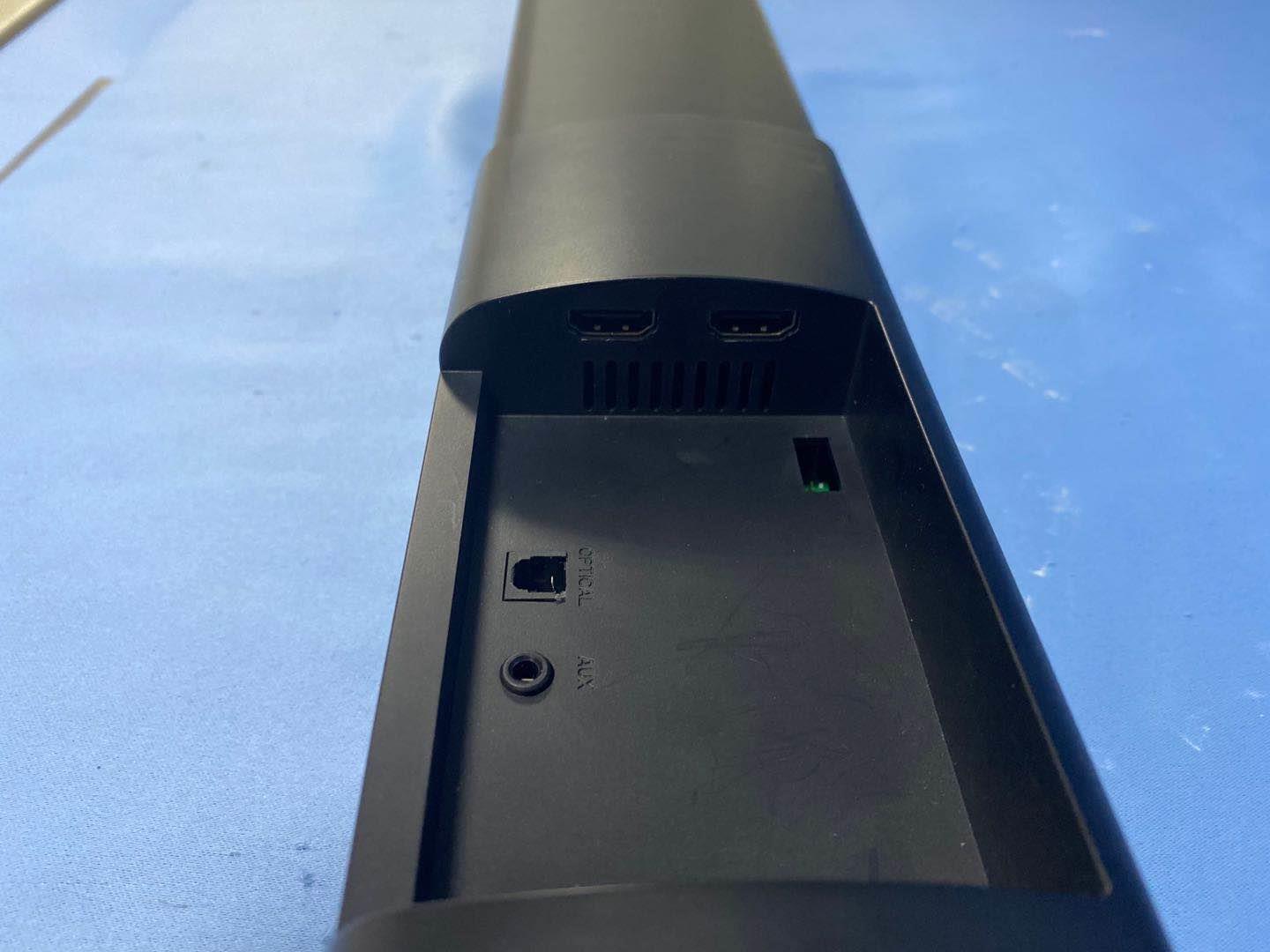

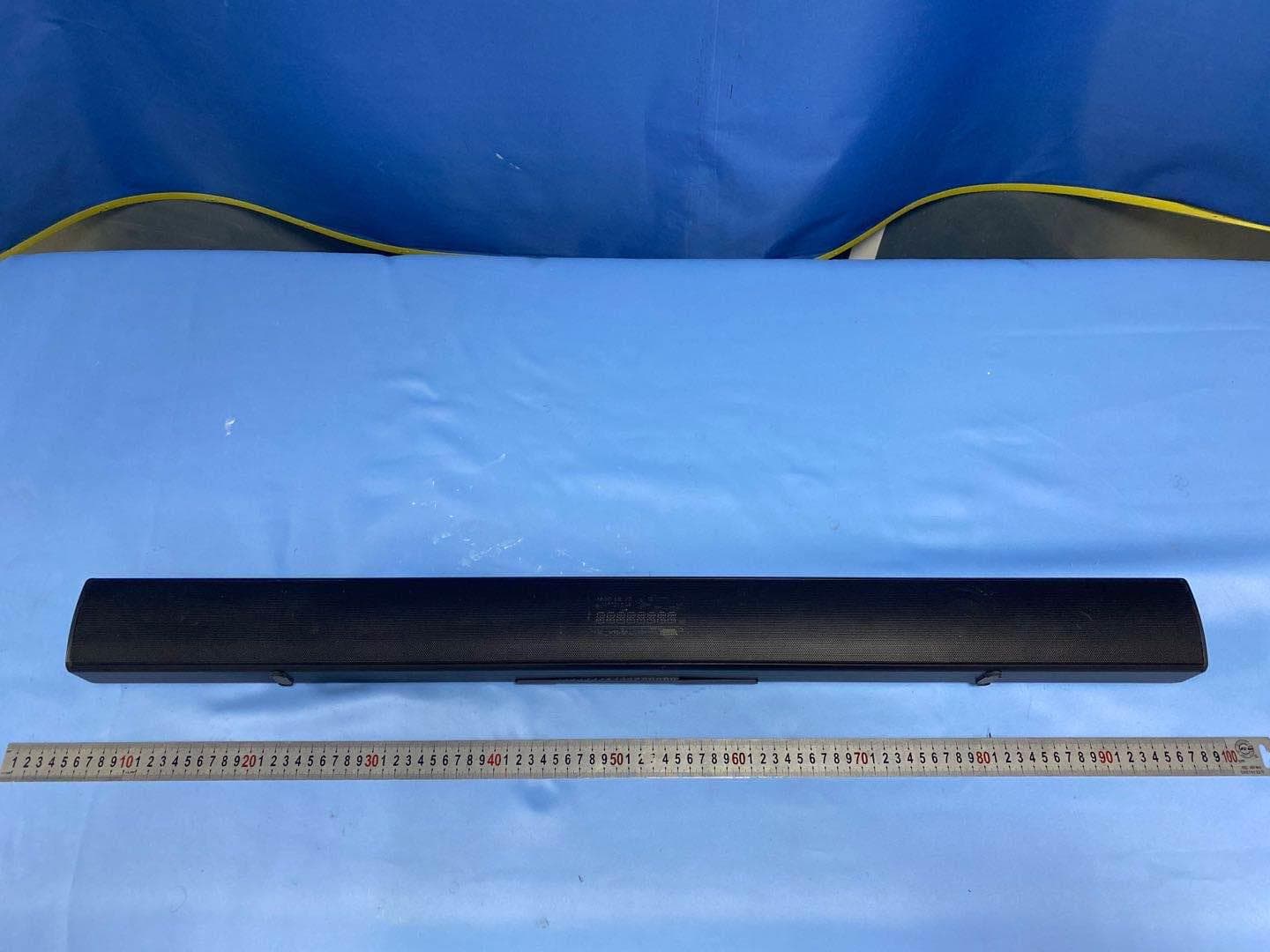

External Photos

Internal Photos Bluetooth Antenna

INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a 36 in. 2.1 soundbar with external subwoofer with Bluetooth 5.0 EDR function operating in 2402-2480MHz. The EUT is powered by AC 120V/60Hz. For more detail information pls. refer to the user manual. Bluetooth Version: 5.0 EDR mode Antenna Type: Integral antenna Modulation Type: GFSK, p/4-DQPSK, 8DPSK Antenna Gain: 1.0dBi Max The nominal conducted output power specified: 4.0dBm (+/-3dB) The nominal radiated output power (e.i.r.p) specified: 5.0dBm (+/- 3dB) According to the KDB 447498: The maximun peak radiated emission for the EUT is 103.1dBμV/m at 3m in the frequency 2402MHz The EIRP = [(FS*D) ^2 / 30] mW = 7.87dBm which is within the production variation. The minimum peak radiated emission for the EUT is 99.6dBμV/m at 3m in the frequency 2480MHz The EIRP = [(FS*D) ^2 / 30] mW = 4.37dBm which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 and OET 65, the simple calculation as below: The source-based time averaged maximum radiated power = 5dBm+3dB= 8dBm = 6.31mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna for 5.0 BLE mode can be calculated according to OET 65 as follow: = 6.31mW/ 4 πR^2 = 0.0013 mW/cm^2 The MPE limit is 1.0 mW/cm^2 for general population and uncontrolled exposure in the Bluetooth frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. FCC ID: 2AR7X-FW1822SBAR INTERTEK TESTING SERVICES The following RF exposure statement or similar sentence is proposed to be included in the user manual: “FCC RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons.” FCC ID: 2AR7X-FW1822SBAR

FREEWINGS DIGITAL TECHNOLOGIES (NINGBO) CO.,LTD TEST REPORT SCOPE OF WORK FCC TESTING–100023515 REPORT NUMBER 200904031SZN-001 ISSUE DATE [REVISED DATE] November 4, 2020 [---------------------] PAGES 27 DOCUMENT CONTROL NUMBER FCC ID 249_C © 2017 INTERTEK Intertek Report No.: 200904031SZN-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen, P.R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 27 FCC ID 249_C Test Report FREEWINGS DIGITAL TECHNOLOGIES (NINGBO) CO.,LTD Application For Certification FCC ID: 2AR7X-FW1822SBAR 36 in. 2.1 soundbar with external subwoofer Model: 100023515 Brand Name: onn. 2.4GHz Transceiver Report No.: 200904031SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-19] Prepared and Checked by: Approved by: Leo Li Project Engineer Kidd Yang Technical Supervisor Date: November 4, 2020 Intertek Report No.: 200904031SZN-001 Version: 01-November-2017 Page: 2 of 27 FCC ID 249_C Test Report MEASUREMENT/TECHNICAL REPORT This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-19 Edition] provision. Report prepared by: Leo Li Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen, P.R. China Tel / Fax: 86-755-8614 0743/86-755-8601 6661 Intertek Report No.: 200904031SZN-001 Version: 01-November-2017 Page: 3 of 27 FCC ID 249_C Test Report Table of Contents 1.0 Summary of Test Result ................................................................................................. 4 2.0 General Description ...................................................................................................... 5 2.1 Product Description .................................................................................................... 5 2.2 Related Submittal(s) Grants ......................................................................................... 5 2.3 Test Methodology ...................................................................................................... 5 2.4 Test Facility ............................................................................................................... 5 3.0 System Test Configuration ............................................................................................. 6 3.1 Justification ............................................................................................................... 6 3.2 EUT Exercising Software .............................................................................................. 6 3.3 Special Accessories ..................................................................................................... 6 3.4 Equipment Modification .............................................................................................. 6 3.5 Measurement Uncertainty .......................................................................................... 7 3.6 Support Equipment List and Description ........................................................................ 7 4.0 Emission Results ........................................................................................................... 8 4.1 Radiated Test Results .................................................................................................. 8 4.1.1 Field Strength Calculation ......................................................................................... 8 4.1.2 Radiated Emission Configuration Photograph .............................................................. 9 4.1.3 Radiated Emissions .................................................................................................. 9 4.1.4 Transmitter Spurious Emissions ............................................................................... 12 4.2 Conducted Emission Configuration Photograph ............................................................ 16 4.2.1 Conducted Emission ............................................................................................... 16 5.0 Equipment Photographs .............................................................................................. 19 6.0 Product Labelling ........................................................................................................ 19 7.0 Technical Specifications ............................................…

Text truncated - open the document above for the full version.

Radiated Emission (Up to 1GHz) Radiated Emission (Above 1GHz)

Conducted Emission
