2AR7X-FW1823SBAR36 inch 5.1 Soundbar With Wireless Subwoofer

onn. Model: 100027812 USER MANUAL The batteries shall not be exposed to excessive hea t such as sunshine, fire or the like. 1-888-516-2630 Use an AUX cable (included) to connect the TV’s headphone Port to the soundbar’s AUX IN port. AUX cable length is 6 feet Optical cable length is 6 feet When there is no sound through an HDMI or OPTICAL connection, please set the output of your TV or DVD to PCM.Use an optical cable (included) to connect the TV’s OPTICAL OUT Port to the soundbar’s OPTICAL Port. Using the AUX or Optical Connection Hints and Tips This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. No naked flame sources, such as lighted candles, should be placed on the apparatus. Attention should be drawn to environmental aspects of battery disposal. The product is designed to use in moderate climates. IMPORTANT SAFETY INSTRUCTIONS 1.Read these instructions – All the safety and oper ating instructions should be read before this produ ct is operated. 2.Keep these instructions – The safety and operatin g instructions should be retained for future refere nce. 3.Heed all warnings – All warnings on the appliance and in the operating instructions should be adhere d to. 4.Follow all instructions – All operating and use i nstructions should be followed. 5.Do not use this apparatus near water – The applia nce should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like. 6.Clean only with dry cloth. 7.Do not block any ventilation openings. Install in accordance with the manufacture’s instructions. 8.Do not install near any heat sources such as radi ators, heat registers, stoves, or other apparatus ( including amplifiers) tha t produce heat. 9.Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safe ty. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obso lete outlet. 10.Protect the power cord from being walked on or p inched particularly at the plugs, convenience recep tacles, and at the point where they exit from the apparatus. 11.Only use attachments/accessories specified by th e manufacturer. 12.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold wit h the apparatus. When a c art or rack is used, use caution when moving the cart/a pparatus combination to avoid injury from tip-over. 13.Unplug the apparatus during lightning storms or when unused for long periods of time. 14.Refer all servicing to qualified personnel. Serv icing is required when the apparatus has been damag ed in any way, such as power supply cord or plug is da maged, liquid has been spilled or objects have fall en into the apparatus has been exposed to rain or mois ture, does not operate normally, or has been droppe d. 15.CAUTION: These servicing instructions are for us e by qualified service personnel only. To reduce the risk of electric shock, do not perfor m any servicing other than that contained in the op erating instructions unless you are qualified to do so. 16.Do not install this equipment in a confined or b uilding-in space such as a book case or similar uni t, and remain a well ventilation conditions at open site. The ventilatio n should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains etc. 17.WARNING: Only use attachments/accessories specif ied or provided by the manufacturer (such as the ex clusive supply adapter, battery etc). 18.WARNING Please refer the information on exterior bottom enc losure for electrical and safety information before installing or operating the apparatus.19.WARNING To reduce the risk of fire or electric shock, do no t expose this apparatus to rain or moisture. The ap paratus shall not be exposed to dripping or splashing and that ob jects filled with liquids, such as vases, shall not be placed on apparatus. 20.WARNING: The mains plug or appliance coupler is used as disconnect device, the disconnect device sh all remain readily operable. 21. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth. small object small object a 1KKVRUUYKYSGRRY[HPKIZG]G_LXUS _U[TMINORJXKT Main unit Subwoofer and Satellites Connection Pairing the SubwooferWhen the soundbar is turned on, the devices will connect automatically;If this does not happen, please pair the subwoofer to the soundbar manually.Pair manually:1. Press and hold mute on the remote for 7 sec., soundbar's LED display will showSUB LINK;2. Press and hold pairing button on subwoofer for 3 sec., the subwoofer's LEDwill fast blink blue until paired with each other;3. The soundbar connected subwoofer, Blue Led indicator on the subwoofer remainsolid and the LED dispaly on the front of the soundbar show LINKED 3s.Connect Subwoofer and Satellites:Connect the Satellite Speaker Ports between Subwwoofer and Satellites Via RCA cables(included) like the following illustration. November 23, 2020_V1 Using the HDMI IN or HDMI ARC connection The best way to connect your soundbar is via HDMI/HDMI ARC, shown below:Use DVD to connect via HDMI cable to sound bar HDMI IN. Sound bar connects toTV via HDMI c…

Text truncated - open the document above for the full version.

FREEWINGS DIGITAL TECHNOLOGIES (NINGBO) CO., LTD [2020.10.22] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement FREEWINGS DIGITAL TECHNOLOGIES (NINGBO) CO., LTD FCC ID: 2AR7X-FW1823SBAR To Whom It May Concern: We, FREEWINGS DIGITAL TECHNOLOGIES (NINGBO) CO., LTD, hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number 2AR7X-FW1823SBAR under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is 22 October 2020. The Limited Agency Agreement expires on 22 October 2021, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, [Zhihong Xiao] [QA Manager]

FREEWINGS DIGITAL TECHNOLOGIES(NINGBO)CO.,LTD Attention: Certification reviewer RE: Request for Confidentiality FCC ID: 2AR7X-FW1823SBAR T o Whom It May Concern: Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate] Schematics Block Diagrams Operational Description Tune-up Procedure Parts List Internal Photos (see note) Users Manual (see note) Note 1: Internal Photos may be held confidential 1) if the circuit board or internal components are not accessible to users. For example, it is acceptable if the circuit board is enclosed in epoxy. 2) Also, it is acceptable if the device is not accessible to the public, for example, a device mounted on the top of a large tower (or in a fenced enclosure) such that it is only serviceable by professional designated technicians under a Non-Disclosure Agreement (NDA). All sales for these devices must be under a NDA restricting the disclosure of the propriety information, including internal photos. Users Manual may be held confidential only when the manual contains proprietary technical information intended for professional technicians obligated under a NDA. All sales and distribution of the user’s manual must be under a NDA that restricts the disclosure of the information. In the application cover letter requesting permanent confidentiality the following additional description and the NDA exhibit is required: 1. Describe in detail how internal photos and/or users manual information are controlled to prevent them from becoming public or disclosed to unauthorized persons. 2. Describe how public access is restricted for products serviceable by professional designated technicians. 3. A statement that all sales of the non-consumer device will be under a NDA to include third party sales and that the final user of the device is subject to the NDA. 4. Provide an example of the NDA between the grantee and a purchaser. The request for confidentiality must Note 2: For scanning receiver, the schematics, block diagrams, operational description, tune-up procedure, parts list and internal photos are always held permanently confidential. Short-term Confidentiality [Complete this section if short-term confidentiality is requested] Request to withhold from public review for a period of [please enter 1 to 180] days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept short-term confidential for a period above from the date of the grant [S elect one or more of items below that are not selected in the list above, as appropriate] Schematics Block diagrams Operational Description Tune-up Procedure Parts List Test Setup Photos External Photos Internal Photos Users Manual Rationale for request for confidentiality: We have invested considerable time and materials in research and development to produce the referenced product. Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Short-term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development. If you have questions or need further information, please contact the undersigned. S incerely, _______________ __ Zhihong Xiao Q AMANAGER 2020-10-22

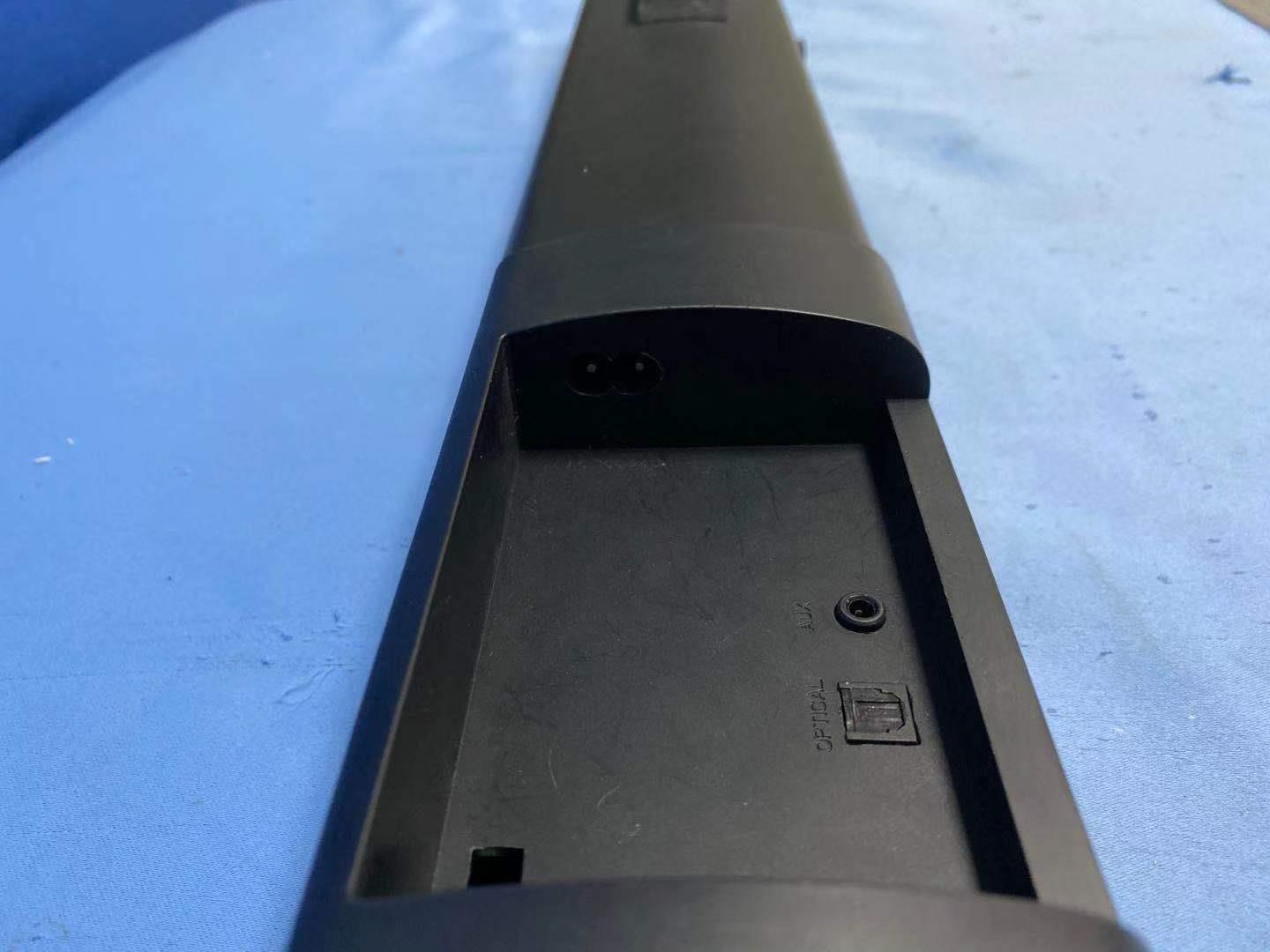

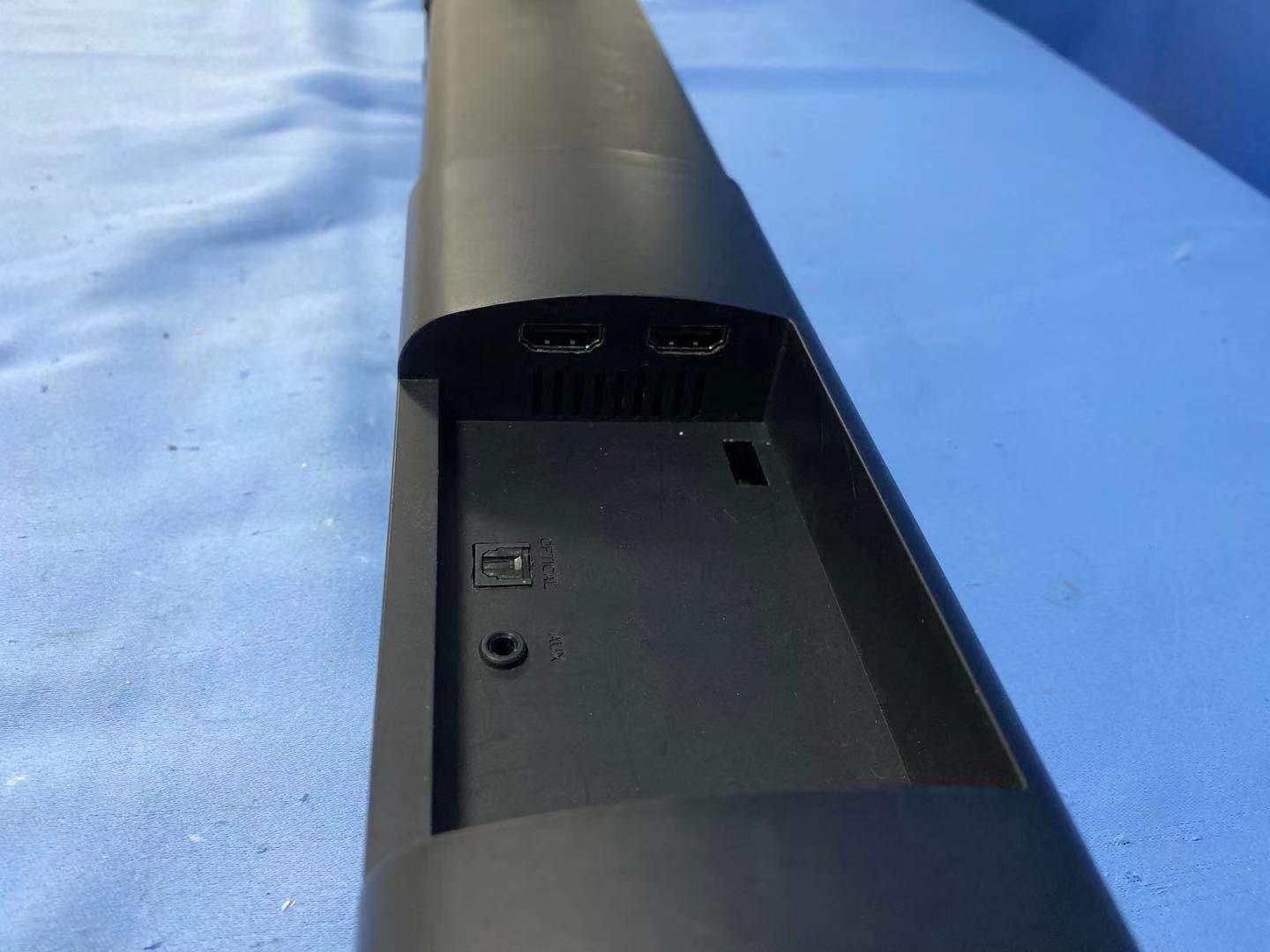

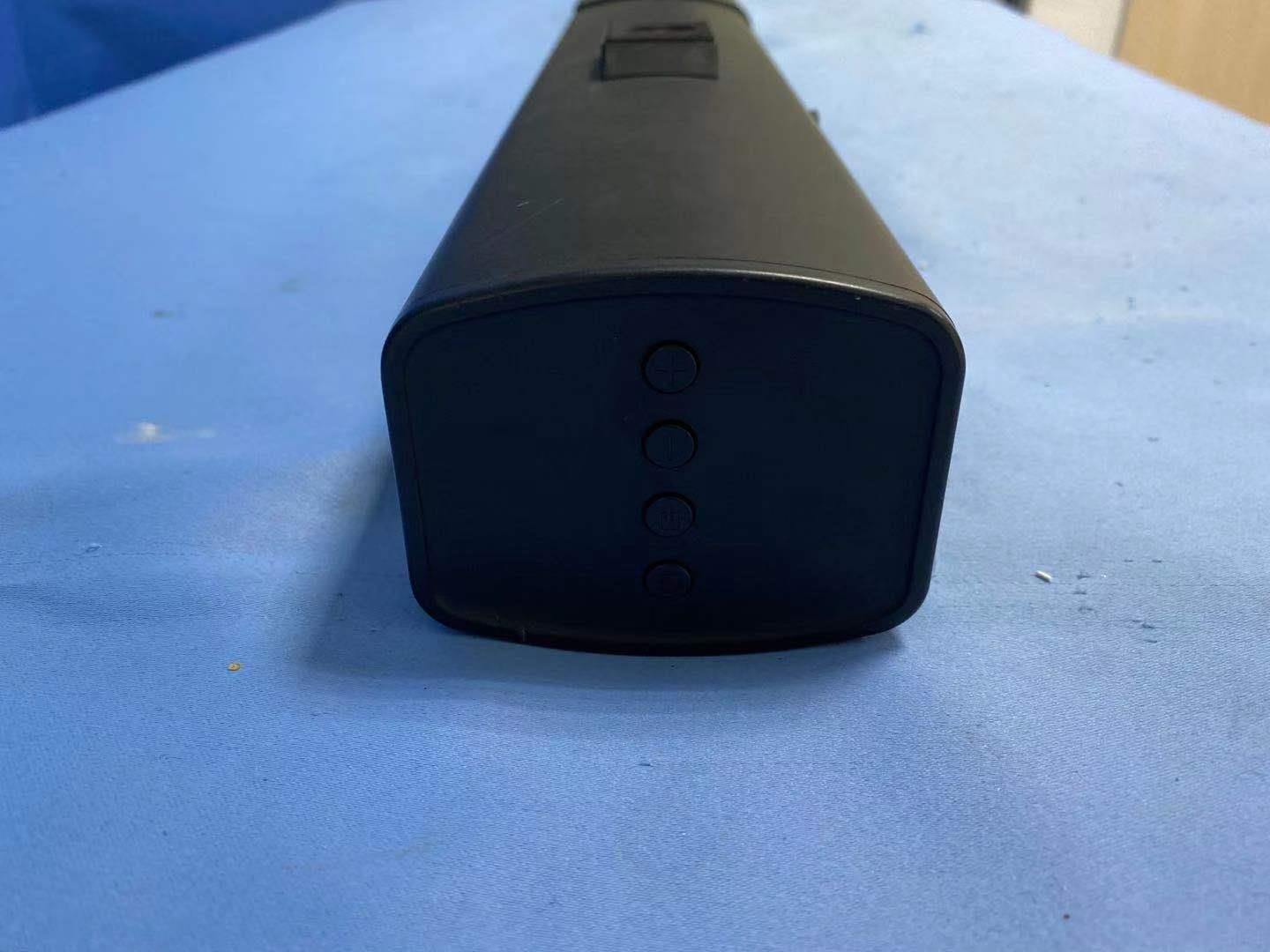

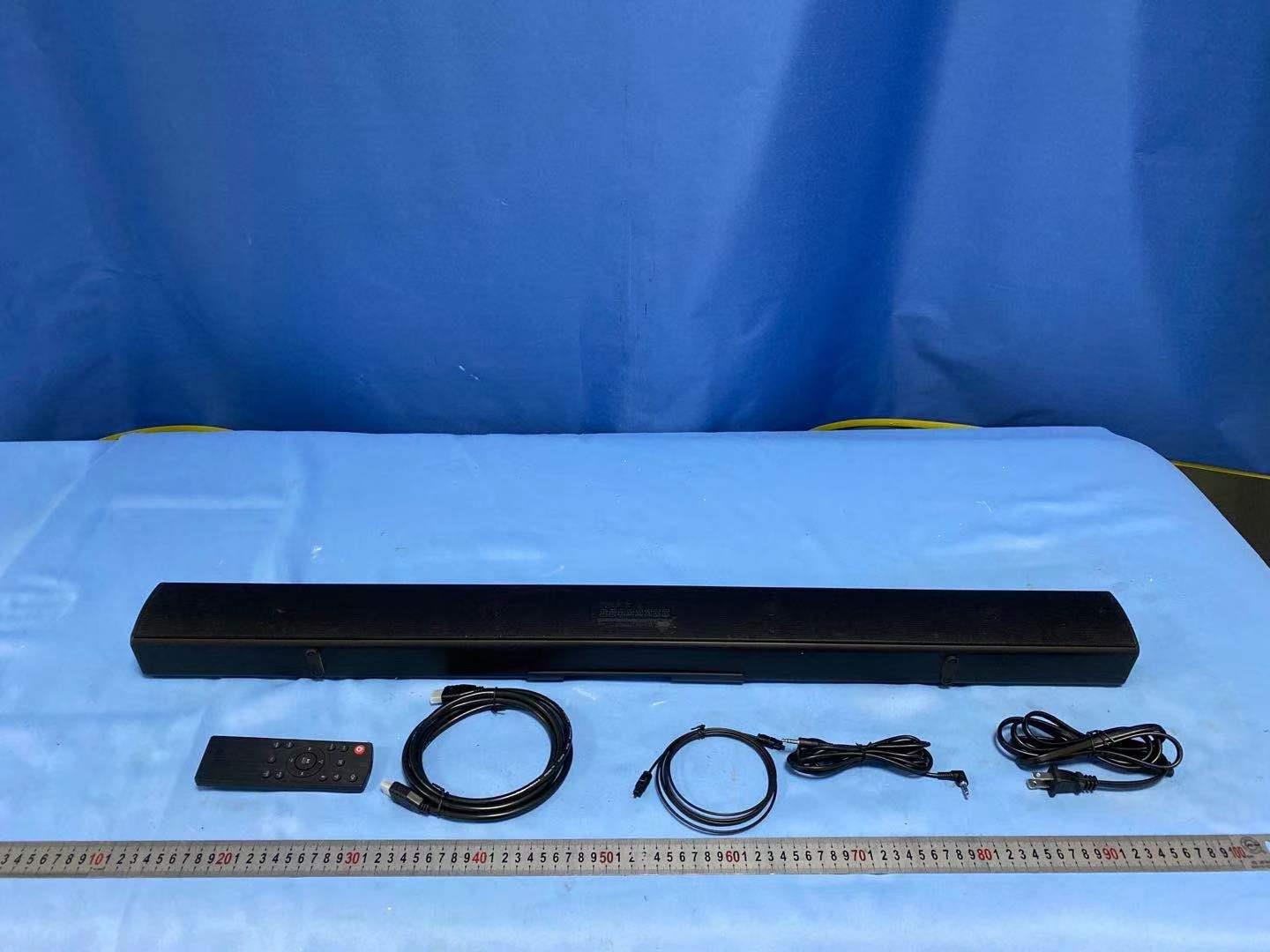

External photos This port only used to update software by developer, and will be covered by label when EUT is sold in the market

Internal photos BT Antenna 5.8G SRD Antenna

INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a 36 inch 5.1 Soundbar With Wireless Subwoofer with Bluetooth 5.0 (Single Mode EDR) function operating in 2402-2480MHz and 5.8G SRD function operation in 5727-5848MHz. The EUT is powered by 100-240V~ 60Hz. For more detail information pls. refer to the user manual. Standalone evaluation Bluetooth Version: 5.0 EDR Antenna Type: Integral antenna. Antenna Gain: 1dBi. Modulation Type: GFSK, π/4DQPSK, 8DPSK. The nominal conducted output power specified: 3dBm (+/-3dB). The nominal radiated output power (e.i.r.p) specified: 4dBm (+/- 3dB). The maximun peak radiated emission for the EUT is 102.1dBμV/m at 3m in the frequency 2402MHz The EIRP = [(FS*D) ^2 / 30] mW = 6.87dBm which is within the production variation. The minimum peak radiated emission for the EUT is 98.2dBμV/m at 3m in the frequency 2480MHz The EIRP = [(FS*D) ^2 / 30] mW = 2.97dBm which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 and OET 65, the simple calculation as below: The source-based time averaged maximum radiated power = 7dBm = 5.01mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna for 2.4GHz band can be calculated according to OET 65 as follow: = 5.01mW/ 4πR^2 = 0.001 mW/cm^2 <1mW/cm^2 The MPE limit is 1.0 mW/cm^2 for general population and uncontrolled exposure in the 2.4GHz frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. FCC ID: 2AR7X-FW1823SBAR INTERTEK TESTING SERVICES 5.8G SRD: Antenna Type: Integral antenna. Antenna Gain: 1dBi. Modulation Type: 8DPSK The nominal conducted output power specified: 1dBm (+/-3dB). The nominal radiated output power (e.i.r.p) specified: 2dBm (+/- 3dB). The maximun peak radiated emission for the EUT is 99.8dBμV/m at 3m in the frequency 5788MHz The EIRP = [(FS*D) ^2 / 30] mW = 4.57dBm which is within the production variation. The minimum peak radiated emission for the EUT is 96.1dBμV/m at 3m in the frequency 5848MHz The EIRP = [(FS*D) ^2 / 30] mW = 0.87dBm which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 and OET 65, the simple calculation as below: The source-based time averaged maximum radiated power = 5dBm = 3.16mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna for 2.4GHz band can be calculated according to OET 65 as follow: = 3.16mW/ 4πR^2 = 0.00063 mW/cm^2 <1mW/cm^2 The MPE limit is 1.0 mW/cm^2 for general population and uncontrolled exposure in the 5.8GHz frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. FCC ID: 2AR7X-FW1823SBAR INTERTEK TESTING SERVICES Simultaneous Transmission Evaluation For Simultaneous transmitting of Bluetooth and 5.8G SRD, According to 865664D02 2.2 d) 1): The sum of the ratios of the spatially averaged results to the applicable frequency dependent MPE limits = 0.001/1 + 0.00063/1 = 0.00163< 1 Since the sum of the MPE ratios for all simultaneously transmitting antennas incorporated in the device is ≤ 1.0, the EUT is considered to satisfy MPE compliance for simultaneous transmission operations. The following RF exposure statement or similar sentence is proposed to be included in the user manual: “FCC RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons.” FCC ID: 2AR7X-FW1823SBAR

FREEWINGS DIGITAL TECHNOLOGIES (NINGBO) CO., LTD TEST REPORT SCOPE OF WORK FCC TESTING–100027812 REPORT NUMBER 200915011SZN-001 ISSUE DATE [REVISED DATE] December 25, 2020 [---------------------] PAGES 27 DOCUMENT CONTROL NUMBER FCC ID 249_C © 2017 INTERTEK Intertek Report No.: 200915011SZN-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen, P.R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 27 FCC ID 249_C Test Report FREEWINGS DIGITAL TECHNOLOGIES (NINGBO) CO., LTD Application For Certification FCC ID: 2AR7X-FW1823SBAR 36 inch 5.1 Soundbar With Wireless Subwoofer Model: 100027812 Brand Name: onn. 2.4GHz Transceiver Report No.: 200915011SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-19] Prepared and Checked by: Approved by: Leo Li Project Engineer Kidd Yang Technical Supervisor Date: December 25, 2020 Intertek Report No.: 200915011SZN-001 Version: 01-November-2017 Page: 2 of 27 FCC ID 249_C Test Report MEASUREMENT/TECHNICAL REPORT This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-19 Edition] provision. Report prepared by: Leo Li Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen, P.R. China Tel / Fax: 86-755-8614 0743/86-755-8601 6661 Intertek Report No.: 200915011SZN-001 Version: 01-November-2017 Page: 3 of 27 FCC ID 249_C Test Report Table of Contents 1.0 Summary of Test Result ................................................................................................. 4 2.0 General Description ...................................................................................................... 5 2.1 Product Description .................................................................................................... 5 2.2 Related Submittal(s) Grants ......................................................................................... 5 2.3 Test Methodology ...................................................................................................... 5 2.4 Test Facility ............................................................................................................... 5 3.0 System Test Configuration ............................................................................................. 6 3.1 Justification ............................................................................................................... 6 3.2 EUT Exercising Software .............................................................................................. 6 3.3 Special Accessories ..................................................................................................... 6 3.4 Equipment Modification .............................................................................................. 6 3.5 Measurement Uncertainty .......................................................................................... 7 3.6 Support Equipment List and Description ........................................................................ 7 4.0 Emission Results ........................................................................................................... 8 4.1 Radiated Test Results .................................................................................................. 8 4.1.1 Field Strength Calculation ......................................................................................... 8 4.1.2 Radiated Emission Configuration Photograph .............................................................. 9 4.1.3 Radiated Emissions .................................................................................................. 9 4.1.4 Transmitter Spurious Emissions ............................................................................... 12 4.2 Conducted Emission Configuration Photograph ............................................................ 16 4.2.1 Conducted Emission ............................................................................................... 16 5.0 Equipment Photographs .............................................................................................. 19 6.0 Product Labelling ........................................................................................................ 19 7.0 Technical Specifications .......................................…

Text truncated - open the document above for the full version.

FREEWINGS DIGITAL TECHNOLOGIES (NINGBO) CO., LTD TEST REPORT SCOPE OF WORK FCC TESTING–100027812 REPORT NUMBER 200915011SZN-002 ISSUE DATE [REVISED DATE] December 25, 2020 [---------------------] PAGES 27 DOCUMENT CONTROL NUMBER FCC ID 249_C © 2017 INTERTEK Intertek Report No.: 200915011SZN-002 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen, P.R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 27 FCC ID 249_C Test Report FREEWINGS DIGITAL TECHNOLOGIES (NINGBO) CO., LTD Application For Certification FCC ID: 2AR7X-FW1823SBAR 36 inch 5.1 Soundbar With Wireless Subwoofer Model: 100027812 Brand Name: onn. 5.8GHz Transceiver Report No.: 200915011SZN-002 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-19] Prepared and Checked by: Approved by: Leo Li Project Engineer Kidd Yang Technical Supervisor Date: December 25, 2020 Intertek Report No.: 200915011SZN-002 Version: 01-November-2017 Page: 2 of 27 FCC ID 249_C Test Report MEASUREMENT/TECHNICAL REPORT This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-19 Edition] provision. Report prepared by: Leo Li Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen, P.R. China Tel / Fax: 86-755-8614 0743/86-755-8601 6661 Intertek Report No.: 200915011SZN-002 Version: 01-November-2017 Page: 3 of 27 FCC ID 249_C Test Report Table of Contents 1.0 Summary of Test Result ................................................................................................. 4 2.0 General Description ...................................................................................................... 5 2.1 Product Description .................................................................................................... 5 2.2 Related Submittal(s) Grants ......................................................................................... 5 2.3 Test Methodology ...................................................................................................... 5 2.4 Test Facility ............................................................................................................... 5 3.0 System Test Configuration ............................................................................................. 6 3.1 Justification ............................................................................................................... 6 3.2 EUT Exercising Software .............................................................................................. 6 3.3 Special Accessories ..................................................................................................... 6 3.4 Equipment Modification .............................................................................................. 6 3.5 Measurement Uncertainty .......................................................................................... 7 3.6 Support Equipment List and Description ........................................................................ 7 4.0 Emission Results ........................................................................................................... 8 4.1 Radiated Test Results .................................................................................................. 8 4.1.1 Field Strength Calculation ......................................................................................... 8 4.1.2 Radiated Emission Configuration Photograph .............................................................. 9 4.1.3 Radiated Emissions .................................................................................................. 9 4.1.4 Transmitter Spurious Emissions ............................................................................... 12 4.2 Conducted Emission Configuration Photograph ............................................................ 16 4.2.1 Conducted Emission ............................................................................................... 16 5.0 Equipment Photographs .............................................................................................. 19 6.0 Product Labelling ........................................................................................................ 19 7.0 Technical Specifications .......................................…

Text truncated - open the document above for the full version.

Radiated photos

Conducted photos
