2AR8X-MM712KKOH1MM712

FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. ISED Canada Statement: This device contains licence-exempt tasmittre(s)/receiver(s)/ that comply with Innovation Science and Economic Development Canada 's licenceexempt RSS(s). Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device. Radiation Exposure: This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment； To maintain compliance with IC's RF Exposure guidelincs, This cquipment should be.installed and operated with minimum distance of 5mm the radiator your body. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Déclaration de l'ISED Canada : Cet appareil contient des tasmittre (s) / récepteur (s) sans licence / conformes à l'innovationRSS exemptes de licence de Sciences et Développement économique Canada. L'opération est sous réserve des deux conditions suivantes : 1) cet appareil ne peut pas causer d'interférences et 2) ce dispositif doit accepter toute interférence, y compris peut provoquer le fonctionnement indésirable de l'appareil. Exposition aux rayonnements : Cet équipement est conforme aux radiations du Canada limites d'exposition pour un environnement incontrôlé noncé d'exposition RF Pour maintenir le respect des guides d'exposition RF d'IC, cquipment doit être.installé et actionné avec une distance minimale de 5mm le radiateur de votre corps. Cet appareil et ses antennes ne doivent pas être co-localisé ou en opération en conjonction avec toute autre antenne ou émetteur.

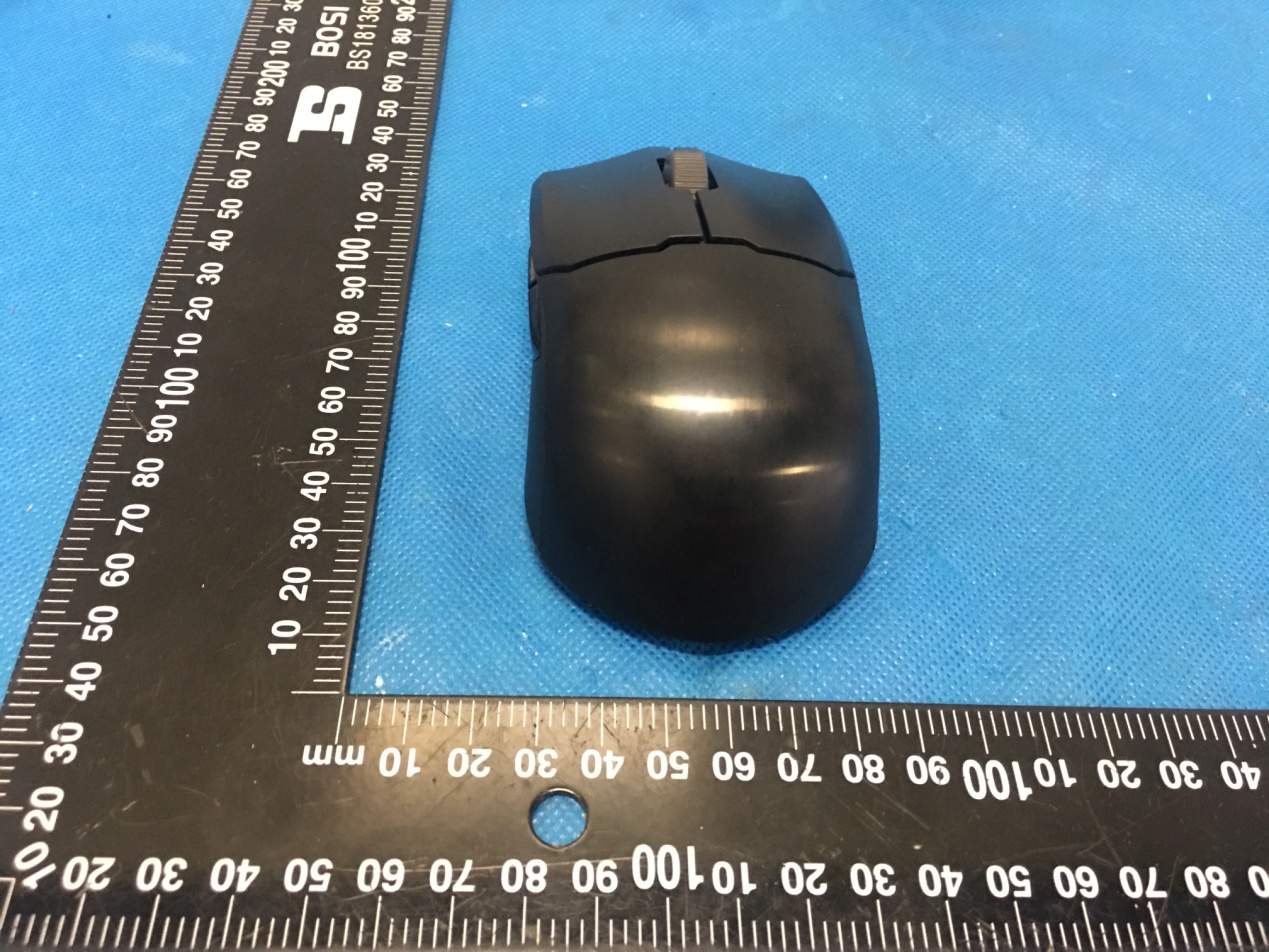

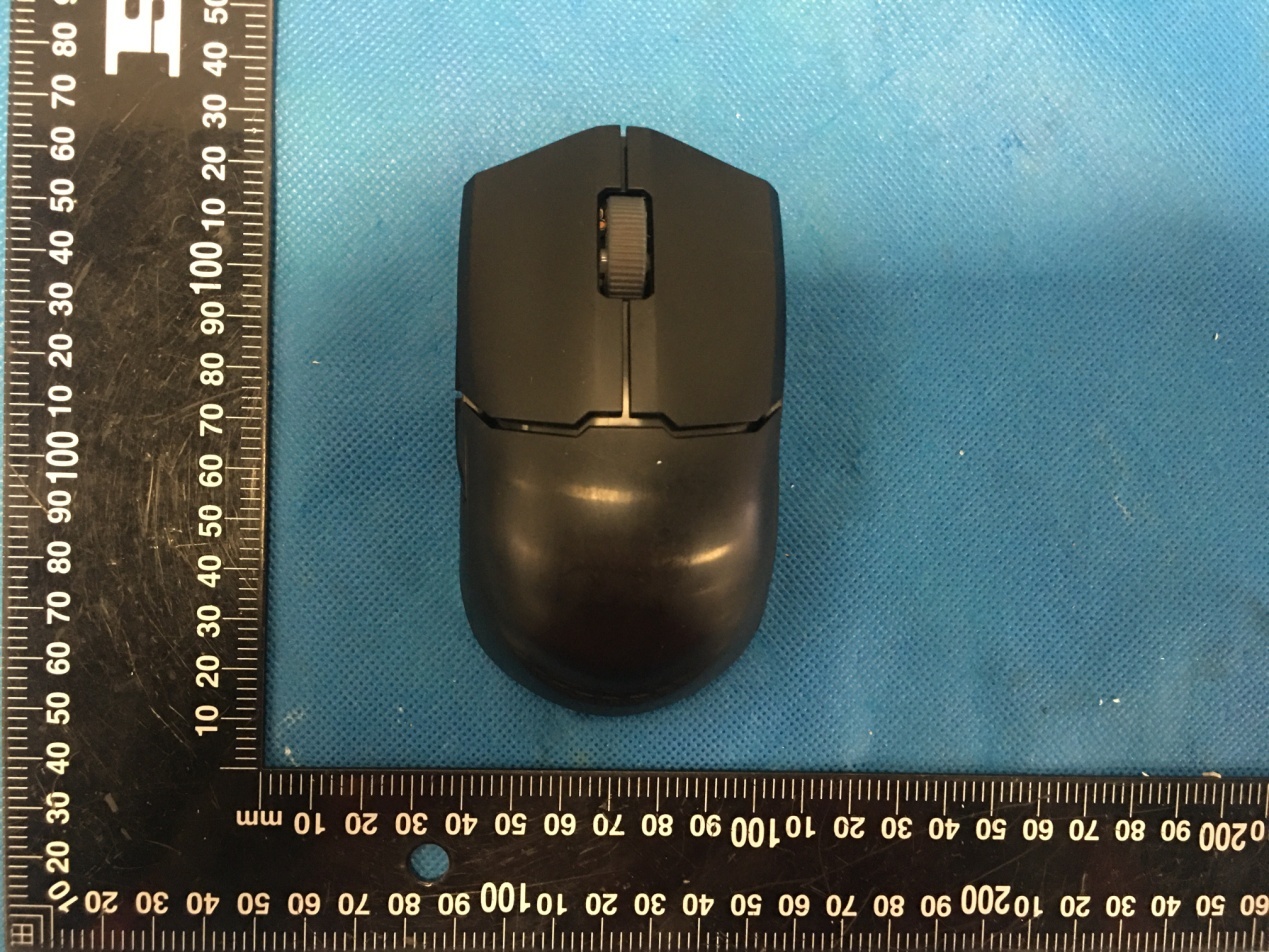

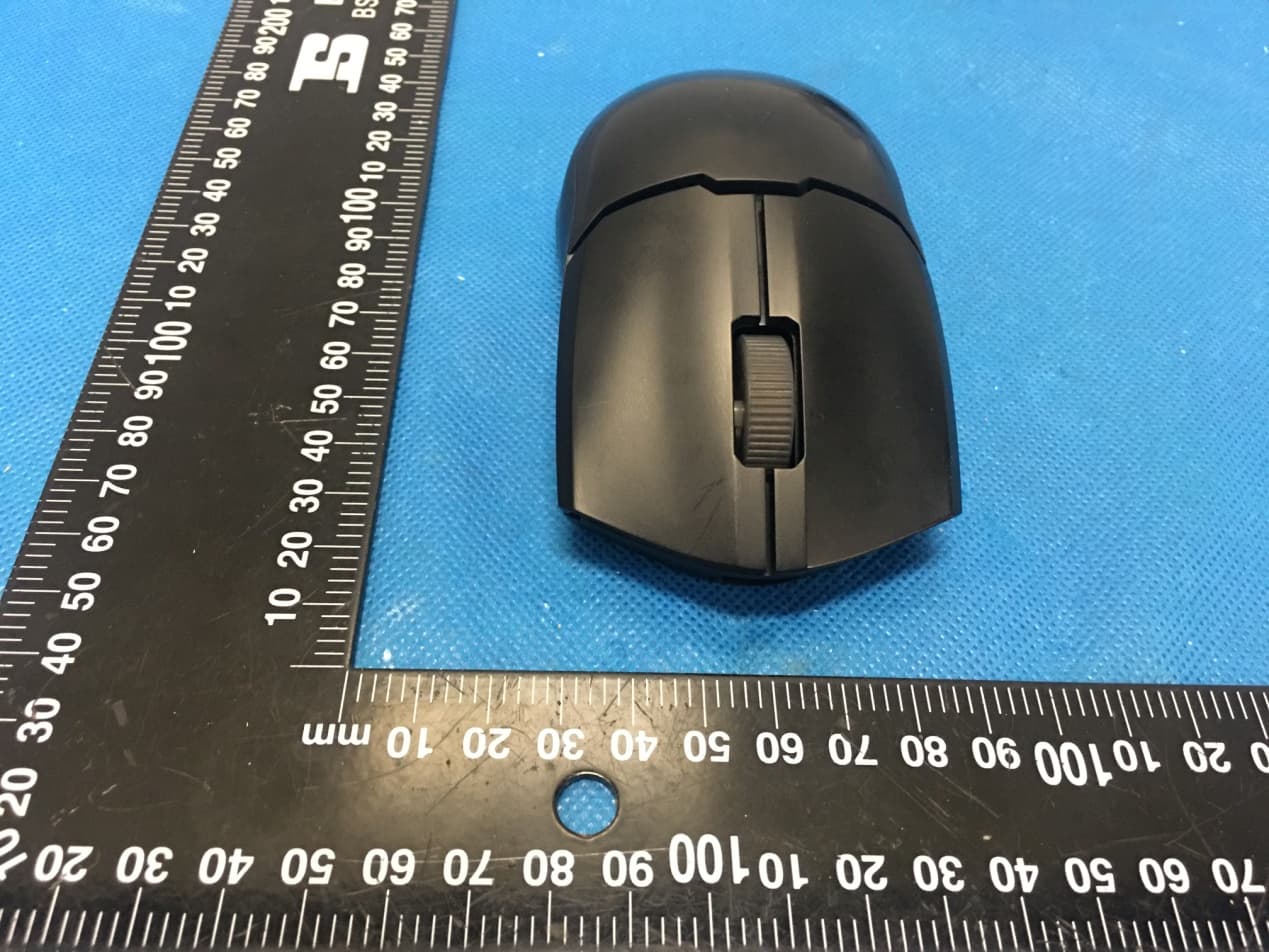

Annex A External Photos Test Model No.: MM-712-KKOH1 Page 1 of 4 Test Model No.: MM-712-KKOH1 Page 2 of 4 Test Model No.: MM-712-KKOH1 Page 3 of 4 Test Model No.: MM-712-KKOH1 Page 4 of 4

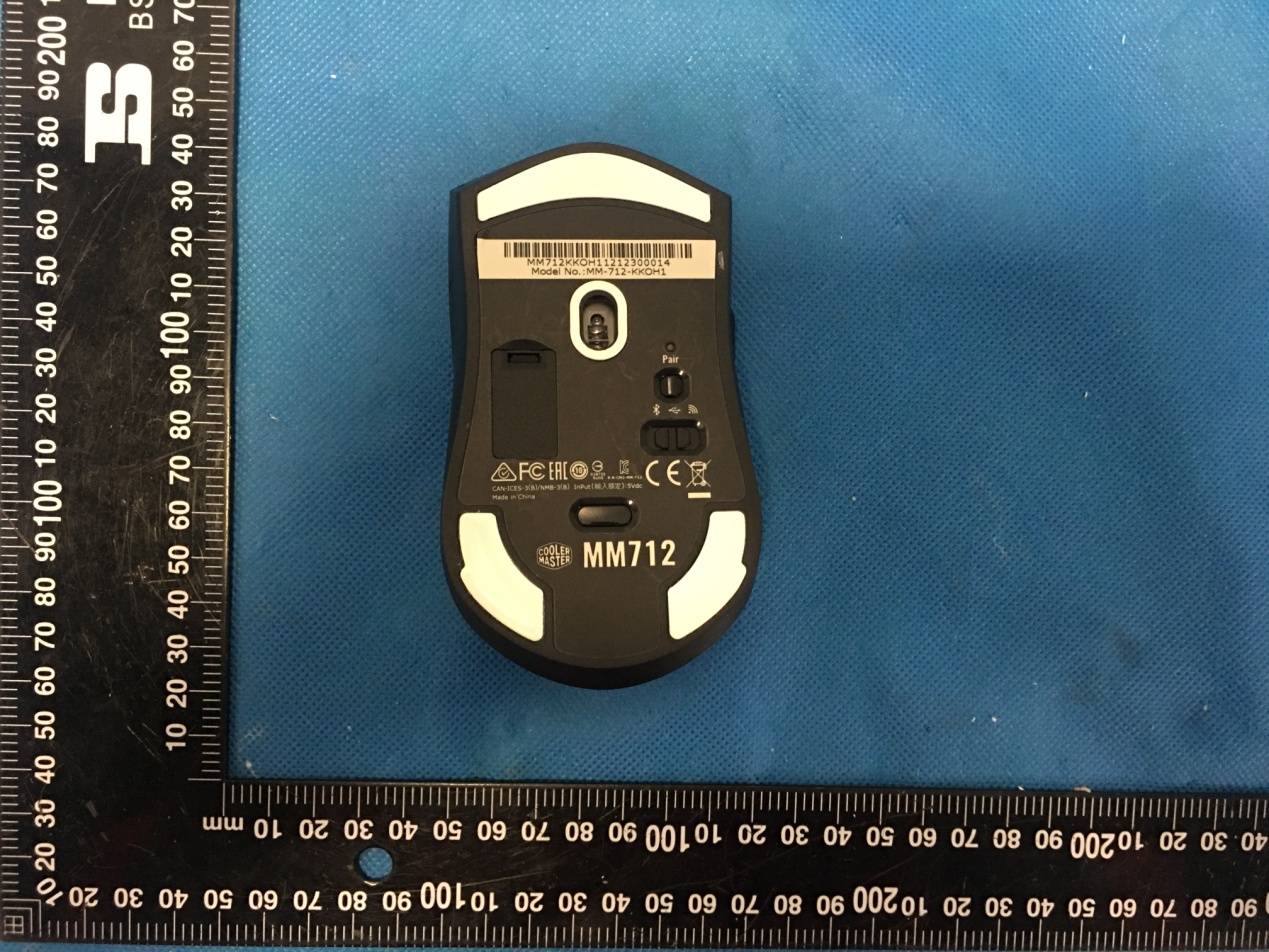

FCC ID LABEL: Ca. 5mm x 10mm Label Location FCC ID: 2AR8X-MM712KKOH1

Annex B Internal Photo Test Model No.: MM-712-KKOH1 Page 1 of 3 Antenna Test Model No.: MM-712-KKOH1 Page 2 of 3 Test Model No.: MM-712-KKOH1 Page 3 of 3

FCC RF Exposure EUT Description: MM712 Model No.: MM-712-KKOH1 FCC ID: 2AR8X-MM712KKOH1 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation Output power （dBm） Tune Up Power （dBm） Max Tune Up power mW Min test separati on distance mm Result Limit SAR Te s t Exclusio n BLE -2.89 -3±1(-2) 0.631 5 0.196 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2108022646-1E antenna gain=0dBi The device could not transmit simultaneously in BT and 2.4GTX. Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 0.196 which is<= 3, SAR testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Page 1 of 43 Report No.: HK2108022646-1E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of Cooler Master Technology Inc. For MM712 Model No.: MM-712-KKOH1, MM-712-WWOH1 FCC ID: 2AR8X-MM712KKOH1 Prepared For : Cooler Master Technology Inc. 7F., No. 398, Xinhu 1st Rd., Neihu Dist., Taipei City, 114065 Taiwan Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Aug. 02, 2021 ~Nov. 15, 2021 Date of Report: Nov. 15, 2021 Report Number: HK2108022646-1E Page 2 of 43 Report No.: HK2108022646-1E TEST RESULT CERTIFICATION Applicant’s name ................... : Cooler Master Technology Inc. Address .................................... : 7F., No. 398, Xinhu 1st Rd., Neihu Dist., Taipei City, 114065 Taiwan Manufacture's Name .............. : CHUAND ELECTRONIC & TECHNOLOGY CO., LTD. Address .................................... : Sijia Industrial Zone, Shijie Town, Dongguan City, P. R. China Product description Trade Mark: Cooler Master Product name ............................. : MM712 Model and/or type reference .. : MM-712-KKOH1, MM-712-WWOH1 Standards ................................ : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test .............................................. : Date (s) of performance of tests ................ : Aug. 02, 2021 ~Nov. 15, 2021 Date of Issue ............................................. : Nov. 15, 2021 Test Result ................................................. : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 43 Report No.: HK2108022646-1E Contents Page 1 TEST SUMMARY ............................................................................................................................................ 6 1.1 TEST DESCRIPTION ................................................................................................................................ 6 1.2 MEASUREMENT UNCERTAINTY ............................................................................................................ 7 1.3 INFORMATION OF THE TEST LABORATORY ....................................................................................... 7 2 GENERAL INFORMATION ............................................................................................................................. 8 2.1 GENERAL DESCRIPTION OF EUT .......................................................................................................... 8 2.2 DESCRIPTION OF TEST CONDITIONS ................................................................................................... 9 2.3 DESCRIPTION OF TEST SETUP ........................................................................................................... 10 3 EQUIPMENTS LIST FOR ALL TEST ITEMS ............................................................................................... 11 4 TEST RESULT .............................................................................................................................................. 13 4.1 ANTENNA REQUIREMENT .................................................................................................................... 13 4.1.1 Standard requirement ...................................................................................................................... 13 4.1.2 EUT Antenna ................................................................................................................................... 13 4.2 CONDUCTION EMISSIONS MEASUREMENT ...................................................................................... 14 4.2.1 Applied procedures / Limit ............................................................................................................... 14 4.2.2 Test procedure ................................................................................................................................. 14 4.2.3 Test setup ........................................................................................................................................ 15 4.2.4 Test results ...................................................................................................................................... 16 4.3 RADIATED EMISSIONS MEASUREMENT............................................................................................. 18 4.3.1 Applied procedures / Limit ............................................................................................................... 18 4.3.2 Test setup ........................................................................................................................................ 18 4.3.3 Test Result ....................................................................................................................................... 20 4.4 MAXIMUM OUTPUT POWER MEASUREMENT .................................................................................... 27 4.4.1 Limit ................................................................................................................................................. 27 4.4.2 Test procedure ................................................................................................................................. 27 4.4.3 Deviation from standard ................................................................................................................... 27 4.4.4 Test setup ....................…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emission
