2ARBY-CLASSIC-300SSmart Ultrasonic Top-Fill Cool Mist Humidifier

Smart Ultrasonic Top-Fill Cool Mist Humidifier Model: Classic 300S Questions or Concerns? Please contact us Mon–Fri, 9:00 am–5:00 pm PST/PDT at [email protected] or at (888) 726-8520. U S ER MANUA L 2 Table of Contents Specifications Safety Information • General Safety • Plug & Cord Getting to Know Your Smart Humidifier Controls Getting Started • Filling & Refilling VeSync App Setup Using Your Smart Humidifier • Sleep Mode • Auto Mode • VeSync App Functions • Important Tips • Using the Aroma Box Care & Maintenance • Cleaning • Cleaning the Aroma Pad • Reassembling • Storing Troubleshooting VeSync App Troubleshooting Warranty Information Customer Support 2 Package Contents2 3 3 4 5 7 8 9 11 12 13 13 13 14 15 16 16 20 21 21 22 24 26 27 Specifications Power SupplyAC 120V, 60Hz Rated Power26W Water Tank Capacity 1.32 gal / 6 L Max Run Time Up to 60 hours on low mist setting Note: The humidifier may run for a longer or shorter time depending on the environmental temperature and humidity. Noise Level ≤ 30dB Range 215–505 ft² / 20–47 m² Dimensions 9.6 x 7.5 x 13.4 in / 24.5 x 19.2 x 34 cm Weight4.3 lb / 2 kg Note: To access additional smart humidifier functions, download the free VeSync app (see page 11). Package Contents 1 x Smart Ultrasonic Top-Fill Cool Mist Humidifier 3 x Aroma Pads (1 Pre-Installed) 1 x Cleaning Brush 1 x User Manual 1 x Quick Start Guide 3 SAFETY INFORMATION • Only use the humidifier as described in this manual. • Place the humidifier and cord so that it will not be knocked over. Do not place near large pieces of furniture or in high- traffic areas. • When not in use, turn the humidifier off and disconnect from power by removing the plug from the outlet. • Do not use the humidifier in wet environments. • Keep the humidifier out of reach from children. • Do not open the base or remove the water level sensor for self-servicing. • Always unplug your humidifier from the power outlet before cleaning your humidifier or detaching the water tank from the humidifier base. • Always make sure to place the humidifier on a flat, level surface before operation. • Only fill the water tank with clean water. Never fill the water tank with any other liquids. • Do not place the humidifier near sources of heat, such as stovetops, ovens, or radiators. • Do not place the humidifier directly on floors, carpets, or rugs. To reduce the risk of fire, electric shock, or other injury, follow all instructions and safety guidelines. General Safety • Do not use other items as replacement parts for this product. • Do not cover the nozzle while the humidifier is on. Doing so may damage the humidifier. • Remove the water tank from the base before moving the humidifier. • Do not immerse the humidifier base, power cord, or plug in water. • If the humidifier is damaged or is not functioning properly, stop using it and contact Customer Support immediately (see page 27). • Not for commercial use. Household use only. • Do not add essential oils, supplemental water treatment liquids, or water filters into the water tank or base chamber. This will damage the humidifier and cause leaks. Only add essential oils to the aroma pad. Caution: Risk of Leaks and Electric Shock READ AND SAVE THESE INSTRUCTIONS 4 Plug & Cord • Ensure that the plug fits properly into a polarized socket. • Do not handle the power cord or plug with wet hands. Keep the plug and power cord away from liquids. • Your humidifier has a polarized plug (one prong is wider than the other), which fits into a polarized outlet only one way. This is a safety feature to reduce the risk of electric shock. If the plug does not fit, reverse the plug. If it still does not fit, do not use the plug in that outlet. Do not bypass this safety feature. SAFETY INFORMATION (CONT.) 5 GETTING TO KNOW YOUR SMART HUMIDIFIER A. Nozzle B. Water Tank Cover C. Dust Cover D. Mist Tube E. Water Tank F. Night Light G. Base H. Display I. Cleaning Brush J. Max Water Line (Tank) K. Water Tank Handles L. Power Cord M. Float N. Float Brackets O. Aroma Box P. Aroma Pad Q. Max Water Line (Base) R. Secondary Float S. Transducer T. Air Outlet U. Air Inlet V. Humidity Sensor W. Feet X. Water Outlet Valve Y. Night Light Cover Z. Noise Silencer AA. Tank Placement Sensor AB L Z H K W V S T R Q J D AA M F G E C I N O P U Water tank, upside down XY 6 A. Sleep Mode Button B. Wifi® Indicator C. Humidity Level D. Timer Indicator Note: The timer must be set in the VeSync app. E. Mist Level Button F. Night Light Button G. No Water Indicator H. Mist Level Indicator I. Power Button Getting To Know Your Smart Humidifier (cont.) ABDC FGHI E 7 CONTROLS Note: You can also control these functions using the VeSync app, as well as additional functions (see page 13). Power Button • Press to turn the humidifier on/off. • Press and hold for 5 seconds to pair with the VeSync app. See the VeSync in-app instructions for more information. • Press and hold for 15 seconds to reset the humidifier. This will restore the humidifier’s default settings and disconnect it from the VeSync app. Sleep Mode Button • Press to turn Sleep Mode on/off (see page 13). Night Light Button • Press repeatedly to cycle through night light settings: 50%, 100%, and Off. • Press and hold for 3 seconds to turn the display and the night light off. • Press and hold for 3 seconds during Sleep Mode to turn Sleep Mode off. Mist Level Button • Press repeatedly (or press and hold) to cycle through mist level settings: Auto Mode, Low, Medium, and High. (For more details on Auto Mode, see page 13.) • Press during Sleep Mode to turn Sleep Mode off. The humidifier will keep misting on Auto Mode. 8 GETTING STARTED 1. Remove all packaging. 2. Take the water tank off of the base and remove all tape, including any tape on the float. [Figure 1.1] 3. Choose a hard, flat location for the humidifier at least 12 in / 30 cm away from any walls. The surface must be water-resistant. [Figure 1.2] 4. Mist should be directed away from walls, furniture, bedding, and a…

Text truncated - open the document above for the full version.

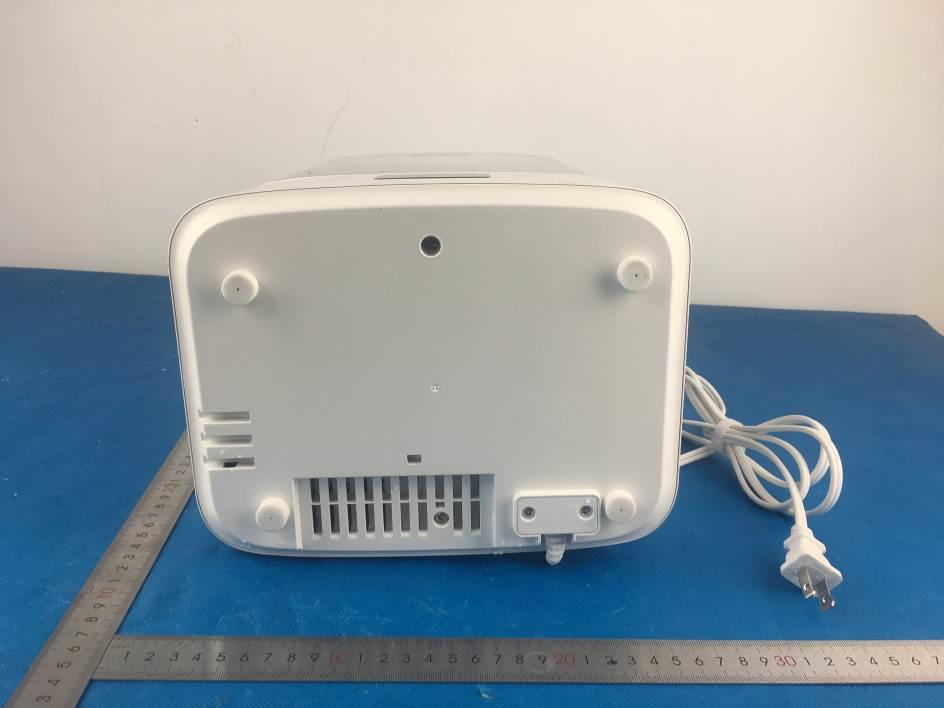

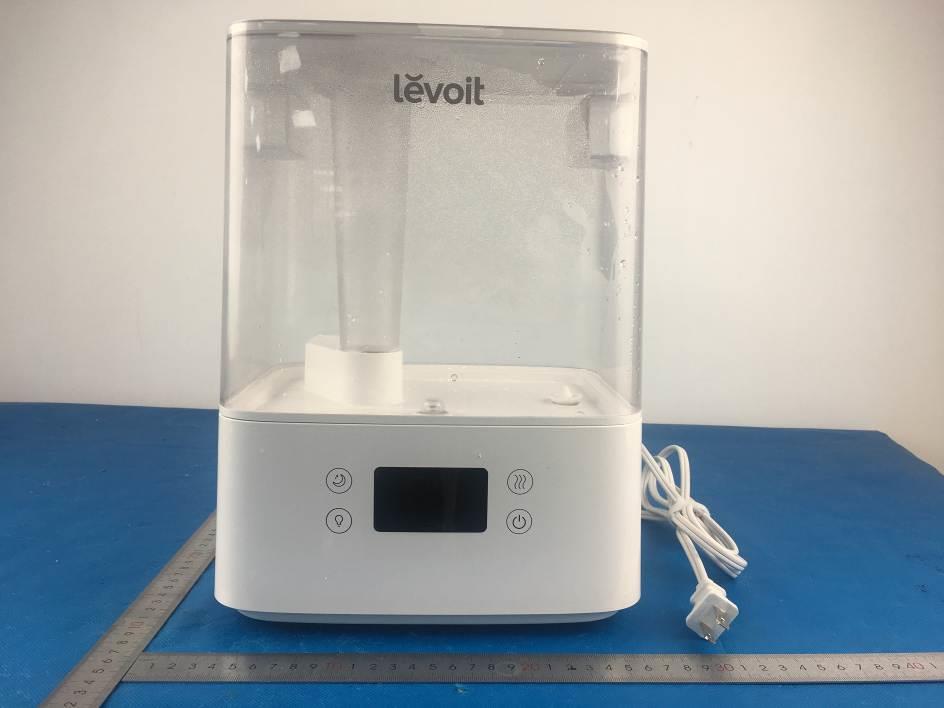

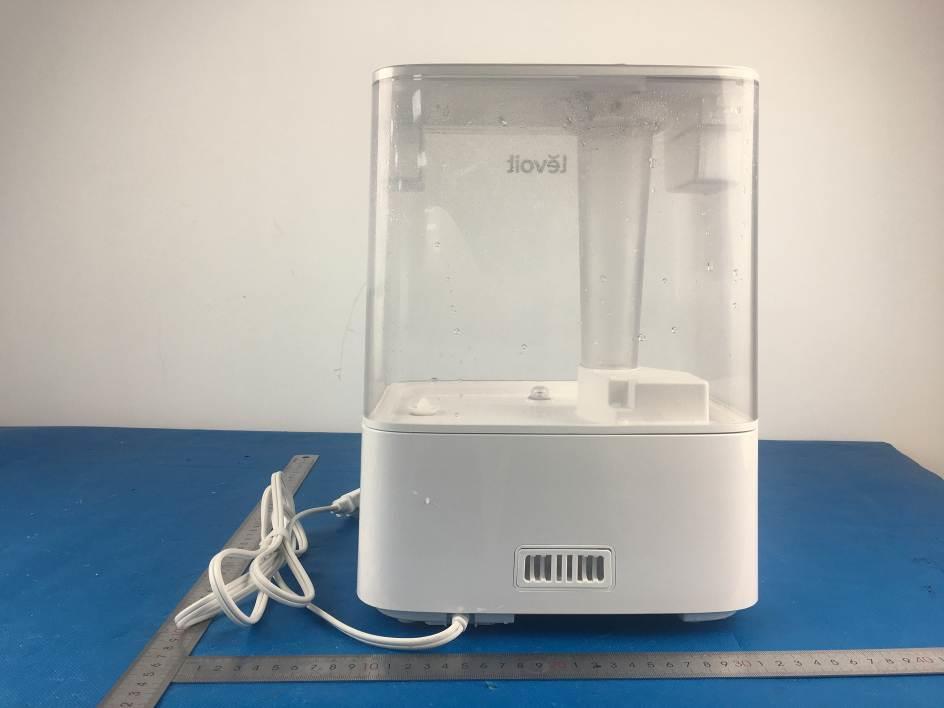

- Page 1 of 3 - Report No.: MTi20082408-1E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China APPENDIX 1: EUT PHOTO Photo 1 (For model Classic 300S) Photo 2 - Page 2 of 3 - Report No.: MTi20082408-1E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Photo 3 Photo 4 - Page 3 of 3 - Report No.: MTi20082408-1E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Photo 5 Photo 6 ----END OF REPORT----

- Page 1 of 4 - Report No.: MTi20082408-1E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China APPENDIX 1: EUT PHOTO Photo 1 (For model Classic 300S) Photo 2 - Page 2 of 4 - Report No.: MTi20082408-1E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Photo 3 Photo 4 - Page 3 of 4 - Report No.: MTi20082408-1E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Photo 5 Photo 6 PCB antenna - Page 4 of 4 - Report No.: MTi20082408-1E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Photo 7 ----END OF REPORT----

version01 Arovast corporation Declaration concerning Antenna Specification It is hereby declared that the product Model No.: Classic 300S FCC ID: 2ARBY-CLASSIC-300S fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for PCB Antenna antenna type(s) described below: Model No. of antenna: N/A Type of antenna: PCB Antenna Gain of the antenna: 3.77 dBi Frequency range in MHz Rated RF power output (Watts) FCC Equipment Code (ex:: DTS, DSS, PCE) 2402 2480 0.0015 15.247 DTS 2402 2480 0.0055 15.247 DSS 2412 2462 0.0785 15.247 DTS 2422 2452 0.0630 15.247 DTS The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Arovast corporation Address: 1202 N Miller St, Suite A, Anaheim, CA 92806, USA City: CA ZIP / Postal code: N/A Country: USA Contact: Bert Wang Date: 18/09/2020 Signature:

This test report is valid for the tested samples only. It cannot be reproduced except in full without prior written consent of Shenzhen Microtest Co., Ltd. Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. MPE REPORT FCC ID:2ARBY-CLASSIC-300S Date of issue: Sept. 22, 2020 Report number: MTi20082408-1E4 Sample description: Smart Ultrasonic Top-Fill Cool Mist Humidifier Mo d e l( s ) : Classic 300S Applicant: Arovast corporation Address: 1202 N Miller St, Suite A, Anaheim, CA 92806, USA Date of test: Sept. 01, 2020 to Sept. 10, 2020 Shenzhen Microtest Co., Ltd. http://www.mtitest.com - Page 2 of 5 - Report No.: MTi20082408-1E4 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. TEST RESULT CERTIFICATION Applicant’s name: Arovast corporation Address: 1202 N Miller St, Suite A, Anaheim, CA 92806, USA Manufacture's name: Shenzhen Naeol electronic manufacturing Co., LTD Address: B9&10 building, Bao'e industrial area, E'gongling community, Pinghu, Longgang district, Shenzhen Product name: Smart Ultrasonic Top-Fill Cool Mist Humidifier Trademark: LEVOIT Model and/or type reference: Classic 300S Serial model: N/A RF exposure procedures: KDB 447498 D01 v06 This device described above has been tested by Shenzhen Microtest Co., Ltd and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Tested by: Demi Mu Sept. 10, 2020 Reviewed by: Leo Su Sept. 22, 2020 Approved by: Tom Xue Sept. 22, 2020 - Page 3 of 5 - Report No.: MTi20082408-1E4 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1415926 R= distance between observation point and center of the radiator in cm(20cm) Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. - Page 4 of 5 - Report No.: MTi20082408-1E4 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Measurement Result BT: Operation frequency: 2402-2480MHz Modulation type: GFSK, π/4-DQPSK, 8DPSK BLE: Operation frequency: 2402-2480MHz Modulation type: GFSK WIFI: Operation Frequency: 802.11b/g/n HT20: 2412-2462MHz, 802.11n HT40: 2422-2452MHz, Power density limited: 1mW/ cm 2 Antenna Type: PCB Antenna; antenna gain: 3.77dBi R=20cm mW=10^(dBm/10) antenna gain Numeric=10^(dBi/10)= 10^(3.77/10)=2.38 Channe l Freq. (MHz) modulatio n conducte d power Tune- up powe r (dBm ) Max Antenna Evaluation result Power density Limits (dBm) tune-up power Gain (mW/cm2 ) (mW/cm 2) (dBm) (mW) (dBi) Nume ric 2402 GFSK 3.454 4±1 5 3.162 3.77 2.38 0.0015 1 2441 4.115 4±1 5 3.162 3.77 2.38 0.0015 1 2480 4.736 4±1 5 3.162 3.77 2.38 0.0015 1 2402 π/4- DQPSK 6.415 7±1 8 6.310 3.77 2.38 0.0030 1 2441 6.438 7±1 8 6.310 3.77 2.38 0.0030 1 2480 7.043 7±1 8 6.310 3.77 2.38 0.0030 1 2402 8DPSK 6.312 7±1 8 6.310 3.77 2.38 0.0030 1 2441 6.778 7±1 8 6.310 3.77 2.38 0.0030 1 2480 7.436 7±1 8 6.310 3.77 2.38 0.0030 1 Channe l Freq. (MHz) modulatio n conducte d power Tune- up power (dBm) Max Antenna Evaluation result Power density Limits (dBm) tune-up power Gain (mW/cm2 ) (mW/cm 2) (dBm) (mW) (dBi) Num eric 2402 GFSK 0.861 1±1 2 1.585 3.77 2.38 0.0008 1 2440 1.568 1±1 2 1.585 3.77 2.38 0.0008 1 2480 1.874 1±1 2 1.585 3.77 2.38 0.0008 1 - Page 5 of 5 - Report No.: MTi20082408-1E4 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Chann el Freq. (MHz) modulatio n conducte d power Tune -up powe r Max Antenn a Evaluation result at 20cm Power density Limits (dBm) (dBm ) tune-up power Gain Power density(mW/cm 2 ) (mW/cm 2) (dB m) (mW) Numeri c Ant A Ant A Ant A Ant A Ant A Ant A 2412 802.11b 18.94 18±1 19 79.432823 2.38 0.03761 1 2437 18.74 18±1 19 79.432823 2.38 0.03761 1 2462 18.95 18±1 19 79.432823 2.38 0.03761 1 2412 802.11g 17.61 17±1 18 63.095734 2.38 0.02987 1 2437 17.77 17±1 18 63.095734 2.38 0.02987 1 2462 17.92 17±1 18 63.095734 2.38 0.02987 1 2412 802.11n H20 17.61 17±1 18 63.095734 2.38 0.02987 1 2437 17.74 17±1 18 63.095734 2.38 0.02987 1 2462 17.88 17±1 18 63.095734 2.38 0.02987 1 2422 802.11n H40 17.84 17±1 18 63.095734 2.38 0.02987 1 2437 17.78 17±1 18 63.095734 2.38 0.02987 1 2452 17.99 17±1 18 63.095734 2.38 0.02987 1 Simultaneous transmit BT+BLE+2.4GWiFi=0.0030+0.0008+0.03761=0.04141 Conclusion: For the max result: 0.04141≤ 1.0 for 1g SAR, No SAR is required. ----END OF REPORT----

This test report is valid for the tested samples only. It cannot be reproduced except in full without prior written consent of Shenzhen Microtest Co., Ltd. Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Test Report FCC ID:2ARBY-CLASSIC-300S Date of issue: Sept. 22, 2020 Report number: MTi20082408-1E2 Sample description: Smart Ultrasonic Top-Fill Cool Mist Humidifier Mo d e l( s ) : Smart Ultrasonic Top-Fill Cool Mist Smart Ultrasonic Top-Fill Cool Mist Humidifier Applicant: Arovast corporation Address: 1202 N Miller St, Suite A, Anaheim, CA 92806, USA Date of test: Sept. 01, 2020 to Sept. 10, 2020 Shenzhen Microtest Co., Ltd. http://www.mtitest.com - Page 2 of 43 - Report No.: MTi20082408-1E2 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Table of Contents 1. GENERAL INFORMATION ................................................................................................................................... 5 1.1. DESCRIPTION OF EUT ................................................................................................................................................... 5 1.2. OPERATION CHANNEL LIST .............................................................................................................................................. 5 1.3. TEST CHANNEL LIST ....................................................................................................................................................... 6 1.4. ANCILLARY EQUIPMENT LIST ........................................................................................................................................... 6 1.5. DESCRIPTION OF SUPPORT UNITS .................................................................................................................................... 6 2. SUMMARY OF TEST RESULTS .......................................................................................................................... 7 3. TEST FACILITIES AND ACCREDITATIONS ...................................................................................................... 8 3.1. TEST LABORATORY ........................................................................................................................................................ 8 3.2. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 3.3. MEASUREMENT UNCERTAINTY ........................................................................................................................................ 8 3.4. TEST SOFTWARE ........................................................................................................................................................... 8 4. EQUIPMENT LIST ................................................................................................................................................. 9 5. TEST RESULT ..................................................................................................................................................... 10 5.1. ANTENNA REQUIREMENT ............................................................................................................................................. 10 5.1.1 Standard Requirement ...................................................................................................................................... 10 5.1.2 EUT Antenna ..................................................................................................................................................... 10 5.2. PEAK OUTPUT POWER TEST ......................................................................................................................................... 11 5.2.1 Limit .................................................................................................................................................................. 11 5.2.2 Test setup .......................................................................................................................................................... 11 5.2.3 Test Procedure ................................................................................................................................................... 11 5.2.4 Test Results ........................................................................................................................................................ 11 5.3. CONDUCTED EMISSION ................................................................................................................................................ 14 5.3.1 Limits ................................................................................................................................................................. 14 5.3.2 Test Setup .......................................................................................................................................................... 14 5.3.3 Test Procedure ................................................................................................................................................... 15 5.3.4 Test Results ........................................................................................................................................................ 15 5.4. RADIATED SPURIOUS EMISSION ...................................................................................................................................... 18 5.4.1 Limits ..............................................................................…

Text truncated - open the document above for the full version.

This test report is valid for the tested samples only. It cannot be reproduced except in full without prior written consent of Shenzhen Microtest Co., Ltd. Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Test Report FCC ID:2ARBY-CLASSIC-300S Date of issue: Sept. 22, 2020 Report number: MTi20082408-1E3 Sample description: Smart Ultrasonic Top-Fill Cool Mist Humidifier Mo d e l( s ) : Classic 300S Applicant: Arovast corporation Address: 1202 N Miller St, Suite A, Anaheim, CA 92806, USA Date of test: Sept. 01, 2020 to Sept. 10, 2020 Shenzhen Microtest Co., Ltd. http://www.mtitest.com - Page 2 of 54 - Report No.: MTi20082408-1E3 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Table of Contents 1 GENERAL INFORMATION .......................................................................................................................................... 5 1.1 DESCRIPTION OF EUT ................................................................................................................................................... 5 1.2 OPERATION CHANNEL LIST .............................................................................................................................................. 6 1.3 TEST CHANNEL LIST ....................................................................................................................................................... 6 1.4 ANCILLARY EQUIPMENT LIST ........................................................................................................................................... 6 1.5 DESCRIPTION OF SUPPORT UNITS .................................................................................................................................... 7 2 SUMMARY OF TEST RESULTS .................................................................................................................................... 8 3 TEST FACILITIES AND ACCREDITATIONS ..................................................................................................................... 9 3.1 TEST LABORATORY ........................................................................................................................................................ 9 3.2 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 9 3.3 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 9 3.4 TEST SOFTWARE ........................................................................................................................................................... 9 4 EQUIPMENT LIST .................................................................................................................................................... 10 5 TEST RESULT ........................................................................................................................................................... 11 5.1 ANTENNA REQUIREMENT ............................................................................................................................................. 11 5.1.1 Standard requirement ....................................................................................................................................... 11 5.1.2 EUT antenna ..................................................................................................................................................... 11 5.2 PEAK OUTPUT POWER ................................................................................................................................................. 12 5.2.1 Limit .................................................................................................................................................................. 12 5.2.2 Test setup .......................................................................................................................................................... 12 5.2.3 Test procedure ................................................................................................................................................... 12 5.2.4 Test results......................................................................................................................................................... 13 5.3 POWER SPECTRAL DENSITY ........................................................................................................................................... 14 5.3.1 Limit .................................................................................................................................................................. 14 5.3.2 Test setup .......................................................................................................................................................... 14 5.3.3 Test procedure ................................................................................................................................................... 14 5.3.4 Test results......................................................................................................................................................... 15 5.4 CONDUCTED EMISSION ................................................................................................................................................ 19 5.4.1 Limits .......................................................................................................................…

Text truncated - open the document above for the full version.

Model: Classic 300S Radiated emission Conducted emission
