2ARBY-CORE-200SSmart True HEPA Air Purifier

Smart True HEPA Air Purifier Model: Core 200S Questions or Concerns? Please contact us Mon–Fri, 9:00 am–5:00 pm PST/PDT at [email protected] or at (888) 726-8520. USER MANUAL Powered by D1_01.02_M1_Core200S_2020-06-23_PRINT_US_en.indd 1D1_01.02_M1_Core200S_2020-06-23_PRINT_US_en.indd 16/23/20 3:33 PM6/23/20 3:33 PM 2 Table of Contents Package Contents Specifications Safety Information Getting to Know Your Smart Air Purifier Controls Getting Started VeSync App Setup Using Your Smart Air Purifier VeSync App Functions About the Filter Care & Maintenance Troubleshooting VeSync App Troubleshooting FCC Statement Warranty Information Customer Support 2 2 3 4 5 6 7 8 9 10 12 14 16 17 18 19 Package Contents 1 x Smart Air Purifier 1 x True HEPA Filter (Pre-Installed) 1 x User Manual 1 x Quick Start Guide Specifications VoltageAC 120V, 60Hz Rated Power37W Effective Range≤ 183 ft² / 17 m² CADR118 CFM / 200.6 m³/h Operating Conditions Temperature: 14°–104°F / -10°–40°C Humidity: < 85% RH Noise Level 24–48dB Dimensions8.1 x 8.1 x 12.6 in / 20.5 x 20.5 x 32 cm Weight6.6 lb / 3 kg Note: To access additional smart functions, download the free VeSync app (see page 7). D1_01.02_M1_Core200S_2020-06-23_PRINT_US_en.indd 2D1_01.02_M1_Core200S_2020-06-23_PRINT_US_en.indd 26/23/20 3:33 PM6/23/20 3:33 PM 3 SAFETY INFORMATION • Only use your air purifier as described in this manual. • Do not use without removing the plastic wrap from the filter. The air purifier will not filter air, and may overheat, causing a fire hazard. • Do not use the air purifier outdoors. • Keep the air purifier away from water, and wet or damp areas. Never place in water or liquid. • Do not use in excessively humid areas. • Keep the air purifier away from heat sources. • Do not use where combustible gases, vapors, metallic dust, aerosol (spray) products, or fumes from industrial oil are present. • Keep 5 ft / 1.5 m away from where oxygen is being administered. • Supervise children when they are near the air purifier. • Do not place anything into any opening on the air purifier. • Do not sit or place heavy objects on the air purifier. • Keep the inside of the air purifier dry. To prevent moisture buildup, avoid placing in rooms with major temperature changes or underneath air conditioners. • Always unplug the air purifier before servicing (such as changing the filter). • Do not use the air purifier if it is damaged or not working correctly, or if the cord or plug is damaged. Do not try to repair it yourself. Contact Customer Support (see page 19). • WARNING: Do not use this air purifier with solid-state speed controls (such as a dimmer switch). • Not for commercial use. Household use only. To reduce the risk of fire, electric shock, or other injury, follow all instructions and safety guidelines. General Safety • Keep the air purifier near the outlet it is plugged into. • Never place the cord near any heat source. • Do not cover the cord with a rug, carpet, or other covering. Do not place the cord under furniture or appliances. • Keep the cord out of areas where people walk often. Place the cord where it will not be tripped over. • This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature. • This air purifier uses standard US 120V, 60Hz outlets. If using outside the US, check for compatibility. Your Levoit air purifier complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today. Power & Cord Electromagnetic Fields (EMF) READ AND SAVE THESE INSTRUCTIONS D1_01.02_M1_Core200S_2020-06-23_PRINT_US_en.indd 3D1_01.02_M1_Core200S_2020-06-23_PRINT_US_en.indd 36/23/20 3:33 PM6/23/20 3:33 PM 4 GETTING TO KNOW YOUR SMART AIR PURIFIER A. Fan Speed Indicators B. Fan Speed Button C. On/Off Button D. Sleep Mode Button E. Timer Button F. Timer Indicators G. WiFi® Indicator Back, upside downFront H. Night Light Button I. Display Lock Button J. Check Filter Indicator K. Display Off Button L. Air Outlet M. Housing N. Air Inlet M L N B C D E H I J K P Q A F G O O. Power Cord P. Filter Cover Q. True HEPA Filter D1_01.02_M1_Core200S_2020-06-23_PRINT_US_en.indd 4D1_01.02_M1_Core200S_2020-06-23_PRINT_US_en.indd 46/23/20 3:33 PM6/23/20 3:33 PM 5 CONTROLS On/Off Button • Turns the air purifier on/off. • Press and hold to configure the air purifier. See the VeSync in-app instructions for more information. Night Light Button • Turns the night light on/off (see page 9). WiFi Indicator • Turns on, off, or blinks to indicate configuration status. See the VeSync in-app instructions for more information. Display Off Button • Turns the display off (not including the night light). • Tap any button (except ) to turn the display back on. Fan Speed Button • Cycles through fan speeds: I (low), II (medium), and III (high). • Tapping the Fan Speed Button while the air purifier is in Sleep Mode will exit Sleep Mode. Display Lock Button • Prevents current settings from being changed (see page 9). • Blinks when any other button is tapped to indicate that Display Lock is on. Sleep Mode Button • Turns Sleep Mode on (see page 8). • Press and hold for 3 seconds to reset the Check Filter Indicator. Check Filter Indicator • Lights up when the filter should be checked (see Check Filter Indicator, page 12). • Reset the Check Filter Indicator light by pressing and holding the Sleep Mode button for 3 seconds. Timer Button • Cycles through timer options (see page 8). D1_01.02_M1_Core200S_2020-06-23_PRINT_US_en.indd 5D1_01.02_M1_Core200S_2020-06-23_PRINT_US_en.indd 56/23/20 3:33 PM6/23/20 3:33 PM 6 GETTING STARTED 1. Flip the air purifier over. Twist the filter …

Text truncated - open the document above for the full version.

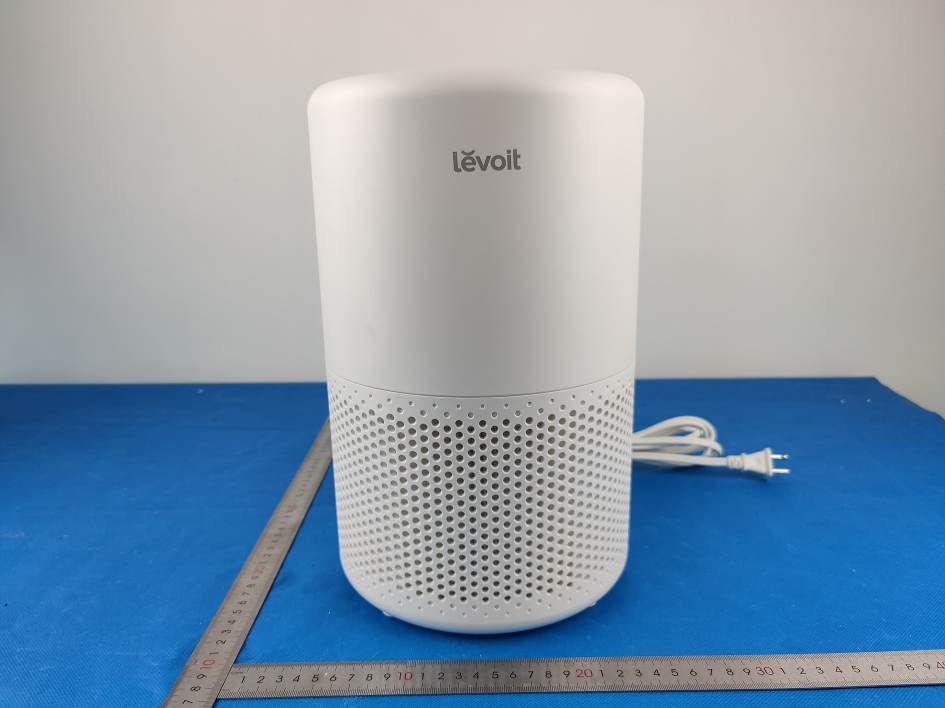

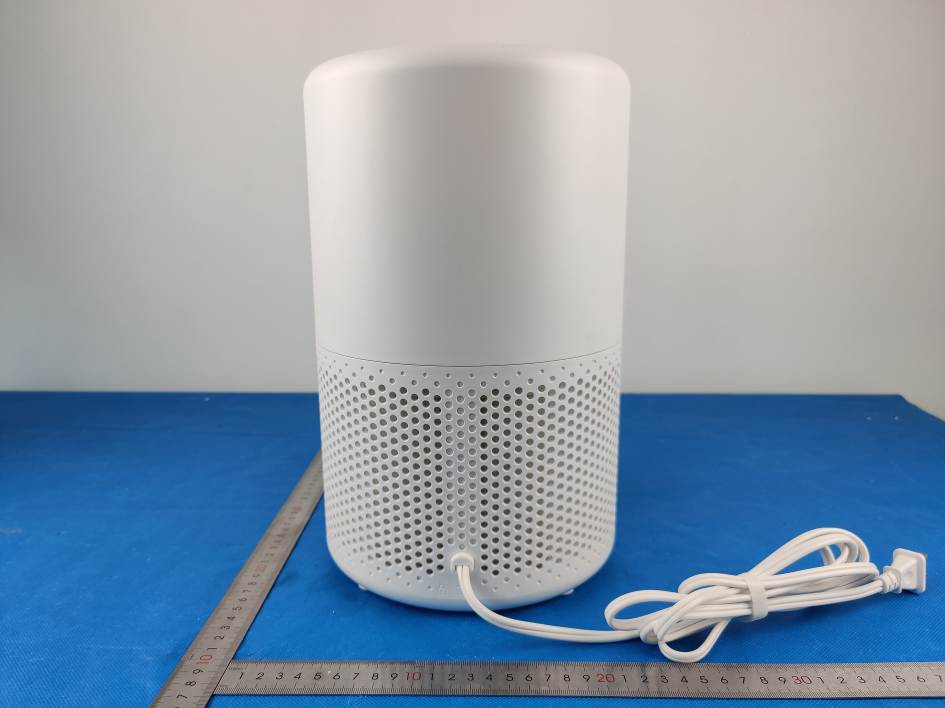

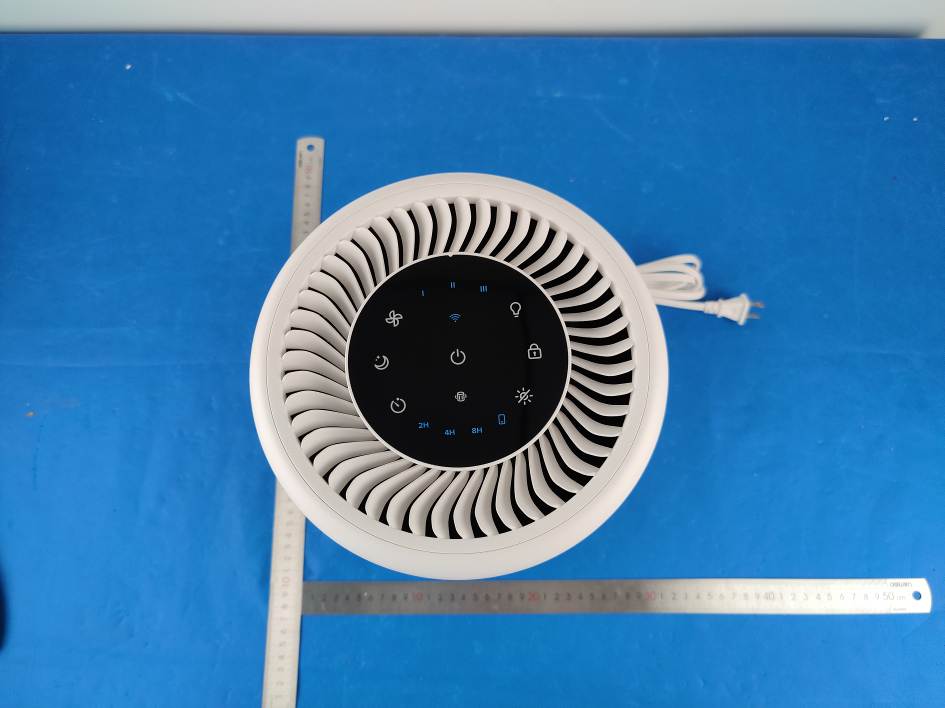

1 - Page 1 of 4 - Report No.: MTi20070716-1E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. APPENDIX 1: EUT PHOTO Photo 1 (For model Core 200S) Photo 2 1 - Page 2 of 4 - Report No.: MTi20070716-1E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 1 - Page 3 of 4 - Report No.: MTi20070716-1E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 1 - Page 4 of 4 - Report No.: MTi20070716-1E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Photo 7 ----END OF REPORT----

1 - Page 1 of 4 - Report No.: MTi20070716-1E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. APPENDIX 1: EUT PHOTO Photo 1 (For model Core 200S) Photo 2 1 - Page 2 of 4 - Report No.: MTi20070716-1E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 1 - Page 3 of 4 - Report No.: MTi20070716-1E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 1 - Page 4 of 4 - Report No.: MTi20070716-1E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 ----END OF REPORT---- PCB antenna

version01 Arovast Corporation Declaration concerning Antenna Specification It is hereby declared that the product Model No.: Core 200S FCC ID: 2ARBY-CORE-200S fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for Internal Antenna antenna type(s) described below: Model No. of antenna: N/A Type of antenna: PCB Antenna Gain of the antenna: 3.7 dBi Frequency range: 2402~2480 MHz Gain of the antenna: 3.7 dBi Frequency range: 2412~2462 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Arovast Corporation Address: 1202 N Miller St, Suite A, Anaheim, CA 92806, USA City: Anaheim ZIP / Postal code: 92806 Country: United States Contact: Bert Wang Date: 2020-08-07 Signature:

This test report is valid for the tested samples only. It cannot be reproduced except in full without prior written consent of Shenzhen Microtest Co., Ltd. Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. MPE REPORT FCC ID:2ARBY-CORE-200S Date of issue: July 27, 2020 Report number: MTi20070716-1E4 Sample description: Smart True HEPA Air Purifier Model(s): Core 200S Applicant: Arovast corporation Address: 1202 N Miller St, Suite A, Anaheim, CA 92806, USA Date of test: July 16, 2020 to July 27, 2020 Shenzhen Microtest Co., Ltd. http://www.mtitest.com - Page 2 of 5 - Report No.: MTi20070716-1E4 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. TEST RESULT CERTIFICATION Applicant’s name: Arovast corporation Address: 1202 N Miller St, Suite A, Anaheim, CA 92806, USA Manufacture's name: Xiamen Easepal Healthy Technology Co., Ltd. Address: No. 30 Ma An Road, Tong An District, Xiamen, Fujian, 361100 Product name: Smart True HEPA Air Purifier Trademark: LEVOIT Model and/or type reference: Core 200S Serial model: N/A RF exposure procedures: KDB 447498 D01 v06 This device described above has been tested by Shenzhen Microtest Co., Ltd and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Tested by: Danny Xu July 27, 2020 Reviewed by: Leo Su July 27, 2020 Approved by: Tom Xue July 27, 2020 - Page 3 of 5 - Report No.: MTi20070716-1E4 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1415926 R= distance between observation point and center of the radiator in cm(20cm) Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. - Page 4 of 5 - Report No.: MTi20070716-1E4 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Measurement Result Antenna Type: Antenna: PCB Antenna; antenna gain: 3.7dBi R=20cm mW=10^(dBm/10) antenna gain Numeric=10^(dBi/10)= 10^(3.7/10)=2.34 BLE: Channe l Freq. (MHz) modulatio n conducte d power Tune- up powe r (dBm ) Max Antenna Evaluation result Power density Limits (dBm) tune-up power Gain (mW/cm2 ) (mW/cm2 ) (dBm ) (mW) (dBi) Nume ric 2402 GFSK 3.486 4±1 5 3.162 3.70 2.34 0.0015 1 2440 4.949 4±1 5 3.162 3.70 2.34 0.0015 1 2480 4.583 4±1 5 3.162 3.70 2.34 0.0015 1 BT: Channe l Freq. (MHz) modulatio n conducte d power Tune- up powe r (dBm ) Max Antenna Evaluation result Power density Limits (dBm) tune-up power Gain (mW/cm2 ) (mW/cm2 ) (dBm) (mW) (dBi) Nume ric 2402 GFSK 3.507 4±1 5 3.162 3.70 2.34 0.0015 1 2441 4.957 4±1 5 3.162 3.70 2.34 0.0015 1 2480 4.602 4±1 5 3.162 3.70 2.34 0.0015 1 2402 π/4- DQPSK 3.977 4±1 5 3.162 3.70 2.34 0.0015 1 2441 4.309 4±1 5 3.162 3.70 2.34 0.0015 1 2480 4.903 4±1 5 3.162 3.70 2.34 0.0015 1 2402 8DPSK 3.097 4±1 5 3.162 3.70 2.34 0.0015 1 2441 4.416 4±1 5 3.162 3.70 2.34 0.0015 1 2480 4.98 4±1 5 3.162 3.70 2.34 0.0015 1 - Page 5 of 5 - Report No.: MTi20070716-1E4 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. 2.4GWiFi: Channe l Freq. (MHz) modulatio n conducte d power Tune- up powe r Max Anten na Evaluation result at 20cm Power density Limits (dBm) (dBm ) tune-up power Gain Power density(mW/cm2 ) (mW/cm2 ) (dBm ) (mW) Numer ic Ant A Ant A Ant A Ant A Ant A Ant A 2412 802.11b 13.58 14±1 15 31.62 2.34 0.01472 1 2437 14.31 14±1 15 31.62 2.34 0.01472 1 2462 14.06 14±1 15 31.62 2.34 0.01472 1 2412 802.11g 12.32 12±1 13 19.95 2.34 0.00929 1 2437 12.3 12±1 13 19.95 2.34 0.00929 1 2462 12.21 12±1 13 19.95 2.34 0.00929 1 2412 802.11n H20 12.46 12±1 13 19.95 2.34 0.00929 1 2437 12.26 12±1 13 19.95 2.34 0.00929 1 2462 12.16 12±1 13 19.95 2.34 0.00929 1 Conclusion: For the max result(BT+WiFi): 0.0015+0.01472=0.01622≤ 1.0 for 1g SAR, No SAR is required. ----END OF REPORT----

This test report is valid for the tested samples only. It cannot be reproduced except in full without prior written consent of Shenzhen Microtest Co., Ltd. Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Test Report FCC ID: 2ARBY-CORE-200S Date of issue: July 27, 2020 Report number: MTi20070716-1E2 Sample description: Smart True HEPA Air Purifier Model(s): Core 200S Applicant: Arovast corporation Address: 1202 N Miller St, Suite A, Anaheim, CA 92806, USA Date of test: July 16, 2020 to July 27, 2020 Shenzhen Microtest Co., Ltd. http://www.mtitest.com - Page 2 of 68 - Report No.: MTi20070716-1E2 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Table of Contents 1 GENERAL INFORMATION ....................................................................................................................................... 5 1.1 DESCRIPTION OF EUT ................................................................................................................................................... 5 1.2 OPERATION CHANNEL LIST .............................................................................................................................................. 5 1.3 TEST CHANNEL LIST ....................................................................................................................................................... 6 1.4 ANCILLARY EQUIPMENT LIST ........................................................................................................................................... 6 1.5 DESCRIPTION OF SUPPORT UNITS .................................................................................................................................... 6 2 SUMMARY OF TEST RESULTS ................................................................................................................................. 7 3 TEST FACILITIES AND ACCREDITATIONS .................................................................................................................. 8 3.1 TEST LABORATORY ........................................................................................................................................................ 8 3.2 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 3.3 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 8 3.4 TEST SOFTWARE ........................................................................................................................................................... 8 4 EQUIPMENT LIST .................................................................................................................................................. 9 5 TEST RESULT ....................................................................................................................................................... 10 5.1 ANTENNA REQUIREMENT ............................................................................................................................................. 10 5.1.1 Standard requirement ....................................................................................................................................... 10 5.1.2 EUT antenna ..................................................................................................................................................... 10 5.2 PEAK OUTPUT POWER ................................................................................................................................................. 11 5.2.1 Limit .................................................................................................................................................................. 11 5.2.2 Test setup .......................................................................................................................................................... 11 5.2.3 Test procedure ................................................................................................................................................... 11 5.2.4 Test results ........................................................................................................................................................ 11 5.3 CONDUCTED EMISSION ................................................................................................................................................ 18 5.3.1 Limits ................................................................................................................................................................. 18 5.3.2 Test setup .......................................................................................................................................................... 18 5.3.3 Test procedure ................................................................................................................................................... 19 5.3.4 Test results ........................................................................................................................................................ 19 5.4 RADIATED SPURIOUS EMISSION ...................................................................................................................................... 24 5.4.1 Limits ................................................................................................................................................................. 24 5.4…

Text truncated - open the document above for the full version.

Model: Core 200S Radiated emission Conducted emission
