2ARBY-CORE400SAir Purifier

Smart True HEPA Air Purifier Model: Core 400S Series Questions or Concerns? Please contact us Mon–Fri, 9:00 am–5:00 pm PST/PDT at [email protected] or at (888) 726-8520. USER MANUAL Powered by 2 Table of Contents Package Contents Specifications Safety Information Getting to Know Your Smart Air Purifier Controls & Display Getting Started Using Your Smart Air Purifier About the Filter Care & Maintenance Troubleshooting Warranty Information Customer Support 2 2 3 4 5 6 7 11 12 14 18 19 Package Contents 1 x Smart Air Purifier 1 x True HEPA 3-Stage Original Filter (Pre-Installed) 1 x User Manual 1 x Quick Start Guide Specifications Power Supply AC 120V, 60Hz Rated Power38W Ideal Room Size403 ft² / 37 m² Note: • Effective for larger rooms, but purifica- tion will take longer. • Ideal Room Size is based on 5 air changes per hour (ACH). CADR (CFM)260 CFM / 442 m3/h Operating Conditions Temperature: 14°–104°F / -10°–40°C Humidity: < 85% RH Noise Level 24–52dB Standby Power< 2W Dimensions10.8 x 10.8 x 20.5 in / 27.4 x 27.4 x 52 cm Weight11 lb / 5 kg Note: To access additional smart functions, download the free VeSync app (see page 7). 3 SAFETY INFORMATION • Only use your air purifier as described in this manual. • Do not use without removing the plastic wrap from the filter. The air purifier will not filter air, and may overheat, causing a fire hazard. • Do not use the air purifier outdoors. • Keep the air purifier away from water, and wet or damp areas. Never place in water or liquid. • Do not use in excessively humid areas. • Keep the air purifier away from heat sources. • Do not use where combustible gases, vapors, metallic dust, aerosol (spray) products, or fumes from industrial oil are present. • Keep 5 ft / 1.5 m away from where oxygen is being administered. • Supervise children when they are near the air purifier. • Do not place anything into any opening in the air purifier. • Do not sit or place heavy objects on the air purifier. • Keep the inside of the air purifier dry. To prevent moisture buildup, avoid placing in rooms with major temperature changes or underneath air conditioners. • Always unplug the air purifier before servicing (such as changing the filter). • Do not use the air purifier if it is damaged or not working correctly, or if the cord or plug is damaged. Do not try to repair it yourself. Contact Customer Support (see page 19). To reduce the risk of fire, electric shock, or other injury, follow all instructions and safety guidelines. General Safety • Keep the air purifier near the outlet it is plugged into. • Never place the cord near any heat source. • Do not cover the cord with a rug, carpet, or other covering. Do not place the cord under furniture or appliances. • Keep the cord out of areas where people walk often. Place the cord where it will not be tripped over. • This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature. Electromagnetic Fields (EMF) Your Levoit air purifier complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today. Power & Cord READ AND SAVE THESE INSTRUCTIONS • WARNING: To reduce the risk of fire or electric shock, do not use this air purifier with solid-state speed controls (such as a dimmer switch). • Not for commercial use. Household use only. 4 GETTING TO KNOW YOUR SMART AIR PURIFIER A. Fan Speed Indicators B. Fan Speed Button C. Sleep Mode Button D. Air Quality Indicator Rings E. Check Filter Indicator Reset Button F. Check Filter Indicator G. Timer Button H. On/Off Button I. WiFi® Indicator J. Auto Mode Button K. PM2.5/Timer Display Front, upside downBack L. Display Off Button M. Display Lock Indicator N. Display Lock Button O. Air Outlets P. Housing Q. Air Inlets R. AirSight™ Plus Laser Dust Sensor S. Anti-Skid Pads T. Filter Cover U. True HEPA 3-Stage Original Filter B J ST U L N M I K F H O P Q R C G E D A 5 CONTROLS & DISPLAY On/Off Button • Turns the air purifier on/off. • Press and hold to configure the air purifier. See the VeSync in-app instructions for more information. Fan Speed Button • Cycles through fan speeds: low (1 indicator will light up), medium (2 indicators), high (3 indicators), and turbo (4 indicators). • Tapping the Fan Speed Button while the air purifier is in Auto Mode or Sleep Mode (if the display is on) will exit that mode. WiFi Indicator • Turns on, off, or blinks to indicate pairing status. See the VeSync in-app instructions for more information. Sleep Mode Button • Turns Sleep Mode on/off (see page 8). Timer Button • Cycles through timer options (see page 9). • Press and hold for 2 seconds to begin cycling through the timer options in 1-hour increments. Display Lock Button • Prevents current settings from being changed (see page 9). Press and hold for 3 seconds to turn Display Lock on/off. • The Display Lock Indicator ( ) will blink when any other button is tapped to indicate that Display Lock is on. Auto Mode Button • Turns Auto Mode on/off (see page 8). Check Filter Indicator Reset Button • Press and hold for 3 seconds to reset the Check Filter Indicator. • The Check Filter Indicator lights up when the filter should be checked (see page 12). Display Off Button • Turns the display off (see page 9). • Tap any button (except ) to turn the display back on. Air Quality Indicator Rings • These indicators use an automatic sensor to display the air quality: Blue (Very Good), Green (Good), Orange (Moderate), and Red (Bad). 6 3. Replace the filter cover and twist clockwise to lock. [Figure 1.3] Figure 1.3 Figure 1.4 15 in / 38 cm cover should snap shut 15 in / 38 cm GETTING STARTED 1. F…

Text truncated - open the document above for the full version.

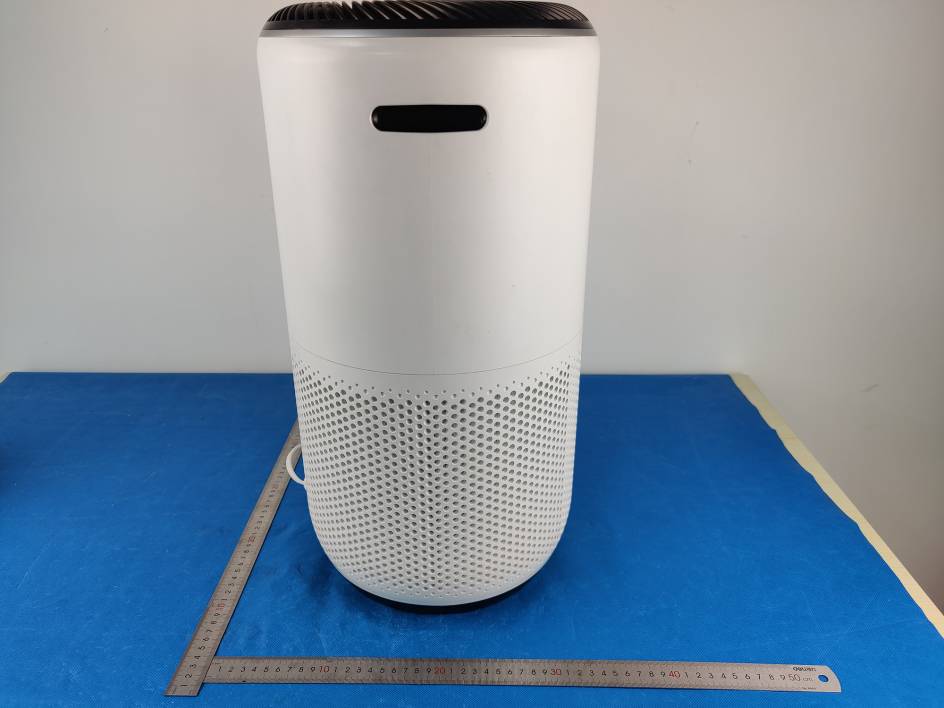

1 - Page 1 of 3 - Report No.: MTi201225003-03E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. APPENDIX 1: EUT PHOTO Photo 1 (For model Core 400S) Photo 2 1 - Page 2 of 3 - Report No.: MTi201225003-03E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 1 - Page 3 of 3 - Report No.: MTi201225003-03E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 ----END OF REPORT----

1 - Page 1 of 4 - Report No.: MTi201225003-03E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. APPENDIX 1: EUT PHOTO Photo 1 (For model Core 400S) Photo 2 1 - Page 2 of 4 - Report No.: MTi201225003-03E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 1 - Page 3 of 4 - Report No.: MTi201225003-03E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 1 - Page 4 of 4 - Report No.: MTi201225003-03E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Photo 7 ----END OF REPORT---- PCB antenna

Arovastcorporation DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:Core400S FCCID:2ARBY-CORE400S fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor PCBAntenna antennatype(s) describedbelow: ModelNo.ofantenna: N/A Typeofantenna:PCBAntenna Gainoftheantenna:2.04dBi FrequencyrangeinMHz RatedRF poweroutput(Watts) FCCEquipmentCode (ex::DTS,DSS,PCE) 240224800.002515.247DTS 240224800.008015.247DSS 241224620.056215.247DTS 242224520.044415.247DTS Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname: Arovastcorporation Address: 1202NMillerSt,SuiteA,Anaheim,CA92806,USA City: CA ZIP/Postalcode:N/A Country: USA Contact: BertWang Date: 19/01/2021 Signature: version01

This test report is valid for the tested samples only. It cannot be reproduced except in full without prior written consent of Shenzhen Microtest Co., Ltd. Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. MPE REPORT FCC ID: 2ARBY-CORE400S Date of issue: Jan. 07, 2021 Report number: MTi201225003-03E4 Sample description: Air Purifier Model(s): Core 400S Applicant: Arovast Corporation Address: 1202 N Miller St. Suite A, Anaheim, CA 92806, USA Date of test: Dec. 28, 2020 to Jan. 07, 2021 Shenzhen Microtest Co., Ltd. http://www.mtitest.com - Page 2 of 6 - Report No.: MTi201225003-03E4 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. TEST RESULT CERTIFICATION Applicant’s name: Arovast Corporation Address: 1202 N Miller St. Suite A, Anaheim, CA 92806, USA Manufacture's name: Xiamen Vork Health Industry Co., Ltd. Address: 102#&202#, Xianghong Road 16th, Torch Hi-tech Industrial Area, Xiangan, Xiamen, China Product name: Air Purifier Trademark: LEVOIT Model and/or type reference: Core 400S Serial model: N/A RF exposure procedures: KDB 447498 D01 v06 This device described above has been tested by Shenzhen Microtest Co., Ltd and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Tested by: Danny Xu Jan. 07, 2021 Reviewed by: Leo Su Jan. 07, 2021 Approved by: Tom Xue Jan. 07, 2021 - Page 3 of 6 - Report No.: MTi201225003-03E4 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1415926 R= distance between observation point and center of the radiator in cm(20cm) Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. - Page 4 of 6 - Report No.: MTi201225003-03E4 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Measurement Result BT: Operation Frequency: GFSK, π/4-DQPSK,8DPSK: 2402-2480MHz WIFI: Operation Frequency: WIFI 802.11b/g/n HT20: 2412-2462MHz, 802.11n HT40: 2422-2452MHz, BLE: Operation Frequency: GFSK: 2402-2480MHz Power density limited: 1mW/ cm 2 Antenna Type: PCB Antenna; Antenna gain: 2.04dBi R=20cm mW=10^(dBm/10) antenna gain Numeric=10^(dBi/10)= 10^(2.04/10)=1.60 BT: Channe l Freq. (MHz) modulatio n conducte d power Tune- up powe r (dBm ) Max Antenna Evaluation result Power density Limits (dBm) tune-up power Gain (mW/cm2 ) (mW/cm2 ) (dBm ) (mW) (dBi) Nume ric 2402 GFSK 6.233 6±1 7 5.012 2.04 1.60 0.0016 1 2441 6.108 6±1 7 5.012 2.04 1.60 0.0016 1 2480 5.021 6±1 7 5.012 2.04 1.60 0.0016 1 2402 π/4- DQPSK 8.694 8±1 9 7.943 2.04 1.60 0.0025 1 2441 8.398 8±1 9 7.943 2.04 1.60 0.0025 1 2480 7.403 8±1 9 7.943 2.04 1.60 0.0025 1 2402 8DPSK 9.014 9±1 10 10 2.04 1.60 0.0032 1 2441 8.893 9±1 10 10 2.04 1.60 0.0032 1 2480 8.627 9±1 10 10 2.04 1.60 0.0032 1 - Page 5 of 6 - Report No.: MTi201225003-03E4 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. WIFI: Chann el Freq. (MHz) modulatio n conducte d power Tune -up powe r Max Ante nna Evaluation result at 20cm Power density Limits (dBm) (dBm ) tune-up power Gain Power density(mW/cm 2 ) (mW/cm 2) (dBm ) (mW) Num eric Ant A Ant A Ant A Ant A Ant A Ant A 2412 802.11b 14.92 15±1 16 39.810717 1.6 0.01267 1 2437 15.67 15±1 16 39.810717 1.6 0.01267 1 2462 15.18 15±1 16 39.810717 1.6 0.01267 1 2412 802.11g 17.26 17±1 18 63.095734 1.6 0.02008 1 2437 17.50 17±1 18 63.095734 1.6 0.02008 1 2462 16.78 17±1 18 63.095734 1.6 0.02008 1 2412 802.11n H20 16.30 17±1 18 63.095734 1.6 0.02008 1 2437 16.58 17±1 18 63.095734 1.6 0.02008 1 2462 16.76 17±1 18 63.095734 1.6 0.02008 1 2422 802.11n H40 16.47 17±1 18 63.095734 1.6 0.02008 1 2437 16.40 17±1 18 63.095734 1.6 0.02008 1 2452 16.30 17±1 18 63.095734 1.6 0.02008 1 - Page 6 of 6 - Report No.: MTi201225003-03E4 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. BLE: Channe l Freq. (MHz) modulatio n conducte d power Tune- up powe r (dBm ) Max Antenna Evaluation result Power density Limits (dBm) tune-up power Gain (mW/cm2 ) (mW/cm2 ) (dBm ) (mW) (dBi) Nume ric 2402 GFSK 3.150 4±1 5 3.162 2.04 1.60 0.0010 1 2440 3.916 4±1 5 3.162 2.04 1.60 0.0010 1 2480 3.797 4±1 5 3.162 2.04 1.60 0.0010 1 Simultaneous transmit BT+2.4GWiFi +BLE=0.0032+0.02008+0.0010=0.02428 Conclusion: For the max result: 0.02428≤ 1.0 for 1g SAR, No SAR is required. ----END OF REPORT----

This test report is valid for the tested samples only. It cannot be reproduced except in full without prior written consent of Shenzhen Microtest Co., Ltd. Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Test Report FCC ID: 2ARBY-CORE400S Date of issue: Jan. 07, 2021 Report number: MTi201225003-03E1 Sample description: Air Purifier Model(s): Core 400S Applicant: Arovast Corporation Address: 1202 N Miller St. Suite A, Anaheim, CA 92806, USA Date of test: Dec. 28, 2020 to Jan. 07, 2021 Shenzhen Microtest Co., Ltd. http://www.mtitest.com - Page 2 of 43 - Report No.: MTi201225003-03E1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Table of Contents 1. GENERAL INFORMATION ................................................................................................................................... 5 1.1. DESCRIPTION OF EUT ................................................................................................................................................... 5 1.2. OPERATION CHANNEL LIST .............................................................................................................................................. 5 1.3. TEST CHANNEL LIST ....................................................................................................................................................... 6 1.4. ANCILLARY EQUIPMENT LIST ........................................................................................................................................... 6 1.5. DESCRIPTION OF SUPPORT UNITS .................................................................................................................................... 6 2. SUMMARY OF TEST RESULT S .......................................................................................................................... 7 3. TEST FACILITIES AND ACCREDITATIONS ...................................................................................................... 8 3.1. TEST LABORATORY ........................................................................................................................................................ 8 3.2. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 3.3. MEASUREMENT UNCERTAINTY ........................................................................................................................................ 8 3.4. TEST SOFTWARE ........................................................................................................................................................... 8 4. EQUIPMENT LIST ................................................................................................................................................. 9 5. TEST RESULT ..................................................................................................................................................... 10 5.1. ANTENNA REQUIREMENT ............................................................................................................................................. 10 5.1.1 Standard Requirement ...................................................................................................................................... 10 5.1.2 EUT Antenna ..................................................................................................................................................... 10 5.2. PEAK OUTPUT POWER TEST ......................................................................................................................................... 11 5.2.1 Limit .................................................................................................................................................................. 11 5.2.2 Test setup .......................................................................................................................................................... 11 5.2.3 Test Procedure ................................................................................................................................................... 11 5.2.4 Te s t Results ........................................................................................................................................................ 11 5.3. CONDUCTED EMISSION ................................................................................................................................................ 14 5.3.1 Limits ................................................................................................................................................................. 14 5.3.2 Te s t Setup .......................................................................................................................................................... 14 5.3.3 Te s t Procedure ................................................................................................................................................... 15 5.3.4 Te s t Results ........................................................................................................................................................ 15 5.4. RADIATED SPURIOUS EMISSION ...................................................................................................................................... 18 5.4.1 Limits ................................................................................................................................................................. 18 5.4.2 Te s t Setup …

Text truncated - open the document above for the full version.

This test report is valid for the tested samples only. It cannot be reproduced except in full without prior written consent of Shenzhen Microtest Co., Ltd. Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Test Report FCC ID: 2ARBY-CORE400S Date of issue: Jan. 07, 2021 Report number: MTi201225003-03E3 Sample description: Air Purifier Model(s): Core 400S Applicant: Arovast Corporation Address: 1202 N Miller St. Suite A, Anaheim, CA 92806, USA Date of test: Dec. 28, 2020 to Jan. 07, 2021 Shenzhen Microtest Co., Ltd. http://www.mtitest.com - Page 2 of 54 - Report No.: MTi201225003-03E3 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Table of Contents 1 GENERAL INFORMATION .......................................................................................................................................... 5 1.1 DESCRIPTION OF EUT ................................................................................................................................................... 5 1.2 OPERATION CHANNEL LIST .............................................................................................................................................. 6 1.3 TEST CHANNEL LIST ....................................................................................................................................................... 6 1.4 ANCILLARY EQUIPMENT LIST ........................................................................................................................................... 6 1.5 DESCRIPTION OF SUPPORT UNITS .................................................................................................................................... 7 2 SUMMARY OF TEST RES U LT S .................................................................................................................................... 8 3 TEST FACILITIES AND ACCREDITATIONS ..................................................................................................................... 9 3.1 TEST LABORATORY ........................................................................................................................................................ 9 3.2 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 9 3.3 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 9 3.4 TEST SOFTWARE ........................................................................................................................................................... 9 4 EQUIPMENT LIST .................................................................................................................................................... 10 5 TEST RESULT ........................................................................................................................................................... 11 5.1 ANTENNA REQUIREMENT ............................................................................................................................................. 11 5.1.1 Standard requirement ....................................................................................................................................... 11 5.1.2 EUT antenna ..................................................................................................................................................... 11 5.2 PEAK OUTPUT POWER ................................................................................................................................................. 12 5.2.1 Limit .................................................................................................................................................................. 12 5.2.2 Test setup .......................................................................................................................................................... 12 5.2.3 Test procedure ................................................................................................................................................... 12 5.2.4 Te s t results......................................................................................................................................................... 13 5.3 POWER SPECTRAL DENSITY ........................................................................................................................................... 14 5.3.1 Limit .................................................................................................................................................................. 14 5.3.2 Test setup .......................................................................................................................................................... 14 5.3.3 Test procedure ................................................................................................................................................... 14 5.3.4 Test results......................................................................................................................................................... 15 5.4 CONDUCTED EMISSION ................................................................................................................................................ 19 5.4.1 Limits ...............................................................................................................................................................…

Text truncated - open the document above for the full version.

Model: Core 400S Radiated emission Conducted emission
