2ARBY-CTO-R251SSmart Air Fryer Toaster Oven

Smart Air Fryer Toaster Oven User Manual Questions or Concerns? Mon–Fri, 9:00 am–5:00 pm PST/PDT [email protected] | (888) 402-1684 (We hope you love your new smart air fryer toaster oven as much as we do) Our helpful, in-house chefs are ready to assist you with any questions you might have! On behalf of all of us at COSORI, CONTACT OUR CHEFS Email: [email protected] Toll-Free: (888) 402-1684 Mon-Fri, 9:00 am–5:00 pm PST/PDT Thank you for your purchase! Happy cooking! our recipe gallery www.cosori.com/recipes explore weekly, featured recipes made exclusively by our in-house chefs enjoy the COSORI Cooks Community on Facebook facebook.com/groups/cosoricooks join 3 Table of Contents Specifications Specifications Package Contents Important Safeguards Getting to Know Your Smart Air Fryer Toaster Oven Display Controls Before First Use Cooking with Your Smart Air Fryer Toaster Oven Care & Maintenance Troubleshooting VeSync App Troubleshooting Warranty Information Customer Support 3 3 4 7 8 9 11 12 28 29 30 32 33 ModelCTO-R251S Power SupplyAC 120V, 60Hz Rated Power1800W Capacity 26 qt / 25 L, 6-Slice Toaster, 12” Pizza Temperature Range 80°–450°F / 25°–230°C Time Range0–24 hr Weight 22 lb / 9.98 kg (including accessories) Dimensions 16.3 x 16.9 x 15.5 in / 41.3 x 42.8 x 39.3 cm Package Contents 1 x Smart Air Fryer Toaster Oven 1 x Wire Rack 1 x Food Tray 1 x Fry Basket 1 x Recipe Book 1 x User Manual 1 x Quick Reference Guide VeSync App To get the most out of your smart air fryer toaster oven and access smart functions, download the free VeSync app. Scan the QR code or search “VeSync” in the Apple App Store ® or Google Play Store. For app setup instructions, see page 11. 4 Follow basic safety precautions when using your smart air fryer toaster oven. Read all instructions. IMPORTANT SAFEGUARDS Key Safety Points General Safety • Do not touch hot surfaces. Use handle. • The outside of the oven, including the door, is hot during and after use. • Always use heat-resistant gloves, pads, or oven mitts when handling hot materials, and when placing items in or removing items from the oven, including trays, racks, accessories, or containers. • When the oven is not in use, and before cleaning, press and hold the control knob for 3 seconds to turn it off, then unplug from outlet. Allow to cool completely before putting on or taking off parts. • Do not immerse the housing, cord, or plug in water or liquid. • Close supervision is necessary when the oven is used by or near children. • Children should be supervised to ensure that they do not play with the oven. • Do not use your oven if it is damaged, not working, or if the cord or plug is damaged. Contact Customer Support (see page 33). • Do not use third-party replacement parts or accessories, as this may cause injuries. • Do not use outdoors. • Do not place the oven or any of its parts on a stove, near gas or electric burners, or inside another heated oven. • Be extremely cautious when removing a tray, basket, or rack if it contains hot oil, grease, or other hot liquids. • Do not clean with metal scouring pads. Metal fragments can break off the pad and touch electrical parts, creating a risk of electric shock. • Clean the crumb tray after using. Accumulated grease and crumbs can overheat and catch fire. • Do not store anything on top of your oven while it is operating. Do not store anything inside your oven other than recommended accessories. • The oven is not intended to be operated by means of an external timer or separate remote-control system. • Only use as directed in this manual. Do not use oven for any purpose other than its intended use. READ AND SAVE THESE INSTRUCTIONS 5 • To avoid risk of fire or electric shock, do not place oversized foods or metal utensils (except official COSORI accessories) into the oven. • Do not place paper, cardboard, or non-heat-resistant plastic into your oven, or any materials which may catch fire or melt. • To avoid overheating, do not use metal foil in the oven unless directed. Use extreme caution when using foil, and always fit foil as securely as possible. If the foil contacts the oven’s heating elements, this can cause overheating and risk of fire. Do not cover crumb tray or any part of the oven,except for the Food Trays or Racks as directed, with metal foil. • Never put baking or parchment paper into the oven without food on top. Air circulation can cause paper to move and touch heating elements. • Always use heat-safe containers. Be extremely cautious if using containers that aren’t metal or glass. • Keep your oven away from flammable materials (curtains, tablecloths, walls, etc.). Use on a flat, stable, heat-resistant surface away from heat sources or liquids. • Immediately turn off and unplug your oven if you see dark smoke coming out. Food is burning. Wait for smoke to clear before opening the oven door. While Cooking Note: See Care & Maintenance for instructions on how to clean accessories (page 28). Caution: 60 minutes “ON” in a 2-hour period. Note: The heating elements do not exceed 60 minutes “on” in a 2-hour period to maintain the set temperature. • This oven is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the oven by a person responsible for their safety. • Do not allow children to clean or perform maintenance on the oven. • Keep the oven and its cord out of reach of children. • Not for commercial use. Household use only. 6 • This oven uses a short power-supply cord to reduce the risk of entangling or tripping. • Your oven has a polarized plug (one prong is wider than the other), which fits into a polarized outlet only one way. If the plug does not fit, reverse the plug. If it still does not fit, do not use the plug in that outlet. Do not alter the plug in any way. • Do not let the power cord (or any extension cord) hang over the edg…

Text truncated - open the document above for the full version.

DATE:11/9/2022 EquipmentAutorisationDivision FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 FCCID:2ARBY-CTO-R251S ProductName:SmartAirFryerToasterOven RequestforConfidentiality PursuanttoSections0.457and0.459ofthecommissionsrules,weherebyrequestthat thefollowingdocumentsbeheldconfidential: Schematics  Blockdiagram Operationdescription Thesematerialscontaintradesecretsandproprietaryinformationandarenot customarilyreleasedtothepublic.Thepublicdisclosureofthisinformationmightbe harmfultothecompanyandprovideunjustifiedbenefitstoourcompetitors. <Signature> Name：ChrisHuang Title：SrManager,ProductCompliance Company：ArovastCorporation

DATE:11/9/2022 FederalCommunicationsCommission Authorization&EvaluationDivision 7345OaklandMillsRoad Columbia,Maryland21046 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorizeComplianceTesting,LLCtoactonourbehalfinallmatters relatingtoapplicationforequipmentauthorization,includingthesigningofalldocumentsrelatingto thesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothedenialof benefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseActof1988,21 U.S.C.853(a). Sincerely, <Signature> Name ： ChrisHuang Title ： SrManager,ProductCompliance Company：Arovastcorporation

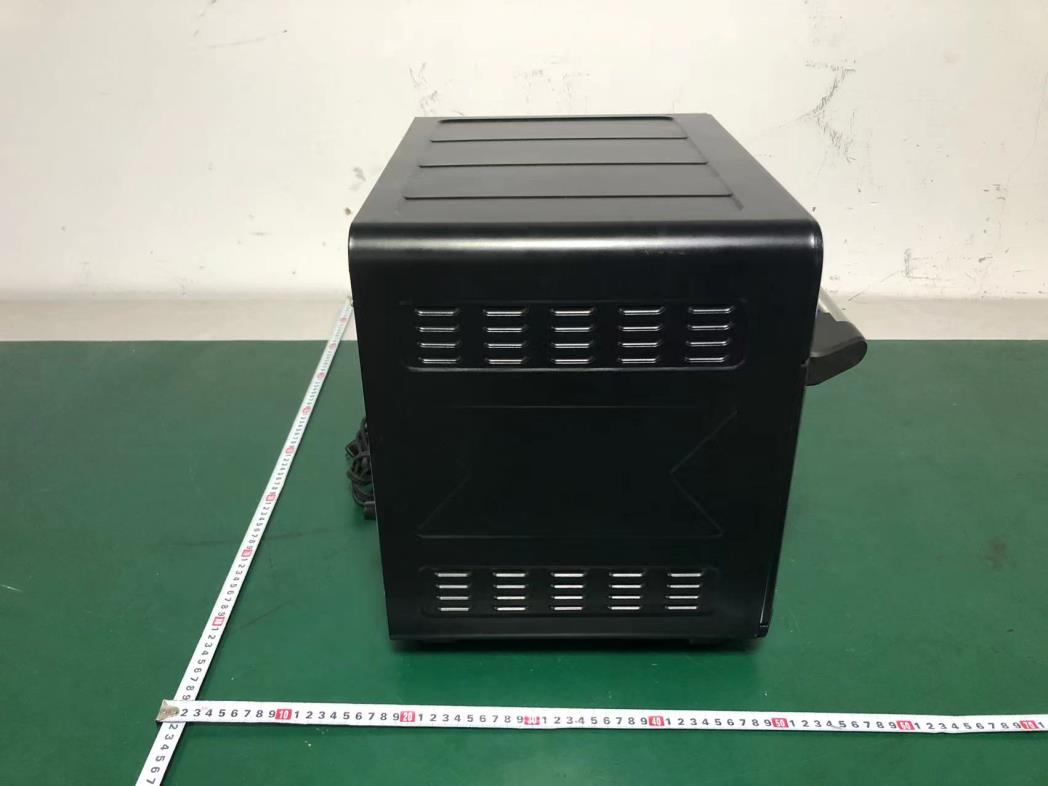

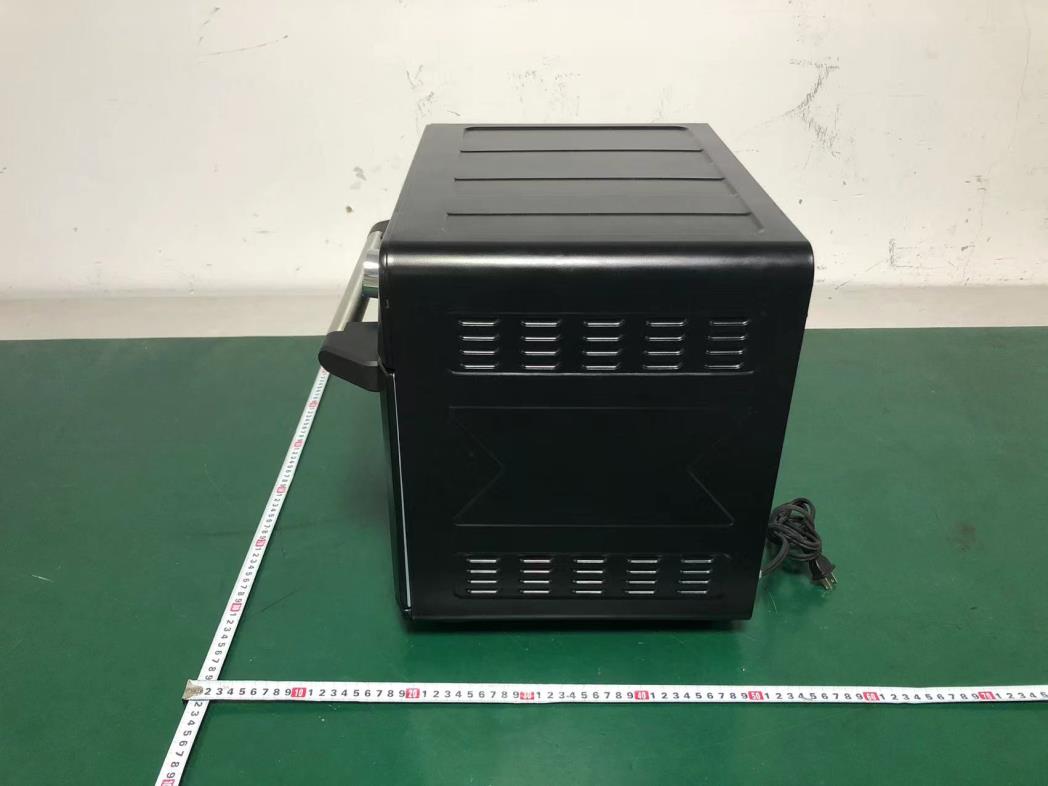

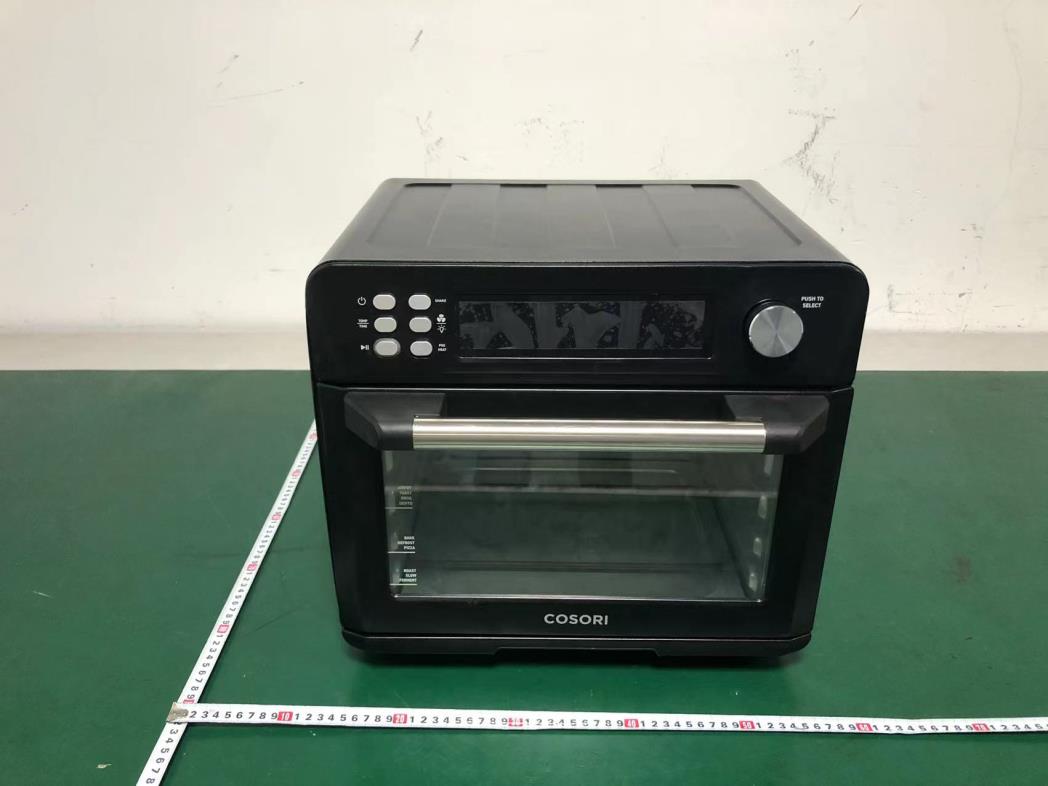

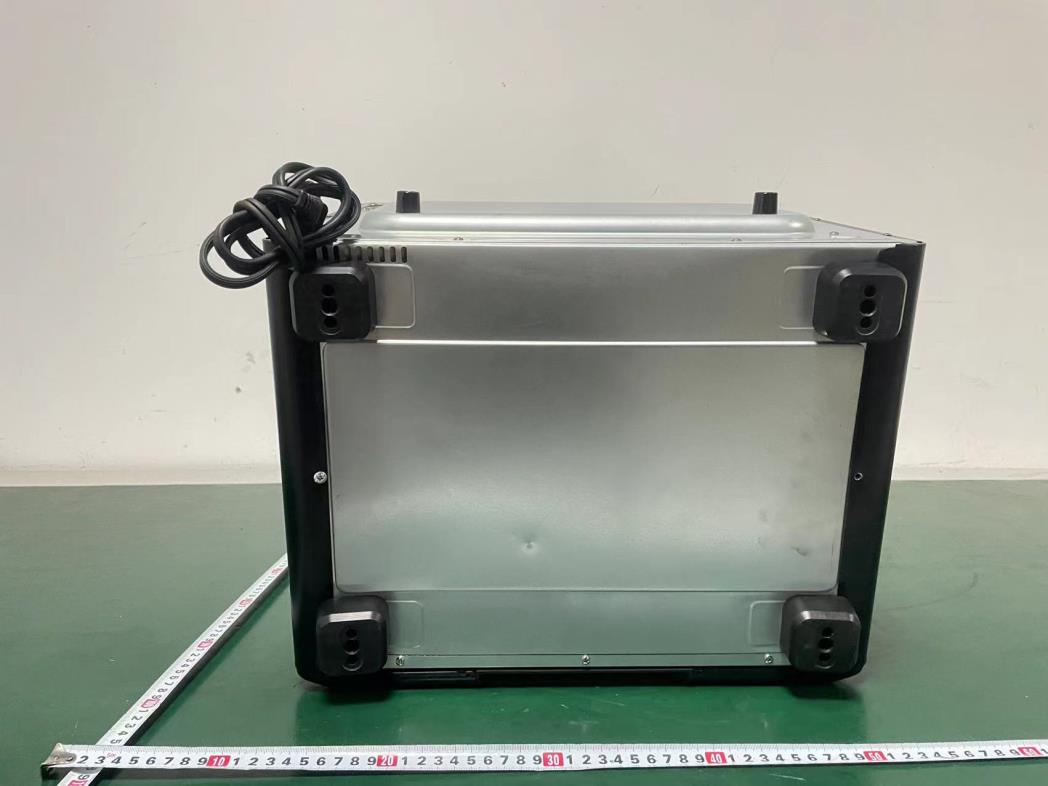

External Photos M/N: CTO-R251S External Photos M/N: CTO-R251S External Photos M/N: CTO-R251S

Label Location

Internal Photos M/N: CTO -R251S Internal Photos M/N: CTO -R251S Internal Photos M/N: CTO -R251S Internal Photos M/N: CTO -R251S Internal Photos M/N: CTO -R251S Antenna

FCC ID: 2ARBY-CTO-R251S EST Technology Co. ,Ltd Report No. ESTE-R2211035 Page 1 of 5 FCC 47 CFR MPE REPORT Arovast Corporation Smart Air Fryer Toaster Oven Model Number: CTO-R251S FCC ID: 2ARBY-CTO-R251S Applicant: Arovast Corporation Address: 1202 N Miller St. Suite A, Anaheim, California 92806, United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2211035 Date of Test: Sep. 30~Nov. 03, 2022 Date of Report: Nov. 04, 2022 FCC ID: 2ARBY-CTO-R251S EST Technology Co. ,Ltd Report No. ESTE-R2211035 Page 2 of 5 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2ARBY-CTO-R251S EST Technology Co. ,Ltd Report No. ESTE-R2211035 Page 3 of 5 1.2. MPE Calculation Method E (V/m) = d G×P×30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d×377 G×P×30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2ARBY-CTO-R251S EST Technology Co. ,Ltd Report No. ESTE-R2211035 Page 4 of 5 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) GFSK 2402 6.31 4.2756 2441 6.34 4.3053 2480 6.43 4.3954 π/4 DQPSK 2402 8.45 6.9984 2441 8.48 7.0469 2480 8.50 7.0795 8-DPSK 2402 8.89 7.7446 2441 8.87 7.7090 2480 8.91 7.7804 BLE 2402 6.14 4.1115 2440 6.17 4.1400 2480 6.41 4.3752 IEEE 802.11b 2412 17.31 53.8270 2437 16.58 45.4988 2462 16.93 49.3174 IEEE 802.11g 2412 16.81 47.9733 2437 16.29 42.5598 2462 16.28 42.4620 IEEE 802.11n HT20 2412 16.60 45.7088 2437 16.18 41.4954 2462 16.20 41.6869 IEEE 802.11n HT40 2422 16.14 41.1150 2437 15.77 37.7572 2452 15.67 36.8978 FCC ID: 2ARBY-CTO-R251S EST Technology Co. ,Ltd Report No. ESTE-R2211035 Page 5 of 5 3. Calculated Result and Limit Mode Peak output power (dBm) Target power （dBm ） MAX Target power （dBm） Antenna gain Power Density (S) (mW /cm2) Limited of Power Density (S) (mW /cm2) Test Result (dBi)(Linear) 2.4G Band GFSK 6.43 6±1 7 2 1.585 0.00158 1 Complies π/4 DQPSK 8.50 8±1 9 2 1.585 0.00250 1 Complies 8-DPSK 8.91 8±1 9 2 1.585 0.00250 1 Complies BLE 6.41 6±1 7 2 1.585 0.00158 1 Complies IEEE 802.11b 17.31 17±118 2 1.585 0.01989 1 Complies IEEE 802.11g 16.81 16±117 2 1.585 0.01580 1 Complies IEEE 802.11n HT20 16.60 16±117 2 1.585 0.01580 1 Complies IEEE 802.11n HT40 16.14 16±117 2 1.585 0.01580 1 Complies End of Test Report

FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 1 of 78 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Arovast Corporation Smart Air Fryer Toaster Oven Model Number: CTO -R251S FCC ID: 2ARBY-CTO -R251S Applicant : Arovast Corporation Address: 1202 N Miller St. Suite A, Anaheim, California 92806, United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2211032 Date of Test: Sep. 30~Nov. 03, 2022 Date of Report: Nov. 04, 2022 FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 2 of 78 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 1.3. Information of RF Cable .................................................................................................................. 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test mode ......................................................................................................................................... 9 2.7. Channel List ................................................................................................................................... 10 2.8. Power Setting of Test Software ...................................................................................................... 10 2.9. Test Equipment ............................................................................................................................... 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 13 3.1. Limit ............................................................................................................................................... 13 3.2. Test Setup ....................................................................................................................................... 13 3.3. Spectrum Analyzer Setting ............................................................................................................. 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ...................................................................................................................................... 13 4. 20 DB BANDWIDTH ....................................................................................................................... 14 4.1. Limit ............................................................................................................................................... 14 4.2. Test Setup ....................................................................................................................................... 14 4.3. Spectrum Analyzer Setting ............................................................................................................. 14 4.4. Test Procedure ................................................................................................................................ 14 4.5. Test Result ...................................................................................................................................... 14 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 15 5.1. Limit ............................................................................................................................................... 15 5.2. Test Setup ....................................................................................................................................... 15 5.3. Spectrum Analyzer Setting ............................................................................................................. 15 5.4. Test Procedure ................................................................................................................................ 15 5.5. Test Result ...................................................................................................................................... 15 6. NUMBER OF HOPPING CHANNEL .................................................................................................. 16 6.1. Limit ............................................................................................................................................... 16 6.2. Test Setup .............................................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 56 of 78 Appendix F: Reference level measurement Test Result Test Mode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] DH5 Ant1 2402 2402.00 6.11 2441 2441.01 5.97 2480 2479.99 6.01 2DH5 Ant1 2402 2402.01 6.01 2441 2441.01 6.06 2480 2480.01 6.08 3DH5 Ant1 2402 2402.01 5.96 2441 2441.00 6.07 2480 2480.03 5.82 FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 57 of 78 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 58 of 78 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 59 of 78 3DH5_Ant1_2402 3DH5_Ant1_2441 3DH5_Ant1_2480 FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 60 of 78 Appendix G: Band edge measurements Test Result Test Mode Antenna Ch Name Freq(MHz) Ref Level [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 6.11 -48.39 ≤-13.89 PASS High 2480 6.01 -49.86 ≤-13.99 PASS Low Hop_2402 4.97 -50.99 ≤-15.03 PASS High Hop_2480 5.57 -50.32 ≤-14.43 PASS 2DH5 Ant1 Low 2402 6.01 -47.03 ≤-13.99 PASS High 2480 6.08 -50.74 ≤-13.92 PASS Low Hop_2402 3.90 -50.39 ≤-16.1 PASS High Hop_2480 3.33 -50.79 ≤-16.67 PASS 3DH5 Ant1 Low 2402 5.96 -48.7 ≤-14.04 PASS High 2480 5.82 -50.39 ≤-14.18 PASS Low Hop_2402 3.15 -50.92 ≤-16.85 PASS High Hop_2480 5.31 -50.9 ≤-14.69 PASS FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 61 of 78 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 62 of 78 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 63 of 78 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 64 of 78 3DH5_Ant1_High_2480 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 65 of 78 Appendix H: Conducted Spurious Emission Test Result Test Mode Antenna Freq(MHz) Freq Range [MHz] Ref Level [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 30~26500 6.11 -38.8 ≤-13.89 PASS 2441 30~26500 5.97 -39.99 ≤-14.03 PASS 2480 30~26500 6.01 -41.17 ≤-13.99 PASS 2DH5 Ant1 2402 30~26500 6.01 -38.25 ≤-13.99 PASS 2441 30~26500 6.06 -39.99 ≤-13.94 PASS 2480 30~26500 6.08 -40.72 ≤-13.92 PASS 3DH5 Ant1 2402 30~26500 5.96 -38.98 ≤-14.04 PASS 2441 30~26500 6.07 -39.69 ≤-13.93 PASS 2480 30~26500 5.82 -40.66 ≤-14.18 PASS FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 66 of 78 Test Graphs DH5_Ant1_2402_30~26500 DH5_Ant1_2441_30~26500 DH5_Ant1_2480_30~26500 FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 67 of 78 2DH5_Ant1_2402_30~26500 2DH5_Ant1_2441_30~26500 2DH5_Ant1_2480_30~26500 FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 68 of 78 3DH5_Ant1_2402_30~26500 3DH5_Ant1_2441_30~26500 3DH5_Ant1_2480_30~26500 FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 69 of 78 14. TEST SETUP PHOTO Conducted Test FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 70 of 78 Radiated Test (Below 1GHz) Radiated Test (Above 1GHz) FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 71 of 78 15. EUT PHOTO External Photos M/N: CTO -R251S FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 72 of 78 External Photos M/N: CTO -R251S FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 73 of 78 External Photos M/N: CTO -R251S FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 74 of 78 Internal Photos M/N: CTO -R251S FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 75 of 78 Internal Photos M/N: CTO -R251S FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 76 of 78 Internal Photos M/N: CTO -R251S FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 77 of 78 Internal Photos M/N: CTO -R251S FCC ID: 2ARBY-CTO-R251S EST Technology Co., Ltd Report No. ESTE-R2211032 Page 78 of 78 Internal Photos M/N: CTO -R251S End of Test Report Bluetooth Antenna

-------专注射频领域 服务全球客户------- 网站：www.huake-china.com 电话：0755-82595196 地址：深圳市宝安区永和路23号永和大厦9楼 518000 Nine floor, Yonghe building, 23 Yonghe Road, Baoan District, Shenzhen, Guangdong, China 518000 1 / 10 编制Edit：刘斌 审核Check：高磊 批准Approval：宋伟强 编制日期Edit date：2022/10/10 品质部Quality dep.： 研发部R&D： 采购部Purchasing Dep.： 承认日期Approval date： 产 品 承 认 书 SPECIFICATION 备注：请客户仔细查阅承认书，在确认与贵司需求同步后将承认书确认签字，盖章回传一份 到我司（PDF电子档或传真件），如客户未对产品承认书回签，而向我司下单采购该物料， 我们将视为贵司已承认该产品。谢谢! Note: Please consult the acknowledgement form carefully, sign the acknowledgement form after confirming the synchronization with your requirement, and return a copy of the acknowledgement form to us (PDF electronic file or facsimile) with the seal. If the customer does not sign back the product acknowledgement form, and order the material from us, we will be regarded as your company has recognized the product. Thank you! 客户名称 Customer ： 客户料号 Customer P.N./ ： 产品名称 Product Name ： WIFI天线 产品料号 Number ：HC-ANT-025-50MM 规格描述 Description ：2.4G,FPC，1.13黑色线长50mm，IPEX镀金 版本 Version ：V1.0 -------专注射频领域 服务全球客户------- 网站：www.huake-china.com 电话：0755-82595196 地址：深圳市宝安区永和路23号永和大厦9楼 518000 Nine floor, Yonghe building, 23 Yonghe Road, Baoan District, Shenzhen, Guangdong, China 518000 2 / 10 目录 1、装配图片 Picture ................................................................................................................................................. 3 2、主要部件组成 Part specification ....................................................................................................................... 3 3、特性参数 Pharacteristic parameter ................................................................................................................... 4 4、成品设计图纸 Drawing ...................................................................................................................................... 5 5、电性能测试 Electrical performance test ................................................................................................ 6 5.1、驻波比值 VSWR ...................................................................................................................................................... 6 5.2、增益与效率 Gain Efficiency .......................................................................................................................... 7 5.3、方向图 Directional diagramain ................................................................................................................... 8 6、环境可靠性测试 Environmental test experiment ........................................................................................... 9 6.1、盐雾试验 Salt spray test experiment ........................................................................................................... 9 6.2、高低温试验 High and low temperature ......................................................................................................... 10 6.3、拉力测试 Tensile test ..................................................................................................................................... 10 版本 制定 修订内容 修订原因 日期 V1.0 刘斌 新增 20221010 -------专注射频领域 服务全球客户------- 网站：www.huake-china.com 电话：0755-82595196 地址：深圳市宝安区永和路23号永和大厦9楼 518000 Nine floor, Yonghe building, 23 Yonghe Road, Baoan District, Shenzhen, Guangdong, China 518000 3 / 10 1 、装配图片 2 、主要部件组成 产品名称：WIFI天线 型号Part no：HC-ANT-025-50MM 序号 部品 材料 1 天线阵子 FPC 2 馈线 RG1.13 3 连接器 IPEX-1 4 泡棉胶 3M9448A 注： 1. 天线辐射阵子采用 FPC 基材覆铜使天线具有良好的介电常数以及结构可靠性； 2. 馈线采用 RG1.13 纯铜镀银同轴射频线缆具有优异的屏蔽和传导效果； 3. IPEX 连接器镀层采用镀金能保证良好的传导性同时有效防止产品氧化; 4. 成品制成后需采用矢量网络分析仪测试全检天线性能。 -------专注射频领域 服务全球客户------- 网站：www.huake-china.com 电话：0755-82595196 地址：深圳市宝安区永和路23号永和大厦9楼 518000 Nine floor, Yonghe building, 23 Yonghe Road, Baoan District, Shenzhen, Guangdong, China 518000 4 / 10 3 、特性参数 频率范围Frenquency Rang 2400-2500MHz 输入阻抗Impedance 50Ω 驻波比VSWR ≤2.0 最大增益Gain 2dBi 辐射方向Radiation 全向 极化方式Polarization 线极化 镀层Coating 镀金 天线尺寸Height 40*10.2mm 馈线长度 Cable Length 50mm±3mm 工作温度Working Temperature -45°C-+85°C 存放温度Limit Temperature -45°C-+85°C 适用频段Applicable band WiFi,BT,Zigbee -------专注射频领域 服务全球客户------- 网站：www.huake-china.com 电话：0755-82595196 地址：深圳市宝安区永和路23号永和大厦9楼 518000 Nine floor, Yonghe building, 23 Yonghe Road, Baoan District, Shenzhen, Guangdong, China 518000 5 / 10 4 、成品设计图纸 -------专注射频领域 服务全球客户------- 网站：www.huake-china.com 电话：0755-82595196 地址：深圳市宝安区永和路23号永和大厦9楼 518000 Nine floor, Yonghe building, 23 Yonghe Road, Baoan District, Shenzhen, Guangdong, China 518000 6 / 10 5 、电性能测试 5.1、驻波比 2400MHz 2450MHz 2500MHz - - - 1.51 1.23 1.54 - - - 测试仪器：网络分析仪E5071B 测试环境：整机匹配 匹配终端：客户样机 -------专注射频领域 服务全球客户------- 网站：www.huake-china.com 电话：0755-82595196 地址：深圳市宝安区永和路23号永和大厦9楼 518000 Nine floor, Yonghe building, 23 Yonghe Road, Baoan District, Shenzhen, Guangdong, China 518000 7 / 10 5.2、效率与增益 Freq(MHz) Gain(dBi) Efficiency(dB) Efficiency(%) 2400 -1.103804415 -9.101922241 12.29724359 2410 -0.462496261 -8.51850953 14.06530153 2420 -0.570322719 -8.302124771 14.78384917 2430 -0.46468187 -8.01371616 15.7989558 2440 -0.418321111 -7.67345234 17.08656512 2450 -0.542615977 -7.338463179 18.45668423 2460 -0.482343983 -7.149450149 19.27768969 2470 1.124842795 -6.810782833 20.84115179 2480 1.995077645 -6.512269958 22.32405091 2490 2.004413 -6.204603083 23.96291746 2500 1.96110877 -6.011604696 25.05183429 2500MHZ 2400MHZ 2450MHz -------专注射频领域 服务全球客户------- 网站：www.huake-china.com 电话：0755-82595196 地址：深圳市宝安区永和路23号永和大厦9楼 518000 Nine floor, Yonghe building, 23 Yonghe Road, Baoan District, Shenzhen, Guangdong, China 518000 9 / 10 6 、环境可靠性试验 6.1、盐雾试验 盐雾试验报告 Salt spray test report 测试部门 Testing part： QC 测试人员 Testers：余飞 测试日期 Date： 2022.08.15 试验样板名称 Name of test sample： 五金连接器 Connector 样板型号 Type： IPEX 端子 样板数量 Number：3PCS 试验项目 Test item： 盐雾试验 Salt spray test 设备名称 Device name： 盐雾腐蚀试验箱 Salt spray corrosion test chamber 试验方法 test method： 将测试样板放入调制好的盐溶液试验箱内、盐雾腐蚀箱进行连续喷雾试验 The test samples were put into the modulated salt solution test chamber and salt spray corrosion chamber for continuous spray test. 盐溶液浓度 Concentration of salt solution： 52g/L 盐溶液 P…

Text truncated - open the document above for the full version.

Conducted Test Radiated Test (30-1000 MHz) Radiated Test (Above 1GHz)
