2ARBY-M101SOasisMist1000S Smart Ultrasonic Cool Mist Tower Humidifier

Levoit OasisMist1000S Smart Ultrasonic Cool Mist Tower Humidifier Questions or Concerns? Please contact us Mon–Fri, 9:00 am–5:00 pm PST/PDT at [email protected] or at (888) 726-8520. USER MANUAL 2 Table of Contents Package Contents Specifications Safety Information Getting to Know Your Smart Humidifier Controls Remote Control Getting Started VeSync App Setup Using Your Smart Humidifier Care & Maintenance Troubleshooting VeSync App Troubleshooting Warranty Information Customer Support 1 × Smart Ultrasonic Tower Humidifier 3 × Aroma Pad (1 Pre-Installed) 2 × Cleaning Brush 1 × Screwdriver 4 × Screw 1 × Stand 1 × Cable Winder 1 × Remote Control 1 × Quick Start Guide 1 × User Manual 2 2 3 6 8 9 9 11 12 16 21 24 26 27 Specifications Package Contents ModelLUH-M101S-WUS Power SupplyAC 120V, 60Hz Rated Power27.5W Water Tank Capacity 2.6 gal / 10 L Max Mist Ouput 350 mL/h Max Runtime 100 hours on low mist setting Note: The humidifier may run for a longer or shorter time depending on the environmental temperature and humidity. Noise Level < 28dB Effective Range 300–600 ft² / 27–55 m² Dimensions 8.4 x 10.0 x 28.7 in / 21.4 x 25.3 x 72.8 cm Weight6.4 lb / 2.9 kg Note: To access additional smart humidifier functions, download the free VeSync app (see page 11). 3 SAFETY INFORMATION • Only use the humidifier as described in this manual. • Place the humidifier and cord so that it will not be knocked over. Do not place near large pieces of furniture or in high-traffic areas. • When not in use, turn the humidifier off and disconnect from power by removing the plug from the outlet. • Do not use the humidifier in wet environments. • Keep the humidifier out of reach from children. • Do not open the base or remove the water level sensor for self-servicing. • Always unplug your humidifier from the power outlet before cleaning your humidifier or detaching the humidifier base from the water tank. • Always make sure to place the humidifier on a flat, level surface before operation. • Only fill the water tank with clean water. Never fill the water tank with any other liquids. • Do not place the humidifier near sources of heat, such as stovetops, ovens, or radiators. • Do not use other items as replacement parts for this product. To reduce the risk of fire, electric shock, or other injury, follow all instructions and safety guidelines. General Safety • Do not cover the nozzle while the humidifier is on. Doing so may damage the humidifier. • Do not immerse the humidifier base, power cord, or plug in water. • If the humidifier is damaged or is not functioning properly, stop using it and contact Customer Support immediately (see page 27). • This humidifier is not to be used by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. • Supervise children when they are near the humidifier. • Children should not clean or perform maintenance on the humidifier without supervision. • Children should be supervised to ensure that they do not play with the humidifier. • Not for commercial use. Household use only. READ AND SAVE THESE INSTRUCTIONS 4 Power & Cord Electromagnetic Fields (EMF) • Ensure that the plug fits properly into a polarized socket. • Your humidifier has a polarized plug (one prong is wider than the other), which fits into a polarized outlet only one way. This is a safety feature to reduce the risk of electric shock. If the plug does not fit, reverse the plug. If it still does not fit, do not use the plug in that outlet. Do not bypass this safety feature. • Do not handle the power cord or plug with wet hands. Keep the plug and power cord away from liquids. • If the power supply cord is damaged, it must be replaced by Arovast Corporation or similarly qualified persons in order to avoid an electric or fire hazard. Please contact Customer Support (see page 27). • Unplugging the power cord will disable remote control of the humidifier and temporarily disconnect the humidifier from VeSync and other third-party apps. This humidifier complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately. SAFETY INFORMATION (CONT.) • Only add essential oils to the aroma pad. • Do not add essential oils, supplemental water treatment liquids, or water filters into the water inlet tank, base chamber, or water tank. Caution: Risk of Leaks and Electric Shock • Place sticky tape around both sides of the battery and dispose of it immediately in an outdoor trashcan or recycle safely; • Store spare batteries securely; • Empty recycling units on a regular basis; • Use non-transparent containers to keep the batteries out of view. This product contains a coin/button battery. WARNING: CHEMICAL BURN HAZARD. KEEP OUT OF REACH OF CHILDREN. 5 These sorts of symptoms vary or fluctuate, with the pain increasing and then subsiding. A specific symptom to button and coin battery ingestion is vomiting fresh (bright red) blood. If a child does this, seek immediate medical help. The lack of clear symptoms is why it is important to be cautious with “flat” or spare button or coin batteries in the home and the products that contain them. Even used cells may cause injury. Unfortunately, it is not obvious when a button or coin battery is stuck in a child’s esophagus (food pipe). The child might: SAFETY INFORMATION (CONT.) • Cough, gag or drool a lot; • Appear to have a stomach upset or a virus; • Be sick; • Point to their throat or stomach; • Have pain in their abdomen, chest, or throat; • Be tired or lethargic; • Be quieter or more clingy than usual…

Text truncated - open the document above for the full version.

Arovastcorporation I,theundersigned,Chrishuang: Thefollowingmodelshavethesametechnicalconstructionincludingcircuitdiagram,PCB Layout,componentsandcomponentlayout,allelectricalconstructionandmechanical construction,exceptthedifferentmodelnumber. 1)ModelNo.:LUH-M101S-WUS 2)ModelNo.:LUH-M101S-WUSR 3)ModelNo.:LUH-M101S-followedbythreeorfourletters FCCID:2ARBY-M101S Sincerely, Client’ssignature: Client’sname/title:ChrisHuang/SrManager,ProductCompliance Contactinformation/address:1202NMillerSt.,SuiteA,Anaheim,CA92806,USA Telephone:7145091019 FaxNo.:N/A

OTA TEST REPORT TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in ANSI/IEEE Std 149-2008. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Prepared by: Peng Tao Approved by: Kai Xu TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86‐021‐50791141/2/3 FAX: +86‐021‐50791141/2/3‐8000 Applicant Espressif System (Shanghai) Co.,Ltd Product ESP32-C3-WROOM-02 Model ESP-ANT B Report No. Y2102A0260-T3 Issue Date March 9, 2021 OTA Test Report Report No: Y2102A0260-T3 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 2 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. TABLE OF CONTENTS 1. Test Laboratory .............................................................................................................................. 3 1.1. Notes of the Test Report ................................................................................................... 3 1.2. Test facility ........................................................................................................................ 3 1.3. Testing Location ................................................................................................................ 3 1.4. Laboratory Environment .................................................................................................... 4 2. General Description of Equipment under Test ............................................................................... 5 2.1. Applicant and Manufacturer Information ............................................................................ 5 2.2. General information ........................................................................................................... 5 2.3. Test Date ........................................................................................................................... 5 2.4. Receiving Date .................................................................................................................. 5 2.5. Applied Standards ............................................................................................................. 6 3. Test Conditions .............................................................................................................................. 7 3.1. Test Configuration ............................................................................................................. 7 3.2. Test Measurement ............................................................................................................. 7 4. Test Results ................................................................................................................................... 8 4.1. Gain and Efficiency ............................................................................................................ 8 5. Equipment List ............................................................................................................................... 9 ANNEX A 3-D Pattern Plots ................................................................................................................... 10 ANNEX B：The EUT Appearance and Test Configuration ...................................................................... 12 B.1 EUT Appearance ................................................................................................................... 12 B.2 Test Configuration ................................................................................................................. 13 OTA Test Report Report No: Y2102A0260-T3 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 3 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1. Test Laboratory 1.1. Notes of the Test Report This report shall not be reproduced in full or partial, without the written approval of TA technology (shanghai) co., Ltd. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein .Measurement Uncertainties were not taken into account and are published for informational purposes only. This report is written to support regulatory compliance of the applicable standards stated above. 1.2. Test facility A2LA (Certificate Number: 3857.01) TA Technology (Shanghai) Co., Ltd. has been listed by American Association for Laboratory Accreditation to perform measurement. 1.3. Testing Location Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China City: Shanghai Post code: 201201 Country: P. R. China Contact: Xu Kai Telephone: +86-021-50791141/2/3 Fax: +86-021-50791141/2/3-8000 Website: http://www.ta-shanghai.com E-mail: [email protected] OTA Test Report Report No: Y2102A0260-T3 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 4 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1.4. Laboratory Environment Temperature Min. =19°C，Max. = 25°C Relative humidity Min. =40%，Max. =72% Shield effect 0.7-6GHz > 100dB Ground resistance <0.5 OTA Test Report Report No: Y2102A0260-T3 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 5 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 2. General Description of Equipment under Test 2.1. Applicant and Manufacturer Information Applicant Name Espressif System (Shanghai) Co.,Ltd Applicant address Suite 204 Block 2, 690 Bibo Road, Zhang Jiang Hi-Tech Park, Shanghai, China Manufacturer Name Espressif System (Shanghai) Co.,Ltd Manufacturer address Suite 204 Block 2, 690 Bibo Road, Zhang Jiang Hi-Tech Park, Shanghai, China 2.2. …

Text truncated - open the document above for the full version.

DATE:11/13/2022 FederalCommunicationsCommission Authorization&EvaluationDivision 7345OaklandMillsRoad Columbia,Maryland21046 AuthoritytoActasAgent Onourbehalf,IappointESTTechnologyCo.,Ltd.Address:Chilingxiang,Qishantou, Santun,Houjie,Dongguan,Guangdong,Chinatoactasouragentinthepreparationof thisapplicationforequipmentcertification.Icertifythatsubmitteddocumentsproperly describethedeviceorsystemforwhichequipmentcertificationissought.Ialsocertifythat eachunitmanufactured,importedormarketed,asdefinedintheFederalCommunications Commission’sregulationswillhaveaffixedtoitalabelidenticaltothatsubmittedfor approvalwiththisapplication. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonour behalf,Iacknowledgethatallresponsibilityforcomplyingwiththetermsandconditions forcertification,stillresideswithArovastcorporationAddress:1202NMillerSt.,Suite A,Anaheim,CA92806,USA <Signature> Name：ChrisHuang Title：SrManager,ProductCompliance ApplicantCompany：Arovastcorporation

DATE:12/1/2022 EquipmentAutorisationDivision FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 FCCID:2ARBY-M101S ProductName:OasisMist1000SSmartUltrasonicCoolMistTowerHumidifier RequestforConfidentiality PursuanttoSections0.457and0.459ofthecommissionsrules,weherebyrequestthat thefollowingdocumentsbeheldconfidential: Schematics  Blockdiagram Operationdescription Thesematerialscontaintradesecretsandproprietaryinformationandarenot customarilyreleasedtothepublic.Thepublicdisclosureofthisinformationmightbe harmfultothecompanyandprovideunjustifiedbenefitstoourcompetitors. <Signature> Name：ChrisHuang Title：SrManager,ProductCompliance Company：ArovastCorporation

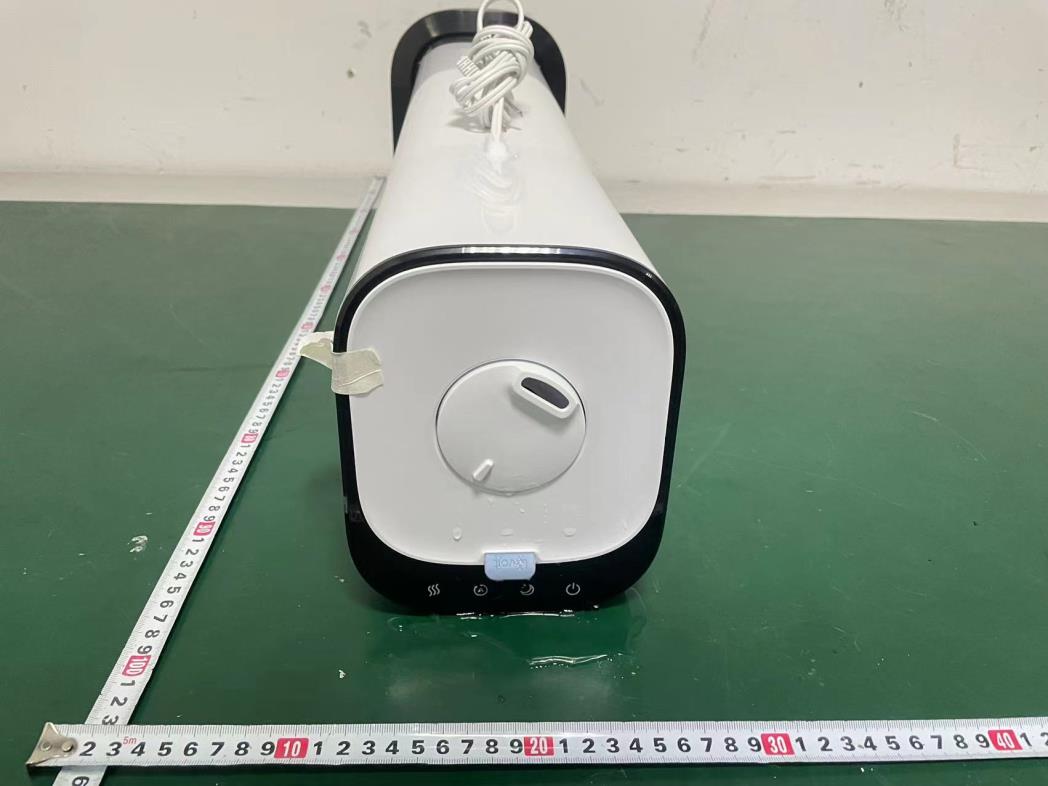

External Photos M/N: LUH-M101S-WUS External Photos M/N: LUH-M101S-WUS External Photos M/N: LUH-M101S-WUS

Label Location

Internal Photos M/N: LUH-M101S-WUS Internal Photos M/N: LUH-M101S-WUS Internal Photos M/N: LUH-M101S-WUS Internal Photos M/N: LUH-M101S-WUS Internal Photos M/N: LUH-M101S-WUS Internal Photos M/N: LUH-M101S-WUS Internal Photos M/N: LUH-M101S-WUS Antenna

FCC ID: 2ARBY-M101S EST Technology Co. ,Ltd Report No. ESTE-R2209164 Page 1 of 5 FCC 47 CFR MPE REPORT Arovast Corporation OasisMist1000S Smart Ultrasonic Cool Mist Tower Humidifier Model Number: LUH-M101S-WUS Additional Model: LUH-M101S-WUSR, LUH-M101S-Followed by up to 4 characters FCC ID: 2ARBY-M101S Applicant: Arovast Corporation Address: 1202 N Miller St. Suite A, Anaheim, California 92806, United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2209164 Date of Test: Sep. 15-28, 2022 Date of Report: Sep. 29, 2022 FCC ID: 2ARBY-M101S EST Technology Co. ,Ltd Report No. ESTE-R2209164 Page 2 of 5 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2ARBY-M101S EST Technology Co. ,Ltd Report No. ESTE-R2209164 Page 3 of 5 1.2. MPE Calculation Method E (V/m) = d G × P × 30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d × 377 G × P × 30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2ARBY-M101S EST Technology Co. ,Ltd Report No. ESTE-R2209164 Page 4 of 5 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) BLE1M 2402 7.01 5.0234 2440 7.65 5.8210 2480 7.10 5.1286 BLE2M 2402 7.16 5.2000 2440 7.91 6.1802 2480 7.62 5.7810 IEEE 802.11b 2412 18.46 70.1455 2437 15.93 39.1742 2462 16.68 46.5586 IEEE 802.11g 2412 17.08 51.0505 2437 16.46 44.2588 2462 15.98 39.6278 IEEE 802.11n HT20 2412 16.00 39.8107 2437 15.56 35.9749 2462 15.04 31.9154 IEEE 802.11n HT40 2422 15.18 32.9610 2437 15.14 32.6588 2452 14.76 29.9226 FCC ID: 2ARBY-M101S EST Technology Co. ,Ltd Report No. ESTE-R2209164 Page 5 of 5 3. Calculated Result and Limit Mode Peak output power (dBm) Target power （dBm） MAX Target power （dBm） Antenna gain Power Density (S) (mW /cm2) Limited of Power Density (S) (mW /cm2) Test Result (dBi) (Linear) 2.4G Band BLE 7.91 7±1 8 3.37 2.1727 0.00273 1 Complies IEEE 802.11b 18.46 18±1 19 3.37 2.1727 0.03433 1 Complies IEEE 802.11g 17.08 17±1 18 3.37 2.1727 0.02727 1 Complies IEEE 802.11n HT20 16.00 16±1 17 3.37 2.1727 0.02166 1 Complies IEEE 802.11n HT40 15.18 15±1 16 3.37 2.1727 0.01721 1 Complies End of Test Report

FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No.ESTE-R2209162 Page 1 of 69 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Arovast Corporation OasisMist1000S Smart Ultrasonic Cool Mist Tower Humidifier Model Number: LUH-M101S-WUS Additional Model: LUH-M101S-WUSR, LUH-M101S-Followed by up to 4 characters FCC ID: 2ARBY-M101S Applicant : Arovast Corporation Address: 1202 N Miller St. Suite A, Anaheim, California 92806, United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2209162 Date of Test: Sep. 15-28, 2022 Date of Report: Sep. 29, 2022 FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No.ESTE-R2209162 Page 2 of 69 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 1.3. Information of RF Cable .................................................................................................................. 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test Mode ......................................................................................................................................... 9 2.7. Power Setting of Test Software ........................................................................................................ 9 2.8. Duty Cycle ...................................................................................................................................... 10 2.9. Channel List ................................................................................................................................... 11 2.10. Test Equipment List ....................................................................................................................... 12 3. 6DB BANDWIDTH .......................................................................................................................... 14 3.1. Limit ............................................................................................................................................... 14 3.2. Test Setup ....................................................................................................................................... 14 3.3. Spectrum Analyzer Setting ............................................................................................................. 14 3.4. Test Procedure ................................................................................................................................ 14 3.5. Test Result ...................................................................................................................................... 14 4. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 15 4.1. Limit ............................................................................................................................................... 15 4.2. Test Setup ....................................................................................................................................... 15 4.3. Spectrum Analyzer Setting ............................................................................................................. 15 4.4. Test Procedure ................................................................................................................................ 15 4.5. Test Result ...................................................................................................................................... 15 5. POWER SPECTRAL DENSITY .......................................................................................................... 16 5.1. Limit ............................................................................................................................................... 16 5.2. Test Setup ....................................................................................................................................... 16 5.3. Spectrum Analyzer Setting ............................................................................................................. 16 5.4. Test Procedure ................................................................................................................................ 16 5.5. Test Result ...................................................................................................................................... 16 6. CONDUCTED BAND EDGE ............................................................................................................. 17 6.1. Limit ...…

Text truncated - open the document above for the full version.

FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 52 of 82 Appendix D: Maximum power spectral density Test Result Test Mode Antenna Frequency [MHz] Result [dBm/3-100kHz] Limit [dBm/3kHz] Verdict 11B Ant1 2412 -9.51 ≤8.00 PASS 2437 -13.33 ≤8.00 PASS 2462 -11.52 ≤8.00 PASS 11G Ant1 2412 -15.87 ≤8.00 PASS 2437 -16.02 ≤8.00 PASS 2462 -17 ≤8.00 PASS 11N20SISO Ant1 2412 -16.33 ≤8.00 PASS 2437 -16.81 ≤8.00 PASS 2462 -17.37 ≤8.00 PASS 11N40SISO Ant1 2422 -19.64 ≤8.00 PASS 2437 -19.76 ≤8.00 PASS 2452 -20.15 ≤8.00 PASS FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 53 of 82 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 54 of 82 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 55 of 82 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 56 of 82 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 57 of 82 Appendix E: Reference level measurement Test Result Test Mode Antenna Freq (MHz) Max.Point [MHz] Result [dBm] 11B Ant1 2412 2412.52 4.26 2437 2436.50 1.34 2462 2461.50 3.16 11G Ant1 2412 2407.03 -2.24 2437 2430.75 -2.63 2462 2463.28 -3.71 11N20SISO Ant1 2412 2405.75 -3.36 2437 2430.77 -3.43 2462 2466.99 -4.29 11N40SISO Ant1 2422 2410.79 -6.98 2437 2428.29 -7.02 2452 2455.76 -7.11 FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 58 of 82 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 59 of 82 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 60 of 82 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 61 of 82 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 62 of 82 Appendix F: Band edge measurements Test Result Test Mode Antenna Ch Name Frequency [MHz] Ref Level [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 Low 2412 4.26 -38.88 ≤-15.74 PASS High 2462 3.16 -38.87 ≤-16.84 PASS 11G Ant1 Low 2412 -2.24 -37.7 ≤-22.24 PASS High 2462 -3.71 -38.74 ≤-23.71 PASS 11N20SISO Ant1 Low 2412 -3.36 -38.31 ≤-23.36 PASS High 2462 -4.29 -38.81 ≤-24.29 PASS 11N40SISO Ant1 Low 2422 -6.98 -39.93 ≤-26.98 PASS High 2452 -7.11 -38.99 ≤-27.11 PASS FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 63 of 82 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 64 of 82 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 65 of 82 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 66 of 82 Appendix G: Conducted Spurious Emission Test Result Test Mode Antenna Frequency [MHz] Freq Range [Mhz] Ref Level [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 30~26500 4.26 -42.21 ≤-15.74 PASS 2437 30~26500 1.34 -42.09 ≤-18.66 PASS 2462 30~26500 3.16 -41.46 ≤-16.84 PASS 11G Ant1 2412 30~26500 -2.24 -42.09 ≤-22.24 PASS 2437 30~26500 -2.63 -42.21 ≤-22.63 PASS 2462 30~26500 -3.71 -41.96 ≤-23.71 PASS 11N20SISO Ant1 2412 30~26500 -3.36 -41.44 ≤-23.36 PASS 2437 30~26500 -3.43 -41.46 ≤-23.43 PASS 2462 30~26500 -4.29 -41.78 ≤-24.29 PASS 11N40SISO Ant1 2422 30~26500 -6.98 -41.91 ≤-26.98 PASS 2437 30~26500 -7.02 -42.45 ≤-27.02 PASS 2452 30~26500 -7.11 -41.15 ≤-27.11 PASS FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 67 of 82 Test Graphs 11B_Ant1_2412_30~26500 11B_Ant1_2437_30~26500 11B_Ant1_2462_30~26500 FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 68 of 82 11G_Ant1_2412_30~26500 11G_Ant1_2437_30~26500 11G_Ant1_2462_30~26500 FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 69 of 82 11N20SISO_Ant1_2412_30~26500 11N20SISO_Ant1_2437_30~26500 11N20SISO_Ant1_2462_30~26500 FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 70 of 82 11N40SISO_Ant1_2422_30~26500 11N40SISO_Ant1_2437_30~26500 11N40SISO_Ant1_2452_30~26500 FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 71 of 82 12. TEST SETUP PHOTO Conducted Test FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 72 of 82 Radiated Test (Below 1GHz) Radiated Test (Above 1GHz) FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 73 of 82 13. EUT PHOTO External Photos M/N: LUH-M101S-WUS FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 74 of 82 External Photos M/N: LUH-M101S-WUS FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 75 of 82 External Photos M/N: LUH-M101S-WUS FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 76 of 82 Internal Photos M/N: LUH-M101S-WUS FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 77 of 82 Internal Photos M/N: LUH-M101S-WUS FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 78 of 82 Internal Photos M/N: LUH-M101S-WUS FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 79 of 82 Internal Photos M/N: LUH-M101S-WUS FCC ID: 2ARBY-M101S EST Technology Co., Ltd Report No. ESTE-R2209163 Page 80 of 82 Internal Photos M/N: LUH-M101S-WUS FCC ID: 2…

Text truncated - open the document above for the full version.
