2ARBZ-SPS111WHumidifier

OWNER’S MANUAL HUMIDIFIER MODEL: SPS-111W Thank you for purchasing your new Humidifier. The humidifier helps you to restore an appropriate level of humidity and eliminate the discomfort associated with dry air. The ventilation system diffuses water in the form of a cool or warm vapor in order to provide the desired level of humidity. This vapor is characterized by a mist discharged through the diffusion nozzle. We wish you many years of healthy indoor air with this efficient and effective product. We recommend you spend some time reading this instruction manual in order to fully understand all the operational features it offers. Attention: pictures are for reference only. SAFETY WARNING * Read all the safety instructions carefully before use and keep this instruction manual for future reference: 1) Please follow all the safety precautions listed below for safety and to reduce the risk of injury or electrical shock. 2) This humidifier can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the humidifier in a safe way and understand the hazards involved. Children shall not play with the humidifier. Cleaning and user maintenance shall not be made by children without supervision. 3) Before using this humidifier ensures that the voltage of your electricity supply is the same as that indicated on the rating plate of the humidifier. 4) Always place the humidifier on a hard, flat and level surface. Avoid exposure to direct sunlight and always keep it away from walls and heat sources such as stoves, radiators, etc. Warning: The humidifier may not work correctly if it is not placed on a level surface. 5) Do not insert or remove the electric plug on the humidifier with wet hands. 6) If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified person in order to avoid a hazard. 7) To reduce the risk of electric shock, do not remove screws. The humidifier does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel. 8) Fill the tank with fresh, distilled or demineralized water. Do not drop any other liquid into water tank or water basin. Do not run the humidifier when there is no water in the tank or the water basin. 9) Do not shake the humidifier as this might cause the water spill over into the base of humidifier. 10) Never touch the water or components while the humidifier is in operation. 11) If there is an unusual smell when it is being used as described in these manual, switch the humidifier off, unplug it and have it examined by your dealer. 12) Do not pour hot water into the tank, i.e. at a temperature in excess of 40°C. 13) Unplug the humidifier before cleaning it or removing the tank. 14) Do not immerse the humidifier or the mains cable or plug in water or other liquids. 15) Never scrape the transducer with a hard tool. The humidifier must be cleaned regularly. To do this, refer to the cleaning instructions in this manual. 16) If you spill any liquid into the humidifier, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer. 17) Disconnect the humidifier from the power supply when not in use and before cleaning. 18) Ensure that the mains cable does not touch any hot surface and that it does not overhang a table edge. 19) Never use this humidifier in a room where aerosol products (sprays) are used or in a room or where oxygen is being administered. 20) Do not put items of clothing or towels on top of the humidifier. If the nozzle is obstructed, this may cause the humidifier to malfunction. 21) When moving the humidifier, lift it by the base humidifier and not by the water tank. 22) Do not use the humidifier if the air in the room is already sufficiently humid. 23) The ideal relative humidity level for human comfort is in fact between 45% and 65%. Excess humidity shows up in the form of condensation on cold surfaces or cold walls in the room. To measure the room‟s humidity correctly, use a hygrometer available in most specialist shops and hypermarkets. 24) The humidifier is designed for indoor and domestic use only. Working Principle: Humidifier uses the ultrasonic high-frequency oscillator to break up water into tiny water particles with the diameter of about 1-5um.The ventilation system blows out this water into the dry air where they evaporate to give the required humidity. The clearly visible smooth and even fog can be seen out of the humidifier. * Correct Humidity Level: What exactly is relative humidity: Relative humidity is the amount of water vapor in the air, expressed as a percentage of the maximum amount that the air could hold at the given temperature. We normally mark it with %RH, like 45%RH. Atmospheric air always contains water vapor, the percentage of which depends on the meteorological conditions. The higher the temperature is the more the air keeps water vapor. Therefore, we use the concept of „relative humidity”. In winter, when the cold air is heated up to the comfort temperature, the relative percentage of the water vapor falls which means the relative humidity drops. In order to keep a comfortable and health environment at home, we need some artificial addition of water or water vapor to the room air- that‟s air humidification. Ideal relative humidity levels under different situations. The most comfortable RH for human being: 45-65%RH Ideal RH for prophylactic and curative purpose: 40-55%RH Computer and telecom apparatuses: 45-60%RH Furniture and musical instruments: 40-60%RH Library art gallery and museums: 40-60%RH * Relative Humidity 1. The percentage of water mist in a given space with a given air temperature is named as relative humidity, usually marked as %RH, i.e. 45%RH. The air contains water mist more or less. The proportion of water mist to th…

Text truncated - open the document above for the full version.

Foshan Samyoo Electronic Co., LTD Agent Authorization Company: Foshan Samyoo Electronic Co., LTD Address: No.2, 6th East Road, Jiangcun Industrial Zone, Leliu, Shunde, Foshan, Guangdong, China Product Name: Humidifier Trade Mark: / Model Number(s): SPS-111W, H8, H9, H10 FCC ID: 2ARBZ-SPS111W We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-09-14 Name: Yucheng Lu Title: General Manager Company: Foshan Samyoo Electronic Co., LTD

Foshan Samyoo Electronic Co., LTD Add: No.2, 6th East Road, Jiangcun Industrial Zone, Leliu, Shunde, Foshan, Guangdong, China Tel: +86-0757-28601701 Fax: +86-0757-28601711 Date: 2020-09-14 To: MiCOM Labs Inc 575 Boulder Court, Pleasanton, California 94566, USA Dear Sir/Madam, We, Foshan Samyoo Electronic Co., LTD Hereby declares the following statement for MiCOM Labs Inc, PCB board, structure and internal of these model(s) are the same, Only model name and shell color is different for these models.. Product name: Humidifier Trade Mark: / Model No.: SPS-111W, H8, H9, H10 Sincerely, Client’s name / title : Yucheng Lu / General Manager Address: No.2, 6th East Road, Jiangcun Industrial Zone, Leliu, Shunde, Foshan, Guangdong, China Tel: +86-0757-28601701 Fax: +86-0757-28601711 E-mail: [email protected]

Foshan Samyoo Electronic Co., LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-09-14 Subject; Request for Confidentiality FCC ID: 2ARBZ-SPS111W To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yucheng Lu Title: General Manager

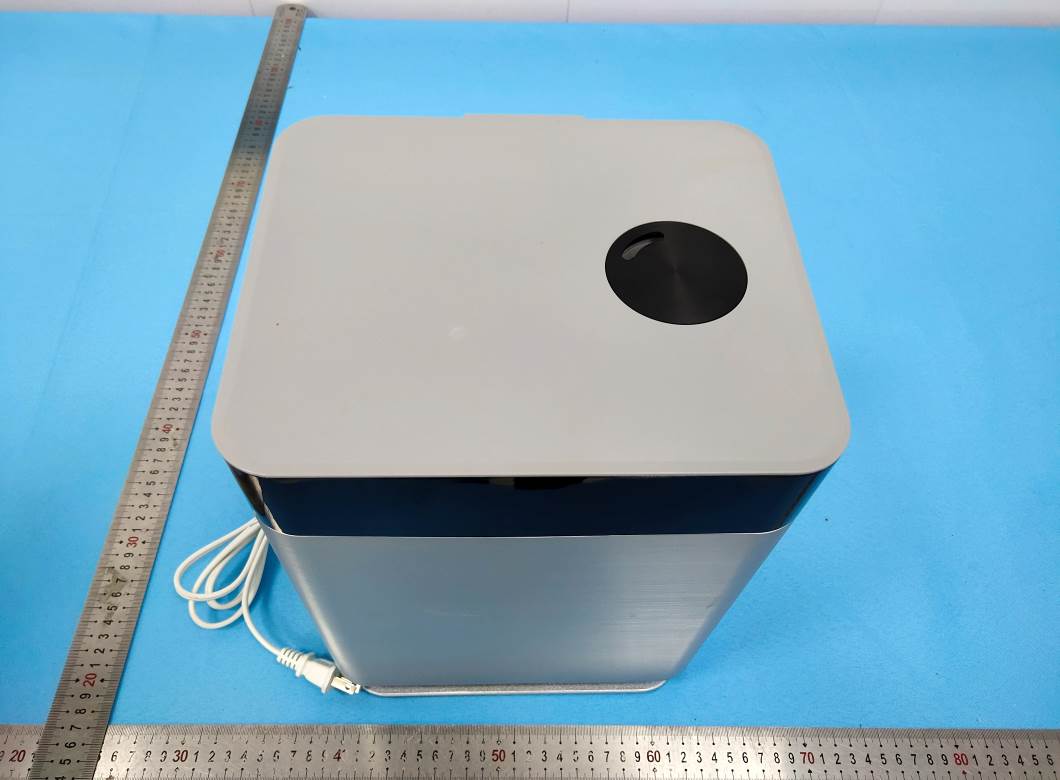

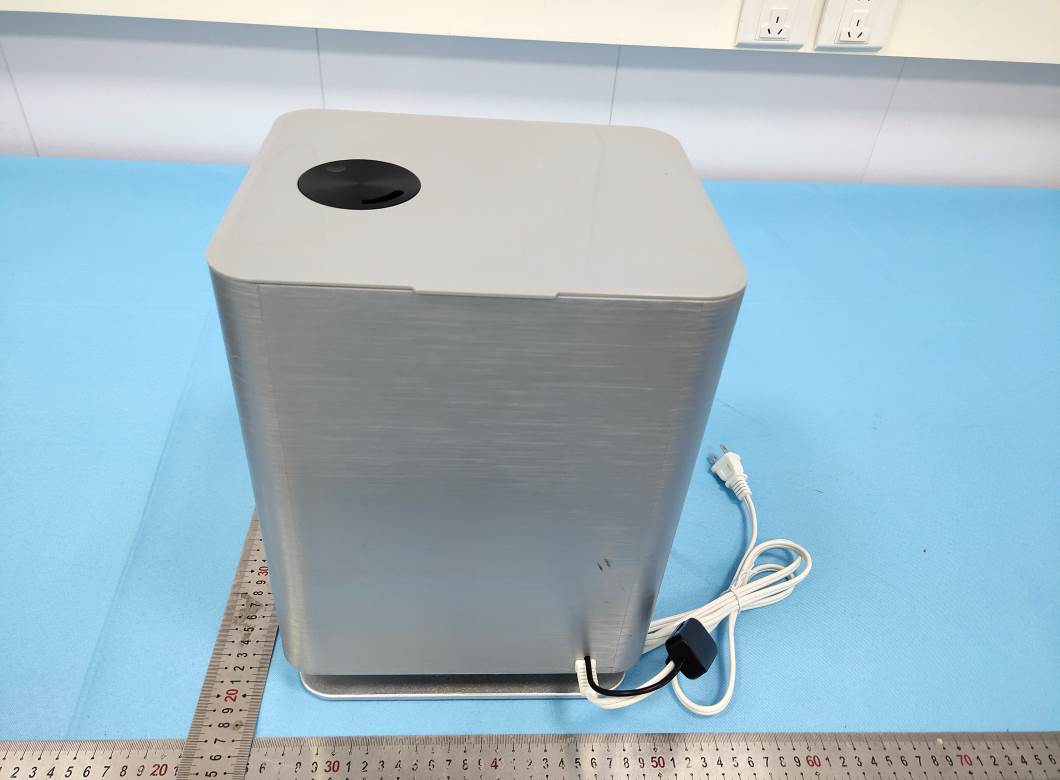

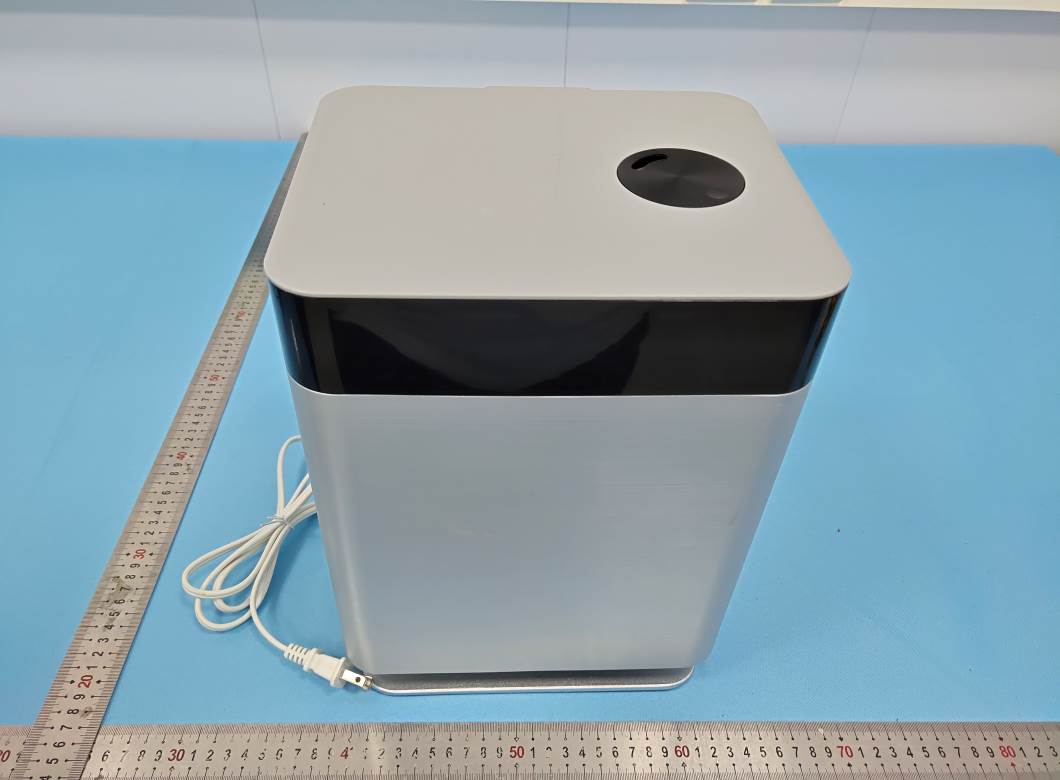

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION (Size: L3.0m x 2.0cm) Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location Humidifier Model No.: SPS-111W FCC ID: 2ARBZ-SPS111W Made In China

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 6 Internal Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 6 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 6 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 6 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 6 Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 6 of 6 Fig.11 Fig.12 WIFI Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ‐SPS111W This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 Maximum Permissible Exposure Report 1. Product Information FCC ID: 2ARBZ‐SPS111W Product name Humidifier Test Model SPS‐111W Power supply Input: 100‐240V~, 50/60Hz Operation frequency 2.412‐2.462GHz for 2.4G WIFI Antenna Type PCB Antenna Antenna Gain 0 dBi Hardware version / Software version / Channel Number 11 channels for 20MHz bandwidth (2412~2462MHz) 7 channels for 40MHz bandwidth (2422~2452MHz) Channel Spacing 5MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far‐field plane‐wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ‐SPS111W This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane‐wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97‐01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information C2M can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Notes Antenna PCBAntenna 2400 MHz –5850MHz0dBiWiFi Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ‐SPS111W This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 6. Conducted Power [2.4GWIFI Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) IEEE 802.11b 1 2412 8.46 6 2437 7.89 11 2462 7.95 IEEE 802.11g 1 2412 8.49 6 2437 8.03 11 2462 8.18 IEEE 802.11n HT20 1 2412 9.11 6 2437 8.68 11 2462 8.81 7. Measurement Results 2.4GWIFI IEEE 802.11b (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 8.0 8.0 8.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11g (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 8.0 8.0 8.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT20 (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 9.0 9.0 9.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ‐SPS111W This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 8. Evaluation Results As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. 2.4GWIFI Band/Mode RF output power Antenna Gain (dBi) MPE (mW/cm2) MPE Limits (mW/cm2) dBm mW IEEE 802.11b 9.0 7.9433 0 0.0016 1.0000 IEEE 802.11g 9.0 7.943…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 1 of 35 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Humidifier Trade Mark: N/A Test Model: SPS-111W Environmental Conditions Temperature: 23.1  C Relative Humidity: 54.5% ATM Pressure: 100.0 kPa Test Engineer: Jay Li Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 99.4 PASS 11G 2437 Ant1 98.74 PASS 11N20SISO 2437 Ant1 98.73 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 2 of 35 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 3 of 35 Duty Cycle_11N20SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 4 of 35 A.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 8.46 30 PASS MCH 7.89 30 PASS HCH 7.95 30 PASS 11G LCH 8.49 30 PASS MCH 8.03 30 PASS HCH 8.18 30 PASS 11N20SISO LCH 9.11 30 PASS MCH 8.68 30 PASS HCH 8.81 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 5 of 35 A.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -18.568 8 PASS MCH -19.895 8 PASS HCH -18.542 8 PASS 11G LCH -26.716 8 PASS MCH -26.756 8 PASS HCH -26.900 8 PASS 11N20SISO LCH -27.920 8 PASS MCH -27.835 8 PASS HCH -27.022 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 6 of 35 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 7 of 35 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 8 of 35 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 9 of 35 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 10 of 35 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 10.13 ≥0.5 PASS MCH 10.12 ≥0.5 PASS HCH 10.12 ≥0.5 PASS 11G LCH 16.35 ≥0.5 PASS MCH 16.34 ≥0.5 PASS HCH 16.32 ≥0.5 PASS 11N20SISO LCH 18.52 ≥0.5 PASS MCH 18.39 ≥0.5 PASS HCH 18.39 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 11 of 35 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 12 of 35 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 13 of 35 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 14 of 35 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 15 of 35 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH -3.429 -37.860 -23.429 PASS MCH -3.836 -37.495 -23.836 PASS HCH -4.222 -37.903 -24.222 PASS 11G LCH -10.077 -37.798 -30.077 PASS MCH -10.571 -37.645 -30.571 PASS HCH -9.872 -37.598 -29.872 PASS 11N20 SISO LCH -10.239 -36.937 -30.239 PASS MCH -10.689 -38.441 -30.689 PASS HCH -10.38 -38.689 -30.380 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 16 of 35 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 17 of 35 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 18 of 35 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 19 of 35 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 20 of 35 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 21 of 35 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 22 of 35 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 23 of 35 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 24 of 35 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 25 of 35 A.6 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict 11B LCH -3.280 -49.937 -23.28 PASS HCH -3.838 -49.622 -23.84 PASS 11G LCH -9.944 -49.273 -29.94 PASS HCH -9.890 -49.372 -29.89 PASS 11N20SISO LCH -10.296 -49.858 -30.3 PASS HCH -10.359 -48.732 -30.36 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 26 of 35 11B/HCH 11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 27 of 35 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 28 of 35 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA Page 29 of 35 A.7 Restrict-band band-edge measur…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 35 FCC TEST REPORT For Foshan Samyoo Electronic Co., LTD Humidifier Test Model: SPS-111W Additional Model No.: Please Refer To Page 6 Prepared for : Foshan Samyoo Electronic Co., LTD Address : No.2, 6th East Road, Jiangcun Industrial Zone, Leliu, Shunde, Foshan, Guangdong, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : August 12, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : August 12, 2020 ~ August 31, 2020 Date of Report : September 03, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 35 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS200811029AEA Date of Issue .................................. : September 03, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Foshan Samyoo Electronic Co., LTD Address .......................................... : No.2, 6th East Road, Jiangcun Industrial Zone, Leliu, Shunde, Foshan, Guangdong, China Test Specification Standard ........................................ : FCC CFR 47 PART 15 C (15.247) Test Report Form No. .................. : LCSEMC-1.0 TRF Originator ............................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : Humidifier Trade Mark ..................................... : N/A Model/ Type reference ................... : SPS-111W Ratings ........................................... : Input: 120V 60Hz Result ........................................... : Positive Compiled by: Supervised by: Approved by: Ray Yang/ Administrators Jin Wang / Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 35 FCC -- TEST REPORT EUT......................................... : Humidifier Type / Model........................... : SPS-111W Applicant............................... : Foshan Samyoo Electronic Co., LTD Address.................................. : No.2, 6th East Road, Jiangcun Industrial Zone, Leliu, Shunde, Foshan, Guangdong, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Foshan Samyoo Electronic Co., LTD Address................................... : No.2, 6th East Road, Jiangcun Industrial Zone, Leliu, Shunde, Foshan, Guangdong, China Telephone............................... : Fax.......................................... : Factory................................... : Foshan Samyoo Electronic Co., LTD Address................................... : No.2, 6th East Road, Jiangcun Industrial Zone, Leliu, Shunde, Foshan, Guangdong, China Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200811029AEA September 03, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARBZ-SPS111W Report No.: LCS200811029AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 35 Revision History Revision Issue DateRevisionsRevised By 000 September 03, 2020Initial IssueGavin Liang SHENZHEN LCS COMPLIANCE TE…

Text truncated - open the document above for the full version.
