2ARD3-LA132RAY SPEAKER

0 mm 40 mm Design by neil poulton LA132 RAY SPEAKER IN THE BOX 2x Ray Speaker 1x USB-C charging cable 1x User manual PRODUCT OVERVIEW 1. Speaker 2. LED light for Bluetooth & Charging status 3. USB-C port 4. Microphone 5. Button 6. Magnetic surface FIRST PAIRING Important note: These two speakers are already paired together. Simply turn them ON, then connect them to your mobile device via Bluetooth. 1. Enable Bluetooth on your mobile device. 2. Press and hold the button on each speaker to turn them ON. 3. Select LEXON RAY SPEAKER from the Bluetooth list on your mobile device. 4. Play music. (A) To Attach the two speakers together: Position the magnetic surfaces towards each other. (B) Play/Pause: When music is playing, press the button to play or pause the music. (C) Charging: Use the USB-C charging cable supplied and a USB power adapter (not supplied) or any computer to charge your device. A full charge takes 3 hours. Unpair the two speakers: When both RAY SPEAKERs are connected, press the button on 1 RAY SPEAKER twice to disconnect them. Pair the two speakers again: Turn ON both RAY SPEAKERs and press the button on one of the 2 RAY SPEAKERs twice to connect them together. Go to the Bluetooth settings on your mobile device and select LEXON RAY SPEAKER. To answer or end a call, simply press the button. LED INFORMATION Charging: Red Low battery: Red LED flashing slowly Fully charged: Off Ready to pair / Power ON: Blue LED flashing quickly Only one speaker connected: Blue LED flashing slowly Both speakers connected via TWS: Main unit - Blue LED flashing slowly / Second unit - Steady blue SAFETY PRECAUTIONS • Do not place the device near heat sources such as heaters or radiators. • Only use the voltage specified as correct for the device. • Do not expose the device to water during charging, as this could permanently damage the speaker or power source. • Keep away from corrosive liquids. • Do not insert any conductive objects into the speaker or charging port. • Do not open the device or attempt to disassemble the internal parts or modify them in any way. PRODUCT SPECIFICATIONS Material: Aluminum / ABS Weight: 0.23 lbs / 105 g each Dimensions: Ø1.85 x 2.24"/Ø4.7 x 5.7 cm Speaker power: 2x 3W Water resistance: IPX4 Bluetooth version: 5.0 Bluetooth range: 10m Frequency range: 2.402 – 2.480 GHz Battery capacity: 700 mAh Battery voltage: 3.7V Input voltage: 5V Playtime: 8h Charging time: 3h Charging system: USB Type-C Operating temperature: 0°C – 35 °C International warranty: 1 year LIEFERUMFANG 2x Ray-Lautsprecher 1x USB-C-Ladekabel 1x Bedienungsanleitung PRODUKTÜBERSICHT 1. Lautsprecher 2. LED-Licht für Bluetooth- und Ladestatus 3. USB-C-Anschluss 4. Mikrofon 5. Knopf 6. Magnetische Oberfläche ERSTES KOPPELN Wichtiger Hinweis: Diese beiden Lautsprecher sind untereinander bereits gekoppelt. Einfach EINSCHALTEN und anschließend mit Ihrem Mobilgerät via Bluetooth verbinden. 1. Bluetooth an Ihrem Mobilgerät aktivieren. 2. Knopf auf beiden Lautsprechern gedrückt halten, um diese EINZUSCHALTEN. 3. Wählen Sie LEXON RAY SPEAKER aus der Bluetooth-Liste auf Ihrem Mobilgerät. 4. Spielen Sie Musik ab. (A) Um beide Lautsprecher miteinander zu befestigen: Positionieren Sie die magnetischen Oberflächen zueinander. (B) Wiedergabe/Pause: Während Musik abspielt, drücken Sie den Knopt um die Musik zu pausieren oder wieder abzuspielen. (C) Laden: Verwenden Sie das mitgelieferte USB-C-Ladekabel und ein USB-Netzteil (nicht im Lieferumfang enthalten) oder einen Computer zum Laden Ihres Geräts. Ein vollständiges Aufladen dauert etwa 3 Stunden. Entkoppeln Sie die beiden Lautsprecher: Sind beide RAY-Lautsprecher verbunden, dücken Sie zweimal auf den Knopf von einem der RAY-Lautsprechern um diese zu trennen. Koppeln Sie beide Lautsprecher wieder: Schalten Sie beide Ray-Lautsprecher EIN und drücken Sie den Kopf auf einem der beiden RAY-Lautsprechern zweimal um diese zu miteinander verbinden. Gehen Sie zu den Bluetooth-Einstellungen auf Ihrem Mobilgerät und wählen Sie LEXON RAY SPEAKER aus. Drücken Sie einfach die Taste um einen Anruf zu beantworten oder zu beenden. LED-INFORMATIONEN Laden: Rot Schwacher Akku: Rote LED blinkt langsam Voll geladen: Aus Zum Koppeln bereit / EINGESCHALTET: Blaue LED blinkt schnell Nur einer der beiden Lautsprecher ist verbunden: Blaue LED blinkt langsam Beide Lautsprecher sind via TWS verbunden: Hauptgerät - Blaue LED blinkt langsam / Zweitgerät - Leuchtet stetig blau SICHERHEITSVORKEHRUNGEN • Platzieren Sie das Gerät nicht nahe an Wärmequellen wie etwa Öfen, Heizungen oder Heizkörpern. • Verwenden Sie nur die für das Gerät angegebene Spannung. • Setzen Sie das Geräts während des Ladevorgangs keinem Wasser aus, da dies den Lautsprecher oder die Stromquelle dauerhaft beschädigen könnte. • Von ätzenden Flüssigkeiten fernhalten. • Keine leitfähigen Gegenstände in den Lautsprecher oder in den Ladeanschluss hineinstecken. • Öffnen Sie das Gerät nicht und versuchen Sie nicht, die inneren Teile zu demontieren oder in irgendeiner Weise zu verändern. PRODUKTSPEZIFIKATIONEN Material: Aluminium / ABS Gewicht: Jeweils 0,23 lbs / 105 g Größe: Ø1,85 x 2,24"/Ø4,7 x 5,7 cm Lautsprecherleistung: 2 x 3 W Wasserbeständigkeit: IPX4 Bluetooth-Version: 5,0 Bluetooth-Reichweite: 10 m Frequenzbereich: 2.402 - 2.480 GHz Batteriekapazität: 700 mAh Batteriespannung: 3,7 V Eingangsspannung: 5 V Wiedergabezeit: 8 Std. Ladezeit: 3 Std. Ladesystem: USB Typ C Betriebstemperatur: 0°C – 35°C Internationale Garantie: 1 Jahr DANS LA BOÎTE 2x Enceintes Ray Speaker 1x Câble de chargement USB-C 1x Manuel d''utilisation VUE D'ENSEMBLE DU PRODUIT 1. Enceinte 2. Voyant LED pour le statut Bluetooth et de charge 3. Port USB-C 4. Microphone 5. Bouton 6. Surface magnétique PREMIÈRE UTILISATION Note importante: Ces deux enceintes sont déjà connectées ensemble. Allumez-les simplement, puis connectez-les à votre appareil mobile via Bluetooth. 1. Activez le Bluetooth sur votre appareil mobile. 2. Maintenez enfoncé le bouton sur chaque encein…

Text truncated - open the document above for the full version.

1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: BOW USA LLC FRN: 0034003665 Contact Name: Boris Brault Address: 100 N Biscayne BLVD, Miami, FL 33132 USA Telephone No: +1 786-687-4068 Email: [email protected] Applicant: Company name: LEXON FRN: 0027880947 Product Description: RAY SPEAKER Grantee code: 2ARD3 FCC ID: 2ARD3-LA132 Contact Name: Fred Boutin Address: 125 avenue des Champs élysées 75008 Paris France Telephone No: +33141102000 Email: [email protected] [LEXON] certifies that, as of the date of this filing of the application with the TCB, [BOW USA LLC] is our designated US agent for service of process for the above referenced FCC ID. [LEXON] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [BOW USA LLC] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 12.0 8.2023 Applicant’s Name: Fred Boutin US Agent’s Name: Boris Brault Title: Title: CEO Signature Signature

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: LEXON FRN: 0027880947 Grantee code: 2ARD3 FCC ID: 2ARD3-LA132 Contact Name: Fred Boutin Address: 125 avenue des Champs élysées 75008 Paris France Telephone No: +33141102000 Fax No: 33 (0) 1 41 10 20 01 Email: [email protected] i. [LEXON] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [ LEXON] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. LEXON certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Date: 12.0 8.2023 Applicant’s Name: Fred Boutin Title: Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: LEXON Address: 125 avenue des Champs élysées 75008 Paris France Product Name: RAY SPEAKER Model Number: LA132 FCC Identifier: 2ARD3-LA132 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Fred Boutin Date: 12/8/2023 Title: Signature of applicant:

C5266091_X10_Ed.2 1/1 LEXON Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 12/8/2023 Subject: Request for Confidentiality FCC ID: 2ARD3-LA132 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name: Fred Boutin Title:

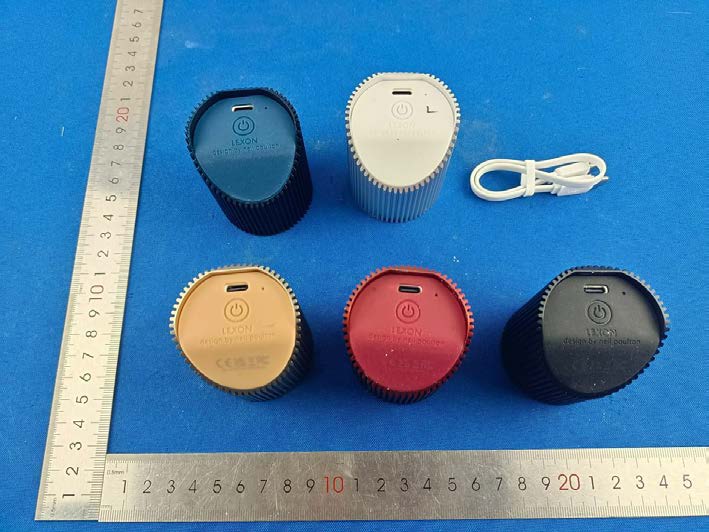

Page 1 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Photographs of the EUT (External Photos) Model: LA132 Page 2 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Page 3 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Page 4 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected]

Area for laser

Page 1 of 3 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Photographs of the EUT (Internal Photos) Model: LA132 Page 2 of 3 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] ANT Page 3 of 3 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected]

Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] RF EXPOSURE Test Report Report No.: MTi230831012-06E2 Date of issue: 2023-10-09 Applicant: LEXON Product: RAY SPEAKER Model(s): LA132 FCC ID: 2ARD3-LA132 Shenzhen Microtest Co., Ltd. http://www.mtitest.com - Page 2 of 6- Report No.: MTi230831012-06E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Instructions 1. The report shall not be partially reproduced without the written consent of the laboratory; 2. The test results of this report are only responsible for the samples submitted; 3. This report is invalid without the seal and signature of the laboratory; 4. This report is invalid if transferred, altered or tampered with in any form without authorization; 5. Any objection to this report shall be submitted to the laboratory within 15 days from the date of receipt of the report. - Page 3 of 6- Report No.: MTi230831012-06E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Applicant: LEXON Address: 125 avenue des Champs-Élysées 75008 Paris France Manufacturer: LEXON Address: 125 avenue des Champs-Élysées 75008 Paris France Product description Product name: RAY SPEAKER Trademark: LEXON Model name: LA132 Serial Model: N/A Standards: N/A Test method: KDB 447498 D01 v06 Date of Test Date of test: 2023-09-27 to 2023-10-09 Test result: Pass Test Engineer : (Maleah Deng) Reviewed By: : (Leon Chen) Approved By: : (Tom Xue) - Page 4 of 6- Report No.: MTi230831012-06E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Table of Contents 1. STANDALONE SAR TEST EXCLUSION CONSIDERATIONS ............................................................................................ 5 2. SAR TEST EXCLUCSION THRESHOLDS ........................................................................................................................ 6 - Page 5 of 6- Report No.: MTi230831012-06E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] 1. Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance defined in 4.1 f) is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified, typically in the SAR measurement or SAR analysis report, by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting are required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions. a) For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where  f (GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison  The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. b) For 100 MHz to 6 GHz and test separation distances > 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following (also illustrated in Appendix B): 1) {[Power allowed at numeric threshold for 50 mm in step a)] + [(test separation distance – 50 mm)·(f(MHz)/150)]} mW, for 100 MHz to 1500 MHz 2) {[Power allowed at numeric threshold for 50 mm in step a)] + [(test separation distance – 50 mm)·10]} mW, for > 1500 MHz and ≤ 6 GHz c) For frequencies below 100 MHz, the following may be considered for SAR test exclusion (also illustrated in Appendix C): 1) For test separation distances > 50 mm and < 200 mm,…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2 450MHz2500MHz2400MHz 2 450MHz 2500MHz Center Frequency -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain -0.58dBi PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500-0.585582-22.0315-6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 2400-5.2537-22.1424-12.4294 2450-2.4652-24.5837-10.4702 2500-1.86120-29.5214-9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

The test report is only used for customer scientific research, teaching, internal quality control and other purposes, and is for internal reference only. Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 We b : www.mtitest.com E-mail: [email protected] Test Report Report No.: MTi230831012-06E1 Date of issue: 2023-10-09 Applicant: LEXON Product: RAY SPEAKER Model(s): LA132 FCC ID: 2ARD3-LA132 Shenzhen Microtest Co., Ltd. http://www.mtitest.com Page 2 of 65 Report No.: MTi230831012-06E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Instructions 1. This test report shall not be partially reproduced without the written consent of the laboratory. 2. The test results in this test report are only responsible for the samples submitted 3. This test report is invalid without the seal and signature of the laboratory. 4. This test report is invalid if transferred, altered, or tampered with in any form without authorization. 5. Any objection to this test report shall be submitted to the laboratory within 15 days from the date of receipt of the report. Page 3 of 65 Report No.: MTi230831012-06E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Table of contents 1 General Description ......................................................................................................................... 5 1.1 Description of the EUT ............................................................................................................................... 5 1.2 Description of test modes .......................................................................................................................... 5 1.3 Environmental Conditions .......................................................................................................................... 7 1.4 Description of support units ....................................................................................................................... 7 1.5 Measurement uncertainty .......................................................................................................................... 7 2 Summary of Test Result .................................................................................................................. 8 3 Test Facilities and accreditations ................................................................................................... 9 3.1 Test laboratory ........................................................................................................................................... 9 4 List of test equipment .................................................................................................................... 10 5 Evaluation Results (Evaluation) .................................................................................................... 11 5.1 Antenna requirement ............................................................................................................................... 11 6 Radio Spectrum Matter Test Results (RF) .................................................................................... 12 6.1 Conducted Emission at AC power line .................................................................................................... 12 6.2 Occupied Bandwidth ................................................................................................................................ 15 6.3 Maximum Conducted Output Power ........................................................................................................ 17 6.4 Channel Separation ................................................................................................................................. 19 6.5 Number of Hopping Frequencies ............................................................................................................. 20 6.6 Dwell Time ............................................................................................................................................... 21 6.7 RF conducted spurious emissions and band edge measurement .......................................................... 23 6.8 Band edge emissions (Radiated) ............................................................................................................ 24 6.9 Radiated emissions (below 1GHz) ......................................................................................................... 29 6.10 Radiated emissions (above 1GHz) .......................................................................................................... 33 Photographs of the test setup ............................................................................................................. 40 Photographs of the EUT....................................................................................................................... 41 Appendix A: 20dB Emission Bandwidth ............................................................................................. 42 Appendix B: Maximum conducted output power ............................................................................... 45 Appendix C: Carrier frequency separation ......................................................................................... 48 Appendix D: Time of occupancy ......................................................................................................... 50 Appendix E: Number of hopping channels.....................................................................…

Text truncated - open the document above for the full version.

Page 41 of 65 Report No.: MTi230831012-06E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Photographs of the EUT Refer to Appendix - EUT Photos Page 42 of 65 Report No.: MTi230831012-06E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Appendix Appendix A: 20dB Emission Bandwidth Test Result Test Mode Antenna Frequency [MHz] 20db EBW [MHz] DH5 Ant1 2402 0.942 2441 0.954 2480 0.945 2DH5 Ant1 2402 1.269 2441 1.272 2480 1.359 Page 43 of 65 Report No.: MTi230831012-06E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 Page 44 of 65 Report No.: MTi230831012-06E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] 2DH5_Ant1_2441 2DH5_Ant1_2480 Page 45 of 65 Report No.: MTi230831012-06E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Appendix B: Maximum conducted output power Test Result Peak Te s t Mode Antenna Frequency [MHz] Conducted Peak Power [dBm] Limit [dBm] Verdict DH5 Ant1 2402 -1.09 ≤20.97 PASS 2441 -0.71 ≤20.97 PASS 2480 0.78 ≤20.97 PASS 2DH5 Ant1 2402 -0.27 ≤20.97 PASS 2441 0.02 ≤20.97 PASS 2480 1.52 ≤20.97 PASS Page 46 of 65 Report No.: MTi230831012-06E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Te s t Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 Page 47 of 65 Report No.: MTi230831012-06E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] 2DH5_Ant1_2441 2DH5_Ant1_2480 Page 48 of 65 Report No.: MTi230831012-06E1 Address: 101, No. 7, Zone 2…

Text truncated - open the document above for the full version.
