2AREL-MW312AC1200 Dual Band Home Mesh Wi-Fi System

2/;㬮Ъ < Ӭ࣍  аޢપ ܑՌتؾ͹SSͫҸٛrͫ஼ރ6澞ߕૅ Mа঻ԭӳ͹ ԥ௲ԭӳ௎ܑࣴ މߕ澝ԭӳԽމ澝ԭӳٗਫ֮ਈࢠૡ8U.9ܶј੽ࡌ澞͹ࡌ੽ߐ܉ ߎ࣍ ㇎Է ߊޙ ܑ௎ࣴ Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Caution!Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.FCC Statement This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.Radiation Exposure Statement1.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.2.This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Shenzhenshi DajieKejiYouxianGongsi Longhuaxinqu Minzhijiedao Huangjia shangyeguang chang B711 Shenzhen Guangdong 518000, CN S henzhenshi DajieKejiYouxianGongsi F CC ID: 2AREL-MW312 Model Number: MW312, MW312S, MW313, MW313S DATE: May 20, 2020 To Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 We, Shenzhenshi DajieKejiYouxianGongsi don’t provide any controls or software to allow the operation outside of the USA frequency band (only use 2412MHz to 2462MHz) when we sell this product in USA. Best Regards! Name： Shaofei Li Company: Shenzhenshi DajieKejiYouxianGongsi Address: Longhuaxinqu Minzhijiedao Huangjia shangyeguang chang B711 Shenzhen Guangdong 518000, CN Phone: +86 755-36894114 Fax: +86 755-36894114 E-Mail: [email protected]

Shenzhenshi DajieKejiYouxianGongsi Ag ent Authorization D ate: 2020-05-20 C ompany: Shenzhenshi DajieKejiYouxianGongsi A ddress: Longhuaxinqu Minzhijiedao Huangjia shangyeguang chang B711 Shenzhen Guangdong 518000, CN P roduct Description: AC1200 Dual Band Home Mesh Wi-Fi System F CC ID Number: 2AREL-MW312 Tested Model Number: MW312, MW312S, MW313, MW313S W e authorize Eurofins Product Service GmbH, Storkower Strasse 38c, D-15526 Reichenwalde, Germany, to act on our behalf on all matters concerning the certification of above mentioned equipment. We declare that Eurofins Product Service GmbH is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. W e, Shenzhenshi DajieKejiYouxianGongsi, the undersigned, hereby authorize Shenzhen Toby Technology Co., Ltd. (Ivan Su, Supervisor of EMC Dep.), Shenzhen Microwave Certification Services Co., Ltd. (Gilbert Lui, Marketing Manager) and Ka.Ma.S UG (Karin Schmidt, CEO) on our behalf, to apply to the Federal Communications Commission on our equipment. We, the undersigned, hereby authorize Shenzhen Toby Technology Co., Ltd. (Ivan Su, Supervisor of EMC Dep.) to act on our behalf in matters relating to the application for a FCC equipment authorization for mentioned FCC ID Number including the signing of Form 731, necessary forms and documents in connection with this application. Any and all acts carried out by Shenzhen Toby Technology Co., Ltd. (Ivan Su, Supervisor of EMC Dep.) on our behalf shall have the same effect as acts of our own. This authorization expires on February 28, 2022. Y ours Sincerely, <S ignature of Tan Shaofei Li > ------ ----------------------------------------------------------------------------- Name： Shaofei Li Company: Shenzhenshi DajieKejiYouxianGongsi Address: Longhuaxinqu Minzhijiedao Huangjia shangyeguang chang B711 Shenzhen Guangdong 518000, CN Phone: +86 755-36894114 Fax: +86 755-36894114 E-Mail: [email protected]

Shenzhenshi DajieKejiYouxianGongsi CONFIDENTIALITY REQUEST for Certification under the FCC Rules D ate: May 20, 2020 F ederal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 TO WHOM IT MAY CONCERN P ursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the following product: FCC ID Number: 2AREL-MW312 Tested Model Number: MW312, MW312S, MW313, MW313S For the product stated above, we request that the following information be held confidential: E xhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days Block Diagram Schematic Diagram/ Circuit Diagram Circuit Description/ Operational Description Parts List Tune Up Information User’s Manual External Photos Internal Photos Test Setup Photos The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. T he short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. Please do not hesitate to contact me if you have any queries. Y ours Sincerely, <Signature of Tan Shaofei Li > ------ ----------------------------------------------------------------------------- Name： Shaofei Li Company: Shenzhenshi DajieKejiYouxianGongsi Address: Longhuaxinqu Minzhijiedao Huangjia shangyeguang chang B711 Shenzhen Guangdong 518000, CN Phone: +86 755-36894114 Fax: +86 755-36894114 E-Mail: [email protected]

Shenzhenshi DajieKejiYouxianGongsi Model Declaration Letter FCC ID: 2AREL-MW312 W e, the undersigning company C ompany Name: Shenzhenshi DajieKejiYouxianGongsi Address: Longhuaxinqu Minzhijiedao Huangjia shangyeguang chang B711 Shenzhen Guangdong 518000, CN Hereby confirm that the following products: Product description: AC1200 Dual Band Home Mesh Wi-Fi System Model(s): MW312, MW312S, MW313, MW313S Brand Name: Victure A ll these model product are identical the same, for commercial use with different model number <Signature of Tan Shaofei Li > ------ ----------------------------------------------------------------------------- Name ： Shaofei Li Company: Shenzhenshi DajieKejiYouxianGongsi Address: Longhuaxinqu Minzhijiedao Huangjia s hangyeguang chang B711 Shenzhen Guangdong 518000, CN Phone: +86 755-36894114 Fax: +86 755-36894114 E-Mail: [email protected]

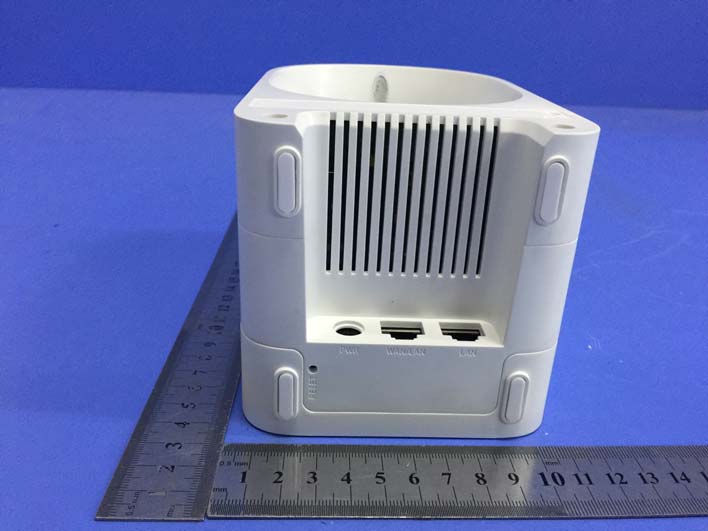

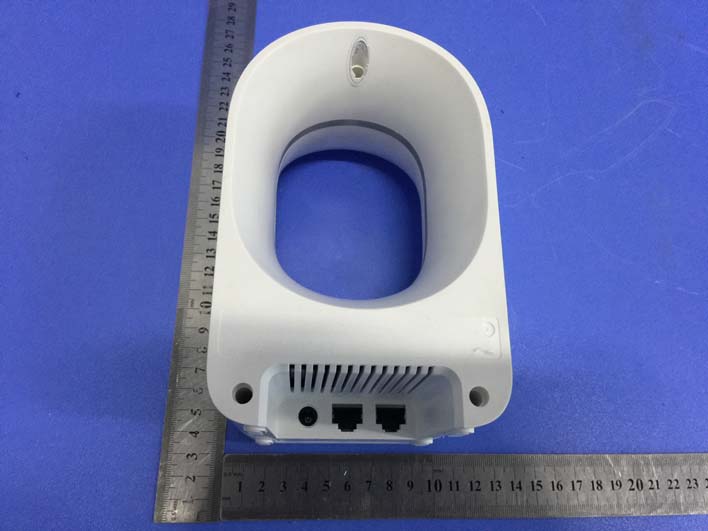

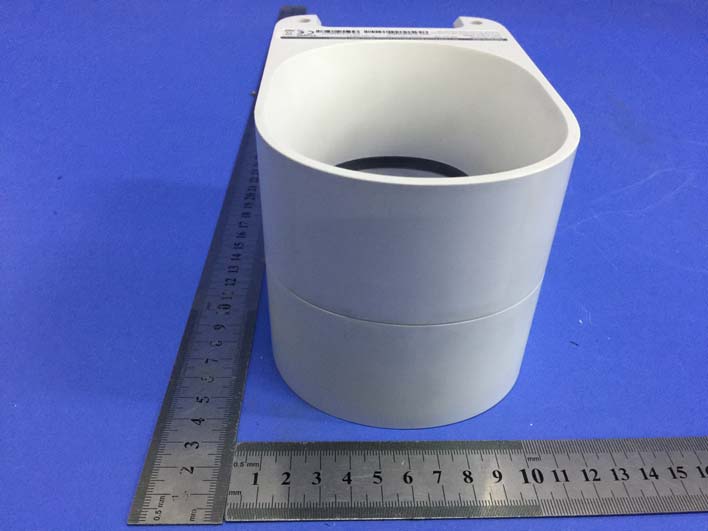

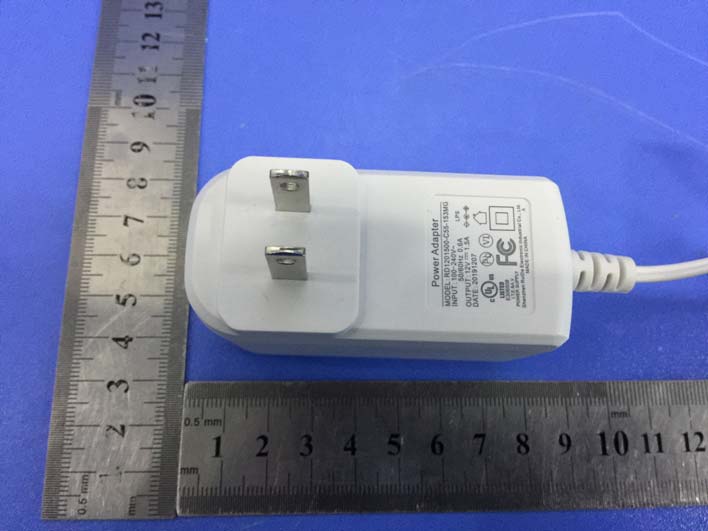

Report No.: TB-FCC173039 Page: 3 of 17 FCC ID: 2AREL-MW312 TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-FCC173039 Page: 4 of 17 FCC ID: 2AREL-MW312 TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Report No.: TB-FCC173039 Page: 5 of 17 FCC ID: 2AREL-MW312 TB-RF-074-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT Report No.: TB-FCC173039 Page: 6 of 17 FCC ID: 2AREL-MW312 TB-RF-074-1.0 Photo 7 Appearance of EUT Photo 8 Appearance of Adapter Report No.: TB-FCC173039 Page: 7 of 17 FCC ID: 2AREL-MW312 TB-RF-074-1.0 Photo 9 Appearance of Adapter

Report No.: TB-FCC173039 Page: 1 of 17 FCC ID: 2AREL-MW312 TB-RF-074-1.0 Appendix IFCC ID Label Size: 97.7mm X 14.9mm

Report No.: TB-FCC173039 Page: 2 of 17 FCC ID: 2AREL-MW312 TB-RF-074-1.0 Appendix II ID Label Location ID LOCATION

Report No.: TB-FCC173039 Page: 8 of 17 FCC ID: 2AREL-MW312 TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 10 Internal of EUT Photo 11 Internal of EUT 2.4G/5G WiFi Ant. A 2.4G/5G WiFi Ant. B Report No.: TB-FCC173039 Page: 9 of 17 FCC ID: 2AREL-MW312 TB-RF-074-1.0 Photo 12 Internal of EUT Photo 13 Appearance of PCB 2.4G/5G WiFi Ant. B Connector 2.4G/5G WiFi Ant. A Connector Report No.: TB-FCC173039 Page: 10 of 17 FCC ID: 2AREL-MW312 TB-RF-074-1.0 Photo 14 Appearance of PCB Photo 15 Appearance of PCB Report No.: TB-FCC173039 Page: 11 of 17 FCC ID: 2AREL-MW312 TB-RF-074-1.0 Photo 16 Appearance of PCB Photo 17 Appearance of PCB Report No.: TB-FCC173039 Page: 12 of 17 FCC ID: 2AREL-MW312 TB-RF-074-1.0 Photo 18 Appearance of PCB Photo 19 Appearance of PCB Report No.: TB-FCC173039 Page: 13 of 17 FCC ID: 2AREL-MW312 TB-RF-074-1.0 Photo 20 Appearance of PCB Photo 21 Appearance of PCB Report No.: TB-FCC173039 Page: 14 of 17 FCC ID: 2AREL-MW312 TB-RF-074-1.0 Photo 22 Appearance of Antenna

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE173041 Page: 1 of 6 TB-RF-075-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 Maximum Permissible Exposure Evaluation FCC ID: 2AREL-MW312 1. Client Information Applicant : Shenzhenshi DajieKejiYouxianGongsi Address : Longhuaxinqu Minzhijiedao Huangjia shangyeguang chang B711 Shenzhen Guangdong 518000, CN Manufacturer : Shenzhenshi DajieKejiYouxianGongsi Address : Longhuaxinqu Minzhijiedao Huangjia shangyeguang chang B711 Shenzhen Guangdong 518000, CN 2. General Description of EUT EUT Name : AC1200 Dual Band Home Mesh Wi-Fi System Models No. : MW312, MW312S, MW313, MW313S Model Difference : All these model product are identical the same, for commercial use with different model number. S/N : M1914000752, M1914000849 Brand Name : Victure Product Description : Operation Frequency: 802.11b/g/n(HT20): 2412MHz~2462MHz 802.11n(HT40): 2422MHz~2452MHz U-NII-1: 5180MHz~5240MHz, U-NII-3: 5745MHz~5825MHz Power Rating : Adapter(RD1201500-C55-153MG): Input: AC 100-240V, 50/60Hz, 0.6A max Output: DC 12V, 1.5A Software Version : V1.0.0 Hardware Version : AR-M400 V3.0 Connecting I/O Port(S) : Please refer to the User's Manual Remark : the MPE report used the EUT-2(S/N number: M1914000849). Report No.: TB-MPE173041 Page: 2 of 6 TB-RF-075-1.0 MPE Calculations 1. Antenna Gain: Antenna Brand Model Name Type 2.4G Antenna Gain(dBi) ANT. A N/A SLEingB400150135 copper tube5 ANT. B N/A SLEingB400150135 copper tube5 Note: For MIMO mode: Directional Gain=ANT. Gain+10*LOG(N ANT ) =8.01 dBi 2.4G working with 802.11g/n(HT20/HT40) has MIMO mode. the 802.11 b Mode only use Ant. A Antenna Brand Model Name Type Antenna Gain (dBi) Directional Gain (dBi) ANT. A N/A SLEingB400150135 copper tube U-NII-1: 5 U-NII-1: 8.01 U-NII-3: 8.01 U-NII-3: 5 ANT. B N/A SLEingB400150135 copper tube U-NII-1: 5 U-NII-3: 5 Note: For MIMO mode: Directional Gain=ANT. Gain+10*LOG(N ANT ). 2. EUT Operation Condition: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 3. Exposure Evaluation: Equation from page 18 of OET Bulletin 65, Edition 97-01 S=(PG)/4πR 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna 4. Simultaneous transmission MPE Considerations According to KDB447498 :All transmitters and antennas in the host must be either evaluated for MPE compliance, by measurement or computational modeling, or qualify for the standalone MPE test exclusion in section 7.1.Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modeled or measured field strengths or power density, is ≤ 1.0. This means that: ∑ of MPE ratios ≤ 1.0 Report No.: TB-MPE173041 Page: 3 of 6 TB-RF-075-1.0 5. Standalone MPE Evaluation: [2.4GHz WLAN] Mode Channel Frequency Peak Conducted Output Power (dBm) Tolerance ± (dB) Turn-up Power Tolerance (dB) Ant.A Ant.B Ant.A Ant.B IEEE 802.11b 1 2412 24.91 / 1.0 25±1 / 6 2437 24.48 / 1.0 25±1 / 11 2462 25.05 / 1.0 25±1 / IEEE 802.11g 1 2412 22.33 22.05 1.0 23±1 23±1 6 2437 22.33 22.62 1.0 23±1 23±1 11 2462 22.71 22.35 1.0 23±1 23±1 IEEE 802.11n HT20 1 2412 22.84 22.69 1.0 23±1 23±1 6 2437 22.40 22.24 1.0 23±1 23±1 11 2462 22.68 22.16 1.0 23±1 23±1 IEEE 802.11n HT40 3 2422 22.03 22.60 1.0 23±1 23±1 6 2437 22.46 23.17 1.0 23±1 23±1 9 2452 22.39 23.00 1.0 23±1 23±1 [5GHz WLAN U-NII-1] Mode Channel Frequency Peak Conducted Output Power (dBm) Tolerance ± (dB) Turn-up Power Tolerance (dB) Ant.A Ant.B Ant.A Ant.B IEEE 802.11a 36 5180 17.63 17.74 1.0 18±1 18±1 40 5200 17.91 17.71 1.0 18±1 18±1 48 5240 18.31 18.29 1.0 18±1 18±1 IEEE 802.11n HT20 36 5180 17.68 18.41 1.0 18±1 18±1 40 5200 17.52 18.26 1.0 18±1 18±1 48 5240 17.85 18.32 1.0 18±1 18±1 IEEE 802.11ac VHT20 36 5180 17.72 18.33 1.0 18±1 18±1 40 5200 18.14 17.57 1.0 18±1 18±1 48 5240 18.29 17.57 1.0 18±1 18±1 IEEE 802.11n HT40 38 5190 20.36 20.62 1.0 20±1 20±1 46 5230 20.86 20.23 1.0 20±1 20±1 IEEE 802.11ac VHT40 38 5190 19.98 20.53 1.0 20±1 20±1 46 5230 20.89 20.23 1.0 20±1 20±1 IEEE 802.11ac VHT80 42 5210 21.36 21.71 1.0 21±1 21±1 Report No.: TB-MPE173041 Page: 4 of 6 TB-RF-075-1.0 [5GHz WLAN U-NII-3] Mode Channel Frequency Peak Conducted Output Power (dBm) Tolerance ± (dB) Turn-up Power Tolerance (dB) Ant.A Ant.B Ant.A Ant.B IEEE 802.11a 149 5745 22.68 22.00 1.0 23±1 23±1 157 5785 23.32 22.19 1.0 23±1 23±1 165 5825 22.91 22.60 1.0 23±1 23±1 IEEE 802.11n HT20 149 5745 21.90 21.93 1.0 22±1 22±1 157 5785 22.60 22.17 1.0 22±1 22±1 165 5825 21.98 21.36 1.0 22±1 22±1 IEEE 802.11ac VHT20 149 5745 22.12 22.50 1.0 23±1 23±1 157 5785 23.16 22.58 1.0 23±1 23±1 165 5825 22.78 23.15 1.0 23±1 23±1 IEEE 802.11n HT40 151 5755 22.36 22.45 1.0 22±1 22±1 159 5795 22.64 22.37 1.0 22±1 22±1 IEEE 802.11ac VHT40 151 5755 22.18 21.83 1.0 22±1 22±1 159 5795 22.86 21.71 1.0 22±1 22±1 IEEE 802.11ac VHT80 155 5775 22.42 21.57 1.0 22±1 22±1 2.4GHz WLAN ANT. A Modulation Type Output power (Turn-up Procedure) Antenna Gain (dBi) Antenna Gain (Numeric) Distance (cm) [R] MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW IEEE 802.11b 26.00 398.107 5 3.1623 20 0.2505 1.0000 IEEE 802.11g 24.00 251.189 5 3.1623 20 0.1580 1.0000 IEEE 802.11n HT20 24.00 251.189 5 3.1623 20 0.1580 1.0000 IEEE 802.11n HT40 24.00 251.189 5 3.1623 20 0.1580 1.0000 2.4GHz WLAN ANT. B Modulation Type Output power (Turn-up Procedure) Antenna Gain (dBi) Antenna Gain (Numeric) Distance (cm) [R] MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW IEEE 802.11b / / / / / / / IEEE 802.11g 24.00 251.189 5 3.1623 20 0.1580 1.0000 IEEE 802.11n HT20 24.00 251.189 5 3.1623 20 0.1580 1.0000 IEEE 802.11n HT40 24.00 251.189 5 3.1623 20 0.1580 1.…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC173039 Page: 1 of 101 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2AREL-MW312 Original Grant Report No. : TB-FCC173039 Applicant : Shenzhenshi DajieKejiYouxianGongsi Equipment Under Test (EUT) EUT Name : AC1200 Dual Band Home Mesh Wi-Fi System Model No. : MW312 Series Model No. : MW312S, MW313, MW313S S/N : M1914000752, M1914000849 Brand Name : Victure Receipt Date : 2020-05-09 Test Date : 2020-05-09 to 2020-05-19 Issue Date : 2020-05-20 Standards : FCC Part 15, Subpart C 15.247 Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC and IC requirements Test/Witness Engineer : Jack Deng Engineer Supervisor : Ivan Su Authorized Signatory : Benny Xu This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC173039 Page: 2 of 101 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 7 1.4 Description of Support Units .............................................................................................. 7 1.5 Description of Test Mode .................................................................................................... 8 1.6 Description of Test Software Setting ................................................................................ 9 1.7 Measurement Uncertainty ................................................................................................ 10 1.8 Test Facility ......................................................................................................................... 10 2. TEST SUMMARY ..................................................................................................................... 11 3. TEST SOFTWARE ................................................................................................................... 11 4. TEST EQUIPMENT .................................................................................................................. 12 5. CONDUCTED EMISSION TEST ........................................................................................... 13 5.1 Test Standard and Limit .................................................................................................... 13 5.2 Test Setup ........................................................................................................................... 13 5.3 Test Procedure ................................................................................................................... 14 5.4 Deviation From Test Standard ......................................................................................... 14 5.5 EUT Operating Mode ........................................................................................................ 14 5.6 Test Data ............................................................................................................................. 14 6. RADIATED EMISSION TEST ................................................................................................ 15 6.1 Test Standard and Limit .................................................................................................... 15 6.2 Test Setup ........................................................................................................................... 16 6.3 Test Procedure ................................................................................................................... 17 6.4 Deviation From Test Standard ......................................................................................... 18 6.5 EUT Operating Condition ................................................................................................. 18 6.6 Test Data ............................................................................................................................. 18 7. RESTRICTED BANDS REQUIREMENT ............................................................................. 19 7.1 Test Standard and Limit .................................................................................................... 19 7.2 Test Setup ........................................................................................................................... 19 7.3 Test Procedure ................................................................................................................... 20 7.4 Deviation From Test Standard ......................................................................................... 20 7.5 EUT Operating Condition ................................................................................................. 20 7.6 Test Data ............................................................................................................................. 20 8. BANDWIDTH TEST ................................................................................................................. 21 8.1 Test Standard and Limit .......…

Text truncated - open the document above for the full version.

Report No.: TB-FCC173039 Page: 15 of 17 FCC ID: 2AREL-MW312 TB-RF-074-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) Report No.: TB-FCC173039 Page: 16 of 17 FCC ID: 2AREL-MW312 TB-RF-074-1.0 Photo of Setup for Radiated Emission (Below 30MHz) Photo of Setup for Conducted Emission Report No.: TB-FCC173039 Page: 17 of 17 FCC ID: 2AREL-MW312 TB-RF-074-1.0 Photo of Setup for RF Conducted Test -----END OF REPORT-----
