2AREL-WR1200AC1200 Dual Band Wi-Fi Router

FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. ·Increase the separation between the equipment and receiver. ·Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ·Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Shenzhenshi DajieKejiYouxianGongsi Add: Longhuaxinqu Minzhijiedao HUANGJIA shangyeguangchang B711 SHENZHEN GUANGDONG 518000 CN Tel: +86 755-36894114 Fax: / Date: 2020-06-23 FCC ID: 2AREL-WR1200 Dear Sir/Madam, We, Shenzhenshi DajieKejiYouxianGongsi Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: AC1200 Dual Band Wi-Fi Router Model no.: WR1200, WR1202, WR1203, WR1204, WR1205, WR1206, WR1207, WR1208, WR1209 Sincerely, (Signed) Name / Title: Shaofei Li / Manager Company: Shenzhenshi DajieKejiYouxianGongsi Address: Longhuaxinqu Minzhijiedao HUANGJIA shangyeguangchang B711 SHENZHEN GUANGDONG 518000 CN Phone: +86 755-36894114 Fax: / E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-06-23> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AREL-WR1200 WR1200 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name / Title: Shaofei Li / Manager Company: Shenzhenshi DajieKejiYouxianGongsi Address: Longhuaxinqu Minzhijiedao HUANGJIA shangyeguangchang B711 SHENZHEN GUANGDONG 518000 CN Phone: +86 755-36894114 Fax: / E-Mail: [email protected]

Shenzhenshi DajieKejiYouxianGongsi Longhuaxinqu Minzhijiedao HUANGJIA shangyeguangchang B711 SHENZHEN GUANGDONG 518000 CN Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/06/23 To whom it may concern: We, Shenzhenshi DajieKejiYouxianGongsi the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AREL-WR1200 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, (Signed) Name / Title: Shaofei Li / Manager Company: Shenzhenshi DajieKejiYouxianGongsi Address: Longhuaxinqu Minzhijiedao HUANGJIA shangyeguangchang B711 SHENZHEN GUANGDONG 518000 CN Phone: +86 755-36894114 Fax: / E-Mail: [email protected]

Shenzhenshi DajieKejiYouxianGongsi Longhuaxinqu Minzhijiedao HUANGJIA shangyeguangchang B711 SHENZHEN GUANGDONG 518000 CN UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: 2AREL-WR1200 (1) DFS Device: Master Client with Radar detection capability N/A Client without radar detection capability, (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412-2462 Yes No Yes No Yes No Yes No 5180-5240 Yes No Yes No Yes No Yes No 5190-5230 Yes No Yes No Yes No Yes No 5210-5210 Yes No Yes No Yes No Yes No 5745-5825 Yes No Yes No Yes No Yes No 5755-5795 Yes No Yes No Yes No Yes No 5775-5775 Yes No Yes No Yes No Yes No (3) Country code selection ability Yes No If yes, pls explain how it was implemented: (4) Meet 15.202 requirement Yes No pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by end user or an installer. Apply Does not apply (If apply, pls help to provide explanation on it was implement, and how software was controlled) Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Shaofei Li / Manager Company: Shenzhenshi DajieKejiYouxianGongsi Address: Longhuaxinqu Minzhijiedao HUANGJIA shangyeguangchang B711 SHENZHEN GUANGDONG 518000 CN Phone: +86 755-36894114 Fax: / E-Mail: [email protected]

Shenzhenshi DajieKejiYouxianGongsi Longhuaxinqu Minzhijiedao HUANGJIA shangyeguangchang B711 SHENZHEN GUANGDONG 518000 CN Labeling Declaration Letter Date: June 23, 2020 FCC ID: 2AREL-WR1200 Model Number: WR1200, WR1202, WR1203, WR1204, WR1205, WR1206, WR1207, WR1208, WR1209 Following the KDB 784748 D01General labeling and Notification, the information related to Labeling implementation for the AC1200 Dual Band Wi-Fi Router, FCC ID: 2AREL-WR1200 Information On Product On Product Packaging In Online User Guide In Printed User Guide FCC ID Number Yes Yes No No 15.19 Statement “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation” No No No Yes Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment No No No Yes Product Packaging Label is shown below: FCC ID: 2AREL-WR1200 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, The product is packaged individually. Shenzhenshi DajieKejiYouxianGongsi Longhuaxinqu Minzhijiedao HUANGJIA shangyeguangchang B711 SHENZHEN GUANGDONG 518000 CN Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Shaofei Li / Manager Company: Shenzhenshi DajieKejiYouxianGongsi Address: Longhuaxinqu Minzhijiedao HUANGJIA shangyeguangchang B711 SHENZHEN GUANGDONG 518000 CN Phone: +86 755-36894114 Fax: / E-Mail: [email protected]

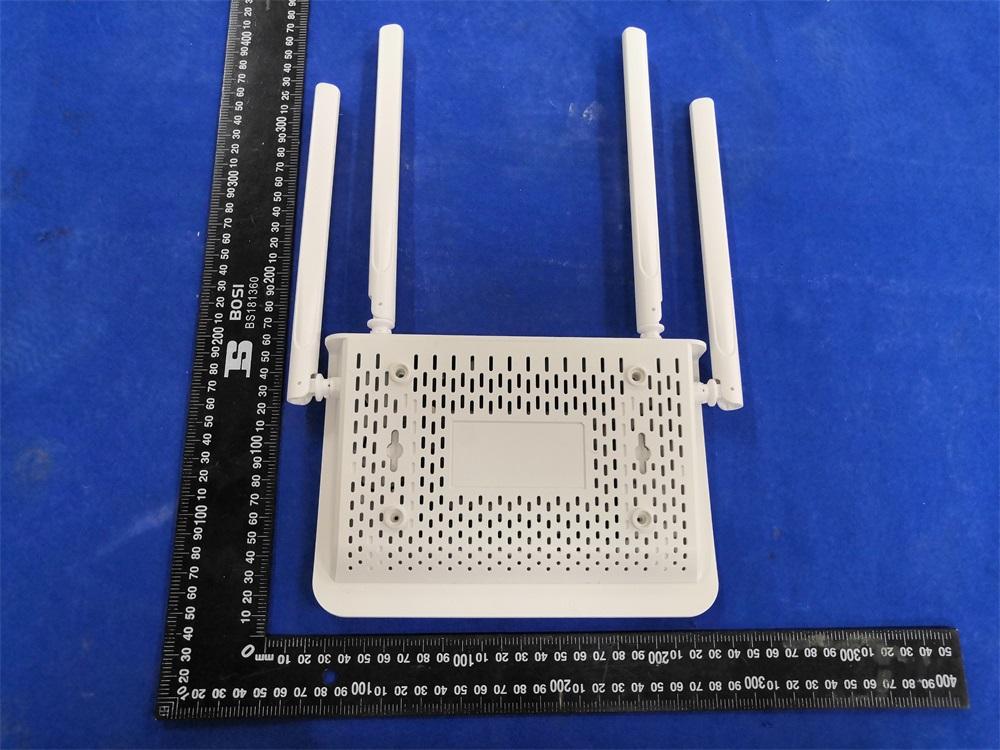

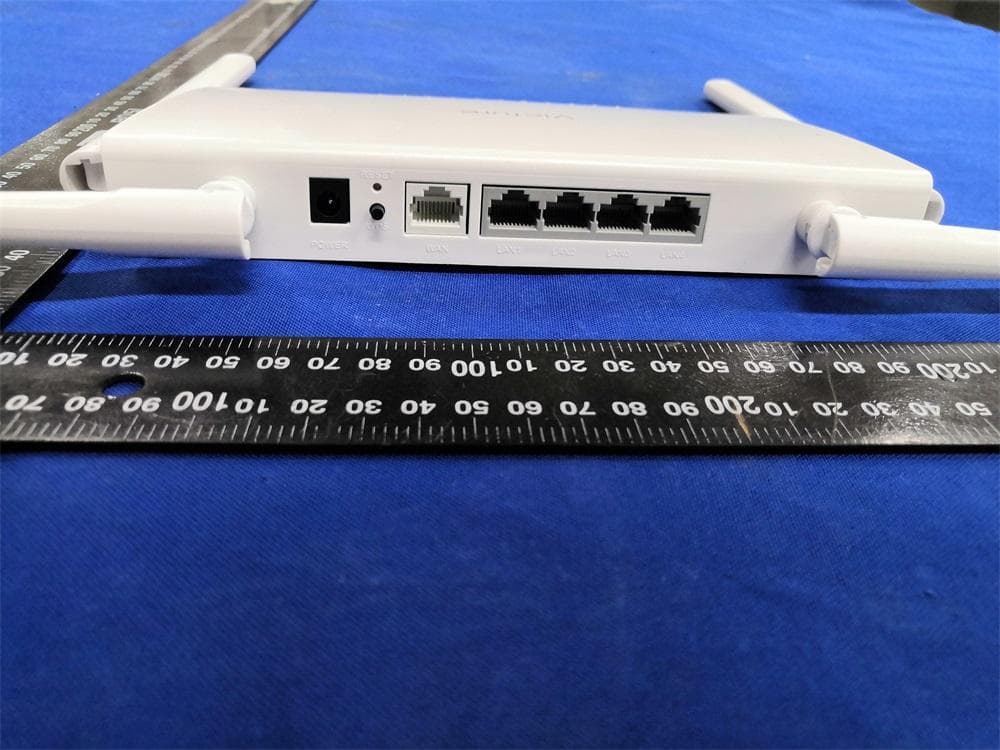

FCCID: 2AREL-WR1200 Fig. 1 Fig. 2 5GWLAN Antenna 2.4GWLAN Antenna FCCID: 2AREL-WR1200 Fig. 3 Fig. 4 FCCID: 2AREL-WR1200 Fig. 5 Fig. 6 FCCID: 2AREL-WR1200 Fig. 7 Fig. 8

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L6.0cm x 3.0cm) Label Location

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No...................... : FCC ID. ............................................ : GTS20200525002-1-10 2AREL-WR1200 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Moon Tan Approved by ( position+printed name+signature) . : Manager Simon Hu Date of issue .................................... : Jun.09, 2020 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ........................................... : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Shenzhenshi DajieKejiYouxianGongsi Address ............................................ : Longhuaxinqu Minzhijiedao HUANGJIA shangyeguangchang B711 SHENZHEN GUANGDONG 518000 CN Test specification ........................... : Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : AC1200 Dual Band Wi-Fi Router Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhenshi DajieKejiYouxianGongsi Model/Type reference ...................... : WR1200 Listed Models .................................. : WR1202, WR1203, WR1204, WR1205, WR1206, WR1207, WR1208, WR1209 Modulation Type ............................... : IEEE 802.11a /802.11b/802.11g/802.11n/802.11ac Operation Frequency........................ : From 2412MHz to 2462MHz, 5180MHz to 5240MHz, 5745MHz to 5825MHz Hardware Version ............................ : V1.0 Software Version .............................. : V1.0 Rating ............................................... : DC 12.0V by Adapter Result ............................................... : PASS Report No.: GTS20200525002-1-10 Page 2 of 16 T E S T R E P O R T Test Report No. : GTS20200525002-1-10 Jun.09, 2020 ______________________________________________________________________________________________ Date of issue Equipment under Test : AC1200 Dual Band Wi-Fi Router Model /Type : WR1200 Listed Models : WR1202, WR1203, WR1204, WR1205, WR1206, WR1207, WR1208, WR1209 Applicant : Shenzhenshi DajieKejiYouxianGongsi Address : Longhuaxinqu Minzhijiedao HUANGJIA shangyeguangchang B711 SHENZHEN GUANGDONG 518000 CN Manufacturer : Shenzhenshi DajieKejiYouxianGongsi Address : Longhuaxinqu Minzhijiedao HUANGJIA shangyeguangchang B711 SHENZHEN GUANGDONG 518000 CN Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20200525002-1-10 Page 3 of 16 Contents 1. SUMMARY ............................................................................................................................................................. 4 1.1 EUT CONFIGURATION ........................................................................................................................................................ 4 1.2 PRODUCT DESCRIPTION ..................................................................................................................................................... 4 2. TEST ENVIRONMENT .............................................................................................................................................. 5 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 5 2.2 TEST FACILITY .................................................................................................................................................................. 5 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 5 3. METHOD OF MEASUREMENT ................................................................................................................................. 6 3.1 APPLICABLE STANDARD ...................................................................................................................................................... 6 3.2 REQUIREMENT ................................................................................................................................................................. 6 3.3 LIMIT ............................................................................................................................................................................. 6 3.4 MPE CALCULATION METHOD ............................................................................................................................................. 7 3.5 ANTENNA INFORMATION ...................…

Text truncated - open the document above for the full version.

Sh enzhen Global Test Service Co.,Ltd. No .7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong F CC PART 15 SUBPART C TEST REPORT FC C PART 15.407 R eport Reference No. ..................... : FCC ID............................................. : GTS20200525002-1-9 2AREL-WR1200 C ompiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Moon Tan Ap proved by ( position+printed name+signature) . : Manager Simon Hu D ate of issue .................................... : Jun.09, 2020 Repre sentative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. N o.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong ... ......................... : Shenzhenshi DajieKejiYouxianGongsi Ad dress ............................................ : Longhuaxinqu Minzhijiedao HUANGJIA shangyeguangchang B711 SHENZHEN GUANGDONG 518000 CN T est specification ........................... : Standard ........................................... : FCC Part 15.407: UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE DEVICES T RF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. M aster TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. T est item description ..................... : AC1200 Dual Band Wi-Fi Router T rade Mark ....................................... : N/A Manufacturer .................................... : Shenzhenshi DajieKejiYouxianGongsi M odel/Type reference ...................... : WR1200 Lis ted Models .................................. : WR1202, WR1203, WR1204, WR1205, WR1206, WR1207, WR1208, WR1209 O peration Frequency ........................ : From 5180MHz to 5240MHz/ 5745MHz to 5825MHz H ardware Version ............................ : V1.0 So ftware Version .............................. : V1.0 Rating ............................................... : DC 12.0V by Adapter R esult ............................................... : PASS R eport No.: GTS20200525002-1-9 Page 2 of 98 T E S T R E P O R T T est Report No. : GTS20200525002-1-9 J un.09, 2020 ____________________________________________________________________________________ D ate of issue Eq uipment under Test : AC1200 Dual Band Wi-Fi Router Model /Type : WR1200 Listed Models : WR1202, WR1203, WR1204, WR1205, WR1206, WR1207, WR1208, WR1209 Applicant : Shenzhenshi DajieKejiYouxianGongsi Address : Longhuaxinqu Minzhijiedao HUANGJIA shangyeguangchang B711 SHENZHEN GUANGDONG 518000 CN Manufacturer : Shenzhenshi DajieKejiYouxianGongsi Address : Longhuaxinqu Minzhijiedao HUANGJIA shangyeguangchang B711 SHENZHEN GUANGDONG 518000 CN T est Result : PA SS T he test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. R eport No.: GTS20200525002-1-9 Page 3 of 98 Con tents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 6 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 6 2.5. EUT operation mode .............................................................................................................................. 6 2.6. Block Diagram of Test Setup ................................................................................................................. 7 2.7. Related Submittal(s) / Grant (s) ............................................................................................................. 7 2.8. EUT Exercise Software .......................................................................................................................... 7 2.9. Special Accessories ............................................................................................................................... 7 2.10. External I/O Cable ................................................................................................................................ 7 2.11. Modifications ........................................................................................................................................ 7 3. TEST ENVIRONMENT ..................................................................................................................................... 8 3.1. Address of the test laboratory ................................................................................................................ 8 3.2. Test Facility ................................................................................…

Text truncated - open the document above for the full version.

R eport No.: GTS20200525002-1-9 Page 44 of 98 Antenna 3: 5150-5250MHz: 80 2.11a 80 2.11n HT20 CH 36 CH 36 C H 40 CH 40 C H 48 CH 48 R eport No.: GTS20200525002-1-9 Page 45 of 98 80 2.11ac20 80 2.11n HT40 C H 36 CH 38 CH 40 CH 46 CH 48 R eport No.: GTS20200525002-1-9 Page 46 of 98 80 2.11ac40 80 2.11ac80 C H 38 CH 42 CH 46 R eport No.: GTS20200525002-1-9 Page 47 of 98 5725-5850MHz: 80 2.11a 80 2.11n HT20 C H 149 CH 149 C H 157 CH 157 C H 165 CH 165 R eport No.: GTS20200525002-1-9 Page 48 of 98 802.11ac20 802.11n HT40 C H 149 CH 151 C H 157 CH 159 C H 165 R eport No.: GTS20200525002-1-9 Page 49 of 98 802.11ac40 802.11ac80 C H 151 CH 155 C H 159 R eport No.: GTS20200525002-1-9 Page 50 of 98 4 .6. 6dB Bandwidth T EST CONFIGURATION EU T SPEC TRUM ANALYZER TEST PROCEDURE Ac cording to KDB789033 D02 General UNII Test Procedures New Rules v01 for one of the following procedures may be used for section 15.407(e) specifies the minimum 6 dB emission bandwidth of at least 500 KHz for the band 5.715-5.85 GHz. The following procedure shall be used for measuring this bandwidth: a. Set RBW = 100 kHz. b. c . Detector = Peak. d. Trace mode = max hold. e. Sweep = auto couple. f. Allow the trace to stabilize g. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. Note: The automatic bandwidth measurement capability of a spectrum analyzer or EMI receiver may be employed if it implements the functionality described above. LIMIT F or Section 15.407(e) specifies the minimum 6 dB emission bandwidth of at least 500 KHz for the band 5.715- 5.85 GHz TEST RESULTS Temperature 23.7 Humidity 55.4% T est Engineer M oon Tan C onfigurations IE EE 802.11a/n/ac R eport No.: GTS20200525002-1-9 Page 51 of 98 Antenna 2: T ype C hannel 99 %Bandwidth ( MHz) 6dB Bandwidth ( MHz) L imit (KHz) R esult 80 2.11a 149 16.878 15.080 Pa ss 15 7 16.897 15.120 16 5 16.954 15.200 80 2.11nHT20 149 17.853 15.200 Pa ss 15 7 17.842 15.160 16 5 17.913 15.160 802.11ac20 149 17.715 15.760 Pass 157 17.732 15.160 16 5 17.685 15.760 80 2.11n40 151 36.286 35.280 Pa ss 15 9 36.339 35.280 80 2.11ac40 151 36.127 35.280 Pa ss 15 9 36.197 35.280 80 2.11ac80 155 75.341 75.520 Pa ss A ntenna 3: T ype C hannel 99 %Bandwidth (MHz) 6dB Bandwidth ( MHz) L imit (KHz) R esult 80 2.11a 149 16.912 15.200 Pa ss 15 7 16.943 15.200 165 16.915 15.200 802.11nHT20 149 17.846 15.120 Pass 157 17.851 15.200 16 5 17.834 15.160 80 2.11ac20 149 17.709 15.200 Pa ss 15 7 17.699 15.200 16 5 17.682 15.200 80 2.11n40 151 36.341 35.280 Pa ss 15 9 36.263 35.280 80 2.11ac40 151 36.171 35.280 Pa ss 15 9 36.137 35.280 802.11ac80 155 75.285 75.520 Pass R eport No.: GTS20200525002-1-9 Page 52 of 98 Antenna 2: 99 %Bandwidth 80 2.11a 80 2.11n HT20 CH149 CH149 C H157 CH157 C H165 CH165 R eport No.: GTS20200525002-1-9 Page 53 of 98 99 %Bandwidth 80 2.11ac20 80 2.11n HT40 C H149 CH151 C H157 CH159 C H165 R eport No.: GTS20200525002-1-9 Page 54 of 98 99 %Bandwidth 80 2.11ac40 80 2.11ac80 C H151 CH155 C H159 R eport No.: GTS20200525002-1-9 Page 55 of 98 6dB Bandwidth 80 2.11a 80 2.11n HT20 C H149 CH149 C H157 CH157 C H165 CH165 R eport No.: GTS20200525002-1-9 Page 56 of 98 6dB Bandwidth 80 2.11ac20 80 2.11n HT40 CH 149 CH151 C H157 CH159 C H165 R eport No.: GTS20200525002-1-9 Page 57 of 98 6dB Bandwidth 80 2.11ac40 80 2.11ac80 C H151 CH155 C H159 R eport No.: GTS20200525002-1-9 Page 58 of 98 Antenna 3: 99 %Bandwidth 80 2.11a 80 2.11n HT20 CH149 CH149 C H157 CH157 C H165 CH165 R eport No.: GTS20200525002-1-9 Page 59 of 98 99 %Bandwidth 80 2.11ac20 80 2.11n HT40 C H149 CH151 C H157 CH159 C H165 R eport No.: GTS20200525002-1-9 Page 60 of 98 99 %Bandwidth 80 2.11ac40 80 2.11ac80 C H151 CH155 C H159

R eport No.: GTS20200525002-1-9 Page 61 of 98 6dB Bandwidth 80 2.11a 80 2.11n HT20 C H149 CH149 C H157 CH157 C H165 CH165 R eport No.: GTS20200525002-1-9 Page 62 of 98 6dB Bandwidth 80 2.11ac20 80 2.11n HT40 C H149 CH151 C H157 CH159 C H165 R eport No.: GTS20200525002-1-9 Page 63 of 98 6dB Bandwidth 80 2.11ac40 80 2.11ac80 C H151 CH155 C H159 R eport No.: GTS20200525002-1-9 Page 64 of 98 4 .7. 26dBc Bandwidth T EST CONFIGURATION EU T SP ECTRUM ANALYZER TEST PROCEDURE Ac cording to KDB789033 D02 General UNII Test Procedures New Rules v01 for one of the following procedures may be used for Emission Bandwidth (EBW) measurement: a. Set RBW = 300 kHz (approximately 1% of the emission bandwidth). b. Set the video bandwidth (VBW) = 1000 KHz (VBW > RBW) c. Detector = Peak. d. Trace mode = max hold. e. Sweep = auto couple. f. Allow the trace to stabilize g. Measure the maximum width of the emission that is 26 dB down from the maximum of the emission. Compare this with the RBW setting of the analyzer. Readjust RBW and repeat measurement as needed until the RBW/EBW ratio is approximately 1%. Note: The automatic bandwidth measurement capability of a spectrum analyzer or EMI receiver may be employed if it implements the functionality described above. LIMIT N o Limits for 26dBc Bandwith TEST RESULTS Temperature 23.7 Humidity 55.4% Test Engineer Moon Tan Configurations IEEE 802.11a/n/ac R eport No.: GTS20200525002-1-9 Page 65 of 98 Antenna 2: T ype C hannel 99 %Bandwidth (MHz) 26dB Bandwidth ( MHz) L imit (KHz) R esult 80 2.11a 36 16.919 19.960 - Pass 40 16 .867 20.120 48 16 .935 20.040 80 2.11nHT20 36 17.854 20.240 - Pass 40 17 .842 20.440 48 17 .823 20.280 80 2.11ac20 36 17.677 20.240 - Pass 40 17 .667 20.240 48 17 .714 20.280 80 2.11n40 38 36.278 40.800 - Pass 46 36 .278 40.640 80 2.11ac40 38 36.132 40.160 - Pass 46 36 .191 40.560 80 2.11ac80 155 75.360 80.480 - Pass A ntenna 3: T ype C hannel 99 %Bandwidth (MHz) 26dB Bandwidth ( MHz) L imit (KHz) R esult 80 2.11a 36 16.835 20.040 - Pass 40 16 .921 19.960 48 16.954 20.000 802.11nHT20 36 17.829 20.440 - Pass 40 17.808 20.400 48 17 .877 20.160 80 2.11ac20 36 17.743 20.160 - Pass 40 17 .668 20.160 48 17 .699 20.320 80 2.11n40 38 36.306 40.400 - Pass 46 36 .294 40.400 80 2.11ac40 38 36.144 40.160 - Pass 46 36 .124 40.080 802.11ac80 155 75.254 80.160 - Pass R eport No.: GTS20200525002-1-9 Page 66 of 98 Antenna 2: 99 %Bandwidth 80 2.11a 80 2.11n HT20 CH36 CH36 C H40 CH40 C H48 CH48 R eport No.: GTS20200525002-1-9 Page 67 of 98 99 %Bandwidth 80 2.11ac20 80 2.11n HT40 C H36 CH38 C H40 CH46 C H48 R eport No.: GTS20200525002-1-9 Page 68 of 98 99 %Bandwidth 80 2.11ac40 80 2.11ac80 C H38 CH42 C H46 R eport No.: GTS20200525002-1-9 Page 69 of 98 26dB Bandwidth 80 2.11a 80 2.11n HT20 C H36 CH36 C H40 CH40 C H48 CH48 R eport No.: GTS20200525002-1-9 Page 70 of 98 26dB Bandwidth 80 2.11ac20 80 2.11n HT40 C H36 CH38 C H40 CH46 C H48 R eport No.: GTS20200525002-1-9 Page 71 of 98 26dB Bandwidth 80 2.11ac40 80 2.11ac80 C H38 CH42 C H46 R eport No.: GTS20200525002-1-9 Page 72 of 98 Antenna 3: 99 %Bandwidth 80 2.11a 80 2.11n HT20 CH36 CH36 C H40 CH40 C H48 CH48 R eport No.: GTS20200525002-1-9 Page 73 of 98 99 %Bandwidth 80 2.11ac20 80 2.11n HT40 C H36 CH38 C H40 CH46 C H48 R eport No.: GTS20200525002-1-9 Page 74 of 98 99 %Bandwidth 80 2.11ac40 802 .11ac80 C H38 CH42 C H46 R eport No.: GTS20200525002-1-9 Page 75 of 98 26dB Bandwidth 80 2.11a 80 2.11n HT20 C H36 CH36 C H40 CH40 C H48 CH48 R eport No.: GTS20200525002-1-9 Page 76 of 98 26dB Bandwidth 80 2.11ac20 80 2.11n HT40 C H36 CH38 C H40 CH46 C H48

R eport No.: GTS20200525002-1-9 Page 77 of 98 26dB Bandwidth 80 2.11ac40 80 2.11ac80 C H38 CH42 C H46 R eport No.: GTS20200525002-1-9 Page 78 of 98 4 .8. Band Edge Compliance T EST CONFIGURATION L IMIT 20 dBc in any 100 kHz bandwidth outside the operating frequency band. In case the emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. F requency (MHz) D istance (Meters) R adiated R adiated 0.009-0.49 3 20log(2400/F(KHz))+40log(300/3) 2400/F(KHz) 0. 49-1.705 3 20 log(24000/F(KHz))+ 40log(30/3) 24 000/F(KHz) 1.7 05-30 3 20 log(30)+ 40log(30/3) 30 30-88 3 40 .0 100 88-21 6 3 43.5 150 21 6-960 3 46.0 200 Ab ove 960 3 54.0 500 Ac cording to §15.407 (b): Ex cept as shown in paragraph (b)(…
