2ARF9CSG350Cloud Services Gateway

At a Glance The Versa Cloud Services Gateway (CSG) 300 series appliances deliver highly secure site-to-site data connectivity to smallbusinesses and to home offices. These appliances provide the following features: •Single hardware platform that supports different CPUs and memory sizes •Management Ethernet ports with dual use and dedicated options: •One RJ45 RS232 console port •One USB 2.0 management portfor plugging in external LTE or WiFi modems •One Cu GE dual purpose port for data and management •MDI and MDIX autoswitchable EoC ports •PoE source support on four Ethernet ports with NIC module add-on •Wireless options: •CSG350–Two built-in wireless slots •CSG355 and CSG365–Three dedicated built-in wireless slots to support LTE •External AC power supply •Fan-based cooling •Desktop orceiling mount,rack-mountable in a 19” rack CSG300 Appliance Models The CSG300 appliances are available in the following models: •CSG350—Compact and optimized appliance for deployment in small branches (up to 75 users) that require advanced application and cloud intelligence with hierarchical QoS, providing a cost-effective SD-WAN solution. •CSG355–Powerful appliance perfect for deployment in both small- and medium-sized branches that need advanced SD-Security (NGFW and UTM) along with comprehensive advanced application and cloud-intelligent SD-WANservices on-premises. •CSG365—High performance, powerful appliance for deployment at a medium-sized branch locations that requireadvanced application and cloud-intelligent SD-WAN services, advanced SD-Security (NGFW and UTM). The CSG300 appliance models provide the following CPU, memory, and storage sizes. See Table 1. Table 1: CSG300 Appliance Models https://docs.versa-networks.com/Hardware/Cloud_Services_Gateway_300_Series/Overview/At_a_Glance Updated: Tue, 31 Mar 2020 19:09:37 GMT Powered by 1 CSGAppliance ModelCPUMemoryStorage CSG350Intel Rangeleywith 4 cores 4 GB DRAM (configurable to 16GB) 32 GB CSG355Intel Rangeleywith 4 cores 8 GB DRAM (configurable to 16GB) 32 GB CSG365Intel Rangeleywith 4cores (higherperformance) 8 GB DRAM (configurable to 16GB) 64 GB Chassis Views The CSG350appliance is smaller in size thanthe CSG355 and CSG365 appliances. The CSG355 and CSG365appliances are physically identical. CSG350 Appliance Figure 1 and Figure 2 show the front and rear panels of the CSG350 appliance. Note: The front panel is the side of the appliance with the SIM slots and two LEDs, for status and power. This is the side that is visible when you install the appliance in an office environment. The rear panel has the power and reset buttons and various connectors and ports. Figure 1: Front Panel of the CSG350 Appliance Figure 2: Rear Panel of the CSG350 Appliance CSG355 and CSG365 Appliance Figure 3 and Figure 4 show the front and rear panels of the CSG355.The panels for the CSG355 and CSG365 appliances are identical. Figure 3: Front Panel of the CSG355 Appliance https://docs.versa-networks.com/Hardware/Cloud_Services_Gateway_300_Series/Overview/At_a_Glance Updated: Tue, 31 Mar 2020 19:09:37 GMT Powered by 2 Figure 4: Rear Panel of the CSG355 Appliance https://docs.versa-networks.com/Hardware/Cloud_Services_Gateway_300_Series/Overview/At_a_Glance Updated: Tue, 31 Mar 2020 19:09:37 GMT Powered by 3 CSG300 Series Appliance Specifications A CSG300 series appliance chassis is made of aluminum for optimal heat dissipation. This article lists the chassis and regulatory compliance specifications for the CSG300 series appliance. It also lists certifications and export control classification numbers (ECCNs) for the appliance. Chassis Specifications CSG350Appliance Table 1 lists the specifications for a CSG350 appliancechassis. Table 1: CSG350 Series Chassis Specifications ItemSpecification Services and Slot Density RJ-45 ports 10/100/1000 Mbps4 External USB ports (USB 2.0)1 RJ-45 serial console port1 Memory DDR4 ECC DRAM4 GB Disk 1 SSD default size32 GB Disk 2 and Disk 3, USB-basedFlexible Power supply 12VDC, 5A Power Adapter Specifications AC input voltage100–240 Volts AC input line frequency50–60 Hz Typical power consumption25 Watts Chassis Physical Specifications https://docs.versa-networks.com/Hardware/Cloud_Services_Gateway_300_Series/Components_and_Specifications/01_CSG... Updated: Tue, 31 Mar 2020 17:58:46 GMT Powered by 1 ItemSpecification Chassis height 1.38” (34 mm) Chassis width7.87” (200 mm) Chassis depth5.91" (152mm) Chassis weight 2.75 lb (1.25 kg) Chassis weight with installation kit: 1.8 kg maximum Package Specifications Package height7" (17.78 cm) Package width16.7" (42.4 cm) Package depth12" (30.48 cm) Package weight15.4 lb (7 kg) Operating Conditions Temperature0 to 40°C (32 to 104°F) at sea level Humidity10 to 85% relative humidity AltitudeMaximum 3000 m (10000 ft) Noise level Less than 20 dBA Storage Conditions Temperature20 to 70°C (68 to 158°F) at sea level Humidity10 to 85% relative humidity Reliability MTBFMinimum of 70,000 hours CSG355 and CSG365Appliance Table 2 lists the specifications for a CSG355 and CSG365appliancechassis. https://docs.versa-networks.com/Hardware/Cloud_Services_Gateway_300_Series/Components_and_Specifications/01_CSG... Updated: Tue, 31 Mar 2020 17:58:46 GMT Powered by 2 Table 2: CSG355 and CSG365 Chassis Specifications https://docs.versa-networks.com/Hardware/Cloud_Services_Gateway_300_Series/Components_and_Specifications/01_CSG... Updated: Tue, 31 Mar 2020 17:58:46 GMT Powered by 3 ItemSpecification Services and Slot Density RJ-45 ports 10/100/1000 Mbps4 + 2 External USB ports (USB 2.0)2 RJ-45 serial console port1 Memory DDR4 ECC DRAM CSG355: 8 GB CSG365: 8GB Disk 1 SSD default size CSG355: 32 GB CSG365: 64 GB Disk 2 and Disk 3, USB-basedFlexible Power supply 12VDC, 5A Power Specifications AC input voltage100–240 Volts AC input line frequency50–60 Hz Typical power consumption33 Watts Chassis Physical Specifications Chassis height 1.65” (43 mm) Chassis width13.8” (370 mm) Chassis depth6.7” (172 mm) Rack height1 RU Chassis weight …

Text truncated - open the document above for the full version.

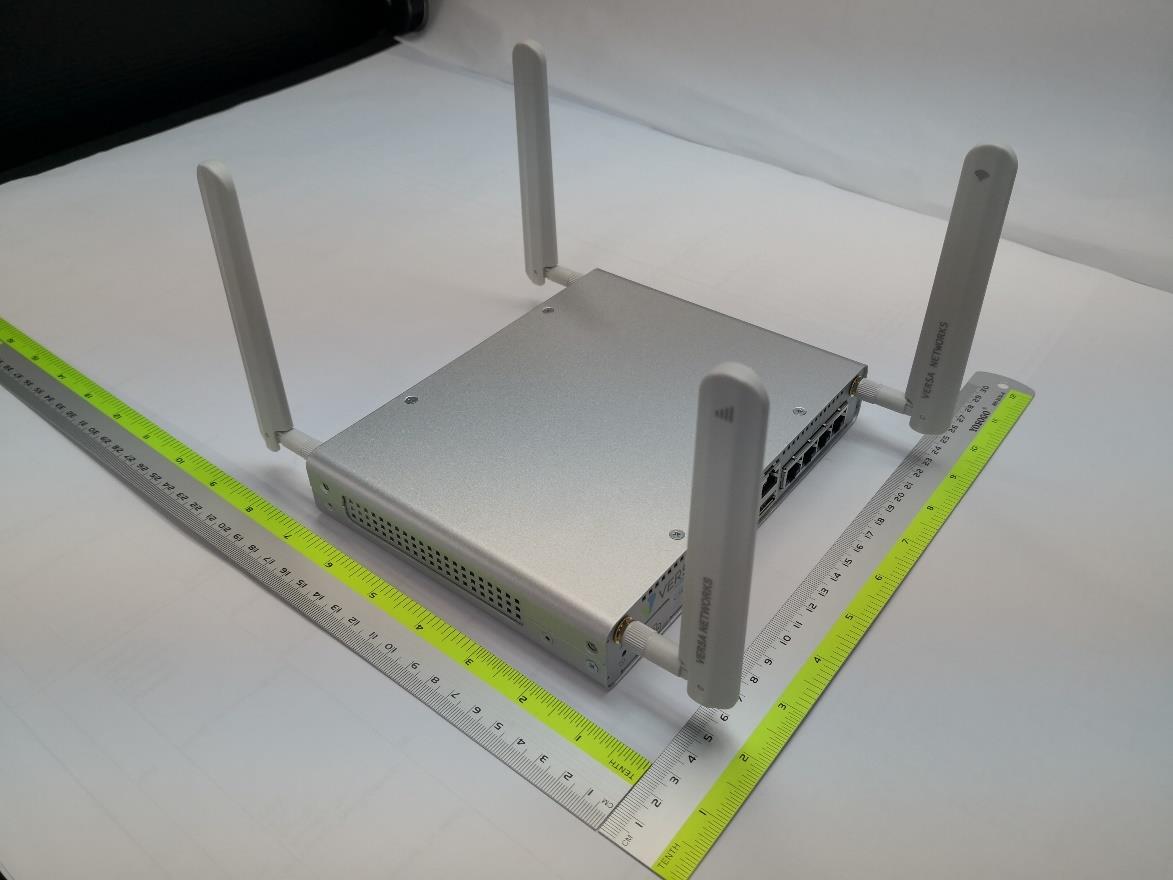

Page 1 of 3 External Picture Page 2 of 3 Page 3 of 3

CSG300s Label Instruction Feb. 10, 2020Initial releaseA DateDescriptionRevision Made In Malaysia Input Rated: 12V , 5A Model:CSG350 ARIAL 11 Model Barcode FCC ID: 2ARF9CSG350 Manufacturer:Versa Networks Inc. Address:6001 America Center Dr, 4th floor, Suite 400, San Jose, CA 95002, USA Versa Networks INC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. REV:A P/N:JVASBXXXXXXX SN:XXXXXXX MAC:XXXXXXX ARIAL 11 Model Barcode ARIAL 11 Model Barcode ARIAL 11 Model Barcode 100.00 144.50 C1 Notes: The version is only for reference. Please follow the latest version on Windchill. Notes: The version is only for reference. Please follow the latest version on Windchill. Input Rated: 12V , 5A Made In Malaysia Model:CSG350-2LA ARIAL 11 Model Barcode FCC ID: 2ARF9CSG350 Contain FCC ID: N7NEM7455 Manufacturer:Versa Networks Inc. Address:6001 America Center Dr, 4th floor, Suite 400, San Jose, CA 95002, USA Versa Networks INC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. REV:A 100.00 144.50 C1 P/N:JVASBXXXXXXX SN:XXXXXXX MAC:XXXXXXX IMEI:XXXXXXX IMEI:XXXXXXX ARIAL 11 Model Barcode ARIAL 11 Model Barcode ARIAL 11 Model Barcode ARIAL 11 Model Barcode ARIAL 11 Model Barcode Notes: The version is only for reference. Please follow the latest version on Windchill. Input Rated: 12V , 5A Made In Malaysia Model:CSG350-LA ARIAL 11 Model Barcode FCC ID: 2ARF9CSG350 Contain FCC ID: N7NEM7455 Manufacturer:Versa Networks Inc. Address:6001 America Center Dr, 4th floor, Suite 400, San Jose, CA 95002, USA Versa Networks INC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. REV:A 100.00 144.50 C1 P/N:JVASBXXXXXXX SN:XXXXXXX MAC:XXXXXXX IMEI:XXXXXXX IMEI:XXXXXXX ARIAL 11 Model Barcode ARIAL 11 Model Barcode ARIAL 11 Model Barcode ARIAL 11 Model Barcode ARIAL 11 Model Barcode NOTE: Barcodes: Code 39 or 128, Grade C or better 12.4mm13mm 9mm9mm Φ4.5mm 3.7mm 5.5mm Made In Malaysia Model:CSG350 ARIAL 11 Model Barcode FCC ID: 2ARF9CSG350 Manufacturer:Versa Networks Inc. Address:6001 America Center Dr, 4th floor, Suite 400, San Jose, CA 95002, USA I.T.E. E508861 Versa Networks INC Front : ARIAL Size10 Front : ARIAL Size12 Front : ARIAL BLACK Size20 Front : ARIAL Size12 Front : ARIAL Size12 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Front : ARIAL Size6 Front : ARIAL Size5 Front : ARIAL Size5 REV:A P/N:JVASBXXXXXXX SN:XXXXXXX MAC:XXXXXXX IMEI:XXXXXXX IMEI:XXXXXXX ARIAL 11 Model Barcode ARIAL 11 Model Barcode ARIAL 11 Model Barcode ARIAL 11 Model Barcode ARIAL 11 Model Barcode Input Rated: 12V , 5A Label Location

Page 1 of 6 Internal Picture Page 2 of 6 Page 3 of 6 Page 4 of 6 Page 5 of 6 Bluetooth Page 6 of 6 LTE Module LTE Module

Versa Networks MPE ASSESSMENT REPORT Report Type: FCC Part §2.1091, §2.1093 and §1.1307(b) assessment report Model: CSG350-2LA, CSG350-LA, CSG350 REPORT NUMBER: 200101244SHA-002 ISSUE DATE: February 24, 2020 DOCUMENT CONTROL NUMBER: TTRFFCCMPE-01_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCCMPE-01_V1© 2018 Intertek Page 2 of 8 Report no.: 200101244SHA-002 Applicant: Versa Networks 6001 America Center Dr, 4th floor, Suite 400, San Jose, CA 95002, USA Manufacturer: Versa Networks 6001 America Center Dr, 4th floor, Suite 400, San Jose, CA 95002, USA Manufacturing site: Jabil Circuit Sdn Bhd. 56, Hilir Sungai Keluang 1, Phase 4, Bayan Lepas Industrial Park, Penang 11900, Malaysia Product Name: Cloud Services Gateway Type/Model: CSG350-2LA, CSG350-LA, CSG350 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: KDB447498 D01 General RF Exposure Guidance v06 FCC Part2.1091, FCC Part2.1093 FCC Part1.1307(b) PREPARED BY: REVIEWED BY: Project Engineer Wade Zhang Reviewer Daniel Zhao Report No.: 200101244SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 3 of 8 Revision History Report No. Version Description Issued Date 200101244SHA-002 Rev. 01 Initial issue of report February 24, 2020 Report No.: 200101244SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 4 of 8 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test (EUT) Product name: Cloud Services Gateway Type/Model: CSG350-2LA, CSG350-LA, CSG350 Description of EUT: The EUT is an SDN gateway, with Bluetooth BLE 4.2 for configuration. the EUT provide three slots for optional wireless modules. maximum two LTE modules can be equipped. Rating: DC 12V 5A (Powered by external AC/DC power supply model: DA-60Z12) Software Version: / Hardware Version: / Sample received date: December 16, 2019 Date of test: December 16, 2019 ~ January 10, 2020 1.2 Technical Specification Frequency Range: 2400MHz ~ 2483.5MHz Support Standards: Bluetooth 4.2 (BLE) Type of Modulation: GFSK Channel Number: 40 (0-39) Data Rate: 1Mbps Power Class: Class II Channel Separation: 2 MHz Antenna information: No. Antenna Type Gain (dBi) Note 1 Internal PCB antenna 0.55dBi / Note: For LTE module and WIFI module, please refer its datasheet or user manual. Report No.: 200101244SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 5 of 8 1.3 Description of Test Facility Name: Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Telephone: 86 21 61278200 Telefax: 86 21 54262353 The test facility is recognized, certified, or accredited by these organizations: CNAS Accreditation Lab Registration No. CNAS L0139 FCC Accredited Lab Designation Number: CN1175 IC Registration Lab CAB identifier.: CN0051 VCCI Registration Lab Registration No.: R-14243, G-10845, C-14723, T-12252 A2LA Accreditation Lab Certificate Number: 3309.02 Report No.: 200101244SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 6 of 8 2 MPE Assessment Test result: Pass 2.1 MPE Assessment Limit Mobile device exposure for standalone operations: Frequency range E-field strength (V/m) H-field strength (A/m) B-field (uT) Equivalent plane wave power density S eq (W/m 2 ) 0-1 Hz - 3,2 × 10 4 4 × 10 4 - 1-8 Hz 10 000 3,2 × 10 4 /f 2 4 × 10 4 /f 2 - 8-25 Hz 10 000 4 000/f 5 000/f - 0,025-0,8 kHz 250/f 4/f 5/f - 0,8-3 kHz 250/f 5 6,25 - 3-150 kHz 87 5 6,25 - 0,15-1 MHz 87 0,73/f 0,92/f - 1-10 MHz 87/f 1/2 0,73/f 0,92/f - 10-400 MHz 28 0,073 0,092 2 400-2 000 MHz 1,375 f 1/2 0,0037 f 1/2 0,0046 f 1/2 f/200 2-300 GHz 61 0,16 0,20 10 Mobile device exposure for simultaneous transmission operations: the sum of the MPE ratios for all simultaneously transmitting antennas incorporated in a host device is ≤ 1.0 Report No.: 200101244SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 7 of 8 2.2 Assessment Results Power density (S) is calculated according to the formula: S = PG / (4πR²) Where S = power density in mW/cm² P = Radiated transmit power in mW G = numeric gain of transmit antenna R = distance (cm) As we can see from the test report 200101244SHA-001 and LTE module (FCC ID: N7NEM7455) reports: For BT module: Frequency band Power Antenna Gain R S (MHz) dBm mW dBi (Numeric) (cm) (mW/cm 2 ) 2402 - 2480 -10.41 0.09 0.55 1.14 20 0.00002 For LTE module: Operating Mode TX Freq Range (MHz) Power Antenna Gain Cable loss Total Gain Numeric R S dBm mW dBi dB dBi (cm) (mW/cm 2 ) WCDMA Band II 1850 1910 24 250 1.94 0.5 1.44 1.39 20 0.069 WCDMA Band IV 1710 1755 24 250 2.21 0.5 1.71 1.48 20 0.074 WCDMA Band V 824 849 24 250 1.86 0.3 1.56 1.43 20 0.071 LTE Band 2 1850 1910 24 250 1.94 0.5 1.44 1.39 20 0.069 LTE Band 4 1710 1755 24 250 2.21 0.5 1.71 1.48 20 0.074 LTE Band 5 824 849 24 250 1.86 0.3 1.56 1.43 20 0.071 LTE Band 7 2500 2570 23 200 2.94 0.6 2.34 1.71 20 0.068 LTE Band 12 699 716 24 250 1.41 0.3 1.11 1.29 20 0.064 LTE Band 13 777 787 24 250 …
