2ARF9CSG3XXCloud Services Gateway

CSG300 Series Hardware Guide At a Glance The Versa Cloud Services Gateway (CSG) 300 series appliances deliver highly secure site-to-site data connectivity to small businesses and to home offices. These appliances provide the following features: •Support for different CPUs and memory sizes: •Management Ethernet ports with dual use and dedicated options: ◦One RJ45 RS-232 console port ◦One USB 2.0 management portfor plugging in external LTE or WiFi modems ◦One copper Gigabit Ethernet dual-purpose port for data and management •MDI and MDIX autoswitchable copper Gigabit Ethernet ports •PoE source support on four Ethernet ports, with network interface card (NIC) module add-on •Wireless options: •CSG350–Two built-in wireless slots •CSG355 and CSG365–TwoLTEslots and one dedicated built-in wireless slot •External AC power supply •Fan for cooling •Desktop mount,orrack-mountable in a 19” rack(CSG355 and CSG365 only) CSG300 Appliance Models The CSG300 appliances are available in the following models: •CSG350—Compact and optimized appliance for deployment in small branches (up to 75 users) that require advanced application and cloud intelligence with hierarchical QoS and that provide a cost-effective SD-WAN solution. •CSG355–Powerful appliance for deployment in both small- and medium-sized branches that require advanced SD- Security (NGFW and UTM) along with comprehensive advanced application and cloud-intelligent SD-WAN services on premises. •CSG365—High-performance, powerful appliance for deployment at medium-sized branch locations that requireadvanced application and cloud-intelligent SD-WAN services and advanced SD-Security (NGFW and UTM). https://docs.versa-networks.com/Hardware/Cloud_Services_Gateway_300_Series/Complete_CSG300_Series_Hardware_Gui... Updated: Fri, 09 Dec 2022 04:36:47 GMT Copyright © 2022, Versa Networks, Inc. 1 Table 1 shows the CPU memory, and storage sizes of the CSG300 appliance models . Table 1: CSG300 Appliance Models CSGAppliance ModelCPUMemoryStorage CSG350x86 with 4 cores 4 GB DRAM (configurable to 16GB) 32 GB CSG355x86with 4 cores8 GB DRAM32 GB CSG365x86with 4cores (higherperformance)8 GB DRAM64 GB Chassis Views The CSG350appliance is the smallest of the CSG300 appliances. The CSG355 and CSG365appliances are physically identical. CSG350 Appliance Figure 1 and Figure 2 show the front and rear panels of the CSG350 appliance. Note: The front panel is the side of the appliance with the SIM slots and two LEDs, for status and power. This is the side that is visible when you install the appliance in an office environment. The rear panel has the power and reset buttons and various connectors and ports. Figure 1: Front Panel of the CSG350 Appliance Figure 2: Rear Panel of the CSG350 Appliance https://docs.versa-networks.com/Hardware/Cloud_Services_Gateway_300_Series/Complete_CSG300_Series_Hardware_Gui... Updated: Fri, 09 Dec 2022 04:36:47 GMT Copyright © 2022, Versa Networks, Inc. 2 CSG355 and CSG365 Appliances Figure 3 and Figure 4 show the front and rear panels of the CSG355.The panels for the CSG355 and CSG365 appliances are identical. Figure 3: Front Panel of the CSG355 Appliance Figure 4: Rear Panel of the CSG355 Appliance CSG300 Series Appliance Specifications A CSG300 series appliance chassis is made of aluminum for optimal heat dissipation. This article lists the chassis and regulatory compliance specifications for the CSG300 series appliance. It also lists certifications and export control classification numbers (ECCNs) for the appliance. https://docs.versa-networks.com/Hardware/Cloud_Services_Gateway_300_Series/Complete_CSG300_Series_Hardware_Gui... Updated: Fri, 09 Dec 2022 04:36:47 GMT Copyright © 2022, Versa Networks, Inc. 3 Chassis Specifications CSG350 Appliance Table 1 lists the specifications for a CSG350 appliance chassis. Table 1: CSG350 Series Chassis Specifications ItemSpecification Services and Slot Density RJ-45 ports 10/100/1000 Mbps4 External USB ports (USB 2.0)1 RJ-45 serial console port1 Memory DDR4 ECC DRAM4 GB Disk 1 SSD default size32 GB Power supply 12VDC, 5A Power Specifications AC input voltage100–240 Volts AC input line frequency50–60 Hz Typical power consumption25 Watts Chassis Physical Specifications Chassis height 1.38” (34 mm) Chassis width7.87” (200 mm) Chassis depth5.91" (152 mm) Chassis weight 2.75 lb (1.25 kg) Chassis weight with installation kit: 3.96 lb (1.8 kg) maximum Package Specifications Package height7" (17.78 cm) https://docs.versa-networks.com/Hardware/Cloud_Services_Gateway_300_Series/Complete_CSG300_Series_Hardware_Gui... Updated: Fri, 09 Dec 2022 04:36:47 GMT Copyright © 2022, Versa Networks, Inc. 4 ItemSpecification Package width16.7" (42.4 cm) Package depth12" (30.48 cm) Package weight15.4 lb (7 kg) Operating Conditions Temperature0° to 40°C (32° to 104°F) at sea level Humidity10% to 85% relative humidity AltitudeMaximum 3000 m (10,000 ft) Noise level Less than 20 dBA Storage Conditions Temperature20° to 70°C (68° to 158°F) at sea level Humidity10% to 85% relative humidity CSG355 and CSG365 Appliance Table 2 lists the specifications for the CSG355 and CSG365 appliance chassis. Table 2: CSG355 and CSG365 Chassis Specifications https://docs.versa-networks.com/Hardware/Cloud_Services_Gateway_300_Series/Complete_CSG300_Series_Hardware_Gui... Updated: Fri, 09 Dec 2022 04:36:47 GMT Copyright © 2022, Versa Networks, Inc. 5 ItemSpecification Services and Slot Density RJ-45 ports 10/100/1000 Mbps4 + 2 External USB ports (USB 2.0)1 RJ-45 serial console port1 Memory DDR4 ECC DRAM CSG355: 8 GB CSG365: 8 GB Disk 1 SSD default size CSG355: 32 GB CSG365: 64 GB Power supply 12VDC, 5A ProcessorHigh-performance, 4-core processor Power Specifications AC input voltage100–240 Volts AC input line frequency50–60 Hz Typical power consumption33 Watts Chassis Physical Specifications Chassis height 1.65” (43 mm) Chassis width13.8” (370 mm) Chassis depth6.7” (172 mm) Rack height1 RU Chassis weight Chassis weight with installation kit: 5.5 lb (2.5 kg…

Text truncated - open the document above for the full version.

Authority to Act as Agent Date: December 14, 2022 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: _____Intertek Testing Services Shanghai 1 __ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: _____2023/12/12_____ By: __________________________ ______Pallav Maru__________ (Signature 2 ) (Print name) Title: _Vice president, Operations and Versa India Site Head______ ____ _ On behalf of: _____Versa Networks __________ (Company Name) Telephone: __ +1-408-385-7661 __________ 1 -If a group “entity” is designated as the authorized agent, the letter of authorization must identify those individuals within the group who a re authorized to take a ction on the a pplication; or a lternatively a statement must be provided indicating tha t as the authorized agent, any individual within the group “entity” is authorized to act on behalf of the applicant / gra ntee and take a ction on the application. See https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=33316 . 2 -Must be signed by a pplicant contact given for a pplicant on the FCC site, or by the a uthorized a gent if a n appropriate a uthorized agent letter has been provided. Letters should be pla ced on appropria te letterhead. ACB-Form-FCC-Application-Letters Agent Final Audit Report2022-12-14 Created:2022-12-14 By:Amit Mishra ([email protected]) Status:Signed Transaction ID:CBJCHBCAABAAQD6Y1HefYd6-jdQenDRJ1kX-xbqeQZTm "ACB-Form-FCC-Application-Letters Agent" History Document created by Amit Mishra ([email protected]) 2022-12-14 - 1:12:09 PM GMT Document emailed to Pallav Maru ([email protected]) for signature 2022-12-14 - 1:12:40 PM GMT Email viewed by Pallav Maru ([email protected]) 2022-12-14 - 2:08:34 PM GMT Document e-signed by Pallav Maru ([email protected]) Signature Date: 2022-12-14 - 2:09:19 PM GMT - Time Source: server Agreement completed. 2022-12-14 - 2:09:19 PM GMT

Request for Confidentiality Da te: December 14, 2022 Subject: Confidentia lity Request for: _FCC ID:2ARF9CSG3XX Pursua nt to FCC 47 CFR 0.457(d) a nd 0.459 a nd IC RSP-100, Section 12.4, the a pplica nt requests that a pa rt of the subject FCC a pplica tion be held confidentia l. Type of Confidentiality Requested Exhibit ☐ Short Term☒ Perma nentBlock Dia gra ms ☐ Short TermExterna l Photos ☐ Short Term☐ Perma nent * 1 Interna l Photos ☐ Short Term☒ Perma nentOpera tion Description/Theory of Opera tion ☐ Short Term☐ Perma nentPa rts List & Pla cement/BOM ☐ Short Term☐ Perma nentTune-Up Procedure ☐ Short Term☒ Perma nentSchema tics ☐ Short TermTest Setup Photos ☐ Short Term☐ Perma nent * 3 User’s Manual __Versa Networks__ ha s spent substa ntia l effort in developing this product a nd it is one of the first of its kind in industry. Ha ving the subject informa tion ea sily a va ila ble to "competition" would nega te the a dva ntage they ha ve a chieved by developing this product. Not protecting the deta ils of the design will result in fina ncia l ha rdship. Permanent Confidentiality: The a pplica nt requests the exhibits listed a bove a s perma nently confidential be perma nently withheld from public review due to ma teria ls tha t contain tra de secrets a nd proprieta ry information not customarily relea sed to the public. Short-Term Confidentiality: The a pplica nt requests the exhibits selected a bove a s short term confidentia l be withheld from public view for a period of ___(specify number of da ys not to exceed 180) 2 ___ da ys from the da te of the Gra nt of Equipment Authoriza tion a nd prior to ma rketing. This is to a void prema ture relea se of sensitive informa tion prior to ma rketing or relea se of the product to the public. Applica nt is a lso a wa re tha t they a re responsible to notify ACB in the event informa tion rega rding the product or the product is ma de a vaila ble to the public before the requested period ha s expired. ACB will then relea se the documents listed a bove for public disclosure pursua nt to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Perma nent Confidentia lity exhibits a s shown a bove. Short Term confidentia lity is not considered a pplica ble to IC a pplica tions. Sincerely, By: Vice president, Opera tions and Versa India Site Hea d__ _ Pallav Maru ___ (Signa ture/Title 3 ) (Print na me) 1 -The a sterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Plea se refer to FCC KDB 726920 a nd the specific Document link for D01 found a t: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 a nd review section II, 3) rega rding specific information that must a ccompany these requests. 2 -Plea se refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete deta ils. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. ACB-Form-FCC-Application-Letters Confidentiality Final Audit Report2022-12-14 Created:2022-12-14 By:Amit Mishra ([email protected]) Status:Signed Transaction ID:CBJCHBCAABAAJgPATkVN8jN4WpmoVJcemwT6OE1YreWJ "ACB-Form-FCC-Application-Letters Confidentiality" History Document created by Amit Mishra ([email protected]) 2022-12-14 - 1:08:52 PM GMT Document emailed to Pallav Maru ([email protected]) for signature 2022-12-14 - 1:09:12 PM GMT Email viewed by Pallav Maru ([email protected]) 2022-12-14 - 2:07:33 PM GMT Document e-signed by Pallav Maru ([email protected]) Signature Date: 2022-12-14 - 2:08:20 PM GMT - Time Source: server Agreement completed. 2022-12-14 - 2:08:20 PM GMT

Authority to Signature Date: November 2, 2022 American certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: I Kumar Mehta authorize Pallav Maru to sign the FCC certification document for 2ARF9CSG3XX application. By: __________________________ Kumar Mehta (Signature) (print name) Kumar B Mehta (Nov 9, 2022 14:43 GMT+5.5) Kumar B Mehta Authority to Signature_CSG3XX Final Audit Report2022-11-09 Created:2022-11-09 By:Amit Mishra ([email protected]) Status:Signed Transaction ID:CBJCHBCAABAAcOP7w2AwmJa9kTpxbKO943ERcGsOxfbq "Authority to Signature_CSG3XX" History Document created by Amit Mishra ([email protected]) 2022-11-09 - 9:04:28 AM GMT Document emailed to [email protected] for signature 2022-11-09 - 9:04:53 AM GMT Email viewed by [email protected] 2022-11-09 - 9:12:32 AM GMT Signer [email protected] entered name at signing as Kumar B Mehta 2022-11-09 - 9:13:08 AM GMT Document e-signed by Kumar B Mehta ([email protected]) Signature Date: 2022-11-09 - 9:13:10 AM GMT - Time Source: server Agreement completed. 2022-11-09 - 9:13:10 AM GMT

DECLARATION We, Versa Networks declare Our company’s project Cloud Services Gateway Model: CSGXXXYYYZZZ, XXX = 355, 365 YYY = -WLA, -2LA, -W, -LA, or blank ZZZ = -4GP-120W, -4GF, -4DS, or blank are electric identical, and used the same Core board & Extension board Except below: Difference CSG355 Series CSG365 Series CPU Intel Atom Processor C2516 (4 core), 1.4GHz Intel Atom Processor C2558 (4 core), 2.4GHz eMMC 32GB 64GB Extension Board Yes Yes Support NIC card Yes Yes Model Configuration -WLAWIFI module CSG-W1 + LTE module EM7455 -2LALTE module EM7455+ LTE module EM7455 -WWIFI module CSG-W1 -LALTE module EM7455 -4GP-120WNIC card: NIC-4GP-120W -4GFNIC card: NIC-4GF -4DSNIC card: NIC-4DS The above-mentioned statements of our company are totally true. If false, we will bear corresponding liability. (Pallav Maru) Versa Networks, 550 America Center Way, Ste 350, Santa Clara, CA 95054, USA Signature: Email: Pallav Maru [email protected] Declaration of model difference 355365 (for FCC ID) Final Audit Report2022-12-14 Created:2022-12-14 By:Amit Mishra ([email protected]) Status:Signed Transaction ID:CBJCHBCAABAAc3KYfOhgLcfqEfq3UO8ZbOfUWVYVYPYS "Declaration of model difference 355365 (for FCC ID)" History Document created by Amit Mishra ([email protected]) 2022-12-14 - 12:40:04 PM GMT Document emailed to Pallav Maru ([email protected]) for signature 2022-12-14 - 12:40:48 PM GMT Email viewed by Pallav Maru ([email protected]) 2022-12-14 - 1:04:48 PM GMT Document e-signed by Pallav Maru ([email protected]) Signature Date: 2022-12-14 - 1:05:13 PM GMT - Time Source: server Agreement completed. 2022-12-14 - 1:05:13 PM GMT

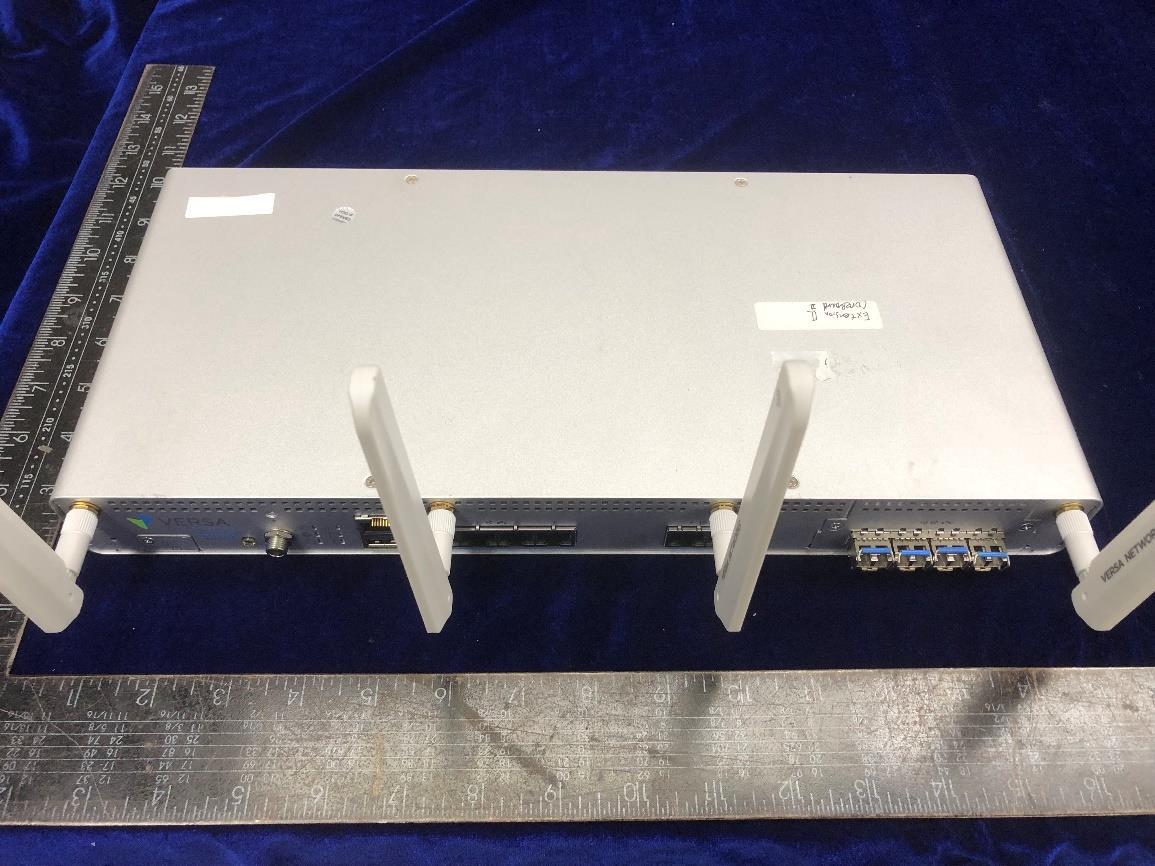

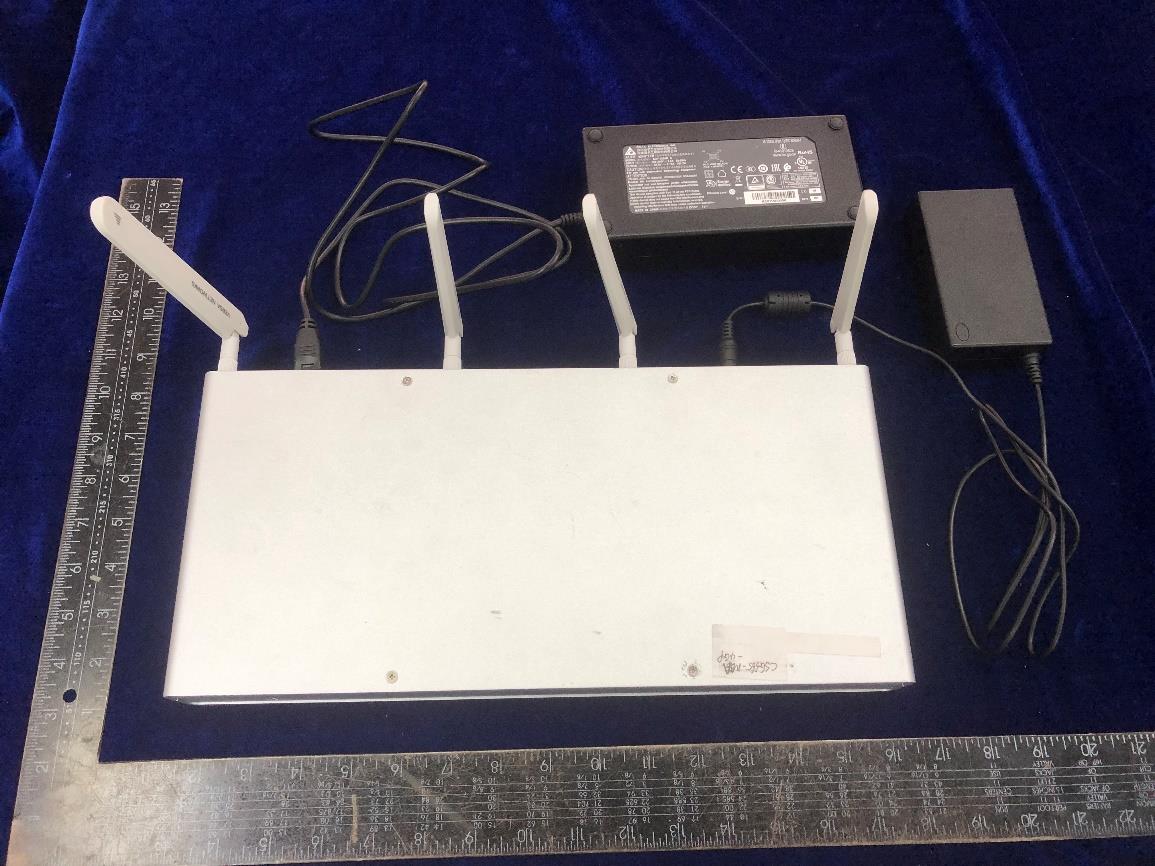

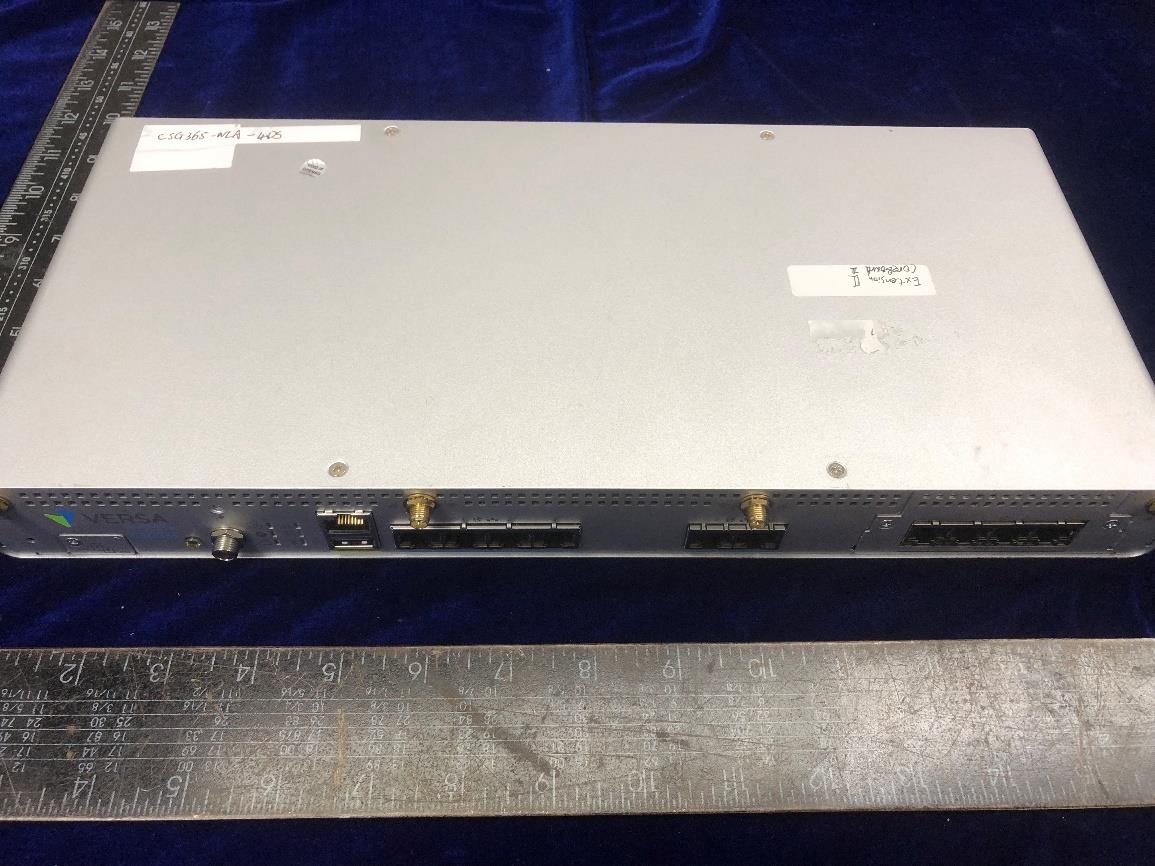

Page 1 of 13 External Photos Page 2 of 13 CSG3XX-XXX-4GP-120W Page 3 of 13 Page 4 of 13 Page 5 of 13 Page 6 of 13 CSG3XX-XXX-4GF Page 7 of 13 Page 8 of 13 Page 9 of 13 CSG3XX-XXX-4DS Page 10 of 13 Page 11 of 13 Page 12 of 13 Page 13 of 13

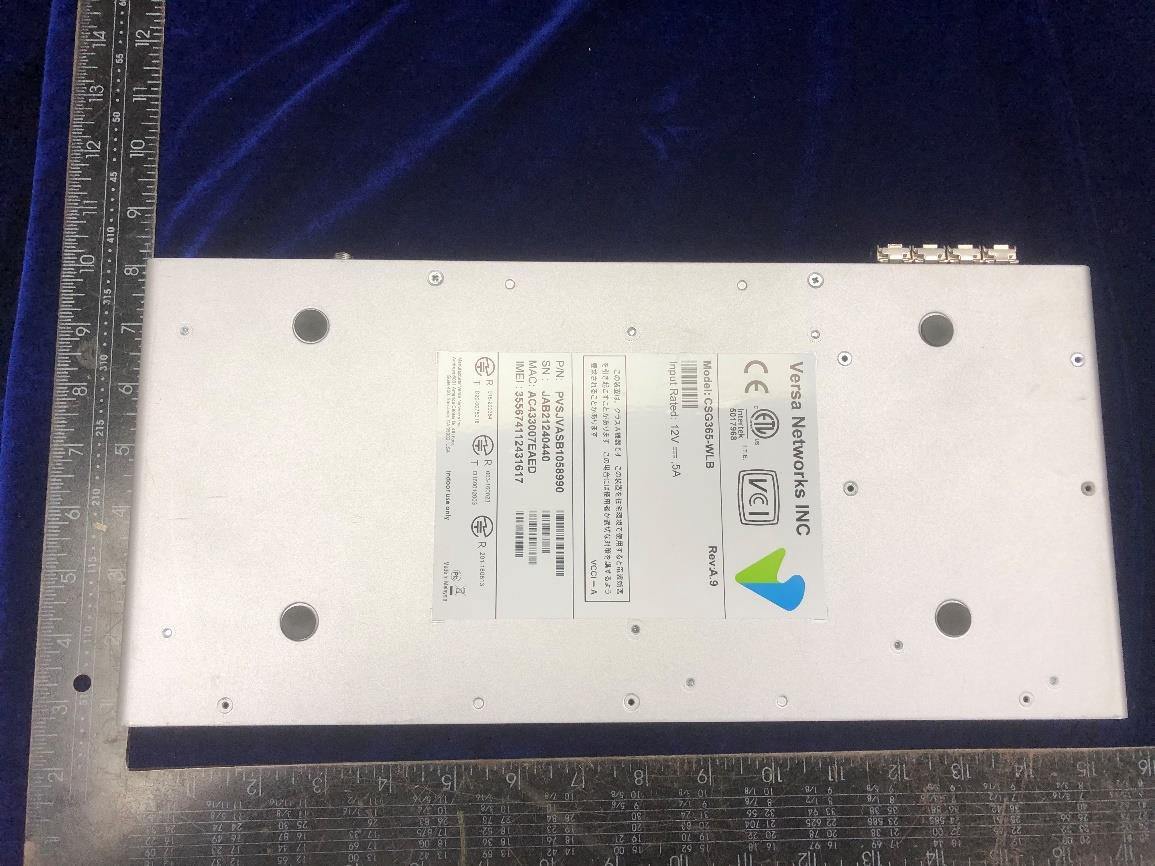

Label and location CSG365-WLA-4GP-120W CSG365-2LA-4GP-120W CSG355-WLA-4GP-120W CSG355-2LA-4GP-120W CSG365-WLA-4GF CSG365-2LA-4GF CSG355-WLA-4GF CSG355-2LA-4GF CSG365-WLA-4DS CSG365-2LA-4DS

Page 1 of 23 Internal Photos Page 2 of 23 CSG3XX-XXX-4GP-120W Page 3 of 23 Page 4 of 23 Page 5 of 23 Page 6 of 23 Page 7 of 23 Page 8 of 23 Page 9 of 23 Page 10 of 23 Page 11 of 23 Page 12 of 23

Page 13 of 23 Page 14 of 23 CSG3XX-XXX-4GF Page 15 of 23 Page 16 of 23 Page 17 of 23 Page 18 of 23 CSG3XX-XXX-4DS Page 19 of 23 Page 20 of 23 Page 21 of 23 Page 22 of 23 Page 23 of 23

Versa Networks MPE ASSESSMENT REPORT Report Type: FCC Part §2.1091, §2.1093 and §1.1307(b) assessment report Model: CSGXXXYYYZZZ REPORT NUMBER: 221200531SHA-003 ISSUE DATE: December 20, 2022 DOCUMENT CONTROL NUMBER: TTRFFCCMPE-01_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCCMPE-01_V1© 2018 Intertek Page 2 of 9 Report no.: 221200531SHA-003 Applicant: Versa Networks 2550 GREAT AMERICA WAY SUITE 350 SANTA CLARA, CA 95054 Manufacturer: Versa Networks 2550 GREAT AMERICA WAY SUITE 350 SANTA CLARA, CA 95054 Product Name: Cloud Services Gateway Type/Model: CSGXXXYYYZZZ FCC ID: 2ARF9CSG3XX SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: KDB447498 D01 General RF Exposure Guidance v06 FCC Part2.1091, FCC Part2.1093 FCC Part1.1307(b) PREPARED BY: REVIEWED BY: Project Engineer Dylan Tang Reviewer Wakeyou Wang Report No.: 221200531SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 3 of 9 Revision History Report No. Version Description Issued Date 221200531SHA-003 Rev. 01 Initial issue of report December 20, 2022 Report No.: 221200531SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 4 of 9 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test (EUT) Product name: Cloud Services Gateway Type/Model: CSGXXXYYYZZZ XXX=355,365 YYY=-WLA, -2LA, -W, -LA, or blank ZZZ=-4GP-120W, -4GF, -4DS, or blank Description of EUT: The EUT is an Cloud Services Gateway, with Bluetooth function. the EUT provide three slots for optional wireless modules. maximum two LTE modules or one LTE module + one WIFI module can be equipped. Rating: DC 12V 5A AC Adapter Model No.: DA-60Z12 AC Input:100 -240V~, 50-60Hz, 1.5A Max DC Output:12V5.0A 60.0W EUT type: Table top Floor standing Software Version: 21.2.2 Hardware Version: Rev E Serial numbers: 0221228-01-001(for radiation sample), 0221228-01-002(for conduction sample) Sample received date: November 25, 2022 Date of test: November 25, 2022 ~ December 18, 2022 1.2 Technical Specification Frequency Range: 2402-2480MHz Support Standards: IEEE 802.15.1 Type of Modulation: GFSK Channel Number: 40 Data Rate: 1Mbps, 2Mbps Channel Separation: 2MHz Antenna Information: 0.55dBi, PCB antenna Frequency Range: 2400MHz ~ 2483.5MHz Support Standards: Bluetooth 4.2 (BR+EDR) Modulation Technique: Frequency Hopping Spread Spectrum(FHSS) Type of Modulation: GFSK, π/4 DQPSK, 8DPSK Report No.: 221200531SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 5 of 9 Channel Number: 79 (0 - 78) Data Rate: 1Mbps Channel Separation: 1 MHz Antenna: 0.55dBi, PCB antenna 1.3 Description of Test Facility Name: Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Telephone: 86 21 61278200 Telefax: 86 21 54262353 The test facility is recognized, certified, or accredited by these organizations: CNAS Accreditation Lab Registration No. CNAS L0139 FCC Accredited Lab Designation Number: CN0175 IC Registration Lab CAB identifier.: CN0014 VCCI Registration Lab Registration No.: R-14243, G-10845, C-14723, T-12252 A2LA Accreditation Lab Certificate Number: 3309.02 Report No.: 221200531SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 6 of 9 2 MPE Assessment Test result: Pass 2.1 MPE Assessment Limit Mobile device exposure for standalone operations: According to§1.1310, the limit for general population/uncontrolled exposures Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) Limits For General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f2) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 F=Frequency in MHz; *Plane-wave equivalent power density Mobile device exposure for simultaneous transmission operations: the sum of the MPE ratios for all simultaneously transmitting antennas incorporated in a host device is ≤ 1.0 Report No.: 221200531SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 7 of 9 2.2 Assessment Results Power density (S) is calculated according to the formula: S = PG / (4Πr²) Where S = power density in mW/cm² P = Radiated transmit power in mW G = numeric gain of transmit antenna R = distance (cm) As we can see from the test report 221200531SHA-001&221200531SHA-002: The calculations in the table below use the highest gain of antenna for client EUT. These calculations represent worst case in terms of the exposure levels. The calculations in the table below use the highest gain of antenna for client EUT. These calculations represent worst case in terms of the exposure levels. Working Mode Frequency band Power Antenna Gain R S Limits (MHz) dBm mW dBi (Numeric) (cm) (mW/cm2) (mW/cm2) BLE 2402-2480 -8.17 0.15 0.55 1.14 20 0.00003 1 BT 2402-2480 6.37 4.34 0.55 1.14 20 0.001 1 For WIFI module: Frequency band Power Antenna Gain R S (MHz) dBm mW dBi (Numeric) (cm) (…

Text truncated - open the document above for the full version.

Page 1 of 16 WIESON TECHNOLOGIES CO., LTD. WIESON 3D CHAMBER TEST REPORT Customer: Versa Networks Project Name: 2.4GHz BT Antenna P/N: JVPCB105936E Antenna Type: PCB Print Antenna Version No. : 1 Contact Information: Tel:02-2647-1896 PM: Eison Chou [email protected] Ext.6377 Engineer: wippen [email protected] Ext.6636 Page 2 of 16 WIESON TECHNOLOGIES CO., LTD. INDEX. I. ELECTRONIC CHARACTERISTICS ..................................................................................... 3 II. Summary： ............................................................................................................................... 4 III. S-Parameter Measurement： .................................................................................................... 4 IV. Antenna Photos： ..................................................................................................................... 5 V. S-Parameter Measurement Result： ......................................................................................... 6 VI. The Test Information Anechoic Chamber ................................................................................. 8 VII. Antenna Measurement Photo .................................................................................................. 12 VIII. Antenna Measurement Result ................................................................................................. 13 IX. 3D Radiation Pattern ............................................................................................................... 14 Revision History Revision Date Engineer Description 01 2019/12/18 vicky NEW RELEASE 02 2022/11/25 vicky Add vendor info and model name No part of the information shown of this document may be used in any way without office stamp or written consent of WIESON TECHNOLOGIES CO., LTD. Page 3 of 16 WIESON TECHNOLOGIES CO., LTD. I. ELECTRONIC CHARACTERISTICS Item Specification Operating Frequency(GHz) 2.4-2.5 Bandwidth 100 MHz (Min.) Return Loss -6 dB (Max) Polarization Linear Azimuth Bandwidth Omni-directional Peak Gain 0.55 dBi (Max) Impedance 50Ω Material PCB Print Antenna Maximum Power 1W V.S.W.R 3 : 1 Radiation Omni directional Efficiency >30% Operating Temperature -10~60°C Storage temp -10~70°C Vendor: Versa Networks Address: 2550 GREAT AMERICA WAY SUITE 350 SANTA CLARA, CA 95054 Model Name: JVPCB105936E Page 4 of 16 WIESON TECHNOLOGIES CO., LTD. II. Summary： This report to account for the measurement setup and result of the Antenna. The measurement setup includes s-parameter, pattern, and gain measurement. The measured data for Antenna are presented and analysis. III. S-Parameter Measurement： A. Reflection coefficient : (a) Instrument：Network Analyzer. (b) Setup： (1) Calibrate the Network Analyzer by one port calibration using O.S.L. calibration kits. (2) Connect the antenna under test to the Network Analyzer. (3) Measure the S11(reflection coefficient) shown in Fig. 1. (4) Generally, the S11 is less than –10dB to ensure the 90% power into antenna and only less than 10% power back to system. Fig.1 Antenna measured in Network Analyzer Page 5 of 16 WIESON TECHNOLOGIES CO., LTD. IV. Antenna Photos： 2.4GHz BT Antenna Page 6 of 16 WIESON TECHNOLOGIES CO., LTD. V. S-Parameter Measurement Result： 2.4GHz BT Antenna Return Loss Frequency 2400 MHz 2450 MHz 2500 MHz dB -6.51 -7.60 -7.93 Page 7 of 16 WIESON TECHNOLOGIES CO., LTD. VSWR Frequency 2400 MHz 2450 MHz 2500 MHz VSWR 2.79 2.42 2.34 Page 8 of 16 WIESON TECHNOLOGIES CO., LTD. VI. The Test Information Anechoic Chamber A. Scope This statement of work defines the requirements of a far-field antenna measurement range, which includes (1) One 560 cm (W) x 325 cm (H) x 620 cm (L) Antenna Measurement Anechoic Chamber, detailed requirements refer section B . (2) One Far-field Antenna Measurement System with spinning linear CP measurement capabilities, detailed requirement refer section E & F . (3) One broad-band transmitted antenna, detailed requirements refer section G . B. Antenna Measurement Anechoic Chamber Fully anechoic chamber with dimension 560 cm in width, 325 cm in height and 620 cm in length. The quiet zone of this Chamber shall be greater than Page 9 of 16 WIESON TECHNOLOGIES CO., LTD. 60 cm @ 400MHz~900MHz, 43 cm @2.4 GHz, 31 cm @5.8 GHz,. Contractor should be aware of this anechoic chamber is going to be used for performing far-filed antenna measurement. C. Electrical specifications Frequency Range: 400 MHz to 6 GHz, Quiet zone size: >60 cm @ 400MHz~900MHz, >43 cm @2.4 GHz, >31 cm @5.8 GHz. Quiet zone ripple: < +/- 1.5 dB @500(400)MHz~800MHz, < +/-0.75 dB @800MHz~1.5GHz, < +/- 0.5 dB @1.5GHz~6.0GHz Field Probing Frequency Peak-to-Peak Amplitude Taper (Within specified Quiet Zone Area) Quiet Zone Size (cm) Compliant 0.9 GHz < 0.75 dB 60 Yes 1.575 GHz < 0.5 dB 43 Yes 1.8 GHz < 0.5 dB 43 Yes 2.4 GHz < 0.5 dB 43 Yes 5.8 GHz < 0.5 dB 31 Yes Page 10 of 16 WIESON TECHNOLOGIES CO., LTD. D. Absorbers We shall design and install proper absorbers on the inner walls of the chamber to guarantee the electrical specifications. However, the absorbers height shall be no less than 24" which enables the space in the chamber to be around 438 cm (W) x 203 cm (H) x 513 cm (L). All the absorber used shall meet NRL-8093 fire retardant regulations E. Far-field Antenna Measurement System We shall supply all the hardware and software which are capable of characterizing antenna radiation patterns from 30 KHz to 6 GHz using the existed Agilent 5230A PNA-L or Agilent 8753ES Vector Network Analyzer. The system shall be able to automatically measure and plot single axis amplitude and phase antenna patterns in either Cartesian or polar formats. F. Far-field measurement software The software consists of the control or data acquisition software and the data plotting software. (1) The data acquisition software shall at least be capable of the following functions: *measuring single frequency per cut - single axis (azimuth); system can a…

Text truncated - open the document above for the full version.

Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.704 2401.664 2402.368 0.5 PASS 2440 0.708 2439.644 2440.352 0.5 PASS 2480 0.696 2479.640 2480.336 0.5 PASS Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0316 2401.509 2402.541 --- --- 2440 1.0245 2439.499 2440.523 --- --- 2480 1.0218 2479.498 2480.520 --- --- Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] EIRP[dBm] EIRP Limit[dBm] Verdict BLE_1M Ant1 2402 -15.17 ≤30 -14.62 ≤36 PASS 2440 -13.87 ≤30 -13.32 ≤36 PASS 2480 -8.17 ≤30 -7.62 ≤36 PASS Test Graphs Peak BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -31.54 ≤8.00 PASS 2440 -29.99 ≤8.00 PASS 2480 -24.34 ≤8.00 PASS Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 -15.84 -65.21 ≤-35.84 PASS High 2480 -8.68 -68.06 ≤-28.68 PASS Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 Appendix F: Conducted Spurious Emission Test Result Test Mode Antenna Frequency [MHz] FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -15.94 -15.94 --- PASS 30~1000 -15.94 -60.43 ≤-35.94 PASS 1000~26500 -15.94 -52.15 ≤-35.94 PASS 2440 Reference -14…

Text truncated - open the document above for the full version.
