abode Outdoor Smart Camera User Guide May 13, 2020 Contents 1.Introduction 2.Application Overview 2.1. Parts Overview 2.2. Power Supply 2.3. LED Indicators 2.4. Equipment Required 2.5. Hardware Installation 2.6. Setup with App 1. Introduction Outdoor Smart Camera (OSC) is designed to replace conventional doorbells by providing remote video streaming access, two-way communication via Wi-Fi network. OSC is an AC- powered video doorbell that is designed for you to view and speak with the visitor at the door with a smartphone from anywhere. OSC may also be used with the included DC-powered mount that allows the device to be used an an outdoor or indoor security camera. The built-in PIR sensor is designed to give a typical detection range of 5 meters and has 105∘degrees viewing angle to the front. The doorbell functions either as a part of the Abode alarm system by connecting to an Abode security system Control Panel, or as a standalone device. Setup and remote access of OSC is performed via smartphone application developed by Abode Systems, Inc.. 2. Application Overview 2.1 Parts Overview Front 1 2 3 4 Side (DC-Powered Attachment) Side (AC-Powered Attachment) 1.Microphone 2.Lens 3.LED light ring 4.PIR sensor 5.Camera body 6.DC camera mount 7.Magnetic mount 8.AC doorbell mount 567 58 2.2 Power Supply The OSC uses 8~24V AC power or 5V DC power as its power source. For AC-Powered (Doorbell) Setup: Loosen the two screws on the back of the Doorbell Mount. Connect hardwired AC doorbell wires to the inputs on the mount and rescue screws. Install OSC Camera Body to the Doorbell mount by rotating the device 90 degrees to lock into place. Secure bottom security lock screw. *Note: It is recommended to use wire with a diameter less than 15mm to connect to the power input. The torque on the screw should be less than 24.5 nm (2.5 kg-m) For DC (Security Camera) Setup: With the Corded Attachment unplugged from power source, rotate the Camera Body 90 degrees to lock into place on Attachment. Secure bottom security lock screws. Plug USB power cable into a 5V powered USB Type-A port to power camera, or plug USB power cable into included AC wall adapter. Plug wall adapter into wall to power camera. 2.3 LED Indicators The OSC has built-in RGB LEDs to indicate device status. Blue Flash every 2 seconds (ON for 1 second, OFF for 2 seconds) Wi-Fi setup mode SpinningMotion triggered, waiting for answer Breathing/pulsing at 2 second rate (fade ON for 1 second, fade OFF for 1 second) Video/audio streaming or 2-way voice Amber ON for 2 secondsFinished warm up upon power on, entering normal operation Green ON for 3 secondsSuccessfully setup/paired to wifi. Red SpinningWi-Fi connection problem Flash every 1 second (ON for 1 second, OFF for one second) Unable to connect to server Quick flash 5xSetup failed Amber/White 3 quick amber flashes, then 2x spinning white circles Reset to factory default *Note: It takes about 1 minute for VDP to connect to Wi-Fi after power on. Before the Wi-Fi connection is established, the Red LED may flash momentarily. 2.4 Equipment Required The following equipment is required to use OSC: • A router supporting 2.4 GHz Wi-Fi network. The OSC should be connected to this router with access to internet and the Abode mobile app. • An iPhone or Android smartphone Android version requirement: Android 5.1 or above. iPhone version requirement: iOS 9 or above. • If planning to use the OSC with your existing alarm system, an Abode security system alarm panel is required – the panel must be registered a valid Abode user account. If planning to use the OSC as a standalone device, no Abode security system device is required. 2.5 Hardware Installation Step 1. Installation height is recommenced to be at least 4.5 feet (1.4 meters) from the ground in both doorbell and security camera configurations. Before you begin installation for doorbell mode, identify the doorbell circuit breaker and turn OFF main power to that circuit. Step 2. Remove Camera Body and mounts from package. Determine which mount will be used. For AC-Powered (Doorbell) Setup: Loosen the two screws on the back of the Doorbell Mount. Connect hardwired 8-24V AC doorbell wires to the inputs on the mount and rescue screws. Mount Doorbell Mount to exterior of the house on door frame or siding using the included mounting screws. Use the included wall anchors if installing on stone or masonry. Install OSC Camera Body to the Doorbell mount by rotating the device 90 degrees to lock into place. Secure bottom security lock screw. Doorbell compatibility— the OSC is compatible with 8-24V AC-powered electronic and mechanical doorbell chimes operating on a two-wire system. The camera is not compatible with wireless doorbells. For DC-Powered (Security Camera) Setup: With the Corded Attachment unplugged from power source, rotate the Camera Body 90 degrees to lock into place on Attachment. Secure bottom security lock screws. Plug USB power cable into a 5V powered USB Type-A port to power camera, or plug USB power cable into included AC wall adapter. Plug wall adapter into wall to power camera. Step 3. If using Corded Attachment determine best placement of camera before permanently installing. The camera may be used sitting flat on a surface inside (such as a shelf), or mounted inside or outside using the included Magnetic Mount. To install the Magnet Mount, use the included mounting screw to mount the Magnetic Mount metal bracket to a solid surface. Rotate to lock Magnetic Mount to metal bracket. Confirm the connection is secure, then latch camera to mount and position to the desired angle. Step 4. Supply power to the camera by either turning the circuit breaker back ON, or plugging in the Corded Attachment USB cable into a 5V USB port. 8-24V wiring pins Mounting holes 2.6 Setup with App The Video Door Phone can be either incorporated into existing Climax security system as an accessory device, or used as a standalone device. Determine which application should be…

Text truncated - open the document above for the full version.

abode systems, inc 2625 Middlefield Rd. #900 Palo Alto California 94306 United States Feder al Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date : 2020- 05- 18 To whom it may concer n: We, the undersigned, hereby authorize Worldwide Testing Services (Taiwan) Co., Ltd to act on our behalf in all matters relating to applications for equipment authorization FCC ID : 2ARGFOSC including the signing of all documents related to these matters. Any and all acts carried out by Worldwide Testing Services (Taiwan) Co., Ltd on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Name: Christopher Carney Company: abode systems, inc

abode systems, inc 2625 Middlefield Rd. #900 Palo Alto California 94306 United States Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020-05-18 Request for Long-Term Confidentiality Company name: abode systems, inc FCC ID: 2ARGFOSC FCC Part 15 Certification To whom it may concern: In accordance with §§ 0.457(d) and 0.459 of CFR 47, abode systems, inc hereby requests Long-Term confidentiality of all Block Diagrams, Schematics, Operational Description attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which abode systems, inc considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, abode systems, inc considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature Name: Christopher Carney Company: abode systems, inc

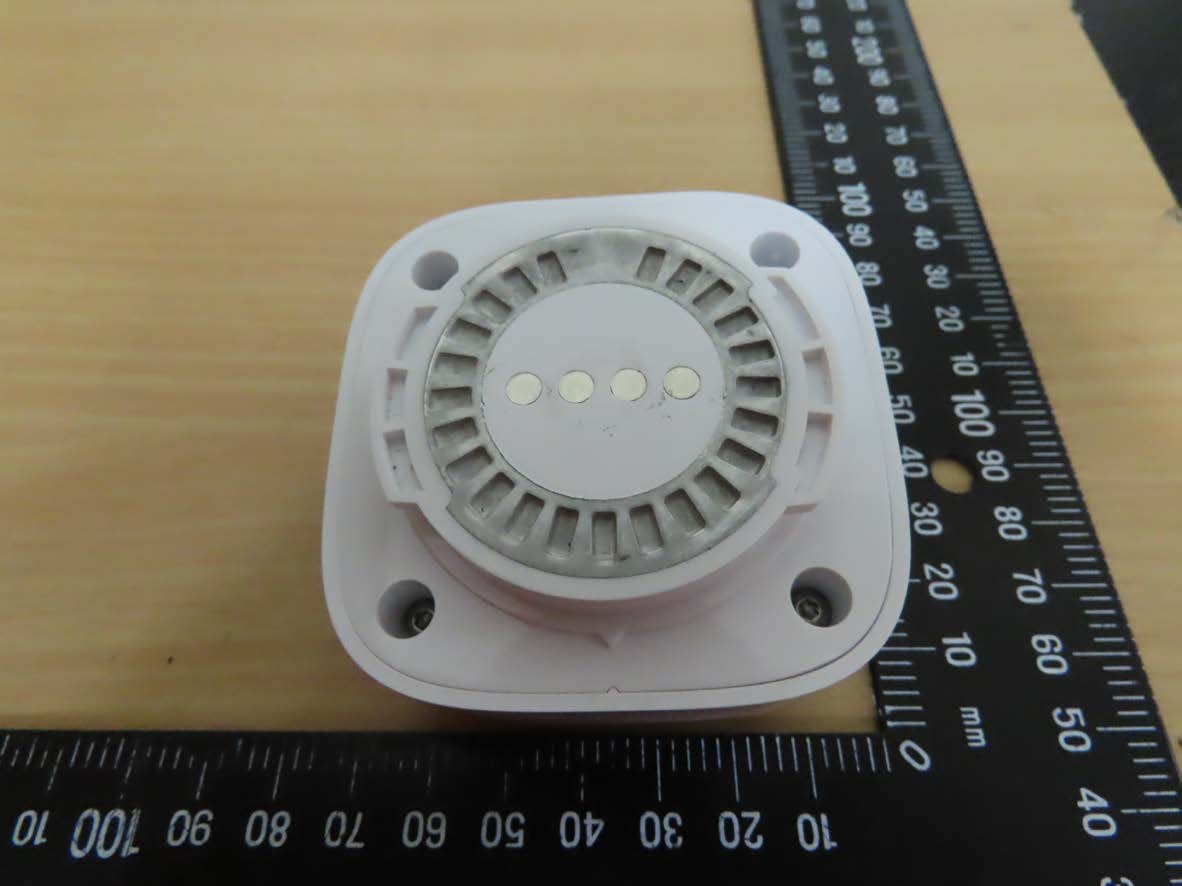

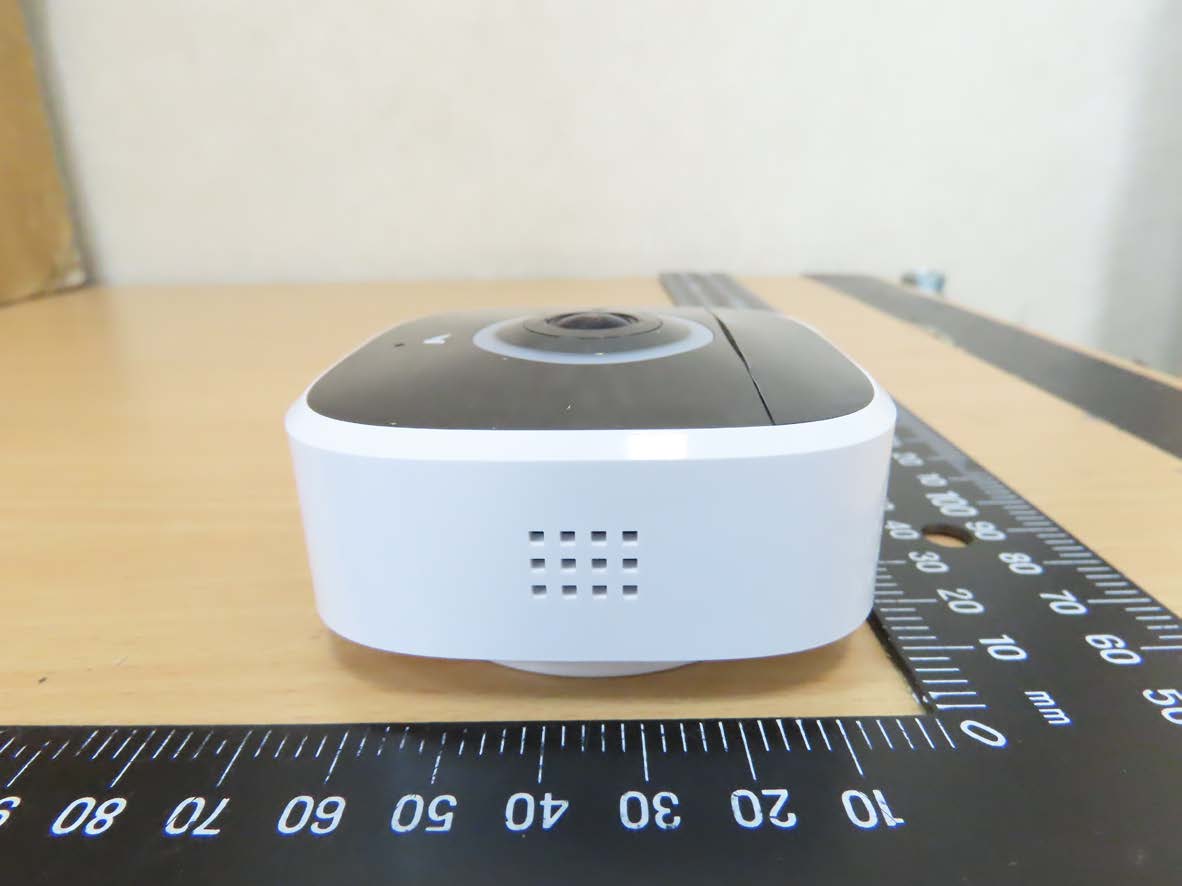

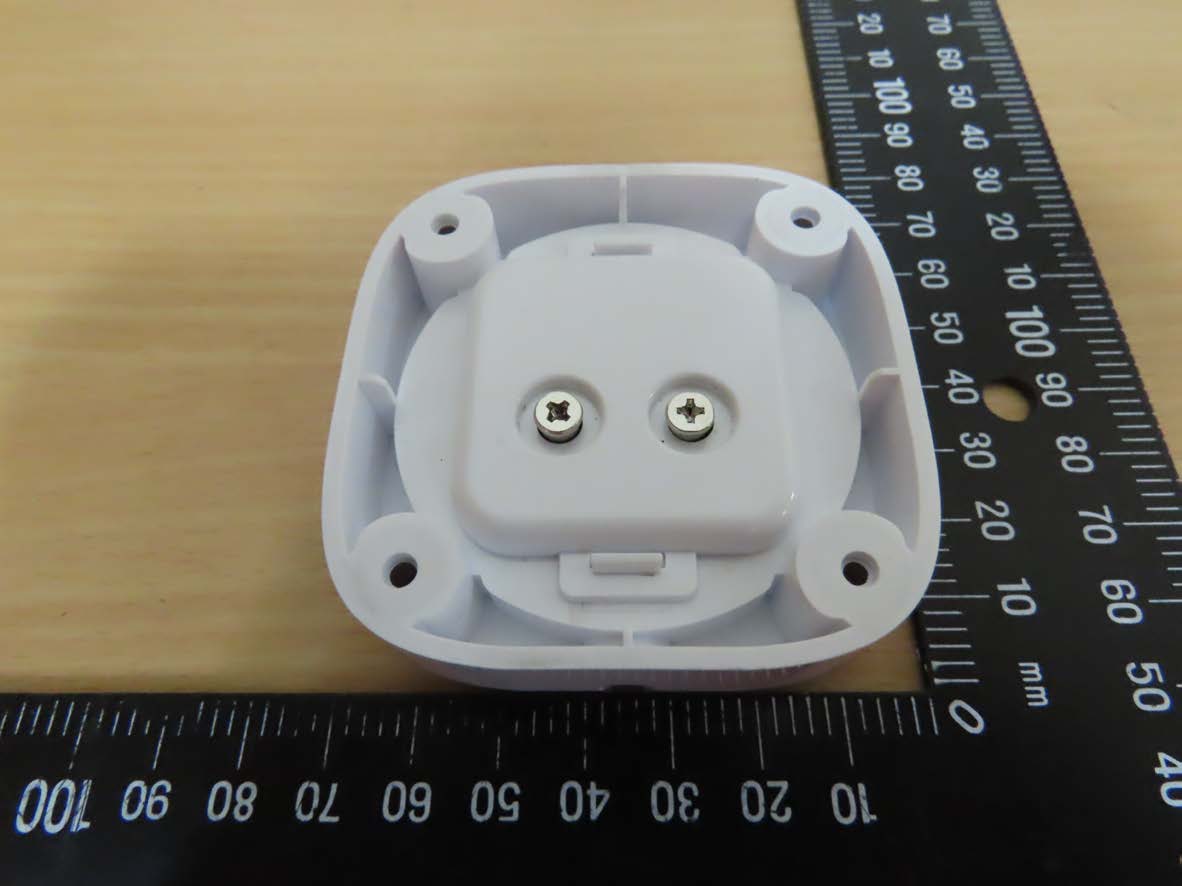

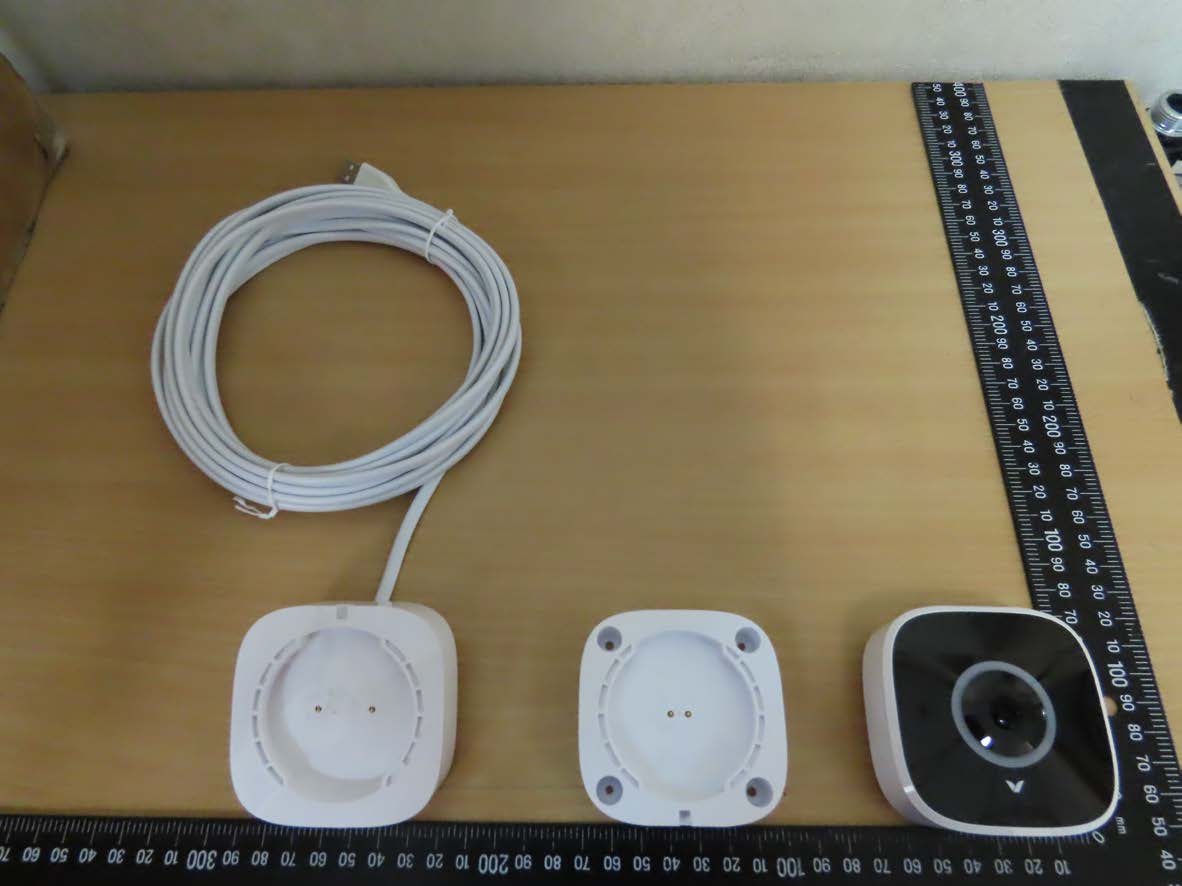

Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC External Photos Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 32 Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 32 Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 32 Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 32 Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 32 Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 32 Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 32 Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC USB Base Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 32 Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 32 Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC 24Va.c. Base Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 32 Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 12 of 32

FCC ID: 2ARGFOSC

Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC Internal Photos Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 13 of 32 Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 14 of 32 Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 15 of 32 Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 16 of 32 Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 17 of 32 Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 18 of 32 Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 19 of 32 Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 20 of 32 Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 21 of 32 Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 22 of 32 Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 23 of 32 Registration number: W6M22003-19795-FCC FCC ID: 2ARGFOSC Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 24 of 32

abode systems, inc 2625 Middlefield Rd. #900 Palo Alto California 94306 United States Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Applicant’s declaration concerning RF Radiation Exposure We hereby indicate that the product Product description: Abode Outdoor Smart Camera Model No: 104044/A The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The integral antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter within the host device. A safety statement concerning minimum separation distances from enclosure of the Product : Outdoor/Indoor Smart Camera will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RF exposure compliance. The appropriate information can be drawn from the test report no: W6M22003-19795-C-1 and the accompanying calculations. Company: abode systems, inc Address: 2625 Middlefield Rd. #900 Palo Alto California 94306 United States Date: 2020.05.11 Signature Registration number: W6M22003-19795-C-1 FCC ID: 2ARGFOSC 3.2 Equivalent isotropic radiated power (EIRP) FCC Rule: 15.247(b)(3) EIRP = max. conducted output power + antenna gain EIRP = 10.76 dBm+ ( 6.66 dBi [antenna gain claimed by manufacturer]) = 17.42 dBm = 55.21 mW 3.3 Exemption Limits for Routine Evaluation according to 47 CFR FCC Part 2 Subpart J, section 2.1091 FCC OET Bulletin 65 Edition 97.01 determines the equations for predicting RF fields and applicable limits. The prediction for power density in the far-field but will over-predict power density in the near field, where it could be used for walking a “worst case” or conservative prediction. Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20 cm normally can be maintained between the user and the device. MPE Calculation Method Worldwide Testing Services(Taiwan) Co., Ltd. Page 20 of 48 Registration number: W6M22003-19795-C-1 FCC ID: 2ARGFOSC E ＝ Electric field (V/m) P ＝ output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to mW/cm 2 . Established separation distance is 20 cm. Operating frequency band: 2412-2462 MHz The product meets RF exposure requirement. Because the power density of 0.011 mW/cm 2 at 2437 MHz is below the power density limit of 1 mW/cm 2 . Worldwide Testing Services(Taiwan) Co., Ltd. Page 21 of 48

of Applicant: abode systems, inc Address: 2625 Middlefield Rd. #900 Palo Alto California 94306 Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: TW1477, TW0020, TW1072 Industry Canada filed test laboratory Reg. No. 20037 A2LA Accredited No.: 2732.01 Report No.: W6M22003-19795-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E- mail: [email protected] 47 CFR PART 15 SUBPART C TEST REPORT for Abode Outdoor Smart Camera Model No.: 104044/A FCC ID: 2ARGFOSC R egistration number: W6M22003-19795-C-1 FCC ID: 2ARGFOSC TA BLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 2 1.1 NOTES ................................................................................................................................... 2 1.2 T ESTING LABORATORY ......................................................................................................... 3 1.2.1 Location ....................................................................................................................... 3 1.2.2 Details of accreditation status ..................................................................................... 3 1.3 DETAILS OF APPROVAL HOLDER ............................................................................................ 3 1.4 A PPLICATION DETAILS .......................................................................................................... 4 1.5 GENERAL INFORMATION OF TEST ITEM ................................................................................. 4 1.6 TEST STANDARDS .................................................................................................................. 5 2 TECHNICAL TEST .................................................................................................................. 6 2.1 S UMMARY OF TEST RESULTS ................................................................................................. 6 2.2 TEST ENVIRONMENT ............................................................................................................. 6 2.3 TEST EQUIPMENT LIST .......................................................................................................... 7 2.4 G ENERAL TEST PROCEDURE ............................................................................................... 10 3 TEST RESULTS (ENCLOSURE) ......................................................................................... 12 3.1 PEAK OUTPUT POWER (TRANSMITTER) ............................................................................... 13 3.2 E QUIVALENT ISOTROPIC RADIATED POWER ......................................................................... 20 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS ..................................................................... 20 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS ............................................. 22 3.5 SPURIOUS EMISSIONS (TX) .................................................................................................. 23 3.6 RADIATED EMISSION ON THE BAND EDGE ........................................................................... 25 3.7 MINIMUM 6 dB BANDWIDTH............................................................................................... 30 3.8 P EAK POWER SPECTRAL DENSITY ...................................................................................... 37 3.9 RADIATED EMISSION FROM DIGITAL PART ......................................................................... 44 3.10 POWER LINE CONDUCTED EMISSION .................................................................................. 45 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 48 Registration number: W6M22003-19795-C-1 FCC ID: 2ARGFOSC Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 48 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 b/g/n. This report is related to FCC Part 15 C (DSSS and OFDM device). Tester: July 17, 2020 Rick Chen Date WTS-Lab. Name Signature Technical responsibility for area of testing: July 17, 2020 Kevin Wang Date WTS Name Signature Registration number: W6M22003-19795-C-1 FCC ID: 2ARGFOSC 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) 3 meter semi-anechoic chamber No.35, Aly. 21, Ln. 228, Ankang Rd., Neihu Dist., Taipei City 114, Taiwan (R.O.C.) TEL:886-2- 6…
