2ARGT-N10PLUSBluetooth ANC TRULY WIRELESS STEREO EARBUDS

Our ANC TRULY WIRELESS STEREO EARBUDS does not have enough space to print the product name、model 、 tademark 、MIC ID and LOGO on the product itself, thus we locate them on product packaging and product user manual

MTI Corporation 2-18-7 Keian Bldg.4F Higashi Ikebukuro, Toshima-Ku, Tokyo, 170-0013, Japan Agent Authorization Company: MTI Corporation Address: 2-18-7 Keian Bldg.4F Higashi Ikebukuro Toshima-Ku, Tokyo, 170-0013, Japan Product Name: ANC TRULY WIRELESS STEREO EARBUDS Model Number(s): N10 Plus Product Description: Bluetooth ANC TRULY WIRELESS STEREO EARBUDS We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Mar. 04, 2021 Name: Keitetsu Cho Title: General Manager Company: MTI Corporation

MTI Corporation 2-18-7 Keian Bldg.4F Higashi Ikebukuro, Toshima-Ku, Tokyo, 170-0013, Japan Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Mar. 04, 2021 Subject; Request for Confidentiality FCC ID: 2ARGT-N10PLUS To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Keitetsu Cho Title: General Manager

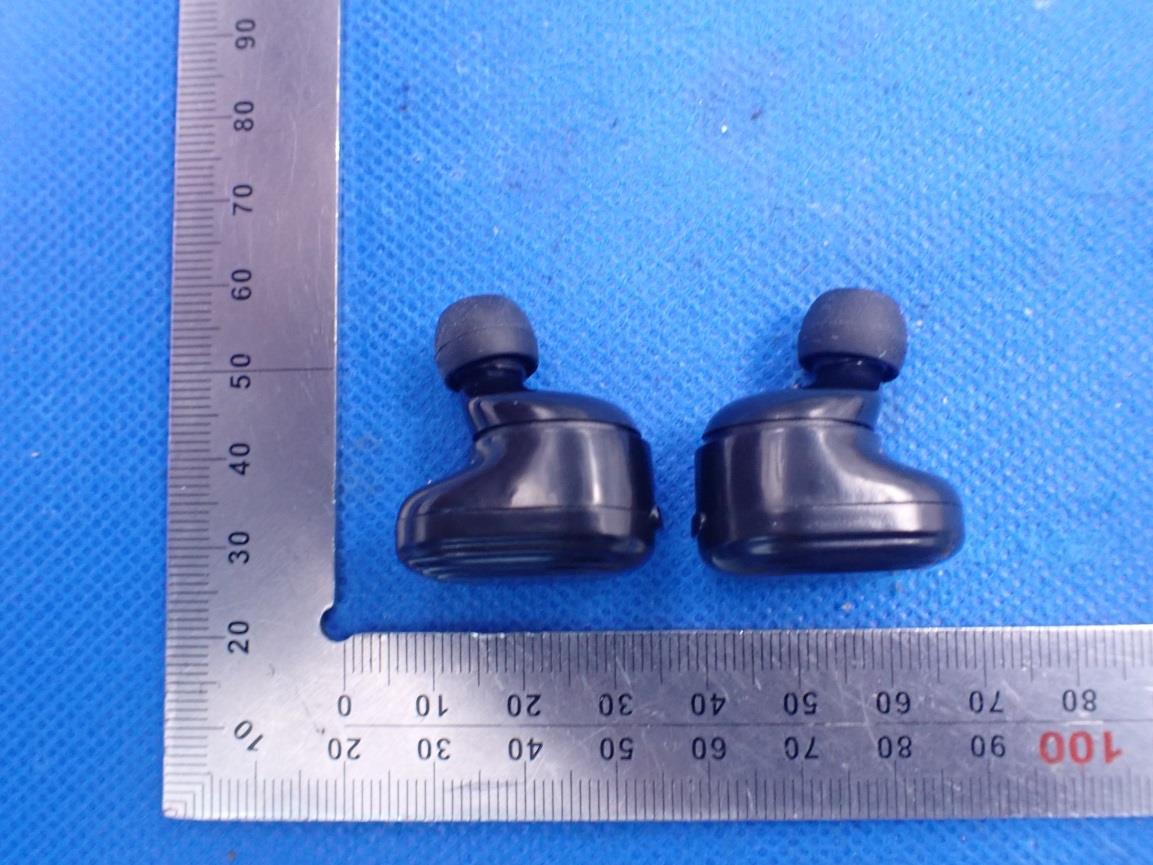

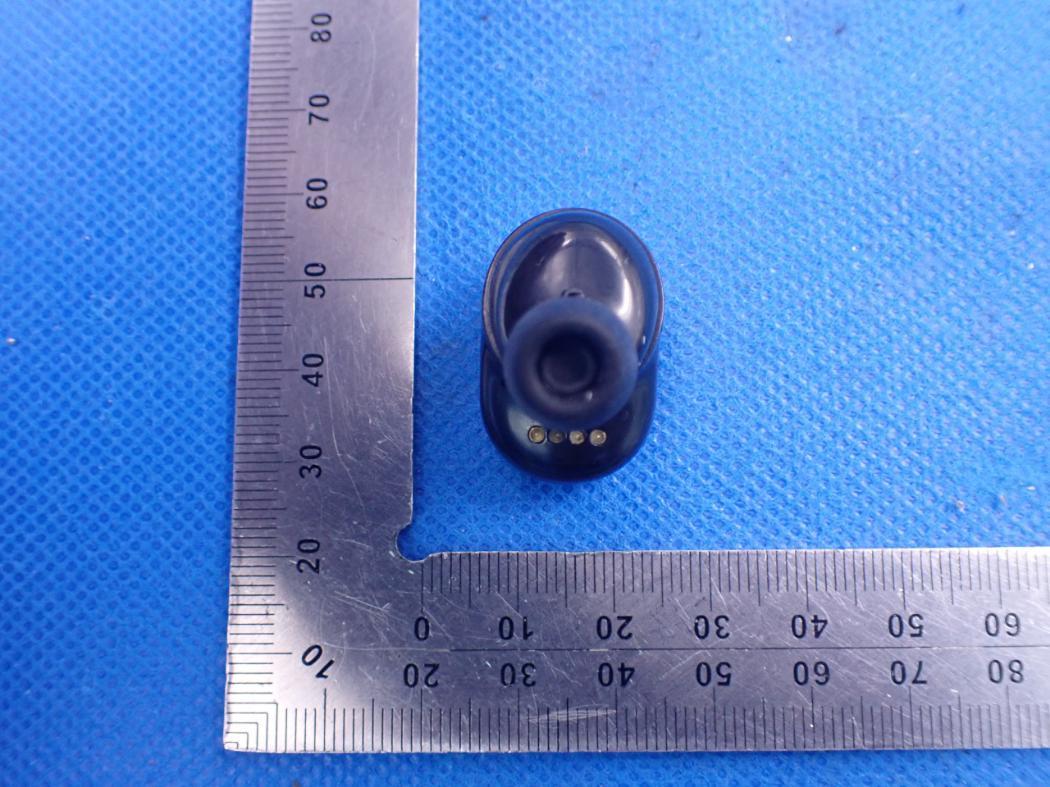

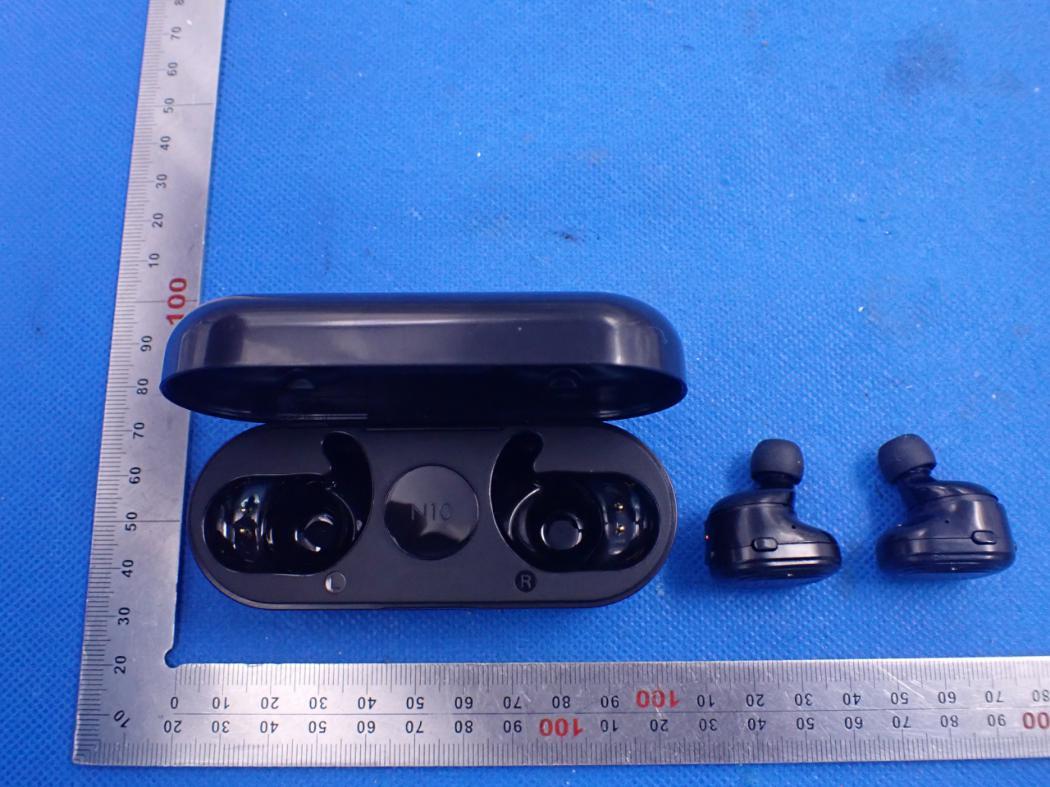

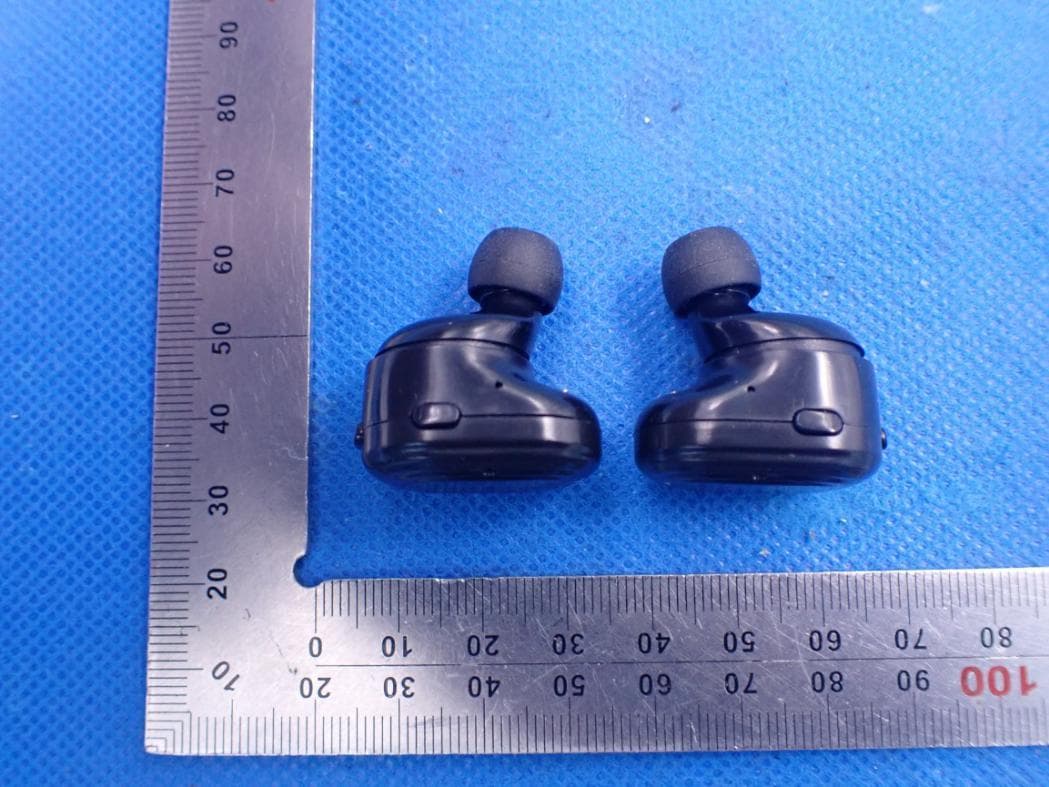

External Photos Test Model: N10 Plus WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT Left VIEW OF EUT(PORT) Right VIEW OF EUT(PORT)

FCC ID and TELEC Label Location The product does not have enough space to place the label, and FCC ID label is reflected in the user manual and package, as below: The MIC logo height is 5mm*5mm.

Internal Photos Test Model: N10 Plus Left OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 Right OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 BT Antenna INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description ANC TRULY WIRELESS STEREO EARBUDS Model Name N10 Plus FCC ID 2ARGT-N10PLUS 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BR/EDR: P t = 6.340dBm=4.31mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(4.31mW /5mm) .[√2.480GHz)]=1.35<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. BLE: P t = 4.076dBm=2.56mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(2.56mW /5mm) .[√2.480GHz)]= 0.80<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 56 FCC Test Report Report No.: AGC09927210201FE02 FCC ID : 2ARGT-N10PLUS APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : ANC TRULY WIRELESS STEREO EARBUDS BRAND NAME : NUARL MODEL NAME : N10 Plus APPLICANT : MTI Corporation DATE OF ISSUE : Mar. 03, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC09927210201FE02 Page 2 of 56 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Mar. 03, 2021 Valid Initial Release Report No.: AGC09927210201FE02 Page 3 of 56 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RELATED SUBMITTAL(S)/GRANT(S) ....................................................................................................... 7 2.4. TEST METHODOLOGY ............................................................................................................................. 7 2.5. SPECIAL ACCESSORIES .......................................................................................................................... 7 2.6. EQUIPMENT MODIFICATIONS ................................................................................................................. 7 2.7. ANTENNA REQUIREMENT ....................................................................................................................... 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 8 4. DESCRIPTION OF TEST MODES ................................................................................................................... 9 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 10 5.1. CONFIGURATION OF TESTED SYSTEM ............................................................................................... 10 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 10 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 10 6. TEST FACILITY .............................................................................................................................................. 11 7. PEAK OUTPUT POWER ................................................................................................................................ 12 7.1. MEASUREMENT PROCEDURE .............................................................................................................. 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 13 8. 6 DB BANDWIDTH ......................................................................................................................................... 17 8.1. MEASUREMENT PROCEDURE .............................................................................................................. 17 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 17 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 17 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 19 9.1. MEASUREMENT PROCEDURE .............................................................................................................. 19 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 19 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 19 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 19 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ........................................................ 27 Report No.: AGC09927210201FE02 Page 4 of 56 10.1. MEASUREMENT PROCEDURE ............................................................................................................ 27 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 27 10.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 27 10.4. LIMITS AND MEASUREMENT RESULT................................................................................................ 27 11. RADIATED EMISSION ................................................................................................................................. 29 11.1. MEASUREMENT PROCEDURE ............................................................................................................ 29 11.2. TEST SETUP .......................................................................................................................................... 30 11.3. LIMITS AND MEASUREMENT RESULT............................................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC09927210201FE02 Page 31 of 56 11.3. LIMITS AND MEASUREMENT RESULT 15.209 Limit in the below table has to be followed Frequencies (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(kHz) 300 0.490~1.705 24000/F(kHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 Note: All modes were tested for restricted band radiated emission, the test records reported below are the worst result compared to other modes. 11.4. TEST RESULT RADIATED EMISSION BELOW 30MHz The amplitude of spurious emissions from 9kHz to 30MHz which are attenuated more than 20 dB below the permissible value need not be reported. Report No.: AGC09927210201FE02 Page 32 of 56 RADIATED EMISSION BELOW 1GHZ EUT ANC TRULY WIRELESS STEREO EARBUDS Model Name N10 Plus Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal RESULT: PASS Report No.: AGC09927210201FE02 Page 33 of 56 EUT ANC TRULY WIRELESS STEREO EARBUDS Model Name N10 Plus Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical RESULT: PASS Note: 1. Factor=Antenna Factor + Cable loss, Margin=Measurement-Limit. 2. All test modes had been tested. The mode 3 is the worst case and recorded in the report. Report No.: AGC09927210201FE02 Page 34 of 56 RADIATED EMISSION ABOVE 1GHZ EUT ANC TRULY WIRELESS STEREO EARBUDS Model Name N10 Plus Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4804.00043.410.0843.4974-30.51 peak 4804.00035.340.0835.4254-18.58 AVG 7206.00038.672.2140.8874-33.12 peak 7206.00031.262.2133.4754-20.53 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT ANC TRULY WIRELESS STEREO EARBUDS Model Name N10 Plus Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4804.00044.390.0844.4774-29.53 peak 4804.00034.880.0834.9654-19.04 AVG 7206.00038.272.2140.4874-33.52 peak 7206.00030.642.2132.8554-21.15 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type Report No.: AGC09927210201FE02 Page 35 of 56 EUT ANC TRULY WIRELESS STEREO EARBUDS Model Name N10 Plus Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 2 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4880.00044.650.1444.7974-29.21 peak 4880.00035.740.1435.8854-18.12 AVG 7320.00039.722.3642.0874-31.92 peak 7320.00031.532.3633.8954-20.11 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT ANC TRULY WIRELESS STEREO EARBUDS Model Name N10 Plus Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 2 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4880.00045.130.1445.2774-28.73 peak 4880.00038.090.1438.2354-15.77 AVG 7320.00040.452.3642.8174-31.19 peak 7320.00032.462.3634.8254-19.18 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type Report No.: AGC09927210201FE02 Page 36 of 56 EUT ANC TRULY WIRELESS STEREO EARBUDS Model Name N10 Plus Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4960.00044.670.2244.8974-29.11 peak 4960.00035.420.2235.6454-18.36 AVG 7440.00038.792.6441.4374-32.57 peak 7440.00029.442.6432.0854-21.92 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT ANC TRULY WIRELESS STEREO EARBUDS Model Name N10 Plus Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4960.00042.990.2243.2174-30.79 peak 4960.00034.050.2234.2754-19.73 AVG 7440.00038.682.6441.3274-32.68 peak 7440.00029.742.6432.3854-21.62 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type RESULT: PASS Note: The amplitude of other spurious emissions from 1G to 25 GHz which are attenuated more than 20 dB below the permissible value need not be reported. Factor = Antenna Factor + Cable loss - Amplifier gain, Over=Measure-Limit. The “Factor” value can be calculated automatically by software of measurement system. Report No.: AGC09927210201FE02 Page 37 of 56 TEST RESULT FOR RESTRICTED BANDS REQUIREMENTS EUT ANC TRULY WIRELESS STEREO EARBUDS Model Name N10 Plus Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC09927210201FE02 Page 38 of 56 EUT ANC TRULY WIRELESS STEREO EARBUDS Model Name N10 Plus Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical PK AV RESULT: PASS Report No.: AGC09927210201FE02 Page 39 of 56 EUT ANC TRULY WIRELESS STEREO EARBUDS Model Name N10 Plus Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC09927210201FE02 Page 40 of 56 EUT ANC TRULY WIRELESS STEREO EARBUDS Model Name N10 Plus Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical PK AV RESULT: PASS Note: The factor had been edited in the “Input Correction” of the Spectrum Analyzer. Report No.: AGC09927210201FE02 Page 41 of 56 12. FCC LINE CONDUCTED EMISSION TEST 12.1. LIMITS OF LINE CONDUCTED EMISSION TEST Frequency Maximum RF Line Voltage Q.P.…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz CONDUCTED TEST SETUP
