2ARKMCATLRA1JumpTrack

CATLRA1 Cellular Based Asset Tracker User’s Manual Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment Federal Communication Commission Statement (FCC, U.S.) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. • This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment RF Exposure Guidance Statement: In order to comply with FCC RF Exposure requirements, this device must be installed to provide at least 20 cm separation from the human body at all times. Usage 1. Place sensor on the asset to be tracked. 2. Use asset tracking UI to view current asset position and metrics.

25/01/2022 TUV SUD BABT TCB/FCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, We, CoreKinect, hereby authorize H.B. Compliance Solutions, located at 5005 S. Ash Avenue, Suite # A- 10 Tempe, AZ-85282, to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 01/01/2023 Sincerely, Company Officer: Assar Badri, CEO Telephone Number: +1-602-684-5484 Email: [email protected]

06/06/2022 TUV SUD BABT TCB/FCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2ARKMCATLRA1 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, CoreKinect hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation CoreKinect also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days: Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Director of Compliance: Enos Franceschini Telephone Number: +1-480-466-3643 Email: [email protected]

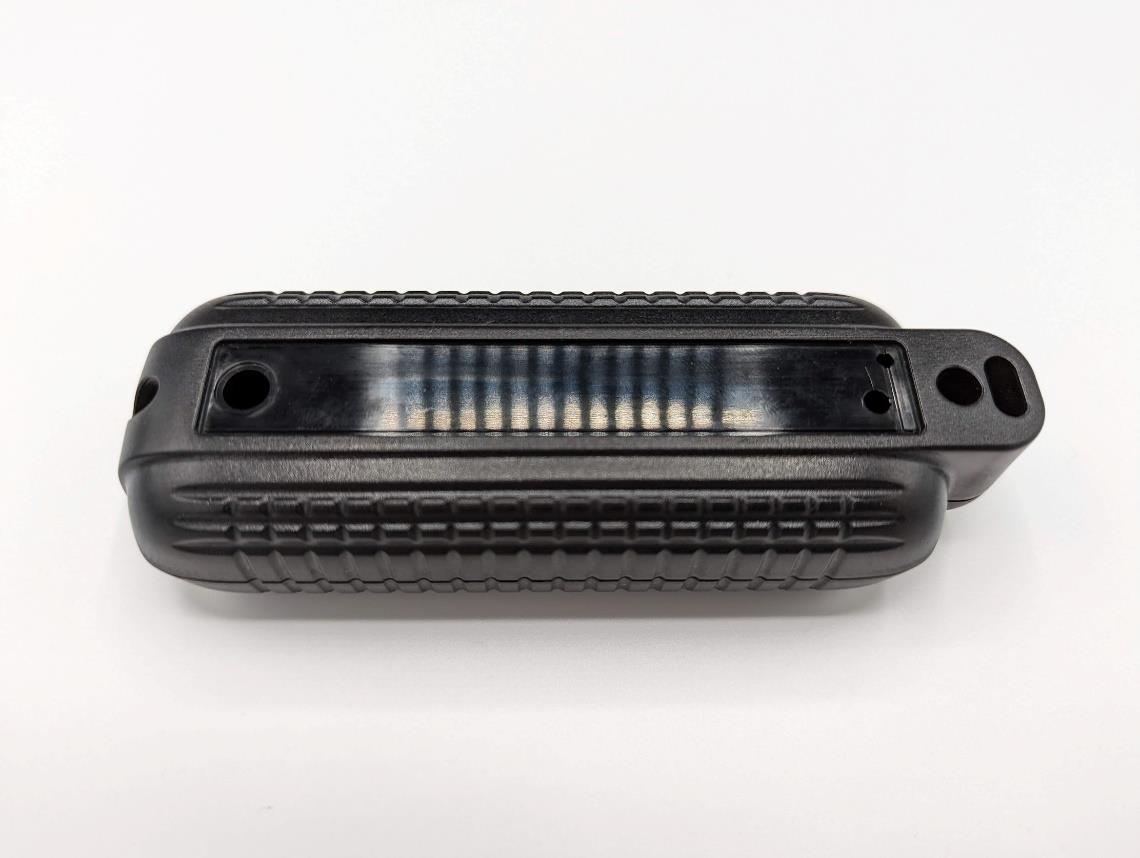

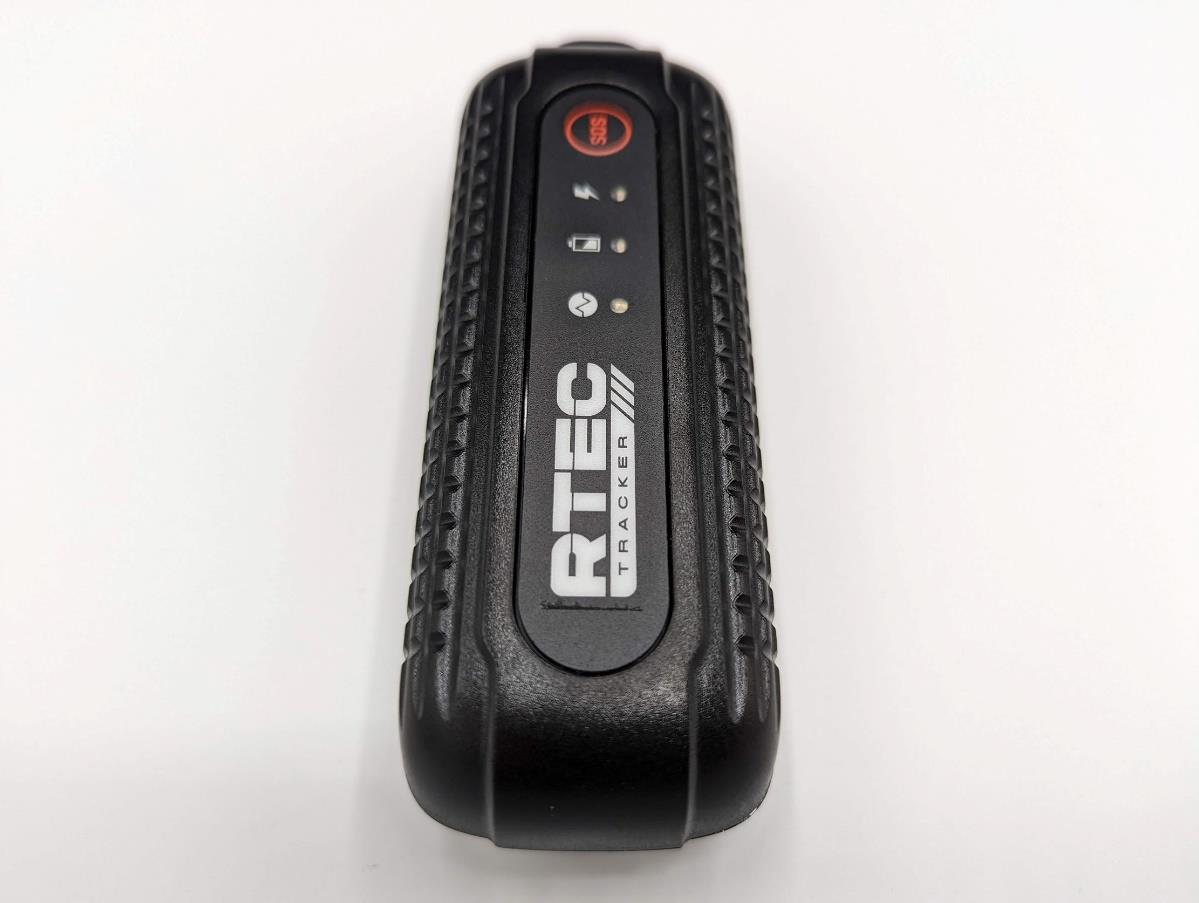

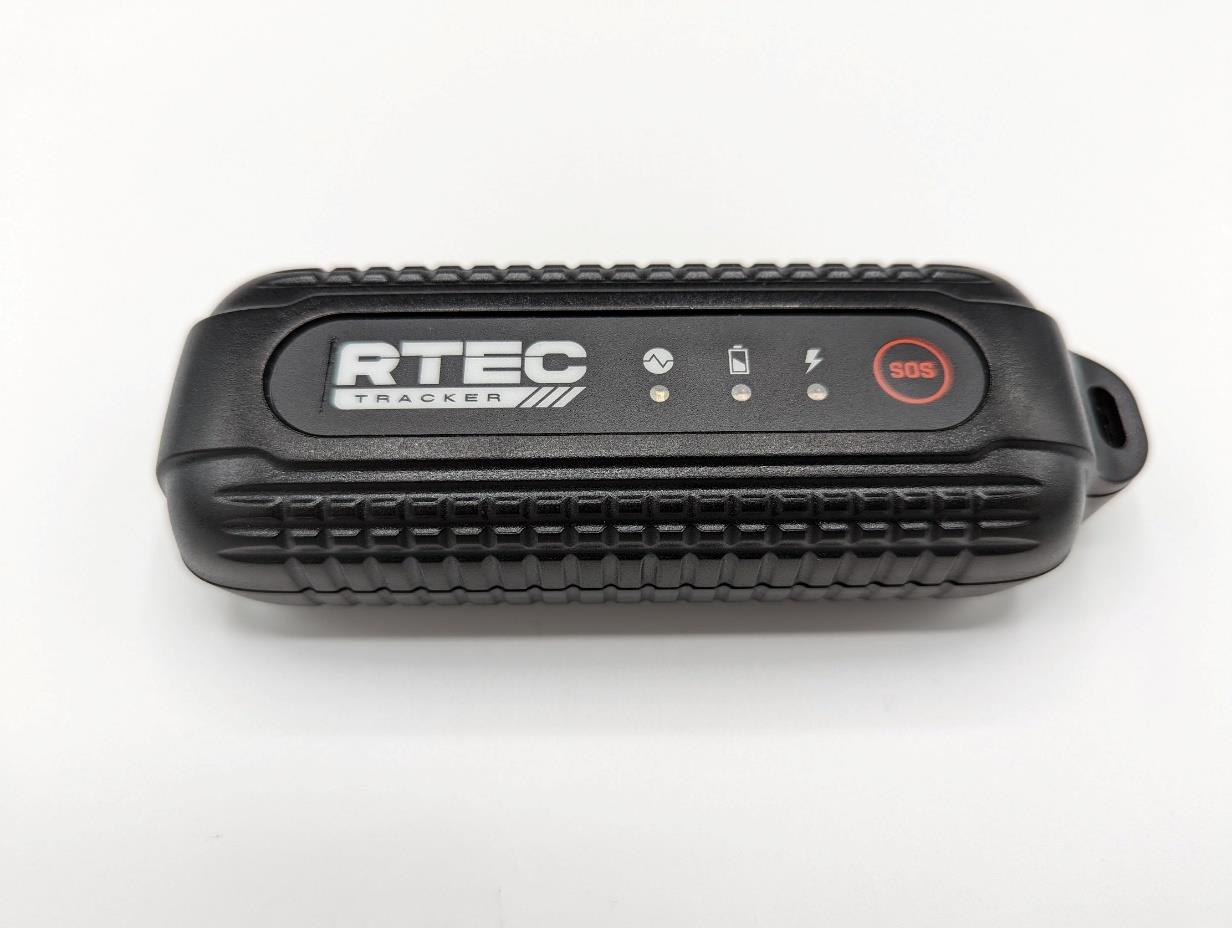

CATLRA1 Exhibit 3: External Photos

JumpTrack Label Spec

CATLRA1 Exhibit 9: Internal Photos

Certificates and reports shall not be reproduced except in full, without the written permission of H.B Compliance Solutions, LLC. Maximum Permissible Exposure Statement For the CoreKinect CATLRA1 October 5, 2022 Prepared for: CoreKinect 2800 S. Rural Road, Suite 103 Tempe, Arizona 85282 Prepared By: H.B. Compliance Solutions 5005 S. Ash Avenue, Suite # A-10 Tempe, Arizona 85282 Reviewed By: Hoosamuddin Bandukwala Cert # ATL-0062-E HBCS MPE Report # EMC_21043_4 Page 3 of 3 1. Applicable Standard According to §1.1307 the criteria listed in table 1 shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. Test Limits Evaluated against exposure limits: General Use _X_ or Controlled Use ___ Maximum Permissible Exposure (MPE) f = frequency in MHz* = Plane-wave equivalent power density RF exposure compliance will need to be determined with respect to 1.1307(c) and (d) of the FCC rules. The emissions should be within the limits at 300kHz in the above table. (Use 300kHz limits for 150kHz) HBCS MPE Report # EMC_21043_4 Page 3 of 3 2. Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR2 Where, S = power density (mW/cm2) P = output power at the antenna terminal (mW) G = gain of transmit antenna (numeric) R = distance from transmitting antenna (cm) For Bluetooth Transmitter Maximum peak output power at antenna input terminal = 6.80 (dBm) Maximum peak output power at antenna input terminal = 4.78 (mW) Antenna gain (typical) = 2.5(dBi) Maximum antenna gain = 1.8(numeric) Prediction distance = 20 (cm) Prediction frequency = 2480 (MHz) MPE limit for uncontrolled exposure at prediction frequency = 1 (mW/cm^2) Power density at prediction frequency = 0.00171 (mW/cm^2) To solve for the minimum mounting distance required; R = √ (PG/4πS) R = √ (4.8 x 1.8 / 4π x 0.00245) = 20 cm (Based on continuous transmission) HBCS MPE Report # EMC_21043_4 Page 3 of 3 For LoRa Transmitter Maximum peak output power at antenna input terminal = -14.89 (dBm) * Maximum peak output power at antenna input terminal = 0.0324 (mW) Antenna gain (typical) = 0 (dBi) Maximum antenna gain = 1.0 (numeric) Prediction distance = 20 (cm) Prediction frequency = 902.3 (MHz) MPE limit for uncontrolled exposure at prediction frequency = 0.6 (mW/cm^2) Power density at prediction frequency = 0.00000644 (mW/cm^2) *Includes 1dB of manufacturer output power tolerance. To solve for the minimum mounting distance required; R = √ (PG/4πS) R = √ (65 x 1.0 / 4π x 0.01293) = 20 cm (Based on continuous transmission) Note: Both transmitters (Bluetooth and LoRa) do not operate at the same time. HBCS MPE Report # EMC_21043_4 Page 3 of 3 3. Simultaneous Transmission Evaluation Limit The sum of the ratios of the peak or spatially averaged results to the applicable frequency dependent MPE limits must be <1 at all locations where users and bystanders can by exposed. Calculation Mode Cellular Modem Power Density/Limit 2.4GHz Bluetooth Power Density/Limit 900MHz Lora Power Density/Limit ∑(Power Density/Limit) of Cellular+Lora/Bluetooth Cellular Modem 0.549 Bluetooth 0.00171 0.5507 Lora 0.00000644 0.5491 The Cellular and Bluetooth transmitter and the Cellular with Lora, the aggregated (power density/limit) is smaller than 1, and the MPE of 2 collocated transmitters is compliant. Note: FCC ID for the pre-certified Cellular Modem 2ANPO00NRF9160. END OF TEST REPORT

Certificates and reports shall not be reproduced except in full, without the written permission of H.B Compliance Solutions, LLC. Intentional Radiator Test Report For the CoreKinect JumpTrack Tested under The FCC Rules contained in Title 47 of the CFR, Part 15.247 and ISED RSS-247 Issue 2 for Hybrid System Prepared for: CoreKinect 2800 S. Rural Road, Suite 103 Tempe, Arizona 85282 Prepared By: H.B. Compliance Solutions 5005 S. Ash Avenue, Suite # A-10 Tempe, Arizona 85282 Reviewed By: Hoosamuddin Bandukwala Cert # ATL-0062-E Engineering Statement: The measurements shown in this report were made in accordance with the procedure indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurement made, the equipment tested is capable of operation in accordance with the requirements of Part 15 of the FCC Rules under normal use and maintenance. All results contained herein relate only to the sample tested. HBCS Report # RF_21043_2 Page 2 of 49 Report Status Sheet Revision # Report Date Reason for Revision Ø August 16, 2022 Initial Issue HBCS Report # RF_21043_2 Page 3 of 49 Table of Contents EXECUTIVE SUMMARY .................................................................................................................... 4 1. Testing Summary .............................................................................................................. 4 EQUIPMENT CONFIGURATION ....................................................................................................... 5 1. Overview .......................................................................................................................... 5 2. Test Facility ....................................................................................................................... 6 3. Description of Test Sample .............................................................................................. 7 4. Equipment Configuration ................................................................................................. 7 5. Support Equipment .......................................................................................................... 7 6. Ports and Cabling Information ......................................................................................... 7 7. Method of Monitoring EUT Operation ............................................................................ 7 8. Mode of Operation .......................................................................................................... 8 9. Modifications ................................................................................................................... 8 10. Disposition of EUT ............................................................................................................ 8 Criteria for Un-Intentional Radiators .............................................................................................. 9 1. Radiated Emissions .......................................................................................................... 9 Emissions Tests Calculations ............................................................................................ 10 Criteria for Intentional Radiators .................................................................................................. 13 1. Occupied Bandwidth ...................................................................................................... 13 2. RF Power Output ............................................................................................................ 18 3. Conducted Spurious Emissions ...................................................................................... 22 4. Radiated Spurious Emissions and Restricted Band ........................................................ 29 6. Emissions At Band Edges ................................................................................................ 33 7. Power Spectral Density .................................................................................................. 38 8. Time of Occupancy (Dwell Time) ................................................................................... 42 9. Number of Hopping Frequencies ................................................................................... 45 10. Carrier Frequency Separation ........................................................................................ 46 11. Test Equipment .................................................................................................................. 48 12. Measurement Uncertainty ................................................................................................ 49 HBCS Report # RF_21043_2 Page 4 of 49 EXECUTIVE SUMMARY 1. Testing Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15.247 and RSS-247. All tests were conducted using measurement procedure from ANSI C63.10-2013, FCC Guidance document 558074 D01 v05r02 April 02, 2019 as appropriate. Test Name Test Method/Standard ISED Standard Result Comments Unintentional Radiated Emissions 15.109 RSS Gen 7.0 Pass A/C Powerline Conducted Emissions 15.207 RSS Gen 8.8 N/A Battery Powered Device Occupied Bandwidth 15.247(a)(2) RSS 247 5.1(a) Pass Peak Output Power 15.247(b) RSS 247 5.4 Pass Conducted Spurious Emissions 15.247(d) RSS 247 5.5 Pass Radiated Spurious Emissions & Restricted Band 15.247(d), 15.209(a), 15.205 RSS 247 5.5 Pass Emissions at Band Edges 15.247(d), 15.209(a), 15.205 RSS Gen 8.10 Pass Power Spectral Density 15.247(e) RSS 247 5.2(b) Pass Time of Occupancy (Dwell Time) 15.247(a) RSS 247 5.1(c) Pass Number of Hopping Channels 15.247(a) RSS 247 5.1(c) Pass Carrier Frequency Separa…
