2ARQ3-MTA42272Access Control System - RF readers

User Manual NÜO Go! NÜO Go! Manual Content 2 ÍNDICE 1. NÜO Go! 4 1.1. equipment references 5 1.2. CONTROLLER AND SECURE DOOR UNITS 6 1.3. WIRING 12 2. Installation 13 2.1. BATTERY CONNECTION 13 2.2. SHUTTING DOWN THE EQUIPMENT 14 2.3. NÜO DC GO!8 ASSEMBLY 15 2.4. SDU AND WILI ASSEMBLY 16 2.5. SDU+ AND WILI+ ASSEMBLY 17 2.6. VIDEOCONSOLA W&M VIEW F 18 3. NÜO Go! equipment information screens 21 3.1. NÜO DC GO! 8 DISPLAY 21 3.2. DISPLAY NÜO SDU+ 26 3.3. DISPLAY WILI+ 30 4. Connect to NÜO Go! 34 4.1. CONSOLE SETTINGS (VIEW DH, VIEW D, VIEW F) 34 4.2. VOXTER/VOXTER SKY VIDEO-INTERCOM SETTINGS 34 4.3. CONTROLLER CONNECTION TO PC 35  +RZWRXVHWKHHTXLSPHQWIRUWKHðUVWWLPH 5.1. FIRST STEPS: REGISTERING A USER 39 5.1.1. Register users 39 5.2. FIRST STEPS - DOORS (ACTION AND SET UP). 42 5.2.1. Door status and actions 42 5.2.2. Set up an On-line door 44 5.2.3. :L[\WHU6ɈSPULKVVY  5.2.4. Set up an Console 46 NÜO Go! Manual Content 3 5.2.5. Set up a Video-intercom door 46 Set up warnings 47 5.2.6. Set up the lighting colours of NÜO Sky 47 5.3. REPORTS 48 5.4. MORE SYSTEM OPTIONS 51 6. Diagrams 53 6.1. CONNECTION TO NÜO DC GO! 8 53 6.1.1. CONNECTION FROM THE SDU DOOR UNITS TO NÜO DC GO! 8 53 6.1.2. NÜO SDU AND SDU+ TO NÜO DC GO! 8 CONNECTION 54 6.1.3. Detail of the connection SDU/SDU+ to NÜO DC Go!8 55 6.1.4. DIAGRAM CONNECTION OF THE ELEMENTS OF A DOOR WITH SDU 56 6.1.5. DETAILED DIAGRAM SDU CONNECTION 57 6.1.6. DIAGRAM CONNECTION OF THE ELEMENTS OF A DOOR WITH SDU+ 58 6.1.7. DETAILED DIAGRAM SDU+ CONNECTION 59 6.2. VIDEO-INTERCOM CONNECTION TO WILI/WILI+ 60 6.2.1. VIDEO-INTERCOM CONNECTION VOXTER TO WILI 60 6.2.2. Voxter and Readers connection to WILI+ 61 6.2.3. CONNECTION FROM SKY FLUX/SURF SUPPORT TO WILI+ 62 6.2.4. CONNECTION OF SKY POST 63 6.2.5. CONNECTION OF SKY CAR POST/WALK WITH WILI+ 64 6.3. W&M CONNECTION TO POE SWITCH 65 7. Information regarding the NÜO DC Go! product 66 NÜO Go! Manual Introduction 4 ;LJOUPJHS:WLJPÄJH[PVUZHUK.LULYHS-LH[\YLZ This manual must be read completely in order to avoid problems and confusion during installation which could cause irreparable failures to the system. ;OLPUZ[HSSH[PVUHUK^PYPUNVM[OPZWYVK\J[ZOV\SKILZ\WLY]PZLKI`X\HSPÄLKWLYZVUULS and treated with caution. Follow the instructions at all times. Do not use abrasive materials to clean the product such as bleach or ammonia. Clean it using a damp cloth with water and/or mild soap. NÜO GO! DIAGRAM Installation Diagram 1. NÜO Go! Red BB4 BB4 BB4 BB4 1 BB2 DC Go! 8 SDU 2 BB2 SDU 3 BB2 SDU 4 BB2 SDU 5 BB2 6 BB2 SDUSDU 7 BB2 SDU 8 BB2 SDU AC SDU SDUSDUSDU SDUSDUSDU 1 BB2 DC Go! 8 SDU 2 BB2 SDU 3 BB2BB2 SDU+ 5 BB2 SDU 6 BB2 SDU AC SDU SDU SDUSDU Alternative Configuration with SDU and SDU + 4 BB2BB2 SDU+ Voxter WILI + WILI Reader Reader Sky Flux/Surf Sky Flux/Surf Voxter WILI WILI + 4 Access control doors with videointercommunication 4 consoles W&M View UTP UTP UTP UTP UTP BB2 BB2 BB4 BB2 BB4 BB2 BB4 BB4 48 Off-line doors with NÜO Tok electronic locks BB4 BB4 BB4 BB4 One SDU + occupies an entire bus, so the number of doors is reduced. UTP Up to 8 access control doors The NÜO Go! system is an access control system for 250 users, 8 On-line doors, 48 Off-line doors and 4 Video-intercom doors. The NÜO Go! System consists of a Multi-Door IP Controller, NÜO DC Go!8, which can manage up to 4 On-line doors and 48 Off-line doors, and can be extended to up to 20 On-line doors using the NÜO DC Slave units. By means of WILI/WILI+, 4 Video-intercom doors can be added. ,WKDVDV\VWHPFDSDFLW\RIXSWRXVHUVZLWKFDUGVDQGÀQJHUSULQWV The NÜO Go! application is embedded in the controller. It can be connected to directly through a browser from any device such as a computer or a tablet. NÜO Go! Manual Introduction 5 ;LJOUPJHS:WLJPÄJH[PVUZHUK.LULYHS-LH[\YLZ NÜO GO! GENERAL FEATURES 1²2'&*R -IP Controller with embedded application. -Set up from any a browser on any device (computer or tablet). -TFT-LCD touch screen 1.77” for monitoring the status of the entire installation -Multi-door management -max. 8 On-Line doors, -TH_6ќ3PULKVVYZ^P[OLSLJ[YVUPJSVJRZHUK+H[H6U*HYKJVTT\UPJH[PVU -max. 4 Video-intercom doors. -Up to 4 Video-consoles for Video-intercom. -\ZLYZ^P[OJHYKZHUKÄUNLYWYPU[Z -Manages authorisations for 25 access groups and 25 timetables. -Compatible with all NÜO readers. -Ethernet connection. -Steel casing with a tough polycarbonate frame -Operating temperature: : -10 ºC a 50 ºC. This manual serves as an installation and operation guide for the following equipment: • Ref. 42552 - NÜO DC Go! 8 • Ref. 42530 - NÜO SDU • Ref. 42550 - NÜO SDU+ • Ref. 42532 - NÜO WILI (SDUY15) • Ref. 42545 - NÜO WILI+ (SDUY50) • Ref. 42451 - W&M View 1.1. EQUIPMENT REFERENCES NÜO Go! Manual Introduction 6 ;LJOUPJHS:WLJPÄJH[PVUZHUK.LULYHS-LH[\YLZ NÜO SDU+·SECURE DOOR UNIT FOR 2 READER + I/O (REF: 42550)· INPUT VOLTAGE48 VDC POWER 1,5 W stand-by 2,5 W maximum CONNECTIONS 2 Readers 3VJR 1 Magnetic sensor 1 Entry Button 2 Inputs and 2 Outputs OPERATING TEMPERATURE -10ºC to 50ºC DIMENSIONSHeight 196, Width 116, Depth 49,4 mm NÜO DC GO! 8 ·CONTROLLER (REF: 42552)· INPUT VOLTAGE In: 100 - 240 VAC Out: 48VDC POWER 12 W (without any connected elements) 120 W (with 8 doors and their terminals, without Batteris); 30W máximo por bus Number of doors8 Number of readersPer door: 1 with SDU, 2 with SDU+ BATERÍA Sealed Lead-Acid (SLA) or GEL batteries. > 4 hours of autonomy (4 doors) > 2,5 hours of autonomy (8 doors) OPERATING TEMPERATURE -10ºC to 50ºC DIMENSIONSHeight 348, Width 348, Depth 75 mm 1.2. CONTROLLER AND SECURE DOOR UNITS NÜO SDU ·SECURE DOOR UNIT FOR 1 READER (REF: 42530)· INPUT VOLTAGE48 VDC POWER 0,45 W stand-by 1 W maximum CONNECTIONS 1 Reader 3VJR 1 Magnetic sensor 1 Entry Button OPERATING TEMPERATURE -10ºC to 50ºC DIMENSIONSHeight 107, Width 107, Depth 43,8 mm NÜO Go! Manual Introduction 7 ;LJOUPJHS:WLJPÄJH[PVUZHUK.LULYHS-LH[\YLZ For door units, The “LOCK 24V” output …

Text truncated - open the document above for the full version.

BY TECHDESIGN S.L. Calle Thomas Edison 5, Arganda del Rey Madrid, 28500, Spain Product Similarity Declaration Date: September 22, 2020 FCC ID: 2ARQ3-MTA42272 Model Number: 42272, 42328 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, BY TECHDESIGN S.L., declare that this EUT (Access Control System – RF readers ) Model Number:42272, 42328board, Schematic, Hardware version, Software version, structure and internal photos are same, named differently due to marketing purposes. Model name Type Brand Power supply and input / output Model difference 42272 Air NÜO SDU or SDU+ for NÜO Air; Input: 24VDC, 2.8W All models are same included the hardware and software, except of the exterior’s color and the model name. 42328 Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: InmaculadaOrtiz / General Manager Company: BY TECHDESIGN S.L. Address: Calle Thomas Edison 5, Arganda del Rey Madrid, 28500, Spain Phone: 34918707193 Fax: Email:

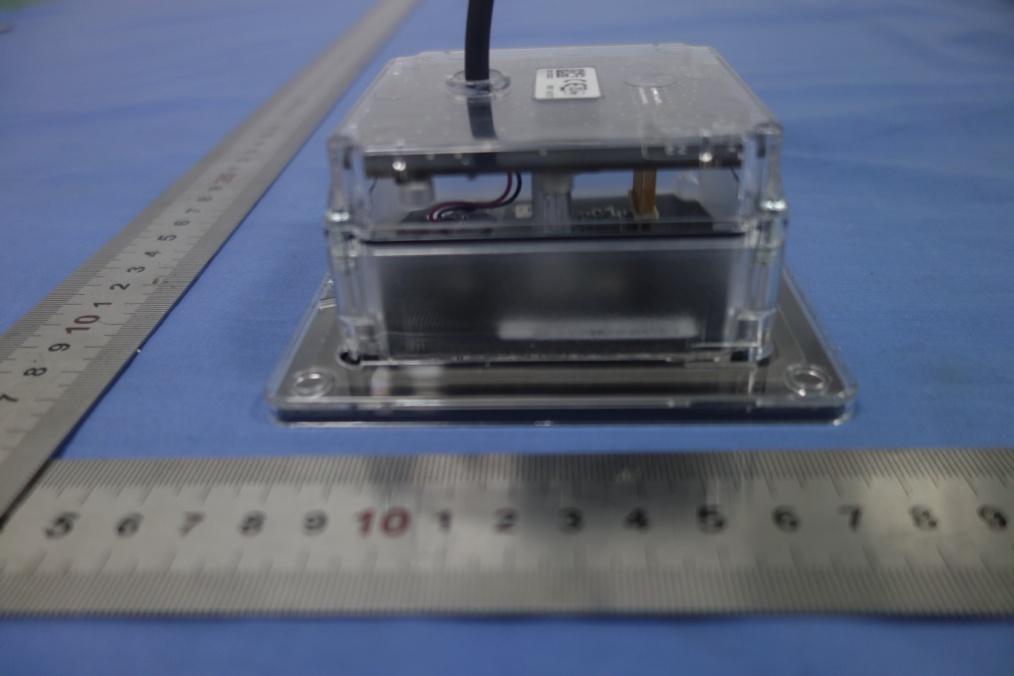

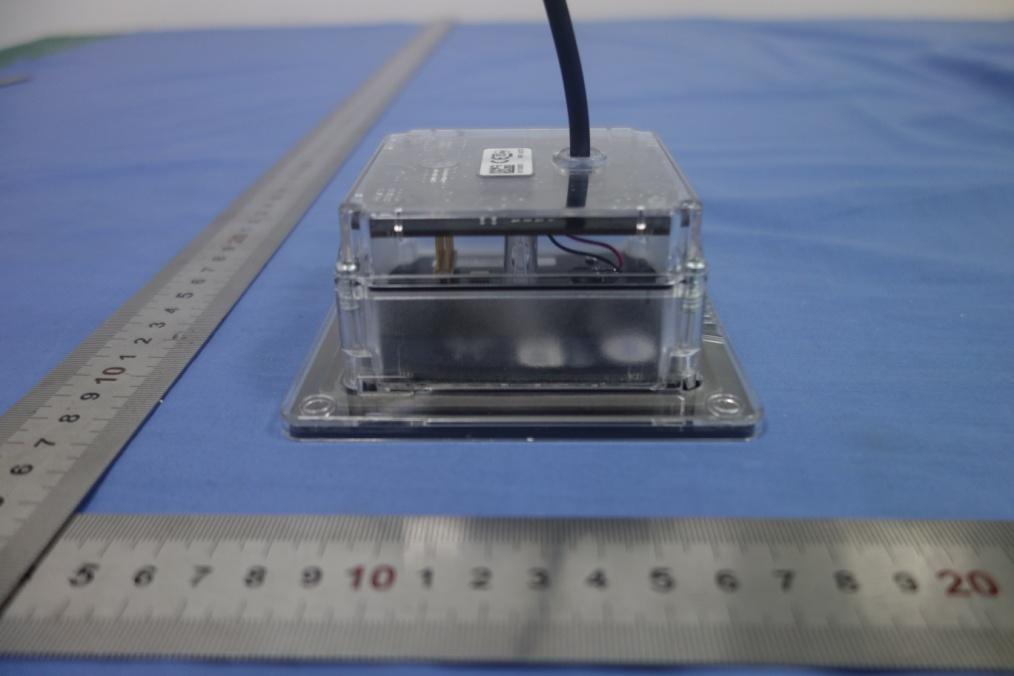

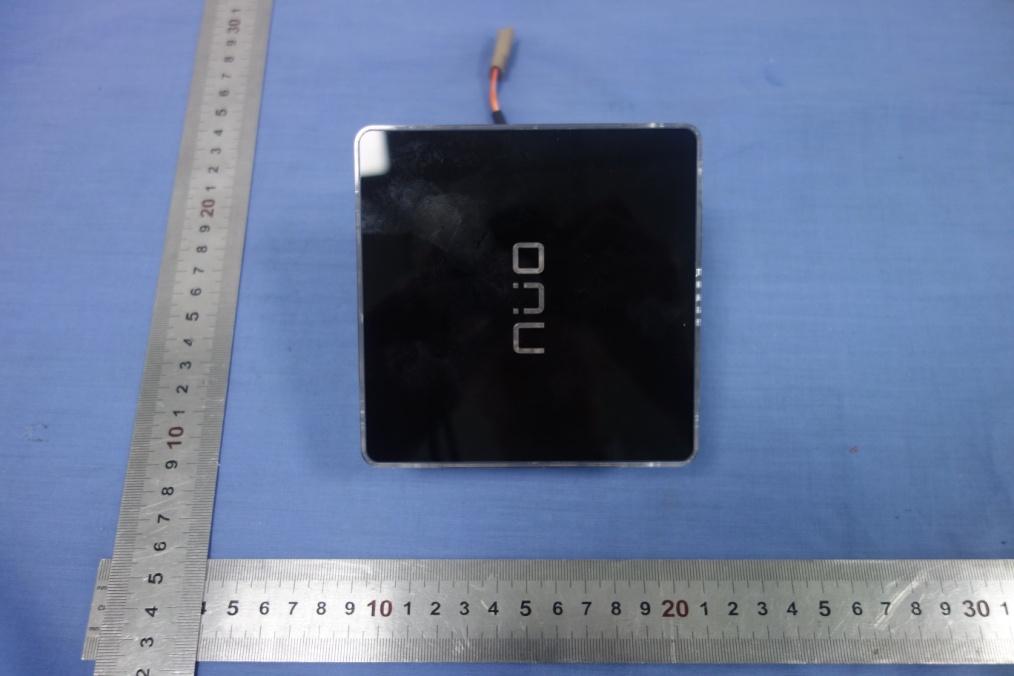

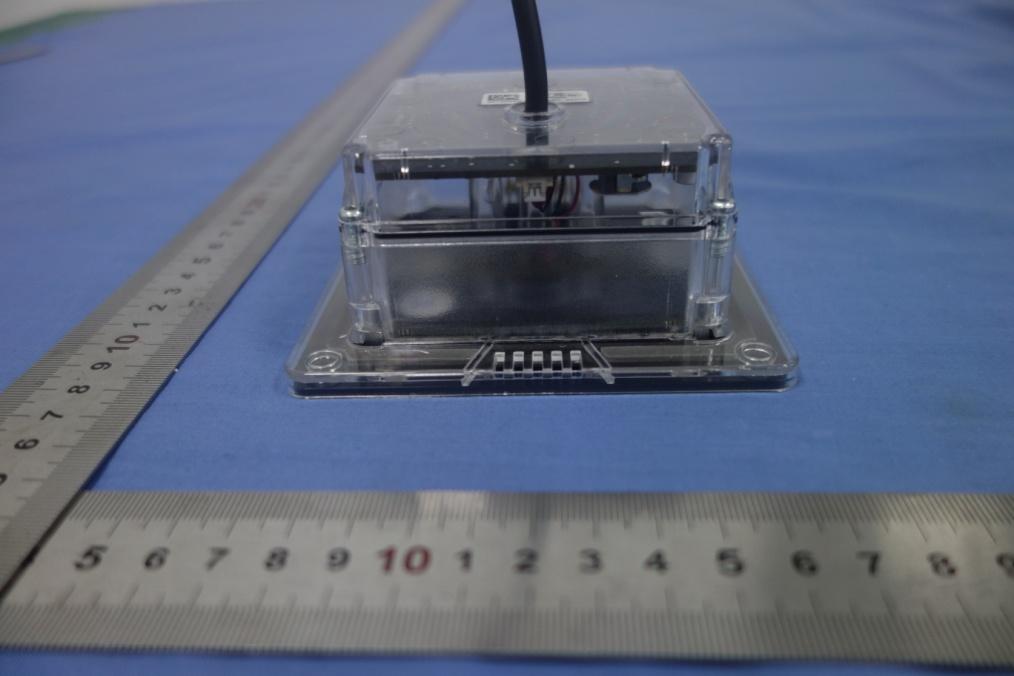

Page 1 of 10 External Photos of EUT 42272 (NÜO Air) EUT-1 EUT-2 FCC ID: 2ARQ3-MTA42272 Page 2 of 10 EUT-3 EUT-4 Page 3 of 10 EUT-5 EUT-6

Label location 0015285D FCC ID: 2ARQ3-MTA42272 Ref: 42272 AIR Input: 24V 0.1A

Page 4 of 10 Internal Photos of EUT 42272 (NÜO Air) EUT-1 EUT-2 FCC ID: 2ARQ3-MTA42272 Page 5 of 10 EUT-3 EUT-4 Page 6 of 10 EUT-5 EUT-6 Page 7 of 10 EUT-7 EUT-8 Page 8 of 10 EUT-9 EUT-10 Page 9 of 10 EUT-11 EUT-12 Page 10 of 10 EUT-13 EUT-14 --------------------This is the last page of the report. ----------------------- BT Antenna NFC Antenna BC832-AT nRF8001 PN5180
