LAVA International Limited Family models difference declaration Product Name: Mobile Phone Trade Name: LAVA Model Name: BLAZE, E20V, LZX407 Difference declaration: All models are the same circuit and RF module, except the model name. Regards, Signature Name: Laxit Sharma Date: 2022-12-01

LAVA International Limited Agent Authorization Letter (2022-12-01) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District, Shenzhen, Guangdong, China Alex.li [email protected] to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Laxit Sharma / Manager Date/City: 2022-12-01 / U.P. Phone: +91-9654481080 Fax: +0120-4637240 E-mail: [email protected]

LAVA International Limited Long Term Confidentiality Request Letter (2022-12-01) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product: Mobile Phone Model No.: BLAZE, E20V, LZX407 FCC ID: 2ARTX-BLAZE To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the  Schematic Diagram  Block Diagram  Part List / BOM List / PCB Layout  Operational Description  Tune-up Procedure  Software_Security_Requirements_for_UNII_devices Required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Please contact me if there is any information you may need. Sincerely, Laxit Sharma / Manager Date/City: 2022-12-01 / U.P. Phone: +91-9654481080 Fax: +0120-4637240 E-mail: [email protected]

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

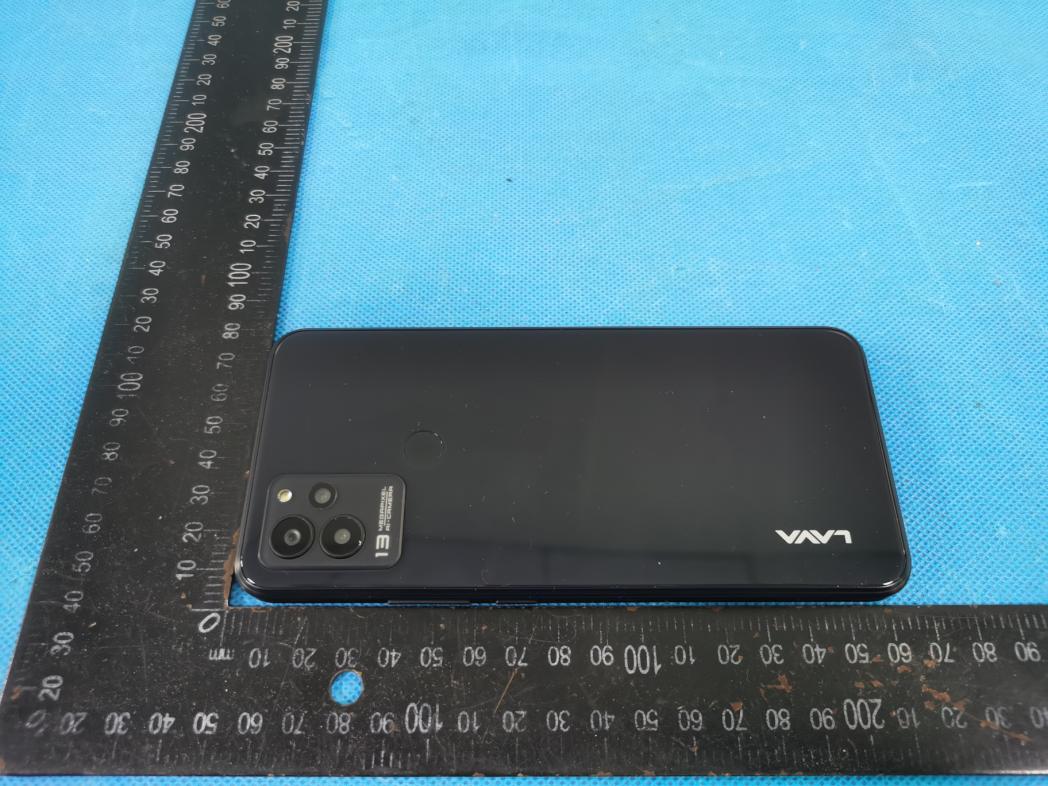

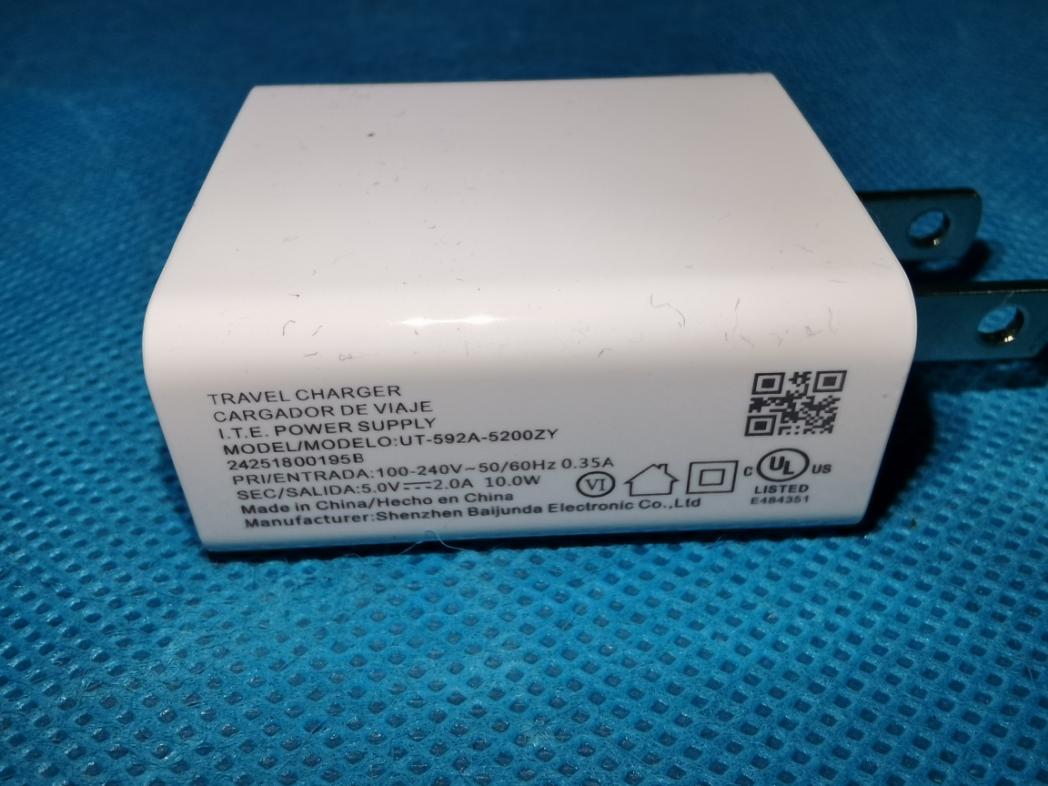

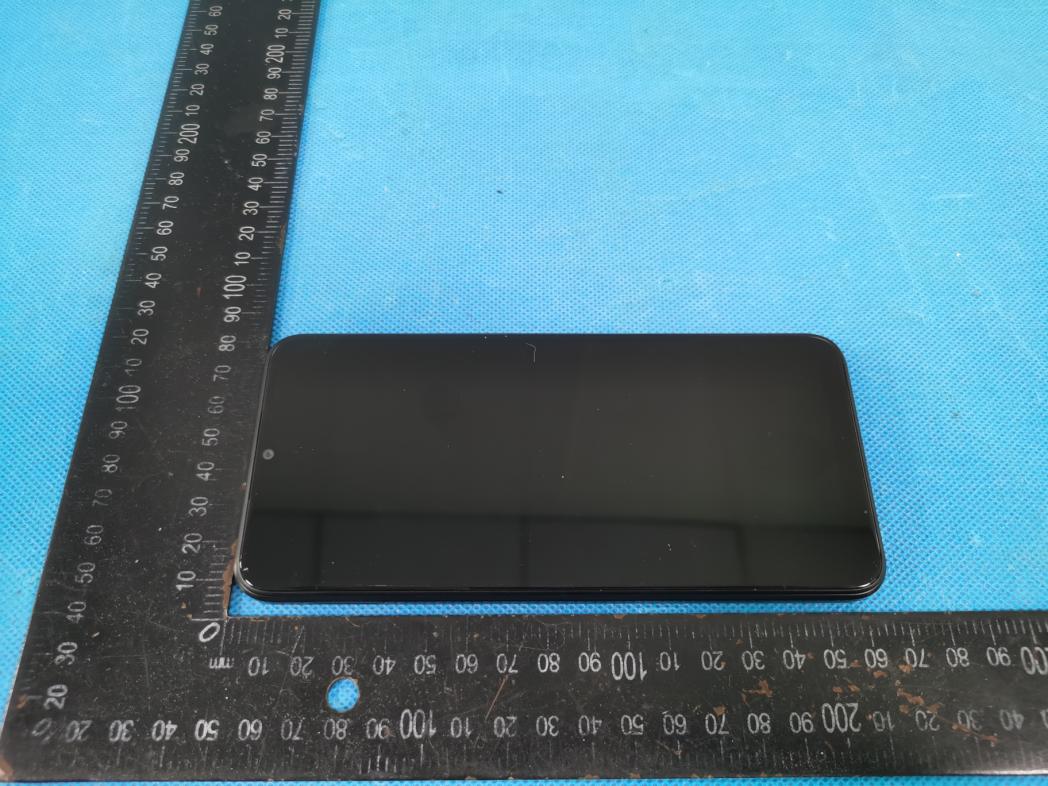

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 GSM/WCDMA/LTE Main ANT Photo 17 Photo 18 LTE AUX ANT BT/WIFI2.4G/ 5G ANT

Page 1 of 253 Report No.: S22102501803001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Mobile Phone Brand Name： LAVA Model Name： BLAZE Family Model： E20V, LZX407 Report No.： S22102501803001 FCC ID： 2ARTX-BLAZE Prepared for LAVA International Limited A-56, Sector 64, Noida 201301, U.P. India Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 253 Report No.: S22102501803001 TEST RESULT CERTIFICATION Applicant’s name ................. : LAVA International Limited Address .................................. : A-56, Sector 64, Noida 201301, U.P. India Manufacturer's Name .......... : LAVA International Limited Address .................................. : A-154 D, Sector-63, Noida, Gautam Buddha Nagar, Uttar Pradesh, 201301 Product description Product name ........................ : Mobile Phone Brand Name ......................... : LAVA Model and/or type reference : BLAZE Family Model : E20V, LZX407 Standards ............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number ............................... : S221025018002 Date of Test Date (s) of performance of tests .............. : Oct. 27, 2022 ~ Nov. 05, 2022 Date of Issue ........................................... : Nov. 22, 2022 Test Result ............................................... : Pass Prepared By (Test Engineer) : (Jacob Chen) Approved By (Lab Manager) : (Alex Li) Page 3 of 253 Report No.: S22102501803001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Nov. 22, 2022 Jacob Chen Page 4 of 253 Report No.: S22102501803001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 9 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E-Field Probe .......................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 18 3.1. Power Reference ................................................................................... 18 3.2. Area scan & Zoom scan .......................................................................... 18 3.3. Description of interpolation/extrapolation scheme .............................. 20 3.4. Volumetric Scan ..................................................................................... 20 3.5. Power Drift ............................................................................................ 20 4. System Verification Procedure .......................................................................... 21 4.1. Tissue Verification ................................................................................. 21 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 22 4.2. System Verification Procedure .............................................................. 23 4.2.1. System Verification Results .............................................................. 24 5. SAR Measurement variability and uncertainty .................................................. 25 5.1. SAR measurement variability ................................................................. 25 5.2. SAR measurement uncertainty .............................................................. 25 6. RF Exposure Positions ........................................................................................ 26 6.1. Ear and handset referen…

Text truncated - open the document above for the full version.

Page 161 of 253 Report No.: S22102501803001 MEASUREMENT 34 Date of measurement: 28/10/2022 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band LTE band 66 Channels Middle Signal LTE (Crest factor: 1.0) ConvF 1.73 B. SAR Measurement Results Frequency (MHz) 1745.000000 Relative permittivity (real part) 39.017426 Relative permittivity (imaginary part) 13.739464 Conductivity (S/m) 1.331965 Variation (%) -3.090000 SURFACE SAR VOLUME SAR Maximum location: X=2.00, Y=-22.00 SAR Peak: 0.34 W/kg SAR 10g (W/Kg) 0.106408 SAR 1g (W/Kg) 0.202387 Page 162 of 253 Report No.: S22102501803001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.3083 0.2121 0.1315 0.0796 0.0524 0.0372 0.0264 3D screen shot Hot spot position Page 163 of 253 Report No.: S22102501803001 14. Appendix D. Calibration Certificate Table of contents E Field Probe - SN 08/16 EPGO287 750 MHz Dipole - SN 03/15 DIP 0G750-355 835 MHz Dipole - SN 03/15 DIP 0G835-347 1800 MHz Dipole - SN 03/15 DIP 1G800-349 1900 MHz Dipole - SN 03/15 DIP 1G900-350 2450 MHz Dipole - SN 03/15 DIP 2G450-352 2600 MHz Dipole - SN 03/15 DIP 2G600-356 5000-6000 MHz Dipole - SN 13/14 WGA 33 Extended Calibration Certificate Page 164 of 253 Report No.: S22102501803001 Page 165 of 253 Report No.: S22102501803001 Page 166 of 253 Report No.: S22102501803001 Page 167 of 253 Report No.: S22102501803001 Page 168 of 253 Report No.: S22102501803001 Page 169 of 253 Report No.: S22102501803001 Page 170 of 253 Report No.: S22102501803001 Page 171 of 253 Report No.: S22102501803001 Page 172 of 253 Report No.: S22102501803001 Page 173 of 253 Report No.: S22102501803001 Page 174 of 253 Report No.: S22102501803001 Page 175 of 253 Report No.: S22102501803001 Page 176 of 253 Report No.: S22102501803001 Page 177 of 253 Report No.: S22102501803001 Page 178 of 253 Report No.: S22102501803001 Page 179 of 253 Report No.: S22102501803001 Page 180 of 253 Report No.: S22102501803001 Page 181 of 253 Report No.: S22102501803001 Page 182 of 253 Report No.: S22102501803001 Page 183 of 253 Report No.: S22102501803001 Page 184 of 253 Report No.: S22102501803001 Page 185 of 253 Report No.: S22102501803001 Page 186 of 253 Report No.: S22102501803001 Page 187 of 253 Report No.: S22102501803001 Page 188 of 253 Report No.: S22102501803001 Page 189 of 253 Report No.: S22102501803001 Page 190 of 253 Report No.: S22102501803001 Page 191 of 253 Report No.: S22102501803001 Page 192 of 253 Report No.: S22102501803001 Page 193 of 253 Report No.: S22102501803001 Page 194 of 253 Report No.: S22102501803001 Page 195 of 253 Report No.: S22102501803001 Page 196 of 253 Report No.: S22102501803001 Page 197 of 253 Report No.: S22102501803001 Page 198 of 253 Report No.: S22102501803001 Page 199 of 253 Report No.: S22102501803001 Page 200 of 253 Report No.: S22102501803001 Page 201 of 253 Report No.: S22102501803001 Page 202 of 253 Report No.: S22102501803001 Page 203 of 253 Report No.: S22102501803001 Page 204 of 253 Report No.: S22102501803001 Page 205 of 253 Report No.: S22102501803001 Page 206 of 253 Report No.: S22102501803001 Page 207 of 253 Report No.: S22102501803001 Page 208 of 253 Report No.: S22102501803001 Page 209 of 253 Report No.: S22102501803001 Page 210 of 253 Report No.: S22102501803001

Page 221 of 253 Report No.: S22102501803001 Page 222 of 253 Report No.: S22102501803001 Page 223 of 253 Report No.: S22102501803001 Page 224 of 253 Report No.: S22102501803001 Page 225 of 253 Report No.: S22102501803001 Page 226 of 253 Report No.: S22102501803001 Page 227 of 253 Report No.: S22102501803001 Page 228 of 253 Report No.: S22102501803001 Page 229 of 253 Report No.: S22102501803001 Page 230 of 253 Report No.: S22102501803001 Page 231 of 253 Report No.: S22102501803001 Page 232 of 253 Report No.: S22102501803001 Page 233 of 253 Report No.: S22102501803001 Page 234 of 253 Report No.: S22102501803001 Page 235 of 253 Report No.: S22102501803001 Page 236 of 253 Report No.: S22102501803001 Page 237 of 253 Report No.: S22102501803001 Page 238 of 253 Report No.: S22102501803001 Page 239 of 253 Report No.: S22102501803001 Page 240 of 253 Report No.: S22102501803001 Page 241 of 253 Report No.: S22102501803001 Page 242 of 253 Report No.: S22102501803001 Page 243 of 253 Report No.: S22102501803001 Page 244 of 253 Report No.: S22102501803001 Page 245 of 253 Report No.: S22102501803001 <Justification of the extended calibration> If dipoles are verified in return loss (<-20dB, within 20% of prior calibration for below 3GHz, and <-8dB, within 20% of prior calibration for 5GHz to 6GHz), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Head 750MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.80 - 56.4 - Mar. 01, 2021 -23.642 0.66 56.998 0.598 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 246 of 253 Report No.: S22102501803001 <Head 835MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -25.44 - 54.40 - Mar. 01, 2021 -25.803 1.43 54.492 0.092 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 247 of 253 Report No.: S22102501803001 <Head 1800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -28.85 - 47.90 - Mar. 01, 2021 -28.545 1.06 47.809 0.091 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 248 of 253 Report No.: S22102501803001 <Head 1900MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -24.79 - 50.80 - Mar. 01, 2021 -24.518 1.10 50.516 0.284 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 249 of 253 Report No.: S22102501803001 <Head 2450MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.18 - 56.30 - Mar. 01, 2021 -23.39 0.91 56.342 0.042 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 250 of 253 Report No.: S22102501803001 <Head 2600MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -21.15 - 52.70 - Mar. 01, 2021 -21.248 0.46 53.053 0.353 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 251 of 253 Report No.: S22102501803001 <Head 5200MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -9.15 - 21.17 - Mar. 01, 2021 -9.1819 0.35 21.191 0.021 Feb. 28, 2022 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 252 of 253 Report No.: S22102501803001 <Head 5600MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -16.65 - 35.76 - Mar. 01, 2021 -16.249 2.41 35.146 0.614 Feb. 28, 2022 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 253 of 253 Report No.: S22102501803001 <Head 5800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -14.30 - 54.74 - Mar. 01, 2021 -14.349 0.34 55.115 0.375 Feb. 28, 2022 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data _______________________________________END _____________________________________

Report No.: S22102501801005 1 / 40 13 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict EGPRS1900 1 Slot 512 1850.2 25.88 PASS EGPRS1900 1 Slot 661 1880 25.88 PASS EGPRS1900 1 Slot 810 1909.8 25.51 PASS EGPRS1900 2 Slot 512 1850.2 24.89 PASS EGPRS1900 2 Slot 661 1880 25.12 PASS EGPRS1900 2 Slot 810 1909.8 25.09 PASS EGPRS1900 3 Slot 512 1850.2 23.03 PASS EGPRS1900 3 Slot 661 1880 23.32 PASS EGPRS1900 3 Slot 810 1909.8 23.45 PASS EGPRS1900 4 Slot 512 1850.2 22.01 PASS EGPRS1900 4 Slot 661 1880 22.40 PASS EGPRS1900 4 Slot 810 1909.8 22.35 PASS EGPRS850 1 Slot 128 824.2 26.57 PASS EGPRS850 1 Slot 189 836.4 26.86 PASS EGPRS850 1 Slot 251 848.8 26.50 PASS EGPRS850 2 Slot 128 824.2 25.70 PASS EGPRS850 2 Slot 189 836.4 25.64 PASS EGPRS850 2 Slot 251 848.8 25.75 PASS EGPRS850 3 Slot 128 824.2 23.78 PASS EGPRS850 3 Slot 189 836.4 23.62 PASS EGPRS850 3 Slot 251 848.8 23.44 PASS EGPRS850 4 Slot 128 824.2 22.17 PASS EGPRS850 4 Slot 189 836.4 22.36 PASS EGPRS850 4 Slot 251 848.8 21.86 PASS 15 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict EGPRS1900 512 1850.2 6.928224543 13.00 PASS EGPRS1900 661 1880 6.866721461 13.00 PASS EGPRS1900 810 1909.8 6.129198243 13.00 PASS EGPRS850 128 824.2 8.097799655 13.00 PASS EGPRS850 189 836.4 8.279282309 13.00 PASS EGPRS850 251 848.8 8.576046137 13.00 PASS EGPRS1900 Channel=512 Report No.: S22102501801005 2 / 40 EGPRS1900 Channel=661 EGPRS1900 Channel=810 Report No.: S22102501801005 3 / 40 EGPRS850 Channel=128 EGPRS850 Channel=251 Report No.: S22102501801005 4 / 40 EGPRS850 Channel=189 16 Occupied bandwidth Report No.: S22102501801005 5 / 40 Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict EGPRS1900 512 1850.2 247.505 315.404 PASS EGPRS1900 661 1880 246.049 315.202 PASS EGPRS1900 810 1909.8 247.566 308.704 PASS EGPRS850 128 824.2 254.851 326.401 PASS EGPRS850 189 836.4 261.781 318.936 PASS EGPRS850 251 848.8 249.140 318.871 PASS EGPRS1900 Channel=512 EGPRS1900 Channel=661 Report No.: S22102501801005 6 / 40 EGPRS1900 Channel=810 EGPRS850 Channel=128 Report No.: S22102501801005 7 / 40 EGPRS850 Channel=189 EGPRS850 Channel=251 Report No.: S22102501801005 8 / 40 17 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict EGPRS1900 512 1850.2 1849.97 -35.61 -13 PASS EGPRS1900 810 1909.8 1910.00 -28.20 -13 PASS EGPRS850 128 824.2 824.00 -31.70 -13 PASS EGPRS850 251 848.8 849.02 -33.79 -13 PASS EGPRS1900 Channel=512 Report No.: S22102501801005 9 / 40 EGPRS1900 Channel=810 EGPRS850 Channel=251 Report No.: S22102501801005 10 / 40 EGPRS850 Channel=128 18 Out-of-band emissions Report No.: S22102501801005 11 / 40 Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict EGPRS1900 512 1850.2 25538.48 -18.76 -13 PASS EGPRS1900 661 1880 25979.86 -17.99 -13 PASS EGPRS1900 810 1909.8 25987.81 -18.07 -13 PASS EGPRS850 128 824.2 26073.17 -19.29 -13 PASS EGPRS850 189 836.4 25688.69 -20.41 -13 PASS EGPRS850 251 848.8 25967.95 -19.13 -13 PASS EGPRS1900 Channel=661 EGPRS1900 Channel=512 Report No.: S22102501801005 12 / 40 EGPRS1900 Channel=810 EGPRS850 Channel=128 Report No.: S22102501801005 13 / 40 EGPRS850 Channel=251 EGPRS850 Channel=189 Report No.: S22102501801005 14 / 40 07 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict GPRS1900 1 Slot 512 1850.2 30.23 PASS GPRS1900 1 Slot 661 1880 30.14 PASS GPRS1900 1 Slot 810 1909.8 29.86 PASS GPRS1900 2 Slot 512 1850.2 29.51 PASS GPRS1900 2 Slot 661 1880 29.39 PASS GPRS1900 2 Slot 810 1909.8 29.10 PASS GPRS1900 3 Slot 512 1850.2 27.75 PASS GPRS1900 3 Slot 661 1880 27.63 PASS GPRS1900 3 Slot 810 1909.8 27.34 PASS GPRS1900 4 Slot 512 1850.2 26.63 PASS GPRS1900 4 Slot 661 1880 26.50 PASS GPRS1900 4 Slot 810 1909.8 26.23 PASS GPRS850 1 Slot 128 824.2 32.94 PASS GPRS850 1 Slot 189 836.4 32.69 PASS GPRS850 1 Slot 251 848.8 32.64 PASS GPRS850 2 Slot 128 824.2 32.20 PASS GPRS850 2 Slot 189 836.4 31.93 PASS GPRS850 2 Slot 251 848.8 31.87 PASS GPRS850 3 Slot 128 824.2 30.49 PASS GPRS850 3 Slot 189 836.4 30.21 PASS GPRS850 3 Slot 251 848.8 30.13 PASS Report No.: S22102501801005 15 / 40 GPRS850 4 Slot 128 824.2 29.35 PASS GPRS850 4 Slot 189 836.4 29.10 PASS GPRS850 4 Slot 251 848.8 29.02 PASS 09 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict GPRS1900 512 1850.2 2.686244742 13.00 PASS GPRS1900 661 1880 2.668203297 13.00 PASS GPRS1900 810 1909.8 2.649827988 13.00 PASS GPRS850 128 824.2 2.668648845 13.00 PASS GPRS850 189 836.4 2.668105323 13.00 PASS GPRS850 251 848.8 2.669272848 13.00 PASS GPRS1900 Channel=512 GPRS1900 Channel=661 Report No.: S22102501801005 16 / 40 GPRS1900 Channel=810 GPRS850 Channel=128 Report No.: S22102501801005 17 / 40 GPRS850 Channel=251 GPRS850 Channel=189 Report No.: S22102501801005 18 / 40 10 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict GPRS1900 512 1850.2 250.919 313.389 PASS GPRS1900 661 1880 241.749 318.268 PASS GPRS1900 810 1909.8 245.878 319.825 PASS GPRS850 128 824.2 247.186 318.661 PASS GPRS850 189 836.4 243.966 314.570 PASS GPRS850 251 848.8 248.022 316.745 PASS GPRS1900 Channel=512 Report No.: S22102501801005 19 / 40 GPRS1900 Channel=661 GPRS1900 Channel=810 Report No.: S22102501801005 20 / 40 GPRS850 Channel=128 GPRS850 Channel=189 Report No.: S22102501801005 21 / 40 GPRS850 Channel=251 11 Band edge Report No.: S22102501801005 22 / 40 Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GPRS1900 512 1850.2 1849.99 -29.78 -13 PASS GPRS1900 810 1909.8 1910.02 -27.59 -13 PASS GPRS850 128 824.2 823.98 -26.52 -13 PASS GPRS850 251 848.8 849.03 -25.75 -13 PASS GPRS1900 Channel=512 GPRS1900 Channel=810 Report No.: S22102501801005 23 / 40 GPRS850 Channel=128 GPRS850 Channel=251 Report No.: S22102501801005 24 / 40 12 Out-of-band emissions Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GPRS1900 512 1850.2 26048.69 -18.48 -13 PASS GPR…

Text truncated - open the document above for the full version.

Report No.: S22102501801005 1 / 21 01 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict WCDMA Band2 9262 1852.4 23.01 PASS WCDMA Band2 9400 1880 23.05 PASS WCDMA Band2 9538 1907.6 22.98 PASS WCDMA Band4 1312 1712.4 23.10 PASS WCDMA Band4 1413 1732.6 22.98 PASS WCDMA Band4 1513 1752.6 22.95 PASS WCDMA Band5 4132 826.4 23.07 PASS WCDMA Band5 4182 836.4 22.96 PASS WCDMA Band5 4233 846.6 23.00 PASS 03 Peak-…
