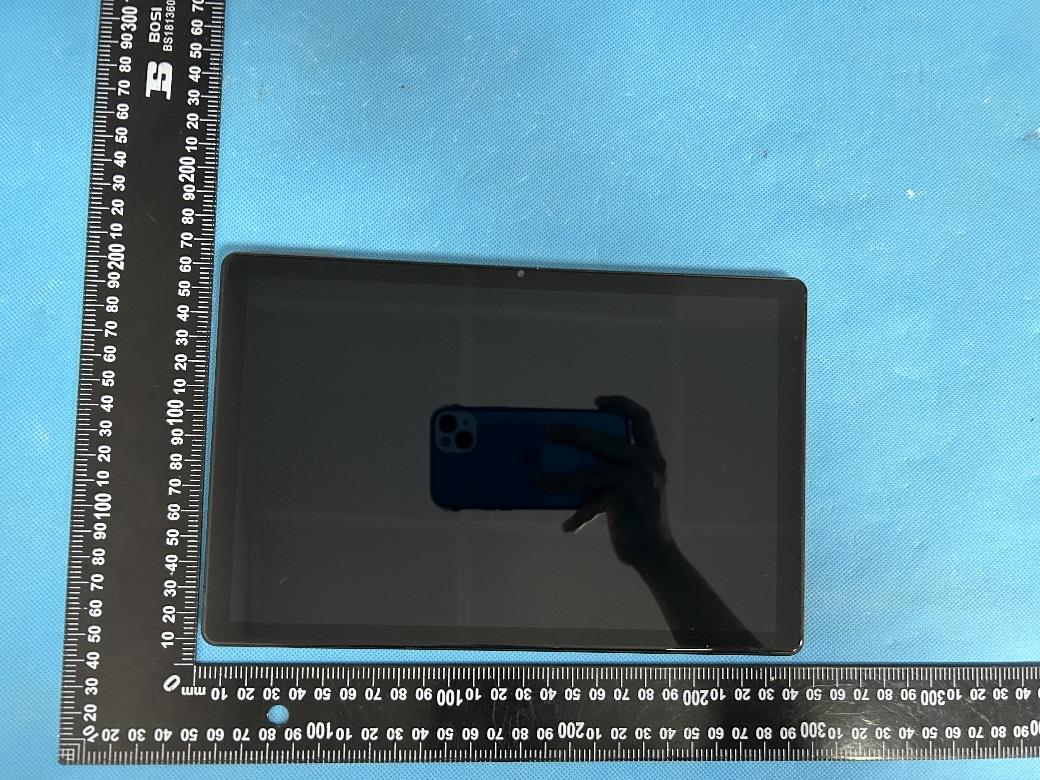

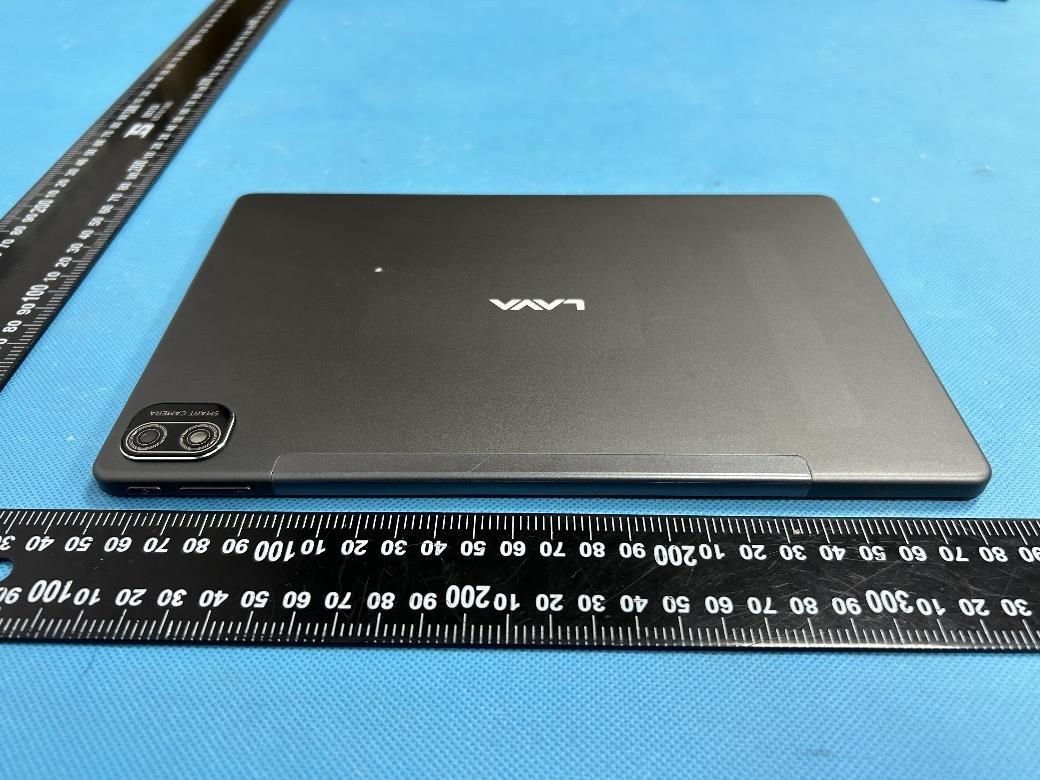

Reference No.: WTX23X05111880W001/002/003/004/005/006/007 Page 2 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX23X05111880W001/002/003/004/005/006/007 Page 3 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTX23X05111880W001/002/003/004/005/006/007 Page 4 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6 Reference No.: WTX23X05111880W001/002/003/004/005/006/007 Page 5 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 7

Reference No.: WTX23X05111880W001/002/003/004/005/006/007 Page 1 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2ARTX-LT108 Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX23X05111880W001/002/003/004/005/006/007 Page 6 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Reference No.: WTX23X05111880W001/002/003/004/005/006/007 Page 7 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 2 Solder Board-Component View 3 Reference No.: WTX23X05111880W001/002/003/004/005/006/007 Page 8 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 4 Solder Board-Component View 5 Reference No.: WTX23X05111880W001/002/003/004/005/006/007 Page 9 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 6 Solder Board-Component View 7 Reference No.: WTX23X05111880W001/002/003/004/005/006/007 Page 10 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 8 Antenna View

Ref : ACR.9.3..SATU.A )5(48(1&<0+= 6(5,$/1261',3* &DOLEUDWHGDW09*86 %DUUHWW3DUN'U.HQQHVDZ*$ &DOLEUDWLRQ'DWH Summary: This document presents the method and results from an accredited SAR reference dipole calibration performed in MVG USA using the COMOSAR test bench. All calibration resultsare traceable to nationa l metrology institutions. 6$55HIHUHQFH'LSROH&DOLEUDWLRQ5HSRUW :$/7(.7(67,1**5283&2/7' 12+28-,(6(&7,21*8$17$,52$'+28-,(72:1 '21**8$1*8$1*'21*&+,1$ 09*&2026$55()(5(1&(',32/( 6$55()(5(1&(',32/(&$/,%5$7,215(3257 Ref: ACR.9.3..SATU.A Page: 2/11 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. NameFunctionDateSignature Prepared by :Jérôme LUCProduct Manager  Checked by :Jérôme LUCProduct Manager  Approved by:Kim RUTKOWSKIQuality Manager  Customer Name Distribution : :DOWHN7HVWLQJ *URXS&R/WG IssueDateModifications AInitial release 6$55()(5(1&(',32/(&$/,%5$7,215(3257 5HI$&56$78$ Page: 3/11 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 7$%/(2)&217(176 1 Introduction................................................................................................................4 2 Device Under Test .....................................................................................................4 3 Product Description ...................................................................................................4 3.1 General Information _______________________________________________________4 4 Measurement Method ................................................................................................5 4.1 Return Loss Requirements __________________________________________________5 4.2 Mechanical Requirements___________________________________________________5 5 Measurement Uncertainty..........................................................................................5 5.1 Return Loss______________________________________________________________5 5.2 Dimension Measurement ___________________________________________________5 5.3 Validation Measurement____________________________________________________5 6 Calibration Measurement Results..............................................................................6 6.1 Return Loss and Impedance In Head Liquid ____________________________________6 6.2 Return Loss and Impedance In Body Liquid ____________________________________6 6.3 Mechanical Dimensions ____________________________________________________6 7 Validation measurement ............................................................................................7 7.1 Head Liquid Measurement __________________________________________________7 7.2 SAR Measurement Result With Head Liquid____________________________________8 7.3 Body Liquid Measurement __________________________________________________9 7.4 SAR Measurement Result With Body Liquid __________________________________10 8 List of Equipment ....................................................................................................11 6$55()(5(1&(',32/(&$/,%5$7,215(3257 5HI$&56$78$ Page: 4/11 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. ,1752'8&7,21 This document contains a summary of the requirements set forth by the IEEE 1528, FCC KDBs and CEI/IEC 62209 standards for reference dipoles used for SAR measurement system validations and the measurements that were performed to verify that the product complies with the fore mentioned standards. '(9,&(81'(57(67 Device Under Test Device TypeCOMOSAR 835 MHz REFERENCE DIPOLE ManufacturerMVG ModelSID835 Serial NumberSN/1 DIP 0G835- Product Condition (new / used)8VHG A yearly calibration interval is recommended. 352'8&7'(6&5,37,21 3.1GENERAL INFORMATION MVG’s COMOSAR Validation Dipoles are built in accordance to the IEEE 1528, FCC KDBs and CEI/IEC 62209 standards. The product is designed for use with theCOMOSAR test bench only. )LJXUH–MVG COMOSAR Validation Dipole 6$55()(5(1&(',32/(&$/,%5$7,215(3257 5HI$&56$78$ Page: 5/11 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG.  0($685(0(170(7+2' The IEEE 1528, FCC KDBs and CEI/IEC 62209 standards provide requirements for reference dipoles used for system validation measurements. The following measurements were performed to verify that the product complies with the fore mentioned standards. 4.1 RETURN LOSS REQUIREMENTS The dipole used for SAR system validation measurements and checks must have a return loss of -20 dB or better. The return loss measurement shall be performed against a liquid filled flat phantom, with the phantom constucted as outlined in the fore mentioned standards. 4.2 MECHANICAL REQUIREMENTS The IEEE Std. 1528 and CEI/IEC 62209 standards specify the mechanical components and dimensions of the validation dipoles, with the dimensions frequency and phantom shell thickness dependent. The COMOSAR test bench employs a 2 mm phantom shell thickness therefore the dipoles sold for use with t…

Text truncated - open the document above for the full version.

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 88 TEST REPORT Reference No. .................... : WTX23X05111880W FCC ID ................................ : 2ARTX-LT108 Applicant ........................... : LAVA International Limited Address ............................. : A-56, Sector-64, Gautam Buddha Nagar, Noida, Uttar Pradesh, 201301 Manufacturer ..................... LAVA International Limited Address ............................. A-154D, Sector-63, Gautam Buddha Nagar, Noida, Uttar Pradesh, 201301 Product Name ................... : Tablet Model No. ........................... : LT108 Standards .......................... : FCC Part 2.1093 IEEE Std C95.1: 2019 IEEE Std C95.3: 2002 + Rev. 2008 IEC/IEEE 62209-1528 Ed. 1.0 (2020-10) Date of Receipt sample .... : 2023-05-25 Date of Test........................ : 2023-05-25 to 2023-06-08 Date of Issue ..................... : 2023-06-08 Test Report Form No. ....... : WTX_IEEE_1528W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Jack Sun Silin Chen Reference No.: WTX23X05111880W Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 88 TABLE OF CONTENTS 1. General Information ................................................................................................................................................... 4 1.1 Product Description for Equipment Under Test (EUT) ......................................................................................... 4 1.2 Test Standards .................................................................................................................................................... 6 1.3 Test Methodology ................................................................................................................................................ 6 1.4 Test Facility ......................................................................................................................................................... 6 2. Summary of Test Results .......................................................................................................................................... 7 3. Specific Absorption Rate (SAR) ................................................................................................................................ 8 3.1 Introduction .......................................................................................................................................................... 8 3.2 SAR Definition ..................................................................................................................................................... 8 4. SAR Measurement System ........................................................................................................................................ 9 4.1 The Measurement System .................................................................................................................................. 9 4.2 Probe ................................................................................................................................................................... 9 4.3 Probe Calibration Process ................................................................................................................................. 11 4.4 Phantom ............................................................................................................................................................ 12 4.5 Device Holder .................................................................................................................................................... 12 4.6 Test Equipment List ........................................................................................................................................... 13 5. Tissue Simulating Liquids ....................................................................................................................................... 14 5.1 Composition of Tissue Simulating Liquid ........................................................................................................... 14 5.2 Tissue Dielectric Parameters for Head and Body Phantoms ............................................................................. 15 5.3 Tissue Calibration Result ................................................................................................................................... 16 6. SAR Measurement Evaluation ................................................................................................................................ 17 6.1 Purpose of System Performance Check ............................................................................................................ 17 6.2 System Setup .................................................................................................................................................... 17 6.3 Validation Results .............................................................................................................................................. 19 7. EUT Testing Position ............................................................................................................................................... 20 7.1 Body Position .........................................................................................................…

Text truncated - open the document above for the full version.

Reference No.: WTX23X05111880W001 Page 1 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Appendix for GSM850/1900 Product Name: Tablet Model No: LT108 Reference No.: WTX23X05111880W001 Page 2 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Appendix A: Average Power Output Data Test Result Band Channel Power(dBm) Limit(dBm) Verdict GSM850 128 32.45 38.45 PASS GSM850 190 32.33 38.45 PASS GSM850 251 32.33 38.45 PASS GSM1900 512 29.65 33.00 PASS GSM1900 661 30.09 33.00 PASS GSM1900 810 30.12 33.00 PASS Band Channel Slot Power(dBm) Limit(dBm) Verdict GPRS850 128 1 32.47 38.45 PASS GPRS850 128 2 31.83 38.45 PASS GPRS850 128 3 30.21 38.45 PASS GPRS850 128 4 29.16 38.45 PASS GPRS850 190 1 32.33 38.45 PASS GPRS850 190 2 31.66 38.45 PASS GPRS850 190 3 29.97 38.45 PASS GPRS850 190 4 28.93 38.45 PASS GPRS850 251 1 32.32 38.45 PASS GPRS850 251 2 31.63 38.45 PASS GPRS850 251 3 29.89 38.45 PASS GPRS850 251 4 28.83 38.45 PASS GPRS1900 512 1 29.70 33.00 PASS GPRS1900 512 2 28.95 33.00 PASS GPRS1900 512 3 27.05 33.00 PASS GPRS1900 512 4 25.85 33.00 PASS GPRS1900 661 1 30.11 33.00 PASS GPRS1900 661 2 29.32 33.00 PASS GPRS1900 661 3 27.34 33.00 PASS GPRS1900 661 4 26.12 33.00 PASS GPRS1900 810 1 30.15 33.00 PASS GPRS1900 810 2 29.40 33.00 PASS GPRS1900 810 3 27.54 33.00 PASS GPRS1900 810 4 26.34 33.00 PASS Reference No.: WTX23X05111880W001 Page 3 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Band Channel Slot Power(dBm) Limit(dBm) Verdict EGPRS850 128 1 27.00 38.45 PASS EGPRS850 128 2 25.93 38.45 PASS EGPRS850 128 3 23.83 38.45 PASS EGPRS850 128 4 22.70 38.45 PASS EGPRS850 190 1 26.57 38.45 PASS EGPRS850 190 2 25.49 38.45 PASS EGPRS850 190 3 23.42 38.45 PASS EGPRS850 190 4 22.30 38.45 PASS EGPRS850 251 1 26.53 38.45 PASS EGPRS850 251 2 25.38 38.45 PASS EGPRS850 251 3 23.28 38.45 PASS EGPRS850 251 4 22.20 38.45 PASS EGPRS1900 512 1 26.45 33.00 PASS EGPRS1900 512 2 25.35 33.00 PASS EGPRS1900 512 3 23.22 33.00 PASS EGPRS1900 512 4 21.96 33.00 PASS EGPRS1900 661 1 26.18 33.00 PASS EGPRS1900 661 2 25.12 33.00 PASS EGPRS1900 661 3 22.87 33.00 PASS EGPRS1900 661 4 21.61 33.00 PASS EGPRS1900 810 1 25.86 33.00 PASS EGPRS1900 810 2 24.82 33.00 PASS EGPRS1900 810 3 22.71 33.00 PASS EGPRS1900 810 4 21.54 33.00 PASS Reference No.: WTX23X05111880W001 Page 4 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Appendix B: Peak-to-Average Ratio(CCDF) Test Result Band Channel Result(dB) Limit(dB) Verdict GSM850 128 8.96 13 PASS GSM850 190 8.93 13 PASS GSM850 251 8.93 13 PASS GPRS850 128 9.77 13 PASS GPRS850 190 9.77 13 PASS GPRS850 251 8.96 13 PASS EGPRS850 128 11.8 13 PASS EGPRS850 190 11.8 13 PASS EGPRS850 251 12.7 13 PASS GSM1900 512 9.77 13 PASS GSM1900 661 8.96 13 PASS GSM1900 810 8.9 13 PASS GPRS1900 512 8.9 13 PASS GPRS1900 661 9.77 13 PASS GPRS1900 810 8.9 13 PASS EGPRS1900 512 12.17 13 PASS EGPRS1900 661 12.7 13 PASS EGPRS1900 810 11.88 13 PASS Reference No.: WTX23X05111880W001 Page 5 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Test Graphs GSM850-128 GSM850-190 GSM850-251 Reference No.: WTX23X05111880W001 Page 6 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn GPRS850-128 GPRS850-190 GPRS850-251 Reference No.: WTX23X05111880W001 Page 7 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EGPRS850-128 EGPRS850-190 EGPRS850-251 Reference No.: WTX23X05111880W001 Page 8 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn GSM1900-512 GSM1900-661 GSM1900-810 Reference No.: WTX23X05111880W001 Page 9 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn GPRS1900-512 GPRS1900-661 GPRS1900-810 Reference No.: WTX23X05111880W001 Page 10 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EGPRS1900-512 EGPRS1900-661 EGPRS1900-810 Reference No.: WTX23X05111880W001 Page 11 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Reference No.: WTX23X05111880W001 Page 12 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Appendix C: 26dB Bandwidth and Occupied Bandwidth Test Result Band Channel Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Limit (MHz) Verdict GSM850 128 0.246 0.30 --- PASS GSM850 190 0.245 0.30 --- PASS GSM850 251 0.245 0.30 --- PASS GPRS850 128 0.247 0.32 --- PASS GPRS850 190 0.247 0.32 --- PASS GPRS850 251 0.248 0.32 --- PASS EGPRS850 128 0.245 0.32 --- PASS EGPRS850 190 0.248 0.32 --- PASS EGPRS850 251 0.249 0.32 --- PASS GSM1900 512 0.245 0.32 --- PASS GSM1900 661 0.245 0.31 --- PASS GSM1900 810 0.244 0.31 --- PASS GPRS1900 512 0.242 0.32 --- PASS GPRS1900 661 0.246 0.32 --- PASS GPRS1900 810 0.243 0.32 --- PASS EGPRS1900 512 0.248 0.32 --- PASS EGPRS1900 661 0.248 0.32 --- PASS EGPRS1900 810 0.248 0.32 --- PASS Reference No.: WTX23X05111880W001 Page 13 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Test Graphs GSM850-128 GSM850-190 GSM850-251 Reference No.: WTX23X05111880W001 Page 14 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn GPRS850-128 GPRS850-190 GPRS850-251 Reference No.: WTX23X05111880W001 Page 15 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EGPRS850-128 EGPRS850-190 EGPRS850-251 Reference No.: WTX23X05111880W001 Page 16 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn GSM1900-512 GSM1900-661 GSM1900-810 Reference No.: WTX23X05111880W001 Page 17 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn GPRS1900-512 GPRS1900-661 GPRS1900-810 Reference No.: WTX23X05111880W001 Page 18 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EGPRS1900-512 EGPRS1900-661 EGPRS1900-810 Reference No.: WTX23X05111880W001 Page 19 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Reference No.: WTX23X05111880W001 Page 20 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn…

Text truncated - open the document above for the full version.

Reference No.: WTX23X05111880W001 Page 42 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn GSM1900-661-30~1000MHz GSM1900-661-1000~18000MHz GSM1900-810-0.009~0.15MHz Reference No.: WTX23X05111880W001 Page 43 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn GSM1900-810-0.15~30MHz GSM1900-810-30~1000MHz GSM1900-810-1000~18000MHz Reference No.: WTX23X05111880W001 Page 44 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn GPRS1900-512-0.009~0.15MHz GPRS1900-512-0.15~30MHz GPRS1900-512-30~1000MHz Reference No.: WTX23X05111880W001 Page 45 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn GPRS1900-512-1000~18000MHz GPRS1900-661-0.009~0.15MHz GPRS1900-661-0.15~30MHz Reference No.: WTX23X05111880W001 Page 46 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn GPRS1900-661-30~1000MHz GPRS1900-661-1000~18000MHz GPRS1900-810-0.009~0.15MHz Reference No.: WTX23X05111880W001 Page 47 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn GPRS1900-810-0.15~30MHz GPRS1900-810-30~1000MHz GPRS1900-810-1000~18000MHz Reference No.: WTX23X05111880W001 Page 48 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EGPRS1900-512-0.009~0.15MHz EGPRS1900-512-0.15~30MHz EGPRS1900-512-30~1000MHz Reference No.: WTX23X05111880W001 Page 49 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EGPRS1900-512-1000~18000MHz EGPRS1900-661-0.009~0.15MHz EGPRS1900-661-0.15~30MHz Reference No.: WTX23X05111880W001 Page 50 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EGPRS1900-661-30~1000MHz EGPRS1900-661-1000~18000MHz EGPRS1900-810-0.009~0.15MHz Reference No.: WTX23X05111880W001 Page 51 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EGPRS1900-810-0.15~30MHz EGPRS1900-810-30~1000MHz EGPRS1900-810-1000~18000MHz Reference No.: WTX23X05111880W001 Page 52 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Reference No.: WTX23X05111880W001 Page 53 of 66 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Appendix F: Frequency Stability Test Result Voltage Band Channel Voltage [Vdc] Temperature (°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict GSM850 128 VL NT 10.07 0.012218 ±2.5 PASS GSM850 128 VN NT 7.07 0.008578 ±2.5 PASS GSM850 128 VH NT 9.10 0.011041 ±2.5 PASS GSM850 190 VL NT 6.88 0.008224 ±2.5 PASS GSM850 190 VN NT 6.07 0.007256 ±2.5 PASS GSM850 190 VH NT 7.14 0.008535 ±2.5 PASS GSM850 251 VL NT 5.78 0.006810 ±2.5 PASS GSM850 251 VN NT 4.46 0.005254 ±2.5 PASS GSM850 251 VH NT 7.30 0.008600 ±2.5 PASS GPRS850 128 VL NT -1.52 -0.001844 ±2.5 PASS GPRS850 128 VN NT -0.36 -0.000437 ±2.5 PASS GPRS850 128 VH NT 0.19 0.000231 ±2.5 PASS GPRS850 190 VL NT 3.00 0.003586 ±2.5 PASS GPRS850 190 VN NT -0.36 -0.000430 ±2.5 PASS GPRS850 190 VH NT 3.94 0.004710 ±2.5 PASS GPRS850 251 VL NT 2.97 0.003499 ±2.5 PASS GPRS850 251 VN NT -0.55 -0.000648 ±2.5 PASS GPRS850 251 VH NT -1.55 -0.001826 ±2.5 PASS EGPRS850 128 VL NT 0.77 0.000934 ±2.5 PASS EGPRS850 128 VN NT -6.81 -0.008263 ±2.5 PASS EGPRS850 128 VH NT -0.03 -0.000036 ±2.5 PASS EGPRS850 190 VL NT 3.65 0.004363 ±2.5 PASS EGPRS850 190 VN NT -2.45 -0.002929 ±2.5 PASS EGPRS850 190 VH NT 2.49 0.002976 ±2.5 PASS EGPRS850 251 VL NT 2.26 0.002663 ±2.5 PASS EGPRS850 251 VN NT 0.16 0.000189 ±2.5 PASS EGPRS850 251 VH NT 2.78 0.003275 ±2.5 PASS GSM1900 512 VL NT 18.08 0.009772 ±2.5 PASS GSM1900 512 VN NT 23.79 0.012858 ±2.5 PASS GSM1900 512 VH NT 18.21 0.009842 ±2.5 PASS GSM1900 661 VL NT 25.47 0.013548 ±2.5 PASS GSM1900 661 VN NT 24.34 0.012947 ±2.5 PASS GSM1900 661 VH NT 21.…
