2ARTX-T71Tablet

I User Manual T71 II Content 1. Tablet layout ............................................................................ 1 1.1. Key and Parts ................................................................... 1 2. Getting started ......................................................................... 2 2.1. Inserting the SIM & SD card ............................................ 2 3. Safety Information and Notices .............................................. 4 3.1. Emergency call ................................................................. 4 4. Copyrights ............................................................................... 7 5. LAVA support and contact information ................................. 7 6. LAVA WARRANTY CERITIFICATE................................ 7-9 1 ©2020. All rights are reserved. No part of this document may be reproduced without permission. While all efforts have been made to ensure the accuracy of all the contents in this manual, we assume no liability for errors or omissions or statements of any kind in this manual, whether such errors or omissions or statements resulting from negligence, accidents, or any other cause. The contents of this manual are subjected to change without notice. Protect our environment! We strive to produce products in compliance with global environmental standards. Please consult your local authorities for proper disposal. Note: User Manual is just to guide the users about the functionality of the tablet. It is not a certificate of technology. Some functions may vary due to modifications and upgrade of software, or due to print mistake. 1. Tablet layout 1.1. Key and Parts 2 Label Key Label Key 1 USB/ Charger jack 6 Power Key/Lock key 2 Headset jack 7 Rear Camera 3 Receiver 8 Rear Flash 4 Front Camera 9 Speaker 1 5 Volume Key 10 Speaker 2 2. Getting started Please read the safety instructions in the "Safety Information and Notices" section before use. 2.1. Inserting the SIM & SD card  Pull the SIM/ SD card slot using the impression on the battery cover left top corner.  Place SIM card and SD card on the respective slots in the direction as mentioned on the slots  Place the cover on the SIM and SD card Slot 3 3. Safety Information and Notices 3.1. For your safety  Switch off the tablet in hospitals and aircraft. Obey any restrictions. Wireless devices can affect the medical treatment and cause interference in aircraft.  Some medical devices such as hearing aids and pacemaker may be sensitive to external radio frequency emissions. Consult the device manufacturers or your doctor before using the tablet around the medical devices.  Pay special attention to the ring tone volume and vibration settings if you have a heart problem.  In areas with potentially explosive atmosphere, such as gas stations, fuel or chemical transfer or storage facilities, obey all signs and instructions.  Your tablet will emit radio frequency even in the standby mode. Turn off your tablet when so instructed.  Always obey all the local laws and regulations. Do not use your tablet while driving. Use Hands-free operation, if available, and give full attention to driving and to the road. Pull off the road before making or answering a call if you are driving.  If your tablet is lost or stolen, notify your service provider immediately to stop the SIM card from being used.  To prevent your tablet from misuse, lock your SIM card or tablet, and change passwords when necessary.  When you leave your vehicle, take the tablet with you or place it in the glove compartment to avoid theft.  Keep the tablet or charger out of reach of children. Notes on tablet usage  Your tablet will give off electromagnetic waves. Do not place it near storage medium such as floppy disk.  Using the tablet near television, land tablet, radio and office automatic devices may cause interference and affect the function of the mobile tablet.  Keep the tablet dry; all kinds of liquid can erode electronic circuit.  Keep the tablet away from extreme temperatures.  Keep the tablet away from fire or a lighted cigarette.  Do not paint the tablet.  Do not drop the tablet or violently crush or shake the tablet.  Do not keep the tablet near magnets and other object with magnetism. The tablet’s magnetism may clear the information stored on floppy disk, pre-paid tablet card and credit card.  Keep the tablet away from hot places where the temperature may exceed 60C, such as dashboard, windowsill, or areas exposed to direct sunlight.  Do not disassemble or modify your tablet. This can damage the tablet, cause 4 leakage and break the internal circuit.  Use only damp cloth or non-static cloth to clean your tablet.  Do not use alcohol, thinner, benzene or other chemicals or abrasive cleaner to clean your tablet.  The tablet will become warm under normal use and while in battery charging.  Do not leave the tablet with the battery empty for a long period of time. This may cause data loss.  The metal parts of the tablet may irritate your skin depending on your health condition.  Do not put the tablet in the back pocket. Sitting on it may damage the tablet. Do not put the tablet at the bottom of a bag. You may crush it.  When the vibrate mode is on, place the tablet carefully to prevent it from being dropped from a height or being moved to a heat source due to the vibrating.  Do not press the touch screen with needles, pen point or other sharp objects; it can damage the display and violate the terms and conditions of the warranty. Notes on battery usage  Keep metal objects (such as coins or key rings) away from the battery to avoid short circuit.  Do not remove the battery without turning off the tablet.  Do not hold the battery in your mouth. The liquid of the battery can be toxic.  Embedded battery shall be replaced by authorized dealers. Use only batteries approved by the tablet manufacturer; otherwise, it may cause explosion.  Damage resulting from using un-authorized b…

Text truncated - open the document above for the full version.

LAVA International Limited Agent Authorization Company: LAVA International Limited Address: A-56, Sector 64, Noida U.P., 201301, India Product Name: Tablet Trade Mark: LAVA & XOLO Model Numbers: T71, T71n, Ivory FCC ID: 2ARTX-T71 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-09-27 Name: Shubham Shukla Title: Manager Company: LAVA International Limited

LAVA International Limited Add: A-56, Sector 64, Noida U.P., 201301, India Tel: +0120-4637100 Fax: +0120-4637240 Date: 2020-09-27 Dear Sir/Madam, We, LAVA International Limited Hereby declares the following statement , PCB board, circuit, structure and internal of these model(s) are the same, Only model numbers are different for marketing purpose: Trade Mark: LAVA & XOLO Product name: Tablet Models No.: T71, T71n, Ivory Sincerely, Client’s name / title : Shubham Shukla / Manager Contact information / address: A-56, Sector 64, Noida U.P., 201301, India Tel: +0120-4637100 Fax: +0120-4637240 E-Mail: [email protected]

LAVA International Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-09-27 Subject; Request for Confidentiality FCC ID: 2ARTX-T71 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Parts List Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Shubham Shukla Title: Manager

Page 1 of 1 Rev.2.0 LAVA International Limited WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2ARTX-T71 Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo-location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name / Title: Shubham Shukla / Manager Signature: Phone: +0120-4637100 Email: [email protected] Date: 2020-09-27

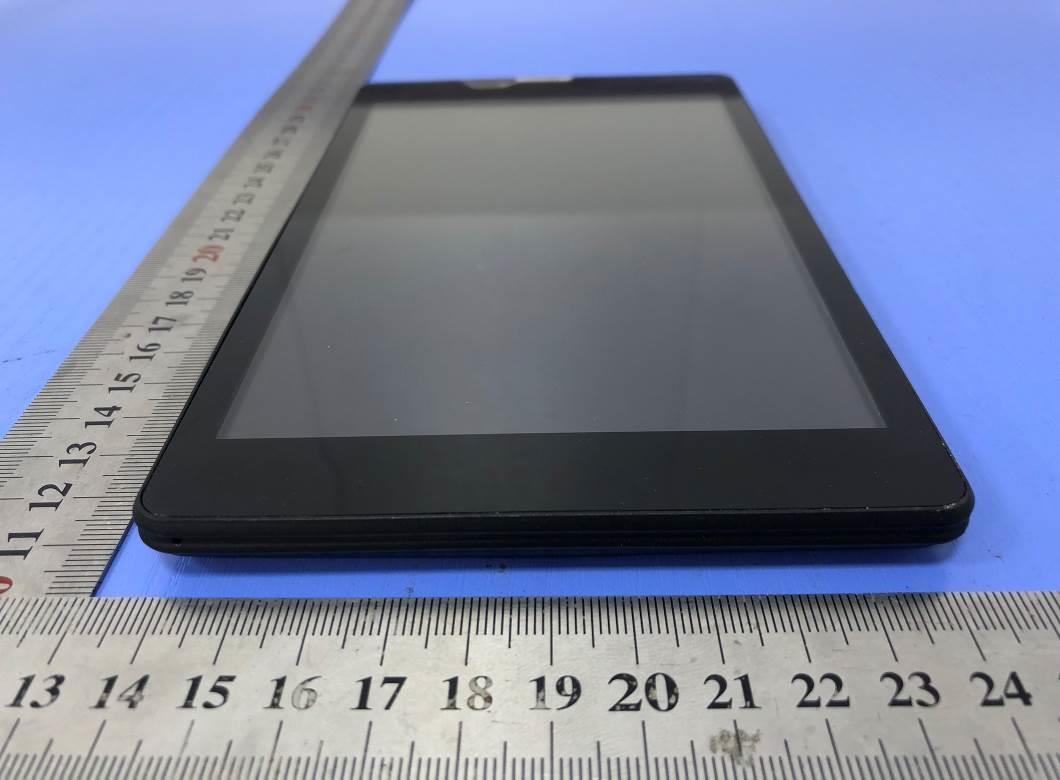

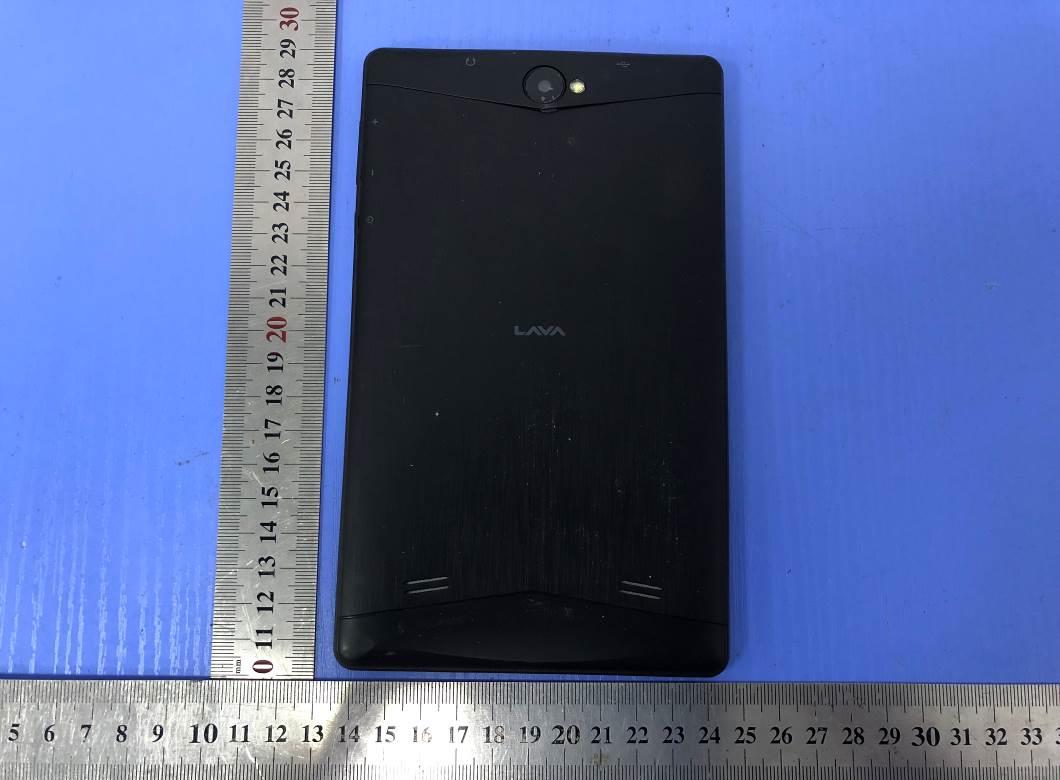

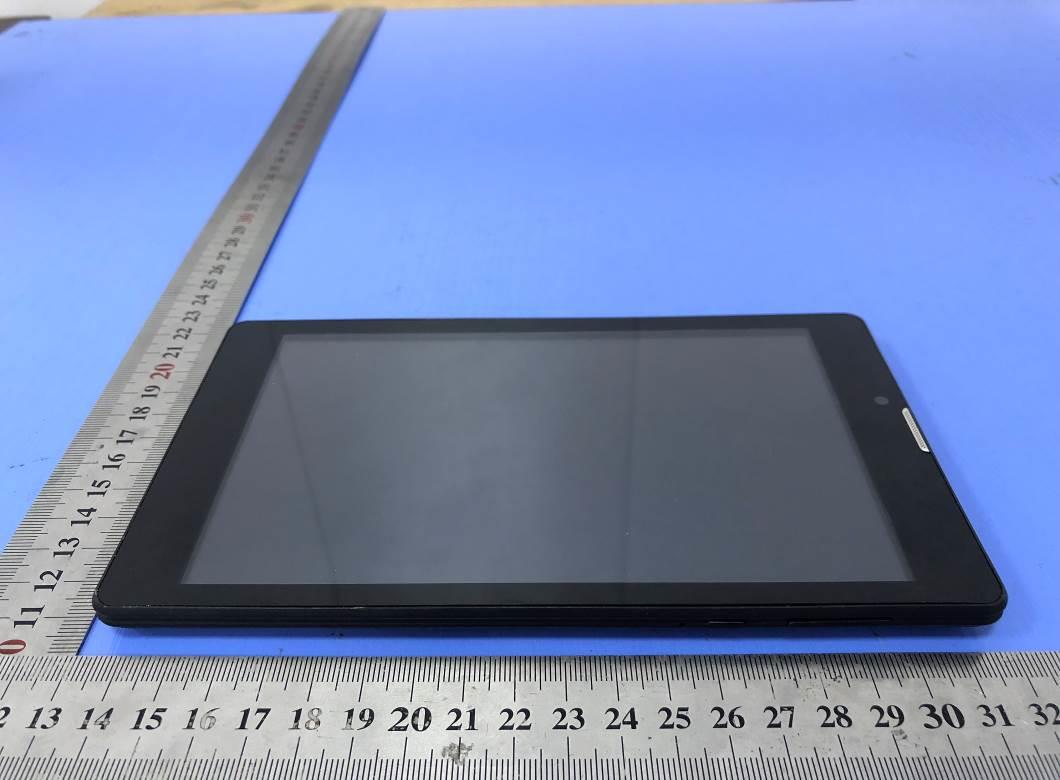

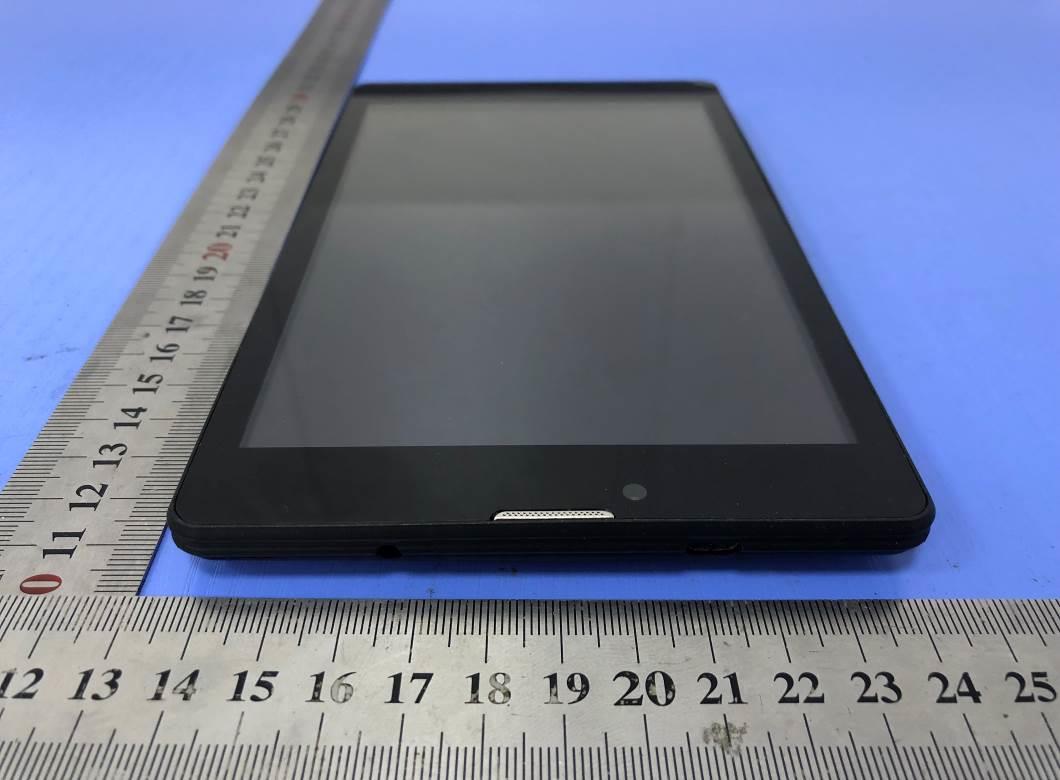

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T71 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T71 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T71 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T71 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L 4.0cm*W6.0cm Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T71 INTERIOR PHOTOGRAPHS Fig.1 Fig.2 GPS/BT/WIFI ANT LTE Diversity ANT GSM/WCDMA/LTE Main ANT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T71 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T71 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T71 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T71 Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T71 Fig.11

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 121 SAR TEST REPORT For LAVA International Limited Tablet Test Model: T71 Additional Model No.: T71n, Ivory Prepared for : LAVA International Limited Address : A-56, Sector 64, Noida U.P., 201301, India Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (86)755-82591330 Fax : (86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : August 27, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : August 27, 2020~September 14, 2020 Date of Report : September 25, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 121 SAR TEST REPORT Report Reference No. ............... : LCS200826011AEB Date Of Issue .............................. : September 25, 2020 Testing Laboratory Name ........ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ....................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ....... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ...................... : LAVA International Limited Address ....................................... : A-56, Sector 64, Noida U.P., 201301, India Test Specification: Standard ...................................... : IEEE Std C95.1, 2005& IEEE Std 1528™-2013&FCC Part 2.1093 Test Report Form No. ................. : LCSEMC-1.0 TRF Originator ........................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ................................. : Dated 2017-06 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes noresponsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .............. : Tablet Trade Mark ................................. : LAVA & XOLO Model/Type Reference ............... : T71 Operation Frequency .................. : GSM 850/PCS1900, WCDMA Band II/V; LTE Band5/41; WLAN2.4G; Bluetooth4.2. Modulation Type ........................ : T71n, Ivory Ratings ........................................ : DC 3.85V by Rechargeable Li-ion Battery(4000mAh) Input: 5VDC, 1.5A Result ........................................ : Positive Compiled by: Supervised by: Approved by: Ping Li/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 121 SAR -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200826011AEB September 25, 2020 Date of issue Test Model........................... : T71 EUT....................................... : Tablet Applicant.............................. : LAVA International Limited Address.................................. : A-56, Sector 64, Noida U.P., 201301, India Telephone.............................. : / Fax......................................... : / Manufacturer....................... : LAVA International Limited Address.................................. : A-56, Sector 64, Noida U. P., 201301, India Telephone.............................. : / Fax......................................... : / Factory.................................. : LAVA International Limited Address.................................. : A-154D, A Block, Sector 63, Dist. Gautam Budh Nagar, Uttar Pradesh, Noida, 201301, India Telephone.............................. : / Fax......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 121 Revison History Revision Issue Date Revisions Revised By 000 September 25, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 121 TABLE OF CONTENTS 1. TEST STANDARDS AND TEST DESCRIPTION .....................................................................................................................6 1.1. TEST STANDARDS ...................................................................................................................................................................6 1.2. TEST DESCRIPTION .................................................................................................................................................................6 1.3. GENERAL REMARKS ...............................................................................................................................................................6 1.4. PRODUC…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 96 of 121 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 97 of 121 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 98 of 121 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 99 of 121 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 100 of 121 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 101 of 121 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 102 of 121 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 103 of 121 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 104 of 121 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 105 of 121 5.6 SID2600 Dipole Calibration Ceriticate SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 106 of 121 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 107 of 121 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 108 of 121 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 109 of 121 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 110 of 121 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 111 of 121 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 112 of 121 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 113 of 121 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 114 of 121 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 115 of 121 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 116 of 121 6. SAR System PHOTOGRAPHS Photograph of the depth in the Head Phantom (750MHz, 15.3cm depth) Liquid depth≧15cm Photograph of the depth in the Head Phantom (1800MHz, 15.3cm depth) Photograph of the depth in the Head Phantom (1900MHz, 15.2cm depth) Photograph of the depth in the Head Phantom (2450MHz, 15.3cm depth) Photograph of the depth in the Head Phantom (2600MHz, 15.5cm depth) SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 117 of 121 7. SETUP PHOTOGRAPHS Right Head Touch View Right Head Tilt View SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T71 Report No.: LCS200826011AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Labo…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T71 Report No.: LCS200826011AEG This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 90 Appendix D: Test Data for LTE Band 5 Product Name: Tablet Trade Mark: LAVA & XOLO Test Model: T71 Environmental Conditions Temperature: 24.1  C Relative Humidity: 53.6% ATM Pressure: 100.0 kPa Test Engineer: Diamond Lu Supervised by: Li Huan D.1 Conducted Output Power Conducted Output Power Test Result (Channel Bandwidth: 1.4 MHz) Modulation Channel RB Configuration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size Offset QPSK / 16QAM LCH 1 0 23.80 23.26 PASS 1 3 23.77 23.26 PASS 1 5 23.63 23.18 PASS 3 0 23.79 23.24 PASS 3 2 23.76 22.91 PASS 3 3 23.43 22.50 PASS 6 0 22.95 21.64 PASS MCH 1 0 23.72 22.60 PASS 1 3 24.04 22.63 PASS 1 5 23.90 22.65 PASS 3 0 23.79 22.41 PASS 3 2 23.81 22.75 PASS 3 3 23.84 22.67 PASS 6 0 22.79 21.99 PASS HCH 1 0 24.39 23.59 PASS 1 3 24.39 23.71 PASS 1 5 24.26 23.56 PASS 3 0 24.28 23.48 PASS 3 2 24.29 23.49 PASS 3 3 24.20 23.43 PASS 6 0 23.33 22.38 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T71 Report No.: LCS200826011AEG This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 90 Conducted Output Power Test Result (Channel Bandwidth: 3 MHz) Modulation Channel RB Configuration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size Offset QPSK / 16QAM LCH 1 0 23.44 22.71 PASS 1 7 23.56 22.85 PASS 1 14 23.75 23.06 PASS 8 0 23.00 21.85 PASS 8 4 23.13 22.20 PASS 8 7 23.12 22.26 PASS 15 0 23.09 22.27 PASS MCH 1 0 23.83 22.97 PASS 1 7 24.13 23.34 PASS 1 14 23.83 23.03 PASS 8 0 22.95 21.92 PASS 8 4 22.93 21.98 PASS 8 7 23.02 21.93 PASS 15 0 23.02 21.86 PASS HCH 1 0 24.22 23.95 PASS 1 7 24.29 23.50 PASS 1 14 24.20 23.51 PASS 8 0 23.41 22.34 PASS 8 4 23.44 22.38 PASS 8 7 23.45 22.48 PASS 15 0 23.49 22.21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T71 Report No.: LCS200826011AEG This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 90 Conducted Output Power Test Result (Channel Bandwidth: 5 MHz) Modulation Channel RB Configuration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size Offset QPSK / 16QAM LCH 1 0 23.63 22.66 PASS 1 12 23.94 22.95 PASS 1 24 24.45 22.54 PASS 12 0 22.97 21.86 PASS 12 6 23.05 22.03 PASS 12 13 22.97 21.98 PASS 25 0 22.99 22.17 PASS MCH 1 0 23.81 22.22 PASS 1 12 24.24 22.91 PASS 1 24 23.99 22.28 PASS 12 0 22.74 21.80 PASS 12 6 22.90 21.81 PASS 12 13 22.90 21.81 PASS 25 0 22.86 21.92 PASS HCH 1 0 23.80 22.52 PASS 1 12 24.54 22.97 PASS 1 24 24.13 22.86 PASS 12 0 23.05 22.12 PASS 12 6 23.19 22.19 PASS 12 13 23.20 22.03 PASS 25 0 23.20 22.36 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T71 Report No.: LCS200826011AEG This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 90 Conducted Output Power Test Result (Channel Bandwidth: 10 MHz) Modulation Channel RB Configuration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size Offset QPSK / 16QAM LCH 1 0 23.28 22.54 PASS 1 24 24.60 24.29 PASS 1 49 23.55 22.80 PASS 25 0 22.94 21.96 PASS 25 12 23.02 21.92 PASS 25 25 22.82 21.79 PASS 50 0 22.91 21.87 PASS MCH 1 0 23.77 23.36 PASS 1 24 24.19 23.57 PASS 1 49 23.83 23.30 PASS 25 0 22.92 21.85 PASS 25 12 23.03 21.92 PASS 25 25 23.05 21.83 PASS 50 0 22.88 21.95 PASS HCH 1 0 24.18 23.64 PASS 1 24 24.33 24.23 PASS 1 49 23.51 23.00 PASS 25 0 23.22 22.30 PASS 25 12 23.17 22.09 PASS 25 25 23.37 22.30 PASS 50 0 23.21 22.23 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T71 Report No.: LCS200826011AEG This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 90 D.2 Peak-to-Average Ratio Peak-to Average Ratio Test Result (Channel Bandwidth: 1.4 MHz) Modulation Channel Peak-to-Average Ratio [dB] Limit [dB] Verdict QPSK LCH 5.24 <13 PASS MCH 5.25 <13 PASS HCH 4.73 <13 PASS 16QAM LCH 6.07 <13 PASS MCH 6.20 <13 PASS HCH 5.65 <13 PASS Peak-to Average Ratio Test Result (Channel Bandwidth: 3 MHz) Modulation Channel Peak-to-Average Ratio [dB] Limit [dB] Verdict QPSK LCH 5.26 <13 PASS MCH 5.28 <13 PASS HCH 4.88 <13 PASS 16QAM LCH 6.16 <13 PASS MCH 6.22 <13 PASS HCH 5.81 <13 PASS Peak-to Average Ratio Test Result (Channel Bandwidth: 5 MHz) Modulation Channel Peak-to-Average Ratio [dB] Limit [dB] Verdict QPSK LCH 5.14 <13 PASS MCH 5.22 <13 PASS HCH 4.91 <13 PASS 16QAM LCH 5.95 <13 PASS MCH 6.08 <13 PASS HCH 5.69 <13 PASS Peak-to Average Ratio Test Result (Channel Bandwidth: 10 MHz) Modulation Channel Peak-to-Average Ratio [dB] Limit [dB] Verdict QPSK LCH 5.01 <13 PASS MCH 5.25 <13 PASS HCH 4.98 <13 PASS 16QAM LCH 5.91 <13 PASS MCH 6.0…

Text truncated - open the document above for the full version.
