I User Manual T81 II Content 1. Tablet layout ............................................................................ 1 1.1. Key and Parts ................................................................... 1 2. Getting started ......................................................................... 2 2.1. Inserting the SIM & SD card ............................................ 2 3. Safety Information and Notices .............................................. 4 3.1. Emergency call ................................................................. 4 4. Copyrights ............................................................................... 7 5. LAVA support and contact information ................................. 7 6. LAVA WARRANTY CERITIFICATE...............................7-10 1 ©2020. All rights are reserved. No part of this document may be reproduced without permission. While all efforts have been made to ensure the accuracy of all the contents in this manual, we assume no liability for errors or omissions or statements of any kind in this manual, whether such errors or omissions or statements resulting from negligence, accidents, or any other cause. The contents of this manual are subjected to change without notice. Protect our environment! We strive to produce products in compliance with global environmental standards. Please consult your local authorities for proper disposal. Note: User Manual is just to guide the users about the functionality of the tablet. It is not a certificate of technology. Some functions may vary due to modifications and upgrade of software, or due to print mistake. 1. Tablet layout 1.1. Key and Parts 2 Label Key Label Key 1 USB/ Charger jack 6 Volume Key 2 Headset jack 7 Power Key/Lock key 3 SIM/ SD card Slot 8 Rear Camera 4 Receiver 9 Rear Flash 5 Front Camera 10 Speaker 2. Getting started Please read the safety instructions in the "Safety Information and Notices" section before use. 2.1. Inserting the SIM & SD card  Using the SIM ejector Pin, gently pull out the SIM/ SD card tray from the slot  Place SIM card and SD card on the respective slots  Gently insert the tray with SIM and or SD card back into the Slot 3 3. Safety Information and Notices 3.1. For your safety  Switch off the tablet in hospitals and aircraft. Obey any restrictions. Wireless devices can affect the medical treatment and cause interference in aircraft.  Some medical devices such as hearing aids and pacemaker may be sensitive to external radio frequency emissions. Consult the device manufacturers or your doctor before using the tablet around the medical devices.  Pay special attention to the ring tone volume and vibration settings if you have a heart problem.  In areas with potentially explosive atmosphere, such as gas stations, fuel or chemical transfer or storage facilities, obey all signs and instructions.  Your tablet will emit radio frequency even in the standby mode. Turn off your tablet when so instructed.  Always obey all the local laws and regulations. Do not use your tablet while driving. Use Hands-free operation, if available, and give full attention to driving and to the road. Pull off the road before making or answering a call if you are driving.  If your tablet is lost or stolen, notify your service provider immediately to stop the SIM card from being used.  To prevent your tablet from misuse, lock your SIM card or tablet, and change 4 passwords when necessary.  When you leave your vehicle, take the tablet with you or place it in the glove compartment to avoid theft.  Keep the tablet or charger out of reach of children. Notes on tablet usage  Your tablet will give off electromagnetic waves. Do not place it near storage medium such as floppy disk.  Using the tablet near television, land tablet, radio and office automatic devices may cause interference and affect the function of the mobile tablet.  Keep the tablet dry; all kinds of liquid can erode electronic circuit.  Keep the tablet away from extreme temperatures.  Keep the tablet away from fire or a lighted cigarette.  Do not paint the tablet.  Do not drop the tablet or violently crush or shake the tablet.  Do not keep the tablet near magnets and other object with magnetism. The tablet’s magnetism may clear the information stored on floppy disk, pre-paid tablet card and credit card.  Keep the tablet away from hot places where the temperature may exceed 60C, such as dashboard, windowsill, or areas exposed to direct sunlight.  Do not disassemble or modify your tablet. This can damage the tablet, cause leakage and break the internal circuit.  Use only damp cloth or non-static cloth to clean your tablet.  Do not use alcohol, thinner, benzene or other chemicals or abrasive cleaner to clean your tablet.  The tablet will become warm under normal use and while in battery charging.  Do not leave the tablet with the battery empty for a long period of time. This may cause data loss.  The metal parts of the tablet may irritate your skin depending on your health condition.  Do not put the tablet in the back pocket. Sitting on it may damage the tablet. Do not put the tablet at the bottom of a bag. You may crush it.  When the vibrate mode is on, place the tablet carefully to prevent it from being dropped from a height or being moved to a heat source due to the vibrating.  Do not press the touch screen with needles, pen point or other sharp objects; it can damage the display and violate the terms and conditions of the warranty. Notes on battery usage  Keep metal objects (such as coins or key rings) away from the battery to 5 avoid short circuit.  Do not remove the battery without turning off the tablet.  Do not hold the battery in your mouth. The liquid of the battery can be toxic.  Embedded battery shall be replaced by authorized dealers. Use only batteries approved by the tablet manufacturer; otherwise, it may cause explosion.  Damage resulting from using un-authorized batteries and chargers…

Text truncated - open the document above for the full version.

LAVA International Limited Agent Authorization Company: LAVA International Limited Address: A-56, Sector 64, Noida U.P., 201301, India Product Name: Tablet Trade Mark: LAVA & XOLO Model Numbers: T81, T81n, Aura FCC ID: 2ARTX-T81 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-09-27 Name: Shubham Shukla Title: Manager Company: LAVA International Limited

LAVA International Limited Add: A-56, Sector 64, Noida U.P., 201301, India Tel: +0120-4637100 Fax: +0120-4637240 Date: 2020-09-27 Dear Sir/Madam, We, LAVA International Limited Hereby declares the following statement , PCB board, circuit, structure and internal of these model(s) are the same, Only model numbers are different for marketing purpose: Trade Mark: LAVA & XOLO Product name: Tablet Models No.: T81, T81n, Aura Sincerely, Client’s name / title : Shubham Shukla / Manager Contact information / address: A-56, Sector 64, Noida U.P., 201301, India Tel: +0120-4637100 Fax: +0120-4637240 E-Mail: [email protected]

LAVA International Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-09-27 Subject; Request for Confidentiality FCC ID: 2ARTX-T81 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Parts List Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Shubham Shukla Title: Manager

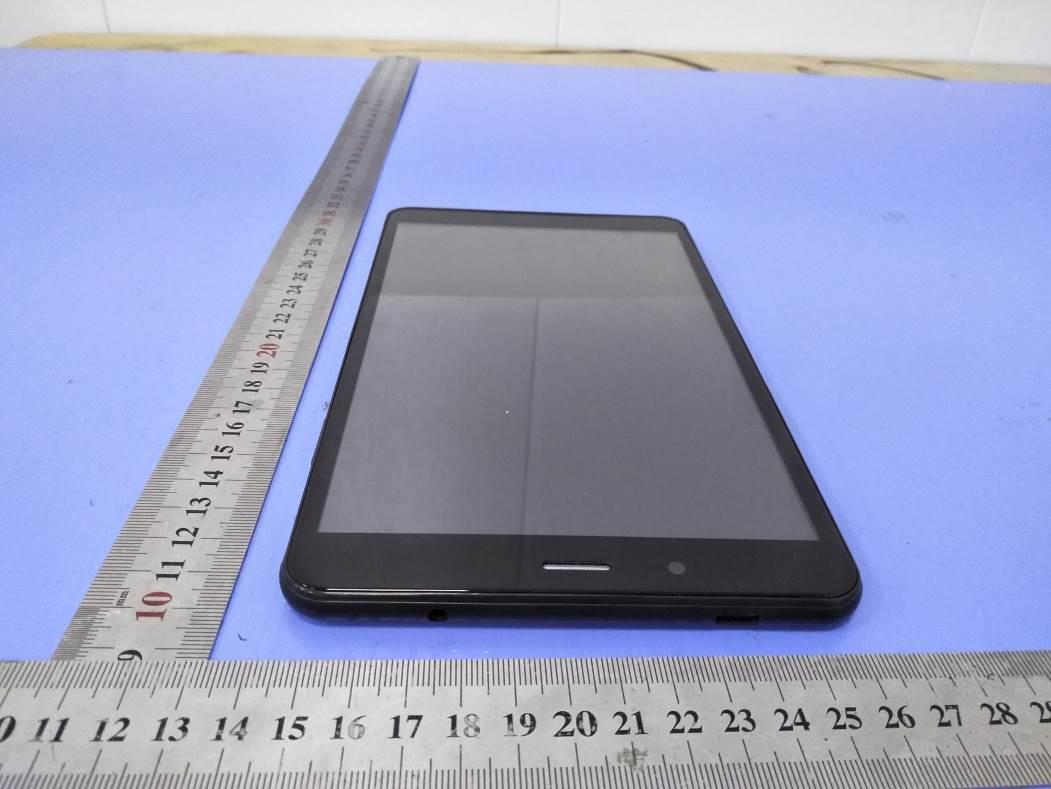

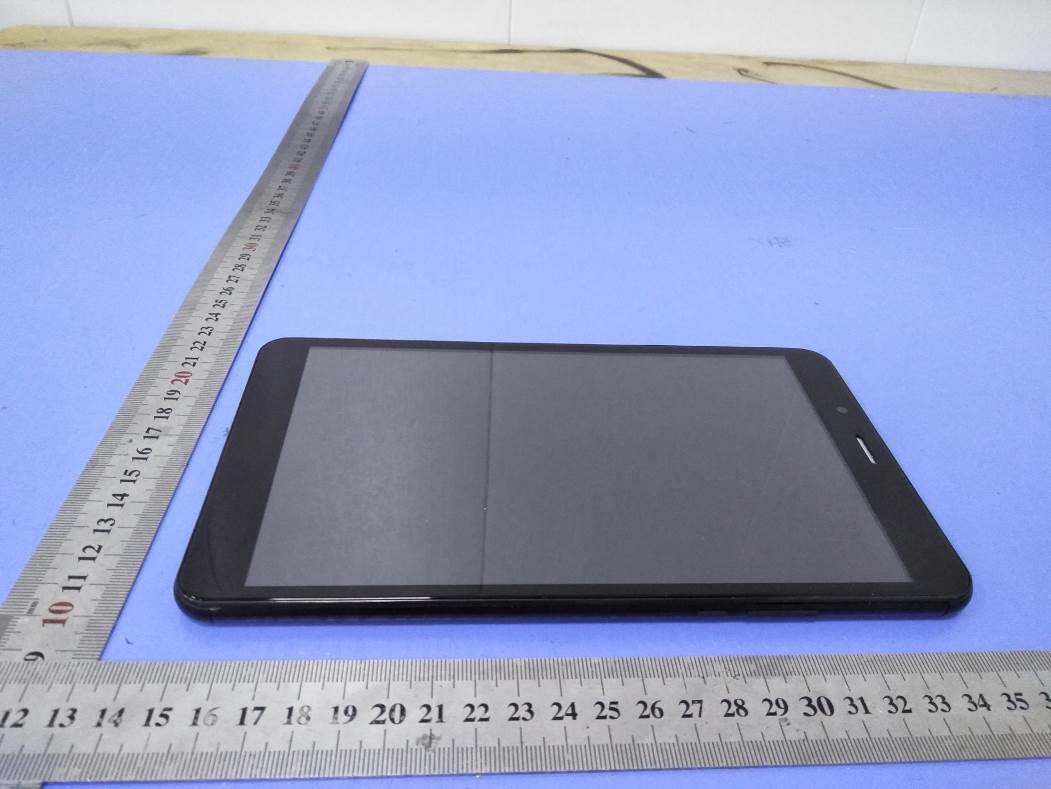

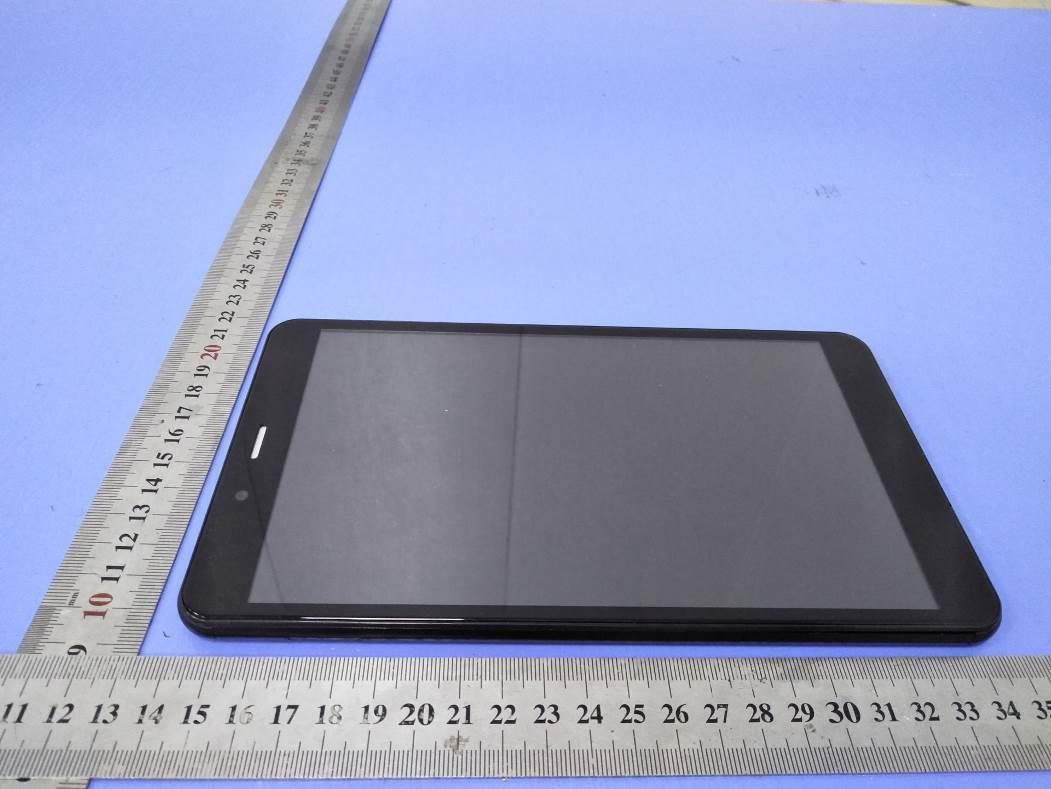

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T81 EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T81 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T81 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T81 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T81 Fig. 9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T81 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 4.0cm*W: 6.0cm Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T81 INTERIOR PHOTOGRAPHS Fig.1 Fig.2 BT/WIFI ANT LTE Div ANT GSM/WCDMA/LTE Main ANT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T81 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T81 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T81 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARTX-T81 Fig.9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T81 Report No.: LCS200826042AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 121 SAR TEST REPORT For LAVA International Limited Tablet Test Model: T81 Additional Model No.: T81n, Aura Prepared for : LAVA International Limited Address : A-56, Sector 64, Noida U.P., 201301, India Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (86)755-82591330 Fax : (86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : September 09, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : September 09, 2020~September 18, 2020 Date of Report : September 21, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T81 Report No.: LCS200826042AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 121 SAR TEST REPORT Report Reference No. ............... : LCS200826042AEB Date Of Issue .............................. : September 21, 2020 Testing Laboratory Name ........ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ....................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ....... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ...................... : LAVA International Limited Address ....................................... : A-56, Sector 64, Noida U.P., 201301, India Test Specification: Standard ...................................... : IEEE Std C95.1, 2005& IEEE Std 1528™-2013&FCC Part 2.1093 Test Report Form No. ................. : LCSEMC-1.0 TRF Originator ........................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ................................. : Dated 2017-06 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes noresponsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .............. : Tablet Trade Mark ................................. : LAVA & XOLO Model/Type Reference ............... : T81 Operation Frequency .................. : GSM 850/PCS1900, WCDMA Band II/V; LTE Band5/41; WLAN2.4G; Bluetooth4.2. Modulation Type ........................ : T81n, Aura Ratings ........................................ : DC 3.8V by Rechargeable Li-ion Battery(5000mAh) Result ........................................ : Positive Compiled by: Supervised by: Approved by: Ping Li/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T81 Report No.: LCS200826042AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 121 SAR -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200826042AEB September 21, 2020 Date of issue Test Model........................... : T81 EUT....................................... : Tablet Applicant.............................. : LAVA International Limited Address.................................. : A-56, Sector 64, Noida U.P., 201301, India Telephone.............................. : / Fax......................................... : / Manufacturer....................... : LAVA International Limited Address.................................. : A-56, Sector 64, Noida U. P., 201301, India Telephone.............................. : / Fax......................................... : / Factory.................................. : LAVA International Limited Address.................................. : A-154D, A Block, Sector 63, Dist. Gautam Budh Nagar, Uttar Pradesh, Noida, 201301, India Telephone.............................. : / Fax......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T81 Report No.: LCS200826042AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 121 Revison History Revision Issue Date Revisions Revised By 000 September 21, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARTX-T81 Report No.: LCS200826042AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 121 TABLE OF CONTENTS 1. TEST STANDARDS AND TEST DESCRIPTION .....................................................................................................................6 1.1. TEST STANDARDS ...................................................................................................................................................................6 1.2. TEST DESCRIPTION .................................................................................................................................................................6 1.3. GENERAL REMARKS ...............................................................................................................................................................6 1.4. PRODUCT DESCRIPTION .…
