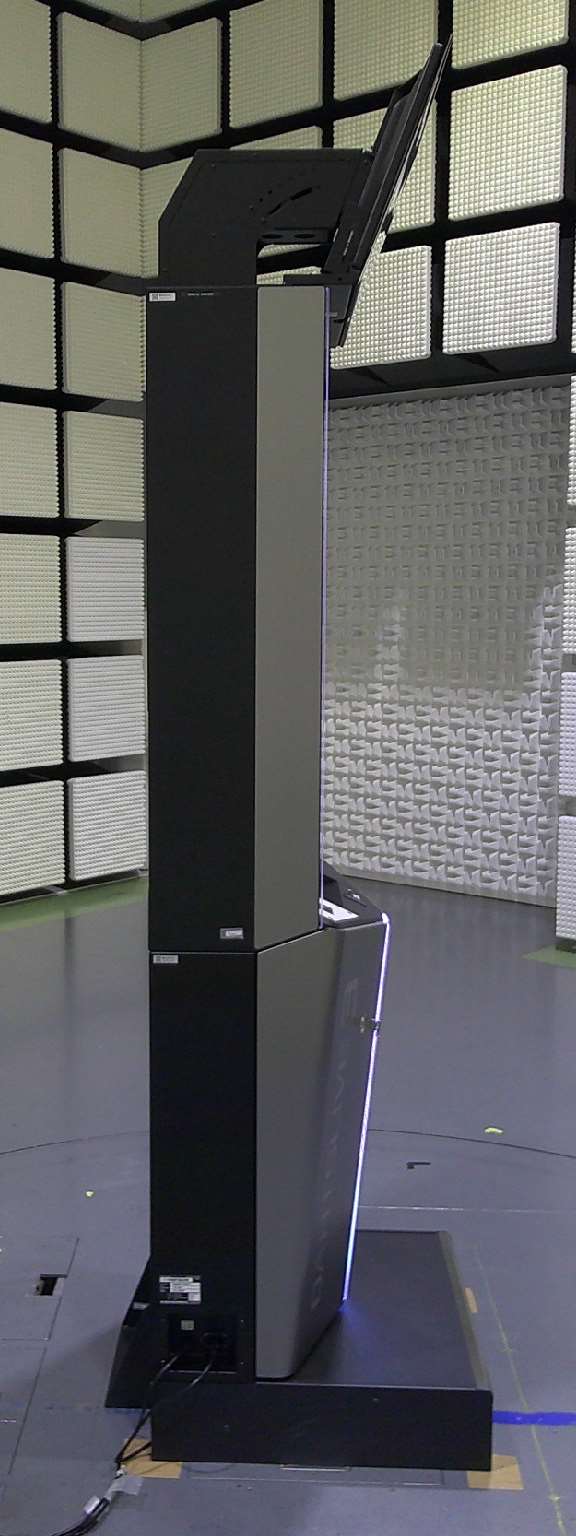

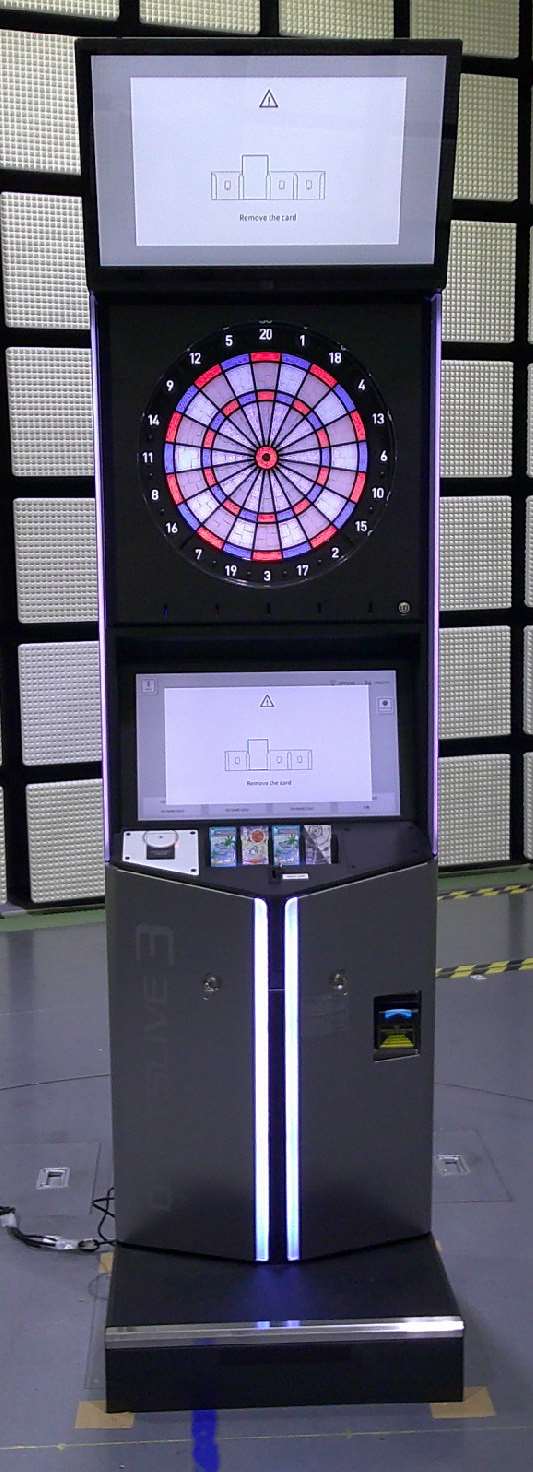

2023/06/26 12:31dl3_001_Product R.E.D. Remark Page - DARTSLIVE product support site https://dartslive-product-support.helpscoutdocs.com/article/100-product-r-e-d-remark-page?preview=5f3e2bc7042863444aa099521/3 dl3_001_Product R.E.D. Remark Page View in Help Scout (https://secure.helpscout.net/docs/5bebe9502c7d3a31944df354/article/5f3e2bc7042863444aa09952) Product Radio Equipment Directive Remark Page 1） Dartslive3, Serial No. WAD201532〜 Remark: For Singapore, IMDA Complies with IMDA Standards, Dealer License: DB106127 Dartslive3 (Model No. DL3-0000) has the following 2 RFID modules. 1) Card reader sensor (Model No. ME-MR23M4-C-SG 2) DARTSLIVE Credit reader (Model No. DLI-00524-B) Radio frequency range: 13.553 - 13.567 MHz RF Output power: < 37.5 dBuV/m @10m For Taiwan, NCC Warning 注意︕ 本產品內建的 RFID 模組於無線通訊方面符合台灣的 NCC LP0002之法令規範。 依據 低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻電機，非經許 可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信︔經發現有干擾現象 時，應立即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業 之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之 干擾。 使用頻段︓13.56MHz 變調方式︓ASK 可能產生干擾範圍︓約 100mm 可否變更頻率︓使 用所有頻段 並可迴避「內建無線通訊裝置」及「特定低功耗無線通訊裝置」之干擾。 For USA, FCC Caution PREVIEW Changes will not be visible to customers until published. 2023/06/26 12:31dl3_001_Product R.E.D. Remark Page - DARTSLIVE product support site https://dartslive-product-support.helpscoutdocs.com/article/100-product-r-e-d-remark-page?preview=5f3e2bc7042863444aa099522/3 DARTSLIVE3(Model No.DL3-0000)(FCC ID:2ARUU-DL30000) Contains 1)Card reader sensor(FCC ID: UOEME-M23B) 2)DARTSLIVE Credit reader (FCC ID: 2ARUU-DLI00524B) This device complies with part 15 of the FCC Rules.Operation is subject to the following two conditions: (1)This device may not cause harmful interference,and (2)This device must accept any interference received,including interference that may cause undesired operation. DARTSLIVE USA INC. Four Embarcadero Center,Suite 1400 PMB#186,San Francisco 94111-4164 California [email protected] (mailto:[email protected]) Note:This equipment has been tested and found to comply with the limits for a Class A digital device,pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.This equipment generates,uses,and can radiate radio frequency energy and,if not installed and used in accordance with the instruction manual,may cause harmful interference to radio commucications.Operation of this equipment in a residential area is likely to cause harmful interence in which case the user will be required to correct the interference at his own expense. 2023/06/26 12:31dl3_001_Product R.E.D. Remark Page - DARTSLIVE product support site https://dartslive-product-support.helpscoutdocs.com/article/100-product-r-e-d-remark-page?preview=5f3e2bc7042863444aa099523/3 © DARTSLIVE SCM dept. 2023. Powered by Help Scout (https://www.helpscout.com/knowledge- base/?utm_source=docs&utm_medium=footerlink&utm_campaign=Docs+Branding) Last updated on June 26, 2023 To ensure compliance with FCC RF exposure requirements,this device must be installed to provide a minimum of 20cm between the device and people. For 1)and 2),except when used in normal operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Warning: This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

The WEEE (Waste of Electrical and Electronic Equipment) directive places an obligation on all EU based manufacturers and importers of Electrical and Electronic Equipment to take back products at the end of their useful life. SAS Dartslive Europe accepts its responsibility to finance the cost of treatment and recovery of redundant WEEE in France in accordance with the specified WEEE recycling requirements. The following symbol will be on all products manufactured from 13th August 2005, which indicates this product must NOT be disposed of with other normal waste. Instead, it is the user’ s responsibility to dispose of their waste equipment by arranging to return it to a designated FR collection point for the correct recycling of waste electrical and electronic equipment. For more information about where you can send your waste equipment for recycling contact your local authority office. The EC Directive on Batteries and Accumulators (2006/66/EC) aims to minimize the impact of batteries on the environment and encourage the recovery of the materials they contain. To achieve increased collection and recycling of waste batteries, the Directive places 'producer responsibility' obligations on manufacturers and importers of portable, industrial and automotive batteries. The following symbol will be on all equipment fitted with batteries from 26th September 2008 and indicates they must NOT be disposed of with other normal waste. Instead, it is the user’ s responsibility to dispose of used batteries by arranging to return them to a designated collection point for the correct recycling of waste batteries. For more information about where you can send your waste batteries for recycling contact your local authority office. WEEE Statement Battery Recycling Statement i BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING: ● The instructions concerning persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge and children playing with the appliance are not applicable. ● Perform work in accordance with the instructions herein stated. Instructions for work are explained by paying attention to the aspect of accident prevention. Failing to perform work as per the instructions can cause accidents. In the case where only those who have technical expertise should perform the work to avoid hazardous situation, the instructions herein state that the technical personnel should perform such work. ● Always turn off the power before working on the machine. Be sure to turn off the power and unplug the power cable before carrying out any work that requires direct contact with the interior of the product. If the work is to be performed in the power-on status, this manual always states so. ● Be sure to ground the earth terminal. This product is equipped with the earth terminal. When installing the product, make sure that the earth wire is grounded, and connect the terminal to the wire. Unless the product is grounded appropriately, people can be subject to an electric shock. After performing repair, etc. for the control equipment, ensure that the earth wire is firmly connected to the control equipment. ● Ensure that the power supply used is equipped with an earth leakage breaker. Using a power supply which is not equipped with the earth leakage breaker can cause a fire when earth leakage occurs. ● Specification changes not de signated by DARTSLIVE are not allowed. The parts of the product include warning labels for safety, covers for personal protection, etc. It is very hazardous to operate the product by removing parts and/ or modifying the circuits. Doing so may cause fire or electric shock. Should doors, lids and protective parts be damaged or lost, refrain from operating the product, and contact your product retailer. DARTSLIVE shall not be held responsible for any accidents or compensation for damage to a third party, resulting from the specifications not designated by DARTSLIVE. ● Be sure to check for electrical specifications. Ensure that the product is compatible with the power supply voltage and frequency requirements of the location. The product has a nameplate on which electrical specifications are described. Using any electrical specifications different from the designated specifications can cause a fire and an electric shock. ● Install and operate the product in places where appropriate lighting is available, allowing warning labels to be clearly read. To ensure safety for the customers, labels and printed instructions describing potentially hazardous situations are applied to places where accidents can be caused. Ensure that where the product is operated has sufficient lighting allowing the warnings to be read. If any label is peeled off, apply it again immediately. Please place an order with your product retailer. BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING: ii BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING: ● Be sure to adjust the monitor properly. Do not operate the product leaving on-screen flickering or blurring as it is. Using the product with the monitor not properly adjusted may cause dizziness or a headache to the players and the people around them. ● The appliance is not suitable for installation in an area where a water jet could be used. ● The appliance must not be cleaned by a water jet. ● When tr ansporting or reselling this product, be sure to attach this manual to the product. ・ Even in the case where commercially available monitors and printers are used in this product, only the contents relating to this product are explained herein. Some commercially available equipment have functions and reactions not stated in this manual. Read this manual together with the specific instruction manual of such equipment. ・ Descriptions herein contained may be subject to improvement changes without notice. ・ The contents described herein are fully prepared with due care. However, should any question arise or errors be foun…

Text truncated - open the document above for the full version.

1 2 3 4 5 6 7 8 9 10 11 12 13 Open the target door with the maintenance key. Remove the air caps from the power cable and the HDMI cable for the upper monitor. Push them out through the hole at the top of the cabinet. Secure the upper monitor with the included two wing bolts (M8 x 20 mm) and large flat washers from inside the cabinet. Connect the power cable and HDMI cable pulled up from inside the cabinet to the upper monitor. Insert the power cable firmly all the way to the end. If it is not connected firmly, it may cause contact failure. STEP 19 STEP 20 STEP 21 How to Install and Assemble the Unit 21 6 - 1 Fig. 18 6 - 1 Fig. 19 6 - 1 Fig. 20 Wing bolt and large flat washer Upper monitor Front (Longer base of the trapezoid to the front) (Shorter base of the trapezoid to the front) HDMI cable Power cable 1 2 3 4 5 6 7 8 9 10 11 12 13 Loosen the fixing screws of the anti-tip bracket. Slide it up and fix it. Raise the four adjusters at front and rear. STEP 22 STEP 23 Move the assembled main unit slowly to the installation location. 6 - 1 Fig. 22 6 - 1 Fig. 23 While sliding the step cover from the front, insert the boss at the front into the slits at the step. Secure it with the two included screws from the left and right. STEP 25 STEP 24 How to Install and Assemble the Unit 22 6 - 1 Fig. 21 ● You cannot move it sideways. You can only turn the two casters in the front, so move it with its front side facing the direction of travel. ● This work should be done by tw o or more persons. Land all adjusters onto the floor so that the cabinet does not move. Lower the adjusters until the casters float from the ground by 5 mm, and fix them. After they are fixed, lower and land the anti-tip bracket, and fix it. CAUTION Wrench Adjuster Adjusters (at four locations) Anti-tip bracket Step cover Step * Slide it from the front to insert the bosses 5 mm Screws – 2 pcs. M5×10 Bottom view 1 2 3 4 5 6 7 8 9 10 11 12 13 Confirm that the power switch is set to "OFF". Connect the included power cable to the AC power inlet, and the included LAN cable to the LAN port. Connect the power plug to the outlet. Connect the other end of the LAN cable to the hub of the shop. Turn "ON" the power switch, and start it up. Refer to "4 Starting up New Machine Online (Initial Setup)" in another document, OWNERS MANUAL, and check the operation and set various settings. STEP 27 STEP 28 STEP 29 STEP 26 How to Install and Assemble the Unit 23 * Power switch "OFF" ON OFF ● This product has an earth wire inside the power cable. To prevent electric shock and malfunction, use a grounded outlet or a commercially available conversion adapter to securely ground the earth terminal. ● If the AC power outlet is not 3P (with ground), connect the cable to a commercially available power cable conversion plug (3P-2P conversion adapter), and then to the AC power outlet. Then, connect the earth wire of the 3P-2P conversion adapter to the earth terminal of the AC power outlet. 6 - 1 Fig. 24 AC power outlet (AC 100-240V) 3P-2P conversion adapter Earth terminalEarth wire 6 - 1 Fig. 25 CAUTION LAN Cable Power Cable LAN port AC power inlet Power plug 3P AC power outlet (AC 100-240V) 1 2 3 4 5 6 7 8 9 10 11 12 13 6 - 3 Fig. 01 STEP 1 STEP 1 STEP 2 STEP 2 STEP 3 STEP 3 Unlock and open the target door with one maintenance key. You have LED brightness adjustment switches at the bottom left corner of the target. Remove the two screws on sides of the monitor stand. Turn on or off LED lighting with SW1 on the right. Adjust the angle of the monitor, taking care not to disconnect the power cable or HDMI cable. Adjust the brightness of the LED in three levels with SW2 on the left: [L (dark), (slightly dark), and H (normal)]. * For details on testing LED, refer to Chapter 5 (5-1-4 Target) on another document, OWNERS MANUAL. Fix the angle with the two screws on sides of the monitor stand. At place with lower ceiling, you can slightly reduce the height of the cabinet by adjusting the angle of the upper monitor. 6 - 2 LED Brightness Adjustment 6 - 3 Adjusting Angle of Upper Monitor How to Install and Assemble the Unit 24 SW2 SW1 6 - 2 Fig. 01 Screws – 2 pcs. M4 x 8 mm with flat washer and spring washer 1 2 3 4 5 6 7 8 9 10 11 12 13 With reference to the front face of the step, paste throw line sticker onto the ground, parallel to the front face of the cabinet. 6 - 4 Fig. 01 6 - 4 Pasting Throw Line Stickers How to Install and Assemble the Unit 25 IMPORTANT Under the rule, the center of the target is used as the reference point. The center should be located at height of 173 cm. Throw line sticker should be located at distance of 244 cm from directly below the center, and this is the position where you throw the dart (arrow) from. The error should be ± 1.5 cm. Note that this is not the distance from the wall. 4000mm 2075mm Throw Line Sticker 1 2 3 4 5 6 7 8 9 10 11 12 13 WARNING 1SFDBVUJPOT
WIFO
.PWJOH
UIF
6OJU 26 ● "Move" described in this manual refers to moves within the same building. Moving to different buildings, regions, shops or facilities is not described in this manual because there are various factors such as packing, loading on transport vehicles, and securing during transport. If you are to move the unit to a different building or shop, contact your product retailer. ● Never perform disassembling work not described in this manual. It may cause electric shock, short circuit, or fire. ● When moving the unit, unplug the power plug and LAN cable. Moving the unit with the cables inserted may damage them, resulting in electric shock or fire. ● When moving the unit across the floor, raise the adjusters and land the casters. Be careful not to let the casters step on the power cable or other wiring while moving. Damaged wiring may cause electric shock, short circuit, or fire. ● When lifting the cabinet, hold its handle or bottom section. Lifting by holding the weak sections may cause weight of the cabinet to damage the parts and joints, and may cause personal inju…

Text truncated - open the document above for the full version.

1 2 3 4 5 6 7 8 9 10 11 12 13 STEP 5 Remove the three screws and remove the sensor holder cover. Disconnect the connector of the wiring of the module. After removing the two screws and the clamp that secures the wiring, remove the module and antenna. Replace them with new module and antenna, and reassemble them in the reverse order. 8 - 2 Fig. 04 Maintenance of Sections of the Unit 37 Screws – 3 pcs. Screws – 2 pcs. Self-tapping screw M3 x 8 mm Self-tapping screw M3 x 8 mm Sensor holder cover Module Clamps Antenna – 4 pcs. 1 2 3 4 5 6 7 8 9 10 11 12 13 Turn "OFF" the power switch and disconnect the power cable and HDMI cable from the upper monitor. Remove the four screws securing the center part of the upper monitor and the stand. Remove the upper monitor upward. Remove the six screws and remove the monitor. STEP 1 STEP 2 STEP 3 Maintenance of Sections of the Unit 38 8 - 3 Fig. 01 8 - 3 Fig. 02 8 - 3 Fig. 03 8 - 3 Replacing Upper Monitor Screws – 2 pcs. Screws – 2 pcs. Screw – 4 pcs. M4 x 8 mm with flat washer and spring washer M4 x 8 mm with flat washer and spring washer M4 x 12 mm with flat washer and spring washer Screw – 4 pcs. M4 x 8 mm with flat washer and spring washer HDMI cable Power Cable Upper monitor 1 2 3 4 5 6 7 8 9 10 11 12 13 http://www.dartslive.jp/info/support/ Reassemble the upper monitor in reverse order. As soon as you turn "ON" the power switch on the main unit, press the power switch (the leftmost switch) on the monitor. STEP 4 Maintenance of Sections of the Unit 39 IMPORTANT ● If you are using a different type of monitor than the one described above, please check the work procedure from the "Product Support Page" below. 8 - 3 Fig. 04 Power switch of the monitor 1 2 3 4 5 6 7 8 9 10 11 12 13 8 - 4 Fig. 01 8 - 4 Fig. 02 Turn "OFF" the power switch. Unlock with the maintenance key and open the lower door (L). Then disconnect the USB cable (T.PANEL) connected to the PC unit and remove it from the clamp so that it can be lifted up to the upper cabinet. Remove the two screws and open the back door. Pull up from the lower cabinet the USB cable (T.PANEL) which you disconnected from the PC unit. Then, disconnect the power cable connected to the AC adapter and remove it from the clamp. Next, disconnect the DVI cable connected to the touch panel monitor. Refer to "8-2 Replacing Card Reader Sensor" and dismount the control panel. STEP 1 STEP 2 STEP 3 Maintenance of Sections of the Unit 40 8 - 4 Replacing Lower Touch Screen Monitor Back door Screws – 2 pcs. M4×10 Power Cable AC adapter USB cable (T.PANEL) DVI cable 1 2 3 4 5 6 7 8 9 10 11 12 13 8 - 4 Fig. 03 8 - 4 Fig. 04 STEP 4 STEP 5 Remove the two screws at the top of the escutcheon, and slowly lift the escutcheon diagonally upward. Disconnect the connector of the earth wire, and remove the escutcheon. Remove the two screws. Pull out the touch screen monitor, keeping it away from the sheet metal in front. If you have not been able to work from the back to perform STEP2, do that now. In that case, work with two or more persons. Maintenance of Sections of the Unit 41 Connector of the earth wire * Pull them apart while pinching the lock. Escutcheon Screws – 2 pcs. M4 x 8 mm with flat washer and spring washer Screws – 2 pcs. M5×12 * Pull it out to the front while keeping it away from this sheet metal. 1 2 3 4 5 6 7 8 9 10 11 12 13 IMPORTANT ● If the screens on the upper and lower monitors have been switched after replacing the monitor, switch between the monitor and the operation monitor by referring to "5 Maintenance Menu " in OWNERS MANUAL. ● When replacing the AC adapter, use the ferrite core attached to the cable, replacing it onto the same position and in the same manner as it was. 8 - 4 Fig. 05 Maintenance of Sections of the Unit 42 STEP 6 Remove the four screws and remove the touch screen monitor. After replacing it with a new touch panel monitor, reassemble them in the reverse order. Screw – 4 pcs. Nut – 2 pcs. M5 x 12 mm with flat washer and spring washer M4 nut AC adapter Touch panel monitor 1 2 3 4 5 6 7 8 9 10 11 12 13 Addressing coin jamming Cleaning coin selector Coin insertion test If a coin did not return by pressing the return button, open the lower door (R) and dismount the coin selector. Remove the coin stuck in the gate. Insert a normal coin and check that the selector works correctly. Once a month, test the coin switch and check the following at the same time. □ Does the coin meter count properly? □ Does the coin fall into the cash box properly? □ Does the coin inserted while pressing the return button return to the return slot? Clean the coin selector every three months. Follow the procedure below for cleaning. IMPORTANT ● Dip a soft cloth in water or neutral detergent, and squeeze it tight before the cleaning. ● Nev er use machine oil or the like on coin selector. ● After maintenance of the coin selector, insert normal coin under normal use condition to check that the selector works correctly. 8 - 5 Fig. 01 8 - 5 Fig. 02 STEP 1 STEP 2 STEP 3 Turn "OFF" the power switch. Unlock and open the lower door (R) with the coin chute key. Disconnect the connector connected to the back and dismount the coin selector. Then, open the gate and perform cleaning. Replace it if it malfunctions. Pull out the coin selector while raising the lever. ■ 8 - 5 - 1 Cleaning and replacing the coin selector (There are some units such as those for China, which were manufactured on specification without coin selector.) Maintenance of Sections of the Unit 43 8 - 5 Coin Selector Lever Connector Gate 1 2 3 4 5 6 7 8 9 10 11 12 13 8 - 6 Fig. 02 Turn "OFF" the power switch. Refer to "8-3 Replacing Upper Monitor" and disconnect the power cable and HDMI cable from the upper monitor. Remove the two nuts and dismount the camera base cover. Loosen the two adjustment screws and make adjustment. Tighten the screws to fix it. After the adjustment, reassemble them in the reverse order. STEP 1 STEP 2 8 - 6 Fig. 01 Maintenance of Sections of the Uni…

Text truncated - open the document above for the full version.

1 2 3 4 5 6 7 8 9 10 11 12 13 STEP 5 Refer to "5-1-3-1 Target Sensor" in OWNERS MANUAL and calibrate the target sensor. After conducting the calibration, conduct a reaction test for confirmation. IMPORTANT The target sensor may not work if there is dust or uncleanness on its camera (indicated by eight dotted circles) and the reflective tapes on the four sides. The camera and reflective tapes are precision instruments. If you spotted dust or uncleanness on them and touched them directly or wiped them away, it may cause failure. Remove them with air duster, etc. Maintenance of Sections of the Unit 49 8 - 9 Fig. 03 Reflective tape Camera 1 2 3 4 5 6 7 8 9 10 11 12 13 Turn "OFF" the power switch. Open the target door with the maintenance key. From the back of the target door, disconnect the USB connector connected to the speed sensor. Remove the two screws and dismount the speed sensor together with the bracket. Remove the speed sensor and the board from the bracket and replace them. When you have completed the replacement, reassemble them in the reverse order. STEP 1 STEP 2 STEP 3 8 - 10 Fig. 01 Maintenance of Sections of the Unit 50 8 - 10 Replacing Speed Sensor IMPORTANT If multiple units are installed, the frequency bands of the sensors will be close to each other and may interfere with each other, which may cause an error in the environmental test or cause an error. In that case, it may be improved by increasing the distance from the other machine or replacing the sensor with another machine. If you pull out or insert the USB cable forcibly or at some angle, you may damage the connector. Be careful when attaching and detaching them. Speed sensor Bracket Board M4 x 10 mm with flat washer and spring washer USB connector Screws – 2 pcs. CAUTION 1 2 3 4 5 6 7 8 9 10 11 12 13 STEP 1 STEP 2 Refer to "8-1-1 Replacing Segment" and dismount the target. Disconnect the connectors on the left and right. Open the two locking tabs and remove the number LED board. When you have completed the replacement, reassemble them in the reverse order. 8 - 11 Replacing Number LED Board Maintenance of Sections of the Unit 51 When mounting the target onto the target door, be careful not to pinch the wiring of the number LED board or the impact sensor. It may cause malfunction or fire. If wiring is placed in the shaded area, it will be pinched. Mount the target onto the target door after confirming that there is no wiring in the shaded area. 8 - 11 Fig. 01 No wiring shall be in the shaded area CAUTION Number LED board Connector – 2 locations Locking tab 1 2 3 4 5 6 7 8 9 10 11 12 13 STEP 1 STEP 2 STEP 3 Refer to "8-8 Replacing Sensor Cover and Sensor Cover Cylinder" and remove the sensor cover. Refer to "8-11 Replacing Number LED Board" and remove the number LED board. Remove the four screws and dismount the outer board segment. After the replacement, reassemble in the reverse order. 8 - 12 Replacing Outer Board Segment Maintenance of Sections of the Unit 52 8 - 12 Fig. 01 When mounting the target onto the target door, be careful not to pinch the wiring of the number LED board or the impact sensor. It may cause malfunction or fire. If wiring is placed in the shaded area, it will be pinched. Mount the target onto the target door after confirming that there is no wiring in the shaded area. No wiring shall be in the shaded area CAUTION Outer board segment Screw – 4 pcs. M4 x 12 mm with flat washer and spring washer 1 2 3 4 5 6 7 8 9 10 11 12 13 ■ 8 - 13 - 1 Description of PC Unit STEP 1 STEP 2 STEP 3 Turn "OFF" the power switch. Open the lower door (L) with the maintenance key. Disconnect all cables connected to the PC unit. Remove the two screws on the PC unit. ■ 8 - 13 - 2 Replacing PC Unit Maintenance of Sections of the Unit 53 IMPORTANT Press and holding the reset switch on the PC unit shuts down the unit, and pressing it once starts the unit. In normal circumstance, you should use the power switch of the main unit only, and avoid using this switch. 8 - 13 - 1 Fig. 01 8 - 13 - 2 Fig. 01 8 - 13 PC Unit Power supply DC output I/O panel AC power inlet POWER indicator (green) SSD activity light (blue) Reset switch Screws – 2 pcs. M4 x 12 mm with flat washer and spring washer 1 2 3 4 5 6 7 8 9 10 11 12 13 8 - 13 - 2 Fig. 02 8 - 13 - 2 Fig. 03 Hook the cables on the door so that they do not get in the way. Slowly pull out the PC unit to the diagonally front. When doing this, be careful not to damage the board or wire harness behind it. Mount the new PC unit in the reverse order of that described in STEP 4. When doing this, be careful not to damage the board or wire harness behind it. Look at the tag attached to each cable and connect the cables to the locations on the PC unit described in the "I/O Panel Layout" affixed to the lower cabinet, in order from the bottom. If the cables are placed too much in the front, they interfere with the lower door (L) when it opens and closes, causing damage or contact failure. When you connected all the cables, bundle them neatly, pull them to the back, and secure them with the clamps (at two locations) on the left side of the PC unit. Close and lock the lower door (L). STEP 4 STEP 5 STEP 6 STEP 7 Maintenance of Sections of the Unit 54 8 - 13 - 2 Fig. 04 * Hook the cables on the door. * Pull in the cables behind this section. If the unit has DARTSLIVE Credit Unit, connect "DLCR" here. 1 2 3 4 5 6 7 8 9 10 11 12 13 In order to maintain the performance of this product and to conduct business operation safely, regularly conduct inspection and maintenance on the following. * In particular, the periodic inspection of software is explained in another document, OWNERS MANUAL. Please refer to it also. Note: To clean the sensor cover cylinder, wipe it with a dry soft cloth. If you use detergent, the transparency of the sensor cover cylinder will deteriorate and the unit may not work properly. Inspection pointDetail Term Reference CabinetHow the adjusters are landed. Daily 6-1 Target Removing ja…

Text truncated - open the document above for the full version.

1 2 3 4 5 6 7 8 9 10 11 12 13 ITEM NO. PART NO. DESCRIPTION NOTE 1 DL3-0601 CAMERA BRKT TYPE P 2 DL3-0602 CAMERA SUPPORT TYPE P 3 DL3-0603 CAMERA ACRYLIC TYPE P 4 DL3-0604 CABLE TAG P.CAMERA 101 KBCR -S03MU-DW9305CM USB CAMERA S03MU-D W9305CM 102 DSL01-016900-10 …
