2ARUU-DLI00524BDARTSLIVE CREDIT CARD READER

Remark: For USA, FCC Caution DARTSLIVE Credit reader (FCC ID: 2ARUU‐DLI00524B) ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ Since this module is not sold to general end users directly, there is no user manual of module. For the details about this module, please refer to the specification sheet of module. This module (with special harness and bracket) should be installed in the host device according to the interface specification. The following statements must be described on the user manual of the host device of this module. ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Warning: This transmitter must not be co‐located or operated in conjunction with any other antenna or transmitter.

$ QWHQQD 5),&

Test report No. : 13278171S-R2 Page : 1 of 30 Issued date : June 17, 2020 FCC ID : 2ARUU-DLI00524B UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 CERTIFICATE 1266.03 RADIO TEST REPORT Test Report No. : 13278171S-R2 Applicant : DARTSLI VE INTERNATIONAL Ltd. Type of EUT : DARTSLI VE CREDIT CARD READER Model Number of EUT : DLI-00524-B FCC ID : 2ARUU-DLI00524B Test regulation : FCC Part 1 5 Subpart C: 2020 Test Result : Complied (Refer to SECTION 3.2) 1.This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2.The results in this re port apply only to the sample tested. 3.This sample tested is in compliance with the limits of the above regulation. 4.The test results in this test report are traceable to the national or international standards. 5.This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Re quirements. (if applicable) 7. The all test items in this test report are conducted by UL Japan, Inc. Shonan EMC Lab. 8.The opinions and the interpretations to the result of the description in this report are outside scopes where UL Ja pan has been accredited. 9.The information provided from the customer for this report is identified in SECTION 1. 10. This report is a revised version of 13278171S-R1. 13278171S-R1 is replaced with this report. Date of test: April 16 to May 7, 2020 Representative test engineer: Makoto Hosaka Engineer Consumer Technology Division A pproved by: Akira Sato Engineer Consumer Technology Division The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". Report Cover Page 13-EM-F0429 Issue # 16.0 Test report No. : 13278171S-R2 Page : 2 of 30 Issued date : June 17, 2020 FCC ID : 2ARUU-DLI00524B UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 13278171S Revision Test report No. Date Page revised Contents - (Original) 13278171S May 28, 2020 - - 1 13278171S-R1 June 15, 2020 7 Modification of description on FCC Part 15.31 (e): From “The stable voltage was supplied by the end product which was required to have a power supply regulator. Therefore, the EUT complies with the requirement. However, the supply voltage was varied and tested at 85 % and 115 % of the nominal rated supply voltage during frequency tolerance test according to Section 15.225(e).” To “This EUT provides stable voltage constantly to RF Module regardless of input voltage. Therefore, this EUT complies with the requirement.” 2 13278171S-R2 June 17, 2020 7 Modification of description on FCC Part 15.31 (e): From “This EUT provides stable voltage constantly to RF Module regardless of input voltage. Therefore, this EUT complies with the requirement.” To “The RF Module has its own regulator. The RF Module is constantly provided voltage through the regulator regardless of input voltage. Therefore, this EUT complies with the requirement.” Modification of description on FCC Part 15.203/212 Antenna requirement: From “It is impossible for end users to replace the antenna, because it is soldered on the circuit board. Therefore the equipment complies with the requirement of 15.203/212.” To “The antenna is not removable from the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203.” Test report No. : 13278171S-R2 Page : 3 of 30 Issued date : June 17, 2020 FCC ID : 2ARUU-DLI00524B UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation MCS Modulation and Coding Scheme AC Alternating Current MRA Mutual Recognition Arrangement AFH Adaptive Frequency Hopping N/A Not Applicable AM Amplitude Modulation NIST National Institute of Standards and Technology Amp, AMP Amplifier NS No signal detect. ANSI American National Standards Institute NSA Normalized Site Attenuation Ant, ANT Antenna NVLAP National Voluntary Laboratory Accreditation Program AP Access Point OBW Occupied Band Width ASK Amplitude Shift Keying OFDM Orthogonal Frequency Division Multiplexing Atten., ATT Attenuator P/M Power meter AV Average PCB Printed Circuit Board BPSK Binary Phase-Shift Keying PER Packet Error Rate BR Bluetooth Basic Rate PHY Physical Layer BT Bluetooth PK Peak BT LE Bluetooth Low Energy PN Pseudo random Noise BW BandWidth PRBS Pseudo-Random Bit Sequence Cal Int Calibration Interval PSD Power Spectral Density CCK Complementary Code Keying QAM Quadrature Amplitude Modulation Ch., CH Channel QP Quasi-Peak CISPR Comite International Special des Perturbations Radioelectriques QPSK Quadri-Phase Shift Keying CW Continuous Wave RBW Resolution Band Width DBPSK Differential BPSK RDS Radio Data System DC Direct Current RE Radio Equipment D-factor Distance factor RF Radio Frequency DFS Dynamic Frequency Selection RMS Root Mean Square DQPSK Differential QPSK RSS Radio Standards Specifications DSSS Direct Sequence Spread Spectrum Rx Receiving EDR Enhanced Data Rate SA, S/A Spectrum Analyzer EIRP, e.i.r.p. Equivalent Isotropically Radiated Power SG Signal Generator EMC ElectroMagnetic Compatibility SVSWR Site-Voltage Standing Wave Ratio EMI ElectroMagnetic Interference TR Test Receiver EN European Norm Tx Transmitting ERP, e.r.p. Effective Radiated Power VBW Video BandWidth EU European Union Vert. Vertical EUT Equipment Under Test WLAN Wireless LAN Fac. Factor FCC Federal Communications Commissio…

Text truncated - open the document above for the full version.

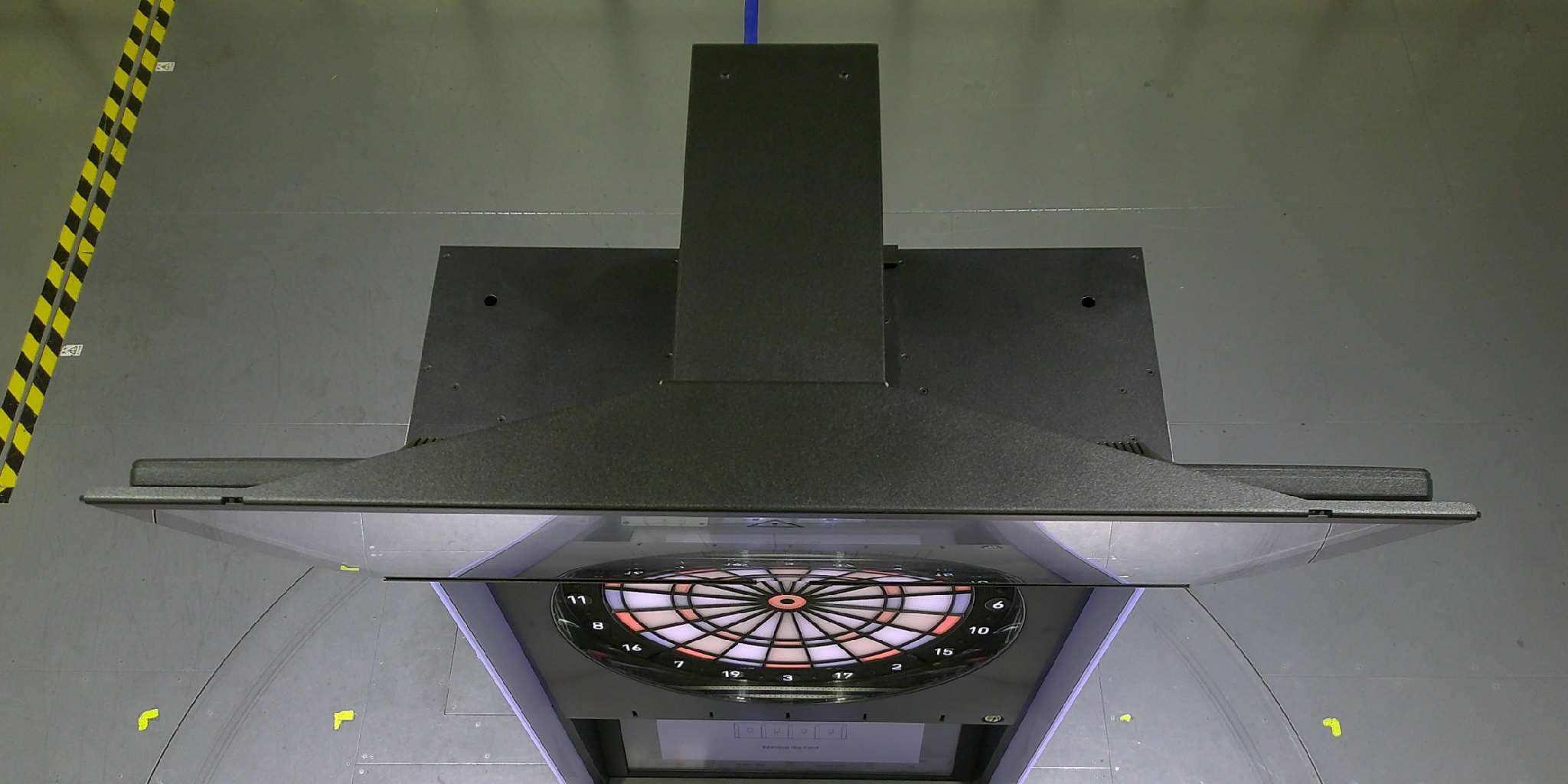

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone :+81 463 50 6400 Facsimile:+81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted emission Test Report No.: 13278171S-R2 27 of 30 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone :+81 463 50 6400 Facsimile:+81 463 50 6401 Radiated emission Front Rear (Below 1 GHz), Antenna: HorizontalRear (Below 1 GHz), Antenna: Vertical Rear (Above 1 GHz) Test Report No.: 13278171S-R2 28 of 30 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone :+81 463 50 6400 Facsimile:+81 463 50 6401 Pre-check of the Worst Case Position With TagWithout Tag X-axisX-axis Y-axisY-axis Z-axisZ-axis Test Report No.: 13278171S-R2 29 of 30 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone :+81 463 50 6400 Facsimile:+81 463 50 6401 Tag used for the test as representative Mifare (Model No. DLI-00528) END OF REPORT Test Report No.: 13278171S-R2 30 of 30
