2ARVQ-AS087HWWSAUTOSLIDE Wireless Hand Wave Sensor

Installing your AUTOSLIDE Wireless Hand Wave Sensor or AUTOSLIDE Wired Hand Wave Sensor (LSG0 4.5.22) Installaon Sensor Port Explanaon * Note that, if you wirelessly connect your hand wave sensor, you have the opon of switching between “M” (Inside) and “S” (Outside) channels. Pet Sensor triggering isn’t an opon unless the hand wave is hardwired to the Pet Sensor port. If the hand wave is hardwired to a specific sensor port, the hand wave’s channel switch is ineffecve. AUTOSLIDE LLC - autoslide.com - 833-337-5433 The AutoSlide Hand Wave Sensor can be hardwired or wirelessly connected to the AutoSlide unit, and offers effortless tap-to-trigger control. If wirelessly connected, the hand wave sensor will open the door to the full default width, but if hardwired to the unit, it can open the door to a paral pet width (assuming Pet Mode is programmed). Check out our video at: hps://vimeo.com/319406044 -Each sensor requires 2x CR2032 baeries (included) -Switch on back switches between Inside (“M”) and Outside (“S”) sensor connecon (see picture on le and info below) -Approx. maximum trigger distance is 4”to 6” from front surface, depending on brightness of environment -4,2” (+12,3”) of cabling included per sensor Wireless Installaon Hardwired Installaon 1. Slide the panel on the back of the sensor down to release it (note: you don’t need to remove the screw at the top to do this). 1. Go to the back of the hand wave sensor and locate the opening showing the white port on the sensor’s circuit board (ref. Diagram 1). 2. Insert included baeries into sensor. Each sensor takes 2x CR2032 baeries (one in each slot; “+” side up, grated side down) 2. Take your included sensor cable and plug it into the white port on the back of the hand wave sensor (ref. Diagram 1). 3. Slide the back panel back into place (make sure to keep the panel’s rectangular opening above the white port). 3. Locate on your unit’s control panel the ports for “Inside Sensor,” “Outside Sensor,” & “Pet Sensor” (labeled on the front, ref. Diagram 3). 4. Press the “Sensor Learn” buon on your unit’s control panel. Tap the hand wave sensor (it should flash blue on the front). Then, press “Sensor Learn” again, and tap the hand wave again. 4. Take the other end of your sensor cable and plug it into any one of these three ports (see informaon on which port to use below). 5. The hand wave sensor should now be paired to the unit. Confirm the sensor is acve by tapping the front of it - it should flash blue on the front, and open the door. 5. The hand wave sensor should now be connected to the unit. Confirm the sensor is acve by tapping the front of it - it should flash blue on the front, and open the door. 1.Connecng the hand wave sensor to the Inside Sensor port will enable it in Green, Red, and Pet Mode. 2.Connecng the hand wave sensor to the Outside Sensor port will enable it in Green and Pet Mode. 3.Connecng the hand wave sensor to the Pet Sensor port will enable it in Pet Mode only. 4.Connecng the hand wave sensor to the Stacker Sensor port will enable it in Blue Mode only. FCC Statement This device complies with part 15 of the FCC Rules. Operaon is subject to the following two condions: 1)This device may not cause harmful interference, and 2)This device must accept any interference received, including interference that may cause undesired operaon. Any Changes or modificaons not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference in a residenal installaon. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instrucons, may cause harmful interference to radio communicaons. However, there is no guarantee that interference will not occur in a parcular installaon. If this equipment does cause harmful interference to radio or television recepon, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ●Reorient or relocate the receiving antenna. ●Increase the separaon between the equipment and receiver. ●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ●Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

AUTOSLIDE PTY LTD Date: 2021.03.30 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ARVQ-AS087HWWS Product Name: AUTOSLIDE Wireless Hand Wave Sensor Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block Diagram  Operation Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name: Mark Steven Hancock Company: AUTOSLIDE PTY LTD Address: 3/413, VICTORIA STREET, WETHERILL PARK, NSW, AUSTRALIA Phone: +61297574600 Fax: +61297574233 Mail: [email protected]

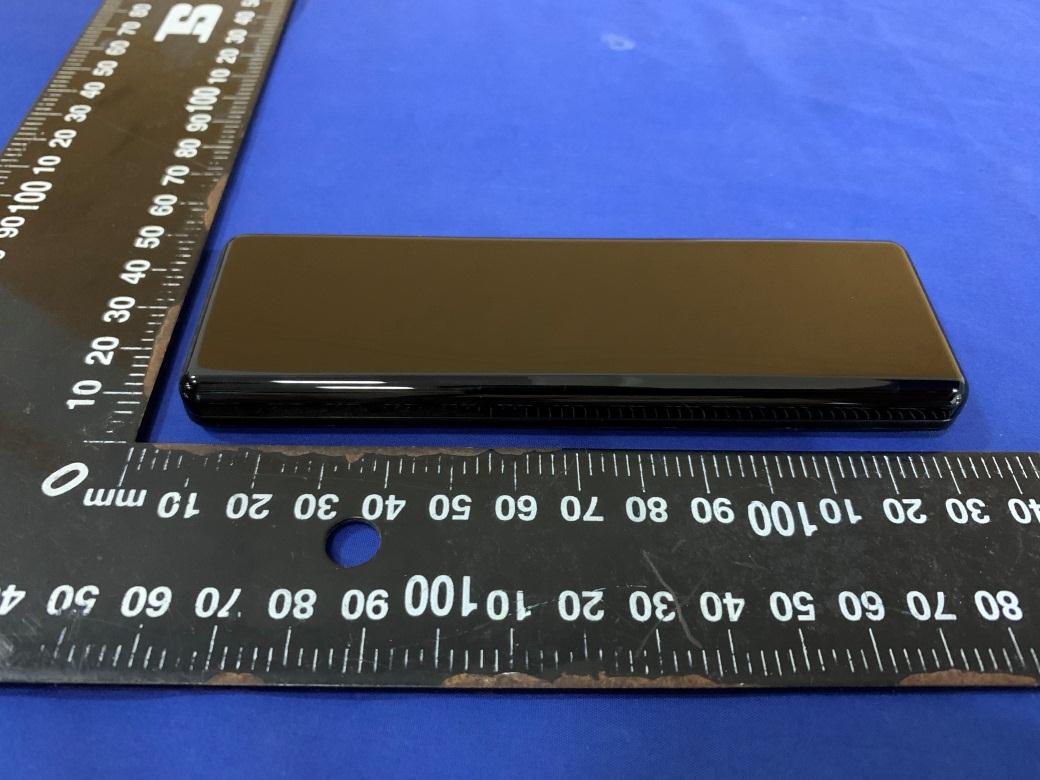

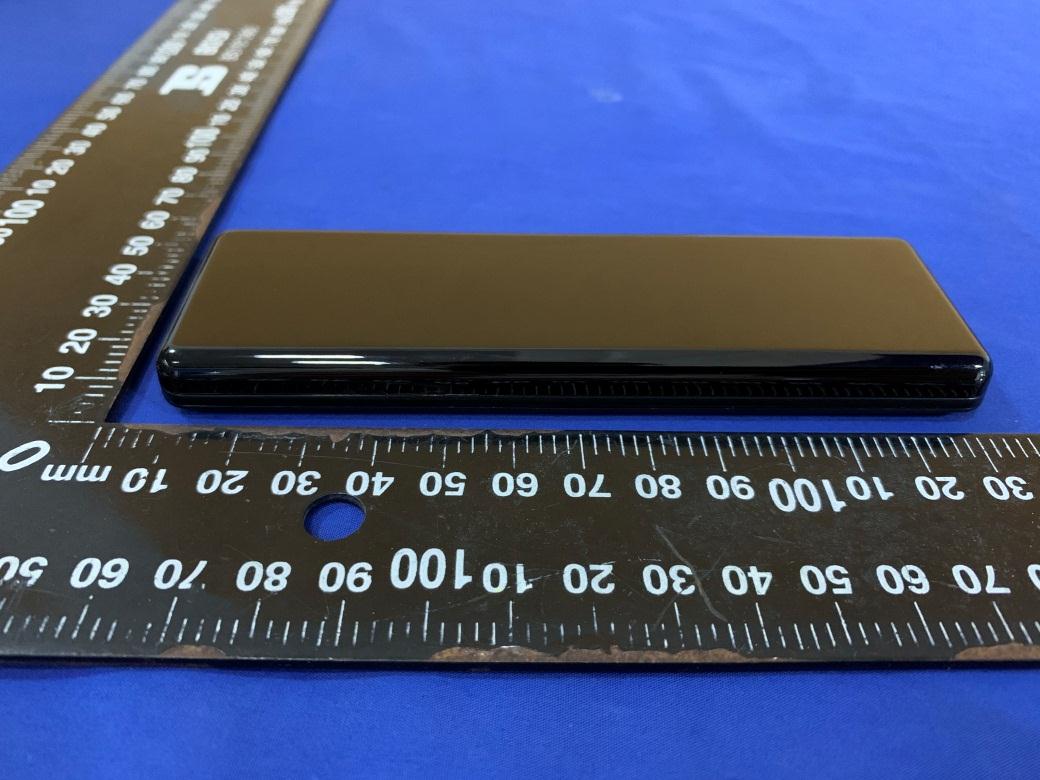

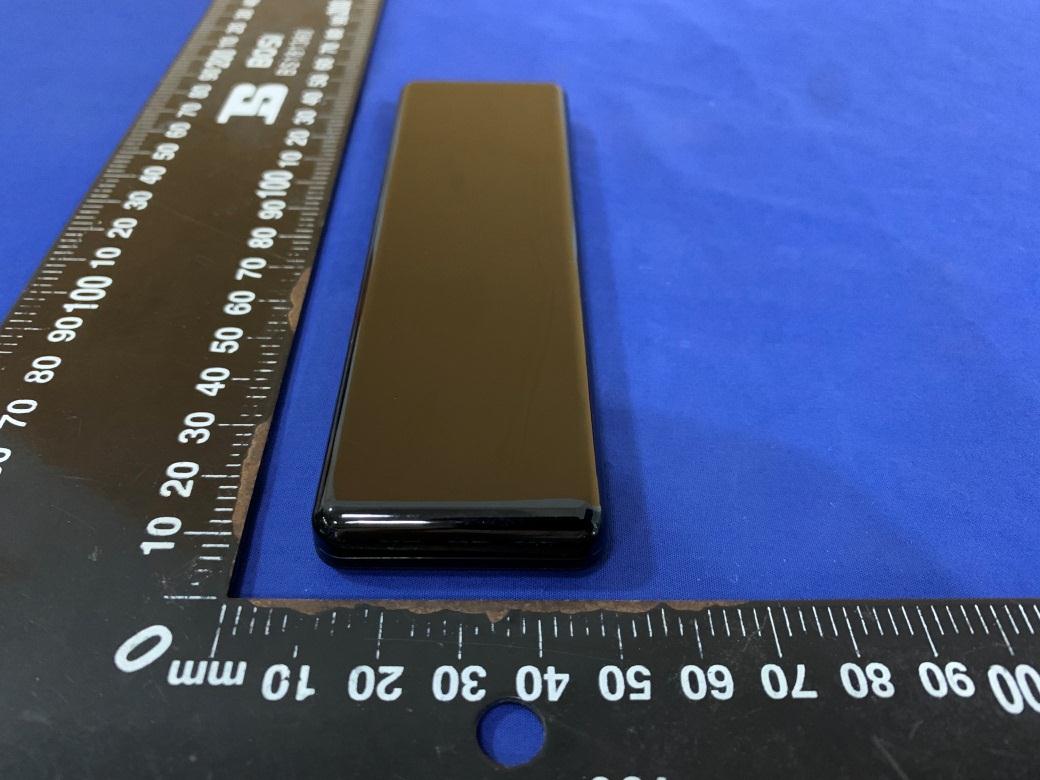

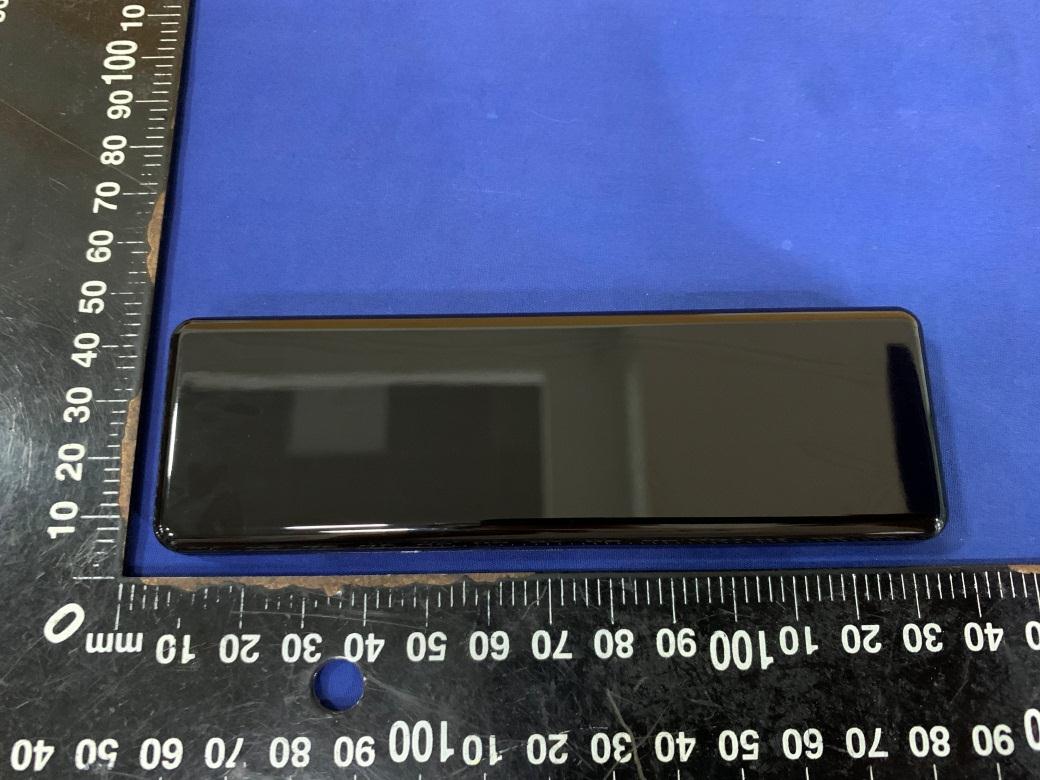

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 Http://www.sz-ctc.org.cn FCC ID: 2ARVQ-AS087HWWS Page 1 of 4 External Photographs FCC ID: 2ARVQ-AS087HWWS Page 2 of 4 FCC ID: 2ARVQ-AS087HWWS Page 3 of 4 FCC ID: 2ARVQ-AS087HWWS Page 4 of 4

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 Http://www.sz-ctc.org.cn Label AUTOSLIDE Wireless Hand Wave Sensor Rated voltage : 6VDC from batteries Rated current : 10mA FCC ID : 2ARVQ-AS087HWWS Model : AS087HWWS IP Protection class : IP30 Design by : AUTOSLIDE PTY LTD Label Location 1.

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 Http://www.sz-ctc.org.cn FCC ID: 2ARVQ-AS087HWWS Page 1 of 3 Internal Photographs FCC ID: 2ARVQ-AS087HWWS Page 2 of 3 Antenna FCC ID: 2ARVQ-AS087HWWS Page 3 of 3

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v06: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz. Power and distance are rounded to the nearest mW and mm before calculation. The result is rounded to one decimal place for comparison. eirp = p t x g t = (E x d) 2 /30 where: p t = transmitter output power in watts, g t = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 , d = measurement distance in meters (m)--- 3m. So p t = (E x d) 2 /(30 x g t ) Worse case is as below: Field strength = 72.28 dBuV/m @3m Ant gain 0 dBi; so Ant numeric gain=1 So p t ={[10 (72.28/20) /10 6 x3] 2 /30}x1000mW =0.005 mW So (0.005mW/5mm)x √0.43392 GHz = 0.0006 <3.0 for 1-g SAR Then SAR evaluation is not required.

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 Http://www.sz-ctc.org.cn TEST REPORT Report No. ··························: CTC20210308E01 FCC ID································: 2ARVQ-AS087HWWS Applicant····························: AUTOSLIDE PTY LTD Address·······························: 3/413, VICTORIA STREET, WETHERILL PARK, NSW, AUSTRALIA Manufacturer························: AUTOSLIDE PTY LTD Address·······························: 3/413, VICTORIA STREET, WETHERILL PARK, NSW, AUSTRALIA Product Name······················: AUTOSLIDE Wireless Hand Wave Sensor Trade Mark···························: AUTOSLIDE Model/Type reference·············: AS087HWWS Listed Model(s) ·····················: N/A Standard·····························: FCC CFR Title 47 Part 15 Subpart C Section 15.231(a) Date of receipt of test sample...: Mar. 22. 2021 Date of testing.......................: Mar. 22. 2021 to Apr. 07. 2021 Date of issue.........................: Apr. 07. 2021 Result.................................: PASS Compiled by: (Printed name+signature) Jim Jiang Supervised by: (Printed name+signature) Miller Ma Approved by: (Printed name+signature) Walter Chen $英文检测章$ $Walter$ Testing Laboratory Name ........... : CTC Laboratories, Inc. Address .......................................... : 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China This test report may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CTC. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CTC within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. The test report merely correspond to the test sample. Page 2 of 25 Report No.: CTC20210308E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Table of Contents Page 1. TEST SUMMARY ....................................................................................................................................................... 3 1.1. TEST STANDARDS .......................................................................................................................................................... 3 1.2. REPORT VERSION ......................................................................................................................................................... 3 1.3. TEST DESCRIPTION ........................................................................................................................................................ 3 1.4. TEST FACILITY .............................................................................................................................................................. 4 1.5. MEASUREMENT UNCERTAINTY ........................................................................................................................................ 4 1.6. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 5 2. GENERAL INFORMATION .......................................................................................................................................... 6 2.1. CLIENT INFORMATION ................................................................................................................................................... 6 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3. EUT OPERATION STATE ................................................................................................................................................. 6 2.4. MEASUREMENT INSTRUMENTS LIST ................................................................................................................................. 7 3. TEST ITEM AND RESULTS .......................................................................................................................................... 9 3.1. CONDUCTED EMISSION .................................................................................................................................................. 9 3.2. RADIATED EMISSION ................................................................................................................................................... 11 3.3. 20DB BANDWIDTH ..................................................................................................................................................... 18 3.4. CONTINUE TRANSMISSION TIME.................................................................................................................................... 20 3.5. DUTY CYCLE .............................................................................................................................................................. 22 3.6. ANTENNA REQUIREMENT ............................................................................................................................................. 25 Page 3 of 25 Report No.: CTC20210308E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://w…

Text truncated - open the document above for the full version.

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn FCC ID: 2ARVQ-AS087HWWS Page 1 of 1 Radiated Measurements 30-1000MHz Above 1GHz
