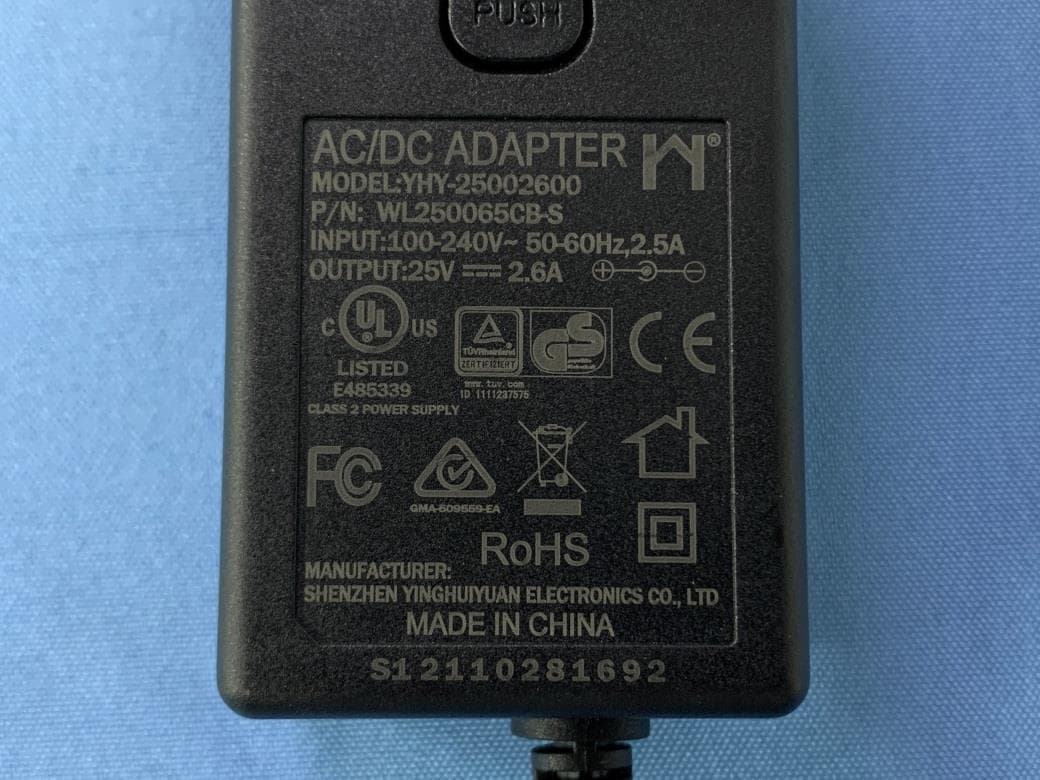

2ARVQ-ASW8-1AUTOSLIDE AUTOSWING

Installation Manual 2 CONTENTS 3 1. TECHNICAL INFORMATION Endcaps LED Indicator lights, showing different mode settings. Clip on/off replaceable Lithium battery.Powder coated door guide cover, to blend in with your existing door texture. Features The AutoSwing Automatic Door Operator offers a high standard of performance within a slimline design. The low height of only 2.25 inches (60mm) allows the AutoSwing Operator to be fitted to a transom header. The system comes with both push arm and slide arm configurations, the combination of these design features and the almost silent operation of the mechanism give the doorway a seamless operation where the door appears to open as if by magic. Operator Features and Performance •Compact slim design •Heavy-duty 24V motor •Hi-Tech modularised and packed with features •Up to 220.5 lb (100kg) door weight •Touchless control sensor •Integrates with Smart Locks •Grant or deny access from the app •Motion sensor activation •Grant or limit access to family, friends and service personnel remotely •Pet access •Touchless privacy lock for bathroom door •Endcaps with LED indicator lights •Integration with electric latching and Mag locks •Compatible with: Yale and August smart locks. Front View 2.25 inch (60 mm) 22.56 inch (570 mm)3.14 inch (80 mm) Side View Clip On Safety Cover Operator typeHinged Door, Swing Door Door opening width47’ (1200 mm) Door weight198.4 lb (up to 90 Kg) Power input100-240VAC 50/60hz(+,-10%) Auxiliary voltage24 VDC @220mA SPDT relay output for controlling electric-strikes or electric locks not to exceed 2A 24 VDC Opening speed30degree/second for opening speed.15 degree/second for slow opening speed Closing speed8 degree /s Hold open time0-23s Ambient temperature 14 ºF to 140 ºF (-10ºC to 60ºC) Drive weight unit7 lb (3 Kg) Complies with:UL/FFC Electro-mechanical locking integration Mag Lock, Electric Strike, Electric Dead Bolt Power supply adaptor output Safety Protocol Lithium 25Vdc, 2.6A 65watt Auto-Reverse, Safety Beams. Technical specifications 4 Components LEDLED Motor Output Axis OPERATOR CLIP ON SAFETY COVER PULL ARM - Inward Opening PUSH ARM - Outward Opening Microcomputer Controller NOTE: AutoSwing comes with either one of the two arms. 5 INSTALLATION Choose pull arm: Door leaf open toward inside (operator is inside) Choose push arm: Door leaf open toward outside (operator is inside) INSTALLATION EXAMPLE 6 INSTALLATION INSTALLATION OF THE BASE - PULL ARM/PUSH ARM Using a flat screw driver, clip off the safety cover. Plug the power cable into the back of the AutoSwing.Remove the controller by pressing on the two clip on/off buttons. 7 Fully close the door. Fix the base on the frame with six countersunk wood screws, (if the frame is steel structure should use M6*15 hex countersunk head screws). Make sure the edge of the base is aligned to the edge of the door. Use a level throughout this process. Make sure the base is just low enough so the arm is able to rotate freely without hitting or scraping against the frame of the door. Make sure the edge of the base is aligned to the edge of the door. • If installing onto a right hinged door, align the left edge of the base to the back left edge of the door • If installing onto a left hinged door, align the right edge of the base to the back right edge of the door. INSTALLATION INSTALLATION OF THE BASE - PUSH ARM INSTALLATION OF THE BASE - PULL ARM Fully close the door. Fix the base on the frame with six countersunk wood screws, (if the frame is steel structure should use M6*15 hex countersunk head screws). use a level throughout this process. Make sure the edge of the base is aligned to the edge of the door. • If installing onto a right hinged door, align the right edge of the base to the right edge of the door. • If installing onto a left hinged door, align the left edge of the base to the left edge of the door. Make sure the top of the ball of the arm is slightly below the top edge of the door panel. Ensure the bottom of the hinge of the arm does not hit the door panel as it opens AutoSwing with Pull Arm on left hinged door (front view, hinges are on the left) AutoSwing with Push Arm on left hinged door (back view, hinges are on the right) 8 INSTALLATION - PULL ARM Remove the cover and endcaps of the rail.Keep the door fully closed. If installing onto right hinged door, rotate the arm full to the left. Slide the rail along the ball of the arm. Hold the rail up to the door panel where it will mount. The ball should be upwards in the rail. Holding the rail in place, drill in the rightmost screw. Position the right edge of the rail an inch from the ball when the door is fully closed Open the door almost fully and drill in the left- most screw, using the ball to keep the rail level. The rail should be flush against the door panel. 1 inch 9 FIX THE SUPPORT HOLDER - PUSH ARM Fix the support holder of push arm on the door panel as shown using two round head wood screws. (If the door panel is steel, please use M6*15 cross recessed head screws.) INSTALLATION - PUSH ARM ADJUSTING THE PUSH ARM LENGTH - PUSH ARM 90 0 L Loosen the four bolts depicted in (Figure 1), and adjust the push arm length according to the door depth (L) until the angle between the push arm and the door panel is 90 0 . (figure 1) 10 ADJUSTING THE STOPPER POSITION - PUSH ARM Adjust the stopper position in the “U hole” (figure 2) according to the diagram below. (figure 2) INSTALLATION - PUSH ARM ELECTRICAL CONNECTION 11 OPERATE THE AUTOSWING BEFORE YOU BEGIN POWERING ON AND INITIALIZING You will need a power point (outlet) near your door to plug in your AUTOSWING unit. Ensure the blue power switch on the right end cap is set to OFF. Configure DIP switch settings as desired. Ensure DIP switch #1 is flipped OFF. (Towards the front of the controller). Using the MODE button, toggle to the Green mode. 12 OPERATE THE AUTOSWING AUTOSWING CONTROLLER Turn DIP #1 ON, a blue light will start flashing. Press the learn button, the door shou…
