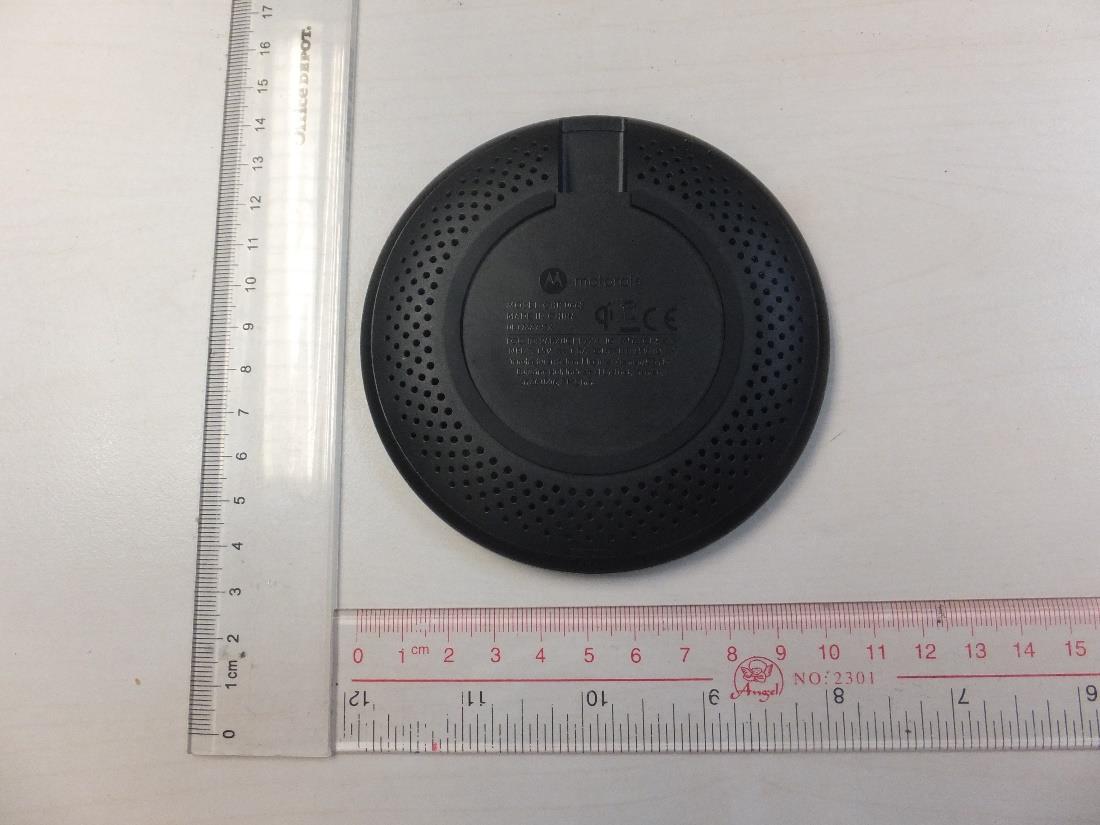

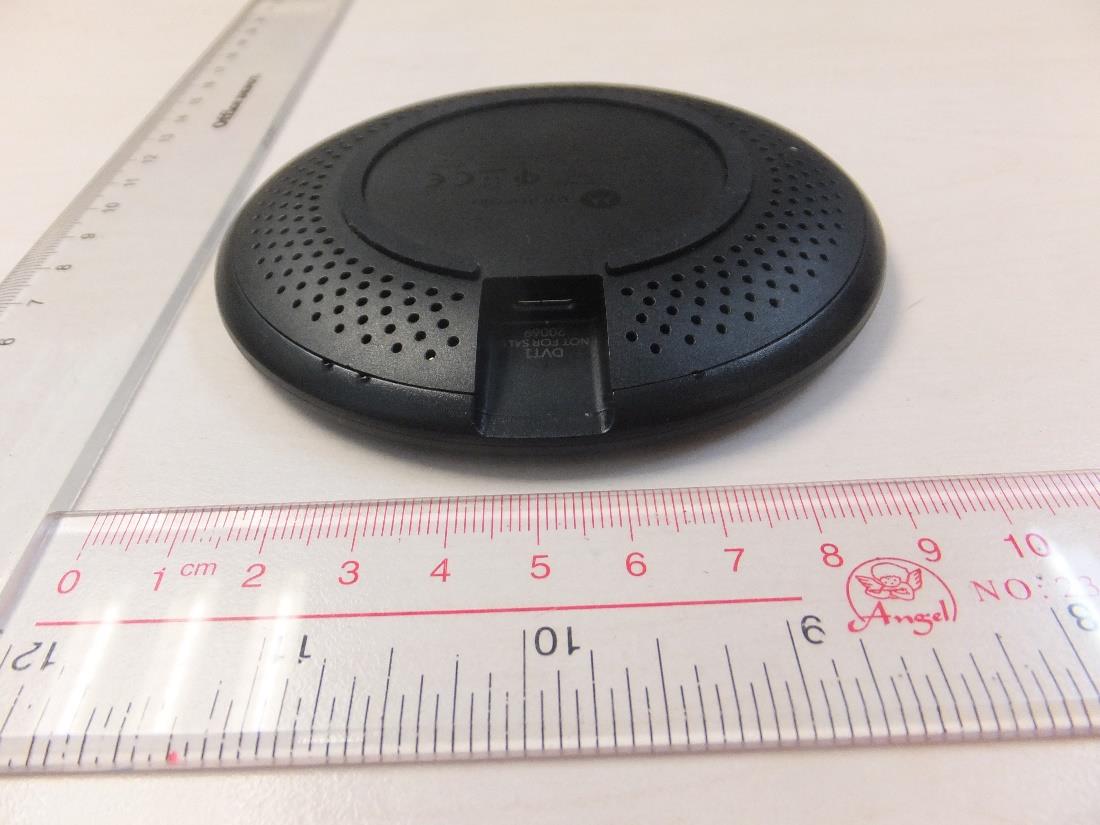

Wireless charger User Manual Product overview Thank you for buying this wireless charger. This manual provides you with instructions for the use of this product. Whether it's a smartphone with wireless charging feature, this fast wireless charger is ideal for charging. Product specification - Product Name:Wireless Charger - Part Number: CHR-0662 - Input: 15V1.5A - Output: 15W(Max) - Dimension：103.32*103.32*14.29mm Product characteristics 1. Frequency range: 127.7KHz 2. Maximum RF output power of the product:30.59dBuA/m@3m 3. Accessories information: Description Model Rating Adapter SC-31 Inupt: AC100-240V, 50/60Hz, 0.8A; Output:DC 5V,3A or DC 9V,3A Cable MC00CCB10A 1m Type C to Type C cable 4. FCC statement: NOTE: This equipment has been tested and f ound to comply w ith the limits f or a Class B digital device, pursuant to Part 15 of the Federal Communicat ions Commission (FCC) rules. These limits are designed to provide reasonable protection against harmf ul interf erence in a residential installation. This equipment generates, uses and can radiate radio f requency energy and, if not installed and used in accordance w ith the instructions, may cause harmf ul interf erence to radio communications. How ever, there is no guarantee that interf erence w ill not occur in a particular installation. If this equipment does cause harmf ul interf erence to radio or television reception, w hich can be determined by turning the equipment of f and on, the user is encouraged to try to correct the interf erence by one or more of the f ollow ing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies w ith Part 15 of the FCC rules. Operation is subject to the f ollow ing tw o conditions: (1) this device may not cause harmf ul interf erence, and (2) this device must accept any interf erence received, including interf erence that may cause undesired operation. Privacy of communications may not be ensured w hen using this device. 30 General Inf ormation WARNING Changes or modif ications, to this equipment not expressively approved by the party responsible f or compliance could void the user’s authority to operate the equipment. 5. IC statement: RSS-Gen statement: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Warranty term and declaration We offer 18 month warranty period from the d ate of purchase for this product. If you need a suitable after-sal e warranty service, please provide your certificate of purch ase for consultation. We only provide after-sales service to customers who purchase products directly from us. If you buy this product from another retailer, please conta ct the supplier directly for return and exchange. Contact If you have any questions or comments on the produ ct, plea se s end an email to xxxxxxxx or call xxxxxxx, . We w ill reply as soon as possible. Warning 01. This power supplier should not be used on toys. Please pay close attention when this product is in contact with or close to the child, especially when charging. 02. When this charger is damaged, please do not operate it yourself, when it does not work, or when it falls into the water, pleas e return the produ ct to your near est authori zed dealer or service center for inspection. Repair or adjustment. 03. Do not use this product in places where smoke and oxygen are produced. 04. Do not put anything on the power cord to avoid damaging its product. 05. Do not put anything on the power cord to avoid damaging its product. 06. Don't pull the cable and pull the plug. Hold the plug instead of the cable when unplugging. 07. Don't put your product in a pedestrian corridor or on a road to avoid safety problems. 08. The operating temperature of this product is 0°C~+30°C. 09. If you have any questions about the product, please contact the agent.

1 2 3 6 7 / 0 REVISION 9 : DWG TITLE 9 % DWG NO. -./0 REV 1 2 3 4 DESCRIPTION 5 6 BY 7 8 APP ; 9 DWG BY < = DESIGN BY > ? CHECK BY 7 8 APP. BY @ A MATERIAL B C UNITS D E SCALE F G PROJECT H I MODEL J K DATE mm DCBA 0 CSAD0500-B-P1 2020.04.20 CHR-0662 LMN 5 4 OP: The Dimension tolerance are ±0.2. Print Nameplate The Nameplate makes marking by printing, the word must be clear, pass 50 times RCA test. Environmentally Hazardous substances controlled refer toSECC E1 29.- - Using CASE: CSAD0500-B. Note: !"#$%: Producing Line & , ,...'(A B C Z A=No.1 Line, B=No.2 Line, C=No.3 Line, . . . - 0817337XX )*$%: Factory Code +,*:C SECC QRPSTUVW1.±0. .2 2.ijkW,lmnop, ;RCA 500 3.CASE CSAD0500-B;X&W 4. SECC-E1-29YZ[\]^_`abcdefgh. 16.6 25.6 35.8 0817337-CX MODEL: CHR-0662 MADE IN CHINA INPUT: OUTPUT: 15W(MAX) 15V1.5A FCC ID: 2ARXUCHR0662 IC: 24563-CHR0662 Manufacturer: Salom Electric (Xiamen) Co., Ltd. 31 Building Huli Industrial District,Xiamen, Fujian 361006,P.R.China qr 5.!"tKuvwxyz{|}~ The data code was define by salom product line or sale team. qrsk MW102A

FCC ID: 2ARXUCHR0662 1.1. Measuring Standard FCC CFR 47 Part 1(1.1310) KDB 680106 D01 v03 1.2. Requirements The EUT does comply with item 5(b) of KDB 680106 D01 v03 1) Power transfer frequency is less than 1MHz 2) Output power from each primary coil is less than or equal to 15 watts. 3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that able to detect and allow coupling only between individual pair of coils. 4) Client device is inserted in or placed directly in contact with the transmitter. 5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion) 6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. 1.3. Test Configuration 1) The field strength of both H-field was measured at 15cm using the equipment list above for determining compliance with the MPE requirements of FCC Part 1.1310. 2) The RF power density was measured at Under maximum load test 3) Maximum H-field measurements were made 15cm from each side of the EUT. Along the side of the EUT and still 15cm away from the edge of the EUT, the field probes were positioned at the location where there is maximum field strength. The maximum H-field is reported below. 4) This device uses a wireless charging circuit for power transfer operating at the frequency of 110 – 205 kHz. Thus, the 300kHz limits were used: H-field limit 1.63 (A/m). 1.4. Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01 v03. Remark: The EUT’s test position A, B, C, D, and E is valid for the H field measurements. 1.5. Test Setup 1.6. Limits Remark: Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 1.63 A/m 1.7. Measuring Device and Test Equipment For MPE Measurement Item Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval 1. H-Field Probe 100 cm2 SENSOR narda D-0010 BN 2300/90.10 May 20, 2019 1 Year 2. MAGNETIC FIELD HiTESTER ELT- 400 narda D-0009 BN 2304/03 May 20, 2019 1 Year 1.8. Description of Test Facility Test Items : H field measurements Test Laboratory : TÜV Rheinland (Shenzhen) Co., Ltd. Site Location : 362 Huanguan Road Middle Longhua District, Shenzhen 518110 People’s Republic of China 1.9. Measuring Results Table: H-Field Strength at 15 cm from the edges surrounding the EUT and 20cm from the top surface of the EUT EUT Test Mode Measured H-Field Strength Values (A/m) 50% Limit (A/m) Limit (A/m) Test Position A Test Position B Test Position C Test Position D Test Position E 1% Battery Level 0.1936 0.1728 0.2120 0.2152 0.2384 0.815 1.63 50% Battery Level 0.1934 0.1712 0.2091 0.2154 0.2378 0.815 1.63 99% Battery Level 0.1928 0.1721 0.2015 0.2146 0.2381 0.815 1.63

Produkte Products Prüfbericht-Nr.: Test report No.: 60374468 001 Auftrags-Nr.: Order No.: 168260292 Seite 1 von 25 P age 1 of 25 Kunden-Referenz-Nr.: Client reference No.: N/A Auftragsdatum: Order date: 10.04.2020 Auftraggeber: Client: Salom Electric (Xiamen) Co., Ltd. 31 Building, Huli Industrial District, Xiamen, Fujian 361006, P.R. China Prüfgegenstand: Test item: Wireless Charger Bezeichnung / Typ-Nr.: Identification / Type No.: CHR-0662 (Trademark: MOTOROLA) Auftrags-Inhalt: Order content: FCC and IC approval Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.201 CFR47 FCC Part 15: Subpart C Section 15.207 CFR47 FCC Part 15: Subpart C Section 15.209 CFR47 FCC Part 2: Subpart J Section 2.1091 RSS-216 issue 2 Janyary 2016 RSS-GEN issue 5 March 2019 RSS-102 issue 5 March 2015 Wareneingangsdatum: Date of receipt: 10.04.2020 Refer to photos document Prüfmuster-Nr.: Test sample No.: A002809801-008 Prüfzeitraum: Testing period: 10.04.2020 - 25.05.2020 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von / tested by: kontrolliert von / reviewed by: 09.07.2020 Jackson Yang / Project Engineer 09.07.2020 Winnie Hou / Technical Certifier Datum Date Name/Stellung Name/Position Unterschrift Signature Datum Date Name/Stellung Name/Position Unterschrift Signature Sonstiges / Other: FCC ID: 2ARXUCHR0662 IC: 24563-CHR0662, HVIN: CHR-0662 Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged: * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhalt P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specifications(s) F(ail) = failed a.m. test specifications(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be V05 duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland (Shenzhen) Co., Ltd., 1F East & 2-4F, Cybio Technology Building No.1, No.16 Langshan 2nd Road, High-Tech Industrial Park North Nanshan District, 518057, Shenzhen, China http://www.tuv.com Produkte Products Prüfbericht - Nr.: Test Report No. 60374468 001 Seite 2 von 25 Page 2 of 25 Test Summary 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 99% BANDWIDTH RESULT: Pass 5.1.3 RADIATED SPURIOUS EMISSIONS RESULT: Pass 5.1.4 CONDUCTED EMISSIONS RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No. 60374468 001 Seite 3 von 25 Page 3 of 25 Contents 1 GENERAL REMARKS ........................................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ............................................................................................................ 4 2 TEST SITES ........................................................................................................................................ 5 2.1 TEST FACILITIES ................................................................................................................................. 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS................................................................................. 5 2.3 TRACEABILITY .................................................................................................................................... 6 2.4 CALIBRATION ..................................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY............................................................................................................. 6 2.6 LOCATION OF ORIGINAL DATA ............................................................................................................. 7 2.7 STATUS OF FACILITY USED FOR TESTING ............................................................................................. 7 3 GENERAL PRODUCT INFORMATION ...................................................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................................................. 8 3.2 RATINGS AND SYSTEM DETAILS .......................................................................................................... 8 3.3 INDEPENDENT OPERATION MODES ...................................................................................................... 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ......................................................................... 8 3.5 SUBMITTED DOCUMENTS..................................................................................................................... 8 4 TEST SET-UP AND OPERATION MODES ................................................................................................ 9 4.1 PRINCIPLE OF CONFIGURATION SELECTION ......................................................................................... 9 4.2 TEST OPERATION AND TEST SOFTWARE .............................................................................................. 9 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................................................ 9 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .......................................................................... 9 4.5 TEST SETUP DIAGRAM…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 60374468 001 Seite 24 von 25 Page 24 of 25 6 Photographs of the Test Set-Up Photograph 1: Set-up for Radiated Spurious Emissions, below 30MHz Photograph 2: Set-up for Radiated Spurious Emissions, above 30MHz Produkte Products Prüfbericht - Nr.: Test Report No. 60374468 001 Seite 25 von 25 Page 25 of 25 Photograph 3: Set-up for Conducted Emissions
