2ARYFPDW100256NitroCharge 120 Pro

PDW100256 user manual 100W Magnetic Wireless Power Bank User Guide 100W Magnetic Wireless Power Bank x 1 Output. Product Name 100W Magnetic Wireless Power Bank Model Number PDW100256 Battery Capacity 20,800mAh / 74.88WH USB-C Iutput 65W MAX 20V ⎓ 3.25A, 15V/12V/9V/5V ⎓ 3A USB-C1 Output 100W MAX 20V ⎓ 5A, 15V ⎓ 3A, 12V ⎓ 3A, 9V ⎓ 3A, 5V ⎓ 3A USB-C2 Output 45W MAX 20V ⎓ 2.25A, 15V ⎓ 3A, 12V ⎓ 3A, 9V ⎓ 3A, 5V ⎓ 3A USB-A Output 18W MAX 12V ⎓ 1.5A , 9V ⎓ 2A, 5V ⎓ 3A Wireless Output MAX 10W Total Output MAX 100W Note: When multiple devices are charged together, the charging speed of each socket is adjusted lower and the total output becomes up to 100W. FCC Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

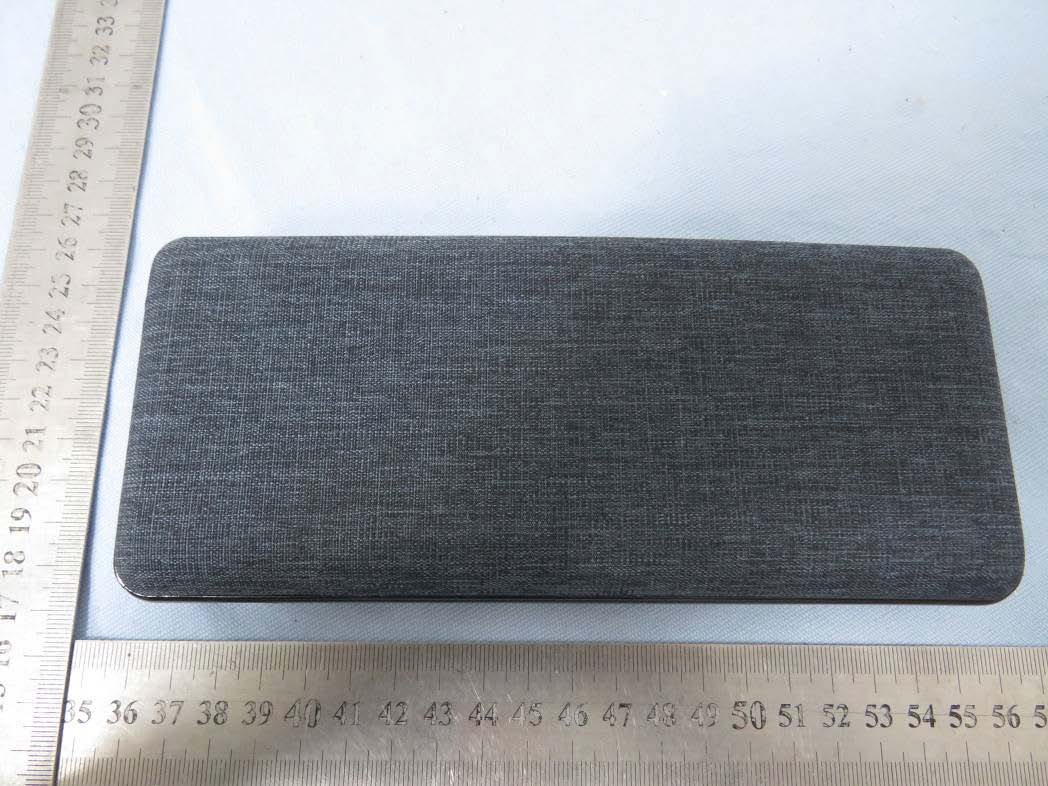

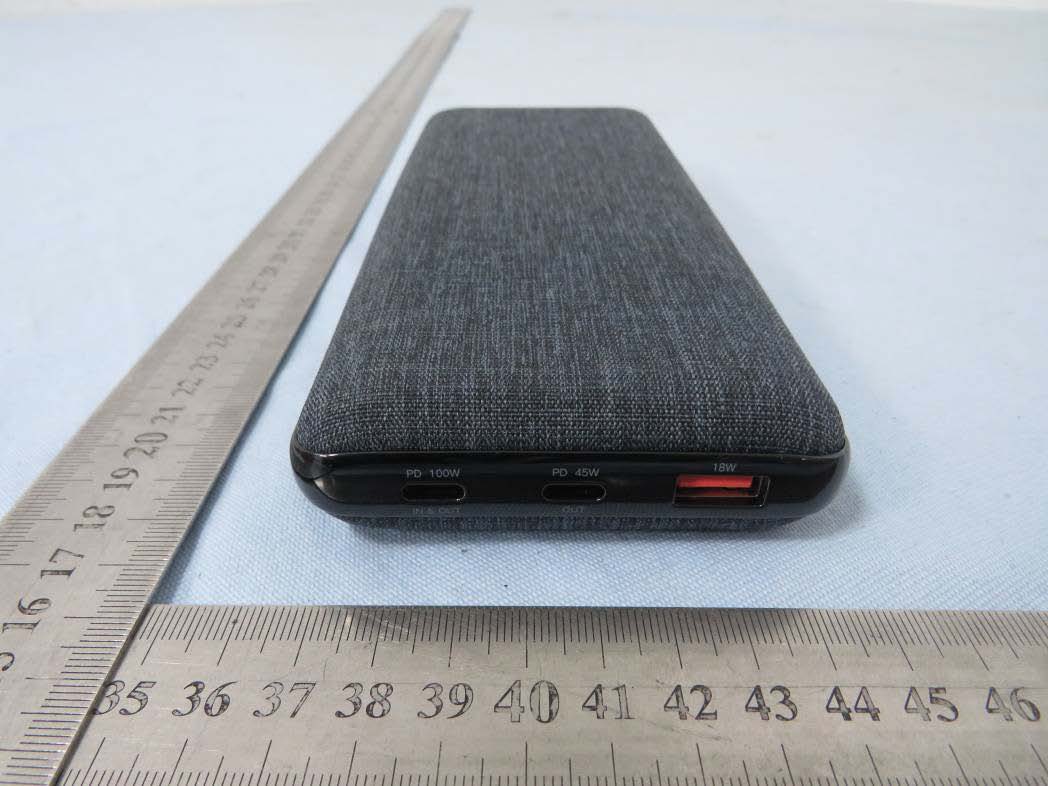

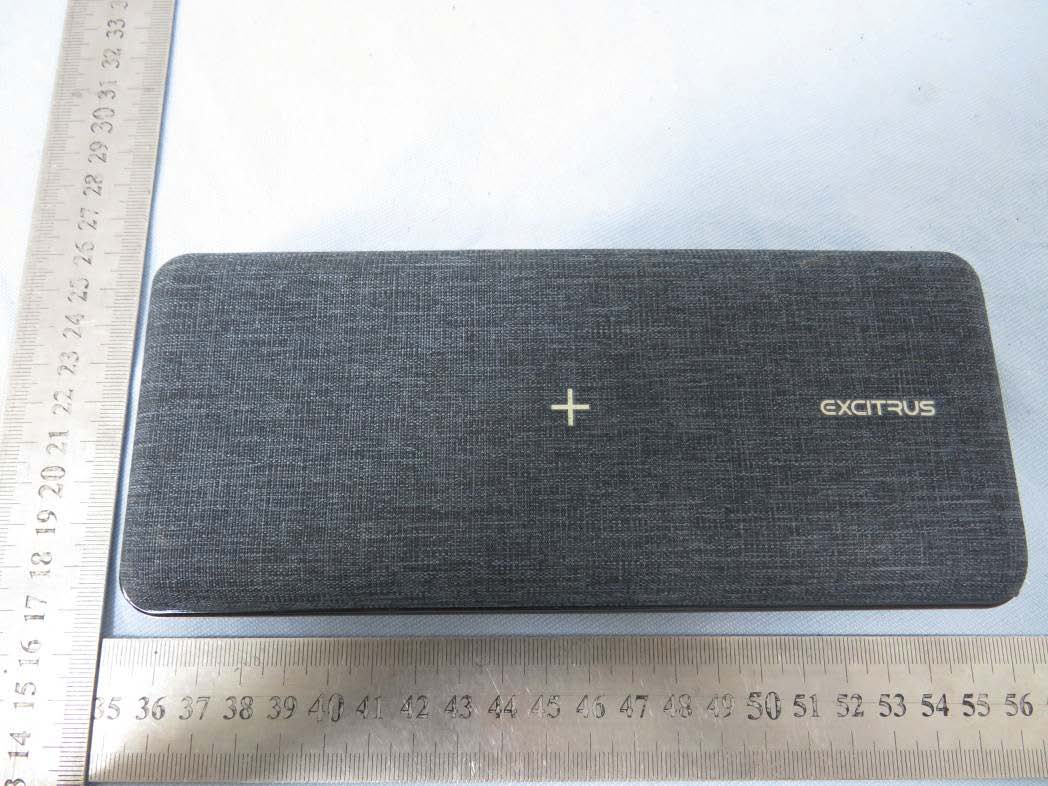

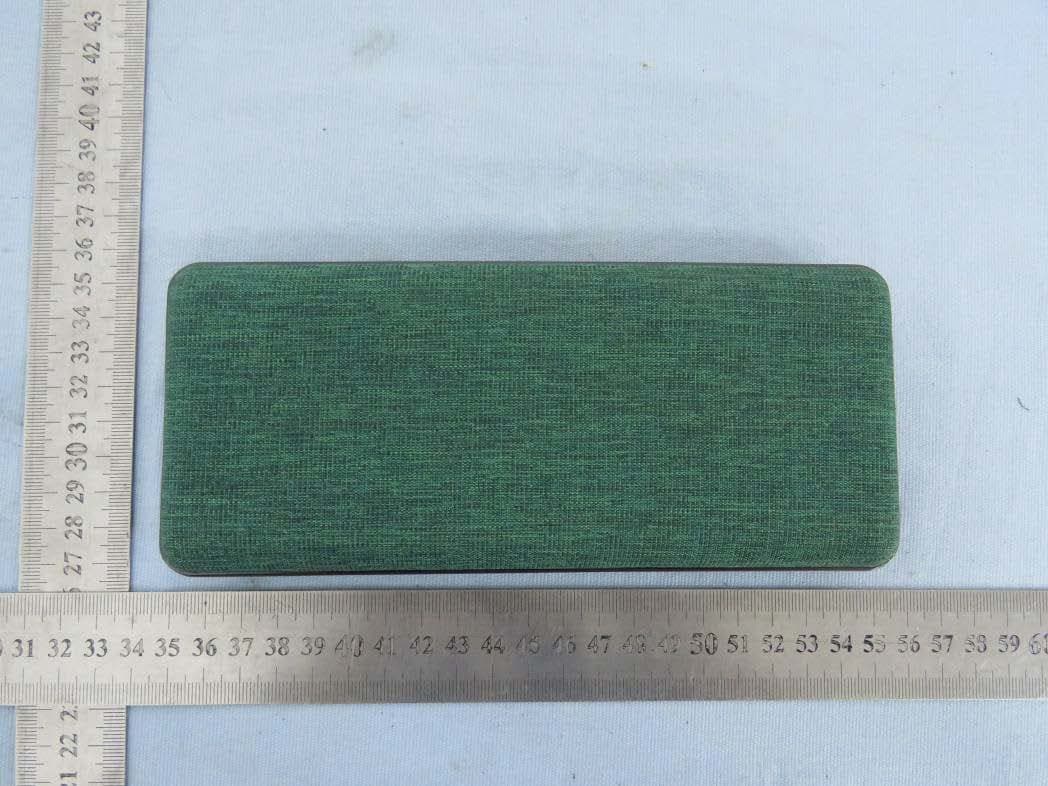

FCC ID: 2ARYFPDW100256 External photos FCC ID: 2ARYFPDW100256 FCC ID: 2ARYFPDW100256 FCC ID: 2ARYFPDW100256

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2ARYFPDW100256 Internal photos FCC ID: 2ARYFPDW100256 RF Antenna FCC ID: 2ARYFPDW100256 RF Chip FCC ID: 2ARYFPDW100256

MODO Innovation Technology Co., Ltd. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: PDW100256, PDW100208 FCC ID: 2ARYFPDW100256 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for Coil antenna type(s) described below: Model No. of antenna: ANT 1 Type of antenna: Coil Antenna Gain of the antenna: 0 dBi Frequency range: 110.5-205 KHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: MODO Innovation Technology Co., Ltd. Address: 412, building 1, Xinyi Lingyu R&D center, No.30, Honglang North 2nd Road, Xin'an street, Bao'an District, City: Shenzhen City ZIP / Postal code: 518052 Country: China Place: China Date: 2021-09-30 Signature:

Report No.: NTC2107368F-1 Dongguan Nore Testing Center Co., Ltd. Address: Building D, Gaosheng Science and Technology park, Hongtu road, Nancheng district, Dongguan city, Guangdong province, China Web: www.ntc-c.com Tel:+86-769-2202 2444 Fax:+86-769-2202 2799 Page 1 of 22 RF EVALUATION TEST REPORT Applicant......................... : MODO Innovation Technology Co., Ltd. Address........................... : 412, building 1, Xinyi Lingyu R&D center, No.30, Honglang North 2nd Road, Xin'an street, Bao'an District, Shenzhen City, China, 518052 Manufacturer.................... : MODO Innovation Technology Co., Ltd. Address........................... : 412, building 1, Xinyi Lingyu R&D center, No.30, Honglang North 2nd Road, Xin'an street, Bao'an District, Shenzhen City, China, 518052 Factory........................... : MODO Innovation Technology Co., Ltd. Address.......................... : 412, building 1, Xinyi Lingyu R&D center, No.30, Honglang North 2nd Road, Xin'an street, Bao'an District, Shenzhen City, China, 518052 EUT ............................... : NitroCharge 120 Pro FCC ID............................ : 2ARYFPDW100256 Brand Name..................... : EXCITRUS Model No. ....................... : PDW100256, PDW100208 (For model difference refer to section 2) Measurement Standard....... : 47 CFR PART 2, Section 2.1091& 2.1093 TCB Workshop, October 27, 2021, Wireless Power Transfer Updates Receipt Date of Samples.... : July 20, 2021 Date of Tested.................. : July 20, 2021 to November 10, 2021 Date of Report.................. : November 11, 2021 This report shows that above equipment is technically compliant with the requirements of the standards above. All test results in this report apply only to the tested sample(s). Without prior written approval of Dongguan Nore Testing Center Co., Ltd, this report shall not be reproduced except in full. Prepared by Breeze Jiang / Project Engineer Approved by Iori Fan / Authorized Signatory Report No.: NTC2107368F-1 Page 2 of 22 Table of Contents 1. General Description of EUT ................................................................................................................................ 4 2. Test Facility and Location ................................................................................................................................... 8 3. Test Modes Detail ............................................................................................................................................... 8 4. Configuration of EUT ........................................................................................................................................... 9 5. Modification of EUT ............................................................................................................................................. 9 6. Description of Support Device ............................................................................................................................. 9 7. Deviations and Abnormalities from Standard Conditions ................................................................................... 9 8. Applicable Standards and References ................................................................................................................ 9 9. Equipment approval considerations .................................................................................................................. 10 10. Measurement Uncertainty ............................................................................................................................... 10 11. Maximum Permissible Exposure ..................................................................................................................... 11 12. Test Equipment List......................................................................................................................................... 16 13. Test Photos ..................................................................................................................................................... 17 Report No.: NTC2107368F-1 Page 3 of 22 Revision History Report Number Description Issued Date NTC2107368F-1 Initial Issue 2021-11-11 Report No.: NTC2107368F-1 Page 4 of 22 1. General Description of EUT Product Information Product name: NitroCharge 120 Pro Main Model Name: PDW100256 Additional Model Name: PDW100208 Model Difference: Both of models have the same circuit schematic, construction, PCB Layout and critical components. The difference is model name due to trading purpose. S/N: 2107-3787 Brand Name: EXCITRUS Hardware version: V01 Software version: V01 Temperature Range: 0 to 40°C (Declared by manufacturer) Rating: Details refer to model list I/O Port: USB Type-C in & out Port*1, Type-C out Port*1, USB Type A Port*1 Accessories Information Adapter: N/A Cable: USB Line: 0.60cm unshielded Other: N/A Additional information Note: According to the model difference, all tests were performed on model PDW100256. Remark: All the information above are provided by the manufacturer. More detailed feature of the EUT please refers to the user manual. Report No.: NTC2107368F-1 Page 5 of 22 Technical Specification Frequency Range: 110.5-205KHz Modulation Type: FSK Antenna Type: Coil Antenna Number of Primary Coil: 1 (Primary Coil = 10W) Remark: The information above are provided by the manufacturer. More detailed feature of the EUT please refers to the user manual. Report No.: NTC2107368F-1 Page 6 of 22 Model list: Model: PDW100256 USB-C1 USB-C2 USB-A Wireless Charging Total Single Output USB-C1 100 -- -- -- 100 USB-C2 -- 45 -- -- 45 USB-A -- -- 18 -- 18 Wireless Charging -- -- -- 10 10 Dual Outputs C1+C2 65 30 -- -- 95 C1+A 65 -- 18 -- 83 C1+Wireless Charging 100 -- -- 10 110 C2+A -- 45 18 -- 63 C2+Wireless Charging -- 45 -- 10 55 A+Wireless Charging -- -- 18 10 28 Triple Outputs C1+C2+A 65 30 18 -- 113 C1+C2+Wireless Charging 65 30 -- 10 105 C1+A+Wireless Cha…
