2ARYFPDW30100PNitroCharge 30 Pro

What’s in the box? Explanation of Parts Display Window Sleep Mode No action for 30 seconds turns into Sleep Mode and Charging Laptops Connect the Laptop to USB-C socket of Power Bank to charge in the high speed. Use EXCITRUS 3A USB-C TO USB-C cable in the package for the best charging performance. Some laptops may not be charged, especially when multiple devices are charged together, the reasons may vary but usually this happens when the device doesn’t support variable voltage of Power Delivery protocol. Some laptops may have USB-C sockets but do not accept USB-C charging. In case laptop cannot be charged by USB-C port, please contact laptop manufacturer. Laptops with greater than 30W USB-C input power specification may require longer charging time. NOTE: “Laptop” means portable laptop computers, including recent MacBook series or W indows computers that come with USB-C charging capability. Wireless Charging (for enabled devices) Press Mode Button on Power Bank. Center device on Power Bank. “ ” blinks when charging begins. Bluetooth Device Charging Mode Bluetooth Device Charging Mode is a special mode for charging Bluetooth headphones or smart watches, which require low input power. Connect Bluetooth headphones or smart watches to USB-A / USB-C socket of Power Bank. Enter into Bluetooth Device Charging Mode by pressing twice on the Mode button, “%” s ymbol blinks in the mode. Return to Normal Mode by pressing twice on the Mode button. Or it will automatically turn back to Normal Mode in 3 hours, and “%” symbol stops blinking in Normal Mode. Recharging Power Bank Power Bank goes off when the battery level goes to “0”. Connect the provided USB-C to USB-C or USB-C to USB -A cable into USB-C socket of Power Bank. Connect other end of cable to a power source. 30W (or greater) USB-C type charger is recommended to charge Power Bank at the highest recharging speed. Last digit number of the battery level blinks while Power Bank is being recharged. Product Specification Attention Do not throw, drop or physically damage the product for safety. Do not place in a closed or sealed place. Avoid storage in high humidity, high temperature or exposure to fire. Do not expose the product to direct sunshine or liquids. Please keep the input and output ports clean. Make sure people who are inexperienced or mentally and physically disabled do not use the product unless they are offered appropriate supervision or guidance. Keep the product out of the reach of children. Note Before using the product, please read this user guide carefully. Use of a power supply or charger not recommended by EXCITRUS may result in a risk of fire or injury to persons. To give your Power Bank the fastest, safest recharge, use a compatible EXCITRUS USB-C PD charger. To preserve battery Power Bank lifespan, use and recharge at least once every 3 months. Please remove the cable once the power bank is fully charged. Please keep the power bank in a cool and dry place. Do not place or use the power bank at high temperature or in sealed or humid environment. FCC compliance statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: this device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. ISED compliance statement This device contains licence-exempt transmitter(s)/ IMPORTANT SAFETY INSTRUCTIONS W ARNING – W hen using this product, basic precautions should always be followed, including the following: Read all the instructions before using the product. To reduce the risk of injury, close supervision is necessary when the product is used near children. Do not put fingers or hands into the product. Do not expose power bank to rain or snow. Use of a power supply or charger not recommended or sold by power pack manufacturer may result in a risk of fire or injury to persons. Do not use the power bank in excess of its output rating. Overload outputs above rating may result in a risk of fire or injury to persons. Do not use the power bank that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. Do not disassemble the power bank. Take it to a qualified service person when service or repair is required. Incorrect reassembl y may result in a risk of fire or injury to persons. Do not expose a power pack to fire or excessive temperature. Exposure to fire or temperature above 100°C may cause explosion. The temperature of 100°C can be replaced by the temperature of 212°F. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained. Sw…

Text truncated - open the document above for the full version.

MODO Innovation Technology Co., Ltd. 412, building 1, Xinyi Lingyu R&D center, No.30, Honglang North 2nd Road, Xin'an street, Bao'an District, Shenzhen, China Agent Authorization Company: MODO Innovation Technology Co., Ltd. Address: 412, building 1, Xinyi Lingyu R&D center, No.30, Honglang North 2nd Road, Xin'an street, Bao'an District, Shenzhen, China Product Name: NitroCharge 30 Pro Model Number(s): PDW30100P Product Description: NitroCharge 30 Pro We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jun. 10, 2021 Name: Jack Zheng Title: General Manager Company: MODO Innovation Technology Co., Ltd.

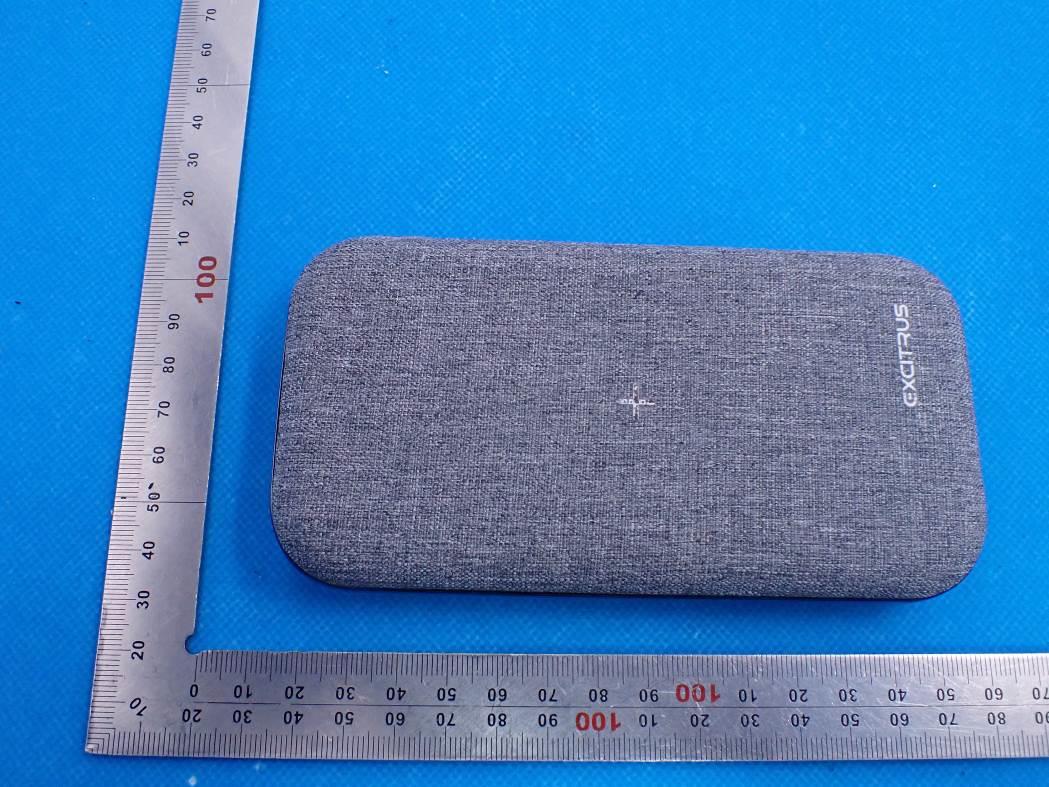

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)-1 VIEW OF EUT (PORT)-2

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6

MODO Innovation Technology Co., Ltd. 412, building 1, Xinyi Lingyu R&D center, No.30, Honglang North 2nd Road, Xin'an street, Bao'an District, Shenzhen, China Declaration Letter Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Jun. 10, 2021 FCC ID: 2ARYFPDW30100P Pursuant to KDB 680106 of the MODO Innovation Technology Co., Ltd. hereby declare our product which is an inductive wireless power transfer applications that meet all of the following requirements are not required to submit a KDB inquiry for devices approved using a PAG for equipment approved using certification to address RF exposure compliance. 1) Power transfer frequency is 0.105-0.205MHz which is less than1 MHz 2) Output power from each primary coil is 10W which is equal to 15 watts 3) The transfer system includes only single primary coils. 4) Client device is placed directly in contact with the transmitter 5) The EUT is a mobile device. 6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yours sincerely, Name: Jack Zheng Title: General Manager

Page 1 of 14 RF Exposure Report Report No.: AGC11896210501FH03 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : NitroCharge 30 Pro BRAND NAME : EXCITRUS MODEL NAME : PDW30100P APPLICANT : MODO Innovation Technology Co., Ltd. DATE OF ISSUE : Jun. 10, 2021 STANDARD(S) : KDB680106 D01 RF Exposure Wireless Charging Base App v03r01 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC11896210501FH03 Page 2 of 14 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jun. 10, 2021 Valid Initial Release Report No.: AGC11896210501FH03 Page 3 of 14 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 4 2. GENERAL INFORMATION .............................................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 5 3. DESCRIPTION OF TEST MODES ................................................................................................................... 6 4. SYSTEM TEST CONFIGURATION .................................................................................................................. 6 5. TEST FACILITY ................................................................................................................................................ 7 6. RADIO FREQUEN CY(RF) EXPOSURETEST ................................................................................................ 8 6.1. LIMITS ........................................................................................................................................................ 8 6.2. TEST SETUP.............................................................................................................................................. 8 APPENDIX A: PHOTOGRAPHS OF TEST SETUP .......................................................................................... 12 Report No.: AGC11896210501FH03 Page 4 of 14 1. VERIFICATION OF CONFORMITY Applicant MODO Innovation Technology Co., Ltd. Address 412, building 1, Xinyi Lingyu R&D center, No.30, Honglang North 2nd Road, Xin'an street, Bao'an District, Shenzhen, China. Manufacturer MODO Innovation Technology Co., Ltd. Address 412, building 1, Xinyi Lingyu R&D center, No.30, Honglang North 2nd Road, Xin'an street, Bao'an District, Shenzhen, China. Factory MODO Innovation Technology Co., Ltd. Address 412, building 1, Xinyi Lingyu R&D center, No.30, Honglang North 2nd Road, Xin'an street, Bao'an District, Shenzhen, China. Product Designation NitroCharge 30 Pro Brand Name EXCITRUS Test Model PDW30100P Date of test May 12, 2021 to Jun. 10, 2021 Deviation No any deviation from the test method Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in KDB680106 D01. The results of testing in this report apply to the product/system which was tested only. Prepared By Kelly Cheng (Project Engineer) Jun. 10, 2021 Reviewed By Max Zhang (Reviewer) Jun. 10, 2021 Approved By Forrest Lei (Authorized Officer) Jun. 10, 2021 Report No.: AGC11896210501FH03 Page 5 of 14 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 111-205kHz Test Frequency 120.2kHz Maximum field strength 53.73dBuV/m(PK)@3m Number of channels 1 Antenna Designation Coil Antenna (Met 15.203 Antenna requirement) Hardware Version V1.2 Software Version V2.7 Power Supply Capacity: 37Wh, 10000mAh USB-C Input: 30W MAX, 20V1.5A,15V2A,12V2.5A,9V/5V3A USB-C Output: 33W MAX, 20V1.5A,15V2A,12V2.5A, 9V/5V3A, PPS: 3.3-11V 3A USB-A Output: 18W MAX,12V1.5A, 9V2A, 5V3A, Wireless Output:10W MAX Wireless charger Max 10W Report No.: AGC11896210501FH03 Page 6 of 14 3. DESCRIPTION OF TEST MODES NO. TEST MODE DESCRIPTION 1 USB-C input PD 20V 1.5A+Wireless charging Mode(Full load 10W)+USB-A output 5V 2A 2 USB-C input PD 15V 2A+Wireless charging Mode(Full load 10W)+USB-A output 5V 2A 3 USB-C input PD 12V 2.5A+Wireless charging Mode(Full load 10W)+USB-A output 5V 2A 4 USB-C input PD 9V 3A+Wireless charging Mode(Full load 10W)+USB-A output 5V 2A 5 USB-C input PD 5V 3A+Wireless charging Mode(Full load 10W)+USB-A output 5V 1A 6 Wireless charging Mode(Full load 10W)+USB-A output 5V 1A+USB-C output 5V 1A 7 Wireless charging Mode(Full load 10W)+USB-A output 5V 2A 8 Wireless charging Mode(Full load 10W)+USB-C output 5V 2A 9 Wireless charging Mode(Half load 5W)+USB-A output 5V 3A 10 Wireless charging Mode(Half load 5W)+USB-C output 5V 3A 11 Wireless charging Mode(Null load)+USB-C output 5V 3A+USB-A output 5V 1A Note: 1. The mode 1 was the worst case and only the data of the worst case record in this report. 4. SYSTEM TEST CONFIGURATION Item Equipment Model No. ID or Specification Remark 1 NitroCharge 30 Pro PDW30100P 2ARYFPDW30100P EUT 2 Wireless Load N/A 15W AE 3. USB Load N/A N/A AE Report No.: AGC11896210501FH03 Page 7 of 14 5. TEST FACILITY TEST EQUIPMENT LIST Description Manufacturer Model S/N Cal. Date Cal. Due Broadband Field Meter Narda Safety Test Solutions GmbH ELT-400 J-0004 Jul.03,2020 Jul. 02, 2021 Probe FHP Narda Safety Test Solutions GmbH 2300/90.10 J-0015 Jul.03,2020 Jul. 02, 2021 TestSite Attestation of Global Compliance(Shenzhen) Co., Ltd Location 1-2/F,Building19,JunfengIndustrialPark,ChongqingRoad,HepingCommunity,FuhaiSt reet,Bao'anDistrict,Shenzhen,Guangdong,China Designation Number CN1259 FCC Test Firm Registration Number 975832 A2LA Cert. No. 5054.02 Description Attestation of Global Compliance(Shenzhen) Co., Ltd is accr…

Text truncated - open the document above for the full version.

Test Setup Photos Position E Position A Position B Position C Position D

Test Setup Photos FCC RADIATED EMISSION TEST SETUP 9kHz-30MHZ FCC RADIATED EMISSION TEST SETUP 30MHz-1GHZ FCC LINE CONDUCTED EMISSION TEST SETUP
