2ARZ2PIONA1925APanoramic Camera

English · 简体中文 · 繁體中文 · 日本語 · Deutsch · Français · Italiano · Espanol · Pусский · Português Ultralight 8K·AI Panoramic Camera Pilot One User Guide Pilot one*1 Adaptor*1Type-C USB cable*1Protective pouch*1 Wipe cloth*1Extension rod*1Documentation (User manual, Warranty card, etc.) *Images are only for references Labpano Pilot one Panoramic Camera Overview（English） Pilot Era Outline Camera Gallery LiveSettings 12:00 96% 1.Lens*4 2.Microphone 3.Speaker 4.Home button (Power and operation status Indicator) 5.Vents 6.3.5mm Dual channel audio input port 7.USB Type-C port (charging and file transfer) 8.Standard 1/4” mounting point 1 3 4 2 5 8 6 7 Outline Items Image sensor Internet Microphone Indicator temperature Dimensions Input Weight RGB LED Indicator Lens Screen Resolution of still image Resolution of video Storage IMU Power consumption Battery 185° F2.2 fish-eye lens*4 TFT-LCD 2.2“ 640*360 8K (8192*4096) 9 Axis ＜10W 3400mAh Built-in lithium battery Charging time：2H Use time on full charge: 8Krecording：2H 8K (7680*3840) 24FPS 8K (7680*3840) 7FPS RAM：6GB LPDDR4 ROM：64GB UFS Image sensor*4 Size：1/2.3" Pixel：12MP Pixel size: 1.55μm WiFi：802.11 a/b/g/n/ac Built in: mono channel External: Dual channel Working temperature 0~40°C(32°F~104°F) Storage temperature -40~65°C(-40°F~149°F) 44mm * 44mm * 125mm 5V/3A，9V/2A，12V/1.5A About 288g ParametersItemsParameters Before you Start 1.Please read this user manual carefully and keep it for future reference 2.Heed all warnings and follow all instructions 3.Please remove the protective film and wipe the lens surface. 4.Please connect the power adaptor in case of low and depleted battery. 5.Please do not rest the camera lenses on any surface, which would cause lens damage or imaging problems. 6.It is normal for the camera surface to heat up after long time working. Quick Start Camera Gallery LiveSettings 12:00 96% 1.Power on the Camera 1.Press Home Button 3 seconds to turn on the camera 3. Home page (Main application window) 2.Startup interface 2.Power Off /Restart the Camera 1.Press Home Button 3 seconds 3.Camera is off2.Select Power off /Restart button Camera Gallery LiveSettings 12:00 96% Power Off Restart Camera Gallery LiveSettings 12:00 96% Shutting Down Official App Camera Gallery LiveSettings 12:00 96% Tap each icon to open the application. Press Home Button to back to Home page at any time. Press Home Button 1 second to set screen timeout. Mobile Control App: Pilot Go Visit https://pilot.labpano.com/support/download?lang=en to download Labpano Pilot One’s official control app. After installing Pilot Go, make sure the phone and Pilot One are in the same wireless network. 1: Connect Pilot One and your phone to the same WiFi network, or; 2: Connect your phone to the hotspot created by Pilot One. Pilot Go supports remote control of photo taking, video recording, gallery management, etc. Home page features (Main Application window) Pilot Go Pilot one*1 电源适配器*1Type-C 数据线*1收纳保护袋*1 擦镜布*1延长杆*1文档资料 (入门指南,保修卡等) 认识Labpano Pilot One Pilot Era 产品概述 Camera Gallery LiveSettings 12:00 96% 1.镜头*4 2.麦克风 3.扬声器 4.Home键 (电源和工作状态指示灯) 5.散热口 6.3.5mm 双声道音频输入接口 7.USB Type-C接口 (充电和传输数据) 8.标准1/4英寸螺口 1 3 4 2 5 8 6 7 规格参数 项目 图像传感器 Internet 麦克风 指示灯 工作温度 尺寸 电源输入 重量 RGB LED 指示灯 镜头 屏幕 全景照片分辨率 全景视频分辨率 储存 IMU 功耗 电池 角度185°/F2.2鱼眼镜头*4 类型：TFT-LCD 尺寸： 2.2“ 分辨率： 640*360 8K (8192*4096) 9 轴 ＜10W 3400mAh 内置锂电池 充电时长：2小时 8K录像时间：2H 8K (7680*3840) 24帧 8K (7680*3840) 7帧 RAM：6GB LPDDR4 ROM：64GB UFS 图像传感器*4 尺寸：1/2.3" 像素：12MP 像素大小：1.55μm WiFi：802.11 a/b/g/n/ac 内置：单声道 外置：双声道 工作温度0~40°C (32°F~104°F) 储存温度 -40~65°C(-40°F~149°F) 44mm * 44mm * 125mm 5V/3A，9V/2A，12V/1.5A 约288克 规格参数项目规格参数 使用前须知 1.请阅读并妥善保管好这些说明。 2.请注意所有警告遵循所有说明。 3.拍摄前请先撕掉保护膜并用擦镜布清洁镜头表面。 4.相机使用前，若提示低电或空电无法开机，请连接电源适配器充电。 5.避免将镜头放置在任何表面上，导致镜头损伤或成像问题。 6.相机因长时间使用发热属于正常现象。 快速入门 Camera Gallery LiveSettings 12:00 96% 1.相机开机 1. 关机状态下， 长按Home键3秒可开机 3. 进入相机操作主 界面 2. 开机启动界面 2.相机关机/重新启动相机 1.开机状态下， 长按Home键3秒可 关机 3.相机关机/重新 启动相机 2.选择关机 /重新启 动按钮 Camera Gallery LiveSettings 12:00 96% Power Off Restart Camera Gallery LiveSettings 12:00 96% Shutting Down APP下载 Camera Gallery LiveSettings 12:00 96% 轻触各个应用图标，打开应用。 按一下Home键随时返回主界面。 按一秒Home键熄灭屏幕。 1.安装Pilot Go应用 2.扫描下方二维码或前往https://pilot.labpano.com/support/download?lang=zh 安装Pilot Go应用后，两种方式让手机和Pilot One连接。. 连接Pilot One 和手机到同一个WiFi网络。 Pilot One建立热点，手机连接Pilot One的热点。 Pilot Go连接Pilot One后，就可以通过移动设备控制Pilot One。 通过Pilot Go远程控制相机进行拍照/录像和查看管理图库, 分享照片到社交平台。Pilot Go也可以用来观看RTMP全景直播。 相机功能（主界面） Pilot Go Pilot one*1 電源適配器*1Type-C 數據線*1收納保護袋*1 拭鏡布*1延長桿*1文檔資料 (入門指南,保修卡等) Labpano Pilot one 全景相機（繁體中文） Pilot Era Labpano Pilot One概覽 Camera Gallery LiveSettings 12:00 96% 1 鏡頭*4 2 麥克風 3 喇叭 4.Home鍵 (電源和工作狀態指示燈) 5 液晶觸摸屏 6 散熱口 7 3.5mm 雙聲道音頻輸入連接埠 8 USB Type-C連接埠 (充電和傳輸數據) 9 標準1/4英寸螺栓 1 3 4 5 2 6 9 7 8 規格 項目 圖像傳感器 網路 麥克風 指示燈 溫度 尺寸 電源輸入 重量 RGB LED 指示灯 鏡頭 屏幕 全景照片解析度 全景視頻解析度 儲存 IMU 實力 電池 廣角度185°/ F2.2魚眼鏡頭* 4 類型：TFT-LCD尺寸：2.2” 解析度：640 * 360 8K (8192*4096) 9軸 ＜10W 3400mAh內置鋰電池 充電時長：2小時 8K錄像時間：小時 8K (7680*3840) 24幀 8K (7680*3840) 7幀 RAM：6GB LPDDR4 ROM：64GB UFS 圖片傳感器*4 尺寸：1/2.3" 像素：12MP 像素大小：1.55μm WiFi：802.11 a/b/g/n/ac 內置：單聲道 外置：雙聲道 工作溫度0~40°C(32°F~104°F) 儲存溫度-40~65°C(-40°F~149°F) 44mm * 44mm * 125mm 5V/3A，9V/2A，12V/1.5A 約288克 參數項目參數 使用前須知 1.請閱讀並妥善保管好這些說明。 2.請注意所有警告遵守所有說明。 3.拍攝前請先撕掉保護膜並用拭鏡布清潔鏡頭表面。 4.相機使用前，若提示低電或空電無法開機，請連接電源適配器充電。 5.避免將鏡頭放置在任何表面上，導致鏡頭損傷或成像問題。 6.相機因長期使用發熱屬於正常現象。 快速入門指南 Camera Gallery LiveSettings 12:00 96% 1.相機開機 1. 關機狀態下， 長按Home鍵3秒可開機 3. 進入相機操作 主界面 2. 開機啟動界面 2.相機關機/重新啟動相機 1.開機狀態下， 長按Home鍵3秒可 關機 3.相機關機/重新 啟動相機 2.選擇關機/重新啟 動按鈕 Camera Gallery LiveSettings 12:00 96% Power Off Restart Camera Gallery LiveSettings 12:00 96% Shutting Down APP下載 Camera Gallery LiveSettings 12:00 96% 輕觸各個應用圖標，打開應用。 按一下Home鍵隨時返回主界面。 按一秒Home鍵熄滅屏幕。 安裝Pilot Go應用 掃描下方QR代碼或前往https://pilot.labpano.com/support/download?lang=zh下載Labpano Pilot One官方應用。 安裝Pilot Go應用後，兩種方式讓手機和Pilot One連接。 連接Pilot Go和手機到同一個WiFi網絡 Pilot One建立景點，手機連接Pilot One的景點。 Pilot Go連接到Pilot One，就可以通過移動設備控制Pilot One 通過Pilot Go遠程控制相機進行拍攝/錄像和查看管理圖庫，共享照片到社交平台。Pilot Go也可以觀看RTMP全景直播。 相機功能（主界面） Pilot Go Pil…

Text truncated - open the document above for the full version.

Shenzhen Pisoftware Technology Co., Ltd. Agent Authorization Company: shenzhen weizhisheng electronic commerce co., ltd Address: Room 1221, 12F,Shenzhen Newspaper Group and Periodicals Building, Qinghu Community, Longhua Street,Longhua District, Shenzhen, China Product Name: Panoramic Camera Model Number(s): PIONA1925/A, PIONA1925/B, PIONA1925/C, PIONA1925/D, PIONA1925/E Product Description: Panoramic Camera We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 26/03/2020 Name: gavin.zhen Title: Manager Company: Shenzhen Pisoftware Technology Co., Ltd.

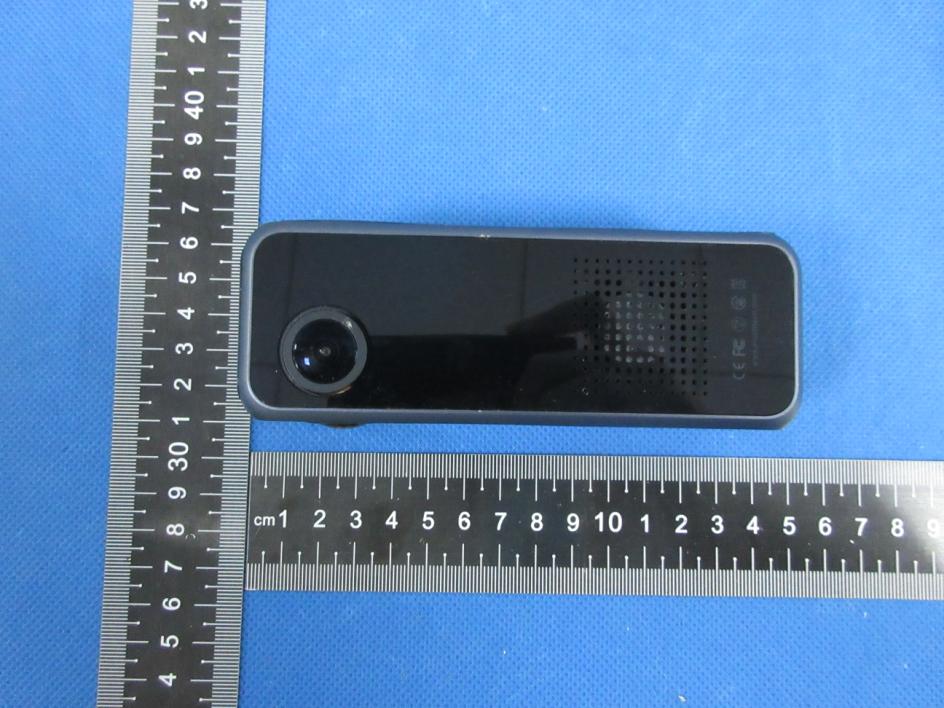

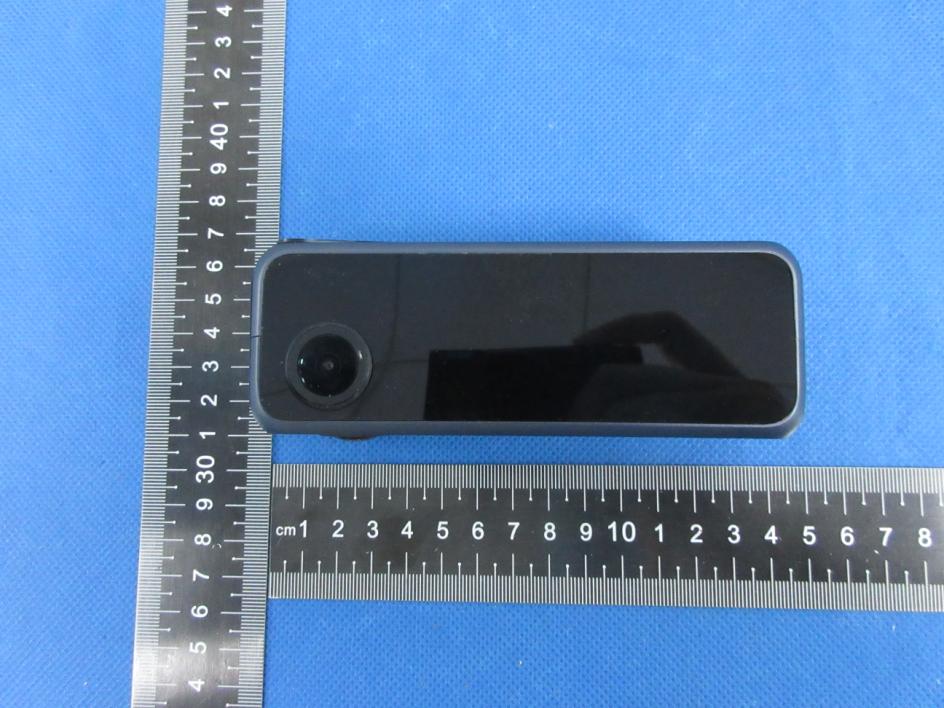

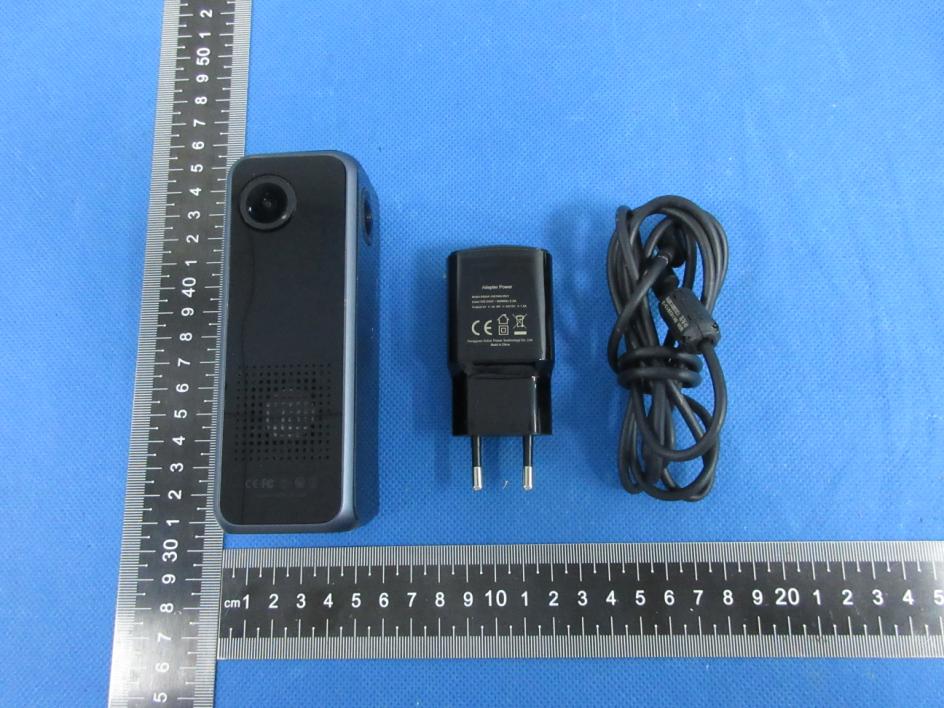

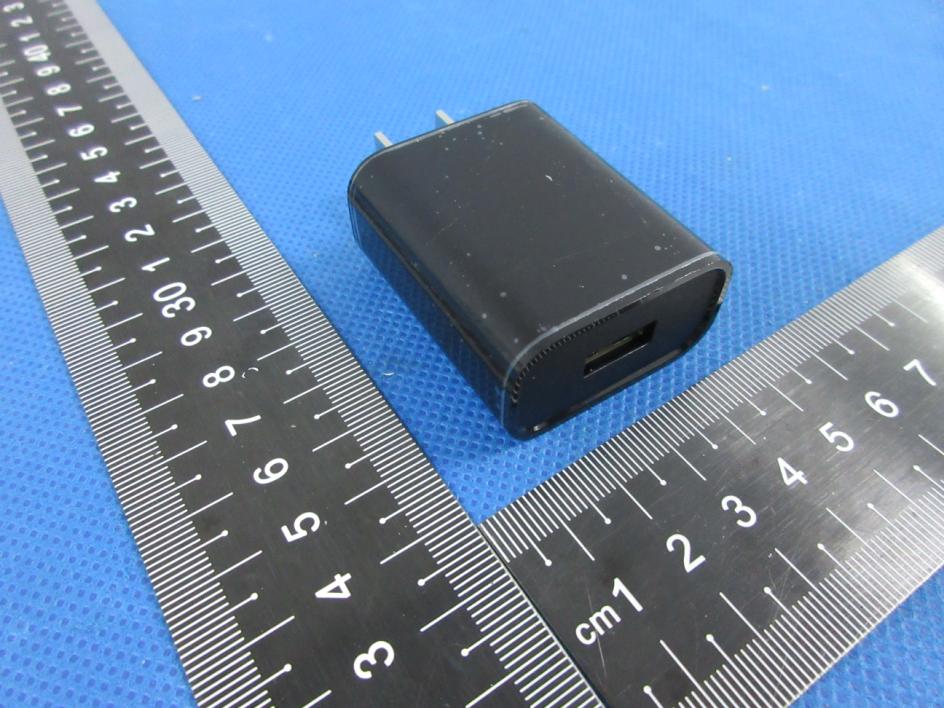

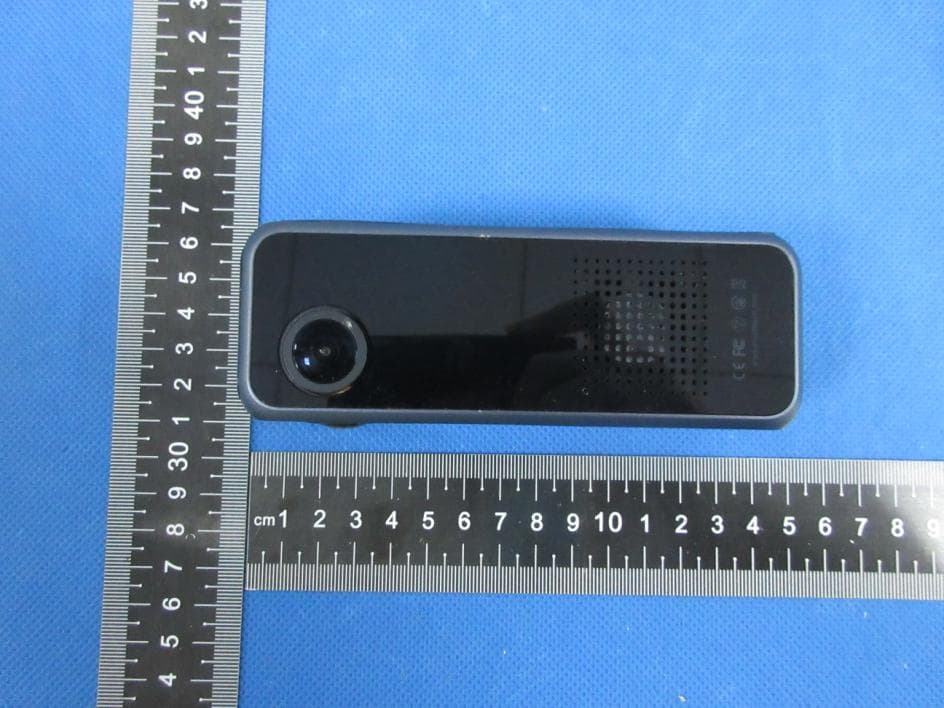

S19112901716 Model: PIONA1925/A N20190309V1 ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 S19112901716 Model: PIONA1925/A N20190309V1 Photo 3 Photo 4 S19112901716 Model: PIONA1925/A N20190309V1 Photo 5 Photo 6 S19112901716 Model: PIONA1925/A N20190309V1 Photo 7 Photo 8 S19112901716 Model: PIONA1925/A N20190309V1 Photo 9 Photo 10

ModelPIONA1925/A Input Rated5VDC Made in China FCC ID2ARZ2PIONA1925A 210-139694 ModelPIONA1925/A Input Rated5VDC Made in China FCC ID2ARZ2PIONA1925A 210-139694

Page 1 of 14 Report No.: S19112901716005 Report Revision 1.0 FCC Maximum Permissible RF Exposure (MPE) Estimation Report In accordance with the requirements of FCC 47 CFR Part 2(2.1091), ANSI/IEEE C95.1-1992 and 447498 D01 General RF Exposure Guidance v06 Product Name： Panoramic Camera Trademark： Labpano Model Name： PIONA1925/A Family Model： PIONA1925/B, PIONA1925/C, PIONA1925/D, PIONA1925/E Report No.： S19112901716005 FCC ID： 2ARZ2PIONA1925A Prepared for Shenzhen Pisoftware Technology Co., Ltd. Room 1221, 12F,Shenzhen Newspaper Group and Periodicals Building, Qinghu Community, Longhua Street,Longhua District, Shenzhen, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen 518126 P.R.China. Tel.: +86-755-6115 9388 Fax.: +86-755-6115 6599 Website: http://www.ntek.org.cn Page 2 of 14 Report No.: S19112901716005 Report Revision 1.0 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Pisoftware Technology Co., Ltd. Address ................................. : Room 1221, 12F,Shenzhen Newspaper Group and Periodicals Building, Qinghu Community, Longhua Street,Longhua District, Shenzhen, China Manufacturer's Name .......... : Shenzhen Pisoftware Technology Co., Ltd. Address ................................. : Room 1221, 12F,Shenzhen Newspaper Group and Periodicals Building, Qinghu Community, Longhua Street,Longhua District, Shenzhen, China Product description Product name ........................ : Panoramic Camera Trademark ........................... : Labpano Model and/or type reference : PIONA1925/A Family Model ......................... : PIONA1925/B, PIONA1925/C, PIONA1925/D, PIONA1925/E Standards ............................. : FCC 47 CFR Part 1(1.1310) FCC 47 CFR Part 2(2.1091) ANSI/IEEE C95.1-1992 447498 D01 GENERAL RF EXPOSURE GUIDANCE V06 This device described above has been tested by Shenzhen NTEK. Testing has shown that this device is capable of compliance with MPE specified in FCC 47 CFR Part 2(2.1091) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests ............. : Dec. 18, 2019 ~ Mar. 11, 2020 Date of Issue .......................................... : Mar. 11, 2020 Test Result .............................................. : Pass Prepared By (Test Engineer) : (Jerry Xie) Approved By (Lab Manager) : (Sam Chen) Page 3 of 14 Report No.: S19112901716005 Report Revision 1.0 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.01 Initial Test Report Release Mar. 11, 2020 Page 4 of 14 Report No.: S19112901716005 Report Revision 1.0 TABLE OF CONTENTS 1 General Information ............................................................................................................................... 5 1.1 RF Exposure Requirements ..................................................................................................... 5 1.1.1 RF Exposure Limits ........................................................................................................... 5 1.1.2 Additional Description ........................................................................................................ 6 1.2 EUT Description ....................................................................................................................... 7 1.3 Test specification(s) .................................................................................................................. 7 1.4 Ambient Condition .................................................................................................................... 7 2 RF Output Power ................................................................................................................................... 8 3 RF Exposure Evaluation ...................................................................................................................... 12 3.1 Operation in WLAN 2.4G ........................................................................................................ 12 3.2 Operation in WLAN 5G ........................................................................................................... 12 4 Exposure calculations for multiple sources .......................................................................................... 13 4.1 Estimation for WLAN2.4G MIMO ............................................................................................ 14 4.2 Estimation for WLAN5G MIMO ............................................................................................... 14 Page 5 of 14 Report No.: S19112901716005 Report Revision 1.0 1 General Information 1.1 RF Exposure Requirements 1.1.1 RF Exposure Limits Table - Limits For Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1,500 f/300 6 1,500-100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1,500 f/1500 30 1,500-100,000 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density A rough estimation of the expected exposure in power flux density on a given point can be made with the following equation: S= P t ∗G t 4∗π∗R 2 Where: S = Power density (mW/cm 2 ) P t = Conducted output power (dB…

Text truncated - open the document above for the full version.

Report No.: S19121200901004 Version.1.2 Page 1 of 245 FCC RADIO TEST REPORT FCC ID: 2ARZ2PIONA1925A Product: Panoramic Camera Trade Mark: Labpano Model No.: PIONA1925/A Family Model: PIONA1925/B, PIONA1925/C, PIONA1925/D, PIONA1925/E Report No.: S19112901716004 Issue Date: 13 Mar. 2020 Prepared for Shenzhen Pisoftware Technology Co., Ltd. Room 1221, 12F,Shenzhen Newspaper Group and Periodicals Building, Qinghu Community, Longhua Street,Longhua District, Shenzhen, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District Shenzhen, Guangdong, China Tel.: +86-755-6115 6588 Fax.: +86-755-6115 6599 Website:http://www.ntek.org.cn Report No.: S19121200901004 Version.1.2 Page 2 of 245 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Pisoftware Technology Co., Ltd. Address ................................. : Room 1221, 12F,Shenzhen Newspaper Group and Periodicals Building, Qinghu Community, Longhua Street,Longhua District, Shenzhen, China Manufacturer's Name .......... : Shenzhen Pisoftware Technology Co., Ltd. Address ................................. : Room 1221, 12F,Shenzhen Newspaper Group and Periodicals Building, Qinghu Community, Longhua Street,Longhua District, Shenzhen, China Product description Product name............................ : Panoramic Camera Model and/or type reference : PIONA1925/A Family Model ............................. : PIONA1925/B, PIONA1925/C, PIONA1925/D, PIONA1925/E Standards ............................. : FCC Part15.407 Test procedure ............................... : ANSI C63.10-2013 and KDB 789033 D02 General UNII Test Procedures New Rules v02r01 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 FCC KDB 662911 D02 MIMO With Cross Polarized Antenna V01 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements/ the Industry Canada requirements.. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 18 Dec. 2019 ~ 11 Mar, 2020 Date of Issue .......................................... : 13 Mar, 2020 Test Result.............................................. : Pass Testing Engineer : (Jerry Xie) Technical Manager : (Jason Chen) Authorized Signatory : (Sam Chen) Report No.: S19121200901004 Version.1.2 Page 3 of 245 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 FACILITIES AND ACCREDITATIONS 7 1.2 MEASUREMENT UNCERTAINTY 7 1 . GENERAL INFORMATION 8 1.1 GENERAL DESCRIPTION OF EUT 8 1.2 DESCRIPTION OF TEST MODES 10 1.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 1.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 12 1.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 13 2 . EMC EMISSION TEST 15 2.1 CONDUCTED EMISSION MEASUREMENT 15 2.1.1 APPLICABLE STANDARD 15 2.1.2 CONFORMANCE LIMIT 15 2.1.3 TEST CONFIGURATION 15 2.1.4 TEST PROCEDURE 15 2.2 RADIATED EMISSION MEASUREMENT 20 2.2.1 APPLICABLE STANDARD 20 2.2.2 CONFORMANCE LIMIT 20 2.2.3 MEASURING INSTRUMENTS 20 2.2.4 TEST CONFIGURATION 21 2.2.5 TEST PROCEDURE 22 2.2.6 TEST RESULTS (9KHZ – 30 MHZ) 23 2.2.7 TEST RESULTS (30MHZ – 1GHZ) 24 2.2.8 TEST RESULTS (1GHZ-18GHZ) 28 2.2.9 TEST RESULTS (18GHZ-40GHZ) 30 3 . POWER SPECTRAL DENSITY TEST 34 3.1 APPLIED PROCEDURES / LIMIT 34 3.2 TEST PROCEDURE 35 3.3 DEVIATION FROM STANDARD 35 3.4 TEST SETUP 35 3.5 EUT OPERATION CONDITIONS 35 3.6 TEST RESULTS 36 4 . 26DB & 99% EMISSION BANDWIDTH 37 4.1 APPLIED PROCEDURES / LIMIT 37 4.2 TEST PROCEDURE 37 4.3 EUT OPERATION CONDITIONS 38 4.4 TEST RESULTS 38 Report No.: S19121200901004 Version.1.2 Page 4 of 245 Table of Contents Page 5 . MINIMUM 6 DB BANDWIDTH 39 5.1 APPLIED PROCEDURES / LIMIT 39 5.2 TEST PROCEDURE 39 5.3 DEVIATION FROM STANDARD 39 5.4 TEST SETUP 39 5.5 EUT OPERATION CONDITIONS 39 5.6 TEST RESULTS 40 6 . MAXIMUM CONDUCTED OUTPUT POWER 41 6.1 PPLIED PROCEDURES / LIMIT 41 6.2 TEST RESULTS 43 7 . OUT OF BAND EMISSIONS 44 7.1 APPLICABLE STANDARD 44 7.2 TEST PROCEDURE 44 7.3 DEVIATION FROM STANDARD 44 7.4 TEST SETUP 44 7.5 EUT OPERATION CONDITIONS 45 7.6 TEST RESULTS 46 8. FREQUENCY STABILITY MEASUREMENT 47 8.1 LIMIT 47 8.2 TEST PROCEDURES 47 8.3 TEST SETUP LAYOUT 47 8.4 EUT OPERATION DURING TEST 47 8.5 TEST RESULTS 48 9. ANTENNA REQUIREMENT 54 9.1 STANDARD REQUIREMENT 54 9.2 EUT ANTENNA 54 10. TEST RESULTS 55 10.1 DUTY CYCLE 55 10.2 MAXIMUM CONDUCTED OUTPUT POWER 85 10.3 OCCUPIED CHANNEL BANDWIDTH 87 10.4 -6DB EMISSION BANDWIDTH 145 10.5 MAXIMUM POWER SPECTRAL DENSITY LEVEL 160 10.6 BAND EDGE 190 10.7 CONDUCTED RF SPURIOUS EMISSION 216 Report No.: S19121200901004 Version.1.2 Page 5 of 245 Revision History Report No. Version Description Issued Date S19112901716004 Rev.01 Initial issue of report 13 Mar, 2020 Report No.: S19121200901004 Version.1.2 Page 6 of 245 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.407) , Subpart E Standard Section Test Item Judgment Remark 15.207 AC Power Line Conducted Emissions PASS 15.209(a), 15.407 (b)(1) 15.407 (b)(2) 15.407 (b)(3) 15.407 (b)(4) 15.407 (b)(6) Spurious Radiated Emissions PASS 15.407 (a) 26 dB and 99% Emission Bandwidth PASS 15.407(e) Minimum 6 dB bandwidth PASS 15.407 (a) Maximum Conducted Output Power PASS 15.407 (b)(1) 15.407 (b)(2) 15.407 (b)(3) 15.407 (b)(4) Band Edge PASS 15.407 (a) Power Spectral Density PASS 15.407(b) Spurious Emissions at Antenna Terminals PASS 15.407(g) Frequency Stability Measurement PASS 15.407(h) Dynamic Frequency Selection(DFS) N/A 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report (2) This device operates with a duty cycle greater …

Text truncated - open the document above for the full version.

Report No.: S19121200901004 Version.1.2 Page 113 of 245 OBW NVNT 802.11n(HT40) 5230MHz Ant 1 -26 dB BW NVNT 802.11n(HT40) 5230MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 114 of 245 OBW NVNT 802.11n(HT40) 5190MHz Ant 2 -26 dB BW NVNT 802.11n(HT40) 5190MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 115 of 245 OBW NVNT 802.11n(HT40) 5230MHz Ant 2 -26 dB BW NVNT 802.11n(HT40) 5230MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 116 of 245 5.8G: Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) -26 dB Bandwidth (MHz) Limit -26 dB Bandwidth (MHz) Verdict NVNT 802.11a 5745 Ant 1 17.0629 21.84 N/A Pass NVNT 802.11a 5785 Ant 1 17.3027 21.96 N/A Pass NVNT 802.11a 5825 Ant 1 16.983 21.68 N/A Pass NVNT 802.11a 5745 Ant 2 17.1429 21.64 N/A Pass NVNT 802.11a 5785 Ant 2 17.1828 21.84 N/A Pass NVNT 802.11a 5825 Ant 2 17.1828 21.96 N/A Pass NVNT 802.11ac20 5745 Ant 1 18.1818 21.88 N/A Pass NVNT 802.11ac20 5785 Ant 1 18.1419 22.04 N/A Pass NVNT 802.11ac20 5825 Ant 1 18.1019 21.92 N/A Pass NVNT 802.11ac20 5745 Ant 2 18.1818 21.96 N/A Pass NVNT 802.11ac20 5785 Ant 2 18.2617 21.92 N/A Pass NVNT 802.11ac20 5825 Ant 2 18.1419 21.8 N/A Pass NVNT 802.11ac40 5755 Ant 1 36.4436 40.72 N/A Pass NVNT 802.11ac40 5795 Ant 1 36.5235 40.72 N/A Pass NVNT 802.11ac40 5755 Ant 2 36.4436 40.32 N/A Pass NVNT 802.11ac40 5795 Ant 2 36.4436 40.72 N/A Pass NVNT 802.11ac80 5775 Ant 1 75.9241 82.4 N/A Pass NVNT 802.11ac80 5775 Ant 2 75.9241 82.4 N/A Pass NVNT 802.11n(HT20) 5745 Ant 1 18.022 21.92 N/A Pass NVNT 802.11n(HT20) 5785 Ant 1 18.2218 22.2 N/A Pass NVNT 802.11n(HT20) 5825 Ant 1 18.1818 21.88 N/A Pass NVNT 802.11n(HT20) 5745 Ant 2 18.0619 21.76 N/A Pass NVNT 802.11n(HT20) 5785 Ant 2 18.2218 21.8 N/A Pass NVNT 802.11n(HT20) 5825 Ant 2 18.1019 21.92 N/A Pass NVNT 802.11n(HT40) 5755 Ant 1 36.3636 40.08 N/A Pass NVNT 802.11n(HT40) 5795 Ant 1 36.5235 40.32 N/A Pass NVNT 802.11n(HT40) 5755 Ant 2 36.3636 40.16 N/A Pass NVNT 802.11n(HT40) 5795 Ant 2 36.4436 40.56 N/A Pass Report No.: S19121200901004 Version.1.2 Page 117 of 245 OBW NVNT 802.11a 5745MHz Ant 1 -26 dB BW NVNT 802.11a 5745MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 118 of 245 OBW NVNT 802.11a 5785MHz Ant 1 -26 dB BW NVNT 802.11a 5785MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 119 of 245 OBW NVNT 802.11a 5825MHz Ant 1 -26 dB BW NVNT 802.11a 5825MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 120 of 245 OBW NVNT 802.11a 5745MHz Ant 2 -26 dB BW NVNT 802.11a 5745MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 121 of 245 OBW NVNT 802.11a 5785MHz Ant 2 -26 dB BW NVNT 802.11a 5785MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 122 of 245 OBW NVNT 802.11a 5825MHz Ant 2 -26 dB BW NVNT 802.11a 5825MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 123 of 245 OBW NVNT 802.11ac20 5745MHz Ant 1 -26 dB BW NVNT 802.11ac20 5745MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 124 of 245 OBW NVNT 802.11ac20 5785MHz Ant 1 -26 dB BW NVNT 802.11ac20 5785MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 125 of 245 OBW NVNT 802.11ac20 5825MHz Ant 1 -26 dB BW NVNT 802.11ac20 5825MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 126 of 245 OBW NVNT 802.11ac20 5745MHz Ant 2 -26 dB BW NVNT 802.11ac20 5745MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 127 of 245 OBW NVNT 802.11ac20 5785MHz Ant 2 -26 dB BW NVNT 802.11ac20 5785MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 128 of 245 OBW NVNT 802.11ac20 5825MHz Ant 2 -26 dB BW NVNT 802.11ac20 5825MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 129 of 245 OBW NVNT 802.11ac40 5755MHz Ant 1 -26 dB BW NVNT 802.11ac40 5755MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 130 of 245 OBW NVNT 802.11ac40 5795MHz Ant 1 -26 dB BW NVNT 802.11ac40 5795MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 131 of 245 OBW NVNT 802.11ac40 5755MHz Ant 2 -26 dB BW NVNT 802.11ac40 5755MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 132 of 245 OBW NVNT 802.11ac40 5795MHz Ant 2 -26 dB BW NVNT 802.11ac40 5795MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 133 of 245 OBW NVNT 802.11ac80 5775MHz Ant 1 -26 dB BW NVNT 802.11ac80 5775MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 134 of 245 OBW NVNT 802.11ac80 5775MHz Ant 2 -26 dB BW NVNT 802.11ac80 5775MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 135 of 245 OBW NVNT 802.11n(HT20) 5745MHz Ant 1 -26 dB BW NVNT 802.11n(HT20) 5745MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 136 of 245 OBW NVNT 802.11n(HT20) 5785MHz Ant 1 -26 dB BW NVNT 802.11n(HT20) 5785MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 137 of 245 OBW NVNT 802.11n(HT20) 5825MHz Ant 1 -26 dB BW NVNT 802.11n(HT20) 5825MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 138 of 245 OBW NVNT 802.11n(HT20) 5745MHz Ant 2 -26 dB BW NVNT 802.11n(HT20) 5745MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 139 of 245 OBW NVNT 802.11n(HT20) 5785MHz Ant 2 -26 dB BW NVNT 802.11n(HT20) 5785MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 140 of 245 OBW NVNT 802.11n(HT20) 5825MHz Ant 2 -26 dB BW NVNT 802.11n(HT20) 5825MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 141 of 245 OBW NVNT 802.11n(HT40) 5755MHz Ant 1 -26 dB BW NVNT 802.11n(HT40) 5755MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 142 of 245 OBW NVNT 802.11n(HT40) 5795MHz Ant 1 -26 dB BW NVNT 802.11n(HT40) 5795MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 143 of 245 OBW NVNT 802.11n(HT40) 5755MHz Ant 2 -26 dB BW NVNT 802.11n(HT40) 5755MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 144 of 245 OBW NVNT 802.11n(HT40) 5795MHz Ant 2 -26 dB BW NVNT 802.11n(HT40) 5795MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 145 of 245 10 .4 -6DB EMISSION BANDWIDTH 5.8G: Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT 802.11a 5745 Ant 1 16.36 0.5 Pass NVNT 802.11a 5785 Ant 1 16.32 0.5 Pass NVNT 802.11a 5825 Ant 1 16.32 0.5 Pass NVNT 802.11a 5745 Ant 2 16.32 0.5 Pass NVN…

Text truncated - open the document above for the full version.

Report No.: S19121200901004 Version.1.2 Page 199 of 245 Band Edge NVNT 802.11n(HT20) 5240MHz High Ant 1 Band Edge NVNT 802.11n(HT20) 5180MHz Low Ant 2 Report No.: S19121200901004 Version.1.2 Page 200 of 245 Band Edge NVNT 802.11n(HT20) 5240MHz High Ant 2 Band Edge NVNT 802.11n(HT40) 5190MHz Low Ant 1 Report No.: S19121200901004 Version.1.2 Page 201 of 245 Band Edge NVNT 802.11n(HT40) 5230MHz High Ant 1 Band Edge NVNT 802.11n(HT40) 5190MHz Low Ant 2 Report No.: S19121200901004 Version.1.2 Page 202 of 245 Band Edge NVNT 802.11n(HT40) 5230MHz High Ant 2 Report No.: S19121200901004 Version.1.2 Page 203 of 245 5.8G: Condition Mode Frequency (MHz) Antenna Max Value (dBm) Limit (dBm) Verdict NVNT 802.11a 5745 Ant 1 -36.85 Pass NVNT 802.11a 5825 Ant 1 -36 Pass NVNT 802.11a 5745 Ant 2 -36.59 Pass NVNT 802.11a 5825 Ant 2 -35.69 Pass NVNT 802.11ac20 5745 Ant 1 -35.38 Pass NVNT 802.11ac20 5825 Ant 1 -35.93 Pass NVNT 802.11ac20 5745 Ant 2 -36.24 Pass NVNT 802.11ac20 5825 Ant 2 -36.04 Pass NVNT 802.11ac40 5755 Ant 1 -34.37 Pass NVNT 802.11ac40 5795 Ant 1 -34.8 Pass NVNT 802.11ac40 5755 Ant 2 -33.37 Pass NVNT 802.11ac40 5795 Ant 2 -36.16 Pass NVNT 802.11ac80 5775 Ant 1 -35.88 Pass NVNT 802.11ac80 5775 Ant 1 -35.55 Pass NVNT 802.11ac80 5775 Ant 2 -35.99 Pass NVNT 802.11ac80 5775 Ant 2 -35.3 Pass NVNT 802.11n(HT20) 5745 Ant 1 -36.63 Pass NVNT 802.11n(HT20) 5825 Ant 1 -36.01 Pass NVNT 802.11n(HT20) 5745 Ant 2 -35.94 Pass NVNT 802.11n(HT20) 5825 Ant 2 -36.25 Pass NVNT 802.11n(HT40) 5755 Ant 1 -34.4 Pass NVNT 802.11n(HT40) 5795 Ant 1 -35.81 Pass NVNT 802.11n(HT40) 5755 Ant 2 -34.88 Pass NVNT 802.11n(HT40) 5795 Ant 2 -35.88 Pass Band Edge NVNT 802.11a 5745MHz Low Ant 1 Report No.: S19121200901004 Version.1.2 Page 204 of 245 Band Edge NVNT 802.11a 5825MHz High Ant 1 Band Edge NVNT 802.11a 5745MHz Low Ant 2 Report No.: S19121200901004 Version.1.2 Page 205 of 245 Band Edge NVNT 802.11a 5825MHz High Ant 2 Band Edge NVNT 802.11ac20 5745MHz Low Ant 1 Report No.: S19121200901004 Version.1.2 Page 206 of 245 Band Edge NVNT 802.11ac20 5825MHz High Ant 1 Band Edge NVNT 802.11ac20 5745MHz Low Ant 2 Report No.: S19121200901004 Version.1.2 Page 207 of 245 Band Edge NVNT 802.11ac20 5825MHz High Ant 2 Band Edge NVNT 802.11ac40 5755MHz Low Ant 1 Report No.: S19121200901004 Version.1.2 Page 208 of 245 Band Edge NVNT 802.11ac40 5795MHz High Ant 1 Band Edge NVNT 802.11ac40 5755MHz Low Ant 2 Report No.: S19121200901004 Version.1.2 Page 209 of 245 Band Edge NVNT 802.11ac40 5795MHz High Ant 2 Band Edge NVNT 802.11ac80 5775MHz High Ant 1 Report No.: S19121200901004 Version.1.2 Page 210 of 245 Band Edge NVNT 802.11ac80 5775MHz Low Ant 1 Band Edge NVNT 802.11ac80 5775MHz High Ant 2 Report No.: S19121200901004 Version.1.2 Page 211 of 245 Band Edge NVNT 802.11ac80 5775MHz Low Ant 2 Band Edge NVNT 802.11n(HT20) 5745MHz Low Ant 1 Report No.: S19121200901004 Version.1.2 Page 212 of 245 Band Edge NVNT 802.11n(HT20) 5825MHz High Ant 1 Band Edge NVNT 802.11n(HT20) 5745MHz Low Ant 2 Report No.: S19121200901004 Version.1.2 Page 213 of 245 Band Edge NVNT 802.11n(HT20) 5825MHz High Ant 2 Band Edge NVNT 802.11n(HT40) 5755MHz Low Ant 1 Report No.: S19121200901004 Version.1.2 Page 214 of 245 Band Edge NVNT 802.11n(HT40) 5795MHz High Ant 1 Band Edge NVNT 802.11n(HT40) 5755MHz Low Ant 2 Report No.: S19121200901004 Version.1.2 Page 215 of 245 Band Edge NVNT 802.11n(HT40) 5795MHz High Ant 2 Report No.: S19121200901004 Version.1.2 Page 216 of 245 10.7 CONDUCTED RF SPURIOUS EMISSION 5.2G: Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT 802.11a 5180 Ant 1 -40.26 -27 Pass NVNT 802.11a 5200 Ant 1 -40 -27 Pass NVNT 802.11a 5240 Ant 1 -40.42 -27 Pass NVNT 802.11a 5180 Ant 2 -40.45 -27 Pass NVNT 802.11a 5200 Ant 2 -40.48 -27 Pass NVNT 802.11a 5240 Ant 2 -39.97 -27 Pass NVNT 802.11ac20 5180 Ant 1 -39.5 -27 Pass NVNT 802.11ac20 5200 Ant 1 -40.53 -27 Pass NVNT 802.11ac20 5240 Ant 1 -40.52 -27 Pass NVNT 802.11ac20 5180 Ant 2 -39.83 -27 Pass NVNT 802.11ac20 5200 Ant 2 -40.87 -27 Pass NVNT 802.11ac20 5240 Ant 2 -39.62 -27 Pass NVNT 802.11ac40 5190 Ant 1 -40.31 -27 Pass NVNT 802.11ac40 5230 Ant 1 -40.95 -27 Pass NVNT 802.11ac40 5190 Ant 2 -40.37 -27 Pass NVNT 802.11ac40 5230 Ant 2 -40.13 -27 Pass NVNT 802.11ac80 5210 Ant 1 -39.44 -27 Pass NVNT 802.11ac80 5210 Ant 2 -40.27 -27 Pass NVNT 802.11n(HT20) 5180 Ant 1 -40.41 -27 Pass NVNT 802.11n(HT20) 5200 Ant 1 -39.56 -27 Pass NVNT 802.11n(HT20) 5240 Ant 1 -39.76 -27 Pass NVNT 802.11n(HT20) 5180 Ant 2 -39…
