Technaxx Deutschland GmbH & Co. KG Agent Authorization Date: Mar 30, 2020 Company: Technaxx Deutschland GmbH & Co. KG Address: Kruppstrasse 105 60388 Frankfurt am Main Germany Product Description: SPEAKER FCC ID Number: 2ARZ3-BT-X50 Tested Model Number: BT-X50 We authorize Eurofins Product Service GmbH, Storkower Strasse 38c, D-15526 Reichenwalde, Germany, to act on our behalf on all matters concerning the certification of above mentioned equipment. We declare that Eurofins Product Service GmbH is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We, Technaxx Deutschland GmbH & Co. KG, the undersigned, hereby authorize Shenzhen Toby Technology Co., Ltd. (Ivan Su, Supervisor of EMC Dep.), Shenzhen Microwave Certification Services Co., Ltd. (Gilbert Lui, Marketing Manager) and Ka.Ma.S UG (Karin Schmidt, CEO) on our behalf, to apply to the Federal Communications Commission on our equipment. We, the undersigned, hereby authorize Shenzhen Toby Technology Co., Ltd. (Ivan Su, Supervisor of EMC Dep.) to act on our behalf in matters relating to the application for a FCC equipment authorization for mentioned FCC ID Number including the signing of Form 731, necessary forms and documents in connection with this application. Any and all acts carried out by Shenzhen Toby Technology Co., Ltd. (Ivan Su, Supervisor of EMC Dep.) on our behalf shall have the same effect as acts of our own. This authorization expires on 31th December, 2020. Yours Sincerely, Technaxx Deutschland GmbH & Co. KG <Signature of Sufian Munir > ----------------------------------------------------------------------------------- Pascal Pekcan Kruppstrasse 105 60388 Frankfurt am Main Germany Phone: 49-69904755213 Email: [email protected]

Technaxx Deutschland GmbH & Co. KG Declaration Letter of Model Difference Date: Mar 30, 2020 FCC ID Number: 2ARZ3-BT-X50 Tested Model Number: BT-X50 Adding Model Number(s): FY-43,FY-25,FY-35,FY-34,FY-40,FY-42,FY-38,FY-39AB,FY-41,FY- 45,FY-46,FY-47,FY-49,FY-50 All Adding Model Number(s) is/are same electrically identical as Tested Model Number. All these models are the same PCB, layout and electrical circuit, the only different is model name. Yours Sincerely, Technaxx Deutschland GmbH & Co. KG <Signature of Sufian Munir > ----------------------------------------------------------------------------------- Pascal Pekcan Kruppstrasse 105 60388 Frankfurt am Main Germany Phone: 49-69904755213 Email: [email protected]

Technaxx Deutschland GmbH & Co. KG CONFIDENTIALITY REQUEST for Certification under the FCC Rules Date: Mar 30, 2020 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the following product: FCC ID Number: 2ARZ3-BT-X50 Tested Model Number: BT-X50 For the product stated above, we request that the following information be held confidential: Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days Block Diagram Schematic Diagram/ Circuit Diagram Circuit Description/ Operational Description Software Security Requirements Parts List Tune Up Information User’s Manual External Photos Internal Photos Test Setup Photos The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. Please do not hesitate to contact me if you have any queries. Yours Sincerely, Technaxx Deutschland GmbH & Co. KG <Signature of Sufian Munir > ----------------------------------------------------------------------------------- Pascal Pekcan Kruppstrasse 105 60388 Frankfurt am Main Germany Phone: 49-69904755213 Email: [email protected]

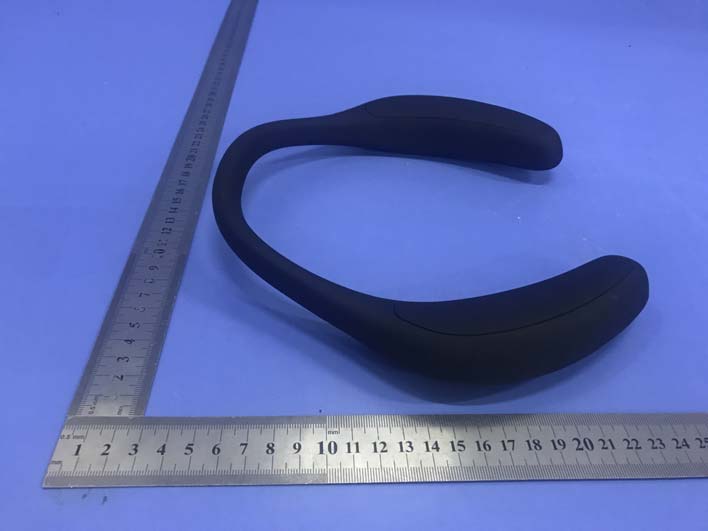

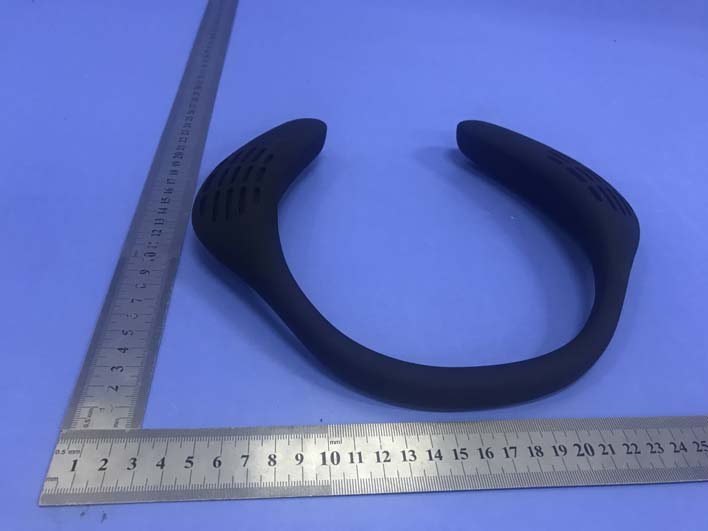

Page : 2 of 8 TB-RF-075-1.0 Appendix III EUT External Photographs Model: BT-X50 Photo 1 External of EUT Page : 3 of 8 TB-RF-075-1.0

Page : 1 of 8 TB-RF-074-1.0 Appendix IFCC ID Label Model: BT-X50 Wide & length:25mm *15mm Appendix II ID Label Location ID LOCATION FCC ID: 2ARZ3-BT-X50 Model: BT-X50 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page : 4 of 8 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Model: BT-X50 Photo 2 Internal of EUT Page : 5 of 8 TB-RF-075-1.0 Page : 6 of 8 TB-RF-075-1.0

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE171988 Page: 1 of 3 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2ARZ3-BT-X50 1. Client Information Applicant : Technaxx Deutschland GmbH & Co. KG Address : Kruppstrasse 105 60388 Frankfurt am Main Germany Manufacturer : Technaxx Deutschland GmbH & Co. KG Address : Kruppstrasse 105 60388 Frankfurt am Main Germany 2. General Description of EUT EUT Name : SPEAKER Models No. : BT-X50,FY-43,FY-25,FY-35,FY-34,FY-40,FY-42,FY-38,FY-39AB,FY-4 1,FY-45,FY-46,FY-47,FY-49,FY-50 Model Difference : All these models are in the same PCB, layout and electrical circuit, the only difference is model name. Product Description : Operation Frequency: Bluetooth V5.0(BT): 2402~2480 MHz Antenna Gain: 0dBi PCB Antenna Power Rating : Input: DC 5V DC 3.7V 500mAh by Li-ion battery Software Version : AC6925C_2.6.1 Hardware Version : V1.1 Connecting I/OPort(S) : Please refer to the User's Manual Remark : The antenna gain provided by the applicant, the verified for the RF conduction test provided by TOBY test lab. Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE171988 Page: 2 of 3 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v06. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR Report No.: TB-MPE171988 Page: 3 of 3 TB-RF-074-1.0 2. Calculation: Test separation: 5mm Bluetooth Mode (GFSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dbm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 -6.596 -6±1 -5 0.316227766 0.0980204 3.0 2.441 -7.277 -7±1 -6 0.251188643 0.0784899 3.0 2.480 -8.195 -8±1 -7 0.199526231 0.0628428 3.0 Bluetooth Mode (π/4-DQPSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dbm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 -5.932 -6±1 -5 0.316227766 0.0980204 3.0 2.441 -6.725 -7±1 -6 0.251188643 0.0784899 3.0 2.480 -7.614 -8±1 -7 0.199526231 0.0628428 3.0 Test separation: 5mm The worst RF Exposure Evaluation Worst Calculation Value Total Calculation Value Threshold Value Bluetooth Mode 0.0980204 0.0980204 3.0 So the worst RF Exposure Evaluation is calculated as 0.0980204< limit 3.0. The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06. -----END OF REPORT-----

Report No.: TB-FCC171987 Page: 1 of 67 TB-RF-074-1.0 FCC Radio Test Report FCC ID: 2ARZ3-BT-X50 Original Grant Report No. : TB-FCC171987 Applicant : Technaxx Deutschland GmbH & Co. KG Equipment Under Test (EUT) EUT Name : SPEAKER Model No. : BT-X50 Series Model No. : FY-43,FY-25,FY-35,FY-34,FY-40,FY-42,FY-38,FY-39AB,FY- 41,FY-45,FY-46,FY-47,FY-49,FY-50 Brand Name : N/A Receipt Date : 2020-03-19 Test Date : 2020-03-19 to 2020-03-26 Issue Date : 2020-03-28 Standards : FCC Part 15, Subpart C 15.247 Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Garen Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC171987 Page: 2 of 67 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 7 1.5 Description of Test Mode .................................................................................................... 7 1.6 Description of Test Software Setting ................................................................................ 8 1.7 Measurement Uncertainty .................................................................................................. 9 1.8 Test Facility ......................................................................................................................... 10 2. TEST SUMMARY ..................................................................................................................... 11 3. TEST SOFTWARE ................................................................................................................... 11 4. TEST EQUIPMENT .................................................................................................................. 12 5. CONDUCTED EMISSION TEST ........................................................................................... 13 5.1 Test Standard and Limit .................................................................................................... 13 5.2 Test Setup ........................................................................................................................... 13 5.3 Test Procedure ................................................................................................................... 13 5.4 Deviation From Test Standard ......................................................................................... 14 5.5 EUT Operating Mode ........................................................................................................ 14 5.6 Test Data ............................................................................................................................. 14 6. RADIATED EMISSION TEST ................................................................................................ 15 6.1 Test Standard and Limit .................................................................................................... 15 6.2 Test Setup ........................................................................................................................... 16 6.3 Test Procedure ................................................................................................................... 17 6.4 Deviation From Test Standard ......................................................................................... 17 6.5 EUT Operating Condition ................................................................................................. 17 6.6 Test Data ............................................................................................................................. 17 7. RESTRICTED BANDS REQUIREMENT ............................................................................. 18 7.1 Test Standard and Limit .................................................................................................... 18 7.2 Test Setup ........................................................................................................................... 18 7.3 Test Procedure ................................................................................................................... 18 7.4 Deviation From Test Standard ......................................................................................... 19 7.5 EUT Operating Condition ................................................................................................. 19 7.6 Test Data ............................................................................................................................. 19 8. NUMBER OF HOPPING CHANNEL .................................................................................... 20 8.1 Test Standard and Limit .................................................................................................... 20 8.2 Test Setup .......................................................................................................................…

Text truncated - open the document above for the full version.

Page : 7 of 8 TB-RF-075-1.0 Appendix V EUT Test Photographs 15C Test Setup Model: BT-X50 Photo of Setup for Radiated Emission (Below 1 GHz) Photo of Setup for Radiated Emission (Above 1 GHz) Page : 8 of 8 TB-RF-075-1.0 Photo of Setup for Conducted Emission -----END OF REPORT-----
