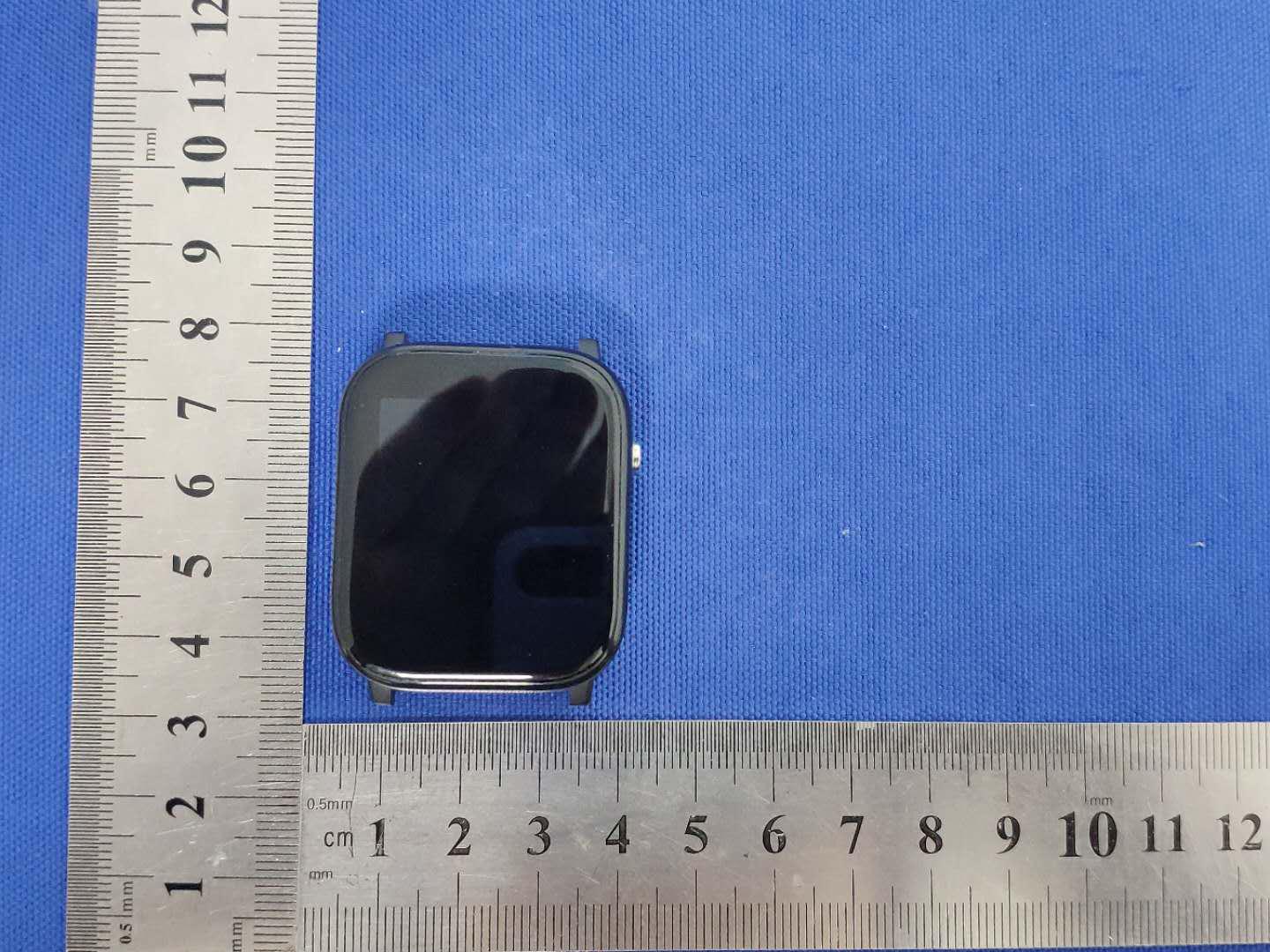

2ARZ3-TX-SW6HRSmart Watch

Technaxx ® * User Manual TX-SW6HR Smartwatch with temperature measurement The manufacturer Technaxx Deutschland GmbH & Co.KG hereby declares that this device, to which this user manual belongs, complies with the essential requirements of the standards referred to the Directive RED 2014/53/EU. The Declaration of Conformity you find here: www.technaxx.de/ (in bar at the bottom “Konformitätserklärung”). Before using the device the first time, read the user manual carefully. Service phone No. for technical support: 01805 012643 (14 cent/minute from German fixed-line and 42 cent/minute from mobile networks). Free Email: [email protected] This device has a rechargeable battery. It must be fully charged before first use. NOTE: Charge the battery of the device every 2–3 month if it is not used! Keep this user manual for future reference or product sharing carefully. Do the same with the original accessories for this product. In case of warranty, please contact the dealer or the store where you bought this product. Warranty 2 years Enjoy your product * Share your experience and opinion on one of the well-known internet portals. Features ⚫Smartwatch to monitor your body temperature, sport activities, heart rate, your fitness and your sleep activities ⚫Displays heart rate, steps, distances, burned calories, sleep time, time & date ⚫Notification reminder: calls, SMS, Email, WhatsApp, social media, achieved goals, activity reminder, drink reminder ⚫Free Youth Health APP in Google Play Store and Apple AppStore ⚫Anti-lost function: find your mobile phone or the Smartwatch ⚫IP67 Waterproof ⚫15 days standby time ⚫Wake up screen by turning your wrist Technical specifications Display 1.4“ Color Screen (240*240 Pixel) Processor NRF52832 Heart rate sensor HRS3300 Temerature sensor tolerance ±0.3°C Protection class IP67 Bluetooth / Distance Version 4.0 BLE / ~10m BT transmitting frequency 2.4GHz BT max. radiated output power 2.5mW Power supply Built-in rechargeable 190mAh Lithium-polymer battery 3,7V Operating time ~5 days usage / ~15 days standby Charging time ~2 hours (use the magnetic charging cable with a USB charging adapter) APP Youth Health Supported APP Languages GB, DE, FR, ES, PT, IT, PL, NL, RU, CZ, TR (November 2018) Weight / Dimensions 40g / (L) 44 x (W) 39 x (H)11.2mm Storage temperature / Operation temperature –10°C up to 45°C Package Contents Technaxx ® TX-SW6HR Smartwatch, charging cable, user manual Compatibility Android 5.1 or above & iOS 10.0 or above Hints for Environment Protection: Packages materials are raw materials and can be recycled. Do not disposal old devices or batteries into the domestic waste. Cleaning: Protect the device from contamination and pollution. Avoid using rough, coarse-grained materials or solvents/aggressive cleaner. Wipe the cleaned device accurately. Distributor: Technaxx Deutschland GmbH & Co.KG, Kruppstr. 105, 60388 Frankfurt a.M., Germany Charging Plug the magnetic USB charger in a USB-port with power source Now connect the magnetic charger to the watch to charge it Product overview 1 Display 4 Heart rate sensor 2 Button 5 Thermometer sensor 3 Charging pins NOTE: The device should be charged at least 1 hour before use. Start up Connect the Smartwatch with the magnet charger or press down the button for 5 seconds. Install Youth Health APP on your smart phone Search for “Youth Health” APP in the Google Play Store/Apple APP- Store or scan the following QR code for the installation. Connect the Smart watch with the Youth Health APP Wait until the device is fully charged. Activate the Bluetooth of your Smartphone. Open the Youth Health APP. Confirm all requests to get the most out of the APP. Press „Add device“ under „Device“ and search for “TX-SW6HR”. Choose “TX-SW6HR” from the list and you are ready. Now the Smartwatch is connected with your Smartphone and the APP. INFO: If the last mobile device connected to your Smartwatch is turned on and the Bluetooth function is activated on both devices, then the Smartwatch will automatically connect with the mobile device. Start using When the Smart watch is connected to the APP successfully, it will synchronize the time, the date and the language. It counts steps, distance and calories automatically. Press the button to activate the LCD screen. Swipe up to see all functions. Swipe right to go back. Swipe down on the start to see the main functions. Swipe right on the start screen to see notifications. Main screens Press and hold to change the watch face. Pedometer Swipe up until you see this icon. Tap this icon to enter this option. The Pedometer counts footsteps, calculates the distance and calorie consumption. Swipe down for historical data from the hole week. Select a sport Swipe up until you see this icon. Tap this icon to enter this option. Now you can choose between different sports. Swipe right until you have reached the desired sport. Now push the desired sport to start the workout. Hostorical reports at last option Sleep monitor Swipe up until you see this icon. Tap this icon to enter this option. If you would like to monitor your sleep quality based on your sleeping time, you should wear the Smartwatch on your wrist while you go to sleep. Swipe down for historical data. Sleep is tracked from 9pm to 9am. Alarm Swipe up until you see this icon. Tap this icon to enter this option. Here you see the alarm you can set in the App. Blood Oxygen Swipe up until you see this icon. Tap this icon to enter this option. Your blood oxygen will be measured now. Blood Pressure Swipe up until you see this icon. Tap this icon to enter this option. Your blood pressure will be measured now. Heart rate Swipe up until you see this icon. Tap this icon to enter this option. Your heart rate will be measured now. Music player Swipe up until you see this icon. Tap this icon to enter this option. Now you can start and stop the music by pressing the play/pause button, previous or next title. Weather Swipe up until you see this icon. Tap th…
