2ARZVWTU-1-MWOLT-UWB-M

WOLT-UWB-S/M/XL Rev. 0.6 Ultra low power D7A / LoRaWAN / UWB Interactive location Tag Description Combined UWB/D7A-FSK/D7A-LoRa & LoRaWAN battery powered interactive location tag with years-long lifetime. Communication over long-range LoRaWAN, mid-range D7A-FSK / D7A-LoRa, short range UWB. RBG LED and button human interface. Firmware Update Over the Air (FOTA) over D7A. Low-latency low-power UWB two-way ranging for RTLS systems with up to 10 cm accuracy Motion sensor: 3-axis accelerometer NFC Passive Tag. Identification & configuration over NFC Beaconing & configuration over BTLE Tap-to-connect protocol Operating temperature: -40 °C to 85 °C Current consumption optimized for low power sleep mode: <10μA IP65 casing FCC, CE / RED certification Applications Indoor assets location with sub-meter precision Security systems Industrial monitor and control Internet of things (IoT) WizziLab product line at www.wizzilab.com/products WIZZILAB Technical datasheet1/26 1 WOLT-UWB-S/M/XL Sub-GHz modem Murata CMWX1ZZABZ hardware with WizziLab proprietary firmware FCC, CE / RED and UKCA certification Operates in the 868-915 MHz ISM bands Embedded chip antenna. Bi-directional DASH7-FSK/LoRa v1.2 Industrial IoT connectivity with 1s latency (www.dash7- alliance.org) Bi-directional LoRaWAN connectivity (uplink driven). IoT modulation schemes FSK (1.8bpsk/55kbps) or LoRa(125kHz/SF6 to 10) Output power up to +13.2 dBm (FSK)+13.1dBm(Lora) UWB/BLE/NFC Modem Qorvo DWM1001 hardware with WizziLab proprietary firmware FCC, CE / RED certification Low-latency low-power two-way ranging for RTLS systems with up to 10 cm accuracy. 110 / 850 kbps data rate IEEE 802.15.4-2011. UWB compliant, on channels 3/5. Embedded PCB UWB antenna. DASH7 over UWB communication @ 110 / 850 kbps on channels 3/5. BLE & NFC-A listening device. Tap-to-connect protocol and secured BLE connectivity Motion sensor: 3-axis accelerometer Bluetooth® connectivity & chip antenna Tap-to-connect WIZZILAB Technical datasheet2/26 Table of Contents WOLT-UWB-S/M/XL Table of Contents 1 Variants..............................................................................................................................................5 1.1 WOLT-UWB-S..........................................................................................................................5 1.2 WOLT-UWB-M.........................................................................................................................6 1.3 WOLT-UWB-XL.......................................................................................................................7 2 Functional Description......................................................................................................................8 2.1 Block Diagram...........................................................................................................................8 2.2 Sub-GHz Modem.......................................................................................................................9 2.3 UM-1 combo UWB/BLE/NFC..................................................................................................9 UWB transciever.........................................................................................................................9 Bluetooth® Microprocessor Nordic nRF52832..........................................................................9 NFC Passive Tag.......................................................................................................................10 Three Axis Motion Detector.....................................................................................................10 Temperature...............................................................................................................................10 Battery Measure........................................................................................................................10 2.4 LED..........................................................................................................................................10 2.5 Button.......................................................................................................................................10 2.6 Power Management.................................................................................................................10 2.7 Battery.....................................................................................................................................10 3 Hardware specification....................................................................................................................11 3.1 Recommended operating conditions........................................................................................11 3.2 Absolute maximum ratings(1)..................................................................................................11 3.3 Battery Capacity.......................................................................................................................11 3.4 Lifetime....................................................................................................................................12 4 Wireless Specification.....................................................................................................................13 4.1 Sub-GHz radio.........................................................................................................................13 4.2 UWB radio...............................................................................................................................14 4.3 BLE radio.................................................................................................................................15 4.4 Antennas Performance.............................................................................................................15 4.5 Certifications......................................…

Text truncated - open the document above for the full version.

U.S. AGENT LETTER OF ATTESTATION Date: 2023-02-17 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2ARZVWTU-1-M WIZZILAB SAS certifies that, as of the date of the filing of the application, Iconsigh Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. WIZZILAB SAS accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Inc. Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: WIZZILAB SAS Address: 29 boulevard Romain Rolland, Montrouge, France FRN: 0028058618 Tel: +33 661574896 Email: [email protected] Signed by (printed name): Yordan Tabakov Signature:

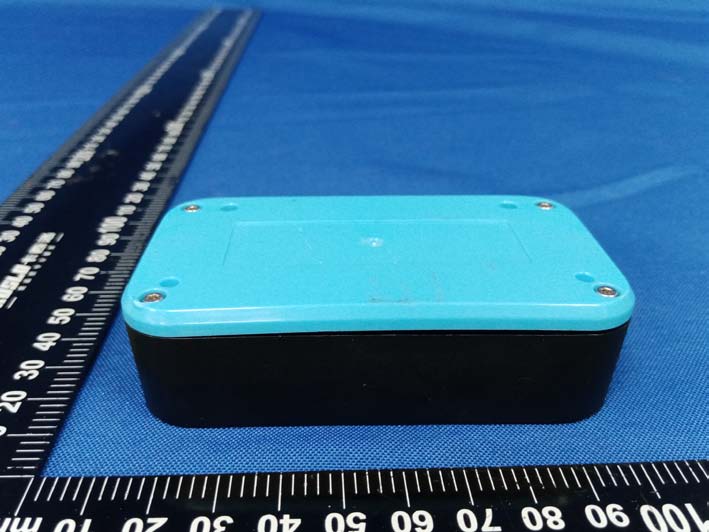

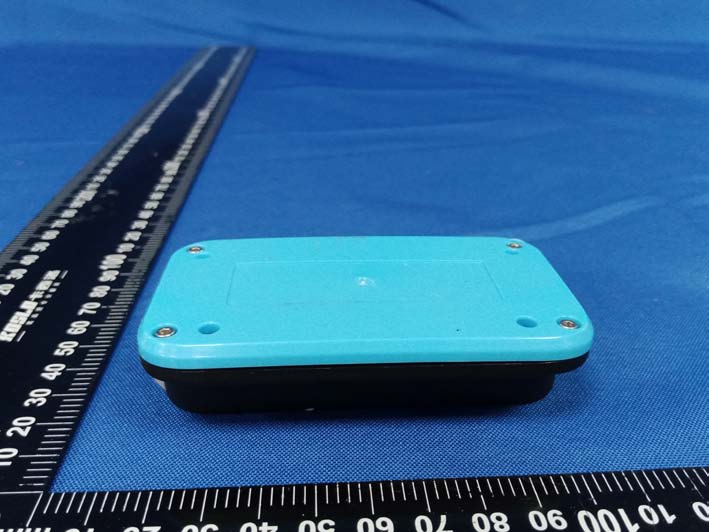

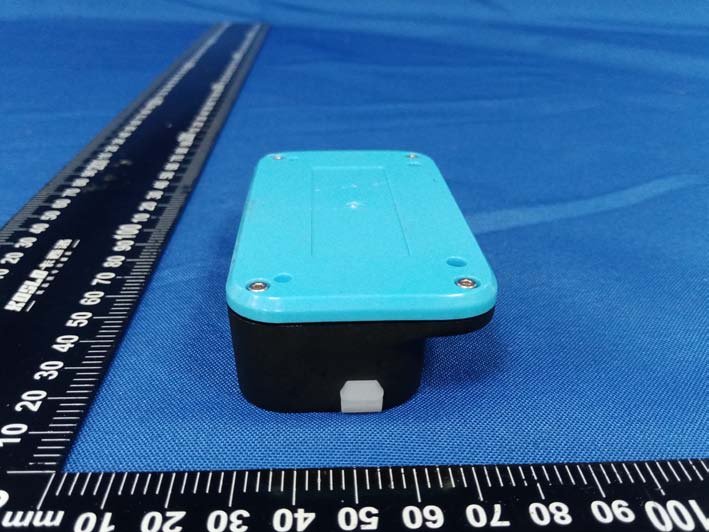

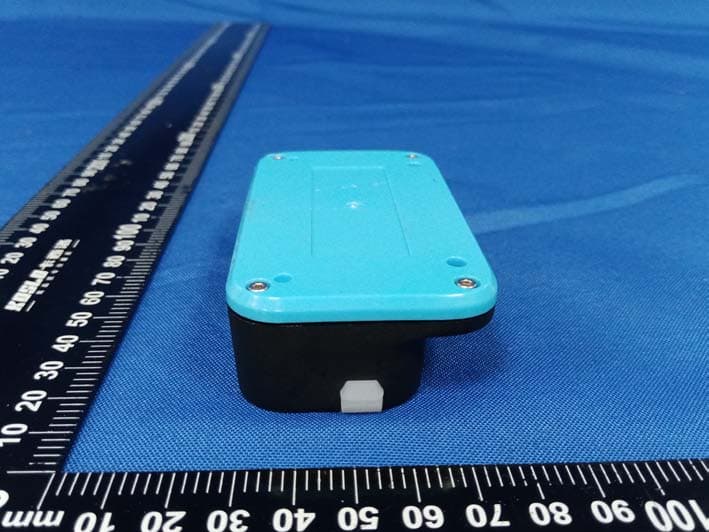

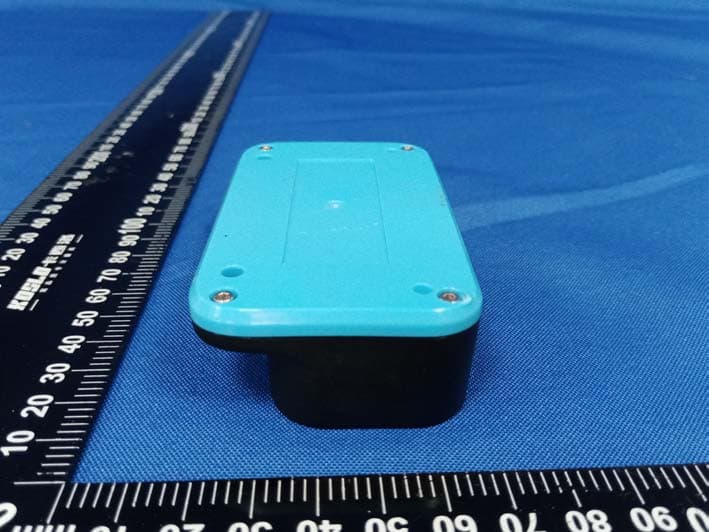

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221108-52422E External Photos Page 1 of 3 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA221108-52422E External Photos Page 2 of 3 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221108-52422E External Photos Page 3 of 3

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221108-52422E-RF LABEL AND LOCATION Page 1 of 1 FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221108-52422E Internal Photos Page 1 of 5 Internal Photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA221108-52422E Internal Photos Page 2 of 5 Sub-GHz ANT UWB ANT BT ANT NFC Passive ANT Shenzhen Accurate Technology Co., Ltd. Project No.: RA221108-52422E Internal Photos Page 3 of 5 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221108-52422E Internal Photos Page 4 of 5 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221108-52422E Internal Photos Page 5 of 5 Battery Label

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 1: 2021-11-09 Page 1 of 17 FCC-15B TEST REPORT Applicant Name : WIZZILAB SAS Address : 29 boulevard Romain Rolland, Montrouge, France Report Number : RA221108-52422E-EM FCC ID: 2ARZVWTU-1-M Te st Standard (s) FCC PART 15B Sample Description Product Type: WOLT-UWB-M Model No.: WOLT-UWB-M Trade Mark: N/A Date Received: 2022-11-08 Date of Test: 2022-11-14 Report Date: 2022-11-17 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Audy.Yu Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: RA221108-52422E-EM Version 1: 2021-11-09 Page 2 of 17 FCC-15B TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 SPECIAL ACCESSORIES ................................................................................................................................................. 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 BLOCK DIAGRAM OF RADIATED TEST SETUP............................................................................................................... 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 TEST EQUIPMENT LIST ........................................................................................................................................... 8 FCC §15.109 - RADIATED EMISSIONS ................................................................................................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 EUT SETUP .................................................................................................................................................................. 9 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 10 TEST PROCEDURE ...................................................................................................................................................... 10 FACTOR & OVER LIMIT CALCULATION ...................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 11 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221108-52422E-EM Version 1: 2021-11-09 Page 3 of 17 FCC-15B GENERAL INFORMATION Product Description for Equipment under Test (EUT) Product W O LT-UWB-M Tested Model W O LT-UWB-M Highest Operation Frequency 6490MHz (It is provided by the applicant.) Voltage Range DC 3.6V from battery Sample number RA221108-52422E-EM-S1 (Assigned by ATC) Sample/EUT Status Good condition Objective This report is in accordance with Part 2-Subpart J, and Part 15-Subparts A and B of the Federal Communication Commission’s rules. The objective of the manufacturer is to determine the compliance of EUT with FCC Part 15, Class B device. Test Methodology All measurements contained in this report were conducted with ANSI C63.4-2014, American National S…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221108-52422E-EM Test Photos Page 1 of 1 Radiated Emissions Test View (Below 1GHz) Radiated Emissions Test View (Above 1GHz)
