WOLT-UWB-S/M/XL Rev. 0.6 Ultra low power D7A / LoRaWAN / UWB Interactive location Tag Description Combined UWB/D7A-FSK/D7A-LoRa & LoRaWAN battery powered interactive location tag with years-long lifetime. Communication over long-range LoRaWAN, mid-range D7A-FSK / D7A-LoRa, short range UWB. RBG LED and button human interface. Firmware Update Over the Air (FOTA) over D7A. Low-latency low-power UWB two-way ranging for RTLS systems with up to 10 cm accuracy Motion sensor: 3-axis accelerometer NFC Passive Tag. Identification & configuration over NFC Beaconing & configuration over BTLE Tap-to-connect protocol Operating temperature: -40 °C to 85 °C Current consumption optimized for low power sleep mode: <10μA IP65 casing FCC, CE / RED certification Applications Indoor assets location with sub-meter precision Security systems Industrial monitor and control Internet of things (IoT) WizziLab product line at www.wizzilab.com/products WIZZILAB Technical datasheet1/26 1 WOLT-UWB-S/M/XL Sub-GHz modem Murata CMWX1ZZABZ hardware with WizziLab proprietary firmware FCC, CE / RED and UKCA certification Operates in the 868-915 MHz ISM bands Embedded chip antenna. Bi-directional DASH7-FSK/LoRa v1.2 Industrial IoT connectivity with 1s latency (www.dash7- alliance.org) Bi-directional LoRaWAN connectivity (uplink driven). IoT modulation schemes FSK (1.8bpsk/55kbps) or LoRa(125kHz/SF6 to 10) Output power up to +13.2 dBm (FSK)+13.1dBm(Lora) UWB/BLE/NFC Modem Qorvo DWM1001 hardware with WizziLab proprietary firmware FCC, CE / RED certification Low-latency low-power two-way ranging for RTLS systems with up to 10 cm accuracy. 110 / 850 kbps data rate IEEE 802.15.4-2011. UWB compliant, on channels 3/5. Embedded PCB UWB antenna. DASH7 over UWB communication @ 110 / 850 kbps on channels 3/5. BLE & NFC-A listening device. Tap-to-connect protocol and secured BLE connectivity Motion sensor: 3-axis accelerometer Bluetooth® connectivity & chip antenna Tap-to-connect WIZZILAB Technical datasheet2/26 Table of Contents WOLT-UWB-S/M/XL Table of Contents 1 Variants..............................................................................................................................................5 1.1 WOLT-UWB-S..........................................................................................................................5 1.2 WOLT-UWB-M.........................................................................................................................6 1.3 WOLT-UWB-XL.......................................................................................................................7 2 Functional Description......................................................................................................................8 2.1 Block Diagram...........................................................................................................................8 2.2 Sub-GHz Modem.......................................................................................................................9 2.3 UM-1 combo UWB/BLE/NFC..................................................................................................9 UWB transciever.........................................................................................................................9 Bluetooth® Microprocessor Nordic nRF52832..........................................................................9 NFC Passive Tag.......................................................................................................................10 Three Axis Motion Detector.....................................................................................................10 Temperature...............................................................................................................................10 Battery Measure........................................................................................................................10 2.4 LED..........................................................................................................................................10 2.5 Button.......................................................................................................................................10 2.6 Power Management.................................................................................................................10 2.7 Battery.....................................................................................................................................10 3 Hardware specification....................................................................................................................11 3.1 Recommended operating conditions........................................................................................11 3.2 Absolute maximum ratings(1)..................................................................................................11 3.3 Battery Capacity.......................................................................................................................11 3.4 Lifetime....................................................................................................................................12 4 Wireless Specification.....................................................................................................................13 4.1 Sub-GHz radio.........................................................................................................................13 4.2 UWB radio...............................................................................................................................14 4.3 BLE radio.................................................................................................................................15 4.4 Antennas Performance.............................................................................................................15 4.5 Certifications......................................…

Text truncated - open the document above for the full version.

Company: WIZZILAB SAS Address:29 boulevard Romain Rolland, Montrouge, France Tel: +33 661574896 E-mail: [email protected] Date: 2023-02-06 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, This device with FCC ID:2ARZVWTU-1-XL integrates a module: FCC ID Grant Date module 2ARZVWM 06/13/2019 No hardware design changes are made on the modules, and the software has not been changed to increase the RF output power of the modules. Pursuant to KDB 996369 D02v01,the original modular report as following are submitted to represent the compliance of Part 15.247 conducted RF testing items of this device. Report Number 12522-FCC-IC-1 The radiated RF testing items are tested on this host device, and the test report is submitted additionally.

U.S. AGENT LETTER OF ATTESTATION Date: 2023-02-17 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2ARZVWTU-1-XL WIZZILAB SAS certifies that, as of the date of the filing of the application, Iconsigh Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. WIZZILAB SAS accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Inc. Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: WIZZILAB SAS Address: 29 boulevard Romain Rolland, Montrouge, France FRN: 0028058618 Tel: +33 661574896 Email: [email protected] Signed by (printed name): Yordan Tabakov Signature:

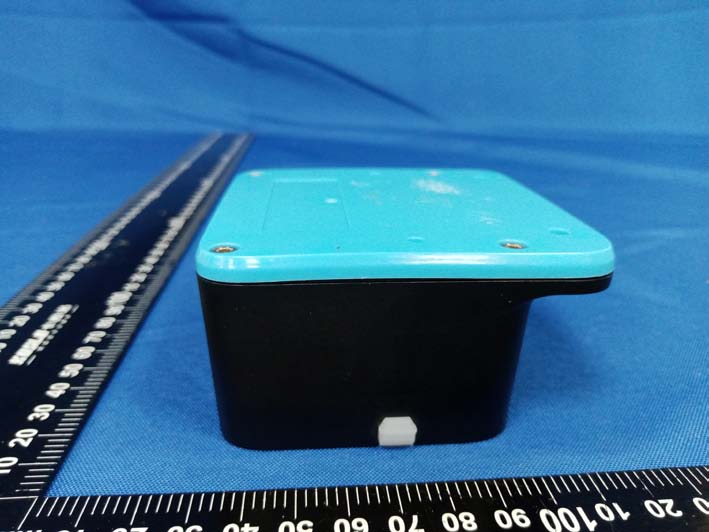

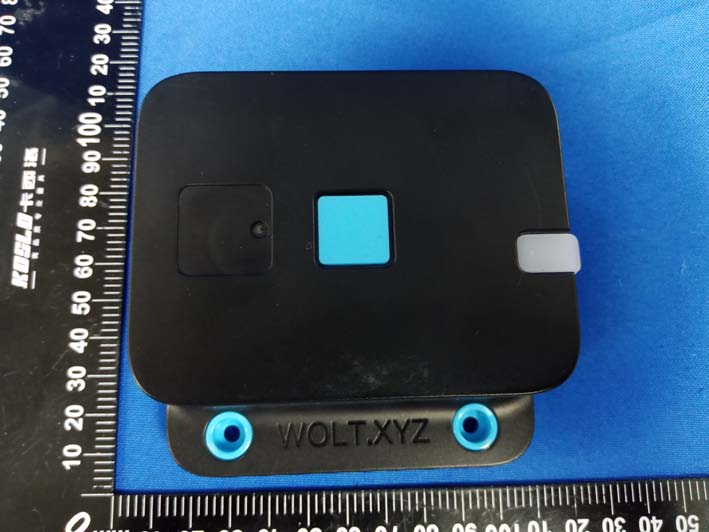

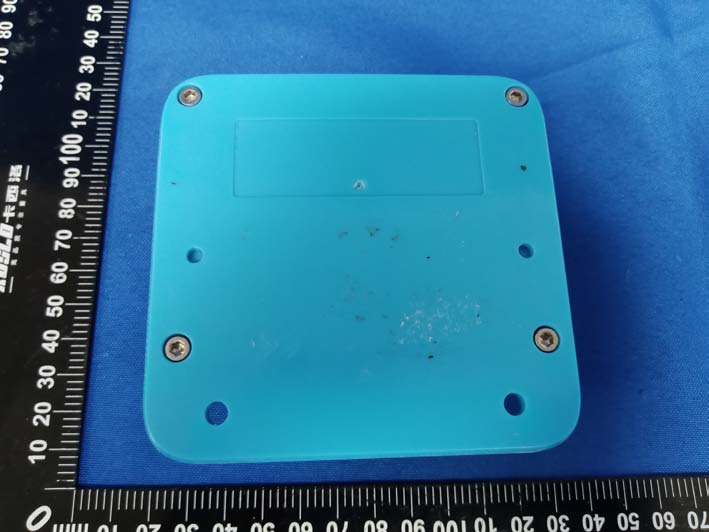

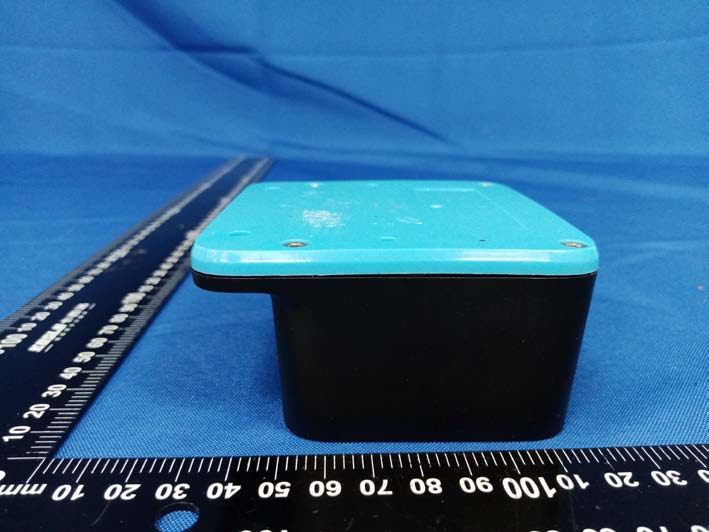

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221108-52423E External Photos Page 1 of 3 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA221108-52423E External Photos Page 2 of 3 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221108-52423E External Photos Page 3 of 3
