2AS3R-100205SPA

OWNER’S MANUAL IMPORTANT SAFETY INSTRUCTIONS pg 003 PRE-SETUP CHECK LIST pg 008 INSTALLATION pg 010 SET-UP INSTRUCTION IN WINTER pg 010 USING THE SPA pg 014 MAINTENANCE pg 018 DISASSEMBLY AND STORAGE pg 020 TROUBLESHOOTING pg 022 ERROR CODES pg 024 VISIT BESTWAY YOUTUBE CHANNEL FOR INSTRUCTION VIDEOS PLEASE VISIT: BESTWAYCORP.COM/SUPPORT WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or spare Parts, Please Visit bestwaycorp.com/support V i s i t w w w . b e s t w a y c o r p . c o m / s u p p o r t f o r h e l p CONTENTS 2 WARNING IMPORTANT SAFETY INSTRUCTIONS When using this electrical equipment, basic safety precautions should always be followed, including the following: READ AND FOLLOW ALL INSTRUCTIONS. WARNING – To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times. A wire connector is provided on this unit to connect a minimum 8 AWG (8.37 mm 2 ) solid copper conductor between this unit and any metal equipment, metal enclosures of electrical equipment, metal water pipe, or conduit within 5 feet (1.5 m) of the unit. DANGER – Risk of injury. a) Replace damaged cord immediately. b) Do not bury cord. c) Connect to a grounded, grounding type receptacle only. WARNING – This product is provided with a ground-fault circuit-interrupter integrated with the power plug at the end of the cord. The GFCI must be tested before each use. With the product operating, push the test button on the GFCI and the product should not operate. Push the reset button on the GFCI and the product should now operate normally. When the product fails to operate in this manner, there is a ground current flowing indicating the possibility of an electrical shock. Disconnect the power until the fault has been identified and corrected. DANGER – Risk of Accidental Drowning. Extreme caution must be exercised to prevent unauthorized access by children. To avoid accidents, ensure that children cannot use this spa unless they are supervised at all times. DANGER – Risk of Injury. The suction fittings in this spa are sized to match the specific water flow created by the pump. Should the need arise to replace the suction fittings or the pump, be sure that the flow rates are compatible. Never operate spa if the suction fittings are broken or missing. Never replace a suction fitting with one rated less than the flow rate marked on the original suction fitting. DANGER – Risk of Electric Shock. Install at least 5 feet (1.5 m) from all metal surfaces. As an alternative, a spa may be installed within 5 feet of metal surfaces if each metal surface is permanently connected by a minimum 8 AWG (8.37 mm 2 ) solid copper conductor to the wire connector on the terminal box that is provided for this purpose. DANGER – Risk of Electric Shock. Do not permit any electric appliance, such as a light, telephone, radio, or television, within 5 feet (1.5 m) of a spa. WARNING – To reduce the risk of injury: a) The water in a spa should never exceed 104°F (40°C). Water temperatures between 100°F (38°C) and 104°F (40°C) are considered safe for a healthy adult. Lower water temperatures are recommended for young children and when spa use exceeds 10 minutes. b) Since excessive water temperatures have a high potential for causing fetal damage during the early months of pregnancy, pregnant or possibly pregnant women should limit spa water temperatures to100°F (38°C). c) Before entering a spa, the user should measure the water temperature with an IMPORTANT SAFETY INSTRUCTIONS 3 accurate thermometer since the tolerance of water temperature-regulating devices varies. d) The use of alcohol, drugs, or medication before or during spa use may lead to unconsciousness with the possibility of drowning. e) Obese persons and persons with a history of heart disease, low or high blood pressure, circulatory system problems, or diabetes should consult a physician before using a spa. f ) Persons using medication should consult a physician before using a spa since some medication may induce drowsiness while other medication may affect heart rate, blood pressure, and circulation. WARNING: TO AVOID ELECTRIC SHOCK, DO NOT USE THE SPA WHEN IT IS RAINING. WARNING: Water attracts children; Always attach a spa cover after each use. WARNING: TO REDUCE THE RISK OF INJURY: Never add water that is higher than 104°F (40°C) into the Spa. CONSULT YOUR PHYSICIAN FOR RECOMMENDATIONS. CAUTION: We strongly recommend not to unfold and inflate the spa if the ambient temperature is below 59°F(15°C). We suggest inflating the spa indoors, and then continuing set up outdoors. If the outdoor temperature is lower than 42.8°F(6°C), the spa heater must always be on. In this mode, the Freeze Shield™ system can keep the internal temperature between 42.8°F(6°C) and 50°F(10°C) to prevent damage, such as water freezing in the pipes or the circulation system. IMPORTANT: If the Freeze Shield™ system isn’t working, alarms will pop up on the spa. Be sure to check the status of your spa if the outdoor temperature is below 42.8°F(6°C). In case of a long-term absence from home when there is a risk of temperatures falling below 42.8°F(6°C), we strongly suggest disassembling the spa and storing it following the storage procedure. CAUTION: Do not use the spa alone. CAUTION: Always enter and exit the spa slowly and cautiously. Wet surfaces are slippery. CAUTION: To avoid damage to the pump, the spa must never be operated unless the spa is filled with water. CAUTION: Immediately leave spa if the user feels uncomfortable or sleepy. NOTE: Please examine equipment before use. Notify Bestway ® at the customer service address listed on this manual for any damaged or missing parts at the time of purchase. Verify that the equipment components represent the model that you had intended to purchase. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: …

Text truncated - open the document above for the full version.

Bestway (Hong Kong) International Ltd. Declaration Letter We Bestway (Hong Kong) International Ltd. hereby declare that the product SPA is not capable of operating with channel 12 and 13 in regions of US and Canada. Versions of the product available for import and sale in the US and Canada will not operate on channels 12 and 13. It will not be possible for users and configure these channels in the US and Canada version. By: ______________________ Mi Huang (Signature 1 ) (Print name) Title: Director________ On behalf of: Bestway (Hong Kong) International Ltd._________ (Company Name) Telephone: ______+86-021-69133312____________________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Declaration We , Bestway here with declare that Comparied with S100204 and S100205 , except the plug of the power cord, they are all the same. If there is any problem,Bestway will take all responsibility. 2020‐4‐02

012916 – 0 Date: _M a American 6731 Whi t Suite C110 McLean, V To Whom _____Inte r notified, fo We certif y Section 53 CFR 1.200 Thank yo u Agency A g By: Title: On behalf Telephone : 1 - If a group the group w that as the grantee a n https://apps.f 2 - Must be s authorized 9 arch 25, 202 Certificatio ttier Avenue 0 VA 22101 It May Co n rtek Testing or applicatio y that we are 301 of the A 02 (b), to th u, greement E ______ ____ D of: ____ B : ______ p “entity” is de who are autho authorized ag nd take action fcc.gov/oetcf/kdb signed by appl d agent letter h 20_ on Body, Inc e ncern: g Service Sh ons to Amer e not subjec Anti-Drug A e applicatio Expiration D __________ (Signature Director____ Bestway (Ho (Company _021-691333 esignated as th orized to take gent, any indiv on the applica b/forms/FTSSearc licant contact has been provi Autho c. hanghai____ rican Certif ct to denial o Abuse Act of on is subject Date: ____20 __________ e 1 ) ____ ong Kong) Int y Name) 312_______ he authorized action on the vidual within ation. See chResultPage.cfm given for app ided. Letters ority to Act ___ is autho fication Bod of federal b f 1988, 21 U t to denial o 021/3/25___ ___ ternational L ___ agent, the lett application; o the group “en m?switch=P&id=3 licant on the F should be plac t as Agent orized to ac dy, Inc. (AC enefits, that U.S.C. 862. of federal be ___ _____ (Print n td.______ ter of authoriz or alternatively ntity” is author 33316 . FCC site, or b ced on approp ct on our beh CB). t includes F Further, no enefits, that Mi Huang _ name) zation must id y a statement rized to act on by the authoriz priate letterhea half, until o FCC benefit o party, as d includes FC ________ dentify those in must be provi n behalf of the zed agent if an ad. otherwise s, pursuant defined in 4 CC benefits ndividuals wit ided indicatin e applicant / n appropriate to 47 s. thin g

1 - 2 - 3 - Date: Ma rc h Subject: C o Pursuant to S S S S S S S S S *Note: ___ Bes tway ( H first of its ki advantage th financial har Perm anent The applica n review due t Sh ort-Ter m The applican period of __ Authorizatio or release of information documents l NOTE for I The applican Confidential Since rely, By : The asteriske require revie application. EUT is FUL damage to i n -Please refer t details. - Must be sign h 25, 2020 onfidentiality FCC 47 CR F application Type of C o Short Term Short Term Short Term Short Term Short Term Short Term Short Term Short Term Short Term ____(Insert E Hong Kong) I ind in industr hey have achi rdship. Confidenti a nt requests th to materials t m Confidenti nt requests th __(specify num on and prior t f the product regarding th e listed above f Industry Can nt understand lity, either typ _______ ed items (*) re ew by the FCC Further justif LY potted usi nternal circuitr to http://acbce ned by applica Request for: F 0.457(d) an be held confi onfidentiality P P P P P P P Explanation as nternational L ry. Having the ieved by deve ality: he exhibits lis that contain tr iality: he exhibits se mber of days to marketing. to the public e product or t for public dis nada Applic ds that until su pe of marked ___________ (Signature/T equire further j C under their P fication should ing a non-rem ry. See photo ert.com/docum ant contact giv Reque FCC ID：2A dd 0.459 idential. y Requested ermanent ermanent* 1 ermanent ermanent ermanent ermanent ermanent* s Necessary)_ Ltd. has spen e subject info eloping this p sted above as rade secrets a lected above s not to excee This is to av . Applicant i the product is closure pursu ations: uch time that d exhibit abov __________ Title 3 ) justification b Permit-But-As d be added to movable epoxy ographs exhibi ments/misc-do ven for applica est for Conf AS3R-10020 Exh i Bloc k Exter Intern Oper Parts Tun e Schem Test User ’ ______ nt substantial ormation easi product. Not p permanently and proprietar as short term ed 180) 2 ___ d void prematu is also aware s made availa uant to FCC P t IC distinguis ve will simply ___ before perman sk policy befo the note abov y based materi its that outline cs/Memo-Sho ant on the FCC fidentiality 5 bit k Diagrams rnal Photos nal Photos ation Descri p List & Place e-Up Procedu matics Setup Pho to s ’s Manual effort in dev e ly available t protecting the y confidential ry informatio m confidential days from the ure release of that they are able to the pu Public Notice shes between y be marked C _____Mi Hua (Print n nent confidenti ore the grant is ve. One such e al. Removal e the device be ort-Term-Vs-S C site, or by t the applicant ption/Theory ement/BOM ure s eloping this p to "competitio e details of th be permanen n not custom l be withheld date of the G sensitive info responsible t ublic. ACB w e DA 04-1705 n Short Term Confidential ang________ name) iality will be a s issued and c example for a of potting mat efore and after Standard-Conf the authorized requests that of Operation product and it on" would ne he design will ntly withheld marily released from public v Grant of Equip ormation prio to notify ACB will then relea 5. and Perman e when submit _________ allowed. The can delay com a potted device terial causes i r potting.” fidentiality.pd d agent if an ap t t a part of the n t is one of the egate the l result in from public d to the publi view for a pment or to marketin B in the event ase the ent tted to IC. se also curren mpletion of an e would be: “T irreparable df for comple ppropriate e c. ng t ntly The ete subject FCCC authorized ag gent letter has s been provide ed. Letters sh hould be placed d on appropri ate letterhead .

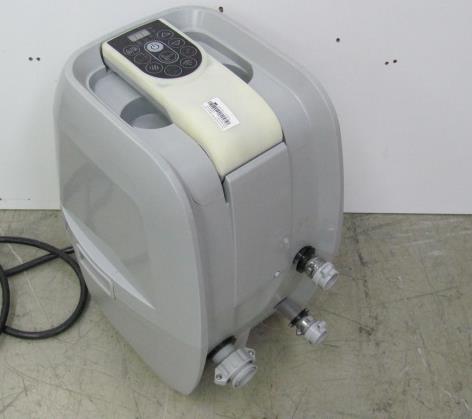

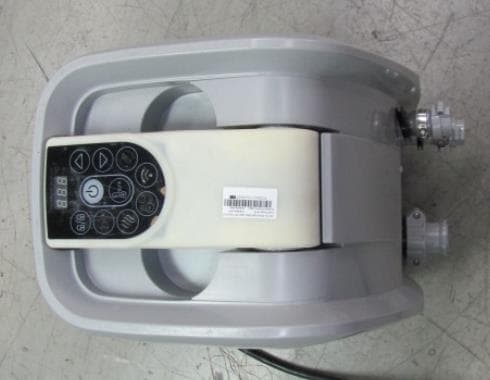

External photo

Label Size:11.2*7.2cm Location

Internal photo Antenna

Bestway (Hong Kong) International Ltd. MPE ASSESSMENT REPORT Report Type: FCC MPE assessment report Model: S100204, S100205 REPORT NUMBER: 191102629SHA-002 ISSUE DATE: March 25, 2020 DOCUMENT CONTROL NUMBER: TTRFFCCMPE-01_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCCMPE-01_V1© 2018 Intertek Page 2 of 8 Report no.: 191102629SHA-002 Applicant: Bestway (Hong Kong) International Ltd. SUITE 713, 7/FLOOR, EAST WING, TSIM SHA TSUI CENTRE, 66 MODY ROAD, KOWLOON, HONG KONG Manufacturer: Bestway (Hong Kong) International Ltd. SUITE 713, 7/FLOOR, EAST WING, TSIM SHA TSUI CENTRE, 66 MODY ROAD, KOWLOON, HONG KONG Factory: Bestway (Nantong) Recreation Corp. No. 8 Hui Min West Road, Economic Development Zone, Rugao, Jiangsu 226500, P.R. China FCC ID: 2AS3R-100205 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: KDB447498 D01 General RF Exposure Guidance v06 FCC Part2.1091, FCC Part2.1093 FCC Part1.1307(b) PREPARED BY: REVIEWED BY: Project Engineer Eric Li Reviewer Daniel Zhao Report No.: 191102629SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 3 of 8 Revision History Report No. Version Description Issued Date 191102629SHA-002 Rev. 01 Initial issue of report March 25, 2020 Report No.: 191102629SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 4 of 8 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test (EUT) Product name: SPA Type/Model: S100204, S100205 Description of EUT: EUT is a Wireless SPA with WiFi function, there are two models, both of them are the same except the plug of the power cord, the model of S100204 is for IC, the model of S100205 is for FCC, we test the model of S100205 as representative and list the worst results in this report. Rating: 100-120v~60Hz,12A Category of EUT: Class B EUT type: Tabletop Floor standing Software Version: / Hardware Version: / Sample received date: March 17, 2020 Date of test: March 18, 2020~ March 24, 2020 1.2 Technical Specification Frequency Range: 2400MHz ~ 2483.5MHz Support Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n(HT20) Type of Modulation: IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64-QAM, 16-QAM, QPSK, BPSK) IEEE 802.11n(HT20): OFDM (64-QAM, 16-QAM, QPSK, BPSK) Channel Number: 2412MHz to 2462MHz for IEEE 802.11b/g/n(HT20) Data Rate: 11 Channels for 802.11b, 802.11g and 802.11n(HT20) Channel Separation: 5 MHz Antenna Information: PCB Antenna, gain is 2.0dBi Report No.: 191102629SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 5 of 8 1.3 Description of Test Facility Name: Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Telephone: 86 21 61278200 Telefax: 86 21 54262353 The test facility is recognized, certified, or accredited by these organizations: CNAS Accreditation Lab Registration No. CNAS L0139 FCC Accredited Lab Designation Number: CN1175 IC Registration Lab Registration code No.: 2042B-1 VCCI Registration Lab Registration No.: R-4243, G-845, C-4723, T-2252 A2LA Accreditation Lab Certificate Number: 3309.02 Report No.: 191102629SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 6 of 8 2 MPE Assessment Test result: Pass 2.1 MPE Assessment Limit Mobile device exposure for standalone operations: Frequency range E-field strength (V/m) H-field strength (A/m) B-field (uT) Equivalent plane wave power density S eq (W/m 2 ) 0-1 Hz - 3,2 × 10 4 4 × 10 4 - 1-8 Hz 10 000 3,2 × 10 4 /f 2 4 × 10 4 /f 2 - 8-25 Hz 10 000 4 000/f 5 000/f - 0,025-0,8 kHz 250/f 4/f 5/f - 0,8-3 kHz 250/f 5 6,25 - 3-150 kHz 87 5 6,25 - 0,15-1 MHz 87 0,73/f 0,92/f - 1-10 MHz 87/f 1/2 0,73/f 0,92/f - 10-400 MHz 28 0,073 0,092 2 400-2 000 MHz 1,375 f 1/2 0,0037 f 1/2 0,0046 f 1/2 f/200 2-300 GHz 61 0,16 0,20 10 Mobile device exposure for simultaneous transmission operations: the sum of the MPE ratios for all simultaneously transmitting antennas incorporated in a host device is ≤ 1.0 Report No.: 191102629SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 7 of 8 2.2 Assessment Results Power density (S) is calculated according to the formula: S = P / (4πR²) Where S = power density in mW/cm² P = Radiated transmit power in mW G = numeric gain of transmit antenna R = distance (cm) As we can see from the test report 191102629SHA-001: The maximum radiated power = 15.54dBm = 35.81 mW; Here R is chosen to be 20cm, S = P / (4πR²) = 35.81 / (4 * 3.14 * 20 * 20) = 0.0071 mW/cm² < 1 mW/cm² Report No.: 191102629SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 8 of 8 Appendix I Definition below must be outlined in the User Manual: To satisfy FCC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recommended. ******************************************* END **********************…

Text truncated - open the document above for the full version.

Bestway (Hong Kong) International Ltd. RF TEST REPORT Report Type: FCC Part 15.247 & ISED RSS-247 RF report Model: S100204, S100205 REPORT NUMBER: 191102629SHA-001 ISSUE DATE: March 25, 2020 DOCUMENT CONTROL NUMBER: TTRF15.247-03_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRF15.247-03_V1 © 2018 Intertek Page 2 of 59 Report no.: 191102629SHA-001 Applicant: Bestway (Hong Kong) International Ltd. SUITE 713, 7/FLOOR, EAST WING, TSIM SHA TSUI CENTRE, 66 MODY ROAD, KOWLOON, HONG KONG Manufacturer: Bestway (Hong Kong) International Ltd. SUITE 713, 7/FLOOR, EAST WING, TSIM SHA TSUI CENTRE, 66 MODY ROAD, KOWLOON, HONG KONG Factory: Bestway (Nantong) Recreation Corp. No. 8 Hui Min West Road, Economic Development Zone, Rugao, Jiangsu 226500, P.R. China FCC ID: 2AS3R-100205 IC: 26017-100204 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: 47CFR Part 15 (2019): Radio Frequency Devices (Subpart C) ANSI C63.10 (2013): American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices RSS-247 Issue 2 (February 2017): Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices RSS-Gen Issue 5 (March 2019) Amendment 1: General Requirements for Compliance of Radio Apparatus PREPARED BY: REVIEWED BY: Project Engineer Eric Li Reviewer Daniel Zhao Report No.: 191102629SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 3 of 59 Content REVISION HISTORY................................................................................................................................................ 5 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 6 1 GENERAL INFORMATION ............................................................................................................................. 7 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ..................................................................................................... 7 1.2 TECHNICAL SPECIFICATION .................................................................................................................................... 7 1.3 DESCRIPTION OF TEST FACILITY .............................................................................................................................. 8 2 TEST SPECIFICATIONS ................................................................................................................................... 9 2.1 STANDARDS OR SPECIFICATION ............................................................................................................................... 9 2.2 MODE OF OPERATION DURING THE TEST ................................................................................................................... 9 2.3 TEST SOFTWARE LIST .......................................................................................................................................... 10 2.4 TEST PERIPHERALS LIST ....................................................................................................................................... 10 2.5 TEST ENVIRONMENT CONDITION: .......................................................................................................................... 10 2.6 INSTRUMENT LIST .............................................................................................................................................. 11 2.7 MEASUREMENT UNCERTAINTY ............................................................................................................................. 13 3 MINIMUM 6DB BANDWIDTH ..................................................................................................................... 14 3.1 LIMIT .............................................................................................................................................................. 14 3.2 MEASUREMENT PROCEDURE ............................................................................................................................... 14 3.3 TEST CONFIGURATION ........................................................................................................................................ 14 3.4 TEST RESULTS OF MINIMUM 6DB BANDWIDTH ....................................................................................................... 14 4 MAXIMUM CONDUCTED OUTPUT POWER AND E.I.R.P. ............................................................................. 15 4.1 LIMIT .............................................................................................................................................................. 15 4.2 MEASUREMENT PROCEDURE .........................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 191102629SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 48 of 59 802.11n(HT20),2462MHz,Ant0 Report No.: 191102629SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 49 of 59 6. Emission outside the frequency band 6.1 Test Data WLAN Transmitter Spurious Emission Mode Test Frequency (MHz) Ant Plot No. Frequency Range Emission (dBm) Result 802.11b 2412 Ant0 1 Reference Level 7.59 Pass 802.11b 2412 Ant0 2 Band Edge -40.82 Pass 802.11b 2412 Ant0 3 30MHz~2310MHz -56.52 Pass 802.11b 2412 Ant0 4 2500MHz~5000MHz -46.76 Pass 802.11b 2412 Ant0 5 5000MHz~15000MHz -53.63 Pass 802.11b 2412 Ant0 6 15000MHz~25000MHz -47.05 Pass 802.11b 2437 Ant0 1 Reference Level 7.52 Pass 802.11b 2437 Ant0 2 Band Edge -53.78 Pass 802.11b 2437 Ant0 3 30MHz~2310MHz -56.09 Pass 802.11b 2437 Ant0 4 2500MHz~5000MHz -45.10 Pass 802.11b 2437 Ant0 5 5000MHz~15000MHz -53.07 Pass 802.11b 2437 Ant0 6 15000MHz~25000MHz -47.27 Pass 802.11b 2462 Ant0 1 Reference Level 7.39 Pass 802.11b 2462 Ant0 2 Band Edge -52.63 Pass 802.11b 2462 Ant0 3 30MHz~2310MHz -56.21 Pass 802.11b 2462 Ant0 4 2500MHz~5000MHz -45.94 Pass 802.11b 2462 Ant0 5 5000MHz~15000MHz -53.45 Pass 802.11b 2462 Ant0 6 15000MHz~25000MHz -47.05 Pass 802.11g 2412 Ant0 1 Reference Level 4.85 Pass 802.11g 2412 Ant0 2 Band Edge -28.94 Pass 802.11g 2412 Ant0 3 30MHz~2310MHz -56.49 Pass 802.11g 2412 Ant0 4 2500MHz~5000MHz -48.18 Pass 802.11g 2412 Ant0 5 5000MHz~15000MHz -53.90 Pass 802.11g 2412 Ant0 6 15000MHz~25000MHz -47.15 Pass 802.11g 2437 Ant0 1 Reference Level 4.84 Pass 802.11g 2437 Ant0 2 Band Edge -52.30 Pass Report No.: 191102629SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 50 of 59 802.11g 2437 Ant0 3 30MHz~2310MHz -56.33 Pass 802.11g 2437 Ant0 4 2500MHz~5000MHz -49.18 Pass 802.11g 2437 Ant0 5 5000MHz~15000MHz -53.13 Pass 802.11g 2437 Ant0 6 15000MHz~25000MHz -46.98 Pass 802.11g 2462 Ant0 1 Reference Level 4.48 Pass 802.11g 2462 Ant0 2 Band Edge -38.53 Pass 802.11g 2462 Ant0 3 30MHz~2310MHz -56.30 Pass 802.11g 2462 Ant0 4 2500MHz~5000MHz -47.44 Pass 802.11g 2462 Ant0 5 5000MHz~15000MHz -53.47 Pass 802.11g 2462 Ant0 6 15000MHz~25000MHz -47.86 Pass 802.11n (HT20) 2412 Ant0 1 Reference Level 4.06 Pass 802.11n (HT20) 2412 Ant0 2 Band Edge -30.21 Pass 802.11n (HT20) 2412 Ant0 3 30MHz~2310MHz -55.90 Pass 802.11n (HT20) 2412 Ant0 4 2500MHz~5000MHz -48.10 Pass 802.11n (HT20) 2412 Ant0 5 5000MHz~15000MHz -53.85 Pass 802.11n (HT20) 2412 Ant0 6 15000MHz~25000MHz -47.76 Pass 802.11n (HT20) 2437 Ant0 1 Reference Level 4.14 Pass 802.11n (HT20) 2437 Ant0 2 Band Edge -51.22 Pass 802.11n (HT20) 2437 Ant0 3 30MHz~2310MHz -56.58 Pass 802.11n (HT20) 2437 Ant0 4 2500MHz~5000MHz -48.95 Pass 802.11n (HT20) 2437 Ant0 5 5000MHz~15000MHz -52.90 Pass 802.11n (HT20) 2437 Ant0 6 15000MHz~25000MHz -47.28 Pass 802.11n (HT20) 2462 Ant0 1 Reference Level 3.73 Pass 802.11n (HT20) 2462 Ant0 2 Band Edge -38.23 Pass 802.11n (HT20) 2462 Ant0 3 30MHz~2310MHz -57.43 Pass 802.11n (HT20) 2462 Ant0 4 2500MHz~5000MHz -47.02 Pass 802.11n (HT20) 2462 Ant0 5 5000MHz~15000MHz -53.44 Pass 802.11n (HT20) 2462 Ant0 6 15000MHz~25000MHz -47.31 Pass Report No.: 191102629SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 51 of 59 9.2 Test Plots 802.11b,2412MHz,Ant0,Plot 1,Reference Level 802.11b,2412MHz,Ant0,Plot 2,Band Edge 802.11b,2412MHz,Ant0,Plot 3,30MHz~231 0MHz 802.11b,2412MHz,Ant0,Plot 4,2500MHz~5 000MHz 802.11b,2412MHz,Ant0,Plot 5,5000MHz~1 5000MHz 802.11b,2412MHz,Ant0,Plot 6,15000MHz~ 25000MHz 802.11b,2437MHz,Ant0,Plot 1,Reference Level 802.11b,2437MHz,Ant0,Plot 2,Band Edge Report No.: 191102629SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 52 of 59 802.11b,2437MHz,Ant0,Plot 3,30MHz~231 0MHz 802.11b,2437MHz,Ant0,Plot 4,2500MHz~5 000MHz 802.11b,2437MHz,Ant0,Plot 5,5000MHz~1 5000MHz 802.11b,2437MHz,Ant0,Plot 6,15000MHz~ 25000MHz 802.11b,2462MHz,Ant0,Plot 1,Reference Level 802.11b,2462MHz,Ant0,Plot 2,Band Edge Report No.: 191102629SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 53 of 59 802.11b,2462MHz,Ant0,Plot 3,30MHz~231 0MHz 802.11b,2462MHz,Ant0,Plot 4,2500MHz~5 000MHz 802.11b,2462MHz,Ant0,Plot 5,5000MHz~1 5000MHz 802.11b,2462MHz,Ant0,Plot 6,15000MHz~ 25000MHz 802.11g,2412MHz,Ant0,Plot 1,Reference Level 802.11g,2412MHz,Ant0,Plot 2,Band Edge Report No.: 191102629SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 54 of 59 802.11g,2412MHz,Ant0,Plot 3,30MHz~231 0MHz 802.11g,2412MHz,Ant0,Plot 4,2500MHz~5 000MHz 802.11g,2412MHz,Ant0,Plot 5,5000MHz~1 5000MHz 802.11g,2412MHz,Ant0,Plot 6,15000MHz~ 25000MHz 802.11g,2437MHz,Ant0,Plot 1,Reference Level 802.11g,2437MHz,Ant0,Plot 2,Band Edge Report No.: 191102629SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 55 of 59 802.11g,2437MHz,Ant0,Plot 3,30MHz~231 0MHz 802.11g,2437MHz,Ant0,Plot 4,2500MHz~5 000MHz 802.11g,2437MHz,Ant0,Plot 5,5000MHz~1 5000MHz 802.11g,2437MHz,Ant0,Plot 6,15000MHz~ 25000MHz 802.11g,2462MHz,Ant0,Plot 1,Reference Level 802.11g,2462MHz,Ant0,Plot 2,Band Edge Report No.: 191102629SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 56 of 59 802.11g,2462MHz,Ant0,Plot 3,30MHz~231 0MHz 802.11g,2462MHz,Ant0,Plot 4,2500MHz~5 000MHz 802.11g,2462MHz,Ant0,Plot 5,5000MHz~1 5000MHz 802.11g,2462MHz,Ant0,Plot 6,15000MHz~ 25000MHz 802.11n(HT20),2412MHz,Ant0,Plot 1,Refer…

Text truncated - open the document above for the full version.
