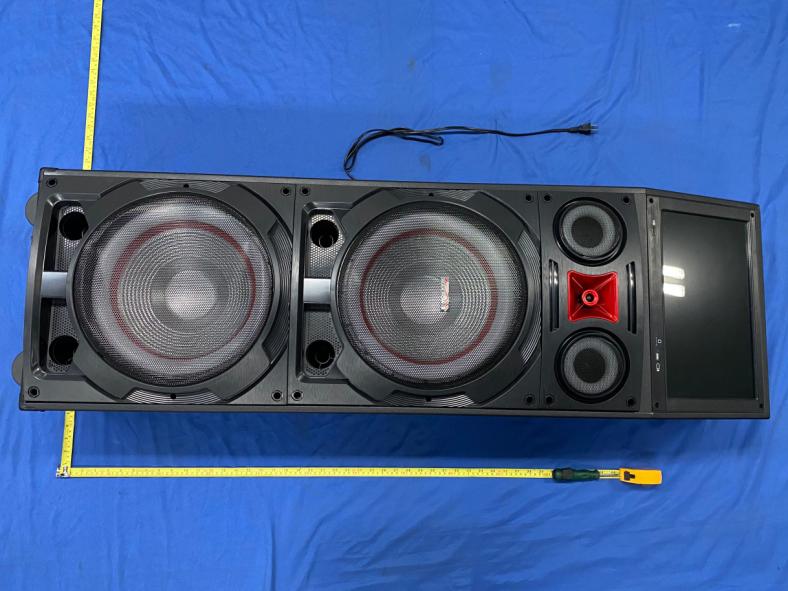

FCC-ID: 2AS7H-MPD106TS Page 1 of 2 Report No.: CTL2105281041-WF External Photos of EUT FCC-ID: 2AS7H-MPD106TS Page 2 of 2 Report No.: CTL2105281041-WF

FCC-ID: 2AS7H-MPD106TS Page 1 of 1 Report No.: CTL2105281041-WF FCC-ID Label Information 1. Label location: Muilti-speaker Model: MPD106TS FCC: 2AS7H-MPD106TS This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC-ID: 2AS7H-MPD106TS Page 1 of 5 Report No.: CTL2105281041-WF Internal Photos of EUT FCC-ID: 2AS7H-MPD106TS Page 2 of 5 Report No.: CTL2105281041-WF FCC-ID: 2AS7H-MPD106TS Page 3 of 5 Report No.: CTL2105281041-WF FCC-ID: 2AS7H-MPD106TS Page 4 of 5 Report No.: CTL2105281041-WF Antenna FCC-ID: 2AS7H-MPD106TS Page 5 of 5 Report No.: CTL2105281041-WF

version01 GUANGZHOU MAITENG TECHNOLOGY CO., LTD. XIPU WEST STREET NO.21, SHIMA VILLAGE, JUNHE STREET, BAIYUN DISTRICT, GUANGZHOU,CHINA Tel: +86-18319495527Fax: +86-18319495527 Declaration concerning Antenna Specification It is hereby declared that the product Model No.: MPD106TS，MPD23L, MPD121TS, MPD123TS, MPD126TS, MPD127TS, MPD12201TS, MPD12203TS, MPD12204TS, MPD12205TS, MPD12206TS , MPD12207TS, MPD12208TS, MPD12209TS, MPD6012TS, MPD6413TS, MPD6412TS, MPD1066TS, MPD124B, MPD1039B, MPD1212DVM, MPD1038B, MPD128TS, MPD125TS, MPD129TS, MPD612TS, MPD1067TS, MPD1068TS, MPD6414TS, MPD6415TS, MPD6416TS, MPD1069TS, MPD1068TS, MPD1067TS, MPD10214B, MPD1244B, MPD1245B, MPD103B, MPD1037B, MPD1023B, PS-2151, PS-2152, PS- 2121, BXS-4500, SBX-212W, SBX-412207BT FCC ID: 2AS7H-MPD106TS fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for PCB antenna type(s) described below: Model No. of antenna: N/A Type of antenna: PCBAntenna Gain of the antenna: 0dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: GUANGZHOU MAITENG TECHNOLOGY CO., LTD. Address: XIPU WEST STREET NO.21, SHIMA VILLAGE, JUNHE STREET, BAIYUN DISTRICT, GUANGZHOU,CHINA City: GUANGZHOU ZIP / Postal code: Country: CHINA Place: Cindy Yao Date: 2021-06-02 Signature:

FCC-ID: 2AS7H-MPD106TS Page 1 of 1 Report No.: CTL2105281041-WF RF Exposure Letter According to 447498 D01 General RF Exposure Guidance v05 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Pt =0.70dBm=1.1749mW at 2402MHz So (1.1749mW/5mm)x√2.402GHz =0.3642<3 Then SAR evaluation is not required

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] FCC ID：2AS7H-MPD106TS Appendix for 15.247 1. Bandwidth 1.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 20dB Bandwidth Verdict Test Result (MHz) GFSK 2402 SISO 1 0.905 PASS 2441 SISO 1 0.904 PASS 2480 SISO 1 0.902 PASS Pi/4DQPSK 2402 SISO 1 1.286 PASS 2441 SISO 1 1.294 PASS 2480 SISO 1 1.300 PASS 8DPSK 2402 SISO 1 1.269 PASS 2441 SISO 1 1.277 PASS 2480 SISO 1 1.278 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) GFSK 2402 SISO 1 0.871 Only for Report Use 2441 SISO 1 0.873 Only for Report Use 2480 SISO 1 0.868 Only for Report Use Pi/4DQPSK 2402 SISO 1 1.183 Only for Report Use 2441 SISO 1 1.183 Only for Report Use 2480 SISO 1 1.184 Only for Report Use 8DPSK 2402 SISO 1 1.174 Only for Report Use 2441 SISO 1 1.178 Only for Report Use 2480 SISO 1 1.176 Only for Report Use 1.2 Test Graph - 20dB Bandwidth Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] 1.3 Test Graph - 99% Occupied Bandwidth Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] 2. Maximum Conducted Output Power 2.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 GFSK 2402 SISO -1.26 30 PASS 2441 SISO -3.17 30 PASS 2480 SISO -5.85 30 PASS Pi/4DQPSK 2402 SISO -2.04 20.97 PASS 2441 SISO -3.16 20.97 PASS 2480 SISO -5.86 20.97 PASS 8DPSK 2402 SISO 0.70 20.97 PASS 2441 SISO -1.11 20.97 PASS 2480 SISO -4.00 20.97 PASS 2.2 Test Graph Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] 3. Carrier frequency separation 3.1 Test Result Test Mode TX Type ANT No. Channel Separation (MHz) 20dB Bandwidth (MHz) Limits (MHz) Verdict GFSK SISO 1 1.010 0.905 ≥0.905 PASS Pi/4DQPSK SISO 1 0.993 1.300 ≥0.867 PASS 8DPSK SISO 1 0.999 1.278 ≥0.852 PASS 3.2 Test Graph Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] 4. Number of hopping frequencies 4.1 Test Result Test Mode TX Type ANT No. Num of Hopping Frequencies Limits Verdict GFSK SISO 1 79 ≥15 PASS Pi/4DQPSK SISO 1 79 ≥15 PASS 8DPSK SISO 1 79 ≥15 PASS 4.2 Test Graph Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] 5. Time of Occupancy (Dwell Time) 5.1 Test Result Test Mode Packet Type TX Type ANT No. Duration of Single Pulse (ms) Obeservat ion Period (s) Num of Pulse in Observation Period Dwell Time (ms) Limits (ms) Verdict GFSK DH1 SISO 1 0.397 31.6 315 125.055 ≤400 PASS DH3 SISO 1 1.662 31.6 175 290.850 ≤400 PASS DH5 SISO 1 3.139 31.6 94 295.066 ≤400 PASS Pi/4DQ PSK 2DH1 SISO 1 0.406 31.6 314 127.484 ≤400 PASS 2DH3 SISO 1 0.635 31.6 174 110.490 ≤400 PASS 2DH5 SISO 1 0.858 31.6 101 86.658 ≤400 PASS 8DPSK 3DH1 SISO 1 0.405 31.6 314 127.170 ≤400 PASS 3DH3 SISO 1 1.888 31.6 173 326.624 ≤400 PASS 3DH5 SISO 1 0.834 31.6 105 87.570 ≤400 PASS 5.2 Test Graph Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] 6. Unwanted Emissions in Non-restricted Frequency Bands 6.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict GFSK 2402 SISO 1 Refer to test graph -21.72 PASS 2441 SISO 1 Refer to test graph -21.72 PASS 2480 SISO 1 Refer to test graph -21.72 PASS Hopping SISO 1 Refer to test graph -21.72 PASS Pi/4DQPSK 2402 SISO 1 Refer to test …

Text truncated - open the document above for the full version.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No.: CTL2105281041-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Gray Gao (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : Muilti-speaker Model/Type reference ................ : MPD106TS List Model(s) ............................... : See the next page Trade Mark .................................. : NON FCC ID ......................................... : 2AS7H-MPD106TS Applicant’s name ....................... : GUANGZHOU MAITENG TECHNOLOGY CO., LTD. Address of applicant ................. : XIPU WEST STREET NO.21, SHIMA VILLAGE, JUNHE STREET, BAIYUN DISTRICT, GUANGZHOU,CHINA Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : May. 31, 2021 Date of sampling ........................ : May. 31, 2021 Date of Test Date ........................ : May. 31, 2021-May. 31, 2021 Date of Issue .............................. : Jun. 01, 2021 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 36 Report No.: CTL2105281041-WF TEST REPORT Test Report No. : CTL2105281041-WF Jun. 01, 2021 Date of issue Equipment under Test : Muilti-speaker Sample No : CTL210528104-1-S001 Model /Type : MPD106TS Listed Models : MPD23L, MPD121TS, MPD123TS, MPD126TS, MPD127TS, MPD12201TS, MPD12203TS, MPD12204TS, MPD12205TS, MPD12206TS , MPD12207TS, MPD12208TS, MPD12209TS, MPD6012TS, MPD6413TS, MPD6412TS, MPD1066TS, MPD124B, MPD1039B, MPD1212DVM, MPD1038B, MPD128TS, MPD125TS, MPD129TS, MPD612TS, MPD1067TS, MPD1068TS, MPD6414TS, MPD6415TS, MPD6416TS, MPD1069TS, MPD1068TS, MPD1067TS, MPD10214B, MPD1244B, MPD1245B, MPD103B, MPD1037B, MPD1023B, PS-2151, PS-2152, PS-2121, BXS-4500, SBX-212W, SBX-412207BT Applicant : GUANGZHOU MAITENG TECHNOLOGY CO., LTD. Address : XIPU WEST STREET NO.21, SHIMA VILLAGE, JUNHE STREET, BAIYUN DISTRICT, GUANGZHOU,CHINA Manufacturer : GUANGZHOU MAITENG TECHNOLOGY CO., LTD. Address : XIPU WEST STREET NO.21, SHIMA VILLAGE, JUNHE STREET, BAIYUN DISTRICT, GUANGZHOU,CHINA Test result Pass * *In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 36 Report No.: CTL2105281041-WF ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2021-06-01 CTL2105281041-WF Tracy Qi V1.0 Page 4 of 36 Report No.: CTL2105281041-WF Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 9 2.4. EQUIPMENTS USED DURING THE TEST ............................................................................................................................ 10 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 11 3.1. COND…
