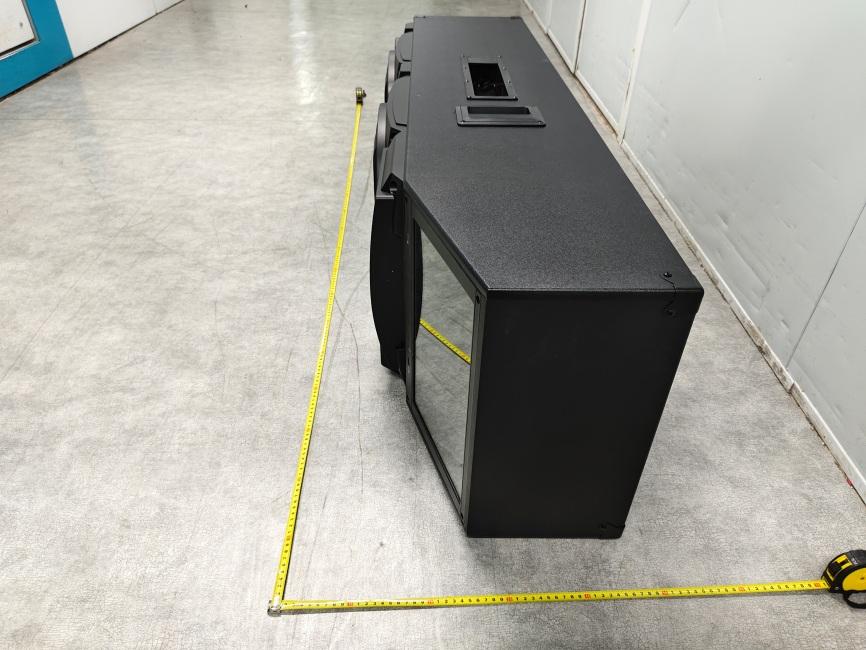

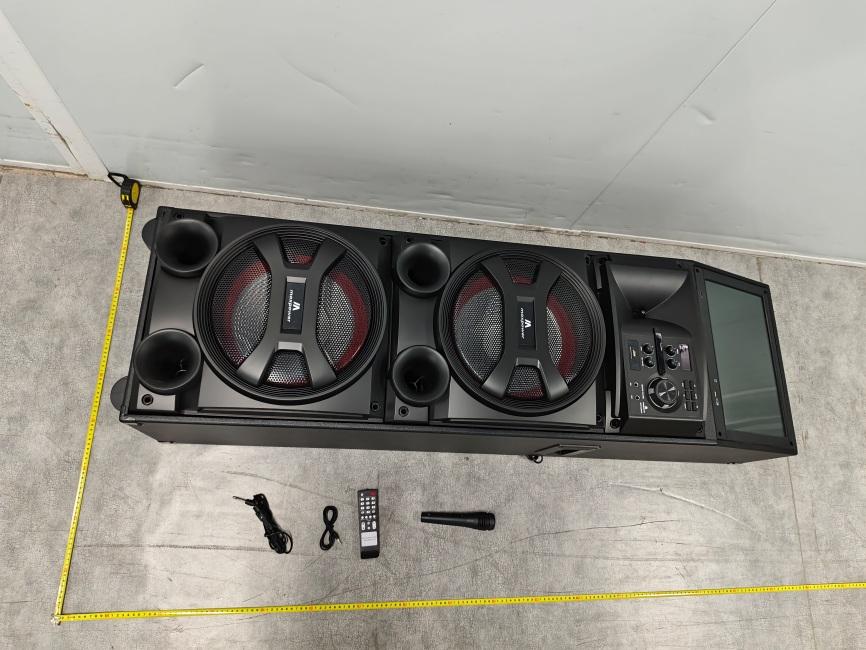

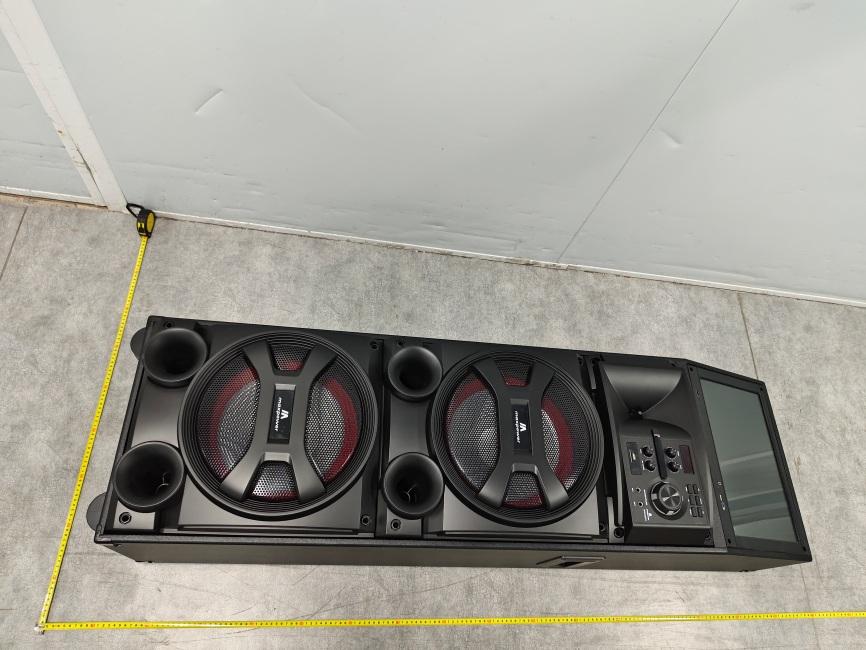

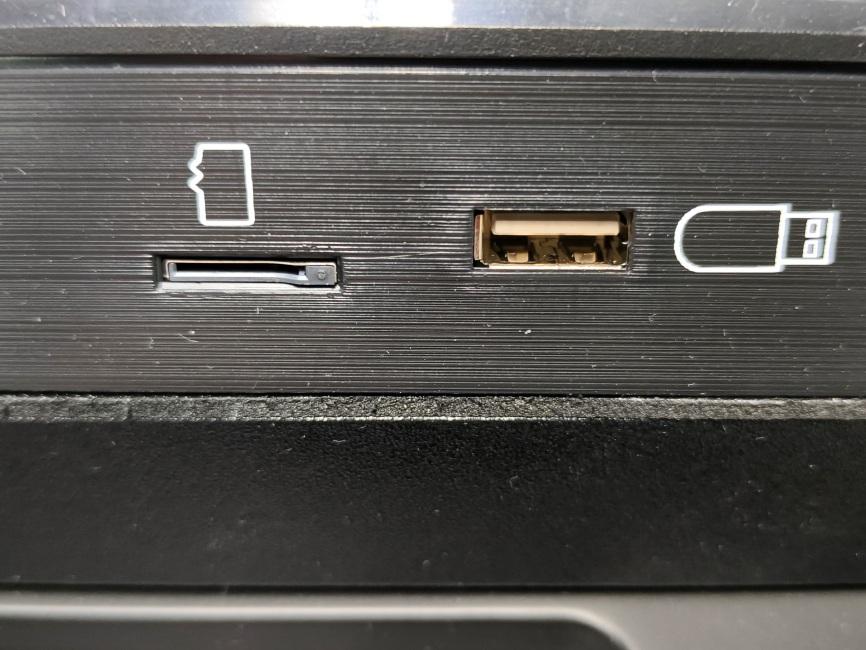

FCC ID: 2AS7H-MT1523TS Page 1 of 4 Report No.: CTL2311131031-WF External Photos of EUT FCC ID: 2AS7H-MT1523TS Page 2 of 4 Report No.: CTL2311131031-WF FCC ID: 2AS7H-MT1523TS Page 3 of 4 Report No.: CTL2311131031-WF FCC ID: 2AS7H-MT1523TS Page 4 of 4 Report No.: CTL2311131031-WF

FCC ID: 2AS7H-MT1523TS Page 1 of 1 Report No.: CTL2311131031-WF FCC ID Label Information Label location: Model: MPD12209TS FCC ID : 2AS7H-MT1523TS Note: Label material is transparent PET, glue material is self-adhesive material; 25 square transparent dragon, water glue, plus light film. Not easy to drop.

FCC ID: 2AS7H-MT1523TS Page 1 of 9 Report No.: CTL2311131031-WF Internal Photos of EUT BT Antenna FCC ID: 2AS7H-MT1523TS Page 2 of 9 Report No.: CTL2311131031-WF FCC ID: 2AS7H-MT1523TS Page 3 of 9 Report No.: CTL2311131031-WF FCC ID: 2AS7H-MT1523TS Page 4 of 9 Report No.: CTL2311131031-WF FCC ID: 2AS7H-MT1523TS Page 5 of 9 Report No.: CTL2311131031-WF FCC ID: 2AS7H-MT1523TS Page 6 of 9 Report No.: CTL2311131031-WF FCC ID: 2AS7H-MT1523TS Page 7 of 9 Report No.: CTL2311131031-WF WiFi Antenna FCC ID: 2AS7H-MT1523TS Page 8 of 9 Report No.: CTL2311131031-WF WiFi Chip FCC ID: 2AS7H-MT1523TS Page 9 of 9 Report No.: CTL2311131031-WF

GUANGZHOU MAITENG TECHNOLOGY CO.,LTD 2AS7H-MT1523TS Page 1 of 5 Report No.: CTL2311131031-WF FCC RF Exposure Evaluation 1. Product Information FCC ID 2AS7H-MT1523TS Product Name SPEAKER Test Model MPD12209TS Power Supply AC120V / 60Hz, Modulation Type Bluetooth:GFSK, π/4DQPSK, 8DPSK 2.4G WIFI: 802.11b: DSSS 802.11g/802.11n(H20): OFDM Antenna Type Bluetooth:PCB Antenna 2.4G WIFI: PIFA Antenna Antenna Gain Bluetooth: 1.7dBi 2.4G WIFI: 2.16dBi Frequency Range Bluetooth :2402MHz~2480MHz 2.4G WIFI: 2412MHz~2462MHz Exposure Category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method and Limit Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 4. Limit 3.1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit GUANGZHOU MAITENG TECHNOLOGY CO.,LTD 2AS7H-MT1523TS Page 2 of 5 Report No.: CTL2311131031-WF Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density F=frequency in MHz *=Plane-wave equivalent power density MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information 100043851 can only use antennas certificated as follows provided by manufacturer; Antenna type and antenna number Operate frequency band Maximum antenna gain Note PCB Antenna 2402 MHz – 2480 MHz 1.7dBi Bluetooth Antenna PIFA Antenna 2412 MHz – 2462 MHz 2.16dBi WiFi Antenna 6.Conducted Power Results GUANGZHOU MAITENG TECHNOLOGY CO.,LTD 2AS7H-MT1523TS Page 3 of 5 Report No.: CTL2311131031-WF [BT] Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 0.87 39 2441 -0.19 78 2480 -1.65 π/4DQPSK 0 2402 3.22 39 2441 2.15 78 2480 0.69 8DPSK 0 2402 3.75 39 2441 2.69 78 2480 1.21 2.4G WiFi Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) 802.11b SISO 2412 9.51 2437 10.27 2462 10.19 802.11g SISO 2412 9.42 2437 10.15 2462 9.97 802.11n (HT20) SISO 2412 9.19 2437 9.97 2462 9.81 7.Manufacturing Tolerance <BT > GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1 0 -2 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK(Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 3 2 1 Tolerance ±(dB) 1.0 1.0 1.0 8DPSK(Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 4 3 1 Tolerance ±(dB) 1.0 1.0 1.0 GUANGZHOU MAITENG TECHNOLOGY CO.,LTD 2AS7H-MT1523TS Page 4 of 5 Report No.: CTL2311131031-WF <2.4GWiFi > 802.11b (Peak) Channel Channel1 Channel 6 Channel 11 Target (dBm) 10 10 10 Tolerance ±(dB) 1.0 1.0 1.0 802.11g (Peak) Channel Channel1 Channel 6 Channel 11 Target (dBm) 9 10 10 Tolerance ±(dB) 1.0 1.0 1.0 802.11n(HT20) (Peak) Channel Channel1 Channel 6 Channel 11 Target (dBm) 9 10 10 Tolerance ±(dB) 1.0 1.0 1.0 8. Evaluation Results 8.1 Standalone MPE As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. BT Modulation Type Output power Antenna Gain (…

Text truncated - open the document above for the full version.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] 1. Bandwidth 1.1 OBW 1.1.1 Test Result Mode TX Type Frequency (MHz) Packet Type ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.817 / Pass 2441 DH5 1 0.817 / Pass 2480 DH5 1 0.817 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.171 / Pass 2441 2DH5 1 1.172 / Pass 2480 2DH5 1 1.173 / Pass 8DPSK SISO 2402 3DH5 1 1.174 / Pass 2441 3DH5 1 1.174 / Pass 2480 3DH5 1 1.174 / Pass V1.0 Page 2 of 52 Report No.: CTL2311131031-WF01 1.1.2 Test Graph GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV V1.0 Page 3 of 52 Report No.: CTL2311131031-WF01 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV V1.0 Page 4 of 52 Report No.: CTL2311131031-WF01 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV V1.0 Page 5 of 52 Report No.: CTL2311131031-WF01 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV V1.0 Page 6 of 52 Report No.: CTL2311131031-WF01 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV V1.0 Page 7 of 52 Report No.: CTL2311131031-WF01 1.2 20dB BW 1.2.1 Test Result Mode TX Type Frequency (MHz) Packet Type ANT 20dB Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.951 / Pass 2441 DH5 1 0.948 / Pass 2480 DH5 1 0.948 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.326 / Pass 2441 2DH5 1 1.322 / Pass 2480 2DH5 1 1.327 / Pass 8DPSK SISO 2402 3DH5 1 1.310 / Pass 2441 3DH5 1 1.317 / Pass 2480 3DH5 1 1.309 / Pass V1.0 Page 8 of 52 Report No.: CTL2311131031-WF01 1.2.2 Test Graph GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV V1.0 Page 9 of 52 Report No.: CTL2311131031-WF01 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV V1.0 Page 10 of 52 Report No.: CTL2311131031-WF01 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV V1.0 Page 11 of 52 Report No.: CTL2311131031-WF01 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV V1.0 Page 12 of 52 Report No.: CTL2311131031-WF01 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV V1.0 Page 13 of 52 Report No.: CTL2311131031-WF01 2. Maximum Conducted Output Power 2.1 Power 2.1.1 Test Result Mode TX Type Frequency (MHz) Packet Type Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit GFSK SISO 2402 DH5 0.87 <=30 Pass 2441 DH5 -0.19 <=30 Pass 2480 DH5 -1.65 <=30 Pass Pi/4DQPSK SISO 2402 2DH5 3.22 <=20.97 Pass 2441 2DH5 2.15 <=20.97 Pass 2480 2DH5 0.69 <=20.97 Pass 8DPSK SISO 2402 3DH5 3.75 <=20.97 Pass 2441 3DH5 2.69 <=20.97 Pass 2480 3DH5 1.21 <=20.97 Pass Note1: Antenna Gain: Ant1: 1.70dBi; V1.0 Page 14 of 52 Report No.: CTL2311131031-WF01 2.1.2 Test Graph GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV V1.0 Page 15 of 52 Report No.: CTL2311131031-WF01 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV V1.0 Page 16 of 52 Report No.: CTL2311131031-WF01 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV V1.0 Page 17 of 52 Report No.: CTL2311131031-WF01 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV V1.0 Page 18 of 52 Report No.: CTL2311131031-WF01 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV V1.0 Page 19 of 52 Report No.: CTL2311131031-WF01 3. Carrier Frequency Separation 3.1 Ant1 3.1.1 Test Result Ant1 Mode TX Type Frequency (MHz) Packet Type Channel Separation (MHz) 20dB Bandwidth (MHz) Limit (MHz) Verdict GFSK SISO HOPP DH5 1.004 0.951 >=0.951 Pass Pi/4DQPSK SISO HOPP 2DH5 1.010 1.327 >=0.885 Pass 8DPSK SISO HOPP 3DH5 1.001 1.317 >=0.878 Pass V1.0 Page 20 of 52 Report No.: CTL2311131031-WF01 3.1.2 Test Graph GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV V1.0 Page 21 of 52 Report No.: CTL2311131031-WF01 8DPSK_3DH5_HOPP_Ant1_NTNV V1.0 Page 22 of 52 Report No.: CTL2311131031-WF01 4. Number of Hopping Frequencies 4.1 HoppNum 4.1.1 Test Result Mode TX Type Frequency (MHz) Packet Type Num of Hopping Frequencies Verdict ANT1 Limit GFSK SISO HOPP DH5 79 >=15 Pass Pi/4DQPSK SISO HOPP 2DH5 79 >=15 Pass 8DPSK SISO HOPP 3DH5 79 >=15 Pass V1.0 Page 23 of 52 Report No.: CTL2311131031-WF01 4.1.2 Test Graph GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV V1.0 Page 24 of 52 Report No.: CTL2311131031-WF01 8DPSK_3DH5_HOPP_Ant1_NTNV V1.0 Page 25 of 52 Report No.: CTL2311131031-WF01 5. Time of Occupancy (Dwell Time) 5.1 Ant1 5.1.1 Test Result Ant1 Mode TX Type Frequency (MHz) Packet Type Duration of Single Pulse (ms) Observation Period (s) Num of Pulse in Observation Period Dwell Time (ms) Limit (ms) Verdict GFSK SISO HOPP DH1 0.404 31.600 320 129.280 <=400 Pass DH3 1.656 31.600 165 273.240 <=400 Pass DH5 2.910 31.600 94 273.540 <=400 Pass Pi/4DQPSK SISO HOPP 2DH1 0.396 31.600 320 126.720 <=400 Pass 2DH3 1.668 31.600 165 275.220 <=400 Pass 2DH5 2.896 31.600 111 321.456 <=400 Pass 8DPSK SISO HOPP 3DH1 0.412 31.600 320 131.840 <=400 Pass 3DH3 1.668 31.600 165 275.220 <=400 Pass 3DH5 2.918 31.600 106 309.308 <=400 Pass V1.0 Page 26 of 52 Report No.: CTL2311131031-WF01 5.1.2 Test Graph GFSK_DH1_HOPP_Ant1_NTNV GFSK_DH1_HOPP_Ant1_NTNV V1.0 Page 27 of 52 Report No.: CTL2311131031-WF01 GFSK_DH3_HOPP_Ant1_NTNV GFSK_DH3_HOPP_Ant1_NTNV V1.0 Page 28 of 52 Report No.: CTL2311131031-WF01 GFSK_DH5_HOPP_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV V1.0 Page 29 of 52 Report No.: CTL2311131031-WF01 Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV V1.0 Page 30 of 52 Report No.: CTL2311131031-WF01 Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV V1.0 Page 31 of 52 Report No.: CTL2311131031-WF01 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV V1.0 Page 32 of 52 Report No.: CTL2311131031-WF01 8DPSK_3DH1_HOPP_Ant1_NTNV 8DPSK_3DH1_HOPP_Ant1_NTNV V1.0 Page 33 of 52 Report No.: CTL2311131031-WF01 8DPSK_3DH3_HOPP_Ant1_NTNV 8DPSK_3DH3_HOPP_Ant1_NTNV V1.0 Page 34 of 52 Report No.: CTL2311131031-WF01 8DPSK_3DH5_HOPP_Ant1_NTNV 8DPSK_3DH5_HOPP_Ant1_NTNV V1.0 Page 35 of 52 Report No.: CTL2311131031-WF01 6. Unwanted Emissions In Non-restricted Frequency Bands 6.1 Ref 6.1.1 Test Result Mode TX Type Frequency (MHz) Pa…
