2AS9402SGW111X BLE module

SGW111X BLE Modules Series Datasheet SGW111X BLE Modules Series Datasheet Page 2 of 25 1. Introduction The SGW111X series of pre-certified multiprotocol SoM enables Bluetooth 5.0/Bluetooth Low Energy (BLE) connectivity for portable and extremely low power embedded systems. Powered by Nordic’s nRF52840 Bluetooth® 5/BLE SoC, the SGW111X BLE Module can be easily applicable to popular development platforms to facilitate the building of smart devices fast at optimized cost. The highly flexible, ultra-low power SGW111X BLE Module features a small form factor of 10.2mm x 14.1mm x 1.9mm, and 128-bit AES hardware encryption which ensures best-in-class security for data transmission. This advanced BLE module series greatly facilitates IoT applications including connected home, smart industry, smart transport and logistics, etc. 2. Features o Complete RF solution with integrated antenna or u.FL connector as external antenna o Bluetooth 5 ready multi-protocol module: • 2Mbps • Long Range • Advertising Extension support o Wireless System-on-Chip - Nordic nRF52840: • 32Mbit ARM CortexTM – M4F CPU @64MHz • 1MB Flash program memory • 256kB RAM data memory o Wide selection of MCU Peripherals: • Full-speed USB (12Mbps) • Four SPI Master/Slave (8Mbps) • Two 2-wire Master/Slave (I2C compatible) • Two UARTs (with CTS/RTS) • NFC Tag-A interface • 20 channel CPU independent • Programmable Peripheral Interconnect (PPI) • 5x32 bit, 3x24bit Real Timer Counters (RTC) • 12Mbit/200K SPS ADC SGW111X BLE Modules Series Datasheet Page 3 of 25 o Support 128-bit AES HW encryption o 48 General Purpose I/O pins o Supply voltage: 1.7–5.5 V o Low Energy Current consumption, 3V DC/DC enabled: • Tx only, 0dBm: 4.8mA (typical) • Rx only @1Mbps: 4.6mA (typical) • System On mode, with full RAM retention: 2.35uA • System Off mode, with full RAM retention: 1.86uA o Operating Temperature: −40°C to 85°C o BQB: DID D046088, QDID : 135014 o FCC ID: 2AS9402 o IC (Industrial Canada) ID: 25021-02 o CE : Certified o Mechanical Dimension: 10.2mm x 14.1mm x 1.9mm 2.1. Applications o Connected home o Smart city infrastructure o Industrial mesh networks o Industrial smart lighting o Logistics and transportation SGW111X BLE Modules Series Datasheet Page 4 of 25 Table of Contents 1. Introduction .................................................................................................................................................................................... 2 2. Features ............................................................................................................................................................................................ 2 2.1. Applications ...................................................................................................................................... 3 3. Ordering Information .................................................................................................................................................................. 6 4. Block Diagram ................................................................................................................................................................................ 6 5. Pin Description ............................................................................................................................................................................... 7 6. Electrical Specifications ........................................................................................................................................................... 10 6.1. Absolute Maximum Ratings ........................................................................................................... 10 6.2. Operating Conditions ..................................................................................................................... 10 7. Module Interface ........................................................................................................................................................................ 11 7.1. Power Management ....................................................................................................................... 11 7.2. RF Antenna Interface ..................................................................................................................... 13 7.3. General Purpose I/O ....................................................................................................................... 13 8. Mechanical Dimension ............................................................................................................................................................. 16 9. Recommended PCB Landing Pattern & Pad Locations ................................................................................................ 17 10. Module Marking ....................................................................................................................................................................... 17 11. Soldering Temperature-Time Profile for Re-Flow Soldering .................................................................................. 18 12. Certifications ............................................................................................................................................................................. 19 12.1. Qualified Antenna Types .............................................................................................................. 19 12.2. Bluetooth ...................................................................................................................................... 19 12.3. FCC Statement .............................................................................................................................. 19 12.4. IC Statement ............................................................................................................................... 222 12.5. CE Statement ....…

Text truncated - open the document above for the full version.

SG Wireless Limited Agent Authorization Company: SG Wireless Limited Address: Unit 4, 5/F, Sun Fung Industrial Building 8 Ma Kok Street, Tsuen Wan, New Territories, Hong Kong Product Name: SGW111X BLE module Model Number(s): SGW1110, SGW1111 Product Description: BLE Module We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jan-15- 2 020 Name: Kenneth Wong Title: VP of Design and Development Company: SG Wireless Limited

Date: 23 Dec, 2019 Declaration Of Identity To Whom It May Concern: With regards to the application for Model: SGW1010, SGW1011, according to the designer, SG Wireless Limited, we hereby declare the difference between Model: SGW1010, SGW1011 and Model: SGW1110 , SGW1111 as; Basic Model Number: SGW1010, SGW1011 Basic Brand Name: SG Wireless Basic Product Name: SGW101X BLE Module ☐New/☒Additional Model Number(s): SGW1110, SGW1111 Declare the circuitry and electrical parts are identical to the basic models, except for the following difference Model Description SGW1010, SGW1011 SGW1010 and SGW1011 are used 6 layers PCB. SGW1110, SGW1111 SGW1110 and SGW1111 are used 4 layers PCB and small size SGW1110 Bluetooth Low Energy module with integrated PCB antenna SGW1111 Bluetooth Low Energy module with u.FL connector for external antenna These differences have been tested and got pass for the Safety and EMC test and RF test. Yours Sincerely, Print name: Kenneth Wong Title: VP of Design and Development SG Wireless Limited

Modular Approval Request FCC (KDB 996369 D01 & Part 15.212) FCC ID: 2AS9402_________ Items to be covered by Single modular transmitters. Answer from applicant 1. The modular transmitter must have its own RF shielding. YES 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over‐modulation. YES 3. The modular transmitter must have its own power supply regulation. YES 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(b)(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). YES 5. The modular transmitter must be tested in a stand‐alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. YES 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number in accordance with 15.212 (a)(1)(vi)(A) / (B). YES 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. YES 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 1.1310, 2.1091, 2.1093, and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In additio n, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance. Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compli ance. YES Items to be covered by Split modular transmitters. Answer from applicant 1. The modular transmitter must comply with all requirements of a single modular transmitter except for items (1) & (5) of the above single modular approval requirements. N/A 2. Only the radio front end must be shielded. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The interface between the split sections of the modular system must be digital with a minimum signalling amplitude of 150 mV peak‐to‐peak. N/A 3. Control information and other data may be exchanged between the transmitter control elements and radio front end. N/A 4. The sections of a split modular transmitter must be tested installed in a host device(s) similar to that which is representative of the platform(s) intended for use. N/A 5. Manufacturers must ensure that only transmitter control elements and radio front end components that have been approved together are capable of operating together. The transmitter module must not operate unless it has verified that the installed transmitter control elements and radio front end have been authorized together. Manufacturers may use me ans including, but not li mited to, coding in hardware and electronic signatures in software to meet these requirements, and must describe the methods in their application for equipment authorization. N/A Note: A limited modular approval (LMA) may be granted for single or split modular transmitters that comply partially with the requirements above. Name and surname of applicant (or authorized representative): _Kenneth Wong___ Date: __24 Dec 2019____ Signature: _______

Date: 15 Jan, 2020 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The SG Wireless Limited, the undersigned, hereby authorizes Mr. Wu Xuewen from Shenzhen BALUN Technology Co., Ltd., to act on the behalf of the SG Wireless Limited solely in matters relating to the application for an FCC equipment authorization for FCC ID: 2AS9402 including the signing of documents in connection with this Application. Necessary acts carried out by Shenzhen BALUN Technology Co., Ltd. in connection with the Application shall have the same effect as acts of the SG Wireless Limited. The SG Wireless Limited also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. Section 862. Yours Sincerely, Print name: Kenneth Wong Title: Chief Technology Officer SG Wireless Limited

Date: 15Jan, 2020 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 RE: SG Wireless Limited FCC ID: 2AS9402 FCC Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. SG Wireless Limited requests that the following documents regarding this submission for FCC ID: 2AS9402 be kept Long‐Term confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematics.pdf Operational Description Operational Description.pdf Those documents contain detailed system and equipment description and related information about the product which SG Wireless Limited considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, SG Wireless Limited considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Thank you for your attention to this matter. Yours Sincerely, Print name: Kenneth Wong Title: Chief Technology Officer SG Wireless Limited

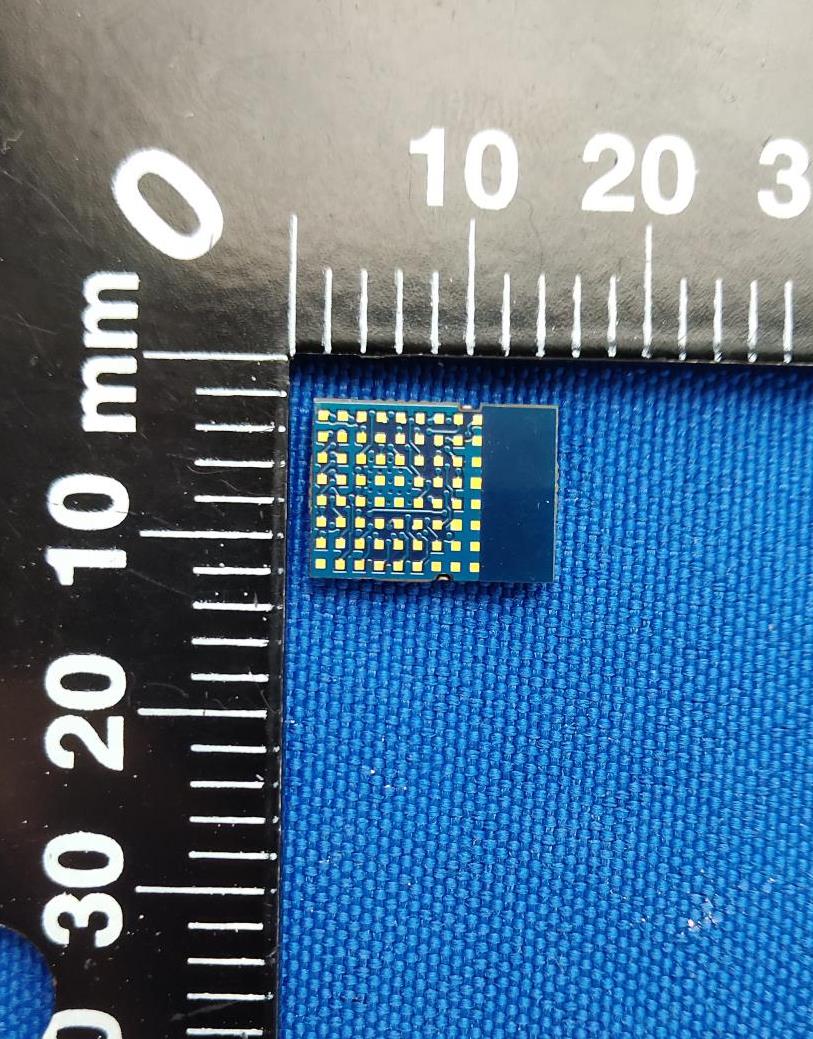

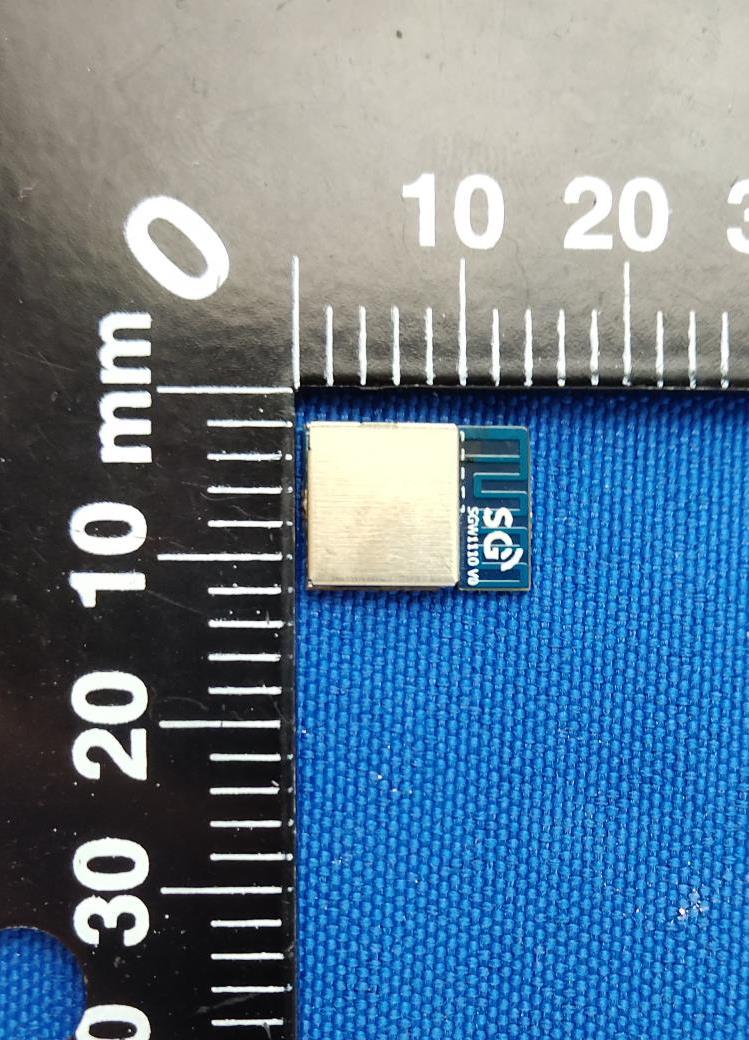

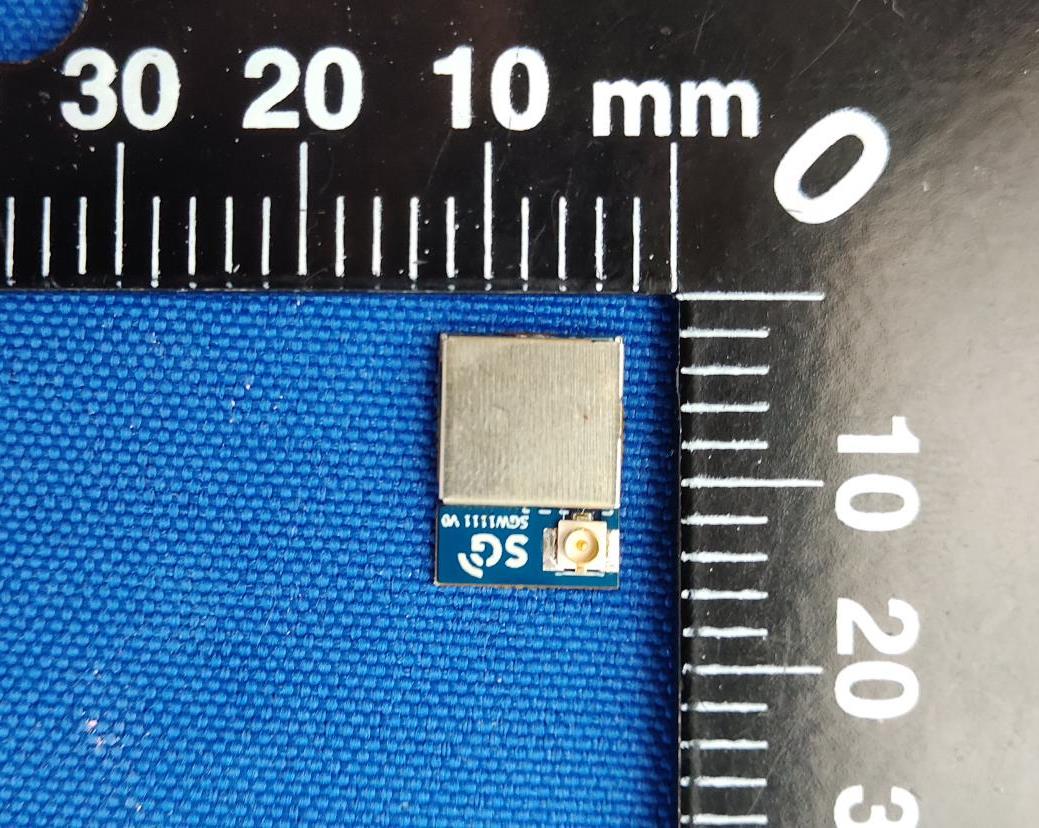

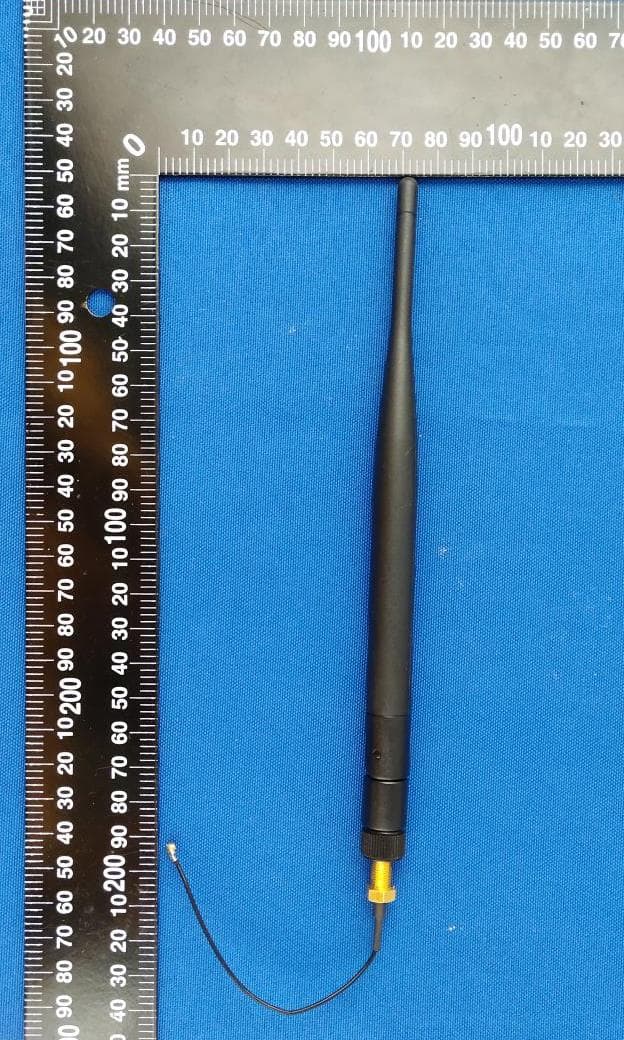

Annex No.: BL-SZ19C0646-AW 1 / 7 ANNEX C EUT EXTERNAL PHOTOS SGW1110 FRONT VIEW OF EUT REAR VIEW OF EUT Annex No.: BL-SZ19C0646-AW 2 / 7 LEFT SIDE VIEW OF EUT RIGHT SIDE OF EUT Annex No.: BL-SZ19C0646-AW 3 / 7 TOP VIEW OF EUT BOTTOM VIEW OF EUT Annex No.: BL-SZ19C0646-AW 4 / 7 SGW1111 FRONT VIEW OF EUT REAR VIEW OF EUT Annex No.: BL-SZ19C0646-AW 5 / 7 LEFT SIDE VIEW OF EUT RIGHT SIDE OF EUT Annex No.: BL-SZ19C0646-AW 6 / 7 TOP VIEW OF EUT BOTTOM VIEW OF EUT Annex No.: BL-SZ19C0646-AW 7 / 7 External Antenna

Label： Label location:

Annex No.: BL-SZ19C0646-AI 1 / 2 ANNEX D EUT INTERNAL PHOTOS SGW1110 SGW1111 PCB Antenna RF Chip RF Chip Unique Connector Annex No.: BL-SZ19C0646-AI 2 / 2 External Antenna

RF Exposure Evaluation For FCC ID: 2AS9402 Refer user manual this device is a SGW111X BLE module, and this device was designed used in Mobile devices that the minimum distance between human’s body is 20cm. Based on the 47CFR 2.1091, this device belongs to Mobile device. The definition of the category as following: Mobile Derives: CFR Title 47 §2.1091(b) (b) For purposes of this section, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. FCC KDB 447498 D01 General RF Exposure Guidance v06 Limit Devices operating in standalone mobile exposure conditions may contain a single transmitter or multiple transmitters that do not transmit simultaneously. A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. The minimum test separation distance required for a device to comply with mobile exposure conditions must be clearly identified in the installation and operating instructions, for all installation and exposure conditions, to enable users and installers to comply with RF exposure requirements. For mobile devices that have the potential to operate in portable device exposure conditions, similar to the configurations described in § 2.1091(d)(4), a KDB inquiry is required to determine the SAR test requirements for demonstrating compliance. When the categorical exclusion provision of § 2.1091(c) applies, the minimum test separation distance may be estimated, when applicable, by simple calculations according to plane-wave equivalent conditions, to ensure the transmitter and its antenna(s) can operate in manners that meet or exceed the estimated distance. The source-based time-averaged maximum radiated power, according to the maximum antenna gain, must be applied to calculate the field strength and power density required to establish the minimum test separation distance. When the estimated test separation distance becomes overly conservative and does not support compliance, MPE measurement or computational modeling may be used to determine the required minimum separation distance. According to FCC Part 1.1307, systems operating under the provisions of this section shall be operated in a manner the ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidelines. Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength(E)(V/m) Magnetic Field Strength (H)(A/m) Power Density (S)(mW/cm 2 ) 0.3-1.34 614 1.63 (100)* 1.34-30 824/f 2.19/f (180/f2)* 30-300 27.5 0.073 0.2 300-1500 f/1500 1500-100,000 1.0 MPE calculation formula Where: S = power density P = output power (mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = Separation distance between radiator and human body (cm) Test data Built-in Antenna BLUETOOTH Mode GFSK (BLE) Low Channel Middle Channel High Channel Peak Power (dBm) (1 Mbps) 7.06 7.26 7.48 Peak Power (dBm) (2 Mbps) 10.63 10.83 11.07 Note: This report listed the worst case peak power value, please refer to RF test report for more details. External Antenna BLUETOOTH Mode GFSK (BLE) Low Channel Middle Channel High Channel Peak Power (dBm) (1 Mbps) 6.22 6.27 6.31 Peak Power (dBm) (2 Mbps) 8.94 9.01 8.96 Note: This report listed the worst case peak power value, please refer to RF test report for more details. Turn-up power Mode Range (dBm) (Built-in Antenna) Range (dBm) (External Antenna) Bluetooth (1 Mbps) 6.00-8.00 5.00-7.00 Bluetooth (2 Mbps) 10.00-12.00 8.00-10.00 Test result Built-in Antenna Evolution mode Maximum peak output power （dBm） Antenna Gain (typical) (dBi): Total Power (mw) Distance (cm) Limit of Power Density (mW/cm²) Power Density (mW/cm²) Verdict Bluetooth (1 Mbps) 8.00 2.00 10.00 20 1 0.002 Pass Bluetooth (2 Mbps) 12.00 2.00 25.12 20 1 0.005 Pass External Antenna Evolution mode Maximum peak output power （dBm） Antenna Gain (typical) (dBi): Total Power (mw) Distance (cm) Limit of Power Density (mW/cm²) Power Density (mW/cm²) Verdict Bluetooth (1 Mbps) 7.00 3.00 10.00 20 1 0.002 Pass Bluetooth (2 Mbps) 10.00 3.00 19.95 20 1 0.004 Pass Note: 1. The SGW111X BLE module work frequency range used is 2400 MHz ~ 2483.5 MHz, the result close to the limit by the above formula, so we select 2440MHz and 2480MHz to calculate the exclusion power threshold. 2. More power list please refer to RF test report. Conclusion: RF exposure Evaluation Results: Compliance

Report No.: BL-SZ19C0646-601 2 / 106 Revision History Version Issue Date Revisions Content Rev. 01 Jan. 14, 2020 Initial Issue Rev. 02 Jan. 17, 2020 Updated frequency range of Conducted Spurious Emissions on pages 49-56 TABLE OF CONTENTS 1 ADMINISTRATIVE DATA (GENERAL INFORMATION) .......................................................................... 5 1.1 Identification of the Testing Laboratory ....................................................................................... 5 1.2 Identification of the Responsible Testing Location ...................................................................... 5 1.3 Laboratory Condition ................................................................................................................... 5 1.4 Announce .................................................................................................................................... 5 2 PRODUCT INFORMATION ...................................................................................................................... 6 2.1 Applicant Information ................................................................................................................... 6 2.2 Manufacturer Information ............................................................................................................ 6 2.3 Factory Information ..................................................................................................................... 6 2.4 General Description for Equipment under Test (EUT) ................................................................ 6 2.5 Technical Information .................................................................................................................. 7 2.6 Additional Instructions ................................................................................................................. 8 3 SUMMARY OF TEST RESULTS .............................................................................................................. 9 3.1 Test Standards ............................................................................................................................ 9 3.2 Verdict ....................................................................................................................................... 10 4 GENERAL TEST CONFIGURATIONS ................................................................................................... 11 4.1 Test Environments .................................................................................................................... 11 4.2 Test Equipment List ................................................................................................................... 11 4.3 Measurement Uncertainty ......................................................................................................... 12 4.4 Description of Test Setup .......................................................................................................... 13 4.4.1 For Antenna Port Test ............................................................................................................... 13 4.4.2 For AC Power Supply Port Test ................................................................................................ 13 4.4.3 For Radiated Test (Below 30 MHz) ........................................................................................... 14 4.4.4 For Radiated Test (30 MHz-1 GHz) .......................................................................................... 14 4.4.5 For Radiated Test (Above 1 GHz) ............................................................................................. 15 4.5 Measurement Results Explanation Example ............................................................................. 16 Report No.: BL-SZ19C0646-601 3 / 106 4.5.1 For conducted test items: .......................................................................................................... 16 4.5.2 For radiated band edges and spurious emission test: ............................................................... 16 5 TEST ITEMS ........................................................................................................................................... 17 5.1 Antenna Requirements .............................................................................................................. 17 5.1.1 Relevant Standards ................................................................................................................... 17 5.1.2 Antenna Anti-Replacement Construction .................................................................................. 17 5.1.3 Antenna Gain ............................................................................................................................ 17 5.2 Output Power ............................................................................................................................ 18 5.2.1 Test Limit ................................................................................................................................... 18 5.2.2 Test Setup ................................................................................................................................. 18 5.2.3 Test Procedure .......................................................................................................................... 18 5.2.4 Test Result ................................................................................................................................ 19 5.3 Occupied Bandwidth ................................................................................................................. 20 5.3.1 Limit ........................................................................................................................................... 20 5.3.2 Test Setup ..............................................................................................…

Text truncated - open the document above for the full version.

Annex No.: BL-SZ19C0646-AR 1 / 8 TEST SETUP PHOTOS 1 Radiated Test Photo Below 30MHz (Built-in Antenna) 30MHz-1 GHz (Built-in Antenna) Annex No.: BL-SZ19C0646-AR 2 / 8 Close-up (Built-in Antenna) Above 1GHz (Built-in Antenna) Annex No.: BL-SZ19C0646-AR 3 / 8 Close-up (Built-in Antenna) Below 30MHz (External Antenna) Annex No.: BL-SZ19C0646-AR 4 / 8 30MHz-1 GHz (External Antenna) Close-up (External Antenna) Annex No.: BL-SZ19C0646-AR 5 / 8 Above 1GHz (External Antenna) Close-up (External Antenna) Annex No.: BL-SZ19C0646-AR 6 / 8 2 Conducted Emissions Test Photo 1 (Built-in Antenna) Test Photo 2 (Built-in Antenna) Annex No.: BL-SZ19C0646-AR 7 / 8 Test Photo 1 (External Antenna) Test Photo 2 (External Antenna) Annex No.: BL-SZ19C0646-AR 8 / 8 3 Conducted Test Photo Conducted Test-BLE (Built-in Antenna) Conducted Test-BLE (External Antenna)
